SETA 60 CONEX reflector direct socket / socket surface / suspended system, SETA 60 CONEX reflector direct / indirect socket / socket suspended system, SETA 60 CONEX reflector direct / indirect plug / socket suspended system
SETA 60 CONEX reflector direct socket / socket surface / suspended system, SETA 60 CONEX reflector direct plug / socket surface / suspended system, SETA 60 CONEX reflector direct / indirect socket / socket suspended system, SETA 60 CONEX reflector direct / indirect plug / socket suspended system
SETA 60 CONEX reflector direct socket / socket surface / suspended system, SETA 60 CONEX reflector direct plug / socket surface / suspended system, SETA 60 CONEX reflector direct / indirect socket / socket suspended system, SETA 60 CONEX reflector direct / indirect plug / socket suspended system
SETA 60 CONEX reflector direct socket / socket surface / suspended system, SETA 60 CONEX reflector direct plug / socket surface / suspended system, SETA 60 CONEX reflector direct / indirect socket / socket suspended system, SETA 60 CONEX reflector direct / indirect plug / socket suspended system
XAL Office Graz
XAL Office Graz
Sensor technology

SETA

ceiling / suspended system

Quickinfo

3000 K, 4000 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM (initial MacAdam)
UGR ≤ 10, UGR ≤ 13, UGR ≤ 16, UGR ≤ 19
up to ↓ 7,220 lm/↑ 8,350 lm
up to 164 lm/W
L90 / 75000 h
DALI-2, DALI-2 / DALI-2 ESSENTIAL sensor
Reflector
IP20 / PC1 / 220-240 V
1,700 mm, 3,400 mm,

Colour

Reflector

System components
Single luminaire

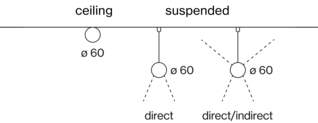

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all
  • 3DS
  • DWG - 3D
  • Revit BIM data
  • EPD

Description

Luminaire housing from extruded aluminium profile, round design (only ø 61 mm); no visible screws; designed for lighting systems; linear design; surface powder coated; for ceiling surface mounting or suspended mounting; pendant fitting with cable suspension; height adjustment without tools; spring clip attachment to the luminaire; incl. feeder cable; extruded profile for improved thermal management; high gloss reflector with faceted design; either with direct or direct / indirect light distribution; indirect light component with integrated PC boards and high quality lens system for maximum, homogeneous ceiling illumination, separately controllable; energy-efficient LEDs with very good colour rendering

DiiA® standards 251, 252, 253

special end cap & reflector design

corner connector

DIN EN 12464-1 UGR ≤ 19

glare-free direct and 170° indirect illumination

tunable white 2700 – 6500 K

CRI ≥ 98 XPECTRUM (optional)

System components

Click to see components

END CAPS

SETA END CAPS

1 pair
CORNER CONNECTOR

SETA SYSTEM CONNECTOR

incl. through wire 5 × 1.5 mm², mechanical
CABLE SUSPENSION

CABLE SUSPENSION

CANOPY

CANOPY square

incl. feeder cable 5 × 1.5 mm²
BLIND COVER

SETA BLIND COVER

SETA ceiling / suspended system

3000 K, 4000 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM (initial MacAdam)
UGR ≤ 10, UGR ≤ 13, UGR ≤ 16, UGR ≤ 19
up to ↓ 7,220 lm/↑ 8,350 lm
up to 164 lm/W
L90 / 75000 h
DALI-2, DALI-2 / DALI-2 ESSENTIAL sensor
Reflector
IP20 / PC1 / 220-240 V
1,700 mm, 3,400 mm,

Products and codes

Filter
94
lm/W
164
lm/W
2120
lm
7220
lm
3200
lm
8350
lm
22.6
W
106
W
0.56
0.81
0.51
0.74

Colour

Reflector

SETA 60 CONEX reflector direct socket / socket surface / suspended system, SETA 60 CONEX reflector direct plug / socket surface / suspended system, SETA 60 CONEX reflector direct / indirect socket / socket suspended system, SETA 60 CONEX reflector direct / indirect plug / socket suspended system

SETA linear direct / indirect TW power suspended system

SETA linear direct / indirect TW power suspended system

Status
Article number(s)
Type
Dimming
pure white, Reflector chrome, 3000 K, CRI ≥ 90, 125 lm/W, length 3,400 mm
DALI-2
pure white, Reflector chrome, 3000 K, CRI ≥ 90, 125 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
pure white, Reflector chrome, 4000 K, CRI ≥ 90, 125 lm/W, length 3,400 mm
DALI-2
pure white, Reflector chrome, 4000 K, CRI ≥ 90, 125 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
SETA 60 CONEX reflector direct socket / socket surface / suspended system, SETA 60 CONEX reflector direct / indirect socket / socket suspended system, SETA 60 CONEX reflector direct / indirect plug / socket suspended system

SETA linear direct / indirect TW power suspended system

SETA linear direct / indirect TW power suspended system

Status
Article number(s)
Type
Dimming
pure white, Reflector dark chrome, 3000 K, CRI ≥ 90, 108 lm/W, length 3,400 mm
DALI-2
pure white, Reflector dark chrome, 3000 K, CRI ≥ 90, 108 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
pure white, Reflector dark chrome, 4000 K, CRI ≥ 90, 108 lm/W, length 3,400 mm
DALI-2
pure white, Reflector dark chrome, 4000 K, CRI ≥ 90, 108 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
SETA 60 CONEX reflector direct socket / socket surface / suspended system, SETA 60 CONEX reflector direct plug / socket surface / suspended system, SETA 60 CONEX reflector direct / indirect socket / socket suspended system, SETA 60 CONEX reflector direct / indirect plug / socket suspended system

SETA linear direct / indirect TW power suspended system

SETA linear direct / indirect TW power suspended system

Status
Article number(s)
Type
Dimming
jet black, Reflector chrome, 3000 K, CRI ≥ 90, 125 lm/W, length 3,400 mm
DALI-2
jet black, Reflector chrome, 3000 K, CRI ≥ 90, 125 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
jet black, Reflector chrome, 4000 K, CRI ≥ 90, 125 lm/W, length 3,400 mm
DALI-2
jet black, Reflector chrome, 4000 K, CRI ≥ 90, 125 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
SETA 60 CONEX reflector direct socket / socket surface / suspended system, SETA 60 CONEX reflector direct plug / socket surface / suspended system, SETA 60 CONEX reflector direct / indirect socket / socket suspended system, SETA 60 CONEX reflector direct / indirect plug / socket suspended system

SETA linear direct / indirect TW power suspended system

SETA linear direct / indirect TW power suspended system

Status
Article number(s)
Type
Dimming
jet black, Reflector dark chrome, 3000 K, CRI ≥ 90, 108 lm/W, length 3,400 mm
DALI-2
jet black, Reflector dark chrome, 3000 K, CRI ≥ 90, 108 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
jet black, Reflector dark chrome, 4000 K, CRI ≥ 90, 108 lm/W, length 3,400 mm
DALI-2
jet black, Reflector dark chrome, 4000 K, CRI ≥ 90, 108 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
SETA 60 CONEX reflector direct socket / socket surface / suspended system, SETA 60 CONEX reflector direct plug / socket surface / suspended system, SETA 60 CONEX reflector direct / indirect socket / socket suspended system, SETA 60 CONEX reflector direct / indirect plug / socket suspended system

SETA linear direct / indirect power suspended system

SETA linear direct / indirect power suspended system

Status
Article number(s)
Type
Dimming
pure white, Reflector chrome, 3000 K, CRI ≥ 90, 123 lm/W, length 1,700 mm
DALI-2
pure white, Reflector chrome, 4000 K, CRI ≥ 90, 128 lm/W, length 1,700 mm
DALI-2
pure white, Reflector chrome, 3000 K, CRI ≥ 80, 142 lm/W, length 1,700 mm
DALI-2
pure white, Reflector chrome, 4000 K, CRI ≥ 80, 157 lm/W, length 1,700 mm
DALI-2
pure white, Reflector chrome, 3000 K, CRI ≥ 90, 129 lm/W, length 3,400 mm
DALI-2
pure white, Reflector chrome, 3000 K, CRI ≥ 90, 129 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
pure white, Reflector chrome, 4000 K, CRI ≥ 90, 134 lm/W, length 3,400 mm
DALI-2
pure white, Reflector chrome, 4000 K, CRI ≥ 90, 134 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
pure white, Reflector chrome, 3000 K, CRI ≥ 80, 149 lm/W, length 3,400 mm
DALI-2
pure white, Reflector chrome, 3000 K, CRI ≥ 80, 149 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
pure white, Reflector chrome, 4000 K, CRI ≥ 80, 164 lm/W, length 3,400 mm
DALI-2
pure white, Reflector chrome, 4000 K, CRI ≥ 80, 164 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
SETA 60 CONEX reflector direct socket / socket surface / suspended system, SETA 60 CONEX reflector direct / indirect socket / socket suspended system, SETA 60 CONEX reflector direct / indirect plug / socket suspended system

SETA linear direct / indirect power suspended system

SETA linear direct / indirect power suspended system

Status
Article number(s)
Type
Dimming
pure white, Reflector dark chrome, 3000 K, CRI ≥ 90, 106 lm/W, length 1,700 mm
DALI-2
pure white, Reflector dark chrome, 4000 K, CRI ≥ 90, 112 lm/W, length 1,700 mm
DALI-2
pure white, Reflector dark chrome, 3000 K, CRI ≥ 80, 123 lm/W, length 1,700 mm
DALI-2
pure white, Reflector dark chrome, 4000 K, CRI ≥ 80, 136 lm/W, length 1,700 mm
DALI-2
pure white, Reflector dark chrome, 3000 K, CRI ≥ 90, 111 lm/W, length 3,400 mm
DALI-2
pure white, Reflector dark chrome, 3000 K, CRI ≥ 90, 111 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
pure white, Reflector dark chrome, 4000 K, CRI ≥ 90, 116 lm/W, length 3,400 mm
DALI-2
pure white, Reflector dark chrome, 4000 K, CRI ≥ 90, 116 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
pure white, Reflector dark chrome, 3000 K, CRI ≥ 80, 128 lm/W, length 3,400 mm
DALI-2
pure white, Reflector dark chrome, 3000 K, CRI ≥ 80, 128 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
pure white, Reflector dark chrome, 4000 K, CRI ≥ 80, 142 lm/W, length 3,400 mm
DALI-2
pure white, Reflector dark chrome, 4000 K, CRI ≥ 80, 142 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
SETA 60 CONEX reflector direct socket / socket surface / suspended system, SETA 60 CONEX reflector direct plug / socket surface / suspended system, SETA 60 CONEX reflector direct / indirect socket / socket suspended system, SETA 60 CONEX reflector direct / indirect plug / socket suspended system

SETA linear direct / indirect power suspended system

SETA linear direct / indirect power suspended system

Status
Article number(s)
Type
Dimming
jet black, Reflector chrome, 3000 K, CRI ≥ 90, 123 lm/W, length 1,700 mm
DALI-2
jet black, Reflector chrome, 4000 K, CRI ≥ 90, 128 lm/W, length 1,700 mm
DALI-2
jet black, Reflector chrome, 3000 K, CRI ≥ 80, 142 lm/W, length 1,700 mm
DALI-2
jet black, Reflector chrome, 4000 K, CRI ≥ 80, 157 lm/W, length 1,700 mm
DALI-2
jet black, Reflector chrome, 3000 K, CRI ≥ 90, 129 lm/W, length 3,400 mm
DALI-2
jet black, Reflector chrome, 3000 K, CRI ≥ 90, 129 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
jet black, Reflector chrome, 4000 K, CRI ≥ 90, 134 lm/W, length 3,400 mm
DALI-2
jet black, Reflector chrome, 4000 K, CRI ≥ 90, 134 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
jet black, Reflector chrome, 3000 K, CRI ≥ 80, 149 lm/W, length 3,400 mm
DALI-2
jet black, Reflector chrome, 3000 K, CRI ≥ 80, 149 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
jet black, Reflector chrome, 4000 K, CRI ≥ 80, 164 lm/W, length 3,400 mm
DALI-2
jet black, Reflector chrome, 4000 K, CRI ≥ 80, 164 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
SETA 60 CONEX reflector direct socket / socket surface / suspended system, SETA 60 CONEX reflector direct plug / socket surface / suspended system, SETA 60 CONEX reflector direct / indirect socket / socket suspended system, SETA 60 CONEX reflector direct / indirect plug / socket suspended system

SETA linear direct / indirect power suspended system

SETA linear direct / indirect power suspended system

Status
Article number(s)
Type
Dimming
jet black, Reflector dark chrome, 3000 K, CRI ≥ 90, 106 lm/W, length 1,700 mm
DALI-2
jet black, Reflector dark chrome, 4000 K, CRI ≥ 90, 112 lm/W, length 1,700 mm
DALI-2
jet black, Reflector dark chrome, 3000 K, CRI ≥ 80, 123 lm/W, length 1,700 mm
DALI-2
jet black, Reflector dark chrome, 4000 K, CRI ≥ 80, 136 lm/W, length 1,700 mm
DALI-2
jet black, Reflector dark chrome, 3000 K, CRI ≥ 90, 111 lm/W, length 3,400 mm
DALI-2
jet black, Reflector dark chrome, 3000 K, CRI ≥ 90, 111 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
jet black, Reflector dark chrome, 4000 K, CRI ≥ 90, 116 lm/W, length 3,400 mm
DALI-2
jet black, Reflector dark chrome, 4000 K, CRI ≥ 90, 116 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
jet black, Reflector dark chrome, 3000 K, CRI ≥ 80, 128 lm/W, length 3,400 mm
DALI-2
jet black, Reflector dark chrome, 3000 K, CRI ≥ 80, 128 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
jet black, Reflector dark chrome, 4000 K, CRI ≥ 80, 142 lm/W, length 3,400 mm
DALI-2
jet black, Reflector dark chrome, 4000 K, CRI ≥ 80, 142 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
SETA 60 CONEX reflector direct socket / socket surface / suspended system, SETA 60 CONEX reflector direct plug / socket surface / suspended system, SETA 60 CONEX reflector direct / indirect socket / socket suspended system, SETA 60 CONEX reflector direct / indirect plug / socket suspended system

SETA linear direct ceiling / suspended system

SETA linear direct ceiling / suspended system

Status
Article number(s)
Type
Dimming
pure white, Reflector chrome, 3000 K, CRI ≥ 90, 131 lm/W, length 1,700 mm
DALI-2
pure white, Reflector chrome, 4000 K, CRI ≥ 90, 131 lm/W, length 1,700 mm
DALI-2
pure white, Reflector chrome, 3000 K, CRI ≥ 80, 150 lm/W, length 1,700 mm
DALI-2
pure white, Reflector chrome, 4000 K, CRI ≥ 80, 160 lm/W, length 1,700 mm
DALI-2
pure white, Reflector chrome, 3000 K, CRI ≥ 90, 134 lm/W, length 3,400 mm
DALI-2
pure white, Reflector chrome, 3000 K, CRI ≥ 90, 134 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
pure white, Reflector chrome, 4000 K, CRI ≥ 90, 134 lm/W, length 3,400 mm
DALI-2
pure white, Reflector chrome, 4000 K, CRI ≥ 90, 134 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
pure white, Reflector chrome, 3000 K, CRI ≥ 80, 154 lm/W, length 3,400 mm
DALI-2
pure white, Reflector chrome, 3000 K, CRI ≥ 80, 154 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
pure white, Reflector chrome, 4000 K, CRI ≥ 80, 164 lm/W, length 3,400 mm
DALI-2
pure white, Reflector chrome, 4000 K, CRI ≥ 80, 164 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
SETA 60 CONEX reflector direct socket / socket surface / suspended system, SETA 60 CONEX reflector direct / indirect socket / socket suspended system, SETA 60 CONEX reflector direct / indirect plug / socket suspended system

SETA linear direct ceiling / suspended system

SETA linear direct ceiling / suspended system

Status
Article number(s)
Type
Dimming
pure white, Reflector dark chrome, 3000 K, CRI ≥ 90, 94 lm/W, length 1,700 mm
DALI-2
pure white, Reflector dark chrome, 4000 K, CRI ≥ 90, 94 lm/W, length 1,700 mm
DALI-2
pure white, Reflector dark chrome, 3000 K, CRI ≥ 80, 108 lm/W, length 1,700 mm
DALI-2
pure white, Reflector dark chrome, 4000 K, CRI ≥ 80, 114 lm/W, length 1,700 mm
DALI-2
pure white, Reflector dark chrome, 3000 K, CRI ≥ 90, 96 lm/W, length 3,400 mm
DALI-2
pure white, Reflector dark chrome, 3000 K, CRI ≥ 90, 96 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
pure white, Reflector dark chrome, 4000 K, CRI ≥ 90, 96 lm/W, length 3,400 mm
DALI-2
pure white, Reflector dark chrome, 4000 K, CRI ≥ 90, 96 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
pure white, Reflector dark chrome, 3000 K, CRI ≥ 80, 110 lm/W, length 3,400 mm
DALI-2
pure white, Reflector dark chrome, 3000 K, CRI ≥ 80, 110 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
pure white, Reflector dark chrome, 4000 K, CRI ≥ 80, 118 lm/W, length 3,400 mm
DALI-2
pure white, Reflector dark chrome, 4000 K, CRI ≥ 80, 118 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
SETA 60 CONEX reflector direct socket / socket surface / suspended system, SETA 60 CONEX reflector direct plug / socket surface / suspended system, SETA 60 CONEX reflector direct / indirect socket / socket suspended system, SETA 60 CONEX reflector direct / indirect plug / socket suspended system

SETA linear direct ceiling / suspended system

SETA linear direct ceiling / suspended system

Status
Article number(s)
Type
Dimming
jet black, Reflector chrome, 3000 K, CRI ≥ 90, 131 lm/W, length 1,700 mm
DALI-2
jet black, Reflector chrome, 4000 K, CRI ≥ 90, 131 lm/W, length 1,700 mm
DALI-2
jet black, Reflector chrome, 3000 K, CRI ≥ 80, 150 lm/W, length 1,700 mm
DALI-2
jet black, Reflector chrome, 4000 K, CRI ≥ 80, 160 lm/W, length 1,700 mm
DALI-2
jet black, Reflector chrome, 3000 K, CRI ≥ 90, 134 lm/W, length 3,400 mm
DALI-2
jet black, Reflector chrome, 3000 K, CRI ≥ 90, 134 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
jet black, Reflector chrome, 4000 K, CRI ≥ 90, 134 lm/W, length 3,400 mm
DALI-2
jet black, Reflector chrome, 4000 K, CRI ≥ 90, 134 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
jet black, Reflector chrome, 3000 K, CRI ≥ 80, 154 lm/W, length 3,400 mm
DALI-2
jet black, Reflector chrome, 3000 K, CRI ≥ 80, 154 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
jet black, Reflector chrome, 4000 K, CRI ≥ 80, 164 lm/W, length 3,400 mm
DALI-2
jet black, Reflector chrome, 4000 K, CRI ≥ 80, 164 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
SETA 60 CONEX reflector direct socket / socket surface / suspended system, SETA 60 CONEX reflector direct plug / socket surface / suspended system, SETA 60 CONEX reflector direct / indirect socket / socket suspended system, SETA 60 CONEX reflector direct / indirect plug / socket suspended system

SETA linear direct ceiling / suspended system

SETA linear direct ceiling / suspended system

Status
Article number(s)
Type
Dimming
jet black, Reflector dark chrome, 3000 K, CRI ≥ 90, 94 lm/W, length 1,700 mm
DALI-2
jet black, Reflector dark chrome, 4000 K, CRI ≥ 90, 94 lm/W, length 1,700 mm
DALI-2
jet black, Reflector dark chrome, 3000 K, CRI ≥ 80, 108 lm/W, length 1,700 mm
DALI-2
jet black, Reflector dark chrome, 4000 K, CRI ≥ 80, 114 lm/W, length 1,700 mm
DALI-2
jet black, Reflector dark chrome, 3000 K, CRI ≥ 90, 96 lm/W, length 3,400 mm
DALI-2
jet black, Reflector dark chrome, 3000 K, CRI ≥ 90, 96 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
jet black, Reflector dark chrome, 4000 K, CRI ≥ 90, 96 lm/W, length 3,400 mm
DALI-2
jet black, Reflector dark chrome, 4000 K, CRI ≥ 90, LED, 96 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
jet black, Reflector dark chrome, 3000 K, CRI ≥ 80, 110 lm/W, length 3,400 mm
DALI-2
jet black, Reflector dark chrome, 3000 K, CRI ≥ 80, 110 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor
jet black, Reflector dark chrome, 4000 K, CRI ≥ 80, 118 lm/W, length 3,400 mm
DALI-2
jet black, Reflector dark chrome, 4000 K, CRI ≥ 80, 118 lm/W, length 3,400 mm
DALI-2 / DALI-2 ESSENTIAL sensor

Accessories

Electrical cable

article number
type
control
dimensions
THROUGH WIRE
004-90005
5 × 1.5 mm² | 10 pieces
DALI-2
0.3 kg

Mounting

article number
type
colour
dimensions
CABLE SUSPENSION
005-2152110
chrome
width 46 mm
0.05 kg
CEILING FASTENER
050-2041217
pure white
RAL 9010
length 67 mm
width 48 mm
height 8 mm
0.02 kg
CEILING FASTENER
050-2041218
jet black
RAL 9005
length 67 mm
width 48 mm
height 8 mm
0.02 kg
END CAPS
074-5090017
1 pair
pure white
RAL 9010
diameter 60 mm
height 34 mm
0.09 kg
END CAPS
074-5090018
1 pair
jet black
RAL 9005
diameter 60 mm
height 34 mm
0.09 kg
LINEAR CONNECTOR ceiling
074-5091110
mechanical
length 150 mm
width 28 mm
0.13 kg
LINEAR CONNECTOR incl. cable suspension
074-6091120
mechanical
length 120 mm
width 28 mm
0.1 kg

Electrical components

article number
colour
type
dimensions
feeder cable length
CANOPY square
005-2212417
pure white
RAL 9010
incl. feeder cable 5 × 1.5 mm²
length 90 mm
width 90 mm
height 22 mm
0.29 kg
1,500 mm
CANOPY square
005-2212418
jet black
RAL 9005
incl. feeder cable 5 × 1.5 mm²
length 90 mm
width 90 mm
height 22 mm
0.29 kg
1,500 mm
CANOPY round
005-2650037
pure white
RAL 9010
incl. feeder cable 5 × 1.5 mm²
0.28 kg
1,500 mm
CANOPY round
005-2650038
jet black
RAL 9005
incl. feeder cable 5 × 1.5 mm²
0.28 kg
1,500 mm

Electrical mounting

article number
colour
type
dimensions
CORNER CONNECTOR 90°
074-5091217
pure white
RAL 9010
incl. through wire 5 × 1.5 mm²
length 250 mm
width 250 mm
height 60 mm
CORNER CONNECTOR 90°
074-5091218
jet black
RAL 9005
incl. through wire 5 × 1.5 mm²
length 250 mm
width 250 mm
height 60 mm

Optical

article number
colour
dimensions
BLIND COVER
074-5099107
pure white
RAL 9010
length 250 mm
width 38 mm
0.06 kg
BLIND COVER
074-5099108
jet black
RAL 9005
length 250 mm
width 38 mm
0.06 kg
BLIND COVER
074-5099117
pure white
RAL 9010
length 500 mm
width 38 mm
0.13 kg
BLIND COVER
074-5099118
jet black
RAL 9005
length 500 mm
width 38 mm
0.13 kg

Related products

New Version

SETA

suspended

MOVE IT 10

trimless system

MOVE IT 10

surface system

MOVE IT 10

square / round suspended system

MOVE IT 10

square / round pole system

MOVE IT 10

square direct suspended system

REFLECTORLINE

MOVE IT 10

OPAL

MOVE IT 10

DARKLIGHT

MOVE IT 10
New

SPOTLINE

MOVE IT 10
