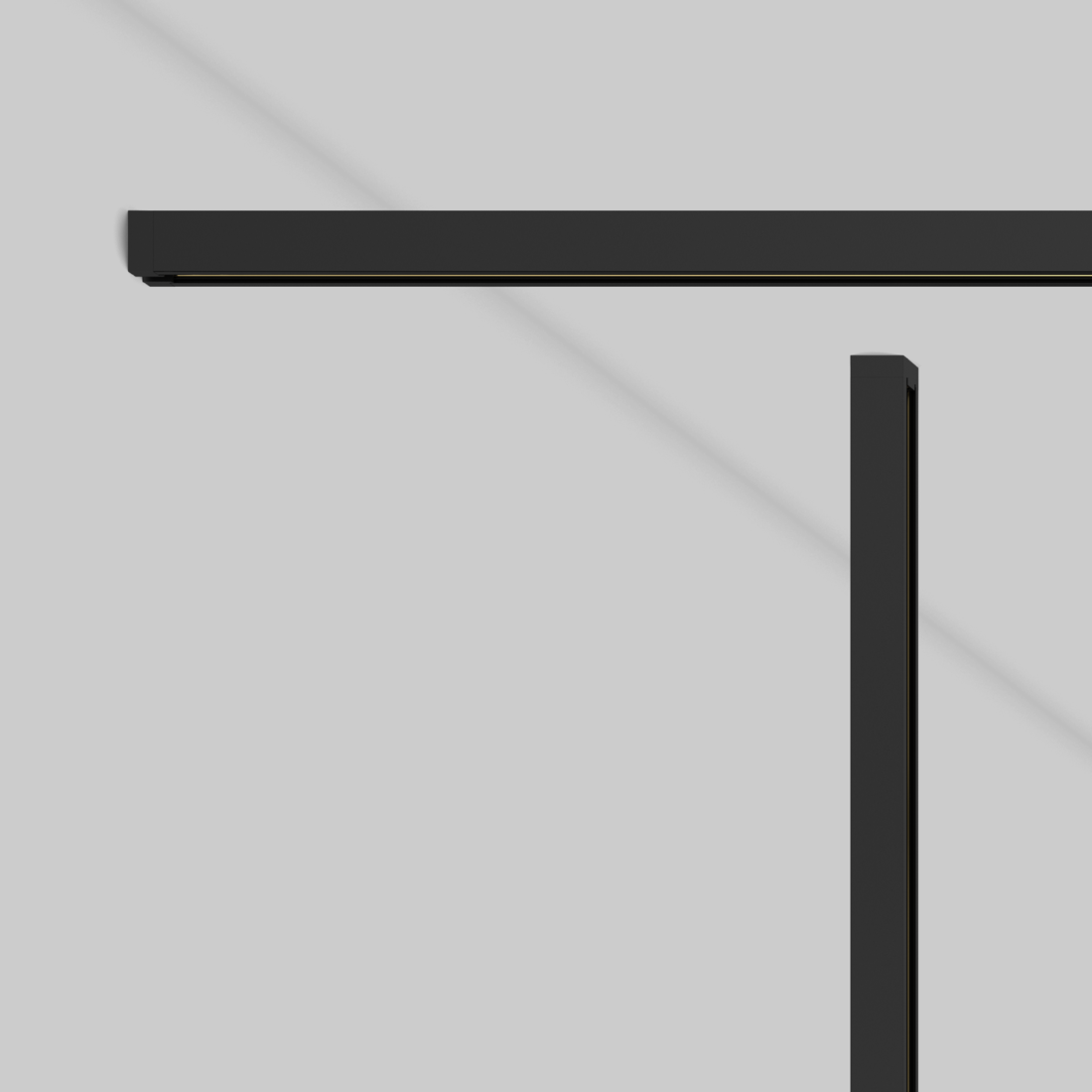

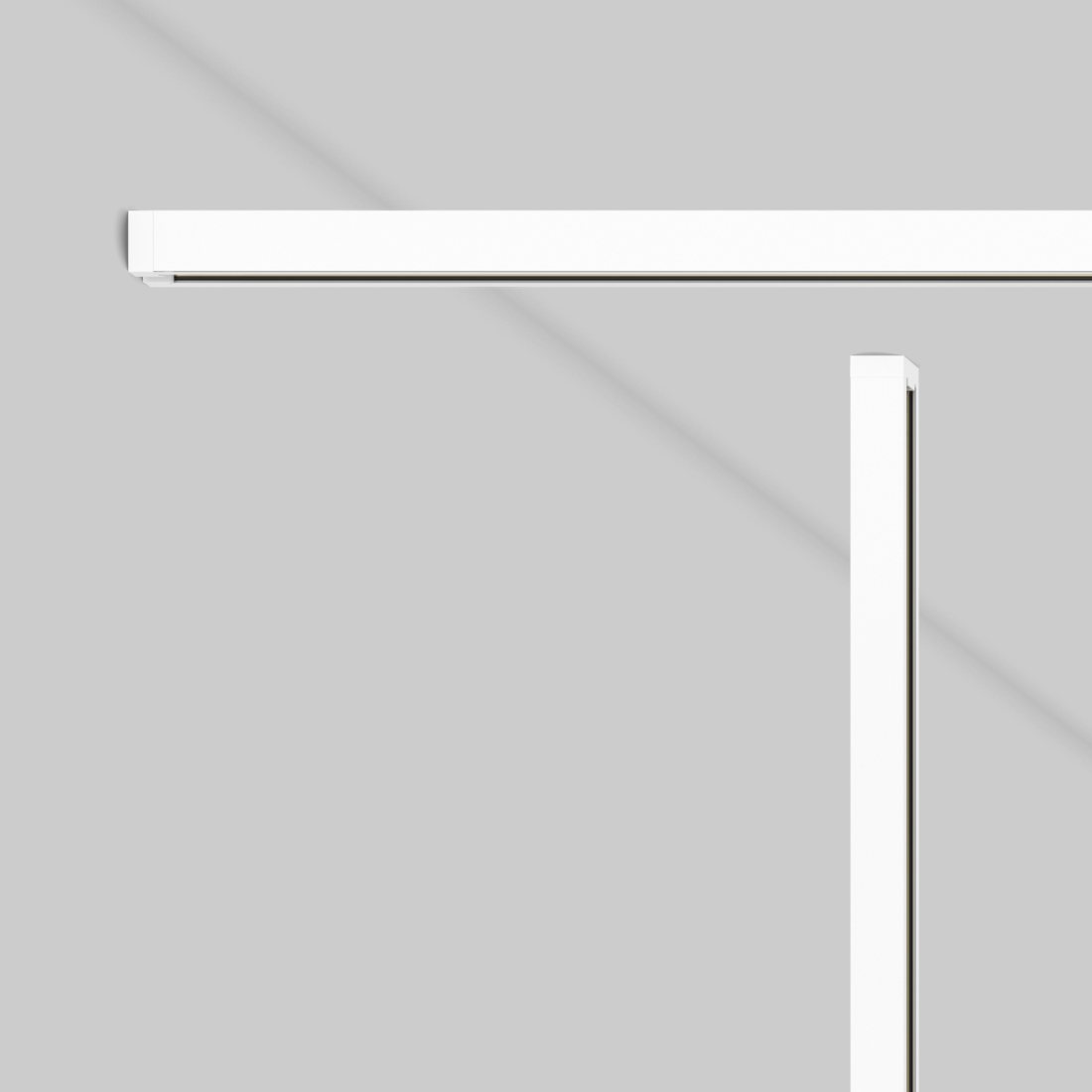

MOVE IT 10 track square direct suspended

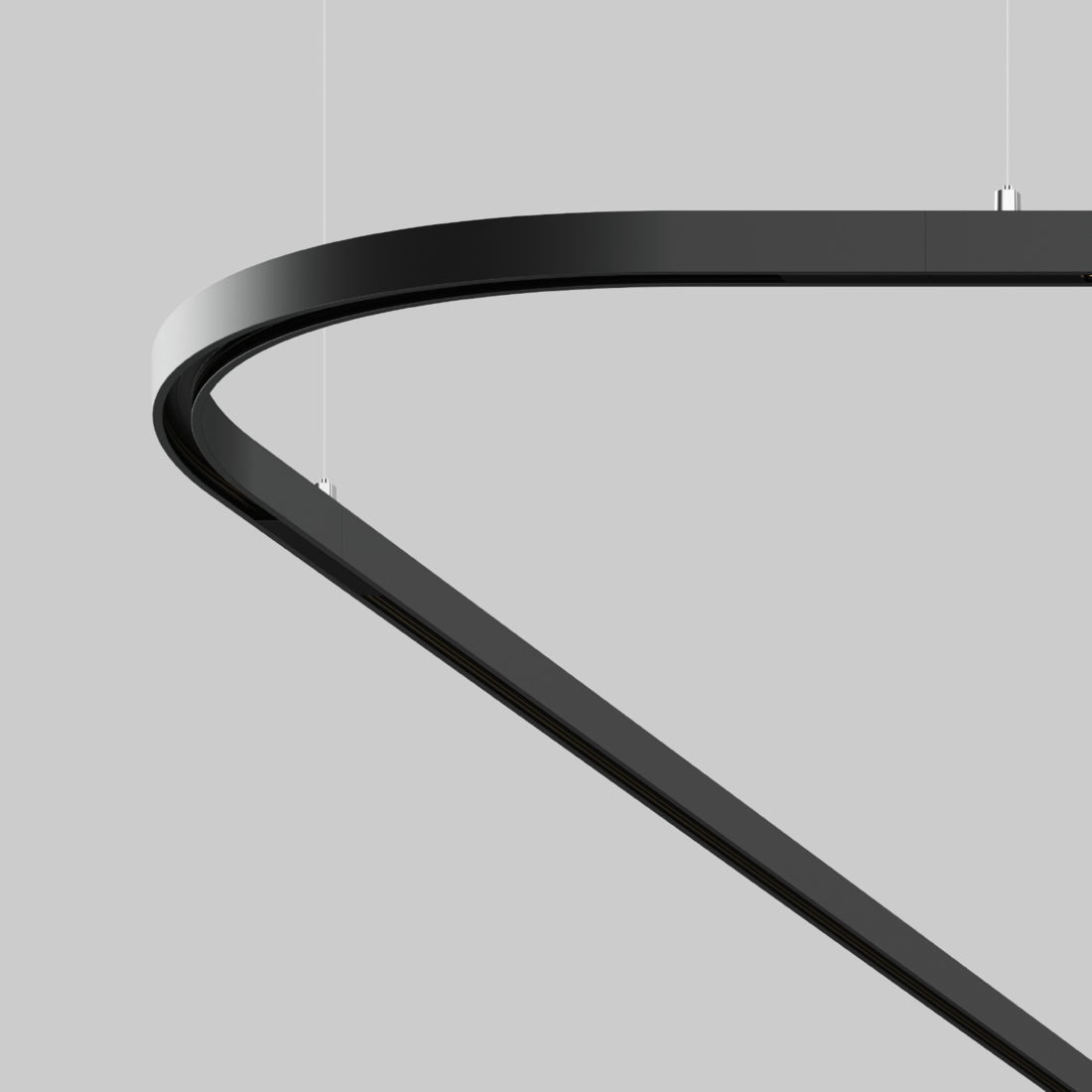

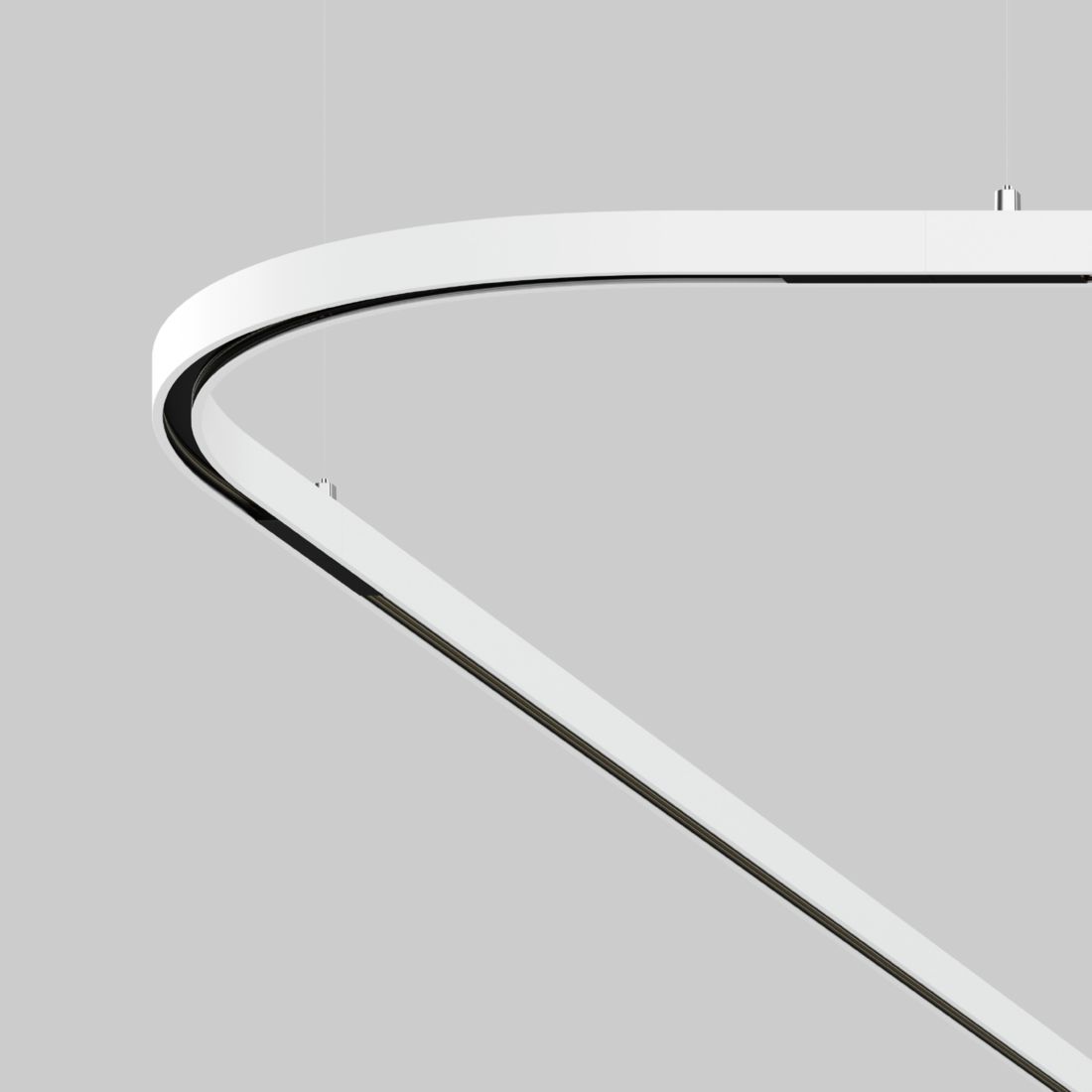

MOVE IT 10 track square curve direct suspended
MOVE IT 10 track square direct suspended
MOVE IT 10 track square curve direct suspended

MOVE IT 10 square direct

suspended system

Quickinfo

DALI-2
IP20 / PC3 / 48 V
1,100 mm, 2,100 mm, 3,100 mm, custom cut

Colour

Inner colour

Products and codes
Discover family

Simple drawing

Product data & specification documents

Download all
Download all

Description

Thin extruded aluminium profile with 24 mm height and 10 mm width groove; for suspended mounting (cable suspension, height adjustment without tools, incl. black feed); designed for continuous lighting systems; flexible system design through L, T or X connectors or by means of LEVEL connectors; with integrated power track profile for take off of supply voltage and DALI-2 signal; surface anodised or powder coated; insets can be installed flexibly and without tools by means of clip mount

custom cut on building site

Products and codes

Filter

Colour

Inner colour

MOVE IT 10 track square curve direct suspended

MOVE IT 10 track square curve direct suspended

MOVE IT 10 track square curve direct suspended

Status
Article number(s)
Type
Dimming
traffic white, centerline radius 300 mm
DALI-2
traffic white, centerline radius 500 mm
DALI-2
MOVE IT 10 track square curve direct suspended

MOVE IT 10 track square curve direct suspended

MOVE IT 10 track square curve direct suspended

Status
Article number(s)
Type
Dimming
jet black, centerline radius 300 mm
DALI-2
jet black, centerline radius 500 mm
DALI-2
MOVE IT 10 track square direct suspended

MOVE IT 10 track square direct suspended

MOVE IT 10 track square direct suspended

Status
Article number(s)
Type
Dimming
traffic white, length 1,100 mm
DALI-2
traffic white, length 2,100 mm
DALI-2
traffic white, length 3,100 mm
DALI-2
traffic white, custom cut
DALI-2
MOVE IT 10 track square direct suspended

MOVE IT 10 track square direct suspended

MOVE IT 10 track square direct suspended

Status
Article number(s)
Type
Dimming
jet black, length 1,100 mm
DALI-2
jet black, length 2,100 mm
DALI-2
jet black, length 3,100 mm
DALI-2
jet black, custom cut
DALI-2

System products

TILA

adjustable MOVE IT 10

TARO

MOVE IT 10

NOBA

adjustable MOVE IT 10
New

BO PRO

MOVE IT 10

Accessories

Electrical components

article number
colour
dimensions
CANOPY square
005-2311717
traffic white
RAL 9016
length 90 mm
width 90 mm
height 22 mm
0.1 kg
CANOPY square
005-2311718
jet black
RAL 9005
length 90 mm
width 90 mm
height 22 mm
0.1 kg
CANOPY round
005-2600737
traffic white
RAL 9016
diameter 90 mm
height 22 mm
0.08 kg
CANOPY round
005-2600738
jet black
RAL 9005
diameter 90 mm
height 22 mm
0.08 kg

Optical

article number
colour
dimensions
BLIND COVER
030-1003017
traffic white
RAL 9016
length 1,100 mm
width 12 mm
height 10 mm
0.06 kg
BLIND COVER
030-1003018
jet black
RAL 9005
length 1,100 mm
width 12 mm
height 10 mm
0.06 kg
BLIND COVER
030-1005017
traffic white
RAL 9016
length 2,100 mm
width 12 mm
height 10 mm
0.12 kg
BLIND COVER
030-1005018
jet black
RAL 9005
length 2,100 mm
width 12 mm
height 10 mm
0.15 kg
BLIND COVER
030-1007017
traffic white
RAL 9016
length 3,100 mm
width 12 mm
height 10 mm
0.08 kg
BLIND COVER
030-1007018
jet black
RAL 9005
length 3,100 mm
width 12 mm
height 10 mm
0.38 kg
BLIND COVER
E83600....7
traffic white
RAL 9016
custom cut
width 12 mm
height 10 mm
BLIND COVER
E83600....8
jet black
RAL 9005
custom cut
width 12 mm
height 10 mm

Mounting

article number
type
colour
dimensions
END CAPS
030-1320017
1 pair
traffic white
RAL 9016
length 19 mm
width 24 mm
height 16 mm
0.01 kg
END CAPS
030-1320018
1 pair
jet black
RAL 9005
length 19 mm
width 24 mm
height 16 mm
0.09 kg
L CONNECTOR
030-1335017
mechanical
traffic white
RAL 9016
length 21 mm
width 21 mm
0.02 kg
L CONNECTOR
030-1335018
mechanical
jet black
RAL 9005
length 21 mm
width 21 mm
0.02 kg
T CONNECTOR
030-1336017
mechanical
traffic white
RAL 9016
length 21 mm
width 23 mm
0.02 kg
T CONNECTOR
030-1336018
mechanical
jet black
RAL 9005
length 21 mm
width 23 mm
0.01 kg
X CONNECTOR
030-1337017
mechanical
traffic white
RAL 9016
length 23 mm
width 23 mm
0.1 kg
X CONNECTOR
030-1337018
mechanical
jet black
RAL 9005
length 23 mm
width 23 mm
0.02 kg
CABLE SUSPENSION LINEAR CONNECTOR
030-2210014
chrome
0.05 kg
CABLE SUSPENSION LINEAR CONNECTOR
030-2210017
traffic white
RAL 9016
0.06 kg
CABLE SUSPENSION LINEAR CONNECTOR
030-2210018
jet black
RAL 9005
0.05 kg
CABLE SUSPENSION
030-2230014
chrome
0.04 kg
CABLE SUSPENSION
030-2230017
traffic white
RAL 9016
0.5 kg
CABLE SUSPENSION
030-2230018
jet black
RAL 9005
0.04 kg
LINEAR CONNECTOR
030-2300018
mechanical
length 50 mm
width 16 mm
height 13 mm
0.02 kg

Electrical mounting

article number
colour
type
dimensions
LINEAR CONNECTOR
030-2101138
jet black
RAL 9005
electrical
length 120 mm
width 10 mm
0.2 kg
L CONNECTOR
030-2111138
jet black
RAL 9005
electrical
length 85 mm
width 10 mm
height 85 mm
0.02 kg
T CONNECTOR
030-2121138
jet black
RAL 9005
electrical
length 160 mm
width 10 mm
height 75 mm
0.02 kg
X CONNECTOR
030-2131138
jet black
RAL 9005
electrical
length 160 mm
width 10 mm
height 160 mm
0.05 kg

Feeder

article number
colour
dimensions
feeder cable length
INTERNAL POWER FEEDER
030-2525038
jet black
RAL 9005
length 115 mm
width 11 mm
height 10 mm
0.16 kg
2,000 mm
INTERNAL POWER FEEDER
030-2525138
jet black
RAL 9005
length 115 mm
width 11 mm
height 10 mm
0.38 kg
5,000 mm

Mounting tools

article number
dimensions
3-in-1 mounting tool
030-2611000
length 96 mm
width 11 mm
0.04 kg
