BETO

ceiling / suspended system

Quickinfo

3000 K, 4000 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM
UGR < 10, UGR < 13, UGR < 16, UGR < 19
up to ↓ 10,200 lm/↑ 8,640 lm
up to 164 lm/W
L90 / 50000 h
DALI-2, DALI-2 sensor

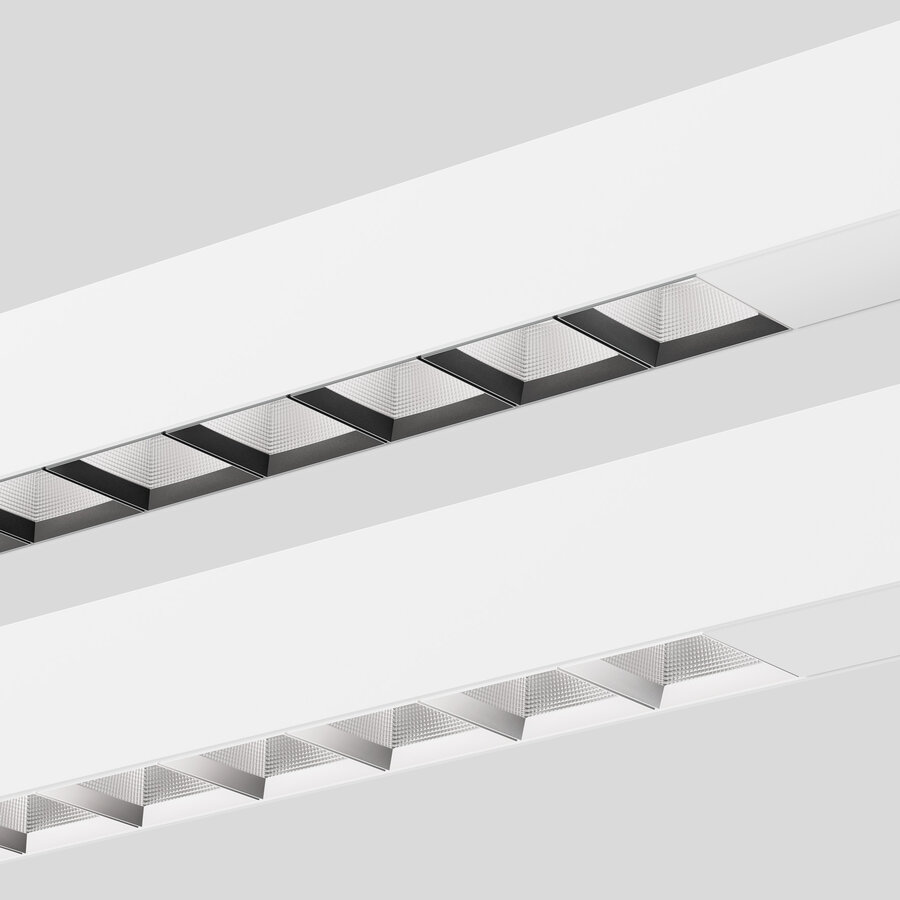

Reflector
IP20 / PC1 220-240V

Colour

  • Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    • 3DS
    • DWG - 3D
    • Revit BIM data

    Description

    Luminaire housing from extruded aluminium profile, angular design (only 42 x 42 mm); no visible screws; designed for lighting systems; different versions: choice of linear, S-shaped or CURVE segment design (90° or 180°); surface powder coated; for ceiling surface mounting or suspended mounting; pendant fitting with cable suspension; height adjustment without tools; spring clip attachment to the luminaire; incl. feeder cable; extruded profile for improved thermal management; high gloss reflector with faceted design; either with direct or direct / indirect light distribution, or with high quality aluminum-vaporised micro-faceted reflector for homogeneous vertical lighting intensity; indirect light component with integrated PC boards and high quality lens system for maximum, homogeneous ceiling illumination, separately controllable; energy-efficient LEDs with very good colour rendering

    DiiA® standards 251, 252, 253

    curve elements

    DIN EN 12464-1 UGR ≤ 19

    glare-free direct and 170° indirect illumination

    CRI ≥ 98 XPECTRUM (optional)

    System components

    Click to see components

    BETO ceiling / suspended system;BETO LINEAR DIRECT ceiling / suspended system

    BETO linear direct ceiling / suspended system

    3000 K, 4000 K
    CRI ≥ 80, CRI ≥ 90 / 3 SDCM
    UGR < 10, UGR < 13, UGR < 16, UGR < 19
    up to ↓ 10,200 lm/↑ 8,640 lm
    up to 164 lm/W
    L90 / 50000 h
    DALI-2, DALI-2 sensor
    Reflector
    IP20 / PC1 220-240V

    BETO END CAPS

    BETO BLIND COVER

    250 mm, 500 mm

    BETO SYSTEM CONNECTOR

    90° | incl. through wire 5 × 1.5 mm²

    CANOPY / FEEDER CABLE

    5 x 1,5 mm²
    BETO S-LINE 225 L DIRECT ceiling / suspended system;BETO S-LINE 225 L DIRECT / INDIRECT POWER suspended system

    BETO s-line 225 L direct / indirect power suspended system

    3000 K, 4000 K
    CRI ≥ 80, CRI ≥ 90 / 3 SDCM
    UGR < 10, UGR < 13, UGR < 16, UGR < 19
    up to ↓ 10,200 lm/↑ 8,640 lm
    up to 164 lm/W
    L90 / 50000 h
    DALI-2, DALI-2 sensor
    Reflector
    IP20 / PC1 220-240V
    Dieser Bereich wird neu geladen sobald ein Eingabefeld geändert wird.

    Products and codes

    Filter
    100
    lm/W
    164
    lm/W
    2270
    lm
    10200
    lm
    3710
    lm
    8640
    lm
    22.6
    W
    144
    W
    0.54
    0.74
    0.49
    0.67

    Colour

  • Reflector

  • BETO LINEAR BLACKBOARD DIRECT / INDIRECT suspended system

    BETO linear blackboard direct / indirect suspended system

    BETO linear blackboard direct / indirect suspended system

    Status
    Article number(s)
    Type
    Dimming
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 75 W, 116 lm/W, length 1,700 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 76 W, 123 lm/W, length 1,700 mm
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 120 W, 126 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 122 W, 134 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 142 W, 124 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 144 W, 131 lm/W, length 3,400 mm
    DALI-2
    BETO LINEAR BLACKBOARD DIRECT / INDIRECT suspended system

    BETO linear blackboard direct / indirect suspended system

    BETO linear blackboard direct / indirect suspended system

    Status
    Article number(s)
    Type
    Dimming
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 75 W, 116 lm/W, length 1,700 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 76 W, 123 lm/W, length 1,700 mm
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 120 W, 126 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 122 W, 134 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 142 W, 124 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 144 W, 131 lm/W, length 3,400 mm
    DALI-2
    BETO LINEAR BLACKBOARD DIRECT ceiling / suspended system

    BETO linear blackboard direct ceiling / suspended system

    BETO linear blackboard direct ceiling / suspended system

    Status
    Article number(s)
    Type
    Dimming
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 47 W, 107 lm/W, length 1,700 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 47 W, 109 lm/W, length 1,700 mm
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 70 W, 108 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 71 W, 108 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 93 W, 108 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 90 W, 113 lm/W, length 3,400 mm
    DALI-2
    BETO LINEAR BLACKBOARD DIRECT ceiling / suspended system

    BETO linear blackboard direct ceiling / suspended system

    BETO linear blackboard direct ceiling / suspended system

    Status
    Article number(s)
    Type
    Dimming
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 47 W, 107 lm/W, length 1,700 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 47 W, 109 lm/W, length 1,700 mm
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 70 W, 108 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 71 W, 108 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 93 W, 108 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 90 W, 113 lm/W, length 3,400 mm
    DALI-2
    BETO LINEAR DIRECT / INDIRECT POWER suspended system;BETO LINEAR DIRECT / INDIRECT TW POWER suspended system

    BETO linear direct / indirect power suspended system

    BETO linear direct / indirect power suspended system

    Status
    Article number(s)
    Type
    Dimming
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 51 W, 135 lm/W, length 1,700 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 51 W, 154 lm/W, length 1,700 mm
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 95 W, 144 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 95 W, 144 lm/W, length 3,400 mm
    DALI-2 sensor
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 95 W, 164 lm/W, length 3,400 mm
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 95 W, 164 lm/W, length 3,400 mm
    DALI-2 sensor
    BETO LINEAR DIRECT / INDIRECT POWER suspended system;BETO LINEAR DIRECT / INDIRECT TW POWER suspended system

    BETO linear direct / indirect power suspended system

    BETO linear direct / indirect power suspended system

    Status
    Article number(s)
    Type
    Dimming
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 51 W, 135 lm/W, length 1,700 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 51 W, 154 lm/W, length 1,700 mm
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 95 W, 144 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ CRI ≥ 80, system 95 W, 144 lm/W, length 3,400 mm
    DALI-2 sensor
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 95 W, 164 lm/W, length 3,400 mm
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ CRI ≥ 80, system 95 W, 164 lm/W, length 3,400 mm
    DALI-2 sensor
    BETO LINEAR DIRECT / INDIRECT POWER suspended system;BETO LINEAR DIRECT / INDIRECT TW POWER suspended system

    BETO linear direct / indirect power suspended system

    BETO linear direct / indirect power suspended system

    Status
    Article number(s)
    Type
    Dimming
    black, Reflector dark chrome, 3000 K, CRI ≥ CRI ≥ 80, system 51 W, 117 lm/W, length 1,700 mm
    DALI-2
