BETO

free standing double

Quickinfo

3000 K, 4000 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM (initial MacAdam)
UGR ≤ 16, UGR ≤ 19
up to ↓ 4,600 lm / ↑ 15,100 lm
up to 150 lm/W
L90 / 50000 h
stand alone ESSENTIAL sensor, touch DIM on pole
Reflector
IP20

Colour

pure white

jet black

Reflector

chrome

dark chrome

Products and codes

Discover family

Simple drawing

Light distribution

Downloads & links

Product data & specification documents

Datasheet product line

DWG - 2D

Download all

Description

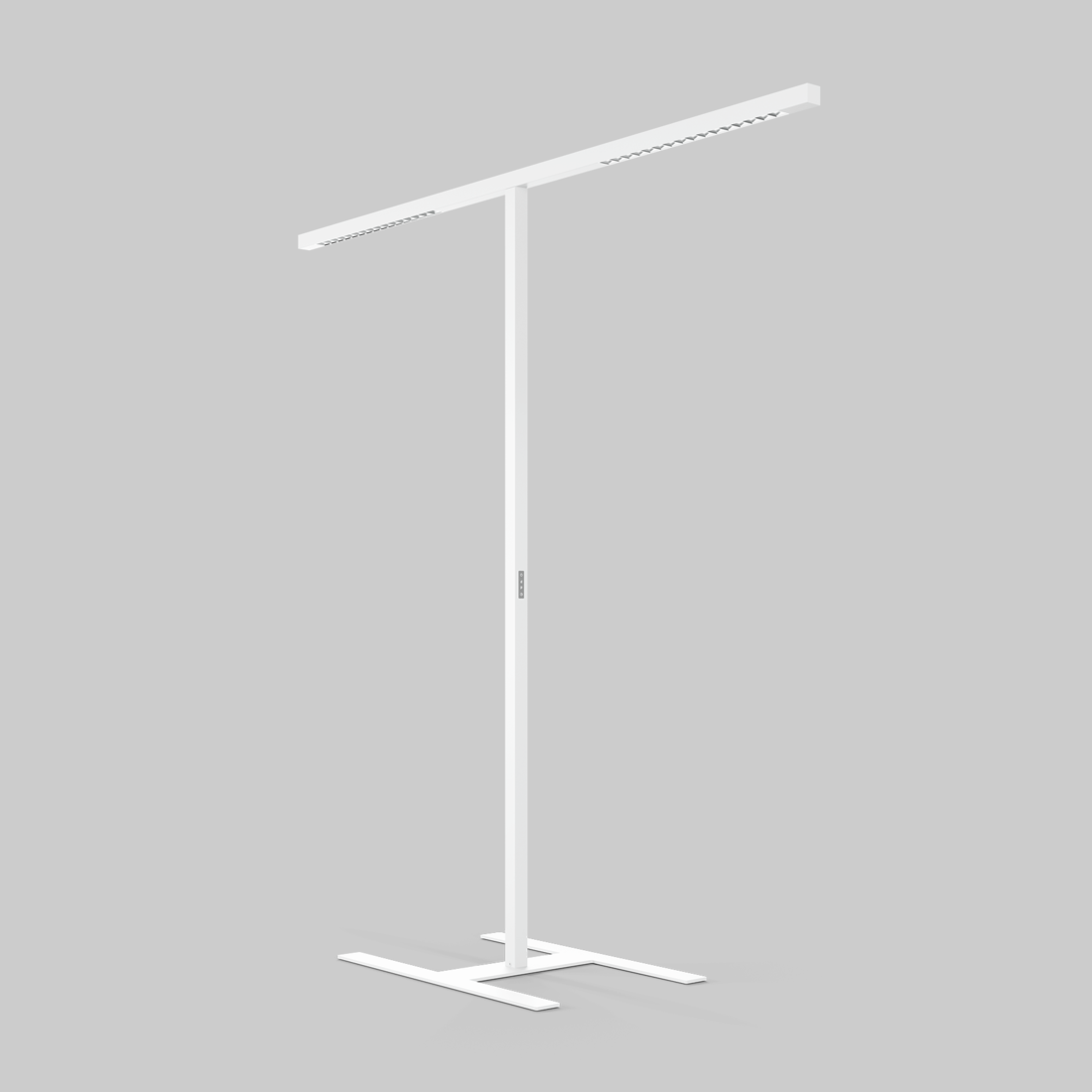

Free standing luminaire from extruded aluminium profile in angular design; two separate luminaire heads; extremely slim design (only 42 x 42 mm); square downpipe; pedestal with recess for table base; surface powder coated; direct / indirect light distribution; direct light component with high gloss reflector + faceted design and asymmetric radiation characteristic; indirect light component with integrated PC boards and high quality lens system for maximum, homogeneous ceiling illumination; energy-efficient LEDs with very good colour rendering; switch installed in the downpipe; presence sensor detection range ø4.5m on the floor (variant brightness & presence sensor); incl. connection cable (3m) with safety plug

lighting control by touch DIM on pole

asymmetric illumination

SENSE sensor on request

tunable white 2700 – 6500 K (optional)

CRI ≥ 98 XPECTRUM (optional)

Products and codes

Filter

Colour

pure white

jet black

Reflector

chrome

dark chrome

BETO direct / indirect free standing double

Status

Article number(s)

Type

Dimming

pure white, Reflector chrome, 3000 K, CRI ≥ 90, system 103 W, 117 lm/W

touch DIM on pole

pure white, Reflector chrome, 4000 K, CRI ≥ 90, system 103 W, 123 lm/W

touch DIM on pole

pure white, Reflector chrome, 3000 K, CRI ≥ 80, system 103 W, 135 lm/W

touch DIM on pole

pure white, Reflector chrome, 4000 K, CRI ≥ 80, system 103 W, 150 lm/W

touch DIM on pole

BETO direct / indirect free standing double

Status

Article number(s)

Type

Dimming

pure white, Reflector dark chrome, 3000 K, CRI ≥ 90, system 103 W, 108 lm/W

touch DIM on pole

pure white, Reflector dark chrome, 4000 K, CRI ≥ 90, system 103 W, 115 lm/W

touch DIM on pole

pure white, Reflector dark chrome, 3000 K, CRI ≥ 80, system 103 W, 125 lm/W

touch DIM on pole

pure white, Reflector dark chrome, 4000 K, CRI ≥ 80, system 103 W, 140 lm/W

touch DIM on pole

BETO direct / indirect free standing double

Status

Article number(s)

Type

Dimming

jet black, Reflector chrome, 3000 K, CRI ≥ 90, system 103 W, 117 lm/W

touch DIM on pole

jet black, Reflector chrome, 4000 K, CRI ≥ 90, system 103 W, 123 lm/W

touch DIM on pole

jet black, Reflector chrome, 3000 K, CRI ≥ 80, system 103 W, 135 lm/W

touch DIM on pole

jet black, Reflector chrome, 4000 K, CRI ≥ 80, system 103 W, 150 lm/W

touch DIM on pole

BETO direct / indirect free standing double

Status

Article number(s)

Type

Dimming

jet black, Reflector dark chrome, 3000 K, CRI ≥ 90, system 103 W, 108 lm/W

touch DIM on pole

jet black, Reflector dark chrome, 4000 K, CRI ≥ 90, system 103 W, 115 lm/W

touch DIM on pole

jet black, Reflector dark chrome, 3000 K, CRI ≥ 80, system 103 W, 125 lm/W

touch DIM on pole

jet black, Reflector dark chrome, 4000 K, CRI ≥ 80, system 103 W, 140 lm/W

touch DIM on pole

BETO direct / indirect power free standing double

Status

Article number(s)

Type

Dimming

pure white, Reflector chrome, 3000 K, CRI ≥ 90, system 132 W, 116 lm/W

touch DIM on pole

pure white, Reflector chrome, 4000 K, CRI ≥ 90, system 132 W, 123 lm/W

touch DIM on pole

pure white, Reflector chrome, 3000 K, CRI ≥ 80, system 132 W, 134 lm/W

touch DIM on pole

pure white, Reflector chrome, 4000 K, CRI ≥ 80, system 132 W, 149 lm/W

touch DIM on pole

BETO direct / indirect power free standing double

Status

Article number(s)

Type

Dimming

pure white, Reflector dark chrome, 3000 K, CRI ≥ 90, system 132 W, 108 lm/W

touch DIM on pole

pure white, Reflector dark chrome, 4000 K, CRI ≥ 90, system 132 W, 115 lm/W

touch DIM on pole

pure white, Reflector dark chrome, 3000 K, CRI ≥ 80, system 132 W, 125 lm/W

touch DIM on pole

pure white, Reflector dark chrome, 4000 K, CRI ≥ 80, system 132 W, 140 lm/W

touch DIM on pole

BETO direct / indirect power free standing double

Status

Article number(s)

Type

Dimming

jet black, Reflector chrome, 3000 K, CRI ≥ 90, system 132 W, 116 lm/W

touch DIM on pole

jet black, Reflector chrome, 4000 K, CRI ≥ 90, system 132 W, 123 lm/W

touch DIM on pole

jet black, Reflector chrome, 3000 K, CRI ≥ 80, system 132 W, 134 lm/W

touch DIM on pole

jet black, Reflector chrome, 4000 K, CRI ≥ 80, system 132 W, 149 lm/W

touch DIM on pole

BETO direct / indirect power free standing double

Status

Article number(s)

Type

Dimming

jet black, Reflector dark chrome, 3000 K, CRI ≥ 90, system 132 W, 108 lm/W

touch DIM on pole

jet black, Reflector dark chrome, 4000 K, CRI ≥ 90, system 132 W, 115 lm/W

touch DIM on pole

jet black, Reflector dark chrome, 3000 K, CRI ≥ 80, system 132 W, 125 lm/W

touch DIM on pole

jet black, Reflector dark chrome, 4000 K, CRI ≥ 80, system 132 W, 140 lm/W

touch DIM on pole

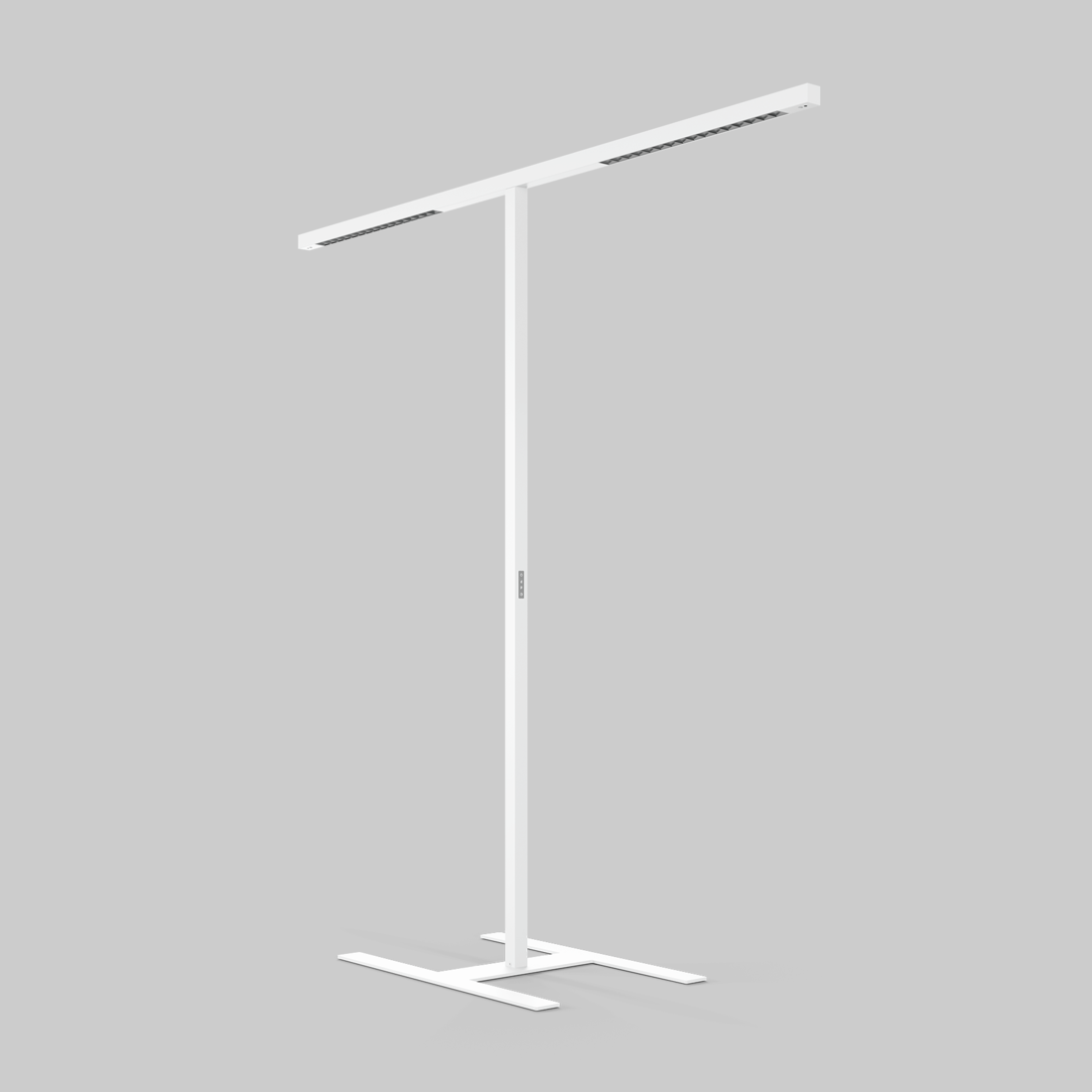

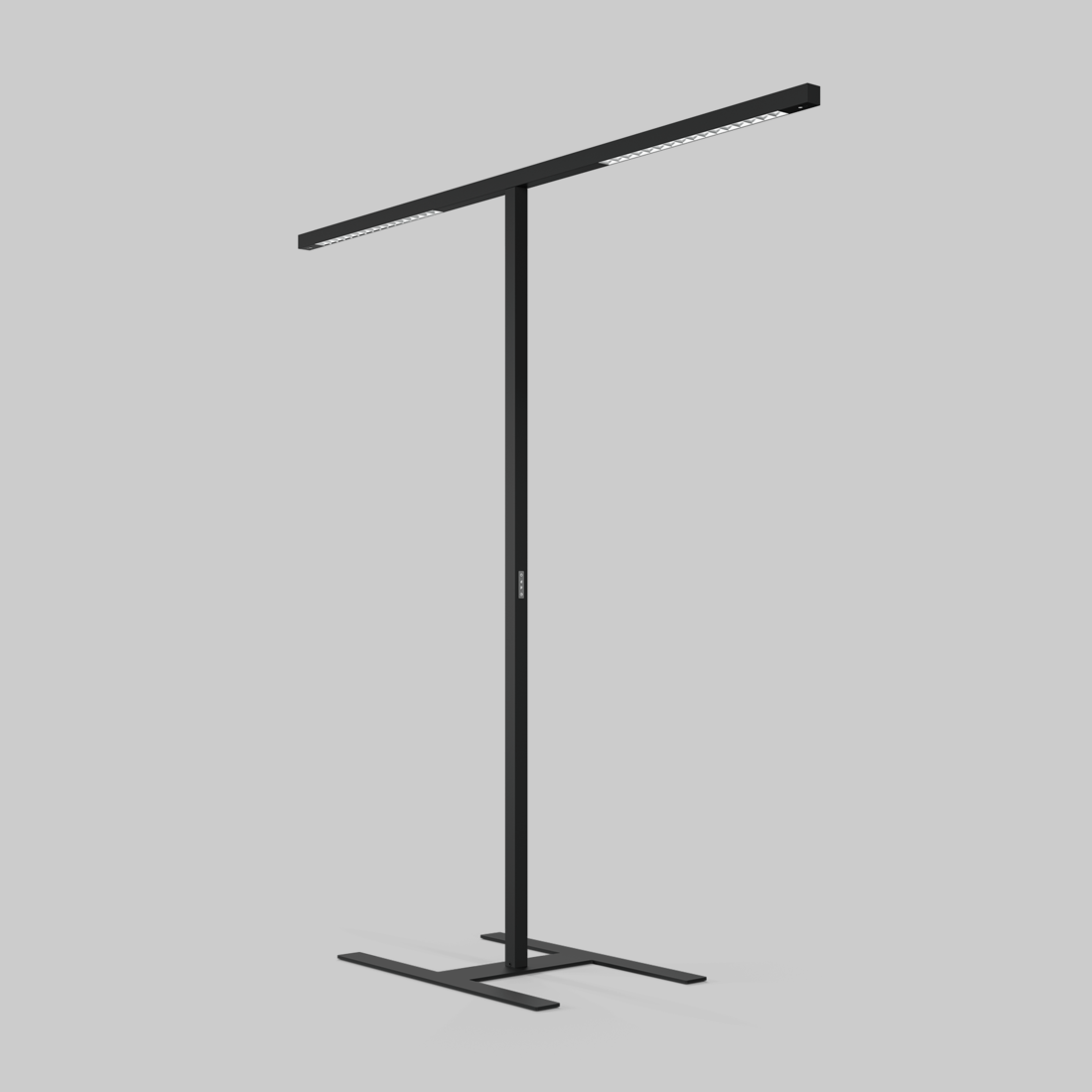

BETO sensor direct / indirect free standing double

Status

Article number(s)

Type

Dimming

pure white, Reflector chrome, 3000 K, CRI ≥ 90, system 103 W, 117 lm/W

stand alone ESSENTIAL sensor

pure white, Reflector chrome, 4000 K, CRI ≥ 90, system 103 W, 123 lm/W

stand alone ESSENTIAL sensor

pure white, Reflector chrome, 3000 K, CRI ≥ 80, system 103 W, 135 lm/W

stand alone ESSENTIAL sensor

pure white, Reflector chrome, 4000 K, CRI ≥ 80, system 103 W, 150 lm/W

stand alone ESSENTIAL sensor

BETO sensor direct / indirect free standing double

Status

Article number(s)

Type

Dimming

pure white, Reflector dark chrome, 3000 K, CRI ≥ 90, system 103 W, 108 lm/W

stand alone ESSENTIAL sensor

pure white, Reflector dark chrome, 4000 K, CRI ≥ 90, system 103 W, 115 lm/W

stand alone ESSENTIAL sensor

pure white, Reflector dark chrome, 3000 K, CRI ≥ 80, system 103 W, 125 lm/W

stand alone ESSENTIAL sensor

pure white, Reflector dark chrome, 4000 K, CRI ≥ 80, system 103 W, 140 lm/W

stand alone ESSENTIAL sensor

BETO sensor direct / indirect free standing double

Status

Article number(s)

Type

Dimming

jet black, Reflector chrome, 3000 K, CRI ≥ 90, system 103 W, 117 lm/W

stand alone ESSENTIAL sensor

jet black, Reflector chrome, 4000 K, CRI ≥ 90, system 103 W, 123 lm/W

stand alone ESSENTIAL sensor

jet black, Reflector chrome, 3000 K, CRI ≥ 80, system 103 W, 135 lm/W

stand alone ESSENTIAL sensor

jet black, Reflector chrome, 4000 K, CRI ≥ 80, system 103 W, 150 lm/W

stand alone ESSENTIAL sensor

BETO sensor direct / indirect free standing double

Status

Article number(s)

Type

Dimming

jet black, Reflector dark chrome, 3000 K, CRI ≥ 90, system 103 W, 108 lm/W

stand alone ESSENTIAL sensor

jet black, Reflector dark chrome, 4000 K, CRI ≥ 90, system 103 W, 115 lm/W

stand alone ESSENTIAL sensor

jet black, Reflector dark chrome, 3000 K, CRI ≥ 80, system 103 W, 125 lm/W

stand alone ESSENTIAL sensor

jet black, Reflector dark chrome, 4000 K, CRI ≥ 80, system 103 W, 140 lm/W

stand alone ESSENTIAL sensor

BETO sensor direct / indirect power free standing double

Status

Article number(s)

Type

Dimming

pure white, Reflector chrome, 3000 K, CRI ≥ 90, system 132 W, 116 lm/W

stand alone ESSENTIAL sensor

pure white, Reflector chrome, 4000 K, CRI ≥ 90, system 132 W, 123 lm/W

stand alone ESSENTIAL sensor

pure white, Reflector chrome, 3000 K, CRI ≥ 80, system 132 W, 134 lm/W

stand alone ESSENTIAL sensor

pure white, Reflector chrome, 4000 K, CRI ≥ 80, system 132 W, 149 lm/W

stand alone ESSENTIAL sensor

BETO sensor direct / indirect power free standing double

Status

Article number(s)

Type

Dimming

pure white, Reflector dark chrome, 3000 K, CRI ≥ 90, system 132 W, 108 lm/W

stand alone ESSENTIAL sensor

pure white, Reflector dark chrome, 4000 K, CRI ≥ 90, system 132 W, 115 lm/W

stand alone ESSENTIAL sensor

pure white, Reflector dark chrome, 3000 K, CRI ≥ 80, system 132 W, 125 lm/W

stand alone ESSENTIAL sensor

pure white, Reflector dark chrome, 4000 K, CRI ≥ 80, system 132 W, 140 lm/W

stand alone ESSENTIAL sensor

BETO sensor direct / indirect power free standing double

Status

Article number(s)

Type

Dimming

jet black, Reflector chrome, 3000 K, CRI ≥ 90, system 132 W, 116 lm/W

stand alone ESSENTIAL sensor

jet black, Reflector chrome, 4000 K, CRI ≥ 90, system 132 W, 123 lm/W

stand alone ESSENTIAL sensor

jet black, Reflector chrome, 3000 K, CRI ≥ 80, system 132 W, 134 lm/W

stand alone ESSENTIAL sensor

jet black, Reflector chrome, 4000 K, CRI ≥ 80, system 132 W, 149 lm/W

stand alone ESSENTIAL sensor

BETO sensor direct / indirect power free standing double

Status

Article number(s)

Type

Dimming

jet black, Reflector dark chrome, 3000 K, CRI ≥ 90, system 132 W, 108 lm/W

stand alone ESSENTIAL sensor

jet black, Reflector dark chrome, 4000 K, CRI ≥ 90, system 132 W, 115 lm/W

stand alone ESSENTIAL sensor

jet black, Reflector dark chrome, 3000 K, CRI ≥ 80, system 132 W, 125 lm/W

stand alone ESSENTIAL sensor

jet black, Reflector dark chrome, 4000 K, CRI ≥ 80, system 132 W, 140 lm/W

stand alone ESSENTIAL sensor

BETO

free standing double

Quickinfo

Colour

Reflector

Simple drawing

Light distribution

Product data & specification documents

Links

Description

Products and codes

Colour

Reflector

BETO direct / indirect free standing double

BETO direct / indirect free standing double

BETO direct / indirect free standing double

BETO direct / indirect free standing double

BETO direct / indirect free standing double

BETO direct / indirect free standing double

BETO direct / indirect free standing double

BETO direct / indirect free standing double

BETO direct / indirect power free standing double

BETO direct / indirect power free standing double

BETO direct / indirect power free standing double

BETO direct / indirect power free standing double

BETO direct / indirect power free standing double

BETO direct / indirect power free standing double

BETO direct / indirect power free standing double

BETO direct / indirect power free standing double

BETO sensor direct / indirect free standing double

BETO sensor direct / indirect free standing double

BETO sensor direct / indirect free standing double

BETO sensor direct / indirect free standing double

BETO sensor direct / indirect free standing double

BETO sensor direct / indirect free standing double

BETO sensor direct / indirect free standing double

BETO sensor direct / indirect free standing double

BETO sensor direct / indirect power free standing double

BETO sensor direct / indirect power free standing double

BETO sensor direct / indirect power free standing double

BETO sensor direct / indirect power free standing double

BETO sensor direct / indirect power free standing double

BETO sensor direct / indirect power free standing double

BETO sensor direct / indirect power free standing double

BETO sensor direct / indirect power free standing double
