MINO 60

suspended

Quickinfo

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM
UGR ≤ 19
up to 125 lm/W
L90 / 50000 h
DALI-2, non DIM
High Performance Opal, Microprismatic
IP20

Colour

black

white

grey

Products and codes

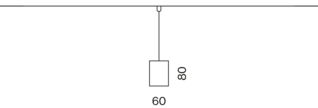

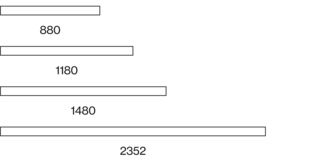

Simple drawing

Light distribution

Downloads

Product data & specification documents

CataloguePage(s)

Download all

Description

Luminaire housing from extruded aluminium profile, angular design; no visible screws; surface powder coated; luminaire profile for mounting available in advance; remaining luminaire components mounted without tools; pendant fitting with cable suspension; with integrated tool-less suspension height adjustment; spring clip attachment to the luminaire; freely positionable; incl. transparent feed; light inset consisting of highly reflective coated extruded profile for improved thermal management; HPO (High Performance Opal) cover for uniform illumination; micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance; energy-efficient LEDs with very good colour rendering

DiiA^® standards 251, 252, 253

system solution

microprismatic UGR ≤ 19

tunable white 2700 – 6500 K (optional)

CRI ≥ 98 XPECTRUM (optional)

Products and codes

Filter

Colour

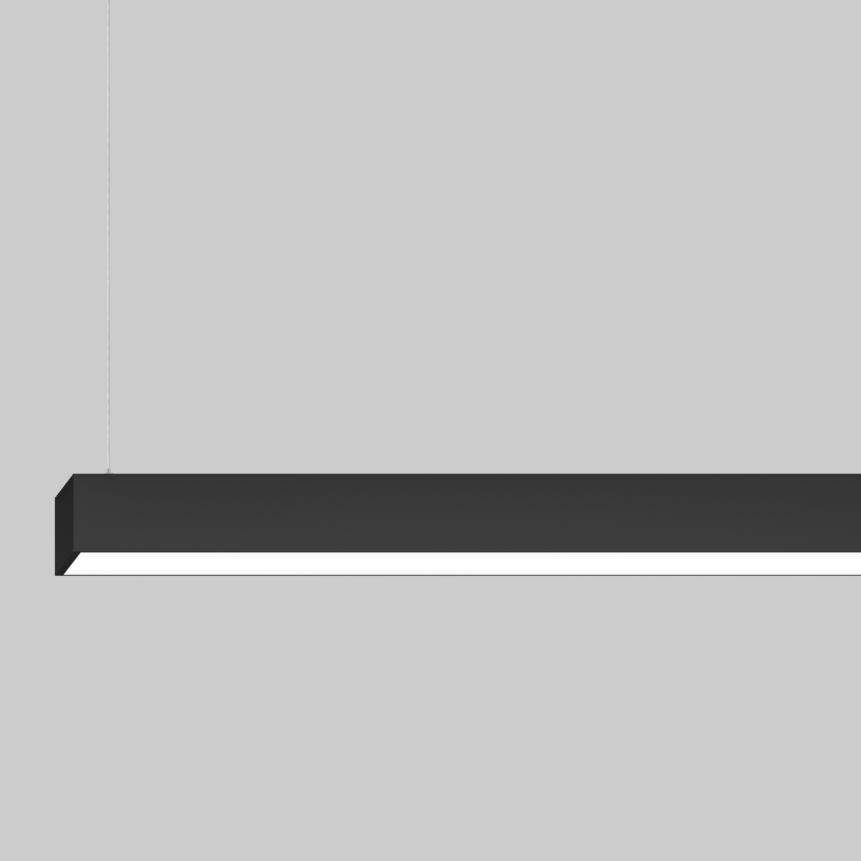

black

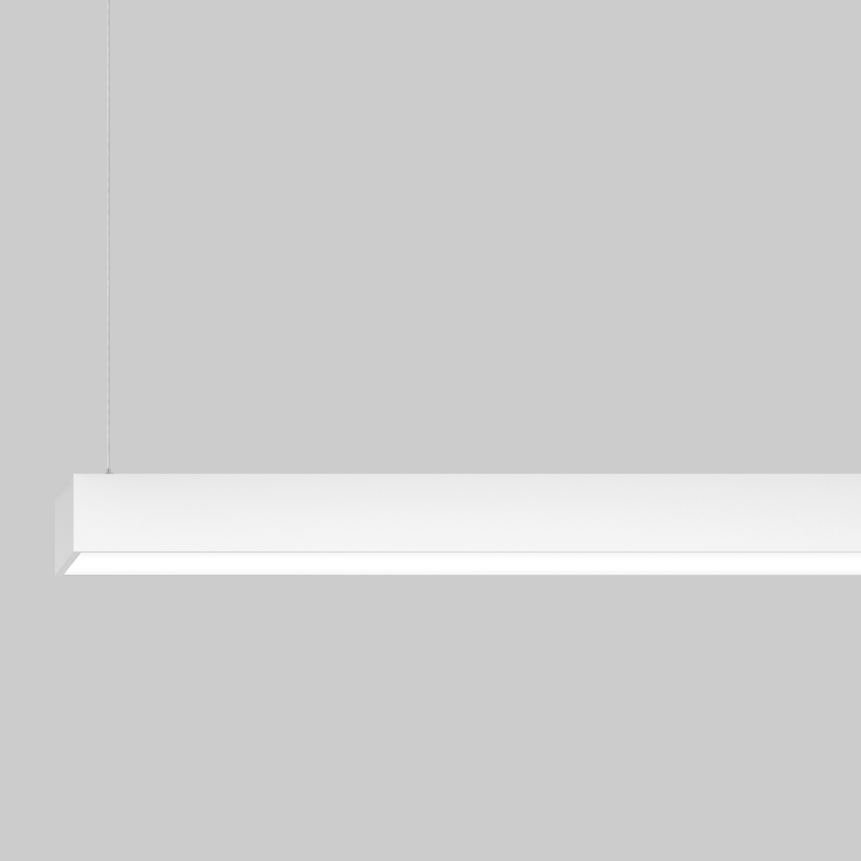

white

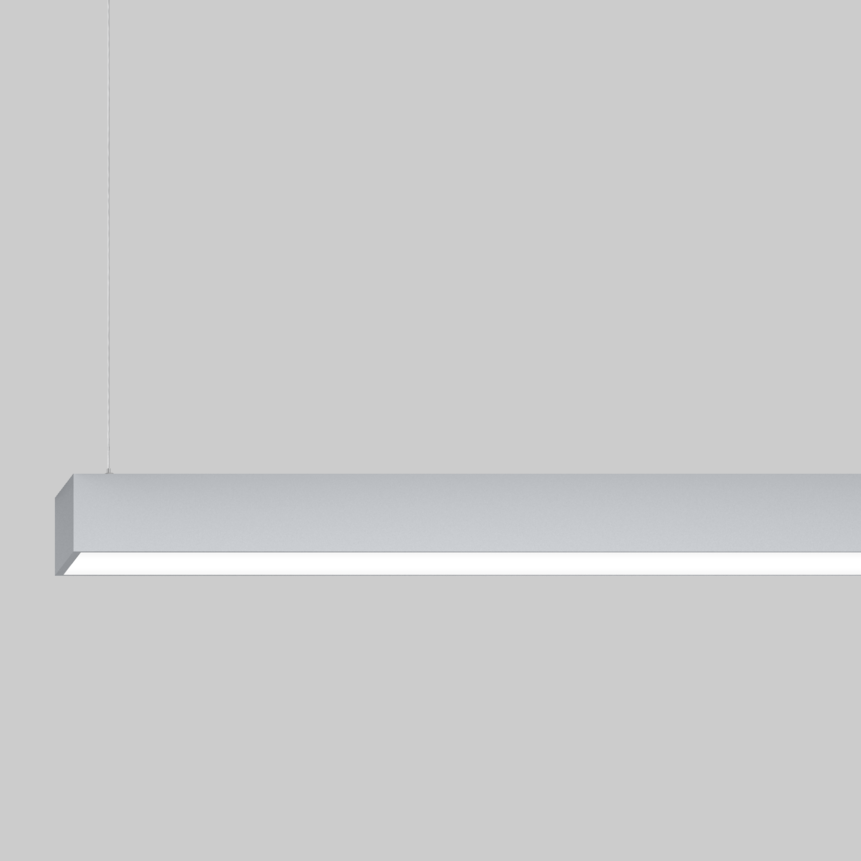

grey

MINO 60 high lumen suspended

Article number(s)

Type

Dimming

black, Microprismatic, 3000 K, 2,230 lm/m, 20.6 W, 1,950 lm, 880 mm

non DIM

black, High Performance Opal, 3000 K, 2,570 lm/m, 20.6 W, 2,240 lm, 880 mm

non DIM

black, Microprismatic, 3000 K, 2,230 lm/m, 20.6 W, 1,940 lm, 880 mm

non DIM

black, Microprismatic, 3000 K, 2,230 lm/m, 20.6 W, 1,950 lm, 880 mm

DALI-2

black, High Performance Opal, 3000 K, 2,570 lm/m, 20.6 W, 2,240 lm, 880 mm

DALI-2

black, Microprismatic, 3000 K, 2,230 lm/m, 20.6 W, 1,940 lm, 880 mm

DALI-2

black, Microprismatic, 4000 K, 2,360 lm/m, 20.6 W, 2,060 lm, 880 mm

non DIM

black, High Performance Opal, 4000 K, 2,720 lm/m, 20.6 W, 2,370 lm, 880 mm

non DIM

black, Microprismatic, 4000 K, 2,360 lm/m, 20.6 W, 2,060 lm, 880 mm

non DIM

black, Microprismatic, 4000 K, 2,360 lm/m, 20.6 W, 2,060 lm, 880 mm

DALI-2

black, High Performance Opal, 4000 K, 2,720 lm/m, 20.6 W, 2,370 lm, 880 mm

DALI-2

black, Microprismatic, 4000 K, 2,360 lm/m, 20.6 W, 2,060 lm, 880 mm

DALI-2

black, Microprismatic, 3000 K, 2,220 lm/m, 27.5 W, 2,600 lm, 1,180 mm

non DIM

black, High Performance Opal, 3000 K, 2,550 lm/m, 27.5 W, 2,980 lm, 1,180 mm

non DIM

black, Microprismatic, 3000 K, 2,210 lm/m, 27.5 W, 2,590 lm, 1,180 mm

non DIM

black, Microprismatic, 3000 K, 2,220 lm/m, 27.5 W, 2,600 lm, 1,180 mm

DALI-2

black, High Performance Opal, 3000 K, 2,550 lm/m, 27.5 W, 2,980 lm, 1,180 mm

DALI-2

black, Microprismatic, 3000 K, 2,210 lm/m, 27.5 W, 2,590 lm, 1,180 mm

DALI-2

black, Microprismatic, 4000 K, 2,350 lm/m, 27.5 W, 2,750 lm, 1,180 mm

non DIM

black, High Performance Opal, 4000 K, 2,690 lm/m, 27.5 W, 3,160 lm, 1,180 mm

non DIM

black, Microprismatic, 4000 K, 2,340 lm/m, 27.5 W, 2,740 lm, 1,180 mm

non DIM

black, Microprismatic, 4000 K, 2,350 lm/m, 27.5 W, 2,750 lm, 1,180 mm

DALI-2

black, High Performance Opal, 4000 K, 2,690 lm/m, 27.5 W, 3,160 lm, 1,180 mm

DALI-2

black, Microprismatic, 4000 K, 2,340 lm/m, 27.5 W, 2,740 lm, 1,180 mm

DALI-2

black, Microprismatic, 3000 K, 2,200 lm/m, 34 W, 3,250 lm, 1,480 mm

non DIM

black, High Performance Opal, 3000 K, 2,530 lm/m, 34 W, 3,730 lm, 1,480 mm

non DIM

black, Microprismatic, 3000 K, 2,200 lm/m, 34 W, 3,240 lm, 1,480 mm

non DIM

black, Microprismatic, 3000 K, 2,200 lm/m, 34 W, 3,250 lm, 1,480 mm

DALI-2

black, High Performance Opal, 3000 K, 2,530 lm/m, 34 W, 3,730 lm, 1,480 mm

DALI-2

black, Microprismatic, 3000 K, 2,200 lm/m, 34 W, 3,240 lm, 1,480 mm

DALI-2

black, Microprismatic, 4000 K, 2,330 lm/m, 34 W, 3,440 lm, 1,480 mm

non DIM

black, High Performance Opal, 4000 K, 2,680 lm/m, 34 W, 3,950 lm, 1,480 mm

non DIM

black, Microprismatic, 4000 K, 2,330 lm/m, 34 W, 3,430 lm, 1,480 mm

non DIM

black, Microprismatic, 4000 K, 2,330 lm/m, 34 W, 3,440 lm, 1,480 mm

DALI-2

black, High Performance Opal, 4000 K, 2,680 lm/m, 34 W, 3,950 lm, 1,480 mm

DALI-2

black, Microprismatic, 4000 K, 2,330 lm/m, 34 W, 3,430 lm, 1,480 mm

DALI-2

black, Microprismatic, 3000 K, 2,220 lm/m, 55 W, 5,190 lm, 2,352 mm

non DIM

black, High Performance Opal, 3000 K, 2,550 lm/m, 55 W, 5,970 lm, 2,352 mm

non DIM

black, Microprismatic, 3000 K, 2,210 lm/m, 55 W, 5,180 lm, 2,352 mm

non DIM

black, Microprismatic, 3000 K, 2,220 lm/m, 55 W, 5,190 lm, 2,352 mm

DALI-2

black, High Performance Opal, 3000 K, 2,550 lm/m, 55 W, 5,970 lm, 2,352 mm

DALI-2

black, Microprismatic, 3000 K, 2,210 lm/m, 55 W, 5,180 lm, 2,352 mm

DALI-2

black, Microprismatic, 4000 K, 2,350 lm/m, 55 W, 5,500 lm, 2,352 mm

non DIM

black, High Performance Opal, 4000 K, 2,690 lm/m, 55 W, 6,320 lm, 2,352 mm

non DIM

black, Microprismatic, 4000 K, 2,340 lm/m, 55 W, 5,490 lm, 2,352 mm

non DIM

black, Microprismatic, 4000 K, 2,350 lm/m, 55 W, 5,500 lm, 2,352 mm

DALI-2

black, High Performance Opal, 4000 K, 2,690 lm/m, 55 W, 6,320 lm, 2,352 mm

DALI-2

black, Microprismatic, 4000 K, 2,340 lm/m, 55 W, 5,490 lm, 2,352 mm

DALI-2

MINO 60 high lumen suspended

Article number(s)

Type

Dimming

grey, Microprismatic, 3000 K, 2,230 lm/m, 20.6 W, 1,950 lm, 880 mm

non DIM

grey, High Performance Opal, 3000 K, 2,570 lm/m, 20.6 W, 2,240 lm, 880 mm

non DIM

grey, Microprismatic, 3000 K, 2,230 lm/m, 20.6 W, 1,940 lm, 880 mm

non DIM

grey, Microprismatic, 3000 K, 2,230 lm/m, 20.6 W, 1,950 lm, 880 mm

DALI-2

grey, High Performance Opal, 3000 K, 2,570 lm/m, 20.6 W, 2,240 lm, 880 mm

DALI-2

grey, Microprismatic, 3000 K, 2,230 lm/m, 20.6 W, 1,940 lm, 880 mm

DALI-2

grey, Microprismatic, 4000 K, 2,360 lm/m, 20.6 W, 2,060 lm, 880 mm

non DIM

grey, High Performance Opal, 4000 K, 2,720 lm/m, 20.6 W, 2,370 lm, 880 mm

non DIM

grey, Microprismatic, 4000 K, 2,360 lm/m, 20.6 W, 2,060 lm, 880 mm

non DIM

grey, Microprismatic, 4000 K, 2,360 lm/m, 20.6 W, 2,060 lm, 880 mm

DALI-2

grey, High Performance Opal, 4000 K, 2,720 lm/m, 20.6 W, 2,370 lm, 880 mm

DALI-2

grey, Microprismatic, 4000 K, 2,360 lm/m, 20.6 W, 2,060 lm, 880 mm

DALI-2

grey, Microprismatic, 3000 K, 2,220 lm/m, 27.5 W, 2,600 lm, 1,180 mm

non DIM

grey, High Performance Opal, 3000 K, 2,550 lm/m, 27.5 W, 2,980 lm, 1,180 mm

non DIM

grey, Microprismatic, 3000 K, 2,210 lm/m, 27.5 W, 2,590 lm, 1,180 mm

non DIM

grey, Microprismatic, 3000 K, 2,220 lm/m, 27.5 W, 2,600 lm, 1,180 mm

DALI-2

grey, High Performance Opal, 3000 K, 2,550 lm/m, 27.5 W, 2,980 lm, 1,180 mm

DALI-2

grey, Microprismatic, 3000 K, 2,210 lm/m, 27.5 W, 2,590 lm, 1,180 mm

DALI-2

grey, Microprismatic, 4000 K, 2,350 lm/m, 27.5 W, 2,750 lm, 1,180 mm

non DIM

grey, High Performance Opal, 4000 K, 2,690 lm/m, 27.5 W, 3,160 lm, 1,180 mm

non DIM

grey, Microprismatic, 4000 K, 2,340 lm/m, 27.5 W, 2,740 lm, 1,180 mm

non DIM

grey, Microprismatic, 4000 K, 2,350 lm/m, 27.5 W, 2,750 lm, 1,180 mm

DALI-2

grey, High Performance Opal, 4000 K, 2,690 lm/m, 27.5 W, 3,160 lm, 1,180 mm

DALI-2

grey, Microprismatic, 4000 K, 2,340 lm/m, 27.5 W, 2,740 lm, 1,180 mm

DALI-2

grey, Microprismatic, 3000 K, 2,200 lm/m, 34 W, 3,250 lm, 1,480 mm

non DIM

grey, High Performance Opal, 3000 K, 2,530 lm/m, 34 W, 3,730 lm, 1,480 mm

non DIM

grey, Microprismatic, 3000 K, 2,200 lm/m, 34 W, 3,240 lm, 1,480 mm

non DIM

grey, Microprismatic, 3000 K, 2,200 lm/m, 34 W, 3,250 lm, 1,480 mm

DALI-2

grey, High Performance Opal, 3000 K, 2,530 lm/m, 34 W, 3,730 lm, 1,480 mm

DALI-2

grey, Microprismatic, 3000 K, 2,200 lm/m, 34 W, 3,240 lm, 1,480 mm

DALI-2

grey, Microprismatic, 4000 K, 2,330 lm/m, 34 W, 3,440 lm, 1,480 mm

non DIM

grey, High Performance Opal, 4000 K, 2,680 lm/m, 34 W, 3,950 lm, 1,480 mm

non DIM

grey, Microprismatic, 4000 K, 2,330 lm/m, 34 W, 3,430 lm, 1,480 mm

non DIM

grey, Microprismatic, 4000 K, 2,330 lm/m, 34 W, 3,440 lm, 1,480 mm

DALI-2

grey, High Performance Opal, 4000 K, 2,680 lm/m, 34 W, 3,950 lm, 1,480 mm

DALI-2

grey, Microprismatic, 4000 K, 2,330 lm/m, 34 W, 3,430 lm, 1,480 mm

DALI-2

grey, Microprismatic, 3000 K, 2,220 lm/m, 55 W, 5,190 lm, 2,352 mm

non DIM

grey, High Performance Opal, 3000 K, 2,550 lm/m, 55 W, 5,970 lm, 2,352 mm

non DIM

grey, Microprismatic, 3000 K, 2,210 lm/m, 55 W, 5,180 lm, 2,352 mm

non DIM

grey, Microprismatic, 3000 K, 2,220 lm/m, 55 W, 5,190 lm, 2,352 mm

DALI-2

grey, High Performance Opal, 3000 K, 2,550 lm/m, 55 W, 5,970 lm, 2,352 mm

DALI-2

grey, Microprismatic, 3000 K, 2,210 lm/m, 55 W, 5,180 lm, 2,352 mm

DALI-2

grey, Microprismatic, 4000 K, 2,350 lm/m, 55 W, 5,500 lm, 2,352 mm

non DIM

grey, High Performance Opal, 4000 K, 2,690 lm/m, 55 W, 6,320 lm, 2,352 mm

non DIM

grey, Microprismatic, 4000 K, 2,340 lm/m, 55 W, 5,490 lm, 2,352 mm

non DIM

grey, Microprismatic, 4000 K, 2,350 lm/m, 55 W, 5,500 lm, 2,352 mm

DALI-2

grey, High Performance Opal, 4000 K, 2,690 lm/m, 55 W, 6,320 lm, 2,352 mm

DALI-2

grey, Microprismatic, 4000 K, 2,340 lm/m, 55 W, 5,490 lm, 2,352 mm

DALI-2

MINO 60 high lumen suspended

Article number(s)

Type

Dimming

white, Microprismatic, 3000 K, 2,230 lm/m, 20.6 W, 1,950 lm, 880 mm

non DIM

white, High Performance Opal, 3000 K, 2,570 lm/m, 20.6 W, 2,240 lm, 880 mm

non DIM

white, Microprismatic, 3000 K, 2,230 lm/m, 20.6 W, 1,940 lm, 880 mm

non DIM

white, Microprismatic, 3000 K, 2,230 lm/m, 20.6 W, 1,950 lm, 880 mm

DALI-2

white, High Performance Opal, 3000 K, 2,570 lm/m, 20.6 W, 2,240 lm, 880 mm

DALI-2

white, Microprismatic, 3000 K, 2,230 lm/m, 20.6 W, 1,940 lm, 880 mm

DALI-2

white, Microprismatic, 4000 K, 2,360 lm/m, 20.6 W, 2,060 lm, 880 mm

non DIM

white, High Performance Opal, 4000 K, 2,720 lm/m, 20.6 W, 2,370 lm, 880 mm

non DIM

white, Microprismatic, 4000 K, 2,360 lm/m, 20.6 W, 2,060 lm, 880 mm

non DIM

white, Microprismatic, 4000 K, 2,360 lm/m, 20.6 W, 2,060 lm, 880 mm

DALI-2

white, High Performance Opal, 4000 K, 2,720 lm/m, 20.6 W, 2,370 lm, 880 mm

DALI-2

white, Microprismatic, 4000 K, 2,360 lm/m, 20.6 W, 2,060 lm, 880 mm

DALI-2

white, Microprismatic, 3000 K, 2,220 lm/m, 27.5 W, 2,600 lm, 1,180 mm

non DIM

white, High Performance Opal, 3000 K, 2,550 lm/m, 27.5 W, 2,980 lm, 1,180 mm

non DIM

white, Microprismatic, 3000 K, 2,210 lm/m, 27.5 W, 2,590 lm, 1,180 mm

non DIM

white, Microprismatic, 3000 K, 2,220 lm/m, 27.5 W, 2,600 lm, 1,180 mm

DALI-2

white, High Performance Opal, 3000 K, 2,550 lm/m, 27.5 W, 2,980 lm, 1,180 mm

DALI-2

white, Microprismatic, 3000 K, 2,210 lm/m, 27.5 W, 2,590 lm, 1,180 mm

DALI-2

white, Microprismatic, 4000 K, 2,350 lm/m, 27.5 W, 2,750 lm, 1,180 mm

non DIM

white, High Performance Opal, 4000 K, 2,690 lm/m, 27.5 W, 3,160 lm, 1,180 mm

non DIM

white, Microprismatic, 4000 K, 2,340 lm/m, 27.5 W, 2,740 lm, 1,180 mm

non DIM

white, Microprismatic, 4000 K, 2,350 lm/m, 27.5 W, 2,750 lm, 1,180 mm

DALI-2

white, High Performance Opal, 4000 K, 2,690 lm/m, 27.5 W, 3,160 lm, 1,180 mm

DALI-2

white, Microprismatic, 4000 K, 2,340 lm/m, 27.5 W, 2,740 lm, 1,180 mm

DALI-2

white, Microprismatic, 3000 K, 2,200 lm/m, 34 W, 3,250 lm, 1,480 mm

non DIM

white, High Performance Opal, 3000 K, 2,530 lm/m, 34 W, 3,730 lm, 1,480 mm

non DIM

white, Microprismatic, 3000 K, 2,200 lm/m, 34 W, 3,240 lm, 1,480 mm

non DIM

white, Microprismatic, 3000 K, 2,200 lm/m, 34 W, 3,250 lm, 1,480 mm

DALI-2

white, High Performance Opal, 3000 K, 2,530 lm/m, 34 W, 3,730 lm, 1,480 mm

DALI-2

white, Microprismatic, 3000 K, 2,200 lm/m, 34 W, 3,240 lm, 1,480 mm

DALI-2

white, Microprismatic, 4000 K, 2,330 lm/m, 34 W, 3,440 lm, 1,480 mm

non DIM

white, High Performance Opal, 4000 K, 2,680 lm/m, 34 W, 3,950 lm, 1,480 mm

non DIM

white, Microprismatic, 4000 K, 2,330 lm/m, 34 W, 3,430 lm, 1,480 mm

non DIM

white, Microprismatic, 4000 K, 2,330 lm/m, 34 W, 3,440 lm, 1,480 mm

DALI-2

white, High Performance Opal, 4000 K, 2,680 lm/m, 34 W, 3,950 lm, 1,480 mm

DALI-2

white, Microprismatic, 4000 K, 2,330 lm/m, 34 W, 3,430 lm, 1,480 mm

DALI-2

white, Microprismatic, 3000 K, 2,220 lm/m, 55 W, 5,190 lm, 2,352 mm

non DIM

white, High Performance Opal, 3000 K, 2,550 lm/m, 55 W, 5,970 lm, 2,352 mm

non DIM

white, Microprismatic, 3000 K, 2,210 lm/m, 55 W, 5,180 lm, 2,352 mm

non DIM

white, Microprismatic, 3000 K, 2,220 lm/m, 55 W, 5,190 lm, 2,352 mm

DALI-2

white, High Performance Opal, 3000 K, 2,550 lm/m, 55 W, 5,970 lm, 2,352 mm

DALI-2

white, Microprismatic, 3000 K, 2,210 lm/m, 55 W, 5,180 lm, 2,352 mm

DALI-2

white, Microprismatic, 4000 K, 2,350 lm/m, 55 W, 5,500 lm, 2,352 mm

non DIM

white, High Performance Opal, 4000 K, 2,690 lm/m, 55 W, 6,320 lm, 2,352 mm

non DIM

white, Microprismatic, 4000 K, 2,340 lm/m, 55 W, 5,490 lm, 2,352 mm

non DIM

white, Microprismatic, 4000 K, 2,350 lm/m, 55 W, 5,500 lm, 2,352 mm

DALI-2

white, High Performance Opal, 4000 K, 2,690 lm/m, 55 W, 6,320 lm, 2,352 mm

DALI-2

white, Microprismatic, 4000 K, 2,340 lm/m, 55 W, 5,490 lm, 2,352 mm

DALI-2

MINO 60 mid lumen suspended

Article number(s)

Type

Dimming

black, Microprismatic, 3000 K, 1,350 lm/m, 13 W, 1,180 lm, 880 mm

non DIM

black, High Performance Opal, 3000 K, 1,550 lm/m, 13 W, 1,350 lm, 880 mm

non DIM

black, Microprismatic, 3000 K, 1,350 lm/m, 13 W, 1,180 lm, 880 mm

non DIM

black, Microprismatic, 4000 K, 1,430 lm/m, 13 W, 1,250 lm, 880 mm

non DIM

black, High Performance Opal, 4000 K, 1,640 lm/m, 13 W, 1,430 lm, 880 mm

non DIM
