MINO 60

surface

Quickinfo

3000 K, 4000 K, tunable white 2700 K - 6500 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM
UGR ≤ 19
up to 2,750 lm/m
up to 141 lm/W
L90 / 50000 h
DALI-2, DALI-2 DT8, non DIM
High Performance Opal, Microprismatic
IP20

Colour

pure white

jet black

white aluminium

Products and codes

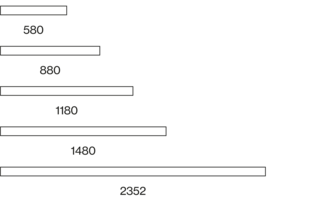

Simple drawing

Light distribution

Downloads & links

Product data & specification documents

CataloguePage(s)

DWG - 2D

Download all

Aggregated downloads

IES
LDT
GLDF

3DS
DWG - 3D
Revit BIM data

Description

Luminaire housing from extruded aluminium profile, angular design; no visible screws; surface powder coated; luminaire profile for mounting available in advance; remaining luminaire components mounted without tools; light inset consisting of highly reflective coated extruded profile for improved thermal management; HPO (High Performance Opal) cover for uniform illumination; micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance; energy-efficient LEDs with very good colour rendering

DiiA^® standards 251, 252, 253

concrete installation housing

system solution

microprismatic UGR ≤ 19

tunable white 2700 – 6500 K

CRI ≥ 98 XPECTRUM (optional)

Products and codes

Filter

Colour

pure white

jet black

white aluminium

MINO 60 high lumen surface

Status

Article number(s)

Type

Dimming

jet black, Microprismatic, tunable white, CRI ≥ 80, microprismatic (UGR ≤ 19), system 19 W, 103 lm/W, length 880 mm

DALI-2 DT8

jet black, High Performance Opal, tunable white, CRI ≥ 80, system 19 W, 119 lm/W, length 880 mm

DALI-2 DT8

jet black, Microprismatic, tunable white, CRI ≥ 80, microprismatic, system 19 W, 103 lm/W, length 880 mm

DALI-2 DT8

jet black, Microprismatic, tunable white, CRI ≥ 80, microprismatic (UGR ≤ 19), system 25.3 W, 104 lm/W, length 1,180 mm

DALI-2 DT8

jet black, High Performance Opal, tunable white, CRI ≥ 80, system 25.3 W, 119 lm/W, length 1,180 mm

DALI-2 DT8

jet black, Microprismatic, tunable white, CRI ≥ 80, microprismatic, system 25.3 W, 103 lm/W, length 1,180 mm

DALI-2 DT8

jet black, Microprismatic, tunable white, CRI ≥ 80, microprismatic (UGR ≤ 19), system 31 W, 105 lm/W, length 1,480 mm

DALI-2 DT8

jet black, High Performance Opal, tunable white, CRI ≥ 80, system 31 W, 121 lm/W, length 1,480 mm

DALI-2 DT8

jet black, Microprismatic, tunable white, CRI ≥ 80, microprismatic, system 31 W, 105 lm/W, length 1,480 mm

DALI-2 DT8

jet black, Microprismatic, tunable white, CRI ≥ 80, microprismatic (UGR ≤ 19), system 49 W, 107 lm/W, length 2,352 mm

DALI-2 DT8

jet black, High Performance Opal, tunable white, CRI ≥ 80, system 49 W, 123 lm/W, length 2,352 mm

DALI-2 DT8

jet black, Microprismatic, tunable white, CRI ≥ 80, microprismatic, system 49 W, 107 lm/W, length 2,352 mm

DALI-2 DT8

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 12.1 W, 86 lm/W, length 580 mm

non DIM

jet black, High Performance Opal, 3000 K, CRI ≥ 90, system 12.1 W, 98 lm/W, length 580 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 12.1 W, 86 lm/W, length 580 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 12.1 W, 86 lm/W, length 580 mm

DALI-2

jet black, High Performance Opal, 3000 K, CRI ≥ 90, system 12.1 W, 98 lm/W, length 580 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 12.1 W, 86 lm/W, length 580 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 12.1 W, 93 lm/W, length 580 mm

non DIM

jet black, High Performance Opal, 4000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 580 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 580 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 12.1 W, 93 lm/W, length 580 mm

DALI-2

jet black, High Performance Opal, 4000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 580 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 580 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 12.1 W, 99 lm/W, length 580 mm

non DIM

jet black, High Performance Opal, 3000 K, CRI ≥ 80, system 12.1 W, 114 lm/W, length 580 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 12.1 W, 99 lm/W, length 580 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 12.1 W, 99 lm/W, length 580 mm

DALI-2

jet black, High Performance Opal, 3000 K, CRI ≥ 80, system 12.1 W, 114 lm/W, length 580 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 12.1 W, 99 lm/W, length 580 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 12.1 W, 113 lm/W, length 580 mm

non DIM

jet black, High Performance Opal, 4000 K, CRI ≥ 80, system 12.1 W, 130 lm/W, length 580 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 12.1 W, 113 lm/W, length 580 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 12.1 W, 113 lm/W, length 580 mm

DALI-2

jet black, High Performance Opal, 4000 K, CRI ≥ 80, system 12.1 W, 130 lm/W, length 580 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 12.1 W, 113 lm/W, length 580 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 17.5 W, 89 lm/W, length 880 mm

non DIM

jet black, High Performance Opal, 3000 K, CRI ≥ 90, system 17.5 W, 102 lm/W, length 880 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 17.5 W, 89 lm/W, length 880 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 17.5 W, 89 lm/W, length 880 mm

DALI-2

jet black, High Performance Opal, 3000 K, CRI ≥ 90, system 17.5 W, 102 lm/W, length 880 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 17.5 W, 89 lm/W, length 880 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 17.5 W, 96 lm/W, length 880 mm

non DIM

jet black, High Performance Opal, 4000 K, CRI ≥ 90, system 17.5 W, 110 lm/W, length 880 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 17.5 W, 96 lm/W, length 880 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 17.5 W, 96 lm/W, length 880 mm

DALI-2

jet black, High Performance Opal, 4000 K, CRI ≥ 90, system 17.5 W, 110 lm/W, length 880 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 17.5 W, 96 lm/W, length 880 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 17.5 W, 103 lm/W, length 880 mm

non DIM

jet black, High Performance Opal, 3000 K, CRI ≥ 80, system 17.5 W, 118 lm/W, length 880 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 17.5 W, 103 lm/W, length 880 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 17.5 W, 103 lm/W, length 880 mm

DALI-2

jet black, High Performance Opal, 3000 K, CRI ≥ 80, system 17.5 W, 118 lm/W, length 880 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 17.5 W, 103 lm/W, length 880 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 17.5 W, 117 lm/W, length 880 mm

non DIM

jet black, High Performance Opal, 4000 K, CRI ≥ 80, system 17.5 W, 135 lm/W, length 880 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 17.5 W, 117 lm/W, length 880 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 17.5 W, 117 lm/W, length 880 mm

DALI-2

jet black, High Performance Opal, 4000 K, CRI ≥ 80, system 17.5 W, 135 lm/W, length 880 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 17.5 W, 117 lm/W, length 880 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 23.3 W, 89 lm/W, length 1,180 mm

non DIM

jet black, High Performance Opal, 3000 K, CRI ≥ 90, system 23.3 W, 102 lm/W, length 1,180 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 23.3 W, 89 lm/W, length 1,180 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 23.3 W, 89 lm/W, length 1,180 mm

DALI-2

jet black, High Performance Opal, 3000 K, CRI ≥ 90, system 23.3 W, 102 lm/W, length 1,180 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 23.3 W, 89 lm/W, length 1,180 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 23.3 W, 96 lm/W, length 1,180 mm

non DIM

jet black, High Performance Opal, 4000 K, CRI ≥ 90, system 23.3 W, 110 lm/W, length 1,180 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 23.3 W, 96 lm/W, length 1,180 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 23.3 W, 96 lm/W, length 1,180 mm

DALI-2

jet black, High Performance Opal, 4000 K, CRI ≥ 90, system 23.3 W, 110 lm/W, length 1,180 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 23.3 W, 96 lm/W, length 1,180 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 23.3 W, 103 lm/W, length 1,180 mm

non DIM

jet black, High Performance Opal, 3000 K, CRI ≥ 80, system 23.3 W, 118 lm/W, length 1,180 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 23.3 W, 103 lm/W, length 1,180 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 23.3 W, 103 lm/W, length 1,180 mm

DALI-2

jet black, High Performance Opal, 3000 K, CRI ≥ 80, system 23.3 W, 118 lm/W, length 1,180 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 23.3 W, 103 lm/W, length 1,180 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 23.3 W, 118 lm/W, length 1,180 mm

non DIM

jet black, High Performance Opal, 4000 K, CRI ≥ 80, system 23.3 W, 135 lm/W, length 1,180 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 23.3 W, 117 lm/W, length 1,180 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 23.3 W, 118 lm/W, length 1,180 mm

DALI-2

jet black, High Performance Opal, 4000 K, CRI ≥ 80, system 23.3 W, 135 lm/W, length 1,180 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 23.3 W, 117 lm/W, length 1,180 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 29.1 W, 89 lm/W, length 1,480 mm

non DIM

jet black, High Performance Opal, 3000 K, CRI ≥ 90, system 29.1 W, 102 lm/W, length 1,480 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 29.1 W, 89 lm/W, length 1,480 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 29.1 W, 89 lm/W, length 1,480 mm

DALI-2

jet black, High Performance Opal, 3000 K, CRI ≥ 90, system 29.1 W, 102 lm/W, length 1,480 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 29.1 W, 89 lm/W, length 1,480 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 29.1 W, 96 lm/W, length 1,480 mm

non DIM

jet black, High Performance Opal, 4000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,480 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,480 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 29.1 W, 96 lm/W, length 1,480 mm

DALI-2

jet black, High Performance Opal, 4000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,480 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,480 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 29.1 W, 103 lm/W, length 1,480 mm

non DIM

jet black, High Performance Opal, 3000 K, CRI ≥ 80, system 29.1 W, 119 lm/W, length 1,480 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 29.1 W, 103 lm/W, length 1,480 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 29.1 W, 103 lm/W, length 1,480 mm

DALI-2

jet black, High Performance Opal, 3000 K, CRI ≥ 80, system 29.1 W, 119 lm/W, length 1,480 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 29.1 W, 103 lm/W, length 1,480 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 29.1 W, 118 lm/W, length 1,480 mm

non DIM

jet black, High Performance Opal, 4000 K, CRI ≥ 80, system 29.1 W, 135 lm/W, length 1,480 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 29.1 W, 118 lm/W, length 1,480 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 29.1 W, 118 lm/W, length 1,480 mm

DALI-2

jet black, High Performance Opal, 4000 K, CRI ≥ 80, system 29.1 W, 135 lm/W, length 1,480 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 29.1 W, 118 lm/W, length 1,480 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 45 W, 92 lm/W, length 2,352 mm

non DIM

jet black, High Performance Opal, 3000 K, CRI ≥ 90, system 45 W, 106 lm/W, length 2,352 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 45 W, 92 lm/W, length 2,352 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 45 W, 92 lm/W, length 2,352 mm

DALI-2

jet black, High Performance Opal, 3000 K, CRI ≥ 90, system 45 W, 106 lm/W, length 2,352 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 45 W, 92 lm/W, length 2,352 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 45 W, 100 lm/W, length 2,352 mm

non DIM

jet black, High Performance Opal, 4000 K, CRI ≥ 90, system 45 W, 114 lm/W, length 2,352 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 45 W, 99 lm/W, length 2,352 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 45 W, 100 lm/W, length 2,352 mm

DALI-2

jet black, High Performance Opal, 4000 K, CRI ≥ 90, system 45 W, 114 lm/W, length 2,352 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 45 W, 99 lm/W, length 2,352 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 45 W, 107 lm/W, length 2,352 mm

non DIM

jet black, High Performance Opal, 3000 K, CRI ≥ 80, system 45 W, 123 lm/W, length 2,352 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 45 W, 107 lm/W, length 2,352 mm

non DIM

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 45 W, 107 lm/W, length 2,352 mm

DALI-2

jet black, High Performance Opal, 3000 K, CRI ≥ 80, system 45 W, 123 lm/W, length 2,352 mm

DALI-2

jet black, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 45 W, 107 lm/W, length 2,352 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 45 W, 122 lm/W, length 2,352 mm

non DIM

jet black, High Performance Opal, 4000 K, CRI ≥ 80, system 45 W, 140 lm/W, length 2,352 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 45 W, 122 lm/W, length 2,352 mm

non DIM

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 45 W, 122 lm/W, length 2,352 mm

DALI-2

jet black, High Performance Opal, 4000 K, CRI ≥ 80, system 45 W, 140 lm/W, length 2,352 mm

DALI-2

jet black, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 45 W, 122 lm/W, length 2,352 mm

DALI-2

MINO 60 high lumen surface

Status

Article number(s)

Type

Dimming

pure white, Microprismatic, tunable white, CRI ≥ 80, microprismatic (UGR ≤ 19), system 19 W, 103 lm/W, length 880 mm

DALI-2 DT8

pure white, High Performance Opal, tunable white, CRI ≥ 80, system 19 W, 119 lm/W, length 880 mm

DALI-2 DT8

pure white, Microprismatic, tunable white, CRI ≥ 80, microprismatic, system 19 W, 103 lm/W, length 880 mm

DALI-2 DT8

pure white, Microprismatic, tunable white, CRI ≥ 80, microprismatic (UGR ≤ 19), system 25.3 W, 104 lm/W, length 1,180 mm

DALI-2 DT8

pure white, High Performance Opal, tunable white, CRI ≥ 80, system 25.3 W, 119 lm/W, length 1,180 mm

DALI-2 DT8

pure white, Microprismatic, tunable white, CRI ≥ 80, microprismatic, system 25.3 W, 103 lm/W, length 1,180 mm

DALI-2 DT8

pure white, Microprismatic, tunable white, CRI ≥ 80, microprismatic (UGR ≤ 19), system 31 W, 105 lm/W, length 1,480 mm

DALI-2 DT8

pure white, High Performance Opal, tunable white, CRI ≥ 80, system 31 W, 121 lm/W, length 1,480 mm

DALI-2 DT8

pure white, Microprismatic, tunable white, CRI ≥ 80, microprismatic, system 31 W, 105 lm/W, length 1,480 mm

DALI-2 DT8

pure white, Microprismatic, tunable white, CRI ≥ 80, microprismatic (UGR ≤ 19), system 49 W, 107 lm/W, length 2,352 mm

DALI-2 DT8

pure white, High Performance Opal, tunable white, CRI ≥ 80, system 49 W, 123 lm/W, length 2,352 mm

DALI-2 DT8

pure white, Microprismatic, tunable white, CRI ≥ 80, microprismatic, system 49 W, 107 lm/W, length 2,352 mm

DALI-2 DT8

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 12.1 W, 86 lm/W, length 580 mm

non DIM

pure white, High Performance Opal, 3000 K, CRI ≥ 90, system 12.1 W, 98 lm/W, length 580 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 12.1 W, 86 lm/W, length 580 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 12.1 W, 86 lm/W, length 580 mm

DALI-2

pure white, High Performance Opal, 3000 K, CRI ≥ 90, system 12.1 W, 98 lm/W, length 580 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 12.1 W, 86 lm/W, length 580 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 12.1 W, 93 lm/W, length 580 mm

non DIM

pure white, High Performance Opal, 4000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 580 mm

non DIM

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 580 mm

non DIM

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 12.1 W, 93 lm/W, length 580 mm

DALI-2

pure white, High Performance Opal, 4000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 580 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 580 mm

DALI-2

pure white, High Performance Opal, 3000 K, CRI ≥ 80, system 12.1 W, 114 lm/W, length 580 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 12.1 W, 99 lm/W, length 580 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 12.1 W, 99 lm/W, length 580 mm

DALI-2

pure white, High Performance Opal, 3000 K, CRI ≥ 80, system 12.1 W, 114 lm/W, length 580 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 12.1 W, 99 lm/W, length 580 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 12.1 W, 113 lm/W, length 580 mm

non DIM

pure white, High Performance Opal, 4000 K, CRI ≥ 80, system 12.1 W, 130 lm/W, length 580 mm

non DIM

pure white, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 12.1 W, 113 lm/W, length 580 mm

DALI-2

pure white, High Performance Opal, 4000 K, CRI ≥ 80, system 12.1 W, 130 lm/W, length 580 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 12.1 W, 113 lm/W, length 580 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 17.5 W, 89 lm/W, length 880 mm

non DIM

pure white, High Performance Opal, 3000 K, CRI ≥ 90, system 17.5 W, 102 lm/W, length 880 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 17.5 W, 89 lm/W, length 880 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 17.5 W, 89 lm/W, length 880 mm

DALI-2

pure white, High Performance Opal, 3000 K, CRI ≥ 90, system 17.5 W, 102 lm/W, length 880 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 17.5 W, 89 lm/W, length 880 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 17.5 W, 96 lm/W, length 880 mm

non DIM

pure white, High Performance Opal, 4000 K, CRI ≥ 90, system 17.5 W, 110 lm/W, length 880 mm

non DIM

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 17.5 W, 96 lm/W, length 880 mm

non DIM

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 17.5 W, 96 lm/W, length 880 mm

DALI-2

pure white, High Performance Opal, 4000 K, CRI ≥ 90, system 17.5 W, 110 lm/W, length 880 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 17.5 W, 96 lm/W, length 880 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 17.5 W, 103 lm/W, length 880 mm

non DIM

pure white, High Performance Opal, 3000 K, CRI ≥ 80, system 17.5 W, 118 lm/W, length 880 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 17.5 W, 103 lm/W, length 880 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 17.5 W, 103 lm/W, length 880 mm

DALI-2

pure white, High Performance Opal, 3000 K, CRI ≥ 80, system 17.5 W, 118 lm/W, length 880 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 17.5 W, 103 lm/W, length 880 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 17.5 W, 117 lm/W, length 880 mm

non DIM

pure white, High Performance Opal, 4000 K, CRI ≥ 80, system 17.5 W, 135 lm/W, length 880 mm

non DIM

pure white, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 17.5 W, 117 lm/W, length 880 mm

non DIM

pure white, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 17.5 W, 117 lm/W, length 880 mm

DALI-2

pure white, High Performance Opal, 4000 K, CRI ≥ 80, system 17.5 W, 135 lm/W, length 880 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 17.5 W, 117 lm/W, length 880 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 23.3 W, 89 lm/W, length 1,180 mm

non DIM

pure white, High Performance Opal, 3000 K, CRI ≥ 90, system 23.3 W, 102 lm/W, length 1,180 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 23.3 W, 89 lm/W, length 1,180 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 23.3 W, 89 lm/W, length 1,180 mm

DALI-2

pure white, High Performance Opal, 3000 K, CRI ≥ 90, system 23.3 W, 102 lm/W, length 1,180 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 23.3 W, 89 lm/W, length 1,180 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 23.3 W, 96 lm/W, length 1,180 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 23.3 W, 103 lm/W, length 1,180 mm

non DIM

pure white, High Performance Opal, 3000 K, CRI ≥ 80, system 23.3 W, 118 lm/W, length 1,180 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 23.3 W, 103 lm/W, length 1,180 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 23.3 W, 103 lm/W, length 1,180 mm

DALI-2

pure white, High Performance Opal, 3000 K, CRI ≥ 80, system 23.3 W, 118 lm/W, length 1,180 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 23.3 W, 103 lm/W, length 1,180 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 23.3 W, 118 lm/W, length 1,180 mm

non DIM

pure white, High Performance Opal, 4000 K, CRI ≥ 80, system 23.3 W, 135 lm/W, length 1,180 mm

non DIM

pure white, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 23.3 W, 117 lm/W, length 1,180 mm

non DIM

pure white, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 23.3 W, 118 lm/W, length 1,180 mm

DALI-2

pure white, High Performance Opal, 4000 K, CRI ≥ 80, system 23.3 W, 135 lm/W, length 1,180 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 23.3 W, 117 lm/W, length 1,180 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 29.1 W, 89 lm/W, length 1,480 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 29.1 W, 89 lm/W, length 1,480 mm

DALI-2

pure white, High Performance Opal, 3000 K, CRI ≥ 90, system 29.1 W, 102 lm/W, length 1,480 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 29.1 W, 89 lm/W, length 1,480 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 29.1 W, 96 lm/W, length 1,480 mm

non DIM

pure white, High Performance Opal, 4000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,480 mm

non DIM

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,480 mm

non DIM

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 29.1 W, 96 lm/W, length 1,480 mm

DALI-2

pure white, High Performance Opal, 4000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,480 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,480 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 29.1 W, 103 lm/W, length 1,480 mm

non DIM

pure white, High Performance Opal, 3000 K, CRI ≥ 80, system 29.1 W, 119 lm/W, length 1,480 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 29.1 W, 103 lm/W, length 1,480 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 29.1 W, 103 lm/W, length 1,480 mm

DALI-2

pure white, High Performance Opal, 3000 K, CRI ≥ 80, system 29.1 W, 119 lm/W, length 1,480 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 29.1 W, 103 lm/W, length 1,480 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 29.1 W, 118 lm/W, length 1,480 mm

non DIM

pure white, High Performance Opal, 4000 K, CRI ≥ 80, system 29.1 W, 135 lm/W, length 1,480 mm

non DIM

pure white, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 29.1 W, 118 lm/W, length 1,480 mm

non DIM

pure white, Microprismatic, 4000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 29.1 W, 118 lm/W, length 1,480 mm

DALI-2

pure white, High Performance Opal, 4000 K, CRI ≥ 80, system 29.1 W, 135 lm/W, length 1,480 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 29.1 W, 118 lm/W, length 1,480 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 45 W, 92 lm/W, length 2,352 mm

non DIM

pure white, High Performance Opal, 3000 K, CRI ≥ 90, system 45 W, 106 lm/W, length 2,352 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 45 W, 92 lm/W, length 2,352 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 45 W, 92 lm/W, length 2,352 mm

DALI-2

pure white, High Performance Opal, 3000 K, CRI ≥ 90, system 45 W, 106 lm/W, length 2,352 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 45 W, 92 lm/W, length 2,352 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 45 W, 100 lm/W, length 2,352 mm

non DIM

pure white, High Performance Opal, 4000 K, CRI ≥ 90, system 45 W, 114 lm/W, length 2,352 mm

non DIM

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 45 W, 99 lm/W, length 2,352 mm

non DIM

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic (UGR ≤ 19), system 45 W, 100 lm/W, length 2,352 mm

DALI-2

pure white, High Performance Opal, 4000 K, CRI ≥ 90, system 45 W, 114 lm/W, length 2,352 mm

DALI-2

pure white, Microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 45 W, 99 lm/W, length 2,352 mm

DALI-2

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 45 W, 107 lm/W, length 2,352 mm

non DIM

pure white, High Performance Opal, 3000 K, CRI ≥ 80, system 45 W, 123 lm/W, length 2,352 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 45 W, 107 lm/W, length 2,352 mm

non DIM

pure white, Microprismatic, 3000 K, CRI ≥ 80, microprismatic (UGR ≤ 19), system 45 W, 107 lm/W, length 2,352 mm

DALI-2

pure white, High Performance Opal, 3000 K, CRI ≥ 80, system 45 W, 123 lm/W, length 2,352 mm

DALI-2

pure white, High Performance Opal, 4000 K, CRI ≥ 80, system 45 W, 140 lm/W, length 2,352 mm

non DIM

pure white, Microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 45 W, 122 lm/W, length 2,352 mm

non DIM

MINO 60

surface

Quickinfo

Colour

Simple drawing

Light distribution

Product data & specification documents

Description

Products and codes

Colour

MINO 60 high lumen surface

MINO 60 high lumen surface

MINO 60 high lumen surface

MINO 60 high lumen surface

Related products

MINO 60

MINO 60

MINO 60

MINO 60

MINO 60

FRAME 60

FRAME 60

VELA

VELA

SONO
