MINO 60 high lumen ceiling offset, MINO 60 mid lumen ceiling offset
MINO 60 high lumen ceiling offset, MINO 60 mid lumen ceiling offset
MINO 60 high lumen ceiling offset, MINO 60 mid lumen ceiling offset

MINO 60

ceiling offset

Quickinfo

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM
up to 2,660 lm/m
up to 136 lm/W
L90 / 50000 h
DALI-2, non DIM
High Performance Opal
IP20

Colour

    • Products and codes

    Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    Download all
    • GLDF
    • 3DS
    • DWG - 3D
    • Revit BIM data

    Description

    Luminaire housing from extruded aluminium profile, angular design; surface powder coated; luminaire, ball proof version to DIN 18032-3 and DIN 57710 part 13 / VDE 0710 part 13; not suitable for indoor tennis centers (or halls with comparable ball sizes); light inset consisting of highly reflective coated extruded profile for improved thermal management; HPO (High Performance Opal) cover for uniform illumination; offset lighting level; energy-efficient LEDs with very good colour rendering

    DiiA® standards 251, 252, 253

    ball-impact-resistant

    tunable white 2700 – 5000 K (optional)

    CRI ≥ 98 XPECTRUM (optional)

    Products and codes

    Filter
    83
    lm/W
    136
    lm/W
    601
    lm
    6080
    lm
    6.9
    W
    45
    W
    0.56
    0.72
    0.51
    0.65

    Colour

    • MINO 60 high lumen ceiling offset, MINO 60 mid lumen ceiling offset

    MINO 60 high lumen ceiling offset

    MINO 60 high lumen ceiling offset

    Status
    Article number(s)
    Type
    Dimming

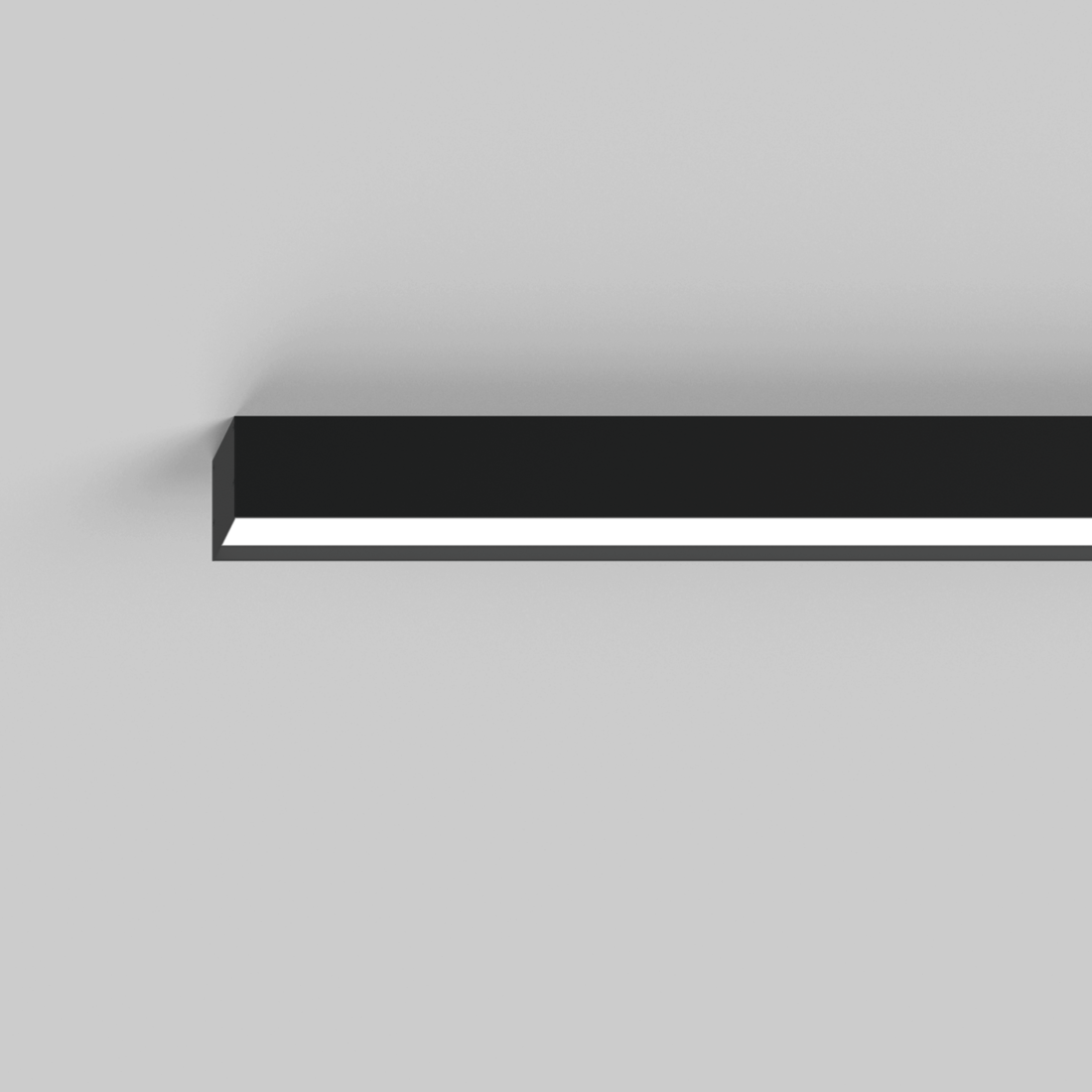

    black, 3000 K, system 12.1 W, 83 lm/W, length 575 mm
    non DIM
    black, 3000 K, system 12.1 W, 83 lm/W, length 575 mm
    DALI-2
    black, 4000 K, system 12.1 W, 95 lm/W, length 575 mm
    non DIM
    black, 4000 K, system 12.1 W, 95 lm/W, length 575 mm
    DALI-2
    black, 3000 K, system 17.5 W, 87 lm/W, length 875 mm
    non DIM
    black, 3000 K, system 17.5 W, 87 lm/W, length 875 mm
    DALI-2
    black, 4000 K, system 17.5 W, 99 lm/W, length 875 mm
    non DIM
    black, 4000 K, system 17.5 W, 99 lm/W, length 875 mm
    DALI-2
    black, 3000 K, system 23.3 W, 87 lm/W, length 1,175 mm
    non DIM
    black, 3000 K, system 23.3 W, 87 lm/W, length 1,175 mm
    DALI-2
    black, 4000 K, system 23.3 W, 99 lm/W, length 1,175 mm
    non DIM
    black, 4000 K, system 23.3 W, 99 lm/W, length 1,175 mm
    DALI-2
    black, 3000 K, system 29.1 W, 87 lm/W, length 1,475 mm
    non DIM
    black, 3000 K, system 29.1 W, 87 lm/W, length 1,475 mm
    DALI-2
    black, 4000 K, system 29.1 W, 99 lm/W, length 1,475 mm
    non DIM
    black, 4000 K, system 29.1 W, 99 lm/W, length 1,475 mm
    DALI-2
    black, 3000 K, system 45 W, 90 lm/W, length 2,347 mm
    non DIM
    black, 3000 K, system 45 W, 90 lm/W, length 2,347 mm
    DALI-2
    black, 4000 K, system 45 W, 102 lm/W, length 2,347 mm
    non DIM
    black, 4000 K, system 45 W, 102 lm/W, length 2,347 mm
    DALI-2
    MINO 60 high lumen ceiling offset, MINO 60 mid lumen ceiling offset

    MINO 60 high lumen ceiling offset

    MINO 60 high lumen ceiling offset

    Status
    Article number(s)
    Type
    Dimming

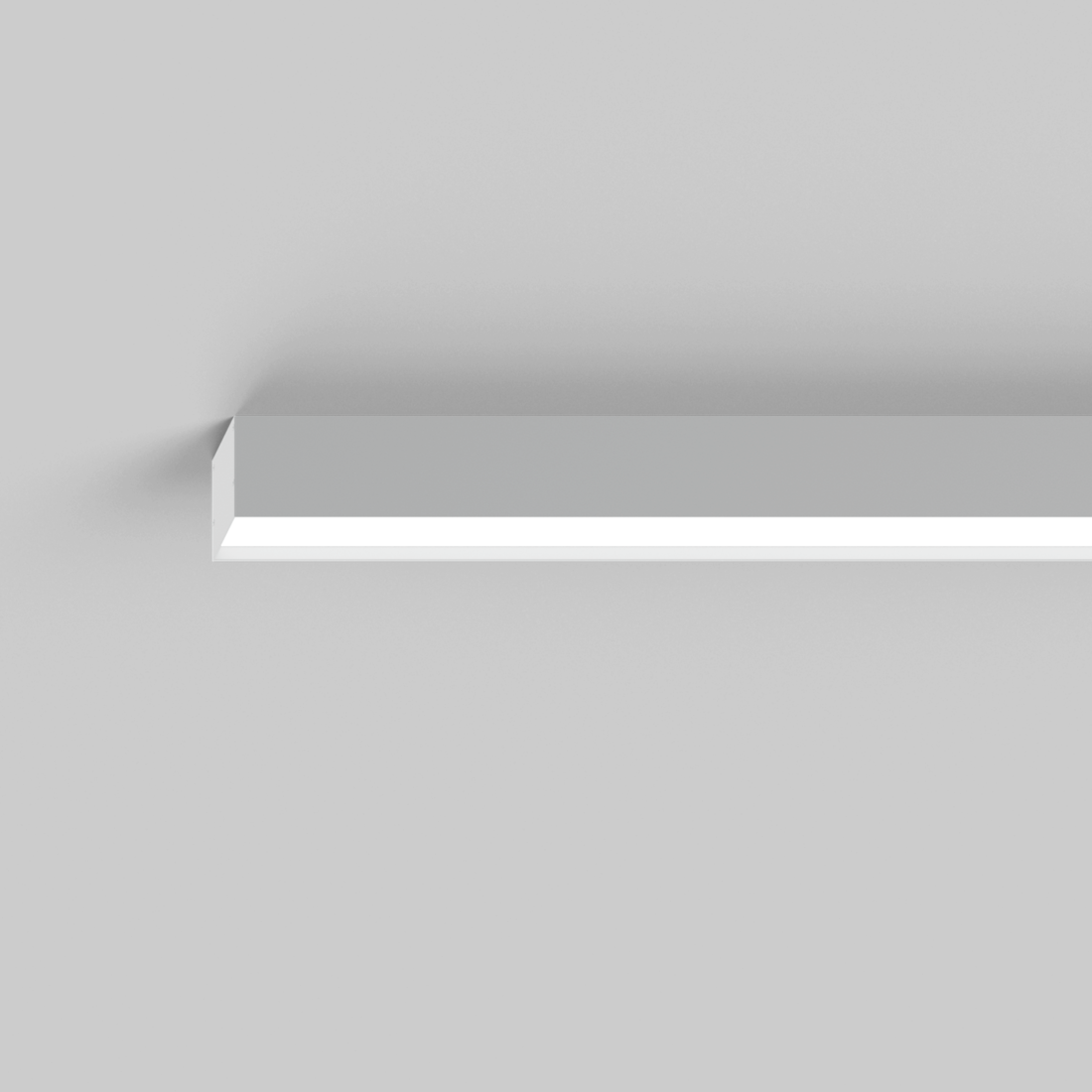

    grey, 3000 K, system 12.1 W, 94 lm/W, length 575 mm
    non DIM
    grey, 3000 K, system 12.1 W, 94 lm/W, length 575 mm
    DALI-2
    grey, 4000 K, system 12.1 W, 107 lm/W, length 575 mm
    non DIM
    grey, 4000 K, system 12.1 W, 107 lm/W, length 575 mm
    DALI-2
    grey, 3000 K, system 17.5 W, 98 lm/W, length 875 mm
    non DIM
    grey, 3000 K, system 17.5 W, 98 lm/W, length 875 mm
    DALI-2
    grey, 4000 K, system 17.5 W, 111 lm/W, length 875 mm
    non DIM
    grey, 4000 K, system 17.5 W, 111 lm/W, length 875 mm
    DALI-2
    grey, 3000 K, system 23.3 W, 98 lm/W, length 1,175 mm
    non DIM
    grey, 3000 K, system 23.3 W, 98 lm/W, length 1,175 mm
    DALI-2
    grey, 4000 K, system 23.3 W, 112 lm/W, length 1,175 mm
    non DIM
    grey, 4000 K, system 23.3 W, 112 lm/W, length 1,175 mm
    DALI-2
    grey, 3000 K, system 29.1 W, 98 lm/W, length 1,475 mm
    non DIM
    grey, 3000 K, system 29.1 W, 98 lm/W, length 1,475 mm
    DALI-2
    grey, 4000 K, system 29.1 W, 112 lm/W, length 1,475 mm
    non DIM
    grey, 4000 K, system 29.1 W, 112 lm/W, length 1,475 mm
    DALI-2
    grey, 3000 K, system 45 W, 102 lm/W, length 2,347 mm
    non DIM
    grey, 3000 K, system 45 W, 102 lm/W, length 2,347 mm
    DALI-2
    grey, 4000 K, system 45 W, 116 lm/W, length 2,347 mm
    non DIM
    grey, 4000 K, system 45 W, 116 lm/W, length 2,347 mm
    DALI-2
    MINO 60 high lumen ceiling offset, MINO 60 mid lumen ceiling offset

    MINO 60 high lumen ceiling offset

    MINO 60 high lumen ceiling offset

    Status
    Article number(s)
    Type
    Dimming

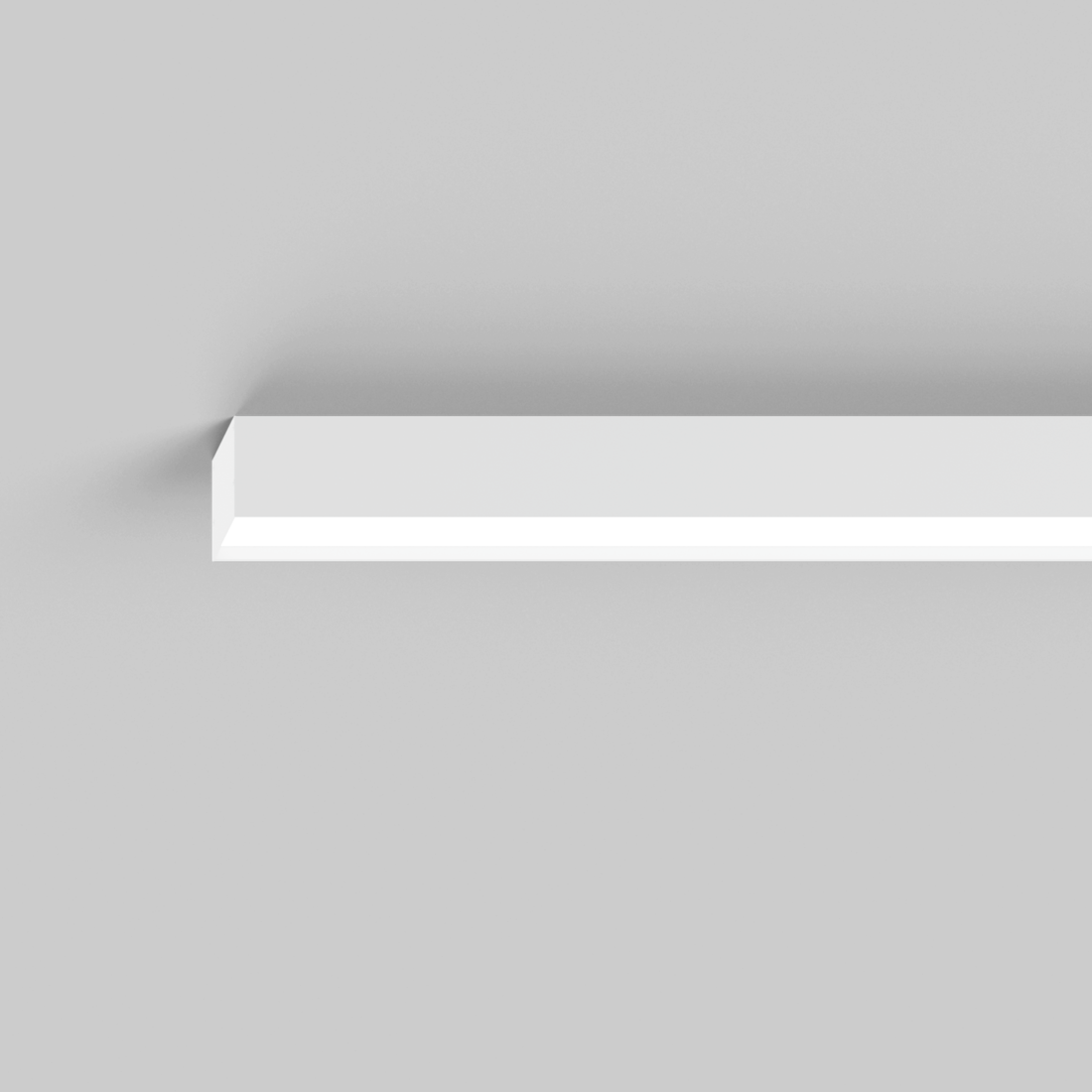

    white, 3000 K, system 12.1 W, 111 lm/W, length 575 mm
    non DIM
    white, 3000 K, system 12.1 W, 111 lm/W, length 575 mm
    DALI-2
    white, 4000 K, system 12.1 W, 126 lm/W, length 575 mm
    non DIM
    white, 4000 K, system 12.1 W, 126 lm/W, length 575 mm
    DALI-2
    white, 3000 K, system 17.5 W, 114 lm/W, length 875 mm
    non DIM
    white, 3000 K, system 17.5 W, 114 lm/W, length 875 mm
    DALI-2
    white, 4000 K, system 17.5 W, 130 lm/W, length 875 mm
    non DIM
    white, 4000 K, system 17.5 W, 130 lm/W, length 875 mm
    DALI-2
    white, 3000 K, system 23.3 W, 115 lm/W, length 1,175 mm
    non DIM
    white, 3000 K, system 23.3 W, 115 lm/W, length 1,175 mm
    DALI-2
    white, 4000 K, system 23.3 W, 130 lm/W, length 1,175 mm
    non DIM
    white, 4000 K, system 23.3 W, 130 lm/W, length 1,175 mm
    DALI-2
    white, 3000 K, system 29.1 W, 115 lm/W, length 1,475 mm
    non DIM
    white, 3000 K, system 29.1 W, 115 lm/W, length 1,475 mm
    DALI-2
    white, 4000 K, system 29.1 W, 131 lm/W, length 1,475 mm
    non DIM
    white, 4000 K, system 29.1 W, 131 lm/W, length 1,475 mm
    DALI-2
    white, 3000 K, system 45 W, 119 lm/W, length 2,347 mm
    non DIM
    white, 3000 K, system 45 W, 119 lm/W, length 2,347 mm
    DALI-2
    white, 4000 K, system 45 W, 135 lm/W, length 2,347 mm
    non DIM
    white, 4000 K, system 45 W, 135 lm/W, length 2,347 mm
    DALI-2
    MINO 60 high lumen ceiling offset, MINO 60 mid lumen ceiling offset

    MINO 60 mid lumen ceiling offset

    MINO 60 mid lumen ceiling offset

    Status
    Article number(s)
    Type
    Dimming
    black, 3000 K, system 6.9 W, 87 lm/W, length 575 mm
    non DIM
    black, 4000 K, system 6.9 W, 99 lm/W, length 575 mm
    non DIM
    black, 3000 K, system 10.3 W, 88 lm/W, length 875 mm
    non DIM
    black, 4000 K, system 10.3 W, 100 lm/W, length 875 mm
    non DIM
    black, 3000 K, system 13.3 W, 90 lm/W, length 1,175 mm
    non DIM
    black, 4000 K, system 13.3 W, 103 lm/W, length 1,175 mm
    non DIM
    black, 3000 K, system 16.6 W, 90 lm/W, length 1,475 mm
    non DIM
    black, 4000 K, system 16.6 W, 103 lm/W, length 1,475 mm
    non DIM
    black, 3000 K, system 26.6 W, 90 lm/W, length 2,347 mm
    non DIM
    black, 4000 K, system 26.6 W, 103 lm/W, length 2,347 mm
    non DIM
    MINO 60 high lumen ceiling offset, MINO 60 mid lumen ceiling offset

    MINO 60 mid lumen ceiling offset

    MINO 60 mid lumen ceiling offset

    Status
    Article number(s)
    Type
    Dimming
    grey, 3000 K, system 6.9 W, 98 lm/W, length 575 mm
    non DIM
    grey, 4000 K, system 6.9 W, 112 lm/W, length 575 mm
    non DIM
    grey, 3000 K, system 10.3 W, 99 lm/W, length 875 mm
    non DIM
    grey, 4000 K, system 10.3 W, 113 lm/W, length 875 mm
    non DIM
    grey, 3000 K, system 13.3 W, 102 lm/W, length 1,175 mm
    non DIM
    grey, 4000 K, system 13.3 W, 117 lm/W, length 1,175 mm
    non DIM
    grey, 3000 K, system 16.6 W, 102 lm/W, length 1,475 mm
    non DIM
    grey, 4000 K, system 16.6 W, 116 lm/W, length 1,475 mm
    non DIM
    grey, 3000 K, system 26.6 W, 102 lm/W, length 2,347 mm
    non DIM
    grey, 4000 K, system 26.6 W, 116 lm/W, length 2,347 mm
    non DIM
    MINO 60 high lumen ceiling offset, MINO 60 mid lumen ceiling offset

    MINO 60 mid lumen ceiling offset

    MINO 60 mid lumen ceiling offset

    Status
    Article number(s)
    Type
    Dimming
    white, 3000 K, system 6.9 W, 115 lm/W, length 575 mm
    non DIM
    white, 4000 K, system 6.9 W, 131 lm/W, length 575 mm
    non DIM
    white, 3000 K, system 10.3 W, 116 lm/W, length 875 mm
    non DIM
    white, 4000 K, system 10.3 W, 132 lm/W, length 875 mm
    non DIM
    white, 3000 K, system 13.3 W, 120 lm/W, length 1,175 mm
    non DIM
    white, 4000 K, system 13.3 W, 136 lm/W, length 1,175 mm
    non DIM
    white, 3000 K, system 16.6 W, 120 lm/W, length 1,475 mm
    non DIM
    white, 4000 K, system 16.6 W, 136 lm/W, length 1,475 mm
    non DIM
    white, 3000 K, system 26.6 W, 120 lm/W, length 2,347 mm
    non DIM
    white, 4000 K, system 26.6 W, 136 lm/W, length 2,347 mm
    non DIM
