FRAME 60

trim system

Quickinfo

3000 K, 4000 K, tunable white 2700 - 6500 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM (initial MacAdam)
UGR ≤ 19
up to 146 lm/W
L90 / 100000 h, L90 / 75000 h
DALI-2, non DIM
Microprismatic, Opal
IP20 / PC1 / 220-240 V
572 mm, 872 mm, 1,172 mm, 1,472 mm, 2,344 mm, 3,000 mm,

Colour

Products and codes

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all
  • ROLF
  • ULD

Description

Luminaire housing made of extruded aluminium; recessed luminaire with trim; designed for continuous lighting systems; suitable for ceiling thickness of 8-25 mm; surface powder coated; luminaire profile for mounting available in advance; remaining luminaire components mounted without tools; light inset consisting of highly reflective coated extruded profile for improved thermal management; option: lighting module is versatile in length; opal cover for uniform illumination; micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance; wallwasher light inset; energy-efficient LEDs with very good colour rendering

DiiA® standards 251, 252, 253

single luminaire

wallwasher inset

concrete installation housing

flexible inset

microprismatic UGR ≤ 19

tunable white 2700 – 6500 K

CRI ≥ 98 XPECTRUM (optional)

Products and codes

Filter
93
lm/W
146
lm/W
665
lm
8110
lm
6.9
W
58
W
0.48
0.81
0.44
0.74

Colour

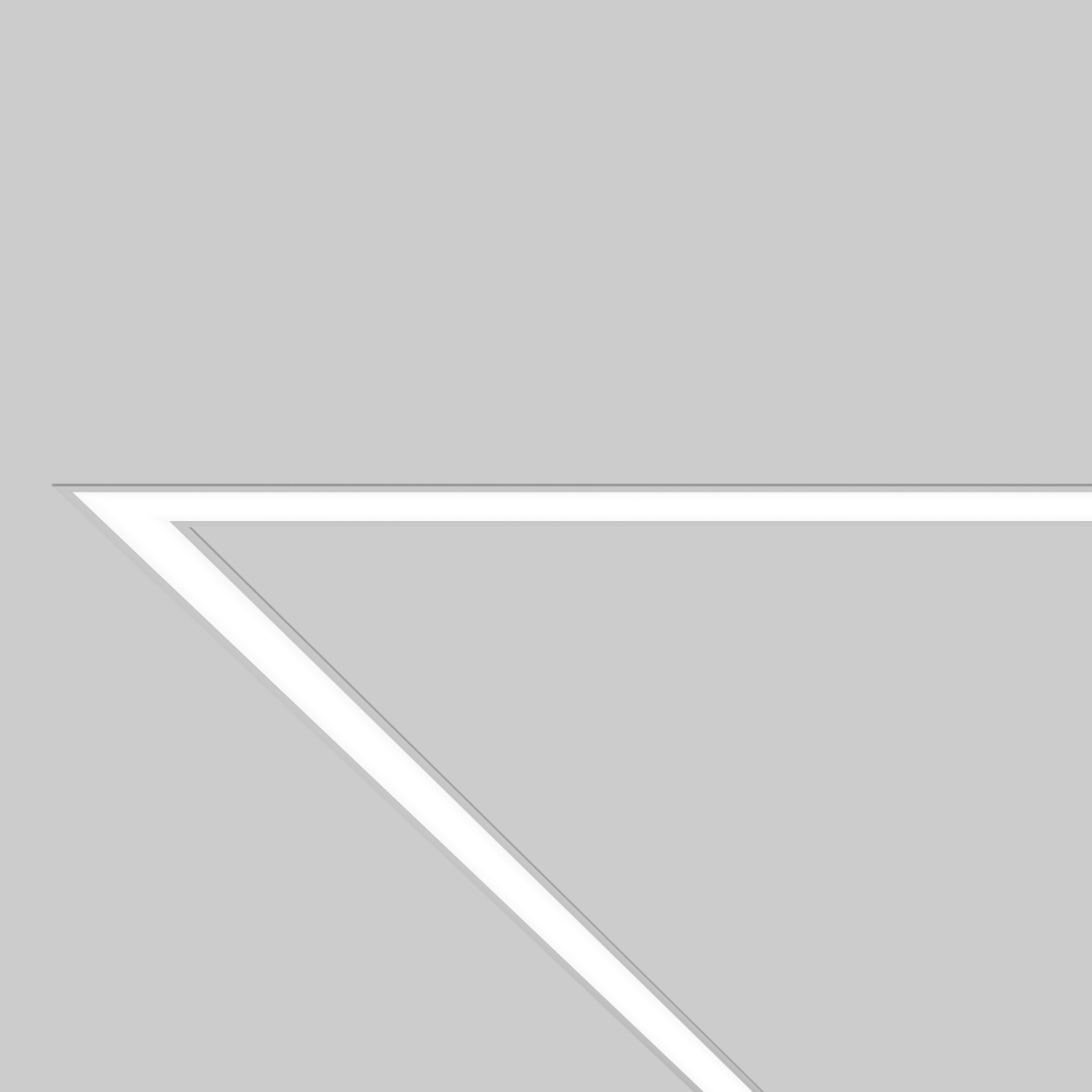

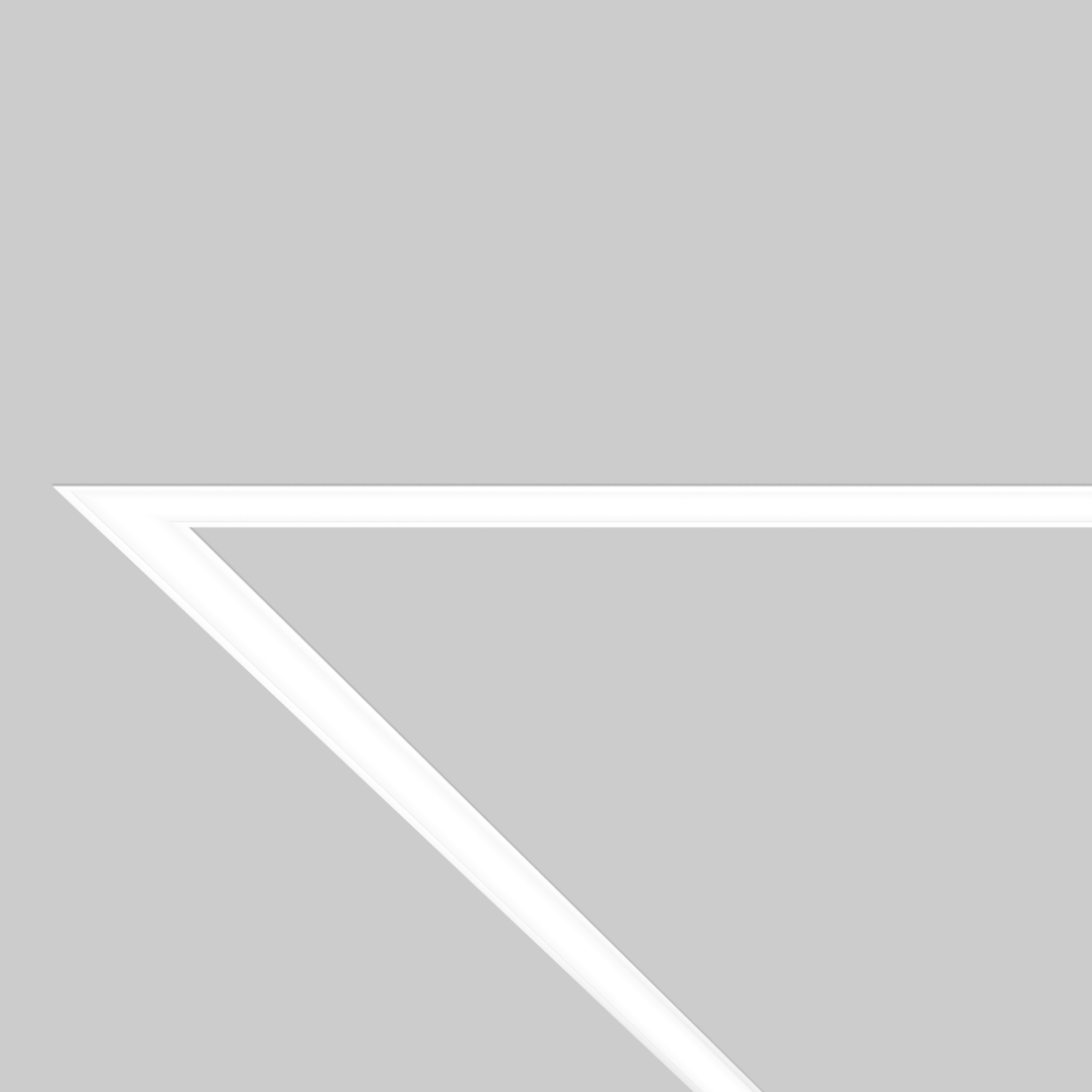

FRAME 60 high lumen trim system, FRAME 60 mid lumen trim system

FRAME 60 high lumen trim system

FRAME 60 high lumen trim system

Status
Article number(s)
Type
Dimming
traffic white, microprismatic, tunable white, CRI ≥ 80, microprismatic (glare reduced), system 19 W, 103 lm/W, length 872 mm
DALI-2
traffic white, opal (lambertsch), tunable white, CRI ≥ 80, system 19 W, 119 lm/W, length 872 mm
DALI-2
traffic white, microprismatic, tunable white, CRI ≥ 80, microprismatic, system 19 W, 103 lm/W, length 872 mm
DALI-2
traffic white, microprismatic, tunable white, CRI ≥ 80, microprismatic (glare reduced), system 25.3 W, 104 lm/W, length 1,172 mm
DALI-2
traffic white, opal (lambertsch), tunable white, CRI ≥ 80, system 25.3 W, 119 lm/W, length 1,172 mm
DALI-2
traffic white, microprismatic, tunable white, CRI ≥ 80, microprismatic, system 25.3 W, 103 lm/W, length 1,172 mm
DALI-2
traffic white, microprismatic, tunable white, CRI ≥ 80, microprismatic (glare reduced), system 31 W, 105 lm/W, length 1,472 mm
DALI-2
traffic white, opal (lambertsch), tunable white, CRI ≥ 80, system 31 W, 121 lm/W, length 1,472 mm
DALI-2
traffic white, microprismatic, tunable white, CRI ≥ 80, microprismatic, system 31 W, 105 lm/W, length 1,472 mm
DALI-2
traffic white, microprismatic, tunable white, CRI ≥ 80, microprismatic (glare reduced), system 49 W, 107 lm/W, length 2,344 mm
DALI-2
traffic white, opal (lambertsch), tunable white, CRI ≥ 80, system 49 W, 123 lm/W, length 2,344 mm
DALI-2
traffic white, microprismatic, tunable white, CRI ≥ 80, microprismatic, system 49 W, 107 lm/W, length 2,344 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 12.1 W, 93 lm/W, length 572 mm
non DIM
traffic white, opal (lambertsch), 3000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 572 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 572 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 12.1 W, 93 lm/W, length 572 mm
DALI-2
traffic white, opal (lambertsch), 3000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 572 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 572 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 12.1 W, 93 lm/W, length 572 mm
non DIM
traffic white, opal (lambertsch), 4000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 572 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 572 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 12.1 W, 93 lm/W, length 572 mm
DALI-2
traffic white, opal (lambertsch), 4000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 572 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 572 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 12.1 W, 107 lm/W, length 572 mm
non DIM
traffic white, opal (lambertsch), 3000 K, CRI ≥ 80, system 12.1 W, 122 lm/W, length 572 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 12.1 W, 106 lm/W, length 572 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 12.1 W, 107 lm/W, length 572 mm
DALI-2
traffic white, opal (lambertsch), 3000 K, CRI ≥ 80, system 12.1 W, 122 lm/W, length 572 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 12.1 W, 106 lm/W, length 572 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 12.1 W, 113 lm/W, length 572 mm
non DIM
traffic white, opal (lambertsch), 4000 K, CRI ≥ 80, system 12.1 W, 130 lm/W, length 572 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 12.1 W, 113 lm/W, length 572 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 12.1 W, 113 lm/W, length 572 mm
DALI-2
traffic white, opal (lambertsch), 4000 K, CRI ≥ 80, system 12.1 W, 130 lm/W, length 572 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 12.1 W, 113 lm/W, length 572 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 17.5 W, 96 lm/W, length 872 mm
non DIM
traffic white, opal (lambertsch), 3000 K, CRI ≥ 90, system 17.5 W, 110 lm/W, length 872 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 17.5 W, 96 lm/W, length 872 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 17.5 W, 96 lm/W, length 872 mm
DALI-2
traffic white, opal (lambertsch), 3000 K, CRI ≥ 90, system 17.5 W, 110 lm/W, length 872 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 17.5 W, 96 lm/W, length 872 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 17.5 W, 96 lm/W, length 872 mm
non DIM
traffic white, opal (lambertsch), 4000 K, CRI ≥ 90, system 17.5 W, 110 lm/W, length 872 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 17.5 W, 96 lm/W, length 872 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 17.5 W, 96 lm/W, length 872 mm
DALI-2
traffic white, opal (lambertsch), 4000 K, CRI ≥ 90, system 17.5 W, 110 lm/W, length 872 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 17.5 W, 96 lm/W, length 872 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 17.5 W, 110 lm/W, length 872 mm
non DIM
traffic white, opal (lambertsch), 3000 K, CRI ≥ 80, system 17.5 W, 127 lm/W, length 872 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 17.5 W, 110 lm/W, length 872 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 17.5 W, 110 lm/W, length 872 mm
DALI-2
traffic white, opal (lambertsch), 3000 K, CRI ≥ 80, system 17.5 W, 127 lm/W, length 872 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 17.5 W, 110 lm/W, length 872 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 17.5 W, 117 lm/W, length 872 mm
non DIM
traffic white, opal (lambertsch), 4000 K, CRI ≥ 80, system 17.5 W, 135 lm/W, length 872 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 17.5 W, 117 lm/W, length 872 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 17.5 W, 117 lm/W, length 872 mm
DALI-2
traffic white, opal (lambertsch), 4000 K, CRI ≥ 80, system 17.5 W, 135 lm/W, length 872 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 17.5 W, 117 lm/W, length 872 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 23.3 W, 96 lm/W, length 1,172 mm
non DIM
traffic white, opal (lambertsch), 3000 K, CRI ≥ 90, system 23.3 W, 110 lm/W, length 1,172 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 23.3 W, 96 lm/W, length 1,172 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 23.3 W, 96 lm/W, length 1,172 mm
DALI-2
traffic white, opal (lambertsch), 3000 K, CRI ≥ 90, system 23.3 W, 110 lm/W, length 1,172 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 23.3 W, 96 lm/W, length 1,172 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 23.3 W, 96 lm/W, length 1,172 mm
non DIM
traffic white, opal (lambertsch), 4000 K, CRI ≥ 90, system 23.3 W, 110 lm/W, length 1,172 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 23.3 W, 96 lm/W, length 1,172 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 23.3 W, 96 lm/W, length 1,172 mm
DALI-2
traffic white, opal (lambertsch), 4000 K, CRI ≥ 90, system 23.3 W, 110 lm/W, length 1,172 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 23.3 W, 96 lm/W, length 1,172 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 23.3 W, 110 lm/W, length 1,172 mm
non DIM
traffic white, opal (lambertsch), 3000 K, CRI ≥ 80, system 23.3 W, 127 lm/W, length 1,172 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 23.3 W, 110 lm/W, length 1,172 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 23.3 W, 110 lm/W, length 1,172 mm
DALI-2
traffic white, opal (lambertsch), 3000 K, CRI ≥ 80, system 23.3 W, 127 lm/W, length 1,172 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 23.3 W, 110 lm/W, length 1,172 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 23.3 W, 118 lm/W, length 1,172 mm
non DIM
traffic white, opal (lambertsch), 4000 K, CRI ≥ 80, system 23.3 W, 135 lm/W, length 1,172 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 23.3 W, 117 lm/W, length 1,172 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 23.3 W, 118 lm/W, length 1,172 mm
DALI-2
traffic white, opal (lambertsch), 4000 K, CRI ≥ 80, system 23.3 W, 135 lm/W, length 1,172 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 23.3 W, 117 lm/W, length 1,172 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 29.1 W, 96 lm/W, length 1,472 mm
non DIM
traffic white, opal (lambertsch), 3000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,472 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,472 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 29.1 W, 96 lm/W, length 1,472 mm
DALI-2
traffic white, opal (lambertsch), 3000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,472 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,472 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 29.1 W, LED, 96 lm/W, length 1,472 mm
non DIM
traffic white, opal (lambertsch), 4000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,472 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,472 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 29.1 W, 96 lm/W, length 1,472 mm
DALI-2
traffic white, opal (lambertsch), 4000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,472 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,472 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 29.1 W, 110 lm/W, length 1,472 mm
non DIM
traffic white, opal (lambertsch), 3000 K, CRI ≥ 80, system 29.1 W, 127 lm/W, length 1,472 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 29.1 W, 110 lm/W, length 1,472 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 29.1 W, 110 lm/W, length 1,472 mm
DALI-2
traffic white, opal (lambertsch), 3000 K, CRI ≥ 80, system 29.1 W, 127 lm/W, length 1,472 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 29.1 W, 110 lm/W, length 1,472 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 29.1 W, 118 lm/W, length 1,472 mm
non DIM
traffic white, opal (lambertsch), 4000 K, CRI ≥ 80, system 29.1 W, 135 lm/W, length 1,472 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 29.1 W, 118 lm/W, length 1,472 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 29.1 W, 118 lm/W, length 1,472 mm
DALI-2
traffic white, opal (lambertsch), 4000 K, CRI ≥ 80, system 29.1 W, 135 lm/W, length 1,472 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 29.1 W, 118 lm/W, length 1,472 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 45 W, 100 lm/W, length 2,344 mm
non DIM
traffic white, opal (lambertsch), 3000 K, CRI ≥ 90, system 45 W, 114 lm/W, length 2,344 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 45 W, 99 lm/W, length 2,344 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 45 W, 100 lm/W, length 2,344 mm
DALI-2
traffic white, opal (lambertsch), 3000 K, CRI ≥ 90, system 45 W, 114 lm/W, length 2,344 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 45 W, 99 lm/W, length 2,344 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 45 W, 100 lm/W, length 2,344 mm
non DIM
traffic white, opal (lambertsch), 4000 K, CRI ≥ 90, system 45 W, 114 lm/W, length 2,344 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 45 W, 99 lm/W, length 2,344 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 45 W, 100 lm/W, length 2,344 mm
DALI-2
traffic white, opal (lambertsch), 4000 K, CRI ≥ 90, system 45 W, 114 lm/W, length 2,344 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 45 W, 99 lm/W, length 2,344 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 45 W, 114 lm/W, length 2,344 mm
non DIM
traffic white, opal (lambertsch), 3000 K, CRI ≥ 80, system 45 W, 131 lm/W, length 2,344 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 45 W, 114 lm/W, length 2,344 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 45 W, 114 lm/W, length 2,344 mm
DALI-2
traffic white, opal (lambertsch), 3000 K, CRI ≥ 80, system 45 W, 131 lm/W, length 2,344 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 45 W, 114 lm/W, length 2,344 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 45 W, 122 lm/W, length 2,344 mm
non DIM
traffic white, opal (lambertsch), 4000 K, CRI ≥ 80, system 45 W, 140 lm/W, length 2,344 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 45 W, 122 lm/W, length 2,344 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 45 W, 122 lm/W, length 2,344 mm
DALI-2
traffic white, opal (lambertsch), 4000 K, CRI ≥ 80, system 45 W, 140 lm/W, length 2,344 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 45 W, 122 lm/W, length 2,344 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 58 W, 100 lm/W, length 3,000 mm
non DIM
traffic white, opal (lambertsch), 3000 K, CRI ≥ 90, system 58 W, 114 lm/W, length 3,000 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 58 W, 99 lm/W, length 3,000 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 58 W, 100 lm/W, length 3,000 mm
DALI-2
traffic white, opal (lambertsch), 3000 K, CRI ≥ 90, system 58 W, 114 lm/W, length 3,000 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 58 W, 99 lm/W, length 3,000 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 58 W, 100 lm/W, length 3,000 mm
non DIM
traffic white, opal (lambertsch), 4000 K, CRI ≥ 90, system 58 W, 114 lm/W, length 3,000 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 58 W, 99 lm/W, length 3,000 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 58 W, 100 lm/W, length 3,000 mm
DALI-2
traffic white, opal (lambertsch), 4000 K, CRI ≥ 90, system 58 W, 114 lm/W, length 3,000 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 58 W, 99 lm/W, length 3,000 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 58 W, 114 lm/W, length 3,000 mm
non DIM
traffic white, opal (lambertsch), 3000 K, CRI ≥ 80, system 58 W, 131 lm/W, length 3,000 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 58 W, 114 lm/W, length 3,000 mm
non DIM
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 58 W, 114 lm/W, length 3,000 mm
DALI-2
traffic white, opal (lambertsch), 3000 K, CRI ≥ 80, system 58 W, 131 lm/W, length 3,000 mm
DALI-2
traffic white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 58 W, 114 lm/W, length 3,000 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 58 W, 122 lm/W, length 3,000 mm
non DIM
traffic white, opal (lambertsch), 4000 K, CRI ≥ 80, system 58 W, 140 lm/W, length 3,000 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 58 W, 122 lm/W, length 3,000 mm
non DIM
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 58 W, 122 lm/W, length 3,000 mm
DALI-2
traffic white, opal (lambertsch), 4000 K, CRI ≥ 80, system 58 W, 140 lm/W, length 3,000 mm
DALI-2
traffic white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 58 W, 122 lm/W, length 3,000 mm
DALI-2
FRAME 60 high lumen trim system, FRAME 60 mid lumen trim system

FRAME 60 high lumen trim system

FRAME 60 high lumen trim system

Status
Article number(s)
Type
Dimming
white aluminium, microprismatic, tunable white, CRI ≥ 80, microprismatic (glare reduced), system 19 W, 103 lm/W, length 872 mm
DALI-2
white aluminium, microprismatic, tunable white, CRI ≥ 80, microprismatic, system 19 W, 103 lm/W, length 872 mm
DALI-2
white aluminium, microprismatic, tunable white, CRI ≥ 80, microprismatic (glare reduced), system 25.3 W, 104 lm/W, length 1,172 mm
DALI-2
white aluminium, opal (lambertsch), tunable white, CRI ≥ 80, system 25.3 W, 119 lm/W, length 1,172 mm
DALI-2
white aluminium, microprismatic, tunable white, CRI ≥ 80, microprismatic, system 25.3 W, 103 lm/W, length 1,172 mm
DALI-2
white aluminium, microprismatic, tunable white, CRI ≥ 80, microprismatic (glare reduced), system 31 W, 105 lm/W, length 1,472 mm
DALI-2
white aluminium, opal (lambertsch), tunable white, CRI ≥ 80, system 31 W, 121 lm/W, length 1,472 mm
DALI-2
white aluminium, microprismatic, tunable white, CRI ≥ 80, microprismatic, system 31 W, 105 lm/W, length 1,472 mm
DALI-2
white aluminium, microprismatic, tunable white, CRI ≥ 80, microprismatic (glare reduced), system 49 W, 107 lm/W, length 2,344 mm
DALI-2
white aluminium, opal (lambertsch), tunable white, CRI ≥ 80, system 49 W, 123 lm/W, length 2,344 mm
DALI-2
white aluminium, microprismatic, tunable white, CRI ≥ 80, microprismatic, system 49 W, 107 lm/W, length 2,344 mm
DALI-2
white aluminium, opal (lambertsch), 3000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 572 mm
DALI-2
white aluminium, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 572 mm
DALI-2
white aluminium, opal (lambertsch), 4000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 572 mm
non DIM
white aluminium, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 572 mm
non DIM
white aluminium, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 12.1 W, 93 lm/W, length 572 mm
DALI-2
white aluminium, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 572 mm
DALI-2
white aluminium, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 12.1 W, 107 lm/W, length 572 mm
non DIM
white aluminium, opal (lambertsch), 3000 K, CRI ≥ 80, system 12.1 W, 122 lm/W, length 572 mm
non DIM
white aluminium, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 12.1 W, 106 lm/W, length 572 mm
non DIM
white aluminium, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 12.1 W, 107 lm/W, length 572 mm
DALI-2
white aluminium, opal (lambertsch), 3000 K, CRI ≥ 80, system 12.1 W, 122 lm/W, length 572 mm
DALI-2
white aluminium, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 12.1 W, 106 lm/W, length 572 mm
DALI-2
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 12.1 W, 113 lm/W, length 572 mm
non DIM
white aluminium, opal (lambertsch), 4000 K, CRI ≥ 80, system 12.1 W, 130 lm/W, length 572 mm
non DIM
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 12.1 W, 113 lm/W, length 572 mm
non DIM
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 12.1 W, 113 lm/W, length 572 mm
DALI-2
white aluminium, opal (lambertsch), 4000 K, CRI ≥ 80, system 12.1 W, 130 lm/W, length 572 mm
DALI-2
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 12.1 W, 113 lm/W, length 572 mm
DALI-2
white aluminium, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 17.5 W, 96 lm/W, length 872 mm
non DIM
white aluminium, opal (lambertsch), 3000 K, CRI ≥ 90, system 17.5 W, 110 lm/W, length 872 mm
non DIM
white aluminium, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 17.5 W, 96 lm/W, length 872 mm
non DIM
white aluminium, opal (lambertsch), 4000 K, CRI ≥ 90, system 17.5 W, 110 lm/W, length 872 mm
non DIM
white aluminium, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 17.5 W, 96 lm/W, length 872 mm
non DIM
white aluminium, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 17.5 W, 96 lm/W, length 872 mm
DALI-2
white aluminium, opal (lambertsch), 3000 K, CRI ≥ 80, system 17.5 W, 127 lm/W, length 872 mm
non DIM
white aluminium, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 17.5 W, 110 lm/W, length 872 mm
non DIM
white aluminium, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 17.5 W, 110 lm/W, length 872 mm
DALI-2
white aluminium, opal (lambertsch), 3000 K, CRI ≥ 80, system 17.5 W, 127 lm/W, length 872 mm
DALI-2
white aluminium, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 17.5 W, 110 lm/W, length 872 mm
DALI-2
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 17.5 W, 117 lm/W, length 872 mm
non DIM
white aluminium, opal (lambertsch), 4000 K, CRI ≥ 80, system 17.5 W, 135 lm/W, length 872 mm
non DIM
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 17.5 W, 117 lm/W, length 872 mm
non DIM
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 17.5 W, 117 lm/W, length 872 mm
DALI-2
white aluminium, opal (lambertsch), 4000 K, CRI ≥ 80, system 17.5 W, 135 lm/W, length 872 mm
DALI-2
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 17.5 W, 117 lm/W, length 872 mm
DALI-2
white aluminium, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 23.3 W, 96 lm/W, length 1,172 mm
non DIM
white aluminium, opal (lambertsch), 3000 K, CRI ≥ 90, system 23.3 W, 110 lm/W, length 1,172 mm
non DIM
white aluminium, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 23.3 W, 96 lm/W, length 1,172 mm
non DIM
white aluminium, opal (lambertsch), 3000 K, CRI ≥ 90, system 23.3 W, 110 lm/W, length 1,172 mm
DALI-2
white aluminium, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 23.3 W, 96 lm/W, length 1,172 mm
DALI-2
white aluminium, opal (lambertsch), 3000 K, CRI ≥ 80, system 23.3 W, 127 lm/W, length 1,172 mm
DALI-2
white aluminium, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 23.3 W, 110 lm/W, length 1,172 mm
DALI-2
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 23.3 W, 118 lm/W, length 1,172 mm
non DIM
white aluminium, opal (lambertsch), 4000 K, CRI ≥ 80, system 23.3 W, 135 lm/W, length 1,172 mm
non DIM
white aluminium, opal (lambertsch), 4000 K, CRI ≥ 80, system 23.3 W, 135 lm/W, length 1,172 mm
DALI-2
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 23.3 W, 117 lm/W, length 1,172 mm
DALI-2
white aluminium, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 29.1 W, 96 lm/W, length 1,472 mm
non DIM
white aluminium, opal (lambertsch), 3000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,472 mm
non DIM
white aluminium, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,472 mm
non DIM
white aluminium, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 29.1 W, 96 lm/W, length 1,472 mm
DALI-2
white aluminium, opal (lambertsch), 3000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,472 mm
DALI-2
white aluminium, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,472 mm
DALI-2
white aluminium, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 29.1 W, 96 lm/W, length 1,472 mm
DALI-2
white aluminium, opal (lambertsch), 4000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,472 mm
DALI-2
white aluminium, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,472 mm
DALI-2
white aluminium, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 29.1 W, 110 lm/W, length 1,472 mm
non DIM
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 29.1 W, 118 lm/W, length 1,472 mm
DALI-2
white aluminium, opal (lambertsch), 4000 K, CRI ≥ 80, system 29.1 W, 135 lm/W, length 1,472 mm
DALI-2
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 29.1 W, 118 lm/W, length 1,472 mm
DALI-2
white aluminium, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 45 W, 100 lm/W, length 2,344 mm
non DIM
white aluminium, opal (lambertsch), 3000 K, CRI ≥ 90, system 45 W, 114 lm/W, length 2,344 mm
non DIM
white aluminium, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 45 W, 99 lm/W, length 2,344 mm
non DIM
white aluminium, opal (lambertsch), 4000 K, CRI ≥ 90, system 45 W, 114 lm/W, length 2,344 mm
non DIM
white aluminium, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 45 W, 99 lm/W, length 2,344 mm
DALI-2
white aluminium, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 45 W, 114 lm/W, length 2,344 mm
non DIM
white aluminium, opal (lambertsch), 3000 K, CRI ≥ 80, system 45 W, 131 lm/W, length 2,344 mm
non DIM
white aluminium, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 45 W, 114 lm/W, length 2,344 mm
non DIM
white aluminium, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 45 W, 114 lm/W, length 2,344 mm
DALI-2
white aluminium, opal (lambertsch), 3000 K, CRI ≥ 80, system 45 W, 131 lm/W, length 2,344 mm
DALI-2
white aluminium, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 45 W, 114 lm/W, length 2,344 mm
DALI-2
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 45 W, 122 lm/W, length 2,344 mm
DALI-2
white aluminium, opal (lambertsch), 4000 K, CRI ≥ 80, system 45 W, 140 lm/W, length 2,344 mm
DALI-2
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 45 W, 122 lm/W, length 2,344 mm
DALI-2
white aluminium, opal (lambertsch), 3000 K, CRI ≥ 90, system 58 W, 114 lm/W, length 3,000 mm
non DIM
white aluminium, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 58 W, 99 lm/W, length 3,000 mm
non DIM
white aluminium, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 58 W, 100 lm/W, length 3,000 mm
DALI-2
white aluminium, opal (lambertsch), 4000 K, CRI ≥ 90, system 58 W, 114 lm/W, length 3,000 mm
non DIM
white aluminium, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 58 W, 114 lm/W, length 3,000 mm
DALI-2
white aluminium, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 58 W, 114 lm/W, length 3,000 mm
DALI-2
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 58 W, 122 lm/W, length 3,000 mm
non DIM
white aluminium, opal (lambertsch), 4000 K, CRI ≥ 80, system 58 W, 140 lm/W, length 3,000 mm
non DIM
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 58 W, 122 lm/W, length 3,000 mm
non DIM
white aluminium, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 58 W, 122 lm/W, length 3,000 mm
DALI-2

Accessories

Optical

article number
type
dimensions
LIGHT OPTIC COVER
006-16062G
microprismatic (UGR<19)*
length 570 mm
width 55 mm
0.22 kg
LIGHT OPTIC COVER
006-16062H
opal
length 570 mm
width 55 mm
0.1 kg
LIGHT OPTIC COVER
006-16062Z
microprismatic
length 570 mm
width 55 mm
0.25 kg
LIGHT OPTIC COVER
006-16092G
microprismatic (UGR<19)*
length 870 mm
width 55 mm
0.3 kg
LIGHT OPTIC COVER
006-16092H
opal
length 870 mm
width 55 mm
0.14 kg
LIGHT OPTIC COVER
006-16092Z
microprismatic
length 870 mm
width 55 mm
0.3 kg
LIGHT OPTIC COVER
006-16122G
microprismatic (UGR<19)*
length 1,171 mm
width 55 mm
0.37 kg
LIGHT OPTIC COVER
006-16122H
opal
length 1,171 mm
width 55 mm
0.2 kg
LIGHT OPTIC COVER
006-16122Z
microprismatic
length 1,171 mm
width 55 mm
0.4 kg
LIGHT OPTIC COVER
006-16152G
microprismatic (UGR<19)*
length 1,470 mm
width 55 mm
0.48 kg
LIGHT OPTIC COVER
006-16152H
opal
length 1,470 mm
width 55 mm
0.24 kg
LIGHT OPTIC COVER
006-16152Z
microprismatic
length 1,470 mm
width 55 mm
0.5 kg
LIGHT OPTIC COVER
006-16232G
microprismatic (UGR<19)*
length 2,342 mm
width 55 mm
0.78 kg
LIGHT OPTIC COVER
006-16232H
opal
length 2,342 mm
width 55 mm
0.36 kg
LIGHT OPTIC COVER
006-16232Z
microprismatic
length 2,342 mm
width 55 mm
0.8 kg
LIGHT OPTIC COVER
006-16302G
microprismatic (UGR<19)*
length 2,997 mm
width 55 mm
1 kg
LIGHT OPTIC COVER
006-16302H
opal
length 2,997 mm
width 55 mm
0.5 kg
LIGHT OPTIC COVER
006-16302Z
microprismatic
length 2,997 mm
width 55 mm
1 kg

Mounting

article number
colour
dimensions
INSTALLATION CHANNEL
035-00637
traffic white
RAL 9016
length 572 mm
width 77 mm
height 76 mm
0.8 kg
INSTALLATION CHANNEL
035-0063G
white aluminium
RAL 9006
length 572 mm
width 77 mm
height 76 mm
0.8 kg
INSTALLATION CHANNEL
035-00937
traffic white
RAL 9016
length 872 mm
width 77 mm
height 76 mm
1.28 kg
INSTALLATION CHANNEL
035-0093G
white aluminium
RAL 9006
length 872 mm
width 77 mm
height 76 mm
1.2 kg
INSTALLATION CHANNEL
035-01237
traffic white
RAL 9016
length 1,172 mm
width 77 mm
height 76 mm
1.74 kg
INSTALLATION CHANNEL
035-0123G
white aluminium
RAL 9006
length 1,172 mm
width 77 mm
height 76 mm
1.6 kg
INSTALLATION CHANNEL
035-01537
traffic white
RAL 9016
length 1,472 mm
width 77 mm
height 76 mm
2 kg
INSTALLATION CHANNEL
035-0153G
white aluminium
RAL 9006
length 1,472 mm
width 77 mm
height 76 mm
2 kg
INSTALLATION CHANNEL
035-02537
traffic white
RAL 9016
length 2,344 mm
width 77 mm
height 76 mm
3.2 kg
INSTALLATION CHANNEL
035-0253G
white aluminium
RAL 9006
length 2,344 mm
width 77 mm
height 76 mm
3.2 kg
INSTALLATION CHANNEL
035-03037
traffic white
RAL 9016
length 3,000 mm
width 77 mm
height 76 mm
4.6 kg
INSTALLATION CHANNEL
035-0303G
white aluminium
RAL 9006
length 3,000 mm
width 77 mm
height 76 mm
4.1 kg

Electrical cable

article number
type
control
dimensions
THROUGH WIRE
004-90003
3 × 1.5 mm² | 10 pieces
non DIM
0.14 kg
THROUGH WIRE
004-90005
5 × 1.5 mm² | 10 pieces
DALI-2
0.3 kg

Mounting

article number
type
colour
dimensions
ceiling thickness
LINEAR CONNECTOR
005-40046
1 piece
length 46 mm
width 80 mm
0.06 kg
LINEAR CONNECTOR
005-40046.10
10 pieces
length 46 mm
width 80 mm
0.52 kg
OPAL COVER LINEAR CONNECTOR
006-14000
length 46 mm
width 80 mm
0.01 kg
MOUNTING BRACKET recessed trim
035-10200
1 piece
width 79 mm
0.06 kg
min. ceiling thickness 8 mm
max. ceiling thickness 25 mm
MOUNTING BRACKET recessed trim
035-10200.25
25 pieces
width 79 mm
2 kg
min. ceiling thickness 8 mm
max. ceiling thickness 25 mm
END CAPS
035-13137
1 pair
traffic white
RAL 9016
length 77 mm
width 76 mm
0.15 kg
END CAPS
035-1313G
1 pair
white aluminium
RAL 9006
length 77 mm
width 76 mm
0.15 kg

Related products

MINO 60

surface

MINO 60

ceiling offset

MINO 60

suspended

MINO 60

ceiling / suspended system

MINO 60

CURVE ceiling / suspended system

MINO 60

direct / indirect suspended system

FRAME 60

trim

MOVE IT 10

trimless system

MOVE IT 10

surface system

MOVE IT 10

square / round suspended system
