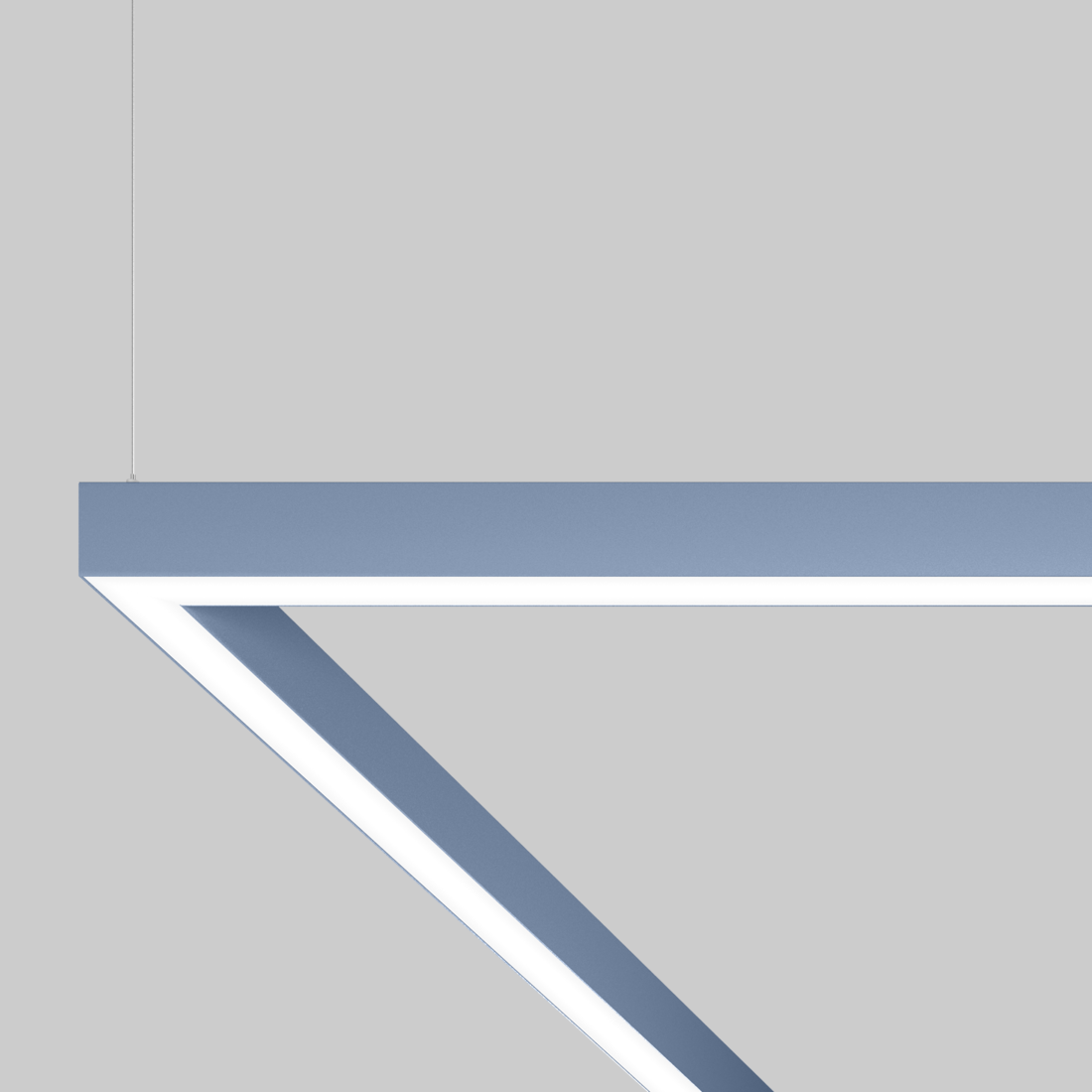

MINO 60 mid lumen ceiling / suspended system, MINO 60 high lumen ceiling / suspended system

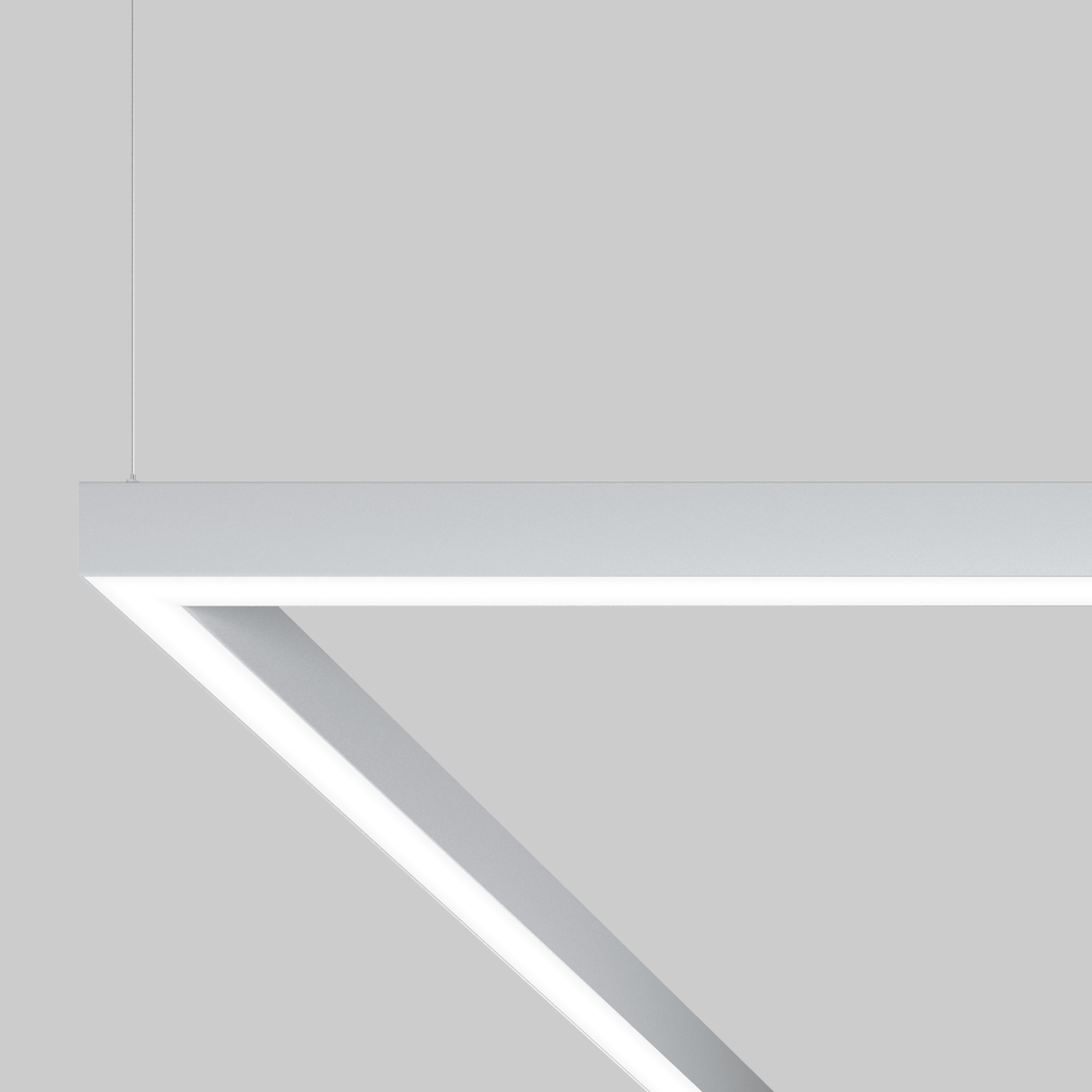

MINO 60 mid lumen ceiling / suspended system, MINO 60 high lumen ceiling / suspended system

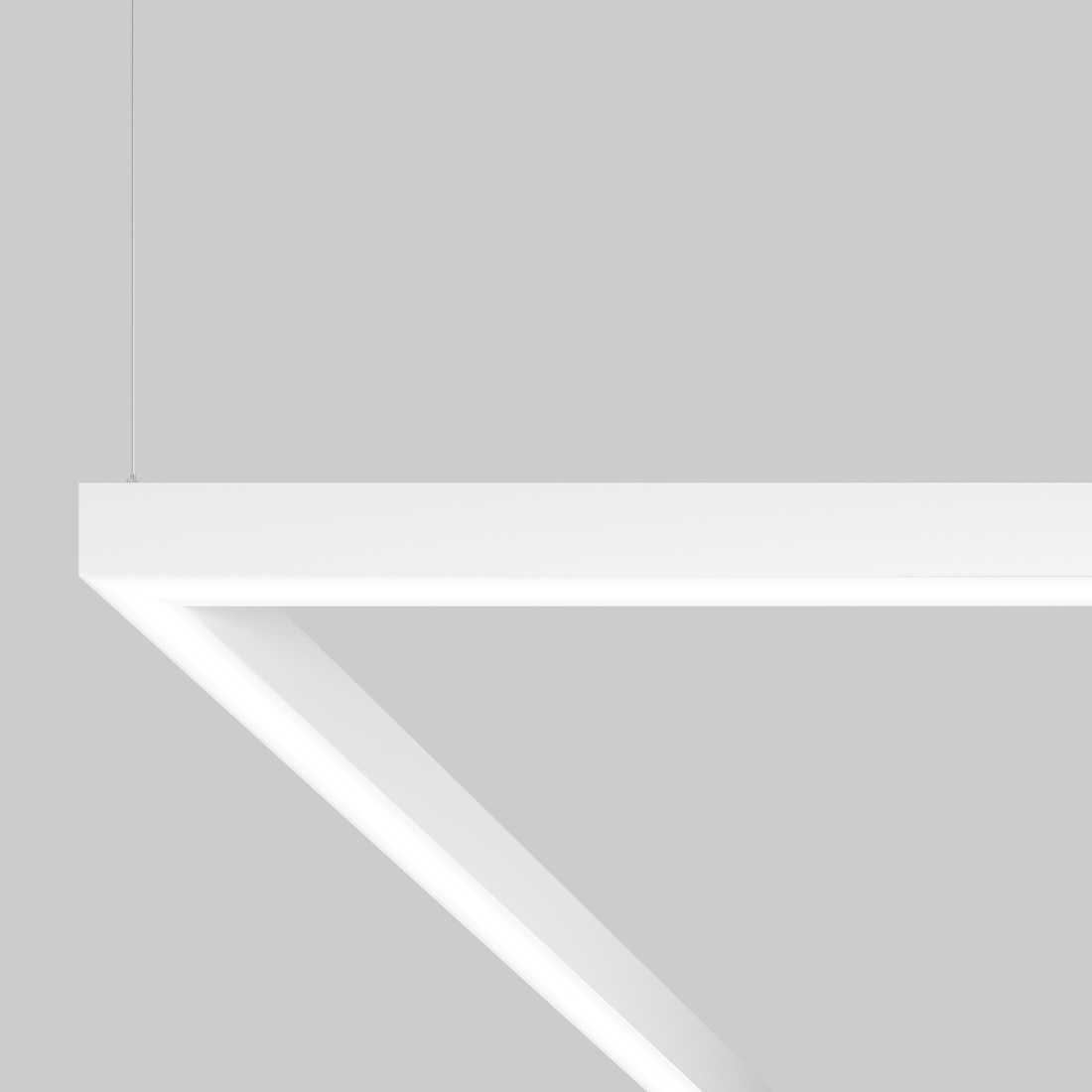

MINO 60 mid lumen ceiling / suspended system, MINO 60 high lumen ceiling / suspended system

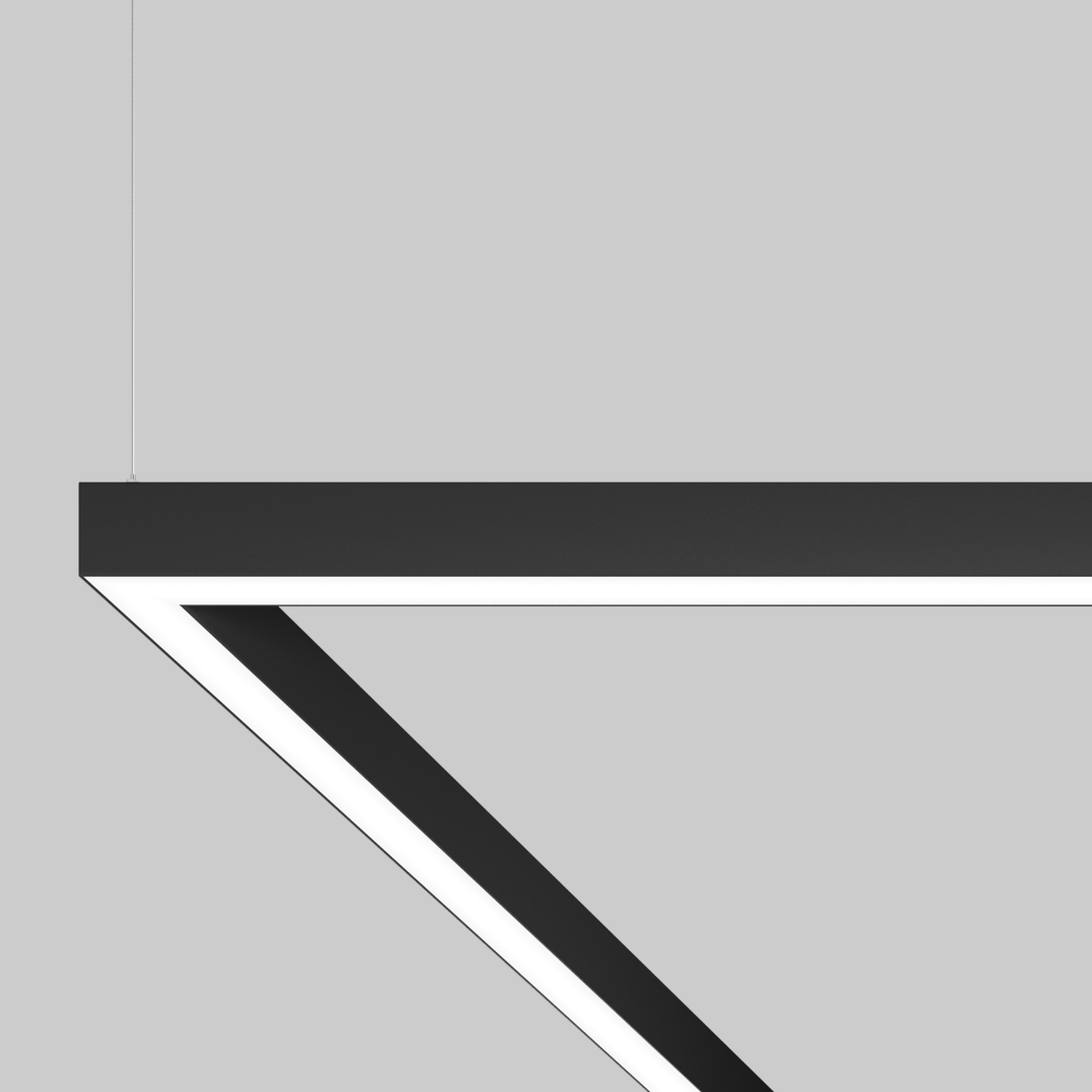

MINO 60 mid lumen ceiling / suspended system, MINO 60 high lumen ceiling / suspended system
ITALIANI ma non troppo
Medius, Zentrum für Gesundheit

MINO 60

ceiling / suspended system

Quickinfo

3000 K, 4000 K, tunable white 2700 - 6500 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM (initial MacAdam)
UGR ≤ 19
up to 146 lm/W
L90 / 100000 h, L90 / 75000 h
DALI-2, non DIM
Microprismatic, Opal
IP20 / PC1 / 220-240 V
572 mm, 872 mm, 1,172 mm, 1,472 mm, 2,344 mm, 3,000 mm,

Colour

Products and codes

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all

Description

Luminaire housing from extruded aluminium profile, angular design; no visible screws; designed for continuous lighting systems; surface powder coated; luminaire profile for mounting available in advance; remaining luminaire components mounted without tools; pendant fitting with cable suspension; with integrated toolless suspension height adjustment; spring clip attachment to the luminaire; freely positionable; incl. feeder cable; light inset consisting of highly reflective coated extruded profile for improved thermal management; option: lighting module is versatile in length; opal cover for uniform illumination; micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance; wallwasher light inset; energy-efficient LEDs with very good colour rendering

DiiA® standards 251, 252, 253

single luminaire

wallwasher inset

concrete installation housing

flexible inset

microprismatic UGR ≤ 19

tunable white 2700 – 6500 K

CRI ≥ 98 XPECTRUM (optional)

Products and codes

Filter
93
lm/W
146
lm/W
665
lm
8110
lm
6.9
W
58
W
0.48
0.81
0.44
0.74

Colour

MINO 60 mid lumen ceiling / suspended system, MINO 60 high lumen ceiling / suspended system

MINO 60 high lumen ceiling / suspended system

MINO 60 high lumen ceiling / suspended system

Status
Article number(s)
Type
Dimming
pure white, microprismatic, tunable white, CRI ≥ 80, microprismatic (glare reduced), system 19 W, 103 lm/W, length 872 mm
DALI-2
pure white, opal (lambertsch), tunable white, CRI ≥ 80, system 19 W, 119 lm/W, length 872 mm
DALI-2
pure white, microprismatic, tunable white, CRI ≥ 80, microprismatic, system 19 W, 103 lm/W, length 872 mm
DALI-2
pure white, microprismatic, tunable white, CRI ≥ 80, microprismatic (glare reduced), system 25.3 W, 104 lm/W, length 1,172 mm
DALI-2
pure white, opal (lambertsch), tunable white, CRI ≥ 80, system 25.3 W, 119 lm/W, length 1,172 mm
DALI-2
pure white, microprismatic, tunable white, CRI ≥ 80, microprismatic, system 25.3 W, 103 lm/W, length 1,172 mm
DALI-2
pure white, microprismatic, tunable white, CRI ≥ 80, microprismatic (glare reduced), system 31 W, 105 lm/W, length 1,472 mm
DALI-2
pure white, opal (lambertsch), tunable white, CRI ≥ 80, system 31 W, 121 lm/W, length 1,472 mm
DALI-2
pure white, microprismatic, tunable white, CRI ≥ 80, microprismatic, system 31 W, 105 lm/W, length 1,472 mm
DALI-2
pure white, microprismatic, tunable white, CRI ≥ 80, microprismatic (glare reduced), system 49 W, 107 lm/W, length 2,344 mm
DALI-2
pure white, opal (lambertsch), tunable white, CRI ≥ 80, system 49 W, 123 lm/W, length 2,344 mm
DALI-2
pure white, microprismatic, tunable white, CRI ≥ 80, microprismatic, system 49 W, 107 lm/W, length 2,344 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 12.1 W, 93 lm/W, length 572 mm
non DIM
pure white, opal (lambertsch), 3000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 572 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 572 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 12.1 W, 93 lm/W, length 572 mm
DALI-2
pure white, opal (lambertsch), 3000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 572 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 572 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 12.1 W, 93 lm/W, length 572 mm
non DIM
pure white, opal (lambertsch), 4000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 572 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 572 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 12.1 W, 93 lm/W, length 572 mm
DALI-2
pure white, opal (lambertsch), 4000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 572 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 572 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 12.1 W, 107 lm/W, length 572 mm
non DIM
pure white, opal (lambertsch), 3000 K, CRI ≥ 80, system 12.1 W, 122 lm/W, length 572 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 12.1 W, 106 lm/W, length 572 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 12.1 W, 107 lm/W, length 572 mm
DALI-2
pure white, opal (lambertsch), 3000 K, CRI ≥ 80, system 12.1 W, 122 lm/W, length 572 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 12.1 W, 106 lm/W, length 572 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 12.1 W, 113 lm/W, length 572 mm
non DIM
pure white, opal (lambertsch), 4000 K, CRI ≥ 80, system 12.1 W, 130 lm/W, length 572 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 12.1 W, 113 lm/W, length 572 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 12.1 W, 113 lm/W, length 572 mm
DALI-2
pure white, opal (lambertsch), 4000 K, CRI ≥ 80, system 12.1 W, 130 lm/W, length 572 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 12.1 W, 113 lm/W, length 572 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 17.5 W, 96 lm/W, length 872 mm
non DIM
pure white, opal (lambertsch), 3000 K, CRI ≥ 90, system 17.5 W, 110 lm/W, length 872 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 17.5 W, 96 lm/W, length 872 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 17.5 W, 96 lm/W, length 872 mm
DALI-2
pure white, opal (lambertsch), 3000 K, CRI ≥ 90, system 17.5 W, 110 lm/W, length 872 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 17.5 W, 96 lm/W, length 872 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 17.5 W, 96 lm/W, length 872 mm
non DIM
pure white, opal (lambertsch), 4000 K, CRI ≥ 90, system 17.5 W, 110 lm/W, length 872 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 17.5 W, 96 lm/W, length 872 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 17.5 W, 96 lm/W, length 872 mm
DALI-2
pure white, opal (lambertsch), 4000 K, CRI ≥ 90, system 17.5 W, 110 lm/W, length 872 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 17.5 W, 96 lm/W, length 872 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 17.5 W, 110 lm/W, length 872 mm
non DIM
pure white, opal (lambertsch), 3000 K, CRI ≥ 80, system 17.5 W, 127 lm/W, length 872 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 17.5 W, 110 lm/W, length 872 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 17.5 W, 110 lm/W, length 872 mm
DALI-2
pure white, opal (lambertsch), 3000 K, CRI ≥ 80, system 17.5 W, 127 lm/W, length 872 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 17.5 W, 110 lm/W, length 872 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 17.5 W, 117 lm/W, length 872 mm
non DIM
pure white, opal (lambertsch), 4000 K, CRI ≥ 80, system 17.5 W, 135 lm/W, length 872 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 17.5 W, 117 lm/W, length 872 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 17.5 W, 117 lm/W, length 872 mm
DALI-2
pure white, opal (lambertsch), 4000 K, CRI ≥ 80, system 17.5 W, 135 lm/W, length 872 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 17.5 W, 117 lm/W, length 872 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 23.3 W, 96 lm/W, length 1,172 mm
non DIM
pure white, opal (lambertsch), 3000 K, CRI ≥ 90, system 23.3 W, 110 lm/W, length 1,172 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 23.3 W, 96 lm/W, length 1,172 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 23.3 W, 96 lm/W, length 1,172 mm
DALI-2
pure white, opal (lambertsch), 3000 K, CRI ≥ 90, system 23.3 W, 110 lm/W, length 1,172 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 23.3 W, 96 lm/W, length 1,172 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 23.3 W, 96 lm/W, length 1,172 mm
non DIM
pure white, opal (lambertsch), 4000 K, CRI ≥ 90, system 23.3 W, 110 lm/W, length 1,172 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 23.3 W, 96 lm/W, length 1,172 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 23.3 W, 96 lm/W, length 1,172 mm
DALI-2
pure white, opal (lambertsch), 4000 K, CRI ≥ 90, system 23.3 W, 110 lm/W, length 1,172 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 23.3 W, 96 lm/W, length 1,172 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 23.3 W, 110 lm/W, length 1,172 mm
non DIM
pure white, opal (lambertsch), 3000 K, CRI ≥ 80, system 23.3 W, 127 lm/W, length 1,172 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 23.3 W, 110 lm/W, length 1,172 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 23.3 W, 110 lm/W, length 1,172 mm
DALI-2
pure white, opal (lambertsch), 3000 K, CRI ≥ 80, system 23.3 W, 127 lm/W, length 1,172 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 23.3 W, 110 lm/W, length 1,172 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 23.3 W, 118 lm/W, length 1,172 mm
non DIM
pure white, opal (lambertsch), 4000 K, CRI ≥ 80, system 23.3 W, 135 lm/W, length 1,172 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 23.3 W, 117 lm/W, length 1,172 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 23.3 W, 118 lm/W, length 1,172 mm
DALI-2
pure white, opal (lambertsch), 4000 K, CRI ≥ 80, system 23.3 W, 135 lm/W, length 1,172 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 23.3 W, 117 lm/W, length 1,172 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 29.1 W, 96 lm/W, length 1,472 mm
non DIM
pure white, opal (lambertsch), 3000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,472 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,472 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 29.1 W, 96 lm/W, length 1,472 mm
DALI-2
pure white, opal (lambertsch), 3000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,472 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,472 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 29.1 W, 96 lm/W, length 1,472 mm
non DIM
pure white, opal (lambertsch), 4000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,472 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,472 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 29.1 W, 96 lm/W, length 1,472 mm
DALI-2
pure white, opal (lambertsch), 4000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,472 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,472 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 29.1 W, 110 lm/W, length 1,472 mm
non DIM
pure white, opal (lambertsch), 3000 K, CRI ≥ 80, system 29.1 W, 127 lm/W, length 1,472 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 29.1 W, 110 lm/W, length 1,472 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 29.1 W, 110 lm/W, length 1,472 mm
DALI-2
pure white, opal (lambertsch), 3000 K, CRI ≥ 80, system 29.1 W, 127 lm/W, length 1,472 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 29.1 W, 110 lm/W, length 1,472 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 29.1 W, 118 lm/W, length 1,472 mm
non DIM
pure white, opal (lambertsch), 4000 K, CRI ≥ 80, system 29.1 W, 135 lm/W, length 1,472 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 29.1 W, 118 lm/W, length 1,472 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 29.1 W, 118 lm/W, length 1,472 mm
DALI-2
pure white, opal (lambertsch), 4000 K, CRI ≥ 80, system 29.1 W, 135 lm/W, length 1,472 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 29.1 W, 118 lm/W, length 1,472 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 45 W, 100 lm/W, length 2,344 mm
non DIM
pure white, opal (lambertsch), 3000 K, CRI ≥ 90, system 45 W, 114 lm/W, length 2,344 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 45 W, 99 lm/W, length 2,344 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 45 W, 100 lm/W, length 2,344 mm
DALI-2
pure white, opal (lambertsch), 3000 K, CRI ≥ 90, system 45 W, 114 lm/W, length 2,344 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 45 W, 99 lm/W, length 2,344 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 45 W, 100 lm/W, length 2,344 mm
non DIM
pure white, opal (lambertsch), 4000 K, CRI ≥ 90, system 45 W, 114 lm/W, length 2,344 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 45 W, 99 lm/W, length 2,344 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 45 W, 100 lm/W, length 2,344 mm
DALI-2
pure white, opal (lambertsch), 4000 K, CRI ≥ 90, system 45 W, 114 lm/W, length 2,344 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 45 W, 99 lm/W, length 2,344 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 45 W, 114 lm/W, length 2,344 mm
non DIM
pure white, opal (lambertsch), 3000 K, CRI ≥ 80, system 45 W, 131 lm/W, length 2,344 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 45 W, 114 lm/W, length 2,344 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 45 W, 114 lm/W, length 2,344 mm
DALI-2
pure white, opal (lambertsch), 3000 K, CRI ≥ 80, system 45 W, 131 lm/W, length 2,344 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 45 W, 114 lm/W, length 2,344 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 45 W, 122 lm/W, length 2,344 mm
non DIM
pure white, opal (lambertsch), 4000 K, CRI ≥ 80, system 45 W, 140 lm/W, length 2,344 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 45 W, 122 lm/W, length 2,344 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 45 W, 122 lm/W, length 2,344 mm
DALI-2
pure white, opal (lambertsch), 4000 K, CRI ≥ 80, system 45 W, 140 lm/W, length 2,344 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 45 W, 122 lm/W, length 2,344 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 58 W, 100 lm/W, length 3,000 mm
non DIM
pure white, opal (lambertsch), 3000 K, CRI ≥ 90, system 58 W, 114 lm/W, length 3,000 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 58 W, 99 lm/W, length 3,000 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 58 W, 100 lm/W, length 3,000 mm
DALI-2
pure white, opal (lambertsch), 3000 K, CRI ≥ 90, system 58 W, 114 lm/W, length 3,000 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 58 W, 99 lm/W, length 3,000 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 58 W, 100 lm/W, length 3,000 mm
non DIM
pure white, opal (lambertsch), 4000 K, CRI ≥ 90, system 58 W, 114 lm/W, length 3,000 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 58 W, 99 lm/W, length 3,000 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 58 W, 100 lm/W, length 3,000 mm
DALI-2
pure white, opal (lambertsch), 4000 K, CRI ≥ 90, system 58 W, 114 lm/W, length 3,000 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 58 W, 99 lm/W, length 3,000 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 58 W, 114 lm/W, length 3,000 mm
non DIM
pure white, opal (lambertsch), 3000 K, CRI ≥ 80, system 58 W, 131 lm/W, length 3,000 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 58 W, 114 lm/W, length 3,000 mm
non DIM
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 58 W, 114 lm/W, length 3,000 mm
DALI-2
pure white, opal (lambertsch), 3000 K, CRI ≥ 80, system 58 W, 131 lm/W, length 3,000 mm
DALI-2
pure white, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 58 W, 114 lm/W, length 3,000 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 58 W, 122 lm/W, length 3,000 mm
non DIM
pure white, opal (lambertsch), 4000 K, CRI ≥ 80, system 58 W, 140 lm/W, length 3,000 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 58 W, 122 lm/W, length 3,000 mm
non DIM
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 58 W, 122 lm/W, length 3,000 mm
DALI-2
pure white, opal (lambertsch), 4000 K, CRI ≥ 80, system 58 W, 140 lm/W, length 3,000 mm
DALI-2
pure white, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 58 W, 122 lm/W, length 3,000 mm
DALI-2
MINO 60 mid lumen ceiling / suspended system, MINO 60 high lumen ceiling / suspended system

MINO 60 high lumen ceiling / suspended system

MINO 60 high lumen ceiling / suspended system

Status
Article number(s)
Type
Dimming
jet black, microprismatic, tunable white, CRI ≥ 80, microprismatic (glare reduced), system 19 W, 103 lm/W, length 872 mm
DALI-2
jet black, microprismatic, tunable white, CRI ≥ 80, microprismatic, system 19 W, 103 lm/W, length 872 mm
DALI-2
jet black, microprismatic, tunable white, CRI ≥ 80, microprismatic (glare reduced), system 25.3 W, 104 lm/W, length 1,172 mm
DALI-2
jet black, opal (lambertsch), tunable white, CRI ≥ 80, system 25.3 W, 119 lm/W, length 1,172 mm
DALI-2
jet black, microprismatic, tunable white, CRI ≥ 80, microprismatic, system 25.3 W, 103 lm/W, length 1,172 mm
DALI-2
jet black, microprismatic, tunable white, CRI ≥ 80, microprismatic (glare reduced), system 31 W, 105 lm/W, length 1,472 mm
DALI-2
jet black, opal (lambertsch), tunable white, CRI ≥ 80, system 31 W, 121 lm/W, length 1,472 mm
DALI-2
jet black, microprismatic, tunable white, CRI ≥ 80, microprismatic, system 31 W, 105 lm/W, length 1,472 mm
DALI-2
jet black, microprismatic, tunable white, CRI ≥ 80, microprismatic (glare reduced), system 49 W, 107 lm/W, length 2,344 mm
DALI-2
jet black, opal (lambertsch), tunable white, CRI ≥ 80, system 49 W, 123 lm/W, length 2,344 mm
DALI-2
jet black, microprismatic, tunable white, CRI ≥ 80, microprismatic, system 49 W, 107 lm/W, length 2,344 mm
DALI-2
jet black, opal (lambertsch), 3000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 572 mm
DALI-2
jet black, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 572 mm
DALI-2
jet black, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 12.1 W, 93 lm/W, length 572 mm
non DIM
jet black, opal (lambertsch), 4000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 572 mm
non DIM
jet black, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 572 mm
non DIM
jet black, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 12.1 W, 93 lm/W, length 572 mm
DALI-2
jet black, opal (lambertsch), 4000 K, CRI ≥ 90, system 12.1 W, 107 lm/W, length 572 mm
DALI-2
jet black, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 12.1 W, 93 lm/W, length 572 mm
DALI-2
jet black, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 12.1 W, 107 lm/W, length 572 mm
non DIM
jet black, opal (lambertsch), 3000 K, CRI ≥ 80, system 12.1 W, 122 lm/W, length 572 mm
non DIM
jet black, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 12.1 W, 106 lm/W, length 572 mm
non DIM
jet black, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 12.1 W, 107 lm/W, length 572 mm
DALI-2
jet black, opal (lambertsch), 3000 K, CRI ≥ 80, system 12.1 W, 122 lm/W, length 572 mm
DALI-2
jet black, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 12.1 W, 106 lm/W, length 572 mm
DALI-2
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 12.1 W, 113 lm/W, length 572 mm
non DIM
jet black, opal (lambertsch), 4000 K, CRI ≥ 80, system 12.1 W, 130 lm/W, length 572 mm
non DIM
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 12.1 W, 113 lm/W, length 572 mm
non DIM
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 12.1 W, 113 lm/W, length 572 mm
DALI-2
jet black, opal (lambertsch), 4000 K, CRI ≥ 80, system 12.1 W, 130 lm/W, length 572 mm
DALI-2
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 12.1 W, 113 lm/W, length 572 mm
DALI-2
jet black, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 17.5 W, 96 lm/W, length 872 mm
non DIM
jet black, opal (lambertsch), 3000 K, CRI ≥ 90, system 17.5 W, 110 lm/W, length 872 mm
non DIM
jet black, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 17.5 W, 96 lm/W, length 872 mm
non DIM
jet black, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 17.5 W, 96 lm/W, length 872 mm
non DIM
jet black, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 17.5 W, 96 lm/W, length 872 mm
non DIM
jet black, opal (lambertsch), 3000 K, CRI ≥ 80, system 17.5 W, 127 lm/W, length 872 mm
non DIM
jet black, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 17.5 W, 110 lm/W, length 872 mm
non DIM
jet black, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 17.5 W, 110 lm/W, length 872 mm
DALI-2
jet black, opal (lambertsch), 3000 K, CRI ≥ 80, system 17.5 W, 127 lm/W, length 872 mm
DALI-2
jet black, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 17.5 W, 110 lm/W, length 872 mm
DALI-2
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 17.5 W, 117 lm/W, length 872 mm
non DIM
jet black, opal (lambertsch), 4000 K, CRI ≥ 80, system 17.5 W, 135 lm/W, length 872 mm
non DIM
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 17.5 W, 117 lm/W, length 872 mm
non DIM
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 17.5 W, 117 lm/W, length 872 mm
DALI-2
jet black, opal (lambertsch), 4000 K, CRI ≥ 80, system 17.5 W, 135 lm/W, length 872 mm
DALI-2
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 17.5 W, 117 lm/W, length 872 mm
DALI-2
jet black, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 23.3 W, 96 lm/W, length 1,172 mm
non DIM
jet black, opal (lambertsch), 3000 K, CRI ≥ 90, system 23.3 W, 110 lm/W, length 1,172 mm
non DIM
jet black, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 23.3 W, 96 lm/W, length 1,172 mm
DALI-2
jet black, opal (lambertsch), 3000 K, CRI ≥ 90, system 23.3 W, 110 lm/W, length 1,172 mm
DALI-2
jet black, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 23.3 W, 96 lm/W, length 1,172 mm
DALI-2
jet black, opal (lambertsch), 3000 K, CRI ≥ 80, system 23.3 W, 127 lm/W, length 1,172 mm
non DIM
jet black, opal (lambertsch), 3000 K, CRI ≥ 80, system 23.3 W, 127 lm/W, length 1,172 mm
DALI-2
jet black, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 23.3 W, 110 lm/W, length 1,172 mm
DALI-2
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 23.3 W, 118 lm/W, length 1,172 mm
non DIM
jet black, opal (lambertsch), 4000 K, CRI ≥ 80, system 23.3 W, 135 lm/W, length 1,172 mm
DALI-2
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 23.3 W, 117 lm/W, length 1,172 mm
DALI-2
jet black, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 29.1 W, 96 lm/W, length 1,472 mm
non DIM
jet black, opal (lambertsch), 3000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,472 mm
non DIM
jet black, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,472 mm
non DIM
jet black, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 29.1 W, 96 lm/W, length 1,472 mm
DALI-2
jet black, opal (lambertsch), 3000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,472 mm
DALI-2
jet black, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,472 mm
DALI-2
jet black, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,472 mm
non DIM
jet black, microprismatic, 4000 K, CRI ≥ 90, microprismatic (glare reduced), system 29.1 W, 96 lm/W, length 1,472 mm
DALI-2
jet black, opal (lambertsch), 4000 K, CRI ≥ 90, system 29.1 W, 111 lm/W, length 1,472 mm
DALI-2
jet black, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 29.1 W, 96 lm/W, length 1,472 mm
DALI-2
jet black, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 29.1 W, 110 lm/W, length 1,472 mm
non DIM
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 29.1 W, 118 lm/W, length 1,472 mm
non DIM
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 29.1 W, 118 lm/W, length 1,472 mm
DALI-2
jet black, opal (lambertsch), 4000 K, CRI ≥ 80, system 29.1 W, 135 lm/W, length 1,472 mm
DALI-2
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 29.1 W, 118 lm/W, length 1,472 mm
DALI-2
jet black, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 45 W, 100 lm/W, length 2,344 mm
non DIM
jet black, opal (lambertsch), 3000 K, CRI ≥ 90, system 45 W, 114 lm/W, length 2,344 mm
non DIM
jet black, microprismatic, 4000 K, CRI ≥ 90, microprismatic, system 45 W, 99 lm/W, length 2,344 mm
DALI-2
jet black, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 45 W, 114 lm/W, length 2,344 mm
non DIM
jet black, opal (lambertsch), 3000 K, CRI ≥ 80, system 45 W, 131 lm/W, length 2,344 mm
non DIM
jet black, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 45 W, 114 lm/W, length 2,344 mm
non DIM
jet black, microprismatic, 3000 K, CRI ≥ 80, microprismatic (glare reduced), system 45 W, 114 lm/W, length 2,344 mm
DALI-2
jet black, opal (lambertsch), 3000 K, CRI ≥ 80, system 45 W, 131 lm/W, length 2,344 mm
DALI-2
jet black, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 45 W, 114 lm/W, length 2,344 mm
DALI-2
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 45 W, 122 lm/W, length 2,344 mm
DALI-2
jet black, opal (lambertsch), 4000 K, CRI ≥ 80, system 45 W, 140 lm/W, length 2,344 mm
DALI-2
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 45 W, 122 lm/W, length 2,344 mm
DALI-2
jet black, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 58 W, 100 lm/W, length 3,000 mm
non DIM
jet black, opal (lambertsch), 3000 K, CRI ≥ 90, system 58 W, 114 lm/W, length 3,000 mm
non DIM
jet black, microprismatic, 3000 K, CRI ≥ 90, microprismatic, system 58 W, 99 lm/W, length 3,000 mm
non DIM
jet black, microprismatic, 3000 K, CRI ≥ 90, microprismatic (glare reduced), system 58 W, 100 lm/W, length 3,000 mm
DALI-2
jet black, opal (lambertsch), 4000 K, CRI ≥ 90, system 58 W, 114 lm/W, length 3,000 mm
non DIM
jet black, microprismatic, 3000 K, CRI ≥ 80, microprismatic, system 58 W, 114 lm/W, length 3,000 mm
DALI-2
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic (glare reduced), system 58 W, 122 lm/W, length 3,000 mm
non DIM
jet black, opal (lambertsch), 4000 K, CRI ≥ 80, system 58 W, 140 lm/W, length 3,000 mm
non DIM
jet black, microprismatic, 4000 K, CRI ≥ 80, microprismatic, system 58 W, 122 lm/W, length 3,000 mm
non DIM

Accessories

Optical

article number
type
dimensions
LIGHT OPTIC COVER
006-16062G
microprismatic (UGR<19)*
length 570 mm
width 55 mm
0.22 kg
LIGHT OPTIC COVER
006-16062H
opal
length 570 mm
width 55 mm
0.1 kg
LIGHT OPTIC COVER
006-16062Z
microprismatic
length 570 mm
width 55 mm
0.25 kg
LIGHT OPTIC COVER
006-16092G
microprismatic (UGR<19)*
length 870 mm
width 55 mm
0.3 kg
LIGHT OPTIC COVER
006-16092H
opal
length 870 mm
width 55 mm
0.14 kg
LIGHT OPTIC COVER
006-16092Z
microprismatic
length 870 mm
width 55 mm
0.3 kg
LIGHT OPTIC COVER
006-16122G
microprismatic (UGR<19)*
length 1,171 mm
width 55 mm
0.37 kg
LIGHT OPTIC COVER
006-16122H
opal
length 1,171 mm
width 55 mm
0.2 kg
LIGHT OPTIC COVER
006-16122Z
microprismatic
length 1,171 mm
width 55 mm
0.4 kg
LIGHT OPTIC COVER
006-16152G
microprismatic (UGR<19)*
length 1,470 mm
width 55 mm
0.48 kg
LIGHT OPTIC COVER
006-16152H
opal
length 1,470 mm
width 55 mm
0.24 kg
LIGHT OPTIC COVER
006-16152Z
microprismatic
length 1,470 mm
width 55 mm
0.5 kg
LIGHT OPTIC COVER
006-16232G
microprismatic (UGR<19)*
length 2,342 mm
width 55 mm
0.78 kg
LIGHT OPTIC COVER
006-16232H
opal
length 2,342 mm
width 55 mm
0.36 kg
LIGHT OPTIC COVER
006-16232Z
microprismatic
length 2,342 mm
width 55 mm
0.8 kg
LIGHT OPTIC COVER
006-16302G
microprismatic (UGR<19)*
length 2,997 mm
width 55 mm
1 kg
LIGHT OPTIC COVER
006-16302H
opal
length 2,997 mm
width 55 mm
0.5 kg
LIGHT OPTIC COVER
006-16302Z
microprismatic
length 2,997 mm
width 55 mm
1 kg

Mounting

article number
colour
dimensions
INSTALLATION CHANNEL
046-4002017
pure white
RAL 9010
length 572 mm
width 60 mm
height 80 mm
0.9 kg
INSTALLATION CHANNEL
046-4002018
jet black
RAL 9005
length 572 mm
width 60 mm
height 80 mm
0.9 kg
INSTALLATION CHANNEL
046-400201G
white aluminium
RAL 9006
length 572 mm
width 60 mm
height 80 mm
0.9 kg
INSTALLATION CHANNEL
046-400201X
special colours
length 572 mm
width 60 mm
height 80 mm
0.9 kg
INSTALLATION CHANNEL
046-4003017
pure white
RAL 9010
length 872 mm
width 60 mm
height 80 mm
1.2 kg
INSTALLATION CHANNEL
046-4003018
jet black
RAL 9005
length 872 mm
width 60 mm
height 80 mm
1.2 kg
INSTALLATION CHANNEL
046-400301G
white aluminium
RAL 9006
length 872 mm
width 60 mm
height 80 mm
1.2 kg
INSTALLATION CHANNEL
046-400301X
special colours
length 872 mm
width 60 mm
height 80 mm
1.2 kg
INSTALLATION CHANNEL
046-4004017
pure white
RAL 9010
length 1,172 mm
width 60 mm
height 80 mm
1.7 kg
INSTALLATION CHANNEL
046-4004018
jet black
RAL 9005
length 1,172 mm
width 60 mm
height 80 mm
1.7 kg
INSTALLATION CHANNEL
046-400401G
white aluminium
RAL 9006
length 1,172 mm
width 60 mm
height 80 mm
1.7 kg
INSTALLATION CHANNEL
046-400401X
special colours
length 1,172 mm
width 60 mm
height 80 mm
1.7 kg
INSTALLATION CHANNEL
046-4005017
pure white
RAL 9010
length 1,472 mm
width 60 mm
height 80 mm
2.03 kg
INSTALLATION CHANNEL
046-4005018
jet black
RAL 9005
length 1,472 mm
width 60 mm
height 80 mm
2.1 kg
INSTALLATION CHANNEL
046-400501G
white aluminium
RAL 9006
length 1,472 mm
width 60 mm
height 80 mm
2.1 kg
INSTALLATION CHANNEL
046-400501X
special colours
length 1,472 mm
width 60 mm
height 80 mm
2.1 kg
INSTALLATION CHANNEL
046-4008017
pure white
RAL 9010
length 2,344 mm
width 60 mm
height 80 mm
3.4 kg
INSTALLATION CHANNEL
046-4008018
jet black
RAL 9005
length 2,344 mm
width 60 mm
height 80 mm
3.4 kg
INSTALLATION CHANNEL
046-400801G
white aluminium
RAL 9006
length 2,344 mm
width 60 mm
height 80 mm
3.4 kg
INSTALLATION CHANNEL
046-400801X
special colours
length 2,344 mm
width 60 mm
height 80 mm
3.4 kg
INSTALLATION CHANNEL
046-4009017
pure white
RAL 9010
length 3,000 mm
width 60 mm
height 80 mm
4.2 kg
INSTALLATION CHANNEL
046-4009018
jet black
RAL 9005
length 3,000 mm
width 60 mm
height 80 mm
4.2 kg
INSTALLATION CHANNEL
046-400901G
white aluminium
RAL 9006
length 3,000 mm
width 60 mm
height 80 mm
4.2 kg
INSTALLATION CHANNEL
046-400901X
special colours
length 3,000 mm
width 60 mm
height 80 mm
4.2 kg

Electrical cable

article number
type
control
dimensions
THROUGH WIRE
004-90003
3 × 1.5 mm² | 10 pieces
non DIM
0.14 kg
THROUGH WIRE
004-90005
5 × 1.5 mm² | 10 pieces
DALI-2
0.3 kg

Mounting

article number
colour
dimensions
type
CABLE SUSPENSION
005-2122110
width 46 mm
0.05 kg
LINEAR CONNECTOR
005-40046
length 46 mm
width 80 mm
0.06 kg
1 piece
LINEAR CONNECTOR
005-40046.10
length 46 mm
width 80 mm
0.52 kg
10 pieces
OPAL COVER LINEAR CONNECTOR
006-14000
length 46 mm
width 80 mm
0.01 kg
CEILING CLIP surface
034-11636
transparent
length 10 mm
width 46 mm
0.01 kg
END CAPS
046-5010017
traffic white
RAL 9016
length 60 mm
width 40 mm
height 4 mm
0.3 kg
1 pair
END CAPS
046-5010018
jet black
RAL 9005
length 60 mm
width 40 mm
height 4 mm
0.3 kg
1 pair
END CAPS
046-501001G
white aluminium
RAL 9006
length 60 mm
width 40 mm
height 4 mm
0.3 kg
1 pair
END CAPS
046-501001X
special colours
length 60 mm
width 40 mm
height 4 mm
0.3 kg
1 pair

Electrical components

article number
colour
type
dimensions
feeder cable length
CANOPY
005-2212317
traffic white
RAL 9016
length 90 mm
width 90 mm
height 22 mm
0.23 kg
1,500 mm
CANOPY
005-2212318
jet black
RAL 9005
length 90 mm
width 90 mm
height 22 mm
0.23 kg
1,500 mm
CANOPY square
005-2212417
pure white
RAL 9010
incl. feeder cable 5 × 1.5 mm²
length 90 mm
width 90 mm
height 22 mm
0.29 kg
1,500 mm
CANOPY square
005-2212418
jet black
RAL 9005
incl. feeder cable 5 × 1.5 mm²
length 90 mm
width 90 mm
height 22 mm
0.29 kg
1,500 mm
CABLE RAIL
005-2491110
0.06 kg

Related products

MINO 60

surface

MINO 60

ceiling offset

MINO 60

suspended

MINO 60

CURVE ceiling / suspended system

MINO 60

direct / indirect suspended system

FRAME 60

trim

FRAME 60

trim system

MOVE IT 10

trimless system

MOVE IT 10

surface system

MOVE IT 10

square / round suspended system
