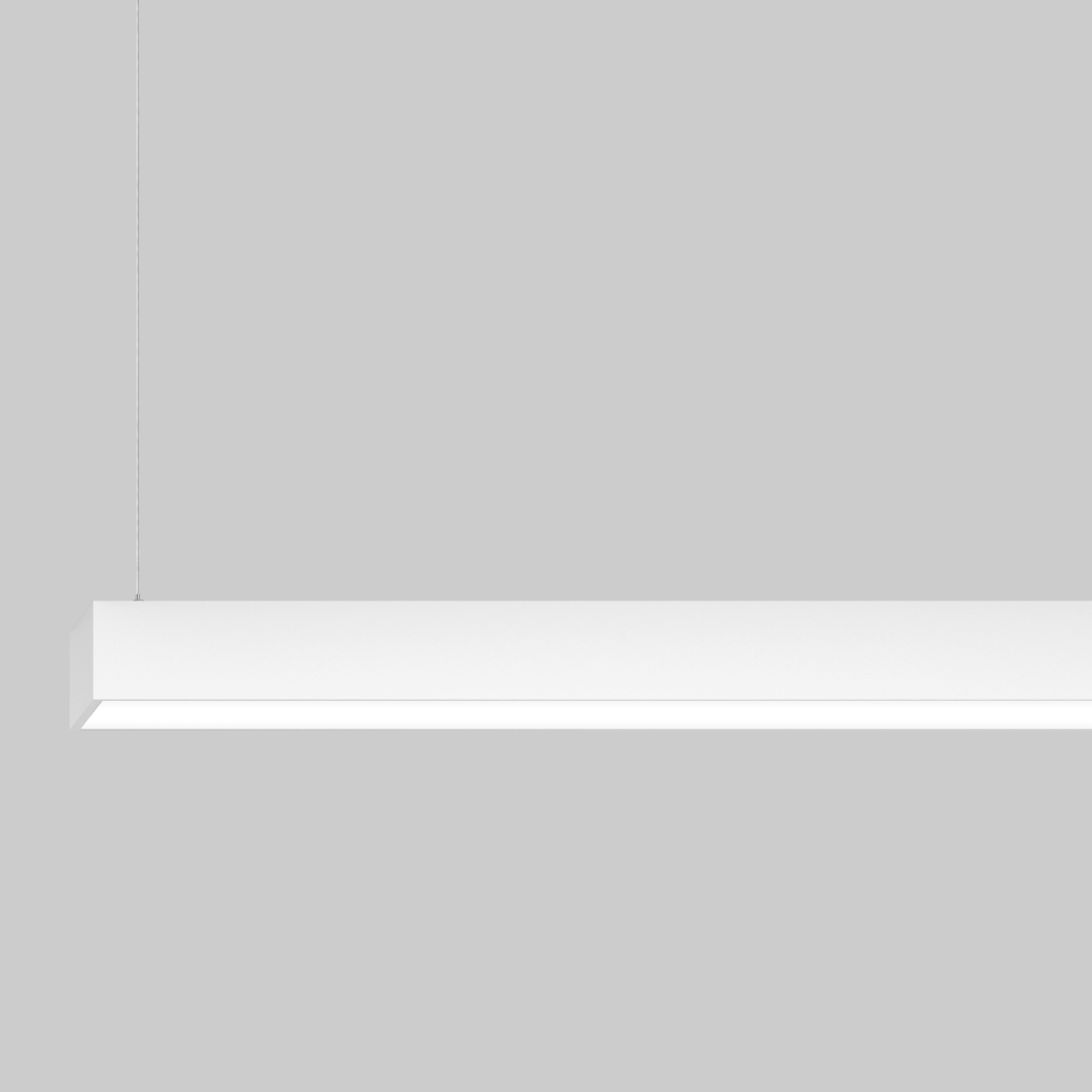

MINO 60 high lumen suspended, MINO 60 mid lumen suspended white

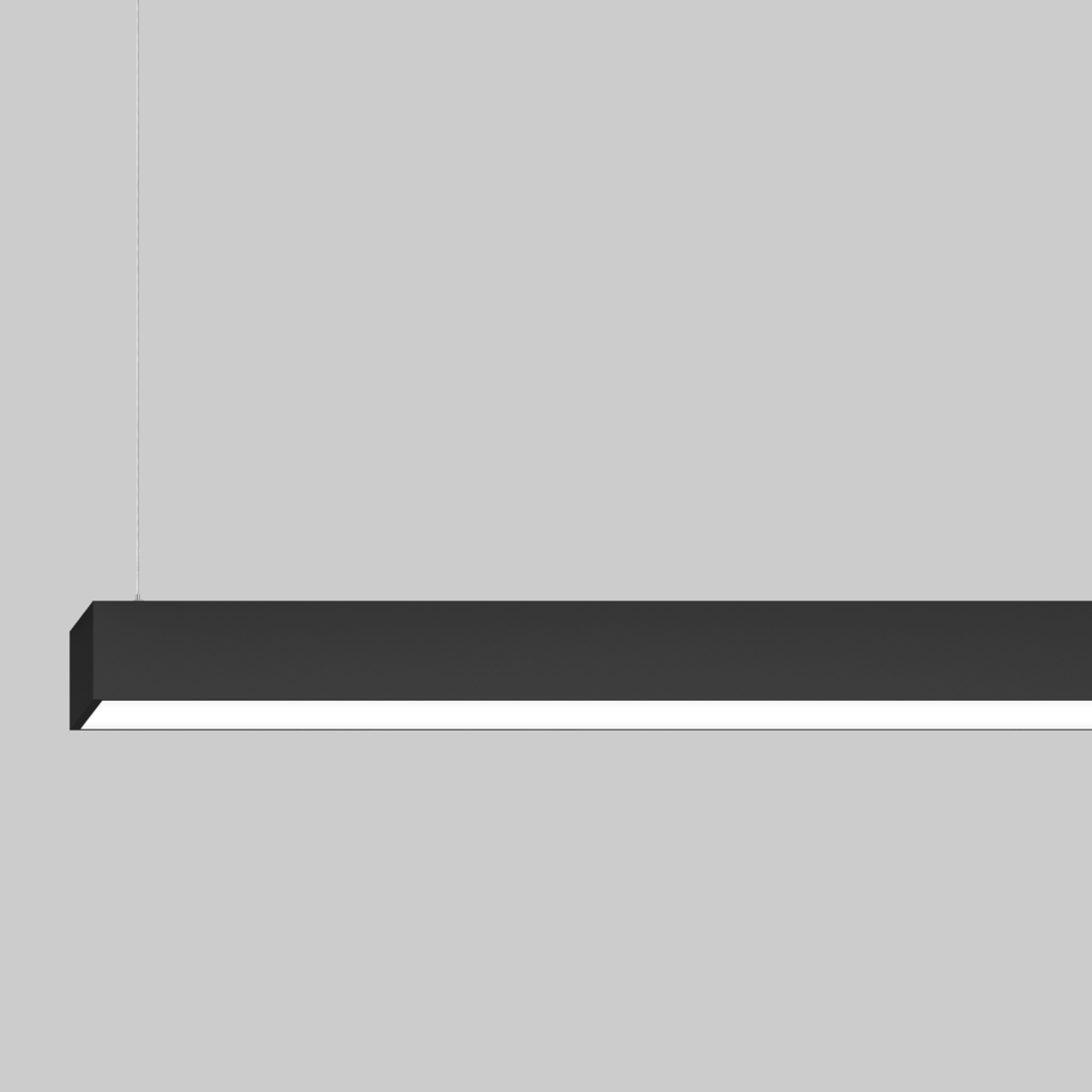

MINO 60 high lumen suspended, MINO 60 mid lumen suspended black

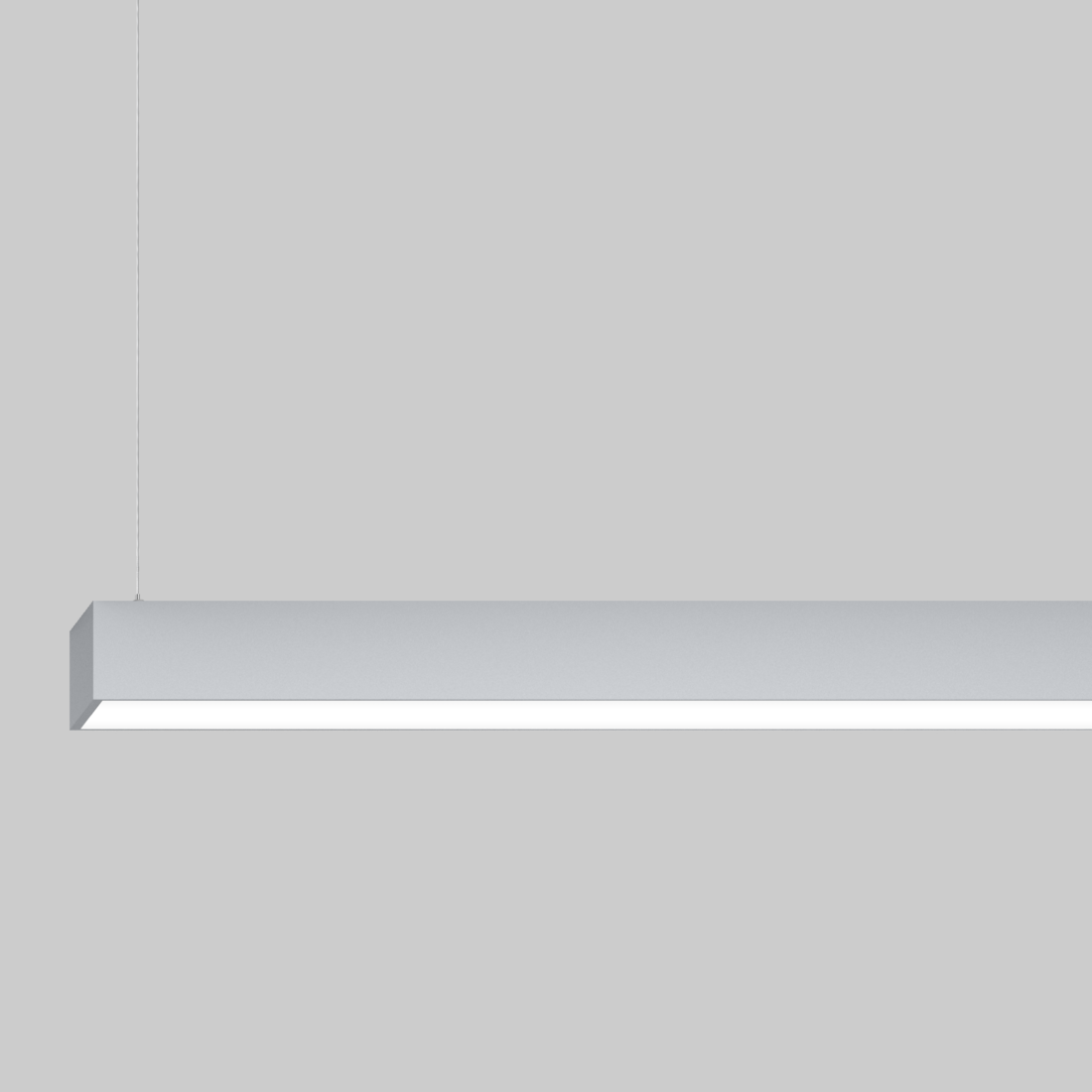

MINO 60 high lumen suspended, MINO 60 mid lumen suspended grey

MINO 60

suspended

Informazioni rapide

3000 K, 4000 K, tunable white
CRI ≥ 80, CRI ≥ 90 / 3 SDCM
UGR < 19
fino a 2,710 lm/m
fino a 141 lm/W
L90 / 50000 h
DALI-2, DALI-2 DT8, non DIM
High Performance Opal, Microprismatic
IP20

Colore

  • Disegno semplice

    Distribuzione della luce

    Dati relativi ai prodotti e documenti di specifica

    Download intero
    • 3DS
    • DWG - 3D
    • Revit BIM data

    Descrizione

    Corpo illuminante in profilo di alluminio estruso, modello squadrato; nessuna vite visibile; verniciatura a polvere; profilo consegnabile in anticipo; restanti componenti montabili senza utensili; sospeso con cavo a sospensione; altezza regolabile sull’apparecchio, senza utensili; fissaggio sull’apparecchio tramite clip a molla; libertà di posizionamento; incl. cavo di alimentazione; unità d’illuminazione in profilo di alluminio estruso con verniciatura altamente riflettente per gestione termica migliorata; diffusore HPO (High Performance Opal) per un’illuminazione omogenea; rifrattore in PMMA a microprismi incl. pellicola di diffusione per ridurre la luminanza mantenendo l’illuminazione omogenea; LED ad efficienza energetica con elevata resa cromatica

    DiiA® standards 251, 252, 253

    microprismatico UGR ≤ 19

    tunable white 2700 – 6500 K

    CRI ≥ 98 XPECTRUM (opzionale)

    Dieser Bereich wird neu geladen sobald ein Eingabefeld geändert wird.

    Prodotti e codici

    Filtro
    89
    lm/W
    141
    lm/W
    924
    lm
    6290
    lm
    10.3
    W
    49
    W
    0.48
    0.81
    0.44
    0.74

    Colore

  • MINO 60 high lumen suspended, MINO 60 mid lumen suspended white

    MINO 60 high lumen suspended

    MINO 60 high lumen suspended

    Stato
    N. articolo/i
    Tipo
    Dimming
    bianco, Microprismatic, tunable white, CRI ≥ 80, sistema 19 W, 1.960 lm, 2.250 lm/m, 103 lm/W, lunghezza 880 mm
    DALI-2 DT8
    bianco, High Performance Opal, tunable white, CRI ≥ 80, sistema 19 W, 2.260 lm, 2.590 lm/m, 119 lm/W, lunghezza 880 mm
    DALI-2 DT8
    bianco, Microprismatic, tunable white, CRI ≥ 80, sistema 19 W, 1.960 lm, 2.250 lm/m, 103 lm/W, lunghezza 880 mm
    DALI-2 DT8
    bianco, Microprismatic, tunable white, CRI ≥ 80, sistema 25,3 W, 2.620 lm, 2.230 lm/m, 104 lm/W, lunghezza 1.180 mm
    DALI-2 DT8
    bianco, High Performance Opal, tunable white, CRI ≥ 80, sistema 25,3 W, 3.010 lm, 2.570 lm/m, 119 lm/W, lunghezza 1.180 mm
    DALI-2 DT8
    bianco, Microprismatic, tunable white, CRI ≥ 80, sistema 25,3 W, 2.610 lm, 2.230 lm/m, 103 lm/W, lunghezza 1.180 mm
    DALI-2 DT8
    bianco, Microprismatic, tunable white, CRI ≥ 80, sistema 31 W, 3.270 lm, 2.220 lm/m, 105 lm/W, lunghezza 1.480 mm
    DALI-2 DT8
    bianco, High Performance Opal, tunable white, CRI ≥ 80, sistema 31 W, 3.760 lm, 2.550 lm/m, 121 lm/W, lunghezza 1.480 mm
    DALI-2 DT8
    bianco, Microprismatic, tunable white, CRI ≥ 80, sistema 31 W, 3.270 lm, 2.220 lm/m, 105 lm/W, lunghezza 1.480 mm
    DALI-2 DT8
    bianco, Microprismatic, tunable white, CRI ≥ 80, sistema 49 W, 5.240 lm, 2.230 lm/m, 107 lm/W, lunghezza 2.352 mm
    DALI-2 DT8
    bianco, High Performance Opal, tunable white, CRI ≥ 80, sistema 49 W, 6.020 lm, 2.570 lm/m, 123 lm/W, lunghezza 2.352 mm
    DALI-2 DT8
    bianco, Microprismatic, tunable white, CRI ≥ 80, sistema 49 W, 5.230 lm, 2.230 lm/m, 107 lm/W, lunghezza 2.352 mm
    DALI-2 DT8
    bianco, Microprismatic, 3000 K, CRI ≥ 90, sistema 17,5 W, 1.560 lm, 1.780 lm/m, 89 lm/W, lunghezza 880 mm
    non DIM
    bianco, High Performance Opal, 3000 K, CRI ≥ 90, sistema 17,5 W, 1.790 lm, 2.050 lm/m, 102 lm/W, lunghezza 880 mm
    non DIM
    bianco, Microprismatic, 3000 K, CRI ≥ 90, sistema 17,5 W, 1.550 lm, 1.780 lm/m, 89 lm/W, lunghezza 880 mm
    non DIM
    bianco, Microprismatic, 3000 K, CRI ≥ 90, sistema 17,5 W, 1.560 lm, 1.780 lm/m, 89 lm/W, lunghezza 880 mm
    DALI-2
    bianco, High Performance Opal, 3000 K, CRI ≥ 90, sistema 17,5 W, 1.790 lm, 2.050 lm/m, 102 lm/W, lunghezza 880 mm
    DALI-2
    bianco, Microprismatic, 3000 K, CRI ≥ 90, sistema 17,5 W, 1.550 lm, 1.780 lm/m, 89 lm/W, lunghezza 880 mm
    DALI-2
    bianco, Microprismatic, 4000 K, CRI ≥ 90, sistema 17,5 W, 1.680 lm, 1.930 lm/m, 96 lm/W, lunghezza 880 mm
    non DIM
    bianco, High Performance Opal, 4000 K, CRI ≥ 90, sistema 17,5 W, 1.930 lm, 2.210 lm/m, 110 lm/W, lunghezza 880 mm
    non DIM
    bianco, Microprismatic, 4000 K, CRI ≥ 90, sistema 17,5 W, 1.680 lm, 1.920 lm/m, 96 lm/W, lunghezza 880 mm
    non DIM
    bianco, Microprismatic, 4000 K, CRI ≥ 90, sistema 17,5 W, 1.680 lm, 1.930 lm/m, 96 lm/W, lunghezza 880 mm
    DALI-2
    bianco, High Performance Opal, 4000 K, CRI ≥ 90, sistema 17,5 W, 1.930 lm, 2.210 lm/m, 110 lm/W, lunghezza 880 mm
    DALI-2
    bianco, Microprismatic, 4000 K, CRI ≥ 90, sistema 17,5 W, 1.680 lm, 1.920 lm/m, 96 lm/W, lunghezza 880 mm
    DALI-2
    bianco, Microprismatic, 3000 K, CRI ≥ 80, sistema 17,5 W, 1.800 lm, 2.070 lm/m, 103 lm/W, lunghezza 880 mm
    non DIM
    bianco, High Performance Opal, 3000 K, CRI ≥ 80, sistema 17,5 W, 2.070 lm, 2.380 lm/m, 118 lm/W, lunghezza 880 mm
    non DIM
    bianco, Microprismatic, 3000 K, CRI ≥ 80, sistema 17,5 W, 1.800 lm, 2.070 lm/m, 103 lm/W, lunghezza 880 mm
    non DIM
    bianco, Microprismatic, 3000 K, CRI ≥ 80, sistema 17,5 W, 1.800 lm, 2.070 lm/m, 103 lm/W, lunghezza 880 mm
    DALI-2
    bianco, High Performance Opal, 3000 K, CRI ≥ 80, sistema 17,5 W, 2.070 lm, 2.380 lm/m, 118 lm/W, lunghezza 880 mm
    DALI-2
    bianco, Microprismatic, 3000 K, CRI ≥ 80, sistema 17,5 W, 1.800 lm, 2.070 lm/m, 103 lm/W, lunghezza 880 mm
    DALI-2
    bianco, Microprismatic, 4000 K, CRI ≥ 80, sistema 17,5 W, 2.050 lm, 2.350 lm/m, 117 lm/W, lunghezza 880 mm
    non DIM
    bianco, High Performance Opal, 4000 K, CRI ≥ 80, sistema 17,5 W, 2.360 lm, 2.710 lm/m, 135 lm/W, lunghezza 880 mm
    non DIM
    bianco, Microprismatic, 4000 K, CRI ≥ 80, sistema 17,5 W, 2.050 lm, 2.350 lm/m, 117 lm/W, lunghezza 880 mm
    non DIM
    bianco, Microprismatic, 4000 K, CRI ≥ 80, sistema 17,5 W, 2.050 lm, 2.350 lm/m, 117 lm/W, lunghezza 880 mm
    DALI-2
    bianco, High Performance Opal, 4000 K, CRI ≥ 80, sistema 17,5 W, 2.360 lm, 2.710 lm/m, 135 lm/W, lunghezza 880 mm
    DALI-2
    bianco, Microprismatic, 4000 K, CRI ≥ 80, sistema 17,5 W, 2.050 lm, 2.350 lm/m, 117 lm/W, lunghezza 880 mm
    DALI-2
    bianco, Microprismatic, 3000 K, CRI ≥ 90, sistema 23,3 W, 2.070 lm, 1.770 lm/m, 89 lm/W, lunghezza 1.180 mm
    non DIM
    bianco, High Performance Opal, 3000 K, CRI ≥ 90, sistema 23,3 W, 2.380 lm, 2.030 lm/m, 102 lm/W, lunghezza 1.180 mm
    non DIM
    bianco, Microprismatic, 3000 K, CRI ≥ 90, sistema 23,3 W, 2.070 lm, 1.770 lm/m, 89 lm/W, lunghezza 1.180 mm
    non DIM
    bianco, Microprismatic, 3000 K, CRI ≥ 90, sistema 23,3 W, 2.070 lm, 1.770 lm/m, 89 lm/W, lunghezza 1.180 mm
    DALI-2
    bianco, High Performance Opal, 3000 K, CRI ≥ 90, sistema 23,3 W, 2.380 lm, 2.030 lm/m, 102 lm/W, lunghezza 1.180 mm
    DALI-2
    bianco, Microprismatic, 3000 K, CRI ≥ 90, sistema 23,3 W, 2.070 lm, 1.770 lm/m, 89 lm/W, lunghezza 1.180 mm
    DALI-2
    bianco, Microprismatic, 4000 K, CRI ≥ 90, sistema 23,3 W, 2.240 lm, 1.910 lm/m, 96 lm/W, lunghezza 1.180 mm
    non DIM
    bianco, High Performance Opal, 4000 K, CRI ≥ 90, sistema 23,3 W, 2.570 lm, 2.200 lm/m, 110 lm/W, lunghezza 1.180 mm
    non DIM
    bianco, Microprismatic, 4000 K, CRI ≥ 90, sistema 23,3 W, 2.240 lm, 1.910 lm/m, 96 lm/W, lunghezza 1.180 mm
    non DIM
    bianco, Microprismatic, 4000 K, CRI ≥ 90, sistema 23,3 W, 2.240 lm, 1.910 lm/m, 96 lm/W, lunghezza 1.180 mm
    DALI-2
    bianco, High Performance Opal, 4000 K, CRI ≥ 90, sistema 23,3 W, 2.570 lm, 2.200 lm/m, 110 lm/W, lunghezza 1.180 mm
    DALI-2
    bianco, Microprismatic, 4000 K, CRI ≥ 90, sistema 23,3 W, 2.240 lm, 1.910 lm/m, 96 lm/W, lunghezza 1.180 mm
    DALI-2
    bianco, Microprismatic, 3000 K, CRI ≥ 80, sistema 23,3 W, 2.410 lm, 2.050 lm/m, 103 lm/W, lunghezza 1.180 mm
    non DIM
    bianco, High Performance Opal, 3000 K, CRI ≥ 80, sistema 23,3 W, 2.760 lm, 2.360 lm/m, 118 lm/W, lunghezza 1.180 mm
    non DIM
    bianco, Microprismatic, 3000 K, CRI ≥ 80, sistema 23,3 W, 2.400 lm, 2.050 lm/m, 103 lm/W, lunghezza 1.180 mm
    non DIM
    bianco, Microprismatic, 3000 K, CRI ≥ 80, sistema 23,3 W, 2.410 lm, 2.050 lm/m, 103 lm/W, lunghezza 1.180 mm
    DALI-2
    bianco, High Performance Opal, 3000 K, CRI ≥ 80, sistema 23,3 W, 2.760 lm, 2.360 lm/m, 118 lm/W, lunghezza 1.180 mm
    DALI-2
    bianco, Microprismatic, 3000 K, CRI ≥ 80, sistema 23,3 W, 2.400 lm, 2.050 lm/m, 103 lm/W, lunghezza 1.180 mm
    DALI-2
    bianco, Microprismatic, 4000 K, CRI ≥ 80, sistema 23,3 W, 2.740 lm, 2.340 lm/m, 118 lm/W, lunghezza 1.180 mm
    non DIM
    bianco, High Performance Opal, 4000 K, CRI ≥ 80, sistema 23,3 W, 3.150 lm, 2.680 lm/m, 135 lm/W, lunghezza 1.180 mm
    non DIM
    bianco, Microprismatic, 4000 K, CRI ≥ 80, sistema 23,3 W, 2.730 lm, 2.330 lm/m, 117 lm/W, lunghezza 1.180 mm
    non DIM
    bianco, Microprismatic, 4000 K, CRI ≥ 80, sistema 23,3 W, 2.740 lm, 2.340 lm/m, 118 lm/W, lunghezza 1.180 mm
    DALI-2
    bianco, High Performance Opal, 4000 K, CRI ≥ 80, sistema 23,3 W, 3.150 lm, 2.680 lm/m, 135 lm/W, lunghezza 1.180 mm
    DALI-2
    bianco, Microprismatic, 4000 K, CRI ≥ 80, sistema 23,3 W, 2.730 lm, 2.330 lm/m, 117 lm/W, lunghezza 1.180 mm
    DALI-2
    bianco, Microprismatic, 3000 K, CRI ≥ 90, sistema 29,1 W, 2.590 lm, 1.760 lm/m, 89 lm/W, lunghezza 1.480 mm
    non DIM
    bianco, High Performance Opal, 3000 K, CRI ≥ 90, sistema 29,1 W, 2.980 lm, 2.020 lm/m, 102 lm/W, lunghezza 1.480 mm
    non DIM
    bianco, Microprismatic, 3000 K, CRI ≥ 90, sistema 29,1 W, 2.590 lm, 1.760 lm/m, 89 lm/W, lunghezza 1.480 mm
    non DIM
    bianco, Microprismatic, 3000 K, CRI ≥ 90, sistema 29,1 W, 2.590 lm, 1.760 lm/m, 89 lm/W, lunghezza 1.480 mm
    DALI-2
    bianco, High Performance Opal, 3000 K, CRI ≥ 90, sistema 29,1 W, 2.980 lm, 2.020 lm/m, 102 lm/W, lunghezza 1.480 mm
    DALI-2
    bianco, Microprismatic, 3000 K, CRI ≥ 90, sistema 29,1 W, 2.590 lm, 1.760 lm/m, 89 lm/W, lunghezza 1.480 mm
    DALI-2
    bianco, Microprismatic, 4000 K, CRI ≥ 90, sistema 29,1 W, 2.800 lm, 1.900 lm/m, 96 lm/W, lunghezza 1.480 mm
    non DIM
    bianco, High Performance Opal, 4000 K, CRI ≥ 90, sistema 29,1 W, 3.220 lm, 2.190 lm/m, 111 lm/W, lunghezza 1.480 mm
    non DIM
    bianco, Microprismatic, 4000 K, CRI ≥ 90, sistema 29,1 W, 2.800 lm, 1.900 lm/m, 96 lm/W, lunghezza 1.480 mm
    non DIM
    bianco, Microprismatic, 4000 K, CRI ≥ 90, sistema 29,1 W, 2.800 lm, 1.900 lm/m, 96 lm/W, lunghezza 1.480 mm
    DALI-2
    bianco, High Performance Opal, 4000 K, CRI ≥ 90, sistema 29,1 W, 3.220 lm, 2.190 lm/m, 111 lm/W, lunghezza 1.480 mm
    DALI-2
    bianco, Microprismatic, 4000 K, CRI ≥ 90, sistema 29,1 W, 2.800 lm, 1.900 lm/m, 96 lm/W, lunghezza 1.480 mm
    DALI-2
    bianco, Microprismatic, 3000 K, CRI ≥ 80, sistema 29,1 W, 3.010 lm, 2.040 lm/m, 103 lm/W, lunghezza 1.480 mm
    non DIM
    bianco, High Performance Opal, 3000 K, CRI ≥ 80, sistema 29,1 W, 3.460 lm, 2.350 lm/m, 119 lm/W, lunghezza 1.480 mm
    non DIM
    bianco, Microprismatic, 3000 K, CRI ≥ 80, sistema 29,1 W, 3.000 lm, 2.040 lm/m, 103 lm/W, lunghezza 1.480 mm
    non DIM
    bianco, Microprismatic, 3000 K, CRI ≥ 80, sistema 29,1 W, 3.010 lm, 2.040 lm/m, 103 lm/W, lunghezza 1.480 mm
    DALI-2
    bianco, High Performance Opal, 3000 K, CRI ≥ 80, sistema 29,1 W, 3.460 lm, 2.350 lm/m, 119 lm/W, lunghezza 1.480 mm
    DALI-2
    bianco, Microprismatic, 3000 K, CRI ≥ 80, sistema 29,1 W, 3.000 lm, 2.040 lm/m, 103 lm/W, lunghezza 1.480 mm
    DALI-2
    bianco, Microprismatic, 4000 K, CRI ≥ 80, sistema 29,1 W, 3.420 lm, 2.320 lm/m, 118 lm/W, lunghezza 1.480 mm
    non DIM
    bianco, High Performance Opal, 4000 K, CRI ≥ 80, sistema 29,1 W, 3.930 lm, 2.670 lm/m, 135 lm/W, lunghezza 1.480 mm
    non DIM
    bianco, Microprismatic, 4000 K, CRI ≥ 80, sistema 29,1 W, 3.420 lm, 2.320 lm/m, 118 lm/W, lunghezza 1.480 mm
    non DIM
    bianco, Microprismatic, 4000 K, CRI ≥ 80, sistema 29,1 W, 3.420 lm, 2.320 lm/m, 118 lm/W, lunghezza 1.480 mm
    DALI-2
    bianco, High Performance Opal, 4000 K, CRI ≥ 80, sistema 29,1 W, 3.930 lm, 2.670 lm/m, 135 lm/W, lunghezza 1.480 mm
    DALI-2
    bianco, Microprismatic, 4000 K, CRI ≥ 80, sistema 29,1 W, 3.420 lm, 2.320 lm/m, 118 lm/W, lunghezza 1.480 mm
    DALI-2
    bianco, Microprismatic, 3000 K, CRI ≥ 90, sistema 45 W, 4.150 lm, 1.770 lm/m, 92 lm/W, lunghezza 2.352 mm
    non DIM
    bianco, High Performance Opal, 3000 K, CRI ≥ 90, sistema 45 W, 4.770 lm, 2.030 lm/m, 106 lm/W, lunghezza 2.352 mm
    non DIM
    bianco, Microprismatic, 3000 K, CRI ≥ 90, sistema 45 W, 4.140 lm, 1.770 lm/m, 92 lm/W, lunghezza 2.352 mm
    non DIM
    bianco, Microprismatic, 3000 K, CRI ≥ 90, sistema 45 W, 4.150 lm, 1.770 lm/m, 92 lm/W, lunghezza 2.352 mm
    DALI-2
    bianco, High Performance Opal, 3000 K, CRI ≥ 90, sistema 45 W, 4.770 lm, 2.030 lm/m, 106 lm/W, lunghezza 2.352 mm
    DALI-2
    bianco, Microprismatic, 3000 K, CRI ≥ 90, sistema 45 W, 4.140 lm, 1.770 lm/m, 92 lm/W, lunghezza 2.352 mm
    DALI-2
    bianco, Microprismatic, 4000 K, CRI ≥ 90, sistema 45 W, 4.480 lm, 1.910 lm/m, 100 lm/W, lunghezza 2.352 mm
    non DIM
    bianco, High Performance Opal, 4000 K, CRI ≥ 90, sistema 45 W, 5.150 lm, 2.200 lm/m, 114 lm/W, lunghezza 2.352 mm
    non DIM
    bianco, Microprismatic, 4000 K, CRI ≥ 90, sistema 45 W, 4.470 lm, 1.910 lm/m, 99 lm/W, lunghezza 2.352 mm
    non DIM
    bianco, Microprismatic, 4000 K, CRI ≥ 90, sistema 45 W, 4.480 lm, 1.910 lm/m, 100 lm/W, lunghezza 2.352 mm
    DALI-2
    bianco, High Performance Opal, 4000 K, CRI ≥ 90, sistema 45 W, 5.150 lm, 2.200 lm/m, 114 lm/W, lunghezza 2.352 mm
    DALI-2
    bianco, Microprismatic, 4000 K, CRI ≥ 90, sistema 45 W, 4.470 lm, 1.910 lm/m, 99 lm/W, lunghezza 2.352 mm
    DALI-2
    bianco, Microprismatic, 3000 K, CRI ≥ 80, sistema 45 W, 4.810 lm, 2.050 lm/m, 107 lm/W, lunghezza 2.352 mm
    non DIM
    bianco, High Performance Opal, 3000 K, CRI ≥ 80, sistema 45 W, 5.530 lm, 2.360 lm/m, 123 lm/W, lunghezza 2.352 mm
    non DIM
    bianco, Microprismatic, 3000 K, CRI ≥ 80, sistema 45 W, 4.800 lm, 2.050 lm/m, 107 lm/W, lunghezza 2.352 mm
    non DIM
    bianco, Microprismatic, 3000 K, CRI ≥ 80, sistema 45 W, 4.810 lm, 2.050 lm/m, 107 lm/W, lunghezza 2.352 mm
    DALI-2
    bianco, High Performance Opal, 3000 K, CRI ≥ 80, sistema 45 W, 5.530 lm, 2.360 lm/m, 123 lm/W, lunghezza 2.352 mm
    DALI-2
    bianco, Microprismatic, 3000 K, CRI ≥ 80, sistema 45 W, 4.800 lm, 2.050 lm/m, 107 lm/W, lunghezza 2.352 mm
    DALI-2
    bianco, Microprismatic, 4000 K, CRI ≥ 80, sistema 45 W, 5.480 lm, 2.340 lm/m, 122 lm/W, lunghezza 2.352 mm
    non DIM
    bianco, High Performance Opal, 4000 K, CRI ≥ 80, sistema 45 W, 6.290 lm, 2.680 lm/m, 140 lm/W, lunghezza 2.352 mm
    non DIM
    bianco, Microprismatic, 4000 K, CRI ≥ 80, sistema 45 W, 5.470 lm, 2.330 lm/m, 122 lm/W, lunghezza 2.352 mm
    non DIM
