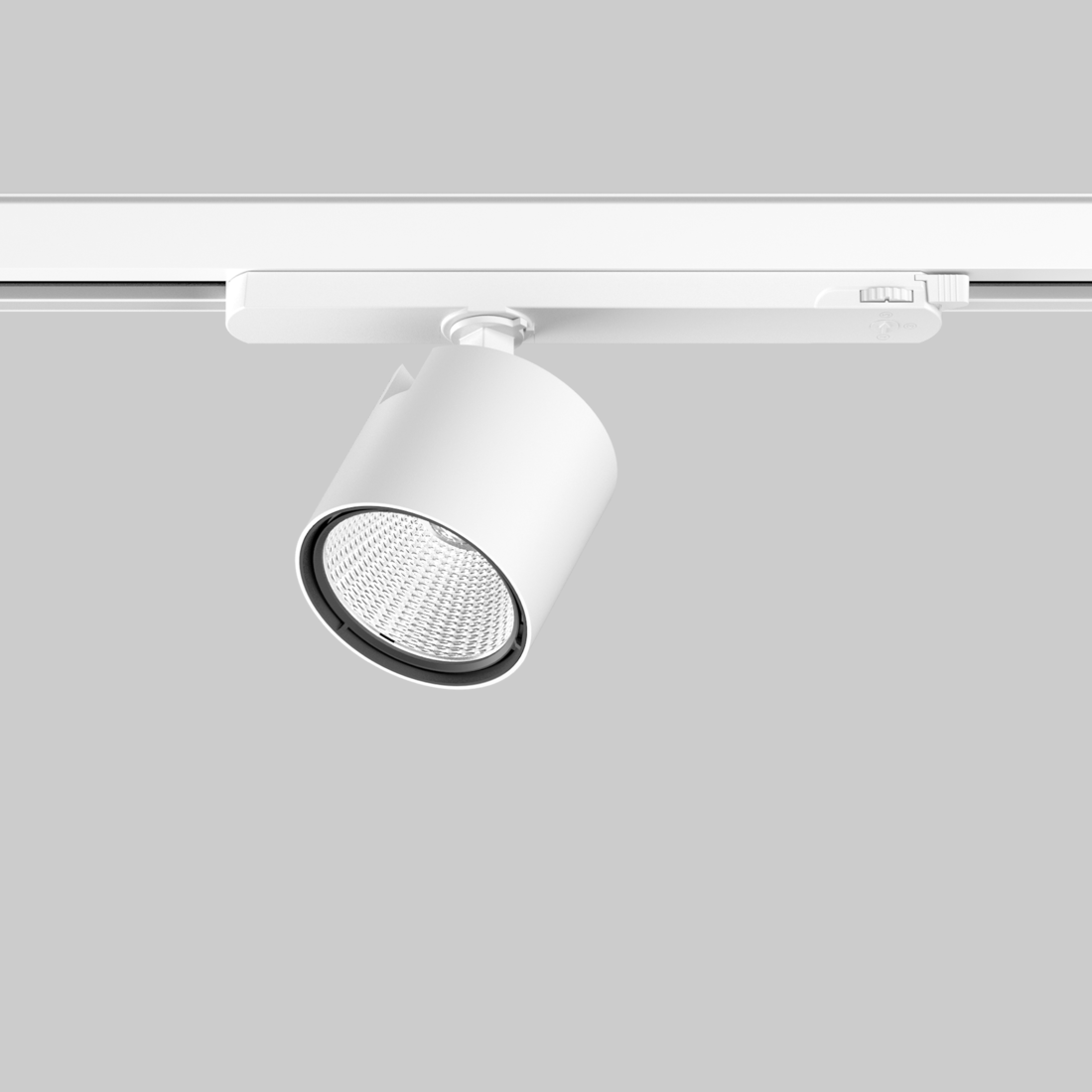

VARO 80 S

Quickinfo

3000 K, 3500 K, 4000 K
CRI ≥ 90 / 2 SDCM (initial MacAdam)
up to 149 lm/W
L80 / 50000 h
DALI-2, non DIM
IP20

Colour

Products and codes
Discover family

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all
  • Revit BIM data
  • EPD

Description

Track light made of die-cast aluminium; surface powder coated; spotlight head 355° rotatable and 90° tiltable; integrated converter in the plastic adapter; high quality reflector with spherical facet finish; precise radiation characteristics with different beam angles; installed and exchanged without tools; optical attachments as accessories; optical attachments can be combined; COB (Chip on Board) technology for maximum efficiency; variants with > 120 lm/W available; no multiple shadows; energy-efficient LEDs with very good colour rendering; adapter for toolless insertion or movement on a variety of 3-phase power tracks

up to 149 lm/W (high efficiency)

optical accessories

optical accessories can be combined (max. 2)

355° rotatable, 90° tiltable

Products and codes

Filter
123
lm/W
149
lm/W
1880
lm
3200
lm
13
W
25.3
W
0.54
0.78
0.49
0.71

Colour

VARO 80 S track

VARO 80 S track

VARO 80 S track

Status
Article number(s)
Type
Dimming
traffic white, flood, 3000 K, system 21.1 W, 131 lm/W
non DIM
traffic white, medium, 3000 K, system 21.1 W, 133 lm/W
non DIM
traffic white, spot, 3000 K, system 21.1 W, 130 lm/W
non DIM
traffic white, flood, 3000 K, system 21.1 W, 131 lm/W
DALI-2
traffic white, medium, 3000 K, system 21.1 W, 133 lm/W
DALI-2
traffic white, spot, 3000 K, system 21.1 W, 130 lm/W
DALI-2
traffic white, flood, 4000 K, system 21.1 W, 133 lm/W
non DIM
traffic white, medium, 4000 K, system 21.1 W, 135 lm/W
non DIM
traffic white, spot, 4000 K, system 21.1 W, 132 lm/W
non DIM
traffic white, flood, 4000 K, system 21.1 W, 133 lm/W
DALI-2
traffic white, medium, 4000 K, system 21.1 W, 135 lm/W
DALI-2
traffic white, spot, 4000 K, system 21.1 W, 132 lm/W
DALI-2
traffic white, flood, 3500 K, system 21.1 W, 132 lm/W
non DIM
traffic white, medium, 3500 K, system 21.1 W, 134 lm/W
non DIM
traffic white, spot, 3500 K, system 21.1 W, 132 lm/W
non DIM
traffic white, flood, 3500 K, system 21.1 W, 132 lm/W
DALI-2
traffic white, medium, 3500 K, system 21.1 W, 134 lm/W
DALI-2
traffic white, spot, 3500 K, system 21.1 W, 132 lm/W
DALI-2
traffic white, flood, 3000 K, system 25.3 W, 123 lm/W
non DIM
traffic white, medium, 3000 K, system 25.3 W, 125 lm/W
non DIM
traffic white, spot, 3000 K, system 25.3 W, 123 lm/W
non DIM
traffic white, flood, 3000 K, system 25.3 W, 123 lm/W
DALI-2
traffic white, medium, 3000 K, system 25.3 W, 125 lm/W
DALI-2
traffic white, spot, 3000 K, system 25.3 W, 123 lm/W
DALI-2
traffic white, flood, 4000 K, system 25.3 W, 125 lm/W
non DIM
traffic white, medium, 4000 K, system 25.3 W, 126 lm/W
non DIM
traffic white, spot, 4000 K, system 25.3 W, 124 lm/W
non DIM
traffic white, flood, 4000 K, system 25.3 W, 125 lm/W
DALI-2
traffic white, medium, 4000 K, system 25.3 W, 126 lm/W
DALI-2
traffic white, spot, 4000 K, system 25.3 W, 124 lm/W
DALI-2
traffic white, flood, 3500 K, system 25.3 W, 125 lm/W
non DIM
traffic white, medium, 3500 K, system 25.3 W, 126 lm/W
non DIM
traffic white, spot, 3500 K, system 25.3 W, 124 lm/W
non DIM
traffic white, flood, 3500 K, system 25.3 W, 125 lm/W
DALI-2
traffic white, medium, 3500 K, system 25.3 W, 126 lm/W
DALI-2
traffic white, spot, 3500 K, system 25.3 W, 124 lm/W
DALI-2
traffic white, flood, 3000 K, system 13 W, 145 lm/W
non DIM
traffic white, medium, 3000 K, system 13 W, 148 lm/W
non DIM
traffic white, spot, 3000 K, system 13 W, 145 lm/W
non DIM
traffic white, flood, 3000 K, system 13 W, 145 lm/W
DALI-2
traffic white, medium, 3000 K, system 13 W, 148 lm/W
DALI-2
traffic white, spot, 3000 K, system 13 W, 145 lm/W
DALI-2
traffic white, flood, 4000 K, system 13 W, 148 lm/W
non DIM
traffic white, medium, 4000 K, system 13 W, 149 lm/W
non DIM
traffic white, spot, 4000 K, system 13 W, 147 lm/W
non DIM
traffic white, flood, 4000 K, system 13 W, 148 lm/W
DALI-2
traffic white, medium, 4000 K, system 13 W, 149 lm/W
DALI-2
traffic white, spot, 4000 K, system 13 W, 147 lm/W
DALI-2
traffic white, flood, 3500 K, system 13 W, 147 lm/W
non DIM
traffic white, medium, 3500 K, system 13 W, 149 lm/W
non DIM
traffic white, spot, 3500 K, system 13 W, 146 lm/W
non DIM
traffic white, flood, 3500 K, system 13 W, 147 lm/W
DALI-2
traffic white, medium, 3500 K, system 13 W, 149 lm/W
DALI-2
traffic white, spot, 3500 K, system 13 W, 146 lm/W
DALI-2

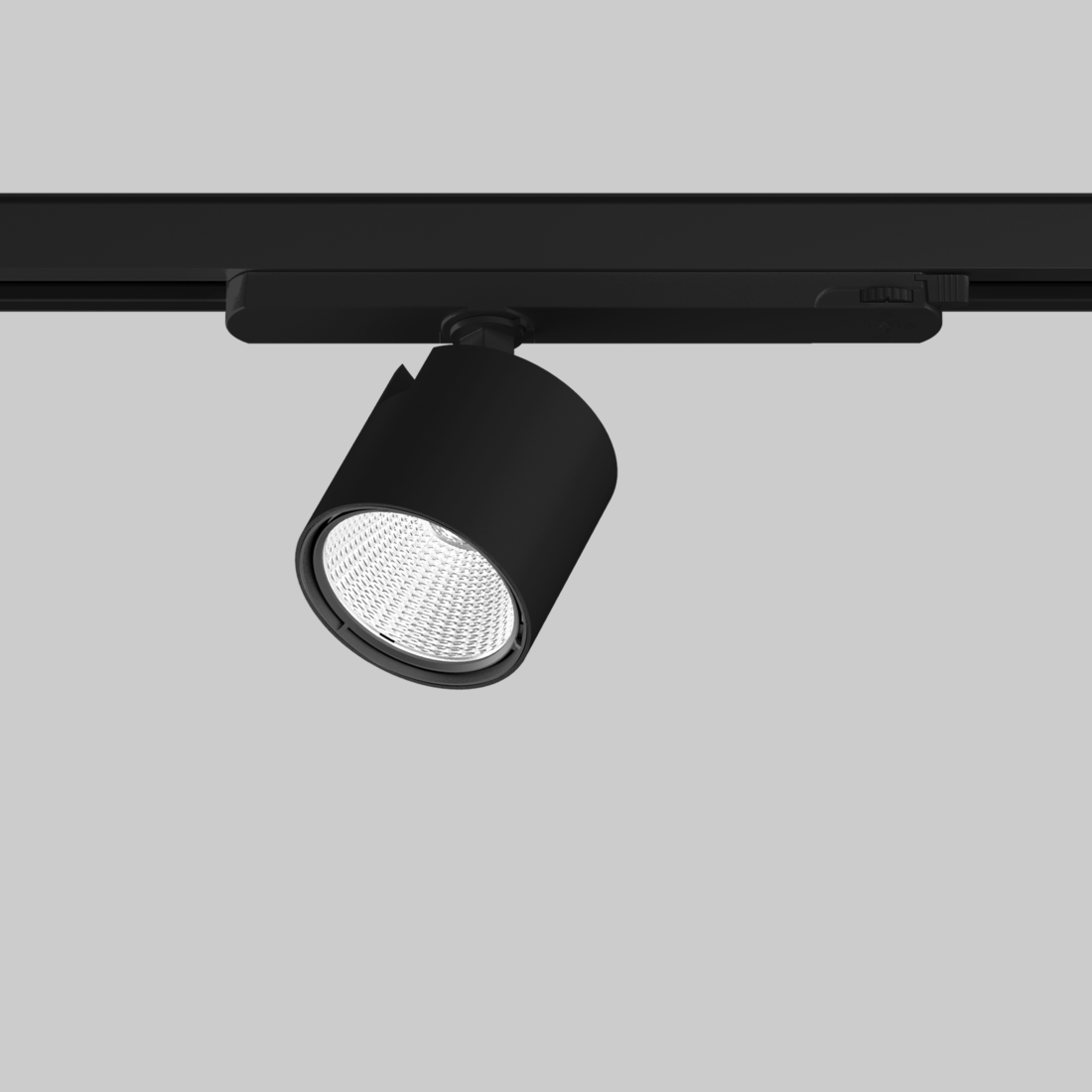

VARO 80 S track

VARO 80 S track

VARO 80 S track

Status
Article number(s)
Type
Dimming
jet black, flood, 3000 K, system 21.1 W, 131 lm/W
non DIM
jet black, medium, 3000 K, system 21.1 W, 133 lm/W
non DIM
jet black, spot, 3000 K, system 21.1 W, 130 lm/W
non DIM
jet black, flood, 3000 K, system 21.1 W, 131 lm/W
DALI-2
jet black, medium, 3000 K, system 21.1 W, 133 lm/W
DALI-2
jet black, spot, 3000 K, system 21.1 W, 130 lm/W
DALI-2
jet black, flood, 4000 K, system 21.1 W, 133 lm/W
non DIM
jet black, medium, 4000 K, system 21.1 W, 135 lm/W
non DIM
jet black, spot, 4000 K, system 21.1 W, 132 lm/W
non DIM
jet black, flood, 4000 K, system 21.1 W, 133 lm/W
DALI-2
jet black, medium, 4000 K, system 21.1 W, 135 lm/W
DALI-2
jet black, spot, 4000 K, system 21.1 W, 132 lm/W
DALI-2
jet black, flood, 3500 K, system 21.1 W, 132 lm/W
non DIM
jet black, medium, 3500 K, system 21.1 W, 134 lm/W
non DIM
jet black, spot, 3500 K, system 21.1 W, 132 lm/W
non DIM
jet black, flood, 3500 K, system 21.1 W, 132 lm/W
DALI-2
jet black, medium, 3500 K, system 21.1 W, 134 lm/W
DALI-2
jet black, spot, 3500 K, system 21.1 W, 132 lm/W
DALI-2
jet black, flood, 3000 K, system 25.3 W, 123 lm/W
non DIM
jet black, medium, 3000 K, system 25.3 W, 125 lm/W
non DIM
jet black, spot, 3000 K, system 25.3 W, 123 lm/W
non DIM
jet black, flood, 3000 K, system 25.3 W, 123 lm/W
DALI-2
jet black, medium, 3000 K, system 25.3 W, 125 lm/W
DALI-2
jet black, spot, 3000 K, system 25.3 W, 123 lm/W
DALI-2
jet black, flood, 4000 K, system 25.3 W, 125 lm/W
non DIM
jet black, medium, 4000 K, system 25.3 W, 126 lm/W
non DIM
jet black, spot, 4000 K, system 25.3 W, 124 lm/W
non DIM
jet black, flood, 4000 K, system 25.3 W, 125 lm/W
DALI-2
jet black, medium, 4000 K, system 25.3 W, 126 lm/W
DALI-2
jet black, spot, 4000 K, system 25.3 W, 124 lm/W
DALI-2
jet black, flood, 3500 K, system 25.3 W, 125 lm/W
non DIM
jet black, medium, 3500 K, system 25.3 W, 126 lm/W
non DIM
jet black, spot, 3500 K, system 25.3 W, 124 lm/W
non DIM
jet black, flood, 3500 K, system 25.3 W, 125 lm/W
DALI-2
jet black, medium, 3500 K, system 25.3 W, 126 lm/W
DALI-2
jet black, spot, 3500 K, system 25.3 W, 124 lm/W
DALI-2
jet black, flood, 3000 K, system 13 W, 145 lm/W
non DIM
jet black, medium, 3000 K, system 13 W, 148 lm/W
non DIM
jet black, spot, 3000 K, system 13 W, 145 lm/W
non DIM
jet black, flood, 3000 K, system 13 W, 145 lm/W
DALI-2
jet black, medium, 3000 K, system 13 W, 148 lm/W
DALI-2
jet black, spot, 3000 K, system 13 W, 145 lm/W
DALI-2
jet black, flood, 4000 K, system 13 W, 148 lm/W
non DIM
jet black, medium, 4000 K, system 13 W, 149 lm/W
non DIM
jet black, spot, 4000 K, system 13 W, 147 lm/W
non DIM
jet black, flood, 4000 K, system 13 W, 148 lm/W
DALI-2
jet black, medium, 4000 K, system 13 W, 149 lm/W
DALI-2
jet black, spot, 4000 K, system 13 W, 147 lm/W
DALI-2
jet black, flood, 3500 K, system 13 W, 147 lm/W
non DIM
jet black, medium, 3500 K, system 13 W, 149 lm/W
non DIM
jet black, spot, 3500 K, system 13 W, 146 lm/W
non DIM
jet black, flood, 3500 K, system 13 W, 147 lm/W
DALI-2
jet black, medium, 3500 K, system 13 W, 149 lm/W
DALI-2
jet black, spot, 3500 K, system 13 W, 146 lm/W
DALI-2

Accessories

Optical

article number
dimensions
HONEYCOMB LOUVER
080-6401118
diameter 75 mm
height 9 mm
0.01 kg
LINEAR PRISMATIC LENS
080-6402110P
diameter 75 mm
height 9 mm
0.02 kg
SNOOT short
080-6403118
diameter 66 mm
height 23 mm
0.02 kg
SNOOT medium
080-6403218
diameter 66 mm
height 38 mm
0.03 kg
SNOOT angle
080-6403318
diameter 66 mm
height 38 mm
0.02 kg

Related products

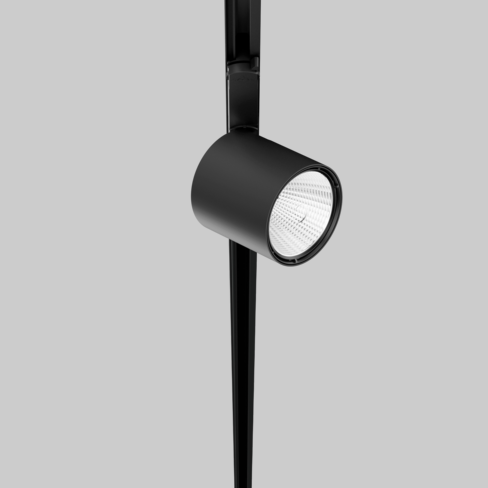

VARO 110 S

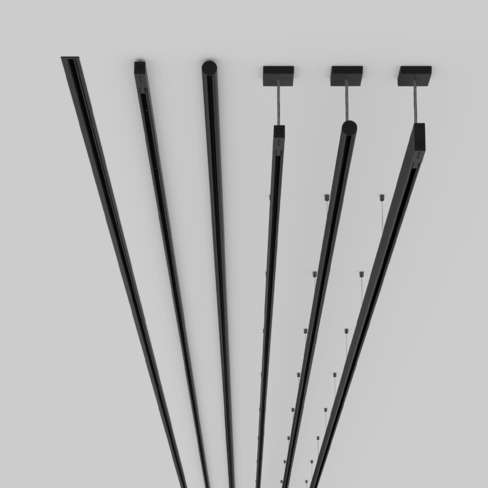

TRACK

3-phase recessed / surface / suspended

BO 32 / 45 / 55 / 70

intrack 1 | 2 | 3 lamps
New

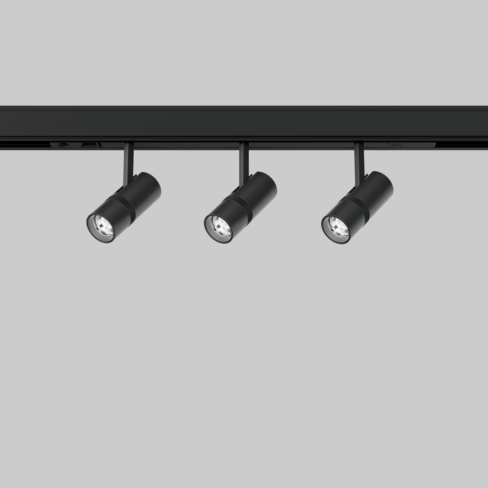

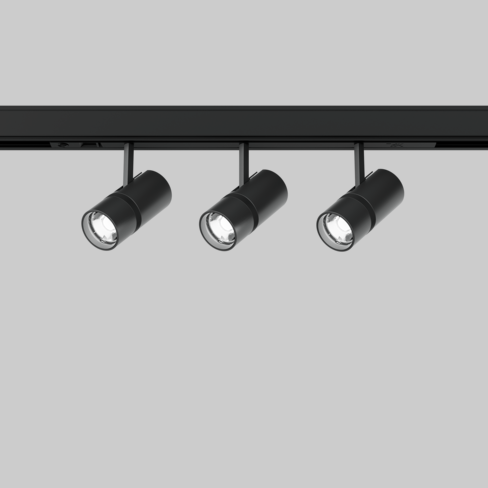

BO PRO 35 / 45 / 55
