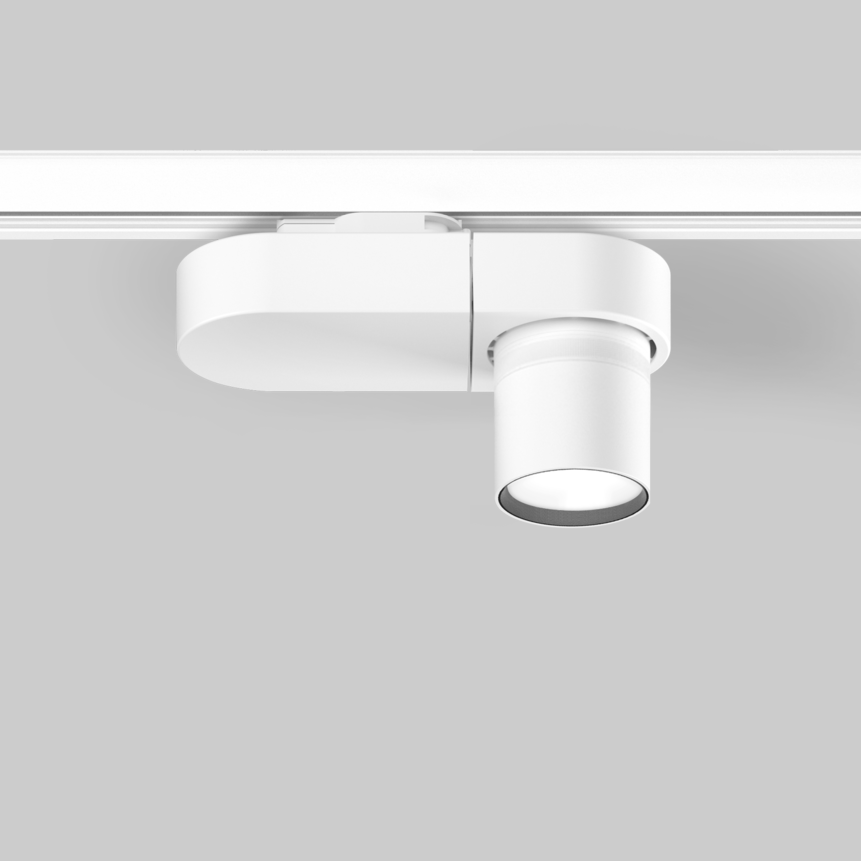

PABLO focus
PABLO colour tune

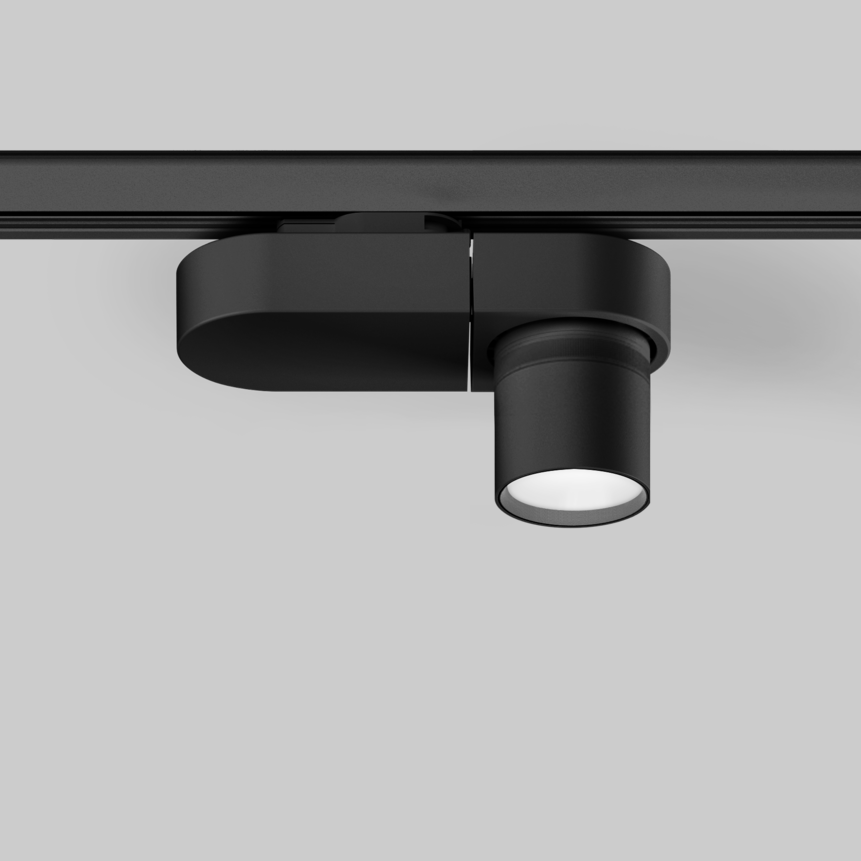

PABLO focus
Mosh Bar & Dinner
Mosh Bar & Dinner

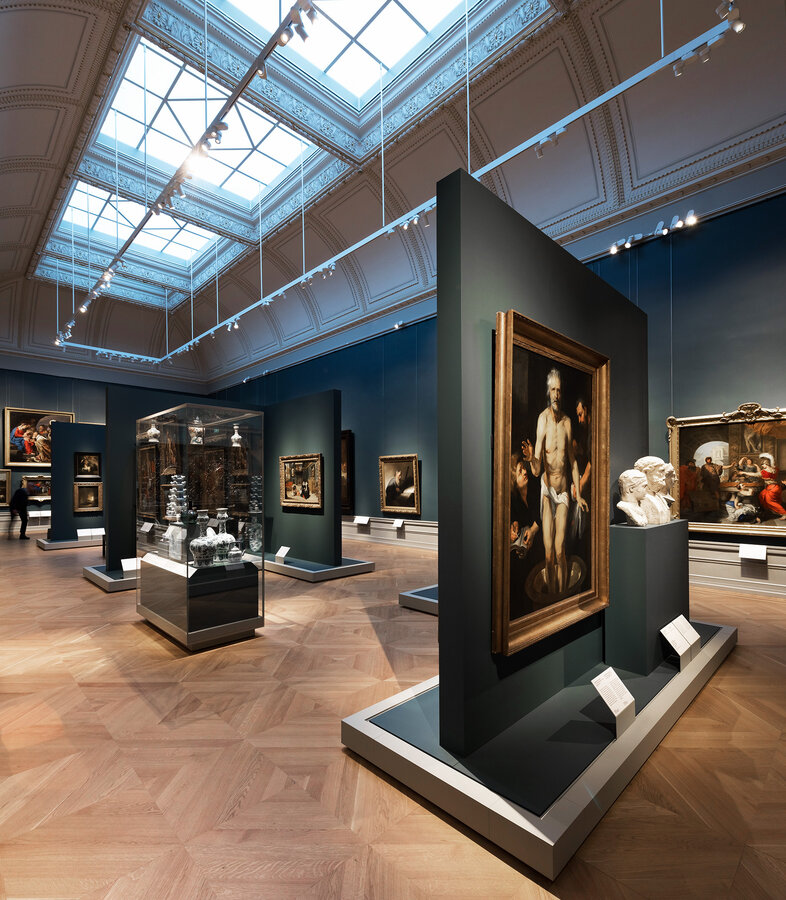

NATIONALMUSEUM

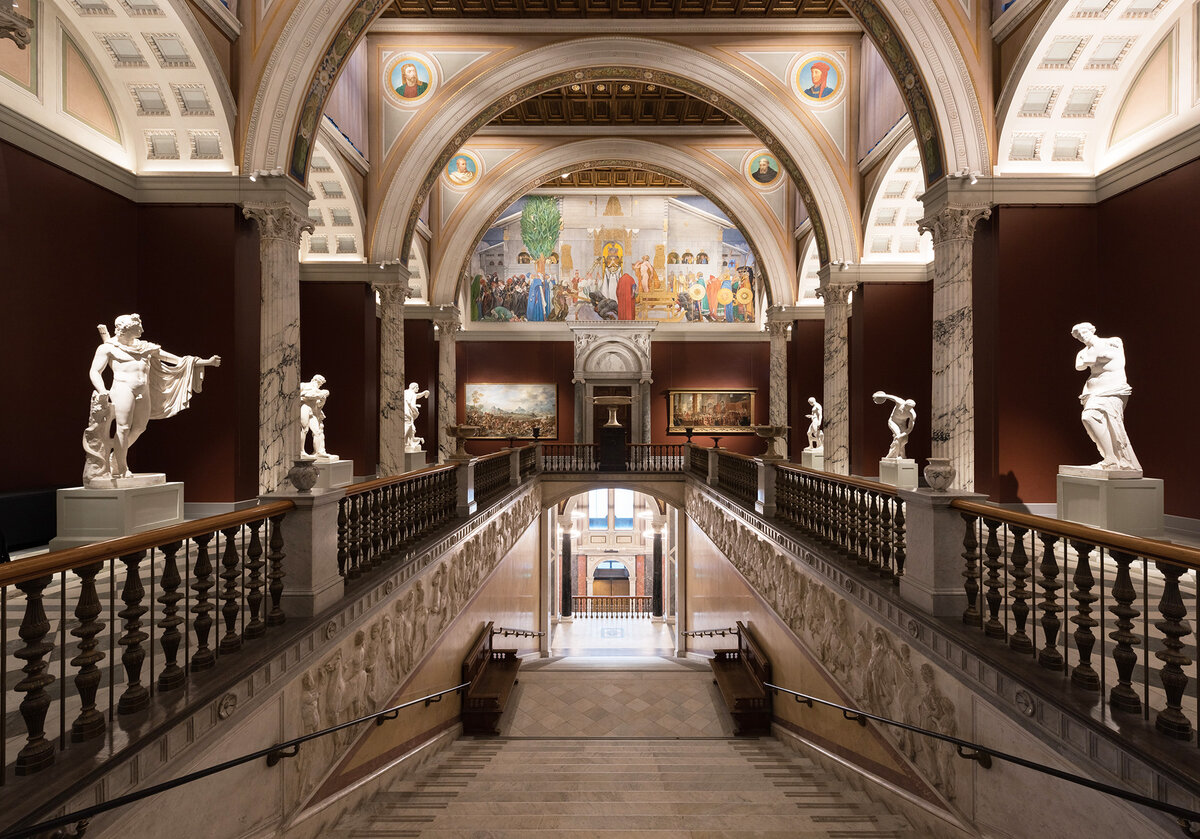

NATIONALMUSEUM

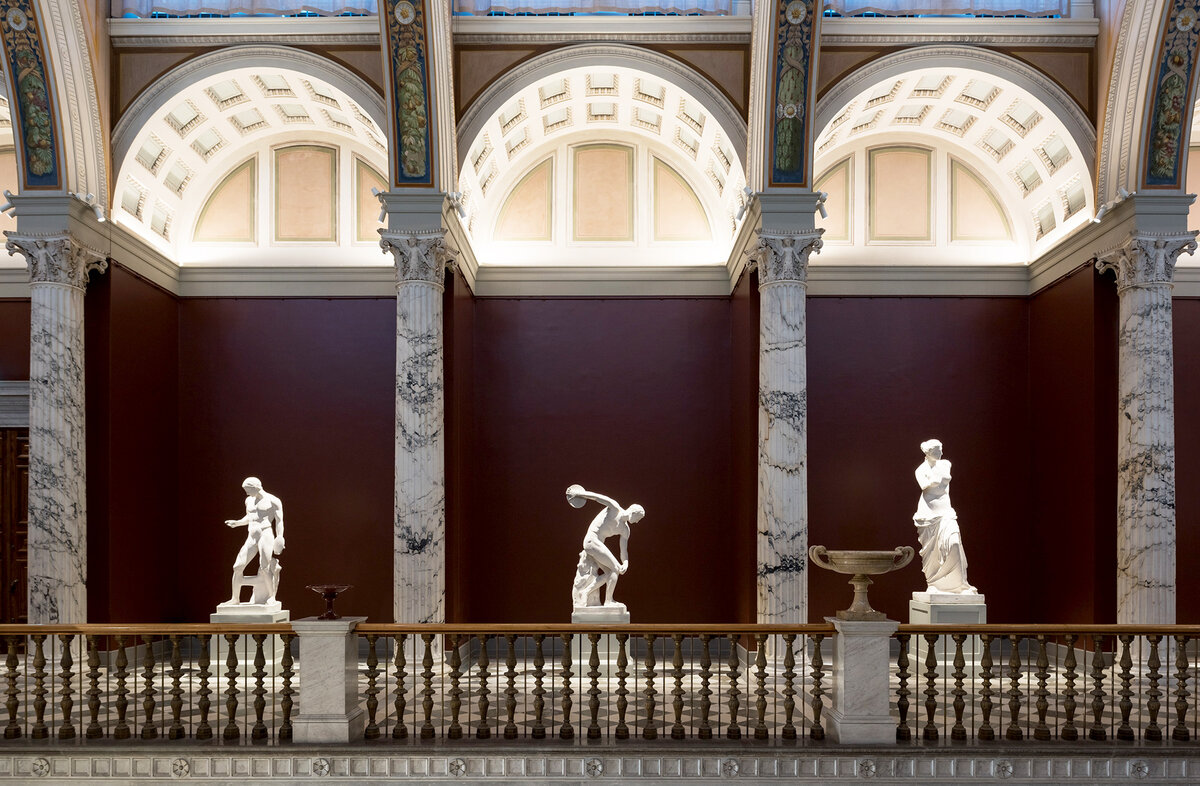

NATIONALMUSEUM
NATIONALMUSEUM

PABLO basic / focus

Quickinfo

3000 K, 4000 K
CRI ≥ 90, CRI ≥ 95 / 2 SDCM (initial MacAdam), 3 SDCM (initial MacAdam)
up to 78 lm/W
L85 / 50000 h, L90 / 50000 h
DALI-2, DIM POTI
IP20

Colour

    • Products and codes
    Discover family

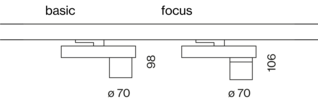

    Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    Download all
    • 3DS
    • DWG - 3D
    • Revit BIM data

    Description

    Track light made of die-cast aluminium; surface powder coated; 360° rotatable and 310° tiltable; converter in spotlight housing; COB (Chip on Board) technology - maximum efficiency; no multiple shadows; energy-efficient LEDs with very good colour rendering; PABLO basic: high quality aluminium reflector with spherical facet finish; high-gloss anodised; precise radiation characteristic with different light distributions (symmetric / asymmetric); installed and exchanged without tools; PABLO focus: incl. high quality plano-convex glass lens; precise object focusing through adjustable lens; adjustable beam angle of 17-47°; focusing by means of rubberised adjusting ring on the spotlight head; optical attachments as accessories; adapter for toolless insertion or movement on a variety of 3-phase power tracks; adapter fixation optionally without tools by means of knurled screw or set screw (screwdriver required); point outlet, either in surface mounted housing or recessed housing, available as an accessory

    compatible with MOVE IT PRO

    DiiA® standards 251, 252, 253

    360° rotatable, 310° tiltable

    DIM POTI / rotation lock

    Products and codes

    Filter
    30
    lm/W
    78
    lm/W
    462
    lm
    1610
    lm
    9.9
    W
    23
    W
    0.6
    0.86
    0.55
    0.78

    Colour

    • PABLO colour tune

    PABLO basic

    PABLO basic

    Status
    Article number(s)
    Variant
    Type
    Dimming
    traffic white, wallwasher, 3000 K, set screw (tool required), system 13.9 W, 64 lm/W
    DALI-2
    traffic white, flood, 3000 K, set screw (tool required), system 13.9 W, 66 lm/W
    DALI-2
    traffic white, medium, 3000 K, set screw (tool required), system 13.9 W, 68 lm/W
    DALI-2
    traffic white, spot, 3000 K, set screw (tool required), system 13.9 W, 71 lm/W
    DALI-2
    traffic white, wide flood, 3000 K, set screw (tool required), system 13.9 W, 65 lm/W
    DALI-2
    traffic white, wallwasher, 3000 K, set screw (tool required), system 13.9 W, 64 lm/W
    DIM POTI
    traffic white, flood, 3000 K, set screw (tool required), system 13.9 W, 66 lm/W
    DIM POTI
    traffic white, medium, 3000 K, set screw (tool required), system 13.9 W, 68 lm/W
    DIM POTI
    traffic white, spot, 3000 K, set screw (tool required), system 13.9 W, 71 lm/W
    DIM POTI
    traffic white, wide flood, 3000 K, set screw (tool required), system 13.9 W, 65 lm/W
    DIM POTI
    traffic white, wallwasher, 4000 K, set screw (tool required), system 13.9 W, 70 lm/W
    DALI-2
    traffic white, flood, 4000 K, set screw (tool required), system 13.9 W, 72 lm/W
    DALI-2
    traffic white, medium, 4000 K, set screw (tool required), system 13.9 W, 75 lm/W
    DALI-2
    traffic white, spot, 4000 K, set screw (tool required), system 13.9 W, 78 lm/W
    DALI-2
    traffic white, wide flood, 4000 K, set screw (tool required), system 13.9 W, 71 lm/W
    DALI-2
    traffic white, wallwasher, 4000 K, set screw (tool required), system 13.9 W, 70 lm/W
    DIM POTI
    traffic white, flood, 4000 K, set screw (tool required), system 13.9 W, 72 lm/W
    DIM POTI
    traffic white, medium, 4000 K, set screw (tool required), system 13.9 W, 75 lm/W
    DIM POTI
    traffic white, spot, 4000 K, set screw (tool required), system 13.9 W, 78 lm/W
    DIM POTI
    traffic white, wide flood, 4000 K, set screw (tool required), system 13.9 W, 71 lm/W
    DIM POTI
    traffic white, super spot, 3000 K, set screw (tool required), system 10 W
    DALI-2
    traffic white, super spot, 3000 K, set screw (tool required), system 10 W, 61 lm/W
    DIM POTI
    traffic white, super spot, 4000 K, set screw (tool required), system 9.9 W, 69 lm/W
    DALI-2
    traffic white, super spot, 4000 K, set screw (tool required), system 9.9 W
    DIM POTI
    traffic white, wallwasher, 3000 K, set screw (tool required), system 22.9 W, 58 lm/W
    DALI-2
    traffic white, flood, 3000 K, set screw (tool required), system 22.9 W, 59 lm/W
    DALI-2
    traffic white, medium, 3000 K, set screw (tool required), system 22.9 W, 61 lm/W
    DALI-2
    traffic white, spot, 3000 K, set screw (tool required), system 22.9 W, 64 lm/W
    DALI-2
    traffic white, wide flood, 3000 K, set screw (tool required), system 22.9 W, 59 lm/W
    DALI-2
    traffic white, wallwasher, 3000 K, set screw (tool required), system 22.9 W, 58 lm/W
    DIM POTI
    traffic white, flood, 3000 K, set screw (tool required), system 22.9 W, 59 lm/W
    DIM POTI
    traffic white, medium, 3000 K, set screw (tool required), system 22.9 W, 61 lm/W
    DIM POTI
    traffic white, spot, 3000 K, set screw (tool required), system 22.9 W, 64 lm/W
    DIM POTI
    traffic white, wide flood, 3000 K, set screw (tool required), system 22.9 W, 59 lm/W
    DIM POTI
    traffic white, wallwasher, 4000 K, set screw (tool required), system 22.9 W, 63 lm/W
    DALI-2
    traffic white, flood, 4000 K, set screw (tool required), system 22.9 W, 65 lm/W
    DALI-2
    traffic white, medium, 4000 K, set screw (tool required), system 22.9 W, 67 lm/W
    DALI-2
    traffic white, spot, 4000 K, set screw (tool required), system 22.9 W, 70 lm/W
    DALI-2
    traffic white, wide flood, 4000 K, set screw (tool required), system 22.9 W, 64 lm/W
    DALI-2
    traffic white, wallwasher, 4000 K, set screw (tool required), system 22.9 W, 63 lm/W
    DIM POTI
    traffic white, flood, 4000 K, set screw (tool required), system 22.9 W, 65 lm/W
    DIM POTI
    traffic white, medium, 4000 K, set screw (tool required), system 22.9 W, 67 lm/W
    DIM POTI
    traffic white, spot, 4000 K, set screw (tool required), system 22.9 W, 70 lm/W
    DIM POTI
    traffic white, wide flood, 4000 K, set screw (tool required), system 22.9 W, 64 lm/W
    DIM POTI
    traffic white, wallwasher, 3000 K, tool-free fixation, system 13.9 W, 64 lm/W
    DALI-2
    traffic white, flood, 3000 K, tool-free fixation, system 13.9 W, 66 lm/W
    DALI-2
    traffic white, medium, 3000 K, tool-free fixation, system 13.9 W, 68 lm/W
    DALI-2
    traffic white, spot, 3000 K, tool-free fixation, system 13.9 W, 71 lm/W
    DALI-2
    traffic white, wide flood, 3000 K, tool-free fixation, system 13.9 W, 65 lm/W
    DALI-2
    traffic white, wallwasher, 3000 K, tool-free fixation, system 13.9 W, 64 lm/W
    DIM POTI
    traffic white, flood, 3000 K, tool-free fixation, system 13.9 W, 66 lm/W
    DIM POTI
    traffic white, medium, 3000 K, tool-free fixation, system 13.9 W, 68 lm/W
    DIM POTI
    traffic white, spot, 3000 K, tool-free fixation, system 13.9 W, 71 lm/W
    DIM POTI
    traffic white, wide flood, 3000 K, tool-free fixation, system 13.9 W, 65 lm/W
    DIM POTI
    traffic white, wallwasher, 4000 K, tool-free fixation, system 13.9 W, 70 lm/W
    DALI-2
    traffic white, flood, 4000 K, tool-free fixation, system 13.9 W, 72 lm/W
    DALI-2
    traffic white, medium, 4000 K, tool-free fixation, system 13.9 W, 75 lm/W
    DALI-2
    traffic white, spot, 4000 K, tool-free fixation, system 13.9 W, 78 lm/W
    DALI-2
    traffic white, wide flood, 4000 K, tool-free fixation, system 13.9 W, 71 lm/W
    DALI-2
    traffic white, wallwasher, 4000 K, tool-free fixation, system 13.9 W, 70 lm/W
    DIM POTI
    traffic white, flood, 4000 K, tool-free fixation, system 13.9 W, 72 lm/W
    DIM POTI
    traffic white, medium, 4000 K, tool-free fixation, system 13.9 W, 75 lm/W
    DIM POTI
    traffic white, spot, 4000 K, tool-free fixation, system 13.9 W, 78 lm/W
    DIM POTI
    traffic white, wide flood, 4000 K, tool-free fixation, system 13.9 W, 71 lm/W
    DIM POTI
    traffic white, super spot, 3000 K, tool-free fixation, system 10 W, 61 lm/W
    DALI-2
    traffic white, super spot, 3000 K, tool-free fixation, system 10 W, 61 lm/W
    DIM POTI
    traffic white, super spot, 4000 K, tool-free fixation, system 9.9 W, 69 lm/W
    DALI-2
    traffic white, super spot, 4000 K, tool-free fixation, system 9.9 W, 69 lm/W
    DIM POTI
    traffic white, wallwasher, 3000 K, tool-free fixation, system 22.9 W, 58 lm/W
    DALI-2
    traffic white, flood, 3000 K, tool-free fixation, system 22.9 W, 59 lm/W
    DALI-2
    traffic white, medium, 3000 K, tool-free fixation, system 22.9 W, 61 lm/W
    DALI-2
    traffic white, spot, 3000 K, tool-free fixation, system 22.9 W, 64 lm/W
    DALI-2
    traffic white, wide flood, 3000 K, tool-free fixation, system 22.9 W, 59 lm/W
    DALI-2
    traffic white, wallwasher, 3000 K, tool-free fixation, system 22.9 W, 58 lm/W
    DIM POTI
    traffic white, flood, 3000 K, tool-free fixation, system 22.9 W, 59 lm/W
    DIM POTI
    traffic white, medium, 3000 K, tool-free fixation, system 22.9 W, 61 lm/W
    DIM POTI
    traffic white, spot, 3000 K, tool-free fixation, system 22.9 W, 64 lm/W
    DIM POTI
    traffic white, wide flood, 3000 K, tool-free fixation, system 22.9 W, 59 lm/W
    DIM POTI
    traffic white, wallwasher, 4000 K, tool-free fixation, system 22.9 W, 63 lm/W
    DALI-2
    traffic white, flood, 4000 K, tool-free fixation, system 22.9 W, 65 lm/W
    DALI-2
    traffic white, medium, 4000 K, tool-free fixation, system 22.9 W, 67 lm/W
    DALI-2
    traffic white, spot, 4000 K, tool-free fixation, system 22.9 W, 70 lm/W
    DALI-2
    traffic white, wide flood, 4000 K, tool-free fixation, system 22.9 W, 64 lm/W
    DALI-2
    traffic white, wallwasher, 4000 K, tool-free fixation, system 22.9 W, 63 lm/W
    DIM POTI
    traffic white, flood, 4000 K, tool-free fixation, system 22.9 W, 65 lm/W
    DIM POTI
    traffic white, medium, 4000 K, tool-free fixation, system 22.9 W, 67 lm/W
    DIM POTI
    traffic white, spot, 4000 K, tool-free fixation, system 22.9 W, 70 lm/W
    DIM POTI
    traffic white, wide flood, 4000 K, tool-free fixation, system 22.9 W, 64 lm/W
    DIM POTI
    PABLO colour tune

    PABLO basic

    PABLO basic

    Status
    Article number(s)
    Variant
    Type
    Dimming
    jet black, wallwasher, 3000 K, set screw (tool required), system 13.9 W, 64 lm/W
    DALI-2
    jet black, flood, 3000 K, set screw (tool required), system 13.9 W, 66 lm/W
    DALI-2
    jet black, medium, 3000 K, set screw (tool required), system 13.9 W, 68 lm/W
    DALI-2
    jet black, spot, 3000 K, set screw (tool required), system 13.9 W, 71 lm/W
    DALI-2
    jet black, wide flood, 3000 K, set screw (tool required), system 13.9 W, 65 lm/W
    DALI-2
    jet black, wallwasher, 3000 K, set screw (tool required), system 13.9 W, 64 lm/W
    DIM POTI
    jet black, flood, 3000 K, set screw (tool required), system 13.9 W, 66 lm/W
    DIM POTI
    jet black, medium, 3000 K, set screw (tool required), system 13.9 W, 68 lm/W
    DIM POTI
    jet black, spot, 3000 K, set screw (tool required), system 13.9 W, 71 lm/W
    DIM POTI
    jet black, wide flood, 3000 K, set screw (tool required), system 13.9 W, 65 lm/W
    DIM POTI
    jet black, wallwasher, 4000 K, set screw (tool required), system 13.9 W, 70 lm/W
    DALI-2
    jet black, flood, 4000 K, set screw (tool required), system 13.9 W, 72 lm/W
    DALI-2
    jet black, medium, 4000 K, set screw (tool required), system 13.9 W, 75 lm/W
    DALI-2
    jet black, spot, 4000 K, set screw (tool required), system 13.9 W, 78 lm/W
    DALI-2
    jet black, wide flood, 4000 K, set screw (tool required), system 13.9 W, 71 lm/W
    DALI-2
    jet black, wallwasher, 4000 K, set screw (tool required), system 13.9 W, 70 lm/W
    DIM POTI
    jet black, flood, 4000 K, set screw (tool required), system 13.9 W, 72 lm/W
    DIM POTI
    jet black, medium, 4000 K, set screw (tool required), system 13.9 W, 75 lm/W
    DIM POTI
    jet black, spot, 4000 K, set screw (tool required), system 13.9 W, 78 lm/W
    DIM POTI
    jet black, wide flood, 4000 K, set screw (tool required), system 13.9 W, 71 lm/W
    DIM POTI
    jet black, super spot, 3000 K, set screw (tool required), system 10 W, 61 lm/W
    DALI-2
    jet black, super spot, 3000 K, set screw (tool required), system 10 W, 61 lm/W
    DIM POTI
    jet black, super spot, 4000 K, set screw (tool required), system 9.9 W, 69 lm/W
    DALI-2
    jet black, super spot, 4000 K, set screw (tool required), system 9.9 W, 69 lm/W
    DIM POTI
    jet black, wallwasher, 3000 K, set screw (tool required), system 22.9 W, 58 lm/W
    DALI-2
    jet black, flood, 3000 K, set screw (tool required), system 22.9 W, 59 lm/W
    DALI-2
    jet black, medium, 3000 K, set screw (tool required), system 22.9 W, 61 lm/W
    DALI-2
    jet black, spot, 3000 K, set screw (tool required), system 22.9 W, 64 lm/W
    DALI-2
    jet black, wide flood, 3000 K, set screw (tool required), system 22.9 W, 59 lm/W
    DALI-2
    jet black, wallwasher, 3000 K, set screw (tool required), system 22.9 W, 58 lm/W
    DIM POTI
    jet black, flood, 3000 K, set screw (tool required), system 22.9 W, 59 lm/W
    DIM POTI
    jet black, medium, 3000 K, set screw (tool required), system 22.9 W, 61 lm/W
    DIM POTI
    jet black, spot, 3000 K, set screw (tool required), system 22.9 W, 64 lm/W
    DIM POTI
    jet black, wide flood, 3000 K, set screw (tool required), system 22.9 W
    DIM POTI
    jet black, wallwasher, 4000 K, set screw (tool required), system 22.9 W, 63 lm/W
    DALI-2
    jet black, flood, 4000 K, set screw (tool required), system 22.9 W, 65 lm/W
    DALI-2
    jet black, medium, 4000 K, set screw (tool required), system 22.9 W, 67 lm/W
    DALI-2
    jet black, spot, 4000 K, set screw (tool required), system 22.9 W, 70 lm/W
    DALI-2
    jet black, wide flood, 4000 K, set screw (tool required), system 22.9 W, 64 lm/W
    DALI-2
    jet black, wallwasher, 4000 K, set screw (tool required), system 22.9 W, 63 lm/W
    DIM POTI
    jet black, flood, 4000 K, set screw (tool required), system 22.9 W, 65 lm/W
    DIM POTI
    jet black, medium, 4000 K, set screw (tool required), system 22.9 W, 67 lm/W
    DIM POTI
    jet black, spot, 4000 K, set screw (tool required), system 22.9 W, 70 lm/W
    DIM POTI
    jet black, wide flood, 4000 K, set screw (tool required), system 22.9 W, 64 lm/W
    DIM POTI
    jet black, wallwasher, 3000 K, tool-free fixation, system 13.9 W, 64 lm/W
    DALI-2
    jet black, flood, 3000 K, tool-free fixation, system 13.9 W, 66 lm/W
    DALI-2
    jet black, medium, 3000 K, tool-free fixation, system 13.9 W, 68 lm/W
    DALI-2
    jet black, spot, 3000 K, tool-free fixation, system 13.9 W, 71 lm/W
    DALI-2
    jet black, wide flood, 3000 K, tool-free fixation, system 13.9 W, 65 lm/W
    DALI-2
    jet black, wallwasher, 3000 K, tool-free fixation, system 13.9 W, 64 lm/W
    DIM POTI
    jet black, flood, 3000 K, tool-free fixation, system 13.9 W, 66 lm/W
    DIM POTI
    jet black, medium, 3000 K, tool-free fixation, system 13.9 W, 68 lm/W
    DIM POTI
    jet black, spot, 3000 K, tool-free fixation, system 13.9 W, 71 lm/W
    DIM POTI
    jet black, wide flood, 3000 K, tool-free fixation, system 13.9 W, 65 lm/W
    DIM POTI
    jet black, wallwasher, 4000 K, tool-free fixation, system 13.9 W, 70 lm/W
    DALI-2
    jet black, flood, 4000 K, tool-free fixation, system 13.9 W, 72 lm/W
    DALI-2
    jet black, medium, 4000 K, tool-free fixation, system 13.9 W, 75 lm/W
    DALI-2
    jet black, spot, 4000 K, tool-free fixation, system 13.9 W, 78 lm/W
    DALI-2
    jet black, wide flood, 4000 K, tool-free fixation, system 13.9 W, 71 lm/W
    DALI-2
    jet black, wallwasher, 4000 K, tool-free fixation, system 13.9 W, 70 lm/W
    DIM POTI
    jet black, flood, 4000 K, tool-free fixation, system 13.9 W, 72 lm/W
    DIM POTI
    jet black, medium, 4000 K, tool-free fixation, system 13.9 W, 75 lm/W
    DIM POTI
    jet black, spot, 4000 K, tool-free fixation, system 13.9 W, 78 lm/W
    DIM POTI
    jet black, wide flood, 4000 K, tool-free fixation, system 13.9 W, 71 lm/W
    DIM POTI
    jet black, super spot, 3000 K, tool-free fixation, system 10 W
    DALI-2
    jet black, super spot, 3000 K, tool-free fixation, system 10 W, 61 lm/W
    DIM POTI
    jet black, super spot, 4000 K, tool-free fixation, system 9.9 W, 69 lm/W
    DALI-2
    jet black, super spot, 4000 K, tool-free fixation, system 9.9 W, 69 lm/W
    DIM POTI
    jet black, wallwasher, 3000 K, tool-free fixation, system 22.9 W, 58 lm/W
    DALI-2
    jet black, flood, 3000 K, tool-free fixation, system 22.9 W, 59 lm/W
    DALI-2
    jet black, medium, 3000 K, tool-free fixation, system 22.9 W, 61 lm/W
    DALI-2
    jet black, spot, 3000 K, tool-free fixation, system 22.9 W, 64 lm/W
    DALI-2
    jet black, wide flood, 3000 K, tool-free fixation, system 22.9 W, 59 lm/W
    DALI-2
    jet black, wallwasher, 3000 K, tool-free fixation, system 22.9 W, 58 lm/W
    DIM POTI
    jet black, flood, 3000 K, tool-free fixation, system 22.9 W, 59 lm/W
    DIM POTI
    jet black, medium, 3000 K, tool-free fixation, system 22.9 W, 61 lm/W
    DIM POTI
    jet black, spot, 3000 K, tool-free fixation, system 22.9 W, 64 lm/W
    DIM POTI
    jet black, wide flood, 3000 K, tool-free fixation, system 22.9 W, 59 lm/W
    DIM POTI
    jet black, wallwasher, 4000 K, tool-free fixation, system 22.9 W, 63 lm/W
    DALI-2
    jet black, flood, 4000 K, tool-free fixation, system 22.9 W, 65 lm/W
    DALI-2
    jet black, medium, 4000 K, tool-free fixation, system 22.9 W, 67 lm/W
    DALI-2
    jet black, spot, 4000 K, tool-free fixation, system 22.9 W, 70 lm/W
    DALI-2
    jet black, wide flood, 4000 K, tool-free fixation, system 22.9 W
    DALI-2
    jet black, wallwasher, 4000 K, tool-free fixation, system 22.9 W, 63 lm/W
    DIM POTI
    jet black, flood, 4000 K, tool-free fixation, system 22.9 W, 65 lm/W
    DIM POTI
    jet black, medium, 4000 K, tool-free fixation, system 22.9 W, 67 lm/W
    DIM POTI
    jet black, spot, 4000 K, tool-free fixation, system 22.9 W, 70 lm/W
    DIM POTI
    jet black, wide flood, 4000 K, tool-free fixation, system 22.9 W, 64 lm/W
    DIM POTI
    PABLO focus

    PABLO focus

    PABLO focus

    Status
    Article number(s)
    Variant
    Type
    Dimming
    beam angle max
    traffic white, focus, 3000 K, set screw (tool required), system 14 W, 56 lm/W
    DALI-2
    beam angle min
    traffic white, focus, 3000 K, set screw (tool required), system 14 W, 33 lm/W
    DALI-2
    beam angle min
    traffic white, focus, 3000 K, set screw (tool required), system 14 W, 33 lm/W
    DIM POTI
    beam angle max
    traffic white, focus, 3000 K, set screw (tool required), system 14 W, 56 lm/W
    DIM POTI
    beam angle min
    traffic white, focus, 4000 K, set screw (tool required), system 14 W, 36 lm/W
    DALI-2
    beam angle max
    traffic white, focus, 4000 K, set screw (tool required), system 14 W, 62 lm/W
    DALI-2
    beam angle max
    traffic white, focus, 4000 K, set screw (tool required), system 14 W, 62 lm/W
    DIM POTI
    beam angle min
    traffic white, focus, 4000 K, set screw (tool required), system 14 W, 36 lm/W
    DIM POTI
    beam angle max
    traffic white, focus, 3000 K, set screw (tool required), system 23 W, 51 lm/W
    DALI-2
    beam angle min
    traffic white, focus, 3000 K, set screw (tool required), system 23 W, 30 lm/W
    DALI-2
    beam angle max
    traffic white, focus, 3000 K, set screw (tool required), system 23 W, 51 lm/W
    DIM POTI
    beam angle min
    traffic white, focus, 3000 K, set screw (tool required), system 23 W, 30 lm/W
    DIM POTI
    beam angle max
    traffic white, focus, 4000 K, set screw (tool required), system 23 W, 56 lm/W
    DALI-2
    beam angle min
    traffic white, focus, 4000 K, set screw (tool required), system 23 W, 33 lm/W
    DALI-2
    beam angle min
    traffic white, focus, 4000 K, set screw (tool required), system 23 W, 33 lm/W
    DIM POTI
    beam angle max
    traffic white, focus, 4000 K, set screw (tool required), system 23 W, 56 lm/W
    DIM POTI
    beam angle min
    traffic white, focus, 3000 K, tool-free fixation, system 14 W, 33 lm/W
    DALI-2
    beam angle max
    traffic white, focus, 3000 K, tool-free fixation, system 14 W, 56 lm/W
    DALI-2
    beam angle min
    traffic white, focus, 3000 K, tool-free fixation, system 14 W, 33 lm/W
    DIM POTI
    beam angle max
    traffic white, focus, 3000 K, tool-free fixation, system 14 W, 56 lm/W
    DIM POTI
    beam angle min
    traffic white, focus, 4000 K, tool-free fixation, system 14 W, 36 lm/W
    DALI-2
    beam angle max
    traffic white, focus, 4000 K, tool-free fixation, system 14 W, 62 lm/W
    DALI-2
    beam angle max
    traffic white, focus, 4000 K, tool-free fixation, system 14 W, 62 lm/W
    DIM POTI
    beam angle min
    traffic white, focus, 4000 K, tool-free fixation, system 14 W, 36 lm/W
    DIM POTI
    beam angle min
    traffic white, focus, 3000 K, tool-free fixation, system 23 W, 30 lm/W
    DALI-2
    beam angle max
    traffic white, focus, 3000 K, tool-free fixation, system 23 W, 51 lm/W
    DALI-2
    beam angle min
    traffic white, focus, 3000 K, tool-free fixation, system 23 W, 30 lm/W
    DIM POTI
    beam angle max
    traffic white, focus, 3000 K, tool-free fixation, system 23 W, 51 lm/W
    DIM POTI
    beam angle min
    traffic white, focus, 4000 K, tool-free fixation, system 23 W, 33 lm/W
    DALI-2
    beam angle max
    traffic white, focus, 4000 K, tool-free fixation, system 23 W, 56 lm/W
    DALI-2
    beam angle max
    traffic white, focus, 4000 K, tool-free fixation, system 23 W, 56 lm/W
    DIM POTI
    beam angle min
    traffic white, focus, 4000 K, tool-free fixation, system 23 W, 33 lm/W
    DIM POTI
    PABLO focus

    PABLO focus

    PABLO focus

    Status
    Article number(s)
    Variant
    Type
    Dimming
    beam angle min
    jet black, focus, 3000 K, set screw (tool required), system 14 W, 33 lm/W
    DALI-2
    beam angle max
    jet black, focus, 3000 K, set screw (tool required), system 14 W, 56 lm/W
    DALI-2
    beam angle min
    jet black, focus, 3000 K, set screw (tool required), system 14 W, 33 lm/W
    DIM POTI
    beam angle max
    jet black, focus, 3000 K, set screw (tool required), system 14 W, 56 lm/W
    DIM POTI
    beam angle max
    jet black, focus, 4000 K, set screw (tool required), system 14 W, 62 lm/W
    DALI-2
    beam angle min
    jet black, focus, 4000 K, set screw (tool required), system 14 W, 36 lm/W
    DALI-2
    beam angle max
    jet black, focus, 4000 K, set screw (tool required), system 14 W, 62 lm/W
    DIM POTI
    beam angle min
    jet black, focus, 4000 K, set screw (tool required), system 14 W, 36 lm/W
    DIM POTI
    beam angle min
    jet black, focus, 3000 K, set screw (tool required), system 23 W, 30 lm/W
    DALI-2
    beam angle max
    jet black, focus, 3000 K, set screw (tool required), system 23 W, 51 lm/W
    DALI-2
    beam angle max
    jet black, focus, 3000 K, set screw (tool required), system 23 W, 51 lm/W
    DIM POTI
    beam angle min
    jet black, focus, 3000 K, set screw (tool required), system 23 W, 30 lm/W
    DIM POTI
    beam angle min
    jet black, focus, 4000 K, set screw (tool required), system 23 W, 33 lm/W
    DALI-2
    beam angle max
    jet black, focus, 4000 K, set screw (tool required), system 23 W, 56 lm/W
    DALI-2
    beam angle max
    jet black, focus, 4000 K, set screw (tool required), system 23 W, 56 lm/W
    DIM POTI
    beam angle min
    jet black, focus, 4000 K, set screw (tool required), system 23 W, 33 lm/W
    DIM POTI
    beam angle min
    jet black, focus, 3000 K, tool-free fixation, system 14 W, 33 lm/W
    DALI-2
    beam angle max
    jet black, focus, 3000 K, tool-free fixation, system 14 W, 56 lm/W
    DALI-2
    beam angle max
    jet black, focus, 3000 K, tool-free fixation, system 14 W
    DIM POTI
    beam angle min
    jet black, focus, 3000 K, tool-free fixation, system 14 W, 33 lm/W
    DIM POTI
    beam angle max
    jet black, focus, 4000 K, tool-free fixation, system 14 W, 62 lm/W
    DALI-2
    beam angle min
    jet black, focus, 4000 K, tool-free fixation, system 14 W, 36 lm/W
    DALI-2
    beam angle max
    jet black, focus, 4000 K, tool-free fixation, system 14 W, 62 lm/W
    DIM POTI
    beam angle min
    jet black, focus, 4000 K, tool-free fixation, system 14 W, 36 lm/W
    DIM POTI
    beam angle min
    jet black, focus, 3000 K, tool-free fixation, system 23 W, 30 lm/W
    DALI-2
    beam angle max
    jet black, focus, 3000 K, tool-free fixation, system 23 W, 51 lm/W
    DALI-2
    beam angle max
    jet black, focus, 3000 K, tool-free fixation, system 23 W
    DIM POTI
    beam angle min
    jet black, focus, 3000 K, tool-free fixation, system 23 W, 30 lm/W
    DIM POTI
    beam angle min
    jet black, focus, 4000 K, tool-free fixation, system 23 W, 33 lm/W
    DALI-2
    beam angle max
    jet black, focus, 4000 K, tool-free fixation, system 23 W, 56 lm/W
    DALI-2
    beam angle min
    jet black, focus, 4000 K, tool-free fixation, system 23 W, 33 lm/W
    DIM POTI
    beam angle max
    jet black, focus, 4000 K, tool-free fixation, system 23 W, 56 lm/W
    DIM POTI

    Accessories

    Optical

    article number
    colour
    type
    dimensions
    SNOOT
    080-5900008
    jet black
    RAL 9005
    diameter 62 mm
    height 33 mm
    0.02 kg
    HONEYCOMB LOUVER
    080-5900018
    jet black
    RAL 9005
    for BO 70 | PABLO
    diameter 61 mm
    height 3 mm

    Mounting

    article number
    type
    colour
    dimensions
    ceiling thickness
    RECESSED HOUSING / POINT OUTLET
    186-072277
    ceiling thickness
    traffic white
    RAL 9016
    diameter 151 mm
    height 60 mm
    0.25 kg
    min. ceiling thickness 1 mm
    max. ceiling thickness 30 mm
    RECESSED HOUSING / POINT OUTLET
    186-072278
    ceiling thickness
    jet black
    RAL 9005
    diameter 151 mm
    height 60 mm
    0.34 kg
    min. ceiling thickness 1 mm
    max. ceiling thickness 30 mm
    SURFACE HOUSING / POINT OUTLET
    186-072287
    traffic white
    RAL 9016
    diameter 120 mm
    height 32 mm
    0.11 kg
    SURFACE HOUSING / POINT OUTLET
    186-072288
    jet black
    RAL 9005
    diameter 120 mm
    height 32 mm
    0.2 kg

    Related products

    TRACK

    3-phase recessed / surface / suspended

    BO 32 / 45 / 55

    intrack 1 | 2 | 3 lamps

    BO 55 / 70

    track

    VARO 80 S

    VARO 110 S

    PABLO

    shutter / iris / gobo

    PABLO

    colour tune / tunable white

    PABLO

    multilens

    SQUADRO

    wallwasher track

    SQUADRO

    wallwasher track 2 lamps
