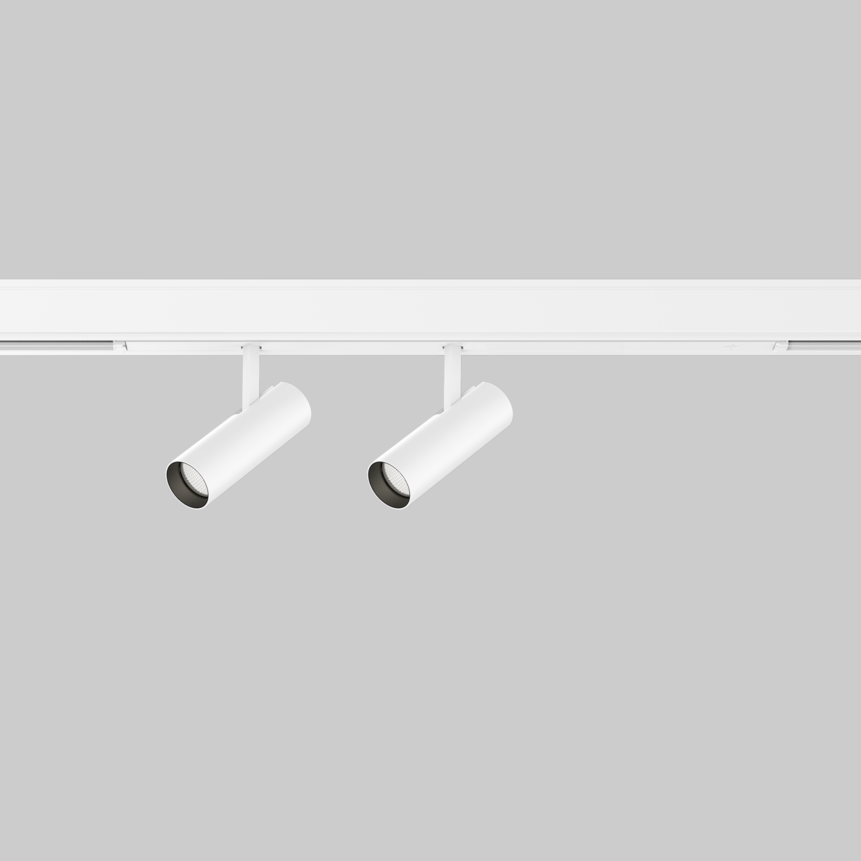

BO 32 intrack 2 lamps
BO 32 intrack 3 lamps

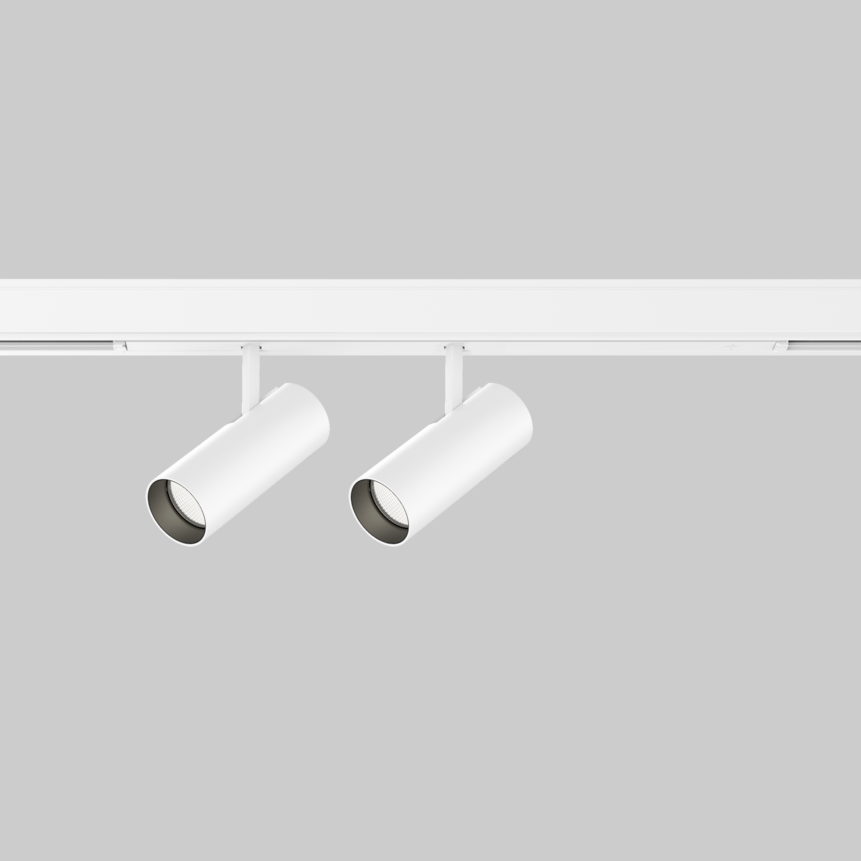

BO 45 intrack 2 lamps
BO 45 intrack 3 lamps
BO 55 intrack 1 lamp
BO 55 intrack 2 lamps

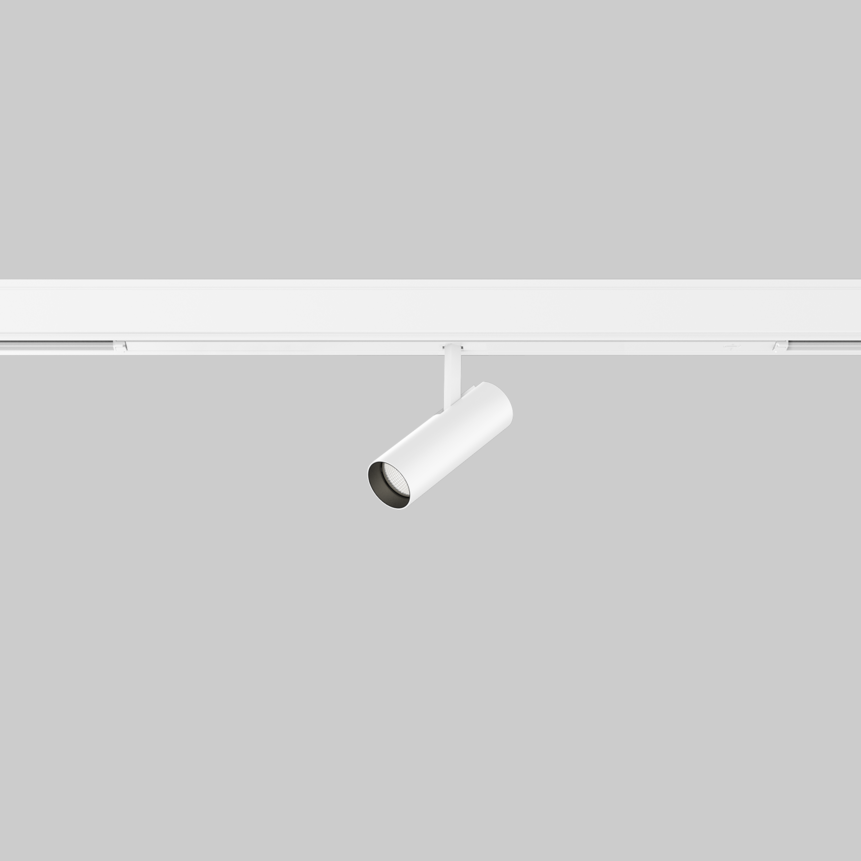

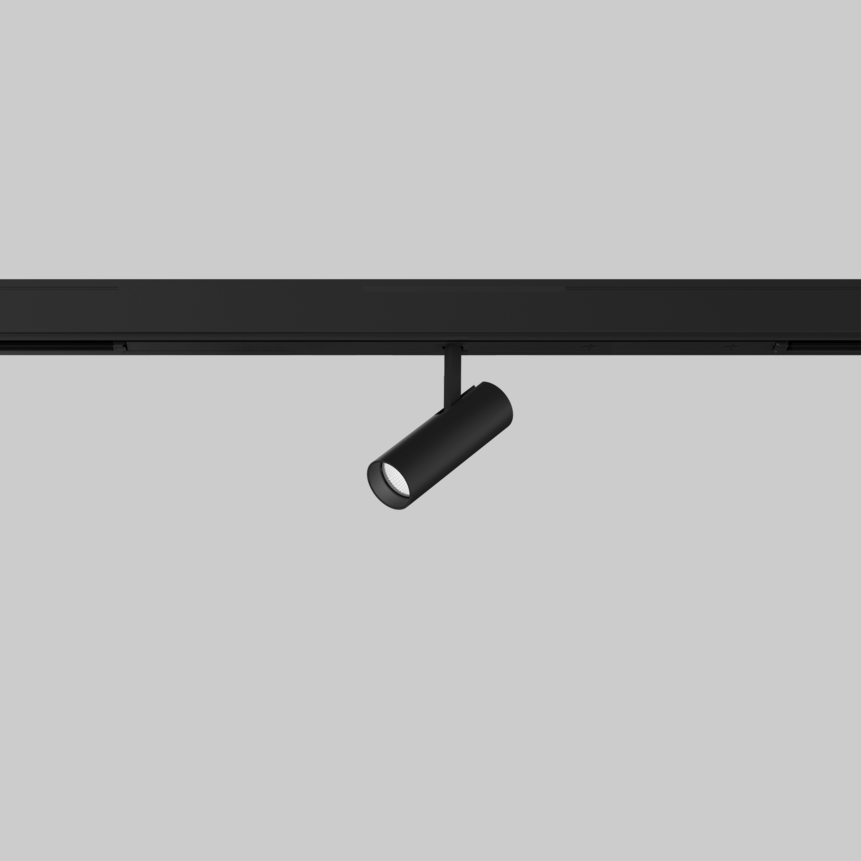

BO 32 intrack 1 lamp

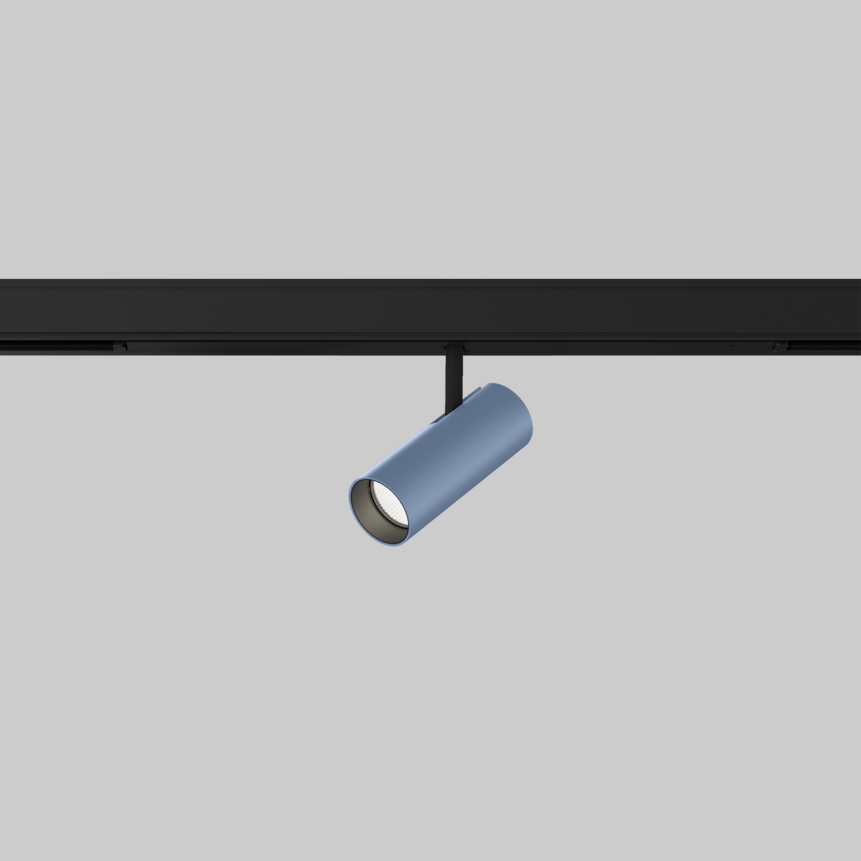

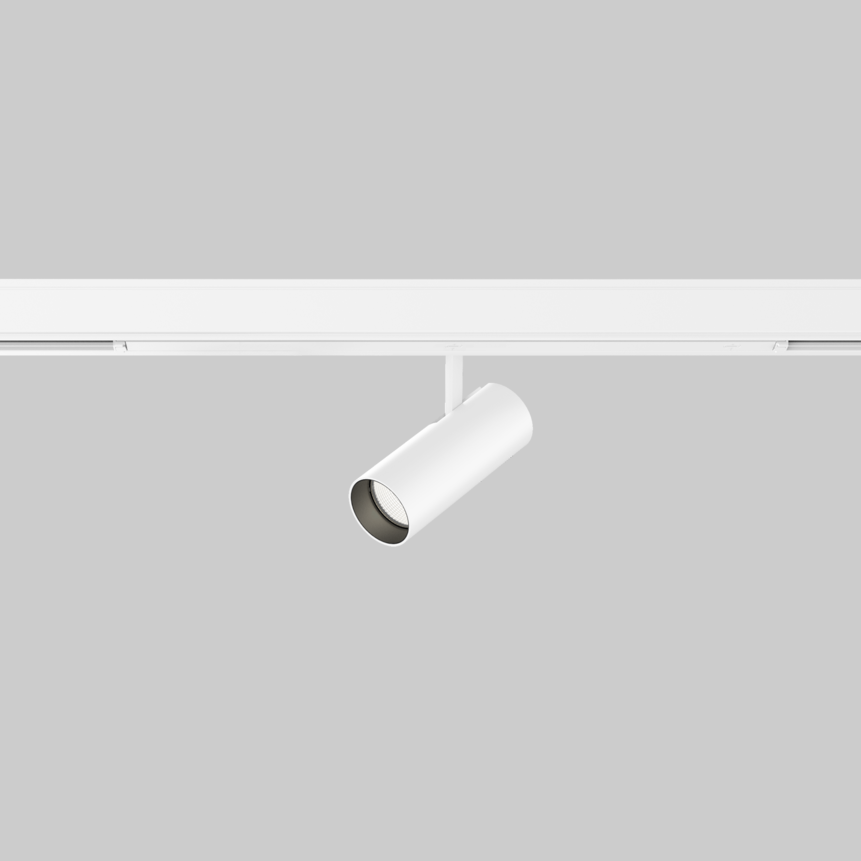

BO 45 intrack 1 lamp
BO 55 intrack 1 lamp

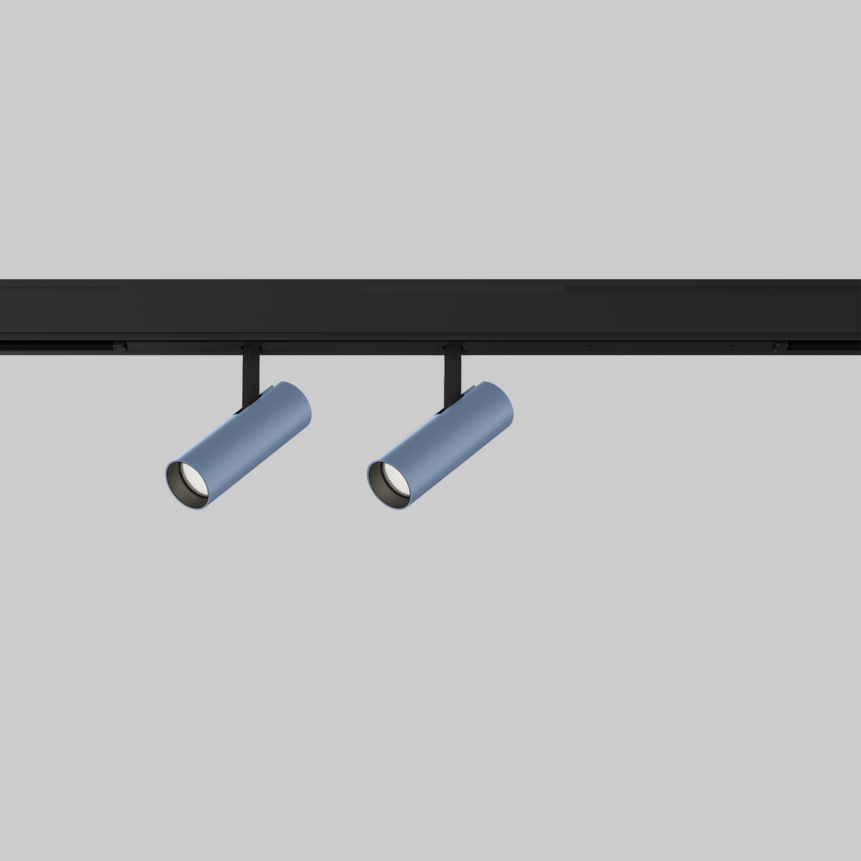

BO 32 intrack 2 lamps

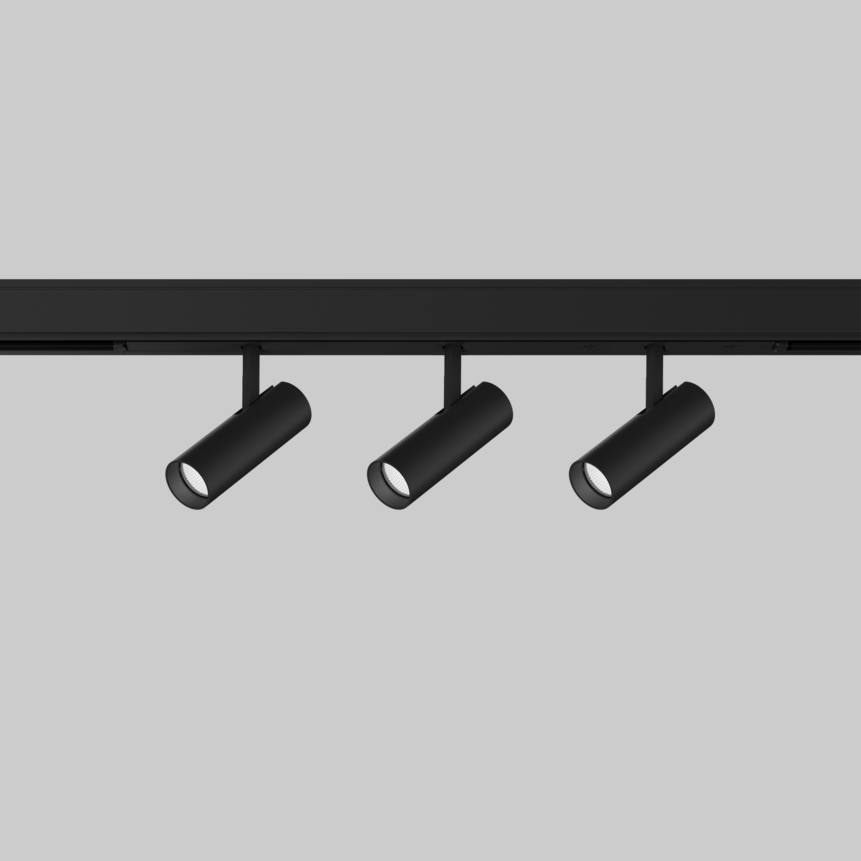

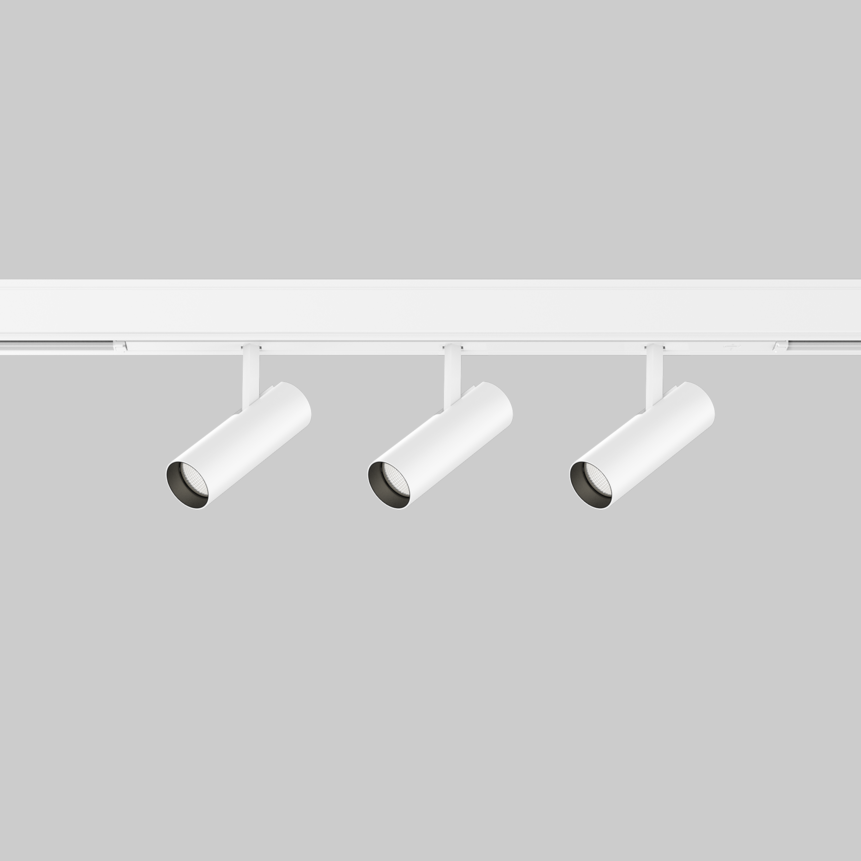

BO 32 intrack 3 lamps

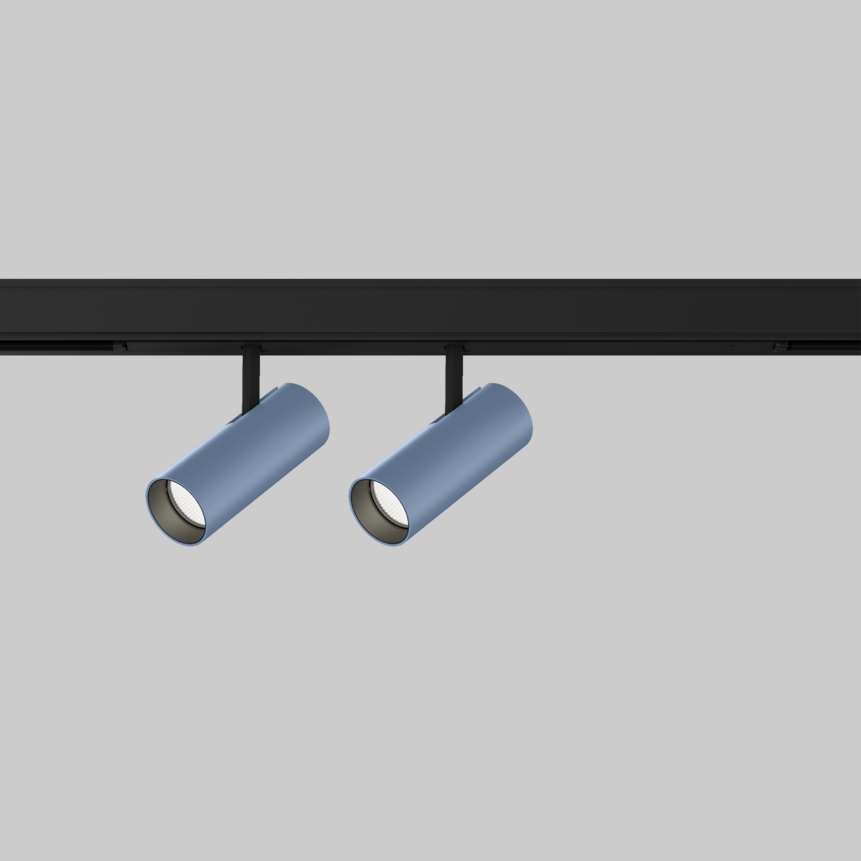

BO 45 intrack 2 lamps

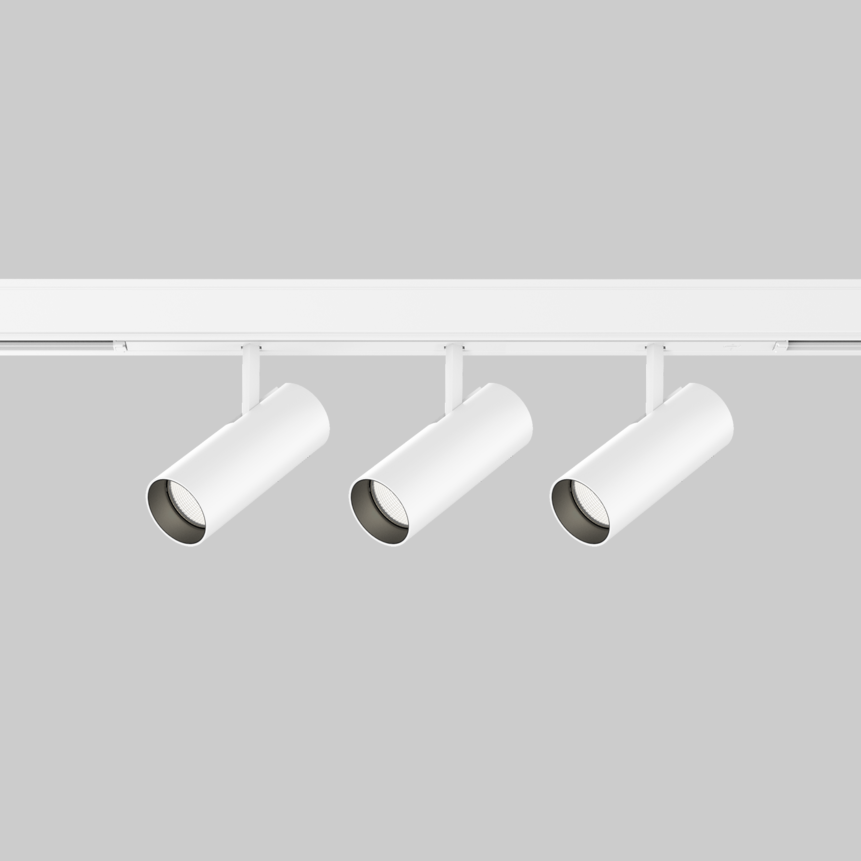

BO 45 intrack 3 lamps
BO 55 intrack 1 lamp
BO 55 intrack 2 lamps
BO 32 intrack 1 lamp
BO 45 intrack 1 lamp
BO 55 intrack 1 lamp
BO 32 intrack 2 lamps
BO 32 intrack 3 lamps
BO 45 intrack 2 lamps
BO 45 intrack 3 lamps
BO 55 intrack 1 lamp
BO 55 intrack 2 lamps
BO 32 intrack 1 lamp
BO 45 intrack 1 lamp
BO 55 intrack 1 lamp

BO 32 / 45 / 55

intrack 1 | 2 | 3 lamps

New inset type

Quickinfo

2700 K, 3000 K, 3500 K, 4000 K
CRI ≥ 90 / 2, 3 SDCM
up to 91 lm/W
L80 / 50000 h, L85 / 50000 h
DALI-2
IP20

Colour

  • Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    • ULD
    • 3DS
    • DWG - 3D

    Description

    Track light made of die-cast aluminium; powder coated; spotlight head rotates 360° and tilts 90°; choice of single lamp, double lamps or triple lamp; converter in the adapter; with optional high quality lens system with precise radiation characteristic; or high quality, aluminium, vapour deposition coated reflector with faceted design; precise radiation characteristics with different beam angles; good glare reduction due to recessed light point plane; optical attachments as accessories; COB (Chip on Board) technology or high power LEDs - maximum efficiency; no multiple shadows; energy-eff. LEDs - very good colour rendering; adapter for toolless insertion or movement on a variety of 3-phase power tracks; adapter flush with the power track

    only one adapter with 2 or 3 lamps

    360° rotatable, 90° tiltable

    glare control via honeycomb louver

    oval lens for oval light illumination

    CRI ≥ 95 2 SDCM

    Dieser Bereich wird neu geladen sobald ein Eingabefeld geändert wird.

    Products and codes

    Filter
    41
    lm/W
    91
    lm/W
    346
    lm
    3720
    lm
    8.5
    W
    45
    W
    0.53
    0.86
    0.48
    0.78

    Colour

  • BO 32 intrack 1 lamp

    BO 32 intrack 1 lamp

    BO 32 intrack 1 lamp

    Status
    Article number(s)
    Type
    Dimming
    black, 37° flood, 2700 K, 10.7 W, 67 lm/W, Rg: 99
    DALI-2
    black, 23° medium, 2700 K, 10.7 W, 67 lm/W, Rg: 99
    DALI-2
    black, 18° spot, 2700 K, 10.7 W, 65 lm/W, Rg: 99
    DALI-2
    black, 37° flood, 3000 K, 10.7 W, 71 lm/W, Rg: 100
    DALI-2
    black, 23° medium, 3000 K, 10.7 W, 71 lm/W, Rg: 100
    DALI-2
    black, 18° spot, 3000 K, 10.7 W, 69 lm/W, Rg: 100
    DALI-2
    black, 37° flood, 4000 K, 10.7 W, 75 lm/W, Rg: 97
    DALI-2
    black, 23° medium, 4000 K, 10.7 W, 75 lm/W, Rg: 97
    DALI-2
    black, 18° spot, 4000 K, 10.7 W, 73 lm/W, Rg: 97
    DALI-2
    black, 37° flood, 3000 K, 10.7 W, 71 lm/W, Rg: 97
    DALI-2
    black, 23° medium, 3000 K, 10.7 W, 71 lm/W, Rg: 97
    DALI-2
    black, 18° spot, 3000 K, 10.7 W, 69 lm/W, Rg: 97
    DALI-2
    BO 32 intrack 1 lamp

    BO 32 intrack 1 lamp

    BO 32 intrack 1 lamp

    Status
    Article number(s)
    Type
    Dimming
    special colours, 37° flood, 2700 K, 10.7 W, 67 lm/W, Rg: 99
    DALI-2
    special colours, 23° medium, 2700 K, 10.7 W, 67 lm/W, Rg: 99
    DALI-2
    special colours, 18° spot, 2700 K, 10.7 W, 65 lm/W, Rg: 99
    DALI-2
    special colours, 37° flood, 3000 K, 10.7 W, 71 lm/W, Rg: 100
    DALI-2
    special colours, 23° medium, 3000 K, 10.7 W, 71 lm/W, Rg: 100
    DALI-2
    special colours, 18° spot, 3000 K, 10.7 W, 69 lm/W, Rg: 100
    DALI-2
    special colours, 37° flood, 4000 K, 10.7 W, 75 lm/W, Rg: 97
    DALI-2
    special colours, 23° medium, 4000 K, 10.7 W, 75 lm/W, Rg: 97
    DALI-2
    special colours, 18° spot, 4000 K, 10.7 W, 73 lm/W, Rg: 97
    DALI-2
    special colours, 37° flood, 3000 K, 10.7 W, 71 lm/W, Rg: 97
    DALI-2
    special colours, 23° medium, 3000 K, 10.7 W, 71 lm/W, Rg: 97
    DALI-2
    special colours, 18° spot, 3000 K, 10.7 W, 69 lm/W, Rg: 97
    DALI-2
    BO 32 intrack 1 lamp

    BO 32 intrack 1 lamp

    BO 32 intrack 1 lamp

    Status
    Article number(s)
    Type
    Dimming
    white, 37° flood, 2700 K, 10.7 W, 67 lm/W, Rg: 99
    DALI-2
    white, 23° medium, 2700 K, 10.7 W, 67 lm/W, Rg: 99
    DALI-2
    white, 18° spot, 2700 K, 10.7 W, 65 lm/W, Rg: 99
    DALI-2
    white, 37° flood, 3000 K, 10.7 W, 71 lm/W, Rg: 100
    DALI-2
    white, 23° medium, 3000 K, 10.7 W, 71 lm/W, Rg: 100
    DALI-2
    white, 18° spot, 3000 K, 10.7 W, 69 lm/W, Rg: 100
    DALI-2
    white, 37° flood, 4000 K, 10.7 W, 75 lm/W, Rg: 97
    DALI-2
    white, 23° medium, 4000 K, 10.7 W, 75 lm/W, Rg: 97
    DALI-2
    white, 18° spot, 4000 K, 10.7 W, 73 lm/W, Rg: 97
    DALI-2
    white, 37° flood, 3000 K, 10.7 W, 71 lm/W, Rg: 97
    DALI-2
    white, 23° medium, 3000 K, 10.7 W, 71 lm/W, Rg: 97
    DALI-2
    white, 18° spot, 3000 K, 10.7 W, 69 lm/W, Rg: 97
    DALI-2
    BO 32 intrack 2 lamps

    BO 32 intrack 2 lamps

    BO 32 intrack 2 lamps

    Status
    Article number(s)
    Type
    Dimming
    black, 34° flood, 2700 K, 20.6 W, 73 lm/W, Rg: 99
    DALI-2
    black, 24° medium, 2700 K, 20.6 W, 76 lm/W, Rg: 99
    DALI-2
    black, 18° spot, 2700 K, 20.6 W, 73 lm/W, Rg: 99
    DALI-2
    black, 34° flood, 3000 K, 20.6 W, 77 lm/W, Rg: 100
    DALI-2
    black, 24° medium, 3000 K, 20.6 W, 81 lm/W, Rg: 100
    DALI-2
    black, 18° spot, 3000 K, 20.6 W, 78 lm/W, Rg: 100
    DALI-2
