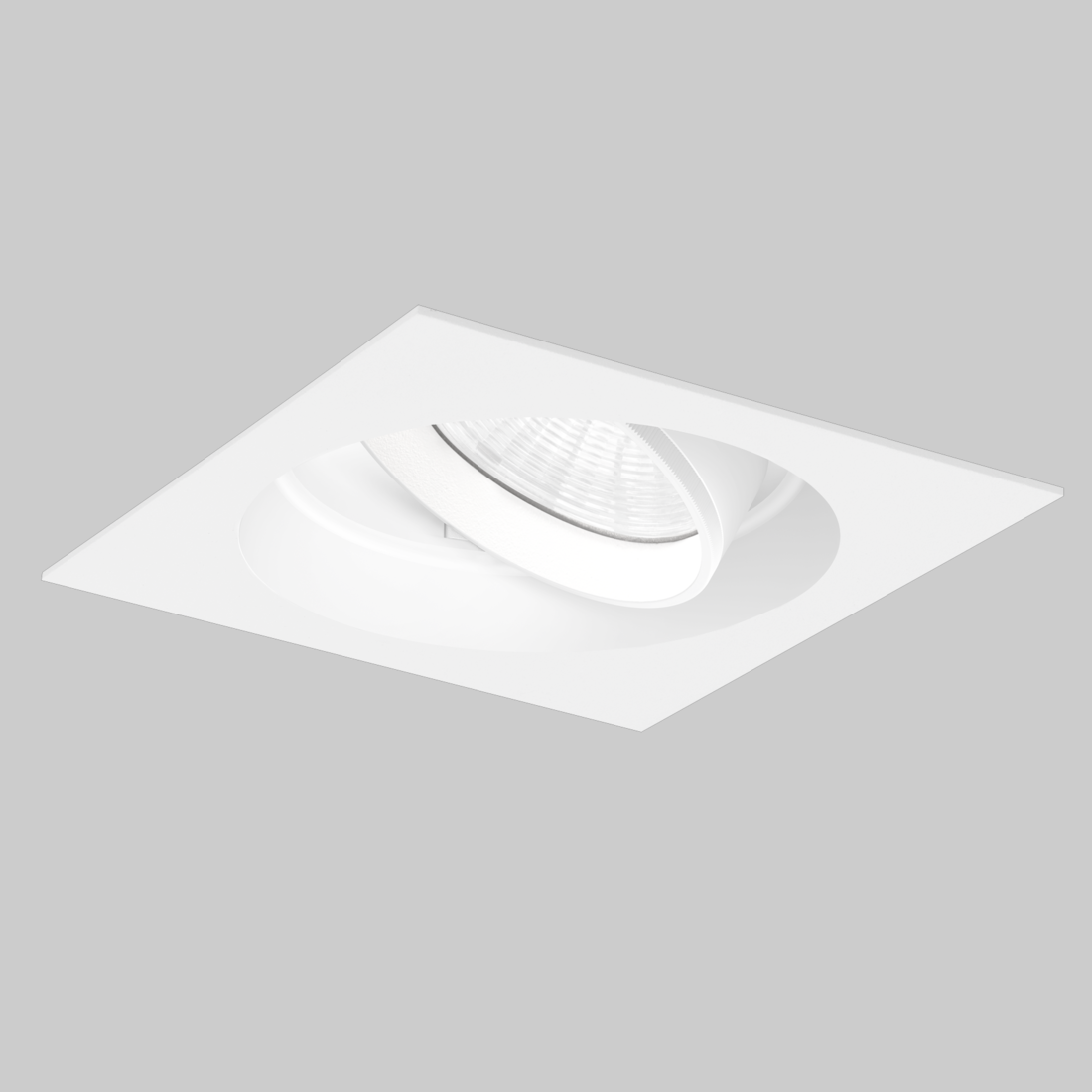

SASSO PRO 100 adjustable offset trim square

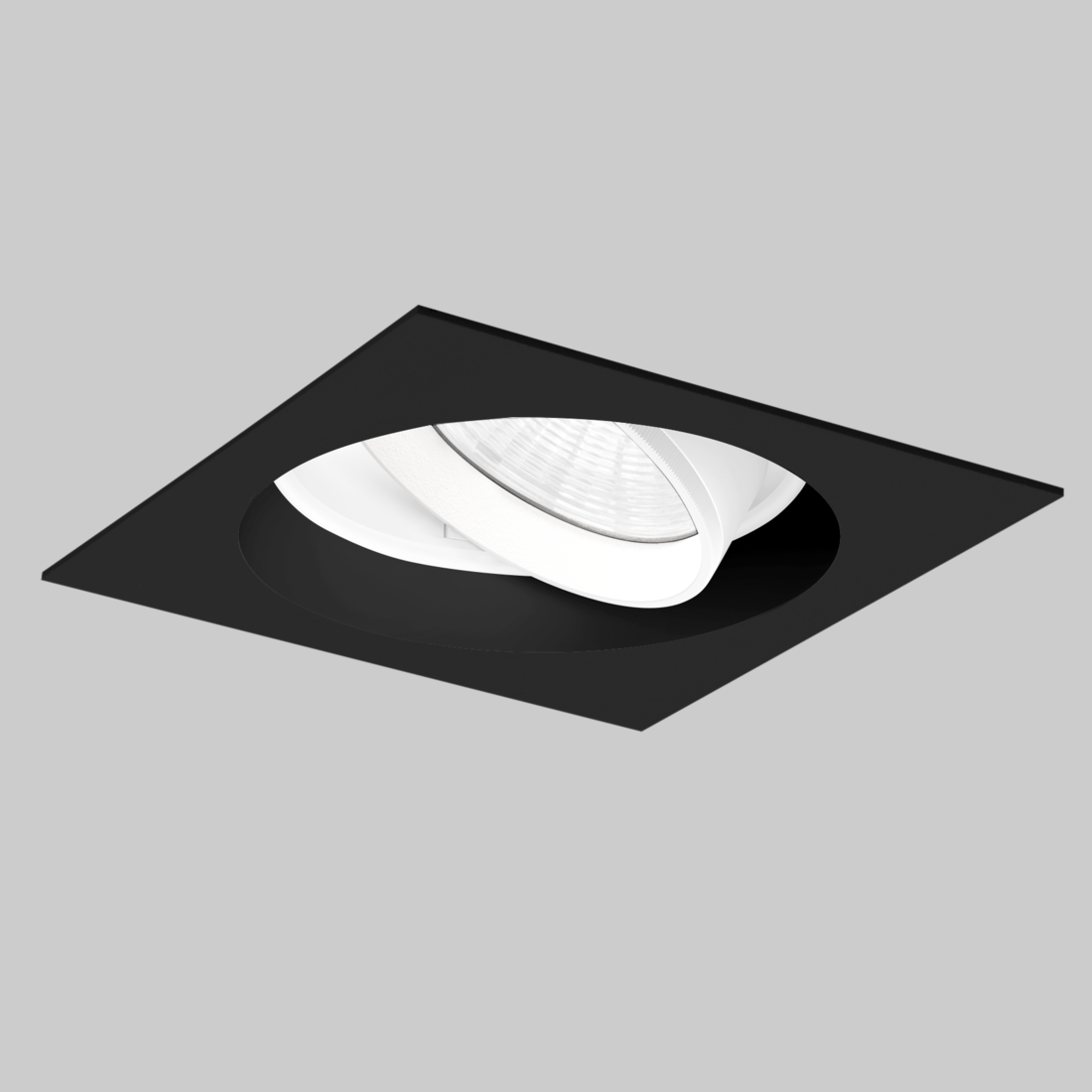

SASSO PRO 100 adjustable offset trim square

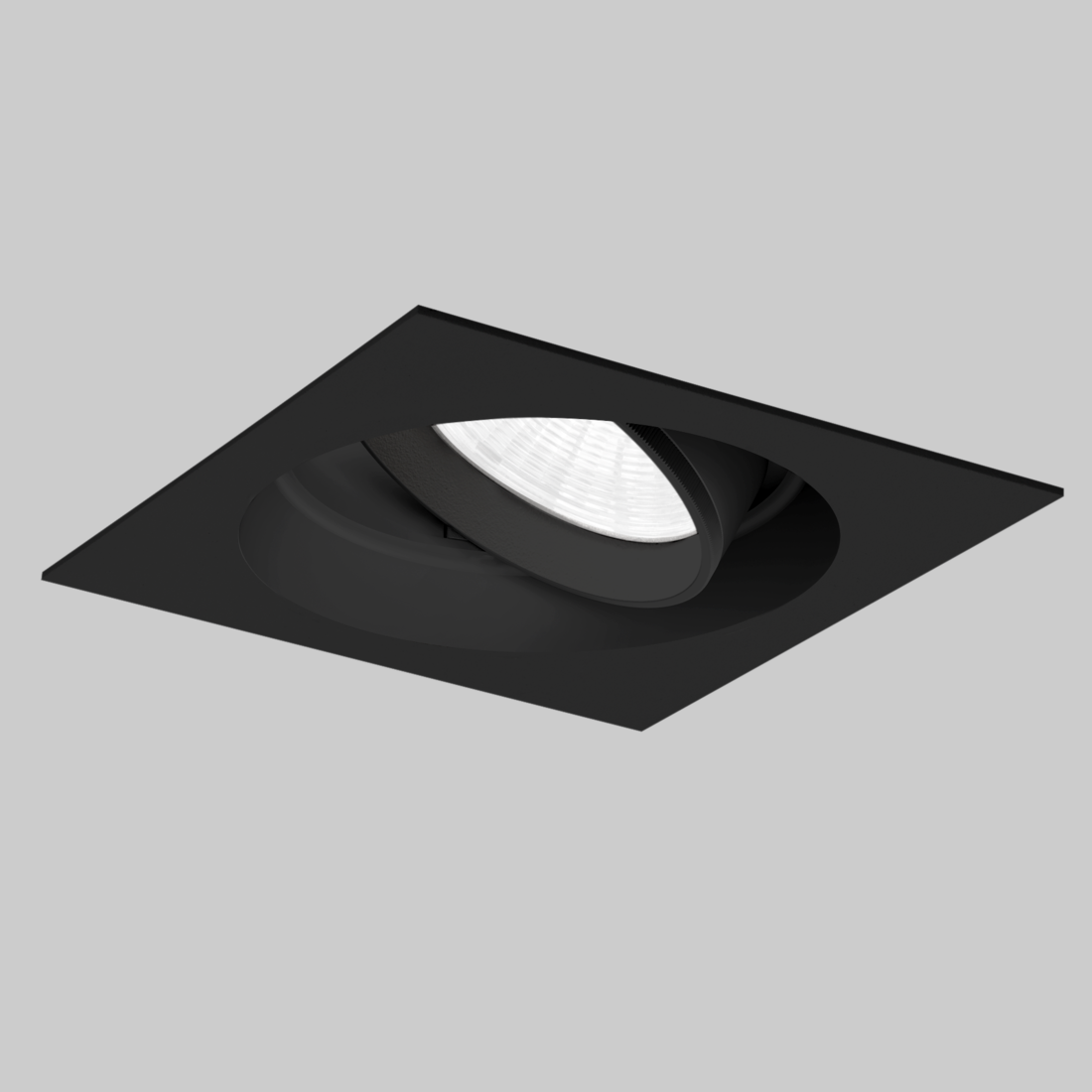

SASSO PRO 100 adjustable offset trim square

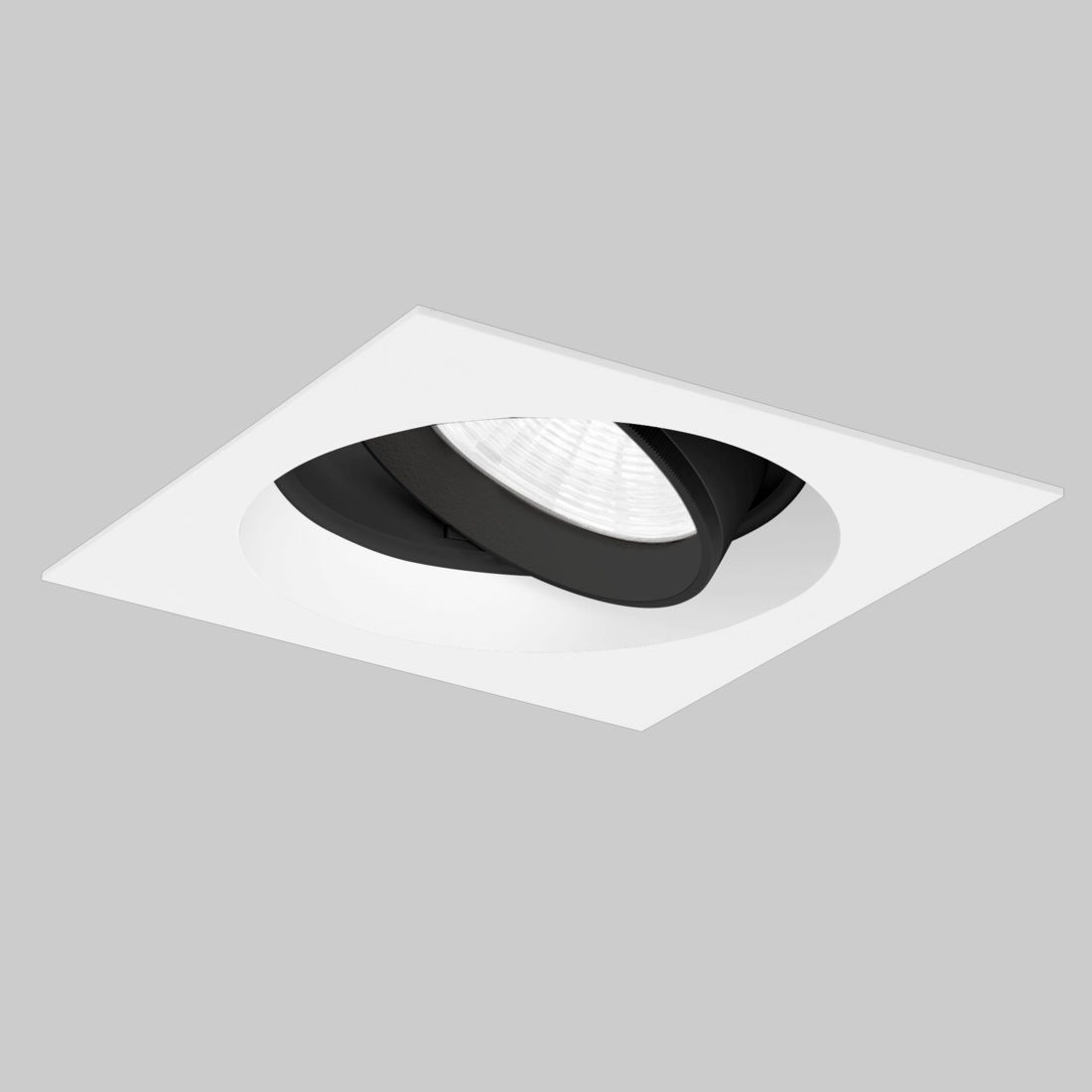

SASSO PRO 100 adjustable offset trim square
SASSO PRO adjustable
SASSO PRO high quality reflector
SASSO PRO ball catch system

SASSO PRO 100 adjustable offset square

recessed

Quickinfo

2700 K, 3000 K, 4000 K, colour warm dimming, tunable white
CRI ≥ 90, CRI ≥ 92, CRI ≥ 95 / 3 SDCM, 4 SDCM
UGR ≤ 19
up to 105 lm/W
L80 / 50000 h, L85 / 50000 h, L90 / 50000 h
DALI-2, DALI-2 DT8, non DIM
front IP20

Colour

    • Mounting set

    • Products and codes
    Discover family

    Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    Download all
    • 3DS
    • DWG - 3D
    • Revit BIM data

    Description

    Round recessed spotlight in die-cast aluminium; installation without tools in mounting set with ball catch system; surface powder coated; with trim (square); light inset rotatable and tiltable; offset lighting level; optical attachments available as accessories; high-quality reflector with spherical facet effect design, precise radiation characteristics with different beam angles; installed and exchanged without tools; COB (Chip on Board) technology for maximum efficiency; no multiple shadows; efficient LEDs with very good colour rendering

    DiiA® standards 251, 252, 253

    rotatable 360°, tiltable 35°

    Colour Warm Dimming 2000 â€“ 3000 K

    tunable white 1800 – 3000 K or 2700 – 6500 K

    Products and codes

    Filter
    57
    lm/W
    105
    lm/W
    853
    lm
    2840
    lm
    14.7
    W
    29.7
    W
    0.49
    1.15
    0.44
    1.04

    Colour

    • Mounting set

    • SASSO PRO 100 adjustable offset trim square

    SASSO PRO 100 adjustable offset trim square

    SASSO PRO 100 adjustable offset trim square

    Status
    Article number(s)
    Type
    Dimming
    black, Mounting set jet black, 38° flood, 2700 K, system 14.7 W, 90 lm/W
    non DIM
    black, Mounting set jet black, 24° medium, 2700 K, system 14.7 W, 89 lm/W
    non DIM
    black, Mounting set jet black, 17° spot, 2700 K, system 14.7 W, 90 lm/W
    non DIM
    black, Mounting set jet black, 57° wide flood, 2700 K, system 14.7 W, 84 lm/W
    non DIM
    black, Mounting set jet black, 38° flood, 2700 K, system 14.7 W, 90 lm/W
    DALI-2
    black, Mounting set jet black, 24° medium, 2700 K, system 14.7 W, 89 lm/W
    DALI-2
    black, Mounting set jet black, 17° spot, 2700 K, system 14.7 W, 90 lm/W
    DALI-2
    black, Mounting set jet black, 57° wide flood, 2700 K, system 14.7 W, 84 lm/W
    DALI-2
    black, Mounting set jet black, 38° flood, 3000 K, system 14.7 W, 94 lm/W
    non DIM
    black, Mounting set jet black, 24° medium, 3000 K, system 14.7 W, 93 lm/W
    non DIM
    black, Mounting set jet black, 17° spot, 3000 K, system 14.7 W, 95 lm/W
    non DIM
    black, Mounting set jet black, 57° wide flood, 3000 K, system 14.7 W, 88 lm/W
    non DIM
    black, Mounting set jet black, 38° flood, 3000 K, system 14.7 W, 94 lm/W
    DALI-2
    black, Mounting set jet black, 24° medium, 3000 K, system 14.7 W, 93 lm/W
    DALI-2
    black, Mounting set jet black, 17° spot, 3000 K, system 14.7 W, 95 lm/W
    DALI-2
    black, Mounting set jet black, 57° wide flood, 3000 K, system 14.7 W, 88 lm/W
    DALI-2
    black, Mounting set jet black, 38° flood, 4000 K, system 14.7 W, 99 lm/W
    non DIM
    black, Mounting set jet black, 24° medium, 4000 K, system 14.7 W, 99 lm/W
    non DIM
    black, Mounting set jet black, 17° spot, 4000 K, system 14.7 W, 100 lm/W
    non DIM
    black, Mounting set jet black, 57° wide flood, 4000 K, system 14.7 W, 94 lm/W
    non DIM
    black, Mounting set jet black, 38° flood, 4000 K, system 14.7 W, 99 lm/W
    DALI-2
    black, Mounting set jet black, 24° medium, 4000 K, system 14.7 W, 99 lm/W
    DALI-2
    black, Mounting set jet black, 17° spot, 4000 K, system 14.7 W, 100 lm/W
    DALI-2
    black, Mounting set jet black, 57° wide flood, 4000 K, system 14.7 W, 94 lm/W
    DALI-2
    black, Mounting set jet black, 36° flood, colour warm dimming, 2000 K - 3000 K, system 14.9 W, 57 lm/W
    DALI-2
    black, Mounting set jet black, 38° flood, 2700 K, system 27 W, 79 lm/W
    non DIM
    black, Mounting set jet black, 24° medium, 2700 K, system 27 W, 78 lm/W
    non DIM
    black, Mounting set jet black, 17° spot, 2700 K, system 27 W, 79 lm/W
    non DIM
    black, Mounting set jet black, 57° wide flood, 2700 K, system 27 W, 74 lm/W
    non DIM
    black, Mounting set jet black, 38° flood, 2700 K, system 27 W, 79 lm/W
    DALI-2
    black, Mounting set jet black, 24° medium, 2700 K, system 27 W, 78 lm/W
    DALI-2
    black, Mounting set jet black, 17° spot, 2700 K, system 27 W, 79 lm/W
    DALI-2
    black, Mounting set jet black, 57° wide flood, 2700 K, system 27 W, 74 lm/W
    DALI-2
    black, Mounting set jet black, 38° flood, 3000 K, system 27 W, 82 lm/W
    non DIM
    black, Mounting set jet black, 24° medium, 3000 K, system 27 W, 82 lm/W
    non DIM
    black, Mounting set jet black, 17° spot, 3000 K, system 27 W, 83 lm/W
    non DIM
    black, Mounting set jet black, 57° wide flood, 3000 K, system 27 W, 77 lm/W
    non DIM
    black, Mounting set jet black, 38° flood, 3000 K, system 27 W, 82 lm/W
    DALI-2
    black, Mounting set jet black, 24° medium, 3000 K, system 27 W, 82 lm/W
    DALI-2
    black, Mounting set jet black, 17° spot, 3000 K, system 27 W, 83 lm/W
    DALI-2
    black, Mounting set jet black, 57° wide flood, 3000 K, system 27 W, 77 lm/W
    DALI-2
    black, Mounting set jet black, 38° flood, 4000 K, system 27 W, 87 lm/W
    non DIM
    black, Mounting set jet black, 24° medium, 4000 K, system 27 W, 86 lm/W
    non DIM
    black, Mounting set jet black, 17° spot, 4000 K, system 27 W, 87 lm/W
    non DIM
    black, Mounting set jet black, 57° wide flood, 4000 K, system 27 W, 82 lm/W
    non DIM
    black, Mounting set jet black, 38° flood, 4000 K, system 27 W, 87 lm/W
    DALI-2
    black, Mounting set jet black, 24° medium, 4000 K, system 27 W, 86 lm/W
    DALI-2
    black, Mounting set jet black, 17° spot, 4000 K, system 27 W, 87 lm/W
    DALI-2
    black, Mounting set jet black, 57° wide flood, 4000 K, system 27 W, 82 lm/W
    DALI-2
    black, Mounting set jet black, 38° flood, tunable white, 2700 K - 6500 K, system 27.7 W, 78 lm/W
    DALI-2 DT8
    black, Mounting set jet black, 38° flood, tunable white, 1800 K - 3000 K, system 29.7 W, 60 lm/W
    DALI-2 DT8
    black, Mounting set jet black, 39° flood, 3000 K, system 27 W, 101 lm/W
    non DIM
    black, Mounting set jet black, 26° medium, 3000 K, system 27 W, 100 lm/W
    non DIM
    black, Mounting set jet black, 39° flood, 3000 K, system 27 W, 101 lm/W
    DALI-2
    black, Mounting set jet black, 26° medium, 3000 K, system 27 W, 100 lm/W
    DALI-2
    black, Mounting set jet black, 39° flood, 4000 K, system 27 W, 102 lm/W
    non DIM
    black, Mounting set jet black, 26° medium, 4000 K, system 27 W, 101 lm/W
    non DIM
    black, Mounting set jet black, 39° flood, 4000 K, system 27 W, 102 lm/W
    DALI-2
    black, Mounting set jet black, 26° medium, 4000 K, system 27 W, 101 lm/W
    DALI-2
    SASSO PRO 100 adjustable offset trim square

    SASSO PRO 100 adjustable offset trim square

    SASSO PRO 100 adjustable offset trim square

    Status
    Article number(s)
    Type
    Dimming
    white, Mounting set jet black, 38° flood, 2700 K, system 14.7 W, 93 lm/W
    non DIM
    white, Mounting set jet black, 24° medium, 2700 K, system 14.7 W, 92 lm/W
    non DIM
    white, Mounting set jet black, 17° spot, 2700 K, system 14.7 W, 92 lm/W
    non DIM
    white, Mounting set jet black, 57° wide flood, 2700 K, system 14.7 W, 87 lm/W
    non DIM
    white, Mounting set jet black, 38° flood, 2700 K, system 14.7 W, 93 lm/W
    DALI-2
    white, Mounting set jet black, 24° medium, 2700 K, system 14.7 W, 92 lm/W
    DALI-2
    white, Mounting set jet black, 17° spot, 2700 K, system 14.7 W, 92 lm/W
    DALI-2
    white, Mounting set jet black, 57° wide flood, 2700 K, system 14.7 W, 87 lm/W
    DALI-2
    white, Mounting set jet black, 38° flood, 3000 K, system 14.7 W, 97 lm/W
    non DIM
    white, Mounting set jet black, 24° medium, 3000 K, system 14.7 W, 96 lm/W
    non DIM
    white, Mounting set jet black, 17° spot, 3000 K, system 14.7 W, 96 lm/W
    non DIM
    white, Mounting set jet black, 57° wide flood, 3000 K, system 14.7 W, 91 lm/W
    non DIM
    white, Mounting set jet black, 38° flood, 3000 K, system 14.7 W, 97 lm/W
    DALI-2
    white, Mounting set jet black, 24° medium, 3000 K, system 14.7 W, 96 lm/W
    DALI-2
    white, Mounting set jet black, 17° spot, 3000 K, system 14.7 W, 96 lm/W
    DALI-2
    white, Mounting set jet black, 57° wide flood, 3000 K, system 14.7 W, 91 lm/W
    DALI-2
    white, Mounting set jet black, 38° flood, 4000 K, system 14.7 W, 102 lm/W
    non DIM
    white, Mounting set jet black, 24° medium, 4000 K, system 14.7 W, 101 lm/W
    non DIM
    white, Mounting set jet black, 17° spot, 4000 K, system 14.7 W, 101 lm/W
    non DIM
    white, Mounting set jet black, 57° wide flood, 4000 K, system 14.7 W, 97 lm/W
    non DIM
    white, Mounting set jet black, 38° flood, 4000 K, system 14.7 W, 102 lm/W
    DALI-2
    white, Mounting set jet black, 24° medium, 4000 K, system 14.7 W, 101 lm/W
    DALI-2
    white, Mounting set jet black, 17° spot, 4000 K, system 14.7 W, 101 lm/W
    DALI-2
    white, Mounting set jet black, 57° wide flood, 4000 K, system 14.7 W, 97 lm/W
    DALI-2
    white, Mounting set jet black, 36° flood, colour warm dimming, 2000 K - 3000 K, system 14.9 W, 57 lm/W
    DALI-2
    white, Mounting set jet black, 38° flood, 2700 K, system 27 W, 81 lm/W
    non DIM
    white, Mounting set jet black, 24° medium, 2700 K, system 27 W, 80 lm/W
    non DIM
    white, Mounting set jet black, 17° spot, 2700 K, system 27 W, 80 lm/W
    non DIM
    white, Mounting set jet black, 57° wide flood, 2700 K, system 27 W, 77 lm/W
    non DIM
    white, Mounting set jet black, 38° flood, 2700 K, system 27 W, 81 lm/W
    DALI-2
    white, Mounting set jet black, 24° medium, 2700 K, system 27 W, 80 lm/W
    DALI-2
    white, Mounting set jet black, 17° spot, 2700 K, system 27 W, 80 lm/W
    DALI-2
    white, Mounting set jet black, 57° wide flood, 2700 K, system 27 W, 77 lm/W
    DALI-2
    white, Mounting set jet black, 38° flood, 3000 K, system 27 W, 84 lm/W
    non DIM
    white, Mounting set jet black, 24° medium, 3000 K, system 27 W, 84 lm/W
    non DIM
    white, Mounting set jet black, 17° spot, 3000 K, system 27 W, 84 lm/W
    non DIM
    white, Mounting set jet black, 57° wide flood, 3000 K, system 27 W, 80 lm/W
    non DIM
    white, Mounting set jet black, 38° flood, 3000 K, system 27 W, 84 lm/W
    DALI-2
    white, Mounting set jet black, 24° medium, 3000 K, system 27 W, 84 lm/W
    DALI-2
    white, Mounting set jet black, 17° spot, 3000 K, system 27 W, 84 lm/W
    DALI-2
    white, Mounting set jet black, 57° wide flood, 3000 K, system 27 W, 80 lm/W
    DALI-2
    white, Mounting set jet black, 38° flood, 4000 K, system 27 W, 90 lm/W
    non DIM
    white, Mounting set jet black, 24° medium, 4000 K, system 27 W, 89 lm/W
    non DIM
    white, Mounting set jet black, 17° spot, 4000 K, system 27 W, 89 lm/W
    non DIM
    white, Mounting set jet black, 57° wide flood, 4000 K, system 27 W, 84 lm/W
    non DIM
    white, Mounting set jet black, 38° flood, 4000 K, system 27 W, 90 lm/W
    DALI-2
    white, Mounting set jet black, 24° medium, 4000 K, system 27 W, 89 lm/W
    DALI-2
    white, Mounting set jet black, 17° spot, 4000 K, system 27 W, 89 lm/W
    DALI-2
    white, Mounting set jet black, 57° wide flood, 4000 K, system 27 W, 84 lm/W
    DALI-2
    white, Mounting set jet black, 38° flood, tunable white, 2700 K - 6500 K, system 27.7 W, 80 lm/W
    DALI-2 DT8
    white, Mounting set jet black, 38° flood, tunable white, 1800 K - 3000 K, system 29.7 W, 62 lm/W
    DALI-2 DT8
    white, Mounting set jet black, 39° flood, 3000 K, system 27 W, 104 lm/W
    non DIM
    white, Mounting set jet black, 26° medium, 3000 K, system 27 W, 103 lm/W
    non DIM
    white, Mounting set jet black, 39° flood, 3000 K, system 27 W, 104 lm/W
    DALI-2
    white, Mounting set jet black, 26° medium, 3000 K, system 27 W, 103 lm/W
    DALI-2
    white, Mounting set jet black, 39° flood, 4000 K, system 27 W, 105 lm/W
    non DIM
    white, Mounting set jet black, 26° medium, 4000 K, system 27 W, 104 lm/W
    non DIM
    white, Mounting set jet black, 39° flood, 4000 K, system 27 W, 105 lm/W
    DALI-2
    white, Mounting set jet black, 26° medium, 4000 K, system 27 W, 104 lm/W
    DALI-2
    SASSO PRO 100 adjustable offset trim square

    SASSO PRO 100 adjustable offset trim square

    SASSO PRO 100 adjustable offset trim square

    Status
    Article number(s)
    Type
    Dimming
    black, Mounting set traffic white, 38° flood, 2700 K, system 14.7 W, 90 lm/W
    non DIM
    black, Mounting set traffic white, 24° medium, 2700 K, system 14.7 W, 89 lm/W
    non DIM
    black, Mounting set traffic white, 17° spot, 2700 K, system 14.7 W, 90 lm/W
    non DIM
    black, Mounting set traffic white, 57° wide flood, 2700 K, system 14.7 W, 84 lm/W
    non DIM
    black, Mounting set traffic white, 38° flood, 2700 K, system 14.7 W, 90 lm/W
    DALI-2
    black, Mounting set traffic white, 24° medium, 2700 K, system 14.7 W, 89 lm/W
    DALI-2
    black, Mounting set traffic white, 17° spot, 2700 K, system 14.7 W, 90 lm/W
    DALI-2
    black, Mounting set traffic white, 57° wide flood, 2700 K, system 14.7 W, 84 lm/W
    DALI-2
    black, Mounting set traffic white, 38° flood, 3000 K, system 14.7 W, 94 lm/W
    non DIM
    black, Mounting set traffic white, 24° medium, 3000 K, system 14.7 W, 93 lm/W
    non DIM
    black, Mounting set traffic white, 17° spot, 3000 K, system 14.7 W, 95 lm/W
    non DIM
    black, Mounting set traffic white, 57° wide flood, 3000 K, system 14.7 W, 88 lm/W
    non DIM
    black, Mounting set traffic white, 38° flood, 3000 K, system 14.7 W, 94 lm/W
    DALI-2
    black, Mounting set traffic white, 24° medium, 3000 K, system 14.7 W, 93 lm/W
    DALI-2
    black, Mounting set traffic white, 17° spot, 3000 K, system 14.7 W, 95 lm/W
    DALI-2
    black, Mounting set traffic white, 57° wide flood, 3000 K, system 14.7 W, 88 lm/W
    DALI-2
    black, Mounting set traffic white, 38° flood, 4000 K, system 14.7 W, 99 lm/W
    non DIM
    black, Mounting set traffic white, 24° medium, 4000 K, system 14.7 W, 99 lm/W
    non DIM
    black, Mounting set traffic white, 17° spot, 4000 K, system 14.7 W, 100 lm/W
    non DIM
    black, Mounting set traffic white, 57° wide flood, 4000 K, system 14.7 W, 94 lm/W
    non DIM
    black, Mounting set traffic white, 38° flood, 4000 K, system 14.7 W, 99 lm/W
    DALI-2
    black, Mounting set traffic white, 24° medium, 4000 K, system 14.7 W, 99 lm/W
    DALI-2
    black, Mounting set traffic white, 17° spot, 4000 K, system 14.7 W, 100 lm/W
    DALI-2
    black, Mounting set traffic white, 57° wide flood, 4000 K, system 14.7 W, 94 lm/W
    DALI-2
    black, Mounting set traffic white, 36° flood, colour warm dimming, 2000 K - 3000 K, system 14.9 W, 57 lm/W
    DALI-2
    black, Mounting set traffic white, 38° flood, 2700 K, system 27 W, 79 lm/W
    non DIM
    black, Mounting set traffic white, 24° medium, 2700 K, system 27 W, 78 lm/W
    non DIM
    black, Mounting set traffic white, 17° spot, 2700 K, system 27 W, 79 lm/W
    non DIM
    black, Mounting set traffic white, 57° wide flood, 2700 K, system 27 W, 74 lm/W
    non DIM
    black, Mounting set traffic white, 38° flood, 2700 K, system 27 W, 79 lm/W
    DALI-2
    black, Mounting set traffic white, 24° medium, 2700 K, system 27 W, 78 lm/W
    DALI-2
    black, Mounting set traffic white, 17° spot, 2700 K, system 27 W, 79 lm/W
    DALI-2
    black, Mounting set traffic white, 57° wide flood, 2700 K, system 27 W, 74 lm/W
    DALI-2
    black, Mounting set traffic white, 38° flood, 3000 K, system 27 W, 82 lm/W
    non DIM
    black, Mounting set traffic white, 24° medium, 3000 K, system 27 W, 82 lm/W
    non DIM
    black, Mounting set traffic white, 17° spot, 3000 K, system 27 W, 83 lm/W
    non DIM
    black, Mounting set traffic white, 57° wide flood, 3000 K, system 27 W, 77 lm/W
    non DIM
    black, Mounting set traffic white, 38° flood, 3000 K, system 27 W, 82 lm/W
    DALI-2
    black, Mounting set traffic white, 24° medium, 3000 K, system 27 W, 82 lm/W
    DALI-2
    black, Mounting set traffic white, 17° spot, 3000 K, system 27 W, 83 lm/W
    DALI-2
    black, Mounting set traffic white, 57° wide flood, 3000 K, system 27 W, 77 lm/W
    DALI-2
    black, Mounting set traffic white, 38° flood, 4000 K, system 27 W, 87 lm/W
    non DIM
    black, Mounting set traffic white, 24° medium, 4000 K, system 27 W, 86 lm/W
    non DIM
    black, Mounting set traffic white, 17° spot, 4000 K, system 27 W, 87 lm/W
    non DIM
    black, Mounting set traffic white, 57° wide flood, 4000 K, system 27 W, 82 lm/W
    non DIM
    black, Mounting set traffic white, 38° flood, 4000 K, system 27 W, 87 lm/W
    DALI-2
    black, Mounting set traffic white, 24° medium, 4000 K, system 27 W, 86 lm/W
    DALI-2
    black, Mounting set traffic white, 17° spot, 4000 K, system 27 W, 87 lm/W
    DALI-2
    black, Mounting set traffic white, 57° wide flood, 4000 K, system 27 W, 82 lm/W
    DALI-2
    black, Mounting set traffic white, 38° flood, tunable white, 2700 K - 6500 K, system 27.7 W, 78 lm/W
    DALI-2 DT8
    black, Mounting set traffic white, 38° flood, tunable white, 1800 K - 3000 K, system 29.7 W, 60 lm/W
    DALI-2 DT8
    black, Mounting set traffic white, 39° flood, 3000 K, system 27 W, 101 lm/W
    non DIM
    black, Mounting set traffic white, 26° medium, 3000 K, system 27 W, 100 lm/W
    non DIM
    black, Mounting set traffic white, 39° flood, 3000 K, system 27 W, 101 lm/W
    DALI-2
    black, Mounting set traffic white, 26° medium, 3000 K, system 27 W, 100 lm/W
    DALI-2
    black, Mounting set traffic white, 39° flood, 4000 K, system 27 W, 102 lm/W
    non DIM
    black, Mounting set traffic white, 26° medium, 4000 K, system 27 W, 101 lm/W
    non DIM
    black, Mounting set traffic white, 39° flood, 4000 K, system 27 W, 102 lm/W
    DALI-2
    black, Mounting set traffic white, 26° medium, 4000 K, system 27 W, 101 lm/W
    DALI-2
    SASSO PRO 100 adjustable offset trim square

    SASSO PRO 100 adjustable offset trim square

    SASSO PRO 100 adjustable offset trim square

    Status
    Article number(s)
    Type
    Dimming
    white, Mounting set traffic white, 38° flood, 2700 K, system 14.7 W, 93 lm/W
    non DIM
    white, Mounting set traffic white, 24° medium, 2700 K, system 14.7 W, 92 lm/W
    non DIM
    white, Mounting set traffic white, 17° spot, 2700 K, system 14.7 W, 92 lm/W
    non DIM
    white, Mounting set traffic white, 57° wide flood, 2700 K, system 14.7 W, 87 lm/W
    non DIM
    white, Mounting set traffic white, 38° flood, 2700 K, system 14.7 W, 93 lm/W
    DALI-2
    white, Mounting set traffic white, 24° medium, 2700 K, system 14.7 W, 92 lm/W
    DALI-2
    white, Mounting set traffic white, 17° spot, 2700 K, system 14.7 W, 92 lm/W
    DALI-2
    white, Mounting set traffic white, 57° wide flood, 2700 K, system 14.7 W, 87 lm/W
    DALI-2
    white, Mounting set traffic white, 38° flood, 3000 K, system 14.7 W, 97 lm/W
    non DIM
    white, Mounting set traffic white, 24° medium, 3000 K, system 14.7 W, 96 lm/W
    non DIM
    white, Mounting set traffic white, 17° spot, 3000 K, system 14.7 W, 96 lm/W
    non DIM
    white, Mounting set traffic white, 57° wide flood, 3000 K, system 14.7 W, 91 lm/W
    non DIM
    white, Mounting set traffic white, 38° flood, 3000 K, system 14.7 W, 97 lm/W
    DALI-2
    white, Mounting set traffic white, 24° medium, 3000 K, system 14.7 W, 96 lm/W
    DALI-2
    white, Mounting set traffic white, 17° spot, 3000 K, system 14.7 W, 96 lm/W
    DALI-2
    white, Mounting set traffic white, 57° wide flood, 3000 K, system 14.7 W, 91 lm/W
    DALI-2
    white, Mounting set traffic white, 38° flood, 4000 K, system 14.7 W, 102 lm/W
    non DIM
    white, Mounting set traffic white, 24° medium, 4000 K, system 14.7 W, 101 lm/W
    non DIM
    white, Mounting set traffic white, 17° spot, 4000 K, system 14.7 W, 101 lm/W
    non DIM
    white, Mounting set traffic white, 57° wide flood, 4000 K, system 14.7 W, 97 lm/W
    non DIM
    white, Mounting set traffic white, 38° flood, 4000 K, system 14.7 W, 102 lm/W
    DALI-2
    white, Mounting set traffic white, 24° medium, 4000 K, system 14.7 W, 101 lm/W
    DALI-2
    white, Mounting set traffic white, 17° spot, 4000 K, system 14.7 W, 101 lm/W
    DALI-2
    white, Mounting set traffic white, 57° wide flood, 4000 K, system 14.7 W, 97 lm/W
    DALI-2
    white, Mounting set traffic white, 36° flood, colour warm dimming, 2000 K - 3000 K, system 14.9 W, 57 lm/W
    DALI-2
    white, Mounting set traffic white, 38° flood, 2700 K, system 27 W, 81 lm/W
    non DIM
    white, Mounting set traffic white, 24° medium, 2700 K, system 27 W, 80 lm/W
    non DIM
    white, Mounting set traffic white, 17° spot, 2700 K, system 27 W, 80 lm/W
    non DIM
    white, Mounting set traffic white, 57° wide flood, 2700 K, system 27 W, 77 lm/W
    non DIM
    white, Mounting set traffic white, 38° flood, 2700 K, system 27 W, 81 lm/W
    DALI-2
    white, Mounting set traffic white, 24° medium, 2700 K, system 27 W, 80 lm/W
    DALI-2
    white, Mounting set traffic white, 17° spot, 2700 K, system 27 W, 80 lm/W
    DALI-2
    white, Mounting set traffic white, 57° wide flood, 2700 K, system 27 W, 77 lm/W
    DALI-2
    white, Mounting set traffic white, 38° flood, 3000 K, system 27 W, 84 lm/W
    non DIM
    white, Mounting set traffic white, 24° medium, 3000 K, system 27 W, 84 lm/W
    non DIM
    white, Mounting set traffic white, 17° spot, 3000 K, system 27 W, 84 lm/W
    non DIM
    white, Mounting set traffic white, 57° wide flood, 3000 K, system 27 W, 80 lm/W
    non DIM
    white, Mounting set traffic white, 38° flood, 3000 K, system 27 W, 84 lm/W
    DALI-2
    white, Mounting set traffic white, 24° medium, 3000 K, system 27 W, 84 lm/W
    DALI-2
    white, Mounting set traffic white, 17° spot, 3000 K, system 27 W, 84 lm/W
    DALI-2
    white, Mounting set traffic white, 57° wide flood, 3000 K, system 27 W, 80 lm/W
    DALI-2
    white, Mounting set traffic white, 38° flood, 4000 K, system 27 W, 90 lm/W
    non DIM
    white, Mounting set traffic white, 24° medium, 4000 K, system 27 W, 89 lm/W
    non DIM
    white, Mounting set traffic white, 17° spot, 4000 K, system 27 W, 89 lm/W
    non DIM
    white, Mounting set traffic white, 57° wide flood, 4000 K, system 27 W, 84 lm/W
    non DIM
    white, Mounting set traffic white, 38° flood, 4000 K, system 27 W, 90 lm/W
    DALI-2
    white, Mounting set traffic white, 24° medium, 4000 K, system 27 W, 89 lm/W
    DALI-2
    white, Mounting set traffic white, 17° spot, 4000 K, system 27 W, 89 lm/W
    DALI-2
    white, Mounting set traffic white, 57° wide flood, 4000 K, system 27 W, 84 lm/W
    DALI-2
    white, Mounting set traffic white, 38° flood, tunable white, 2700 K - 6500 K, system 27.7 W, 80 lm/W
    DALI-2 DT8
    white, Mounting set traffic white, 38° flood, tunable white, 1800 K - 3000 K, system 29.7 W, 62 lm/W
    DALI-2 DT8
    white, Mounting set traffic white, 39° flood, 3000 K, system 27 W, 104 lm/W
    non DIM
    white, Mounting set traffic white, 26° medium, 3000 K, system 27 W, 103 lm/W
    non DIM
    white, Mounting set traffic white, 39° flood, 3000 K, system 27 W, 104 lm/W
    DALI-2
    white, Mounting set traffic white, 26° medium, 3000 K, system 27 W, 103 lm/W
    DALI-2
    white, Mounting set traffic white, 39° flood, 4000 K, system 27 W, 105 lm/W
    non DIM
    white, Mounting set traffic white, 26° medium, 4000 K, system 27 W, 104 lm/W
    non DIM
    white, Mounting set traffic white, 39° flood, 4000 K, system 27 W, 105 lm/W
    DALI-2
    white, Mounting set traffic white, 26° medium, 4000 K, system 27 W, 104 lm/W
    DALI-2

    Accessories

    Mounting

    article number
    colour
    dimensions
    cut out dimensions
    MOUNTING SET with trim
    052-1952417
    traffic white
    RAL 9016
    length 112 mm
    width 112 mm
    height 43 mm
    0.13 kg
    diameter 108 mm
    MOUNTING SET with trim
    052-1952418
    jet black
    RAL 9005
    length 112 mm
    width 112 mm
    height 43 mm
    0.09 kg
    diameter 108 mm

    Electrical components

    article number
    type
    dimensions
    THROUGH WIRING CONNECTION BOX
    005-2531110
    non DIM cable ø 4 – 12 mm, Linect®-Ready
    length 105 mm
    width 58 mm
    height 30 mm
    0.06 kg
    THROUGH WIRING CONNECTION BOX
    005-2551110
    DALI cable ø 4 – 12 mm, Linect®-Ready
    length 105 mm
    width 58 mm
    height 30 mm
    0.07 kg

    Optical

    article number
    colour
    dimensions
    SNOOT
    048-2191117
    traffic white
    RAL 9016
    diameter 74 mm
    height 25 mm
    0.03 kg
    SNOOT
    048-2191118
    jet black
    RAL 9005
    diameter 74 mm
    height 25 mm
    0.1 kg
    SNOOT WITH HONEYCOMB LOUVER
    048-2191217
    traffic white
    RAL 9016
    diameter 74 mm
    height 25 mm
    0.03 kg
    SNOOT WITH HONEYCOMB LOUVER
    048-2191218
    jet black
    RAL 9005
    diameter 74 mm
    height 25 mm
    0.04 kg
    HONEYCOMB LOUVER
    048-2191317
    traffic white
    RAL 9016
    diameter 74 mm
    height 11 mm
    0.1 kg
    HONEYCOMB LOUVER
    048-2191318
    jet black
    RAL 9005
    diameter 74 mm
    height 11 mm
    0.02 kg
    LINEAR PRISMATIC LENS
    048-2192317
    traffic white
    RAL 9016
    diameter 74 mm
    height 11 mm
    0.03 kg
    LINEAR PRISMATIC LENS
    048-2192318
    jet black
    RAL 9005
    diameter 74 mm
    height 11 mm
    0.04 kg

    Mounting

    article number
    dimensions
    PRIMED CONCRETE MOUNTING HOUSING
    052-1914420
    length 240 mm
    width 400 mm
    height 130 mm
    1.42 kg

    Related products

    SASSO PRO 80

    adjustable flush round recessed

    SASSO PRO 80

    adjustable flush square recessed

    SASSO PRO 80

    adjustable offset round recessed

    SASSO PRO 80

    adjustable offset square recessed

    SASSO PRO 100

    adjustable flush round recessed

    SASSO PRO 100

    adjustable flush square recessed

    SASSO PRO 100

    adjustable offset round recessed

    UNICO

    pro recessed

    UNICO L2 / L3

    basic recessed

    UNICO L4 / L6

    basic recessed
