MOVE IT 10 track square curve direct suspended
Showroom Gartner Interiors
Showroom Gartner Interiors
Showroom Gartner Interiors
Visualisation Retail
Private Residence Styria

MOVE IT 10 track square curve

suspended

030-1331038

Quickinfo

DALI-2
IP20 / PC3 / 48 V

Colour

Datasheet

General

  • Ceiling
  • Track Suspended
  • jet black
  • RAL 9005
  • IP20

Electrical

  • DALI-2
  • 48 V
  • PC3
  • max 6.67 A

Physical

  • width 19 mm
  • height 24 mm
  • centerline radius 300 mm
  • segment 90°
  • 0.33 kg

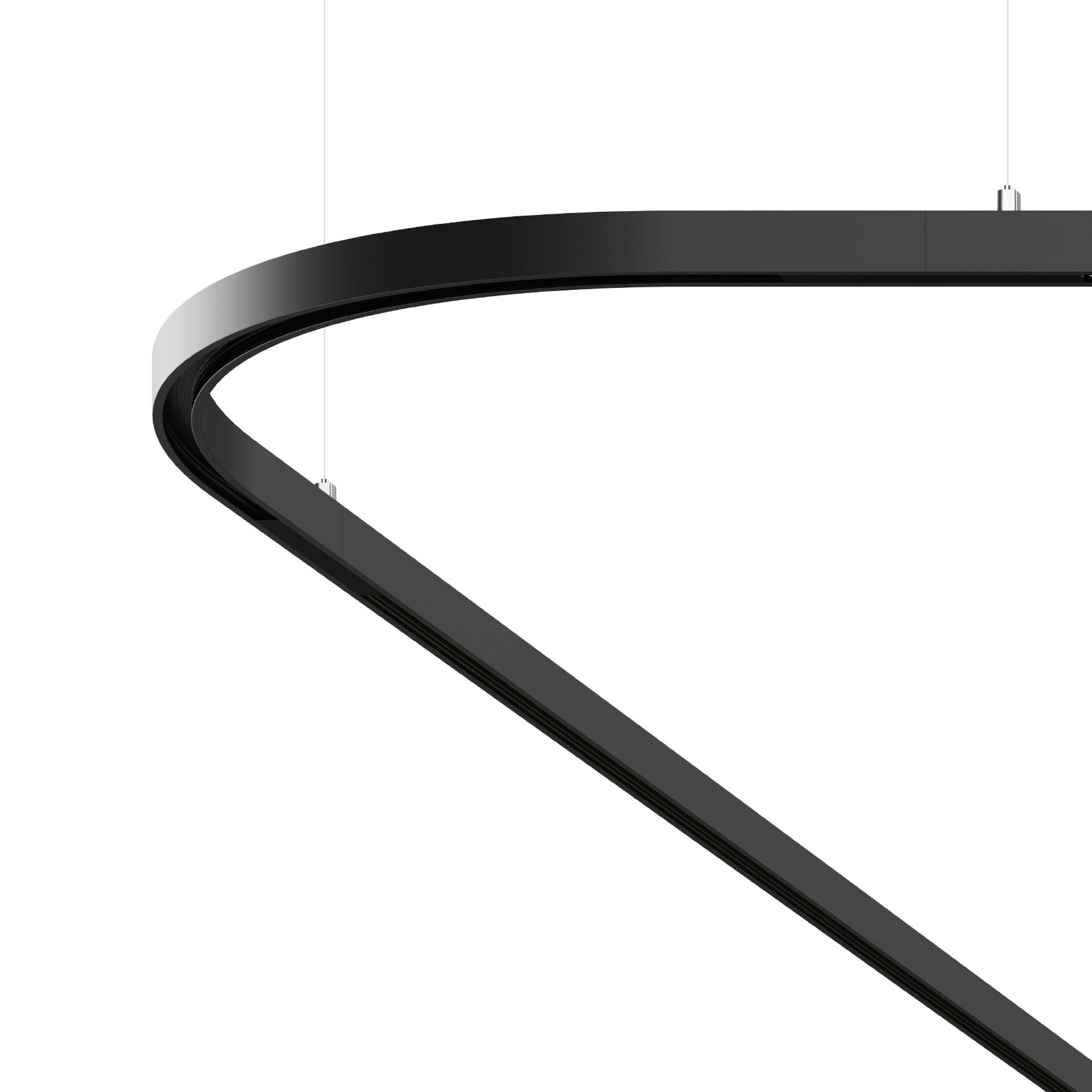

Thin extruded aluminium profile with 24 mm height and 10 mm width groove; angular design; CURVE channel 90°; for suspended mounting (1500 mm cable suspension as an accessory); height adjustment without tools; surface anodised jet black; with integrated power track profile on both sides for take off of supply voltage and DALI-2 signal; power supply and DALI-2 signal for both power tracks with only one feed by means of PASS THROUGH connector (as an accessory); light insets can be installed and moved without tools by means of clip mount; degree of protection IP20; PC3; 48 V; accessories are listed separately;

Product data & specification documents

Download all

Datasheets

Download all

Planing files & lighting data

Download all
Download all
mainDrawing

System products

TILA

adjustable MOVE IT 10

TARO

MOVE IT 10

NOBA

adjustable MOVE IT 10

Accessories

Converter

article number
power
voltage / frequency
protection class
constant voltage
POWER SUPPLY external
002-62133
60 W
min 47 Hz
max 63 Hz
PC2
48 V
POWER SUPPLY external
002-62135
150 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY external
002-62139
250 W
min 50 Hz
max 60 Hz
PC2
48 V
DIN RAIL POWER SUPPLY PRO
005-6220110
240 W
min 50 Hz
max 60 Hz
PC2
DIN RAIL POWER SUPPLY PRO
005-6220210
480 W
min 50 Hz
max 60 Hz
PC2
DIN RAIL POWER SUPPLY BASIC
005-6520210
160 W
min 50 Hz
max 60 Hz
PC2
48 V

Electrical components

article number
type
dimensions
colour
CANOPY square
005-2311717
length 90 mm
width 90 mm
height 22 mm
0.1 kg
traffic white
RAL 9016
CANOPY square
005-2311718
length 90 mm
width 90 mm
height 22 mm
0.1 kg
jet black
RAL 9005
CANOPY round
005-2600737
diameter 90 mm
height 22 mm
0.08 kg
traffic white
RAL 9016
CANOPY round
005-2600738
diameter 90 mm
height 22 mm
0.08 kg
jet black
RAL 9005
DIN RAIL DALI-2 SELV DEVICE
005-6620030
length 107 mm
width 37 mm
height 58 mm
WIRELESS TO DALI-2 CONTROL DEVICE
030-2531030
length 150 mm
width 11 mm
height 23 mm
0.02 kg
DALI-2 SELV DEVICE
050-2061130
control unit
length 212 mm
width 37 mm
height 26 mm
0.1 kg

Optical

article number
colour
dimensions
BLIND COVER
030-1003017
traffic white
RAL 9016
length 1,100 mm
width 12 mm
height 10 mm
0.06 kg
BLIND COVER
030-1003018
jet black
RAL 9005
length 1,100 mm
width 12 mm
height 10 mm
0.05 kg
BLIND COVER
030-1005017
traffic white
RAL 9016
length 2,100 mm
width 12 mm
height 10 mm
0.12 kg
BLIND COVER
030-1005018
jet black
RAL 9005
length 2,100 mm
width 12 mm
height 10 mm
0.15 kg
BLIND COVER
030-1007017
traffic white
RAL 9016
length 3,100 mm
width 12 mm
height 10 mm
0.08 kg
BLIND COVER
030-1007018
jet black
RAL 9005
length 3,100 mm
width 12 mm
height 10 mm
0.38 kg
BLIND COVER
E83600....7
traffic white
RAL 9016
custom cut
width 12 mm
height 10 mm
BLIND COVER
E83600....8
jet black
RAL 9005
custom cut
width 12 mm
height 10 mm

Mounting

article number
colour
dimensions
cable length
type
END CAPS
030-1320017
traffic white
RAL 9016
length 19 mm
width 24 mm
height 16 mm
0.01 kg
1 pair
END CAPS
030-1320018
jet black
RAL 9005
length 19 mm
width 24 mm
height 16 mm
0.09 kg
1 pair
L CONNECTOR
030-1335017
traffic white
RAL 9016
length 21 mm
width 21 mm
0.02 kg
mechanical
L CONNECTOR
030-1335018
jet black
RAL 9005
length 21 mm
width 21 mm
0.1 kg
mechanical
T CONNECTOR
030-1336017
traffic white
RAL 9016
length 21 mm
width 23 mm
mechanical
T CONNECTOR
030-1336018
jet black
RAL 9005
length 21 mm
width 23 mm
0.1 kg
mechanical
X CONNECTOR
030-1337017
traffic white
RAL 9016
length 23 mm
width 23 mm
0.1 kg
mechanical
X CONNECTOR
030-1337018
jet black
RAL 9005
length 23 mm
width 23 mm
0.1 kg
mechanical
POLE MOUNTING SET
030-1341017
traffic white
RAL 9016
1.15 kg
1 pair | floor to ceiling or wall to wall
POLE MOUNTING SET
030-1341018
jet black
RAL 9005
0.1 kg
1 pair | floor to ceiling or wall to wall
POLE MOUNTING SET
030-1342017
traffic white
RAL 9016
0.33 kg
wall bracket 400 mm incl. end cap | floor to wall
POLE MOUNTING SET
030-1342018
jet black
RAL 9005
0.3 kg
wall bracket 400 mm incl. end cap | floor to wall
MOUNTING SET ceiling
030-1343017
traffic white
RAL 9016
incl. end cap
MOUNTING SET ceiling
030-1343018
jet black
RAL 9005
0.1 kg
incl. end cap
CABLE SUSPENSION LINEAR CONNECTOR
030-2210014
chrome
0.05 kg
CABLE SUSPENSION LINEAR CONNECTOR
030-2210017
traffic white
RAL 9016
0.06 kg
CABLE SUSPENSION LINEAR CONNECTOR
030-2210018
jet black
RAL 9005
0.05 kg
CABLE SUSPENSION LINEAR CONNECTOR electrical
030-2220014
chrome
0.06 kg
CABLE SUSPENSION LINEAR CONNECTOR electrical
030-2220017
traffic white
RAL 9016
0.07 kg
CABLE SUSPENSION LINEAR CONNECTOR electrical
030-2220018
jet black
RAL 9005
0.08 kg
CABLE SUSPENSION
030-2230014
chrome
0.04 kg
CABLE SUSPENSION
030-2230017
traffic white
RAL 9016
0.5 kg
CABLE SUSPENSION
030-2230018
jet black
RAL 9005
0.04 kg
LINEAR CONNECTOR
030-2300018
length 50 mm
width 16 mm
height 13 mm
0.02 kg
mechanical
LEVEL CONNECTOR
030-2351118
jet black
RAL 9005
length 141 mm
width 11 mm
height 27 mm
0.02 kg
mechanical

Electrical mounting

article number
colour
type
dimensions
LINEAR CONNECTOR
030-2101138
jet black
RAL 9005
electrical
length 120 mm
width 10 mm
0.2 kg
L CONNECTOR
030-2111138
jet black
RAL 9005
electrical
length 85 mm
width 10 mm
height 85 mm
0.02 kg
T CONNECTOR
030-2121138
jet black
RAL 9005
electrical
length 160 mm
width 10 mm
height 75 mm
0.02 kg
X CONNECTOR
030-2131138
jet black
RAL 9005
electrical
length 160 mm
width 10 mm
height 160 mm
0.05 kg
FLEX CONNECTOR
030-2141138
jet black
RAL 9005
electrical
length 304 mm
width 10 mm
0.03 kg
LEVEL CONNECTOR
030-2151138
jet black
RAL 9005
electrical
length 141 mm
width 11 mm
height 27 mm
0.3 kg
CEILING TO WALL CONNECTOR
030-2161138
jet black
RAL 9005
electrical
length 84 mm
width 10 mm
0.02 kg
PASS THROUGH CONNECTOR
030-2171138
jet black
RAL 9005
electrical | 1 pair
length 85 mm
width 21 mm
0.05 kg
LINEAR CONNECTOR
030-2301038
mechanical & electrical
length 140 mm
width 16 mm
height 13 mm
0.04 kg

Feeder

article number
colour
dimensions
feeder cable length
INTERNAL POWER FEEDER
030-2525038
jet black
RAL 9005
length 115 mm
width 11 mm
height 10 mm
0.15 kg
2,000 mm
INTERNAL POWER FEEDER
030-2525138
jet black
RAL 9005
length 115 mm
width 11 mm
height 10 mm
0.38 kg
5,000 mm

accessory.category.mounting tools

article number
dimensions
3-in-1 mounting tool
030-2611000
length 96 mm
width 11 mm
0.04 kg
