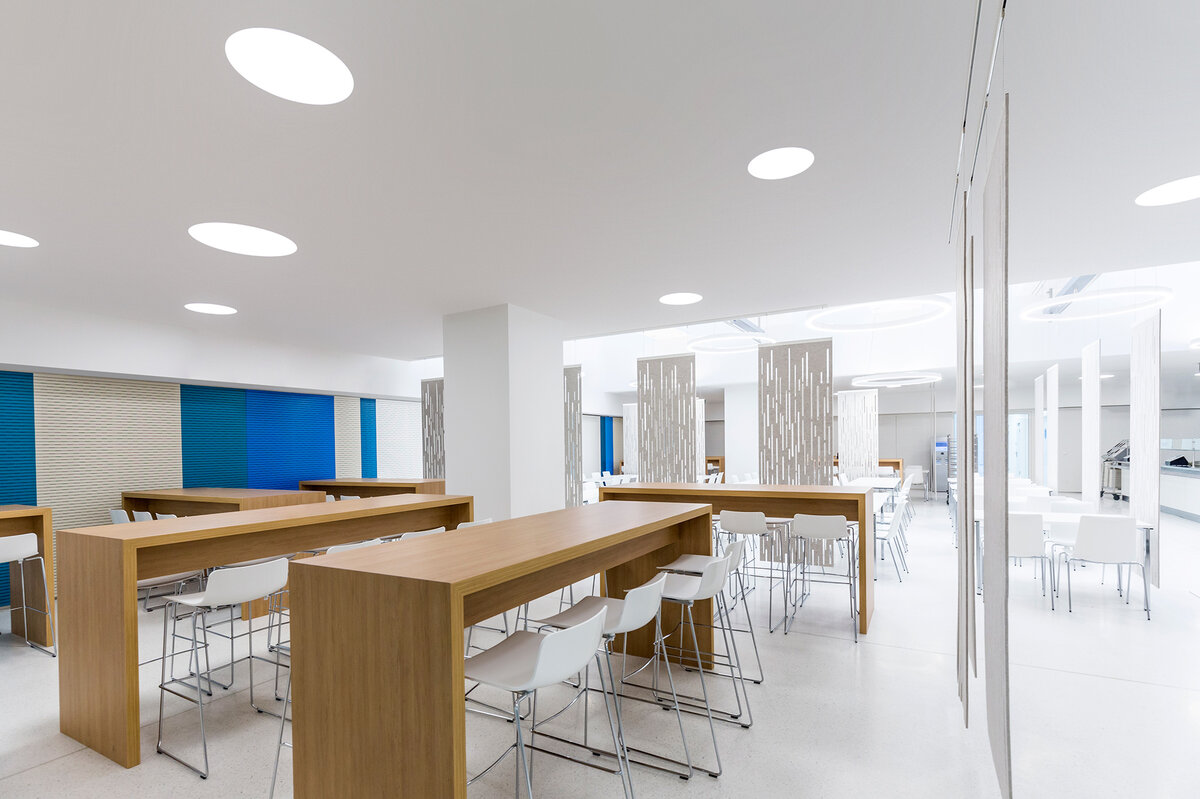

DONAU Versicherung AG Vienna Insurance Group

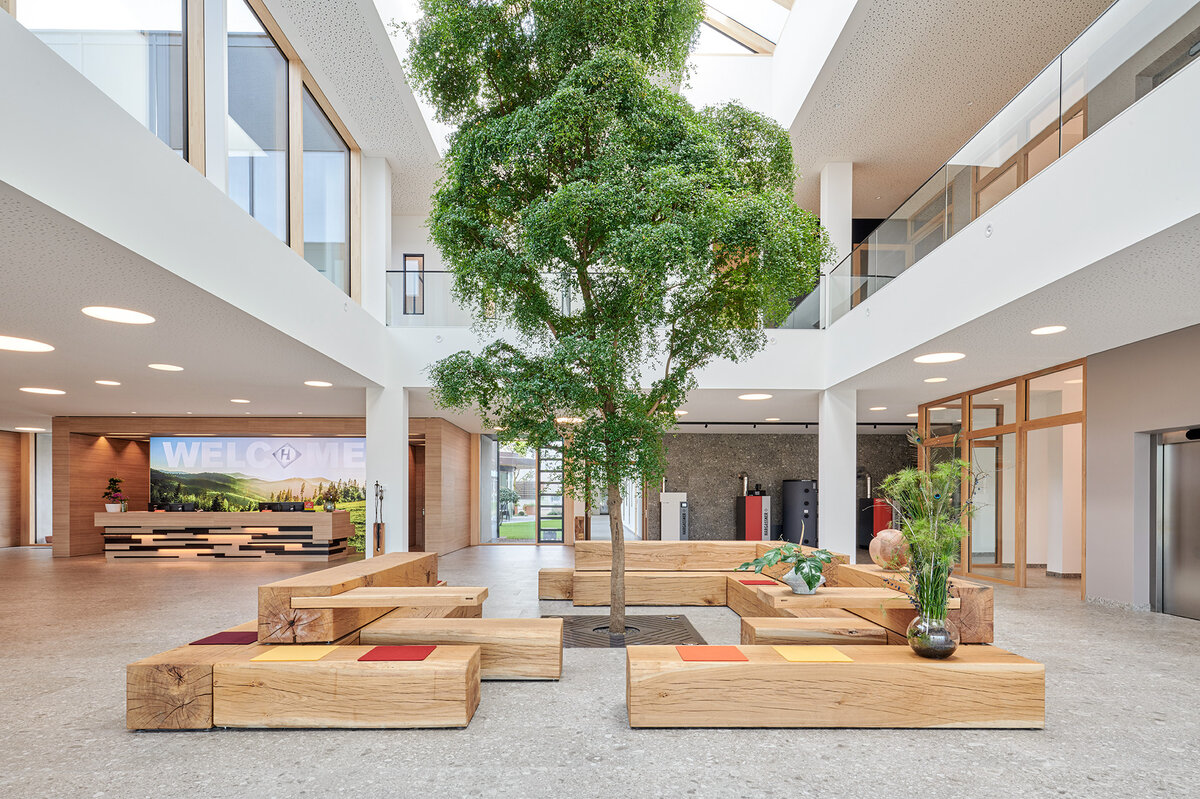

Hargassner Energy World
Hargassner Energy World

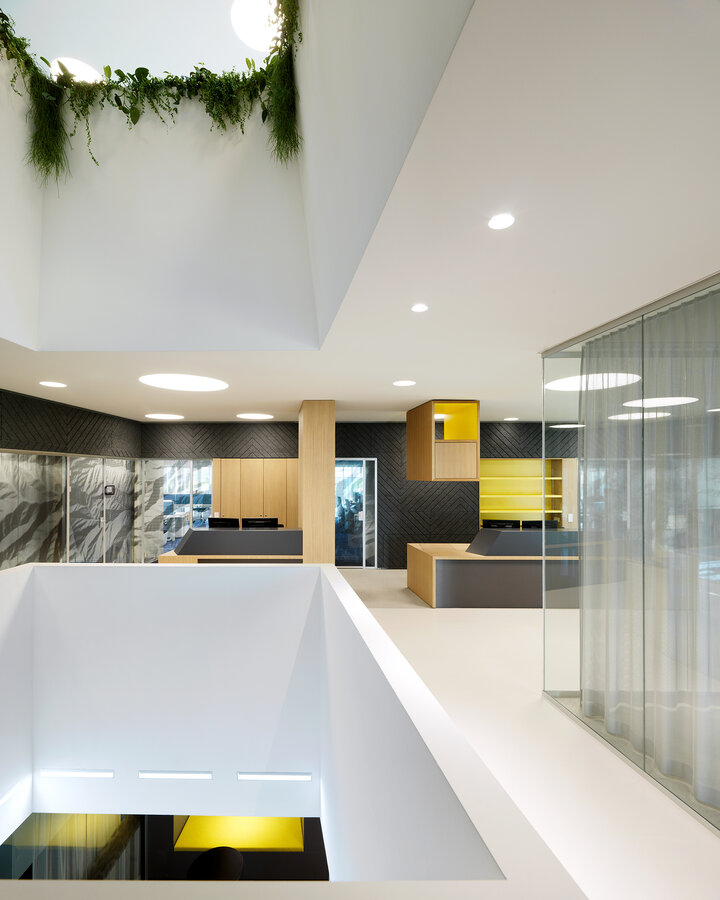

Raiffeisenbank Gmunden
Fachberufsschule,St. Veit an der Glan
Volksbank, Bozen
INSTITUTO DE EMPRESA

COMBO

trim

Quickinfo

3000 K, 4000 K, tunable white 2700 - 6500 K
CRI ≥ 80 / 3 SDCM (initial MacAdam)
UGR ≤ 19
up to 146 lm/W
L85 / 50000 h, L90 / 50000 h
DALI-2, non DIM
Microprismatic, Opal
IP40

Colour

Products and codes
Discover family

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all
  • 3DS
  • DWG - 3D
  • Revit BIM data

Description

Round luminaire housing in aluminium with trim; suitable for installation in plasterboard ceilings; suitable for ceiling thickness of 10-25 mm; surface powder coated; up to ø600 mm: installation without tools using snap spring closure; highly reflective coating of the PCB for improved efficiency; completely homogeneously illuminated, satinised or microprismatic PMMA cover; energy-efficient LEDs with very good colour rendering; external converter for ceiling insertion, for through-wiring suitable

DiiA® standards 251, 252, 253

DIN EN 12464-1 UGR ≤ 19

tunable white 2700 – 6500 K

Products and codes

Filter
104
lm/W
146
lm/W
979
lm
13500
lm
9.2
W
103
W
0.48
0.72
0.44
0.66

Colour

COMBO 300 round trim, COMBO 300 trim

COMBO 300 trim

COMBO 300 trim

Status
Article number(s)
Type
Dimming
microprismatic, 3000 K, 106 lm/W
non DIM
opal (lambertsch), 3000 K, 108 lm/W
non DIM
microprismatic, 3000 K, 106 lm/W
DALI-2
opal (lambertsch), 3000 K, 108 lm/W
DALI-2
microprismatic, 4000 K, 113 lm/W
non DIM
opal (lambertsch), 4000 K, 114 lm/W
non DIM
microprismatic, 4000 K, 113 lm/W
DALI-2
opal (lambertsch), 4000 K, 114 lm/W
DALI-2
microprismatic, tunable white, 104 lm/W
DALI-2
opal (lambertsch), tunable white, 105 lm/W
DALI-2

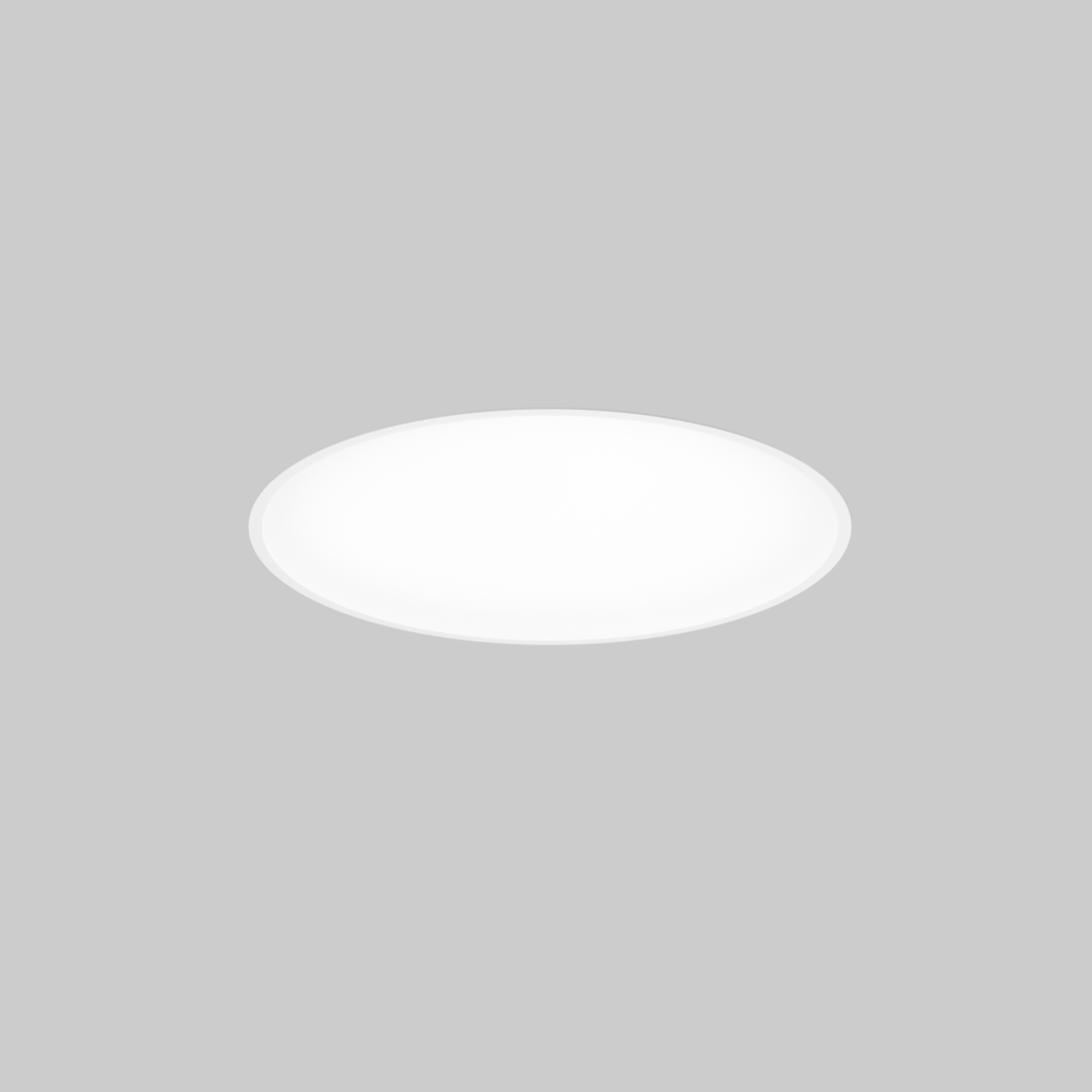

COMBO 450 trim

COMBO 450 trim

COMBO 450 trim

Status
Article number(s)
Type
Dimming
microprismatic, 3000 K, 123 lm/W
non DIM
opal (lambertsch), 3000 K, 123 lm/W
non DIM
microprismatic, 3000 K, 123 lm/W
DALI-2
opal (lambertsch), 3000 K, 123 lm/W
DALI-2
microprismatic, 4000 K, 131 lm/W
non DIM
opal (lambertsch), 4000 K, 130 lm/W
non DIM
microprismatic, 4000 K, 131 lm/W
DALI-2
opal (lambertsch), 4000 K, 130 lm/W
DALI-2
microprismatic, tunable white, 121 lm/W
DALI-2
opal (lambertsch), tunable white, 119 lm/W
DALI-2

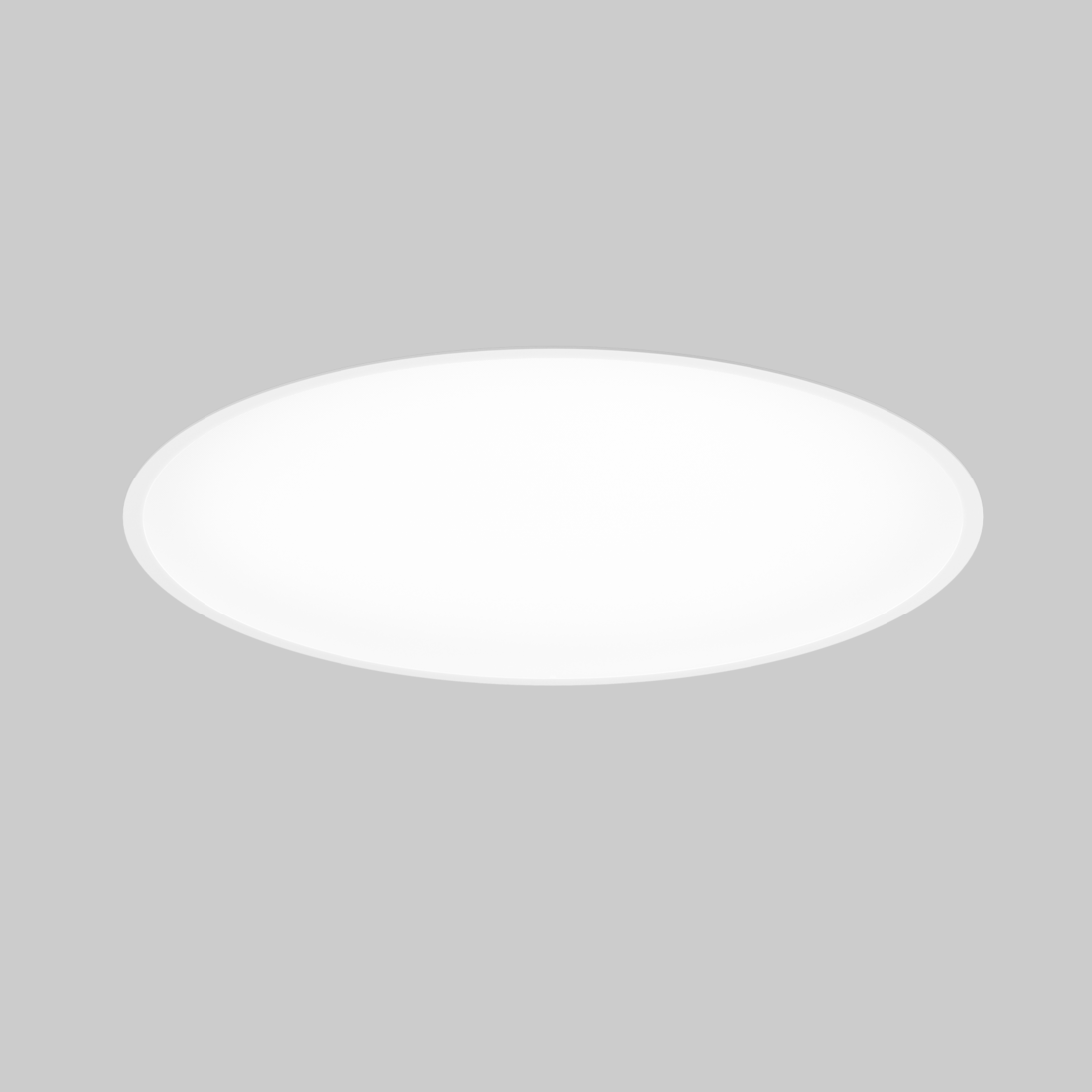

COMBO 600 trim, COMBO 600 round trim

COMBO 600 trim

COMBO 600 trim

Status
Article number(s)
Type
Dimming
microprismatic, 3000 K, 135 lm/W
non DIM
opal (lambertsch), 3000 K, 134 lm/W
non DIM
microprismatic, 3000 K, 135 lm/W
DALI-2
opal (lambertsch), 3000 K, 134 lm/W
DALI-2
microprismatic, 4000 K, 143 lm/W
non DIM
opal (lambertsch), 4000 K, 142 lm/W
non DIM
microprismatic, 4000 K, 143 lm/W
DALI-2
opal (lambertsch), 4000 K, 142 lm/W
DALI-2
microprismatic, tunable white, 130 lm/W
DALI-2
opal (lambertsch), tunable white, 129 lm/W
DALI-2
COMBO 900 trim

COMBO 900 trim

COMBO 900 trim

Status
Article number(s)
Type
Dimming
microprismatic, 3000 K, 133 lm/W
DALI-2
opal (lambertsch), 3000 K, 133 lm/W
DALI-2
microprismatic, 4000 K, 141 lm/W
DALI-2
opal (lambertsch), 4000 K, 141 lm/W
DALI-2
microprismatic, tunable white, 128 lm/W
DALI-2
opal (lambertsch), tunable white, 128 lm/W
DALI-2
COMBO 1200 trim

COMBO 1200 trim

COMBO 1200 trim

Status
Article number(s)
Type
Dimming
microprismatic, 3000 K, 137 lm/W
DALI-2
opal (lambertsch), 3000 K, 137 lm/W
DALI-2
microprismatic, 4000 K, 145 lm/W
DALI-2
opal (lambertsch), 4000 K, 146 lm/W
DALI-2
microprismatic, tunable white, 131 lm/W
DALI-2
opal (lambertsch), tunable white, 131 lm/W
DALI-2

Accessories

Mounting

article number
type
dimensions
MOUNTING RING 300
064-1906300
for acoustic ceiling
0.6 kg
MOUNTING RING 450
064-1906400
for acoustic ceiling
0.82 kg
MOUNTING RING 600
064-1906500
for acoustic ceiling
1.2 kg
MOUNTING RING 900
064-1906700
for acoustic ceiling
1.66 kg
MOUNTING RING 1200
064-1906800
for acoustic ceiling
2.46 kg
