LENO asymmetric trimless
LENO opal trimless, LENO microprismatic trimless
LENO jut-out trimless
Vaucluse House
Vaucluse House

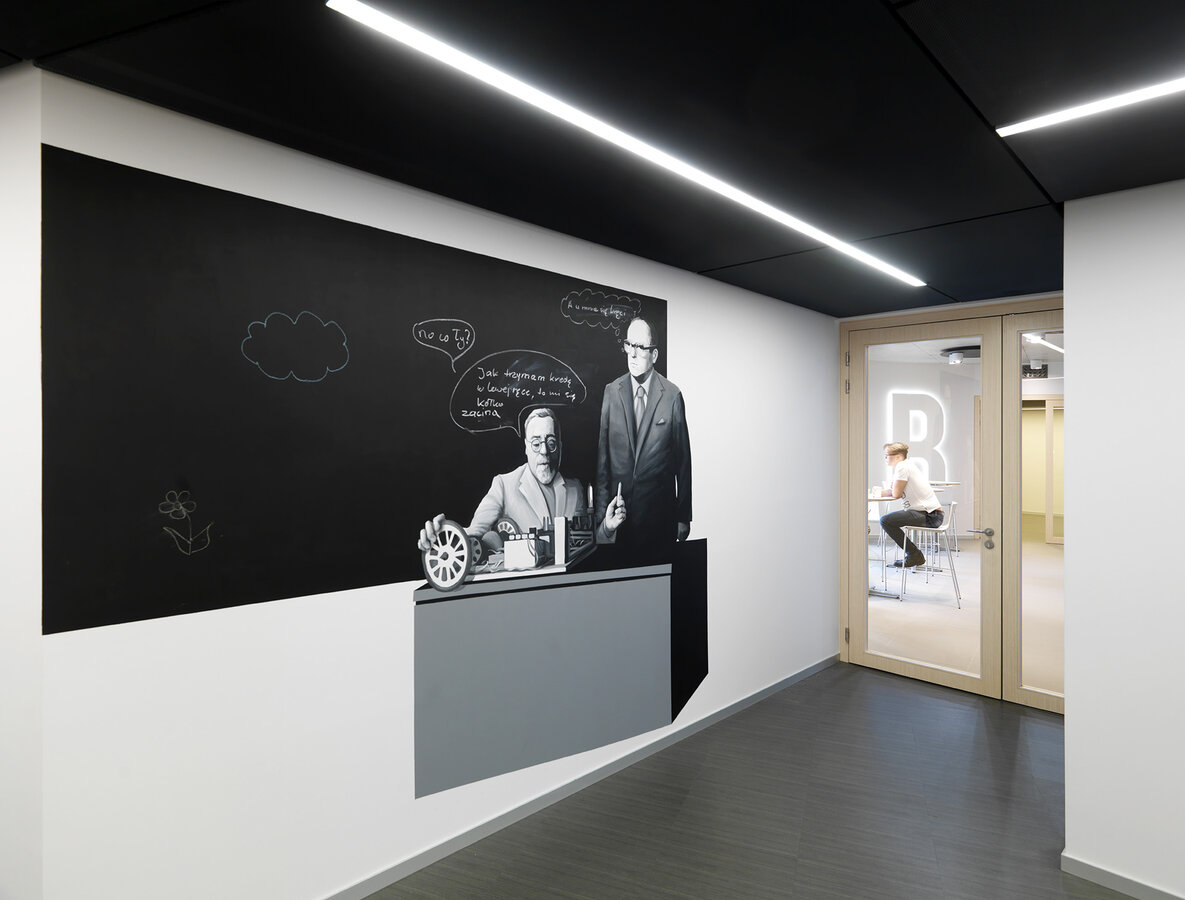

ERICPOL SOFTWARE POOL
ERICPOL SOFTWARE POOL
Variety
Magnetic light insets

LENO

trimless

Quickinfo

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM (initial MacAdam)
UGR ≤ 19
up to 2,130 lm/m
up to 140 lm/W
L85 / 50000 h
DALI-2
Asymmetric Wallwasher, Jut-Out, Microprismatic, Opal
IP40, back IP20

Colour

Products and codes
Discover family

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all
  • 3DS
  • DWG - 3D
  • Revit BIM data

Description

Low profile recessed channel; suitable for trimless installation in 12.5 mm plasterboard ceilings; suitable for wall or ceiling mounting; surface powder coated; special edge design with grooves for better adhesion of filler; easy mounting without need to cut the substructure; fall-safe light inset made of extruded aluminium profile, can be inserted in the canal without tools by magnetic holders; side coupled light, directed downwards by LGP body (Light Guiding Prism) and highly efficient reflector; homogeneously illuminated, satinised (flush or jut-out) or microprismatic PMMA cover; optional with asymmetric light distribution; energy-efficient LEDs with very good colour rendering; incl. external converter for ceiling insertion

DiiA® standards 251, 252, 253

system solution

microprismatic UGR ≤ 19

quick installation

Products and codes

Filter
101
lm/W
140
lm/W
1160
lm
6650
lm
9.9
W
60
W
0.54
0.72
0.49
0.66

Colour

LENO asymmetric trimless

LENO asymmetric trimless

LENO asymmetric trimless

Status
Article number(s)
Type
Dimming
3000 K, 101 lm/W, length 616 mm
DALI-2
4000 K, 106 lm/W, length 616 mm
DALI-2
3000 K, 105 lm/W, length 1,224 mm
DALI-2
4000 K, 111 lm/W, length 1,224 mm
DALI-2
3000 K, 102 lm/W, length 1,833 mm
DALI-2
4000 K, 108 lm/W, length 1,833 mm
DALI-2
3000 K, 105 lm/W, length 2,441 mm
DALI-2
4000 K, 111 lm/W, length 2,441 mm
DALI-2
LENO jut-out trimless

LENO jut-out trimless

LENO jut-out trimless

Status
Article number(s)
Type
Dimming
3000 K, 118 lm/W, length 616 mm
DALI-2
4000 K, 125 lm/W, length 616 mm
DALI-2
3000 K, 123 lm/W, length 1,224 mm
DALI-2
4000 K, 130 lm/W, length 1,224 mm
DALI-2
3000 K, 123 lm/W, length 1,833 mm
DALI-2
4000 K, 130 lm/W, length 1,833 mm
DALI-2
3000 K, 127 lm/W, length 2,441 mm
DALI-2
4000 K, 134 lm/W, length 2,441 mm
DALI-2
LENO opal trimless, LENO microprismatic trimless

LENO microprismatic trimless

LENO microprismatic trimless

Status
Article number(s)
Type
Dimming
3000 K, 117 lm/W, length 616 mm
DALI-2
4000 K, 124 lm/W, length 616 mm
DALI-2
3000 K, 121 lm/W, length 1,224 mm
DALI-2
4000 K, 128 lm/W, length 1,224 mm
DALI-2
3000 K, 122 lm/W, length 1,833 mm
DALI-2
4000 K, 129 lm/W, length 1,833 mm
DALI-2
3000 K, 125 lm/W, length 2,441 mm
DALI-2
4000 K, 133 lm/W, length 2,441 mm
DALI-2
LENO opal trimless, LENO microprismatic trimless

LENO opal trimless

LENO opal trimless

Status
Article number(s)
Type
Dimming
3000 K, 123 lm/W, length 616 mm
DALI-2
4000 K, 131 lm/W, length 616 mm
DALI-2
3000 K, 128 lm/W, length 1,224 mm
DALI-2
4000 K, 136 lm/W, length 1,224 mm
DALI-2
3000 K, 128 lm/W, length 1,833 mm
DALI-2
4000 K, 136 lm/W, length 1,833 mm
DALI-2
3000 K, 132 lm/W, length 2,441 mm
DALI-2
4000 K, 140 lm/W, length 2,441 mm
DALI-2

Accessories

Mounting tools

article number
type
dimensions
DISMOUNTING TOOL
086-30000
vacuum cup
0.08 kg
