INTO

recessed

New

Quickinfo

3000 K, 4000 K, tunable white 2700 - 6500 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM (initial MacAdam)
UGR ≤ 16, UGR ≤ 19
up to 177 lm/W
L90 / 50000 h
DALI-2
IP20

Colour

traffic white

Inset

chrome

traffic white

black

jet black

gold

Products and codes

Discover family

Simple drawing

Light distribution

Downloads & links

Product data & specification documents

Datasheet product line

DWG - 2D

Download all

Aggregated downloads

IES
LDT
ROLF

ULD
3DS
DWG - 3D

Description

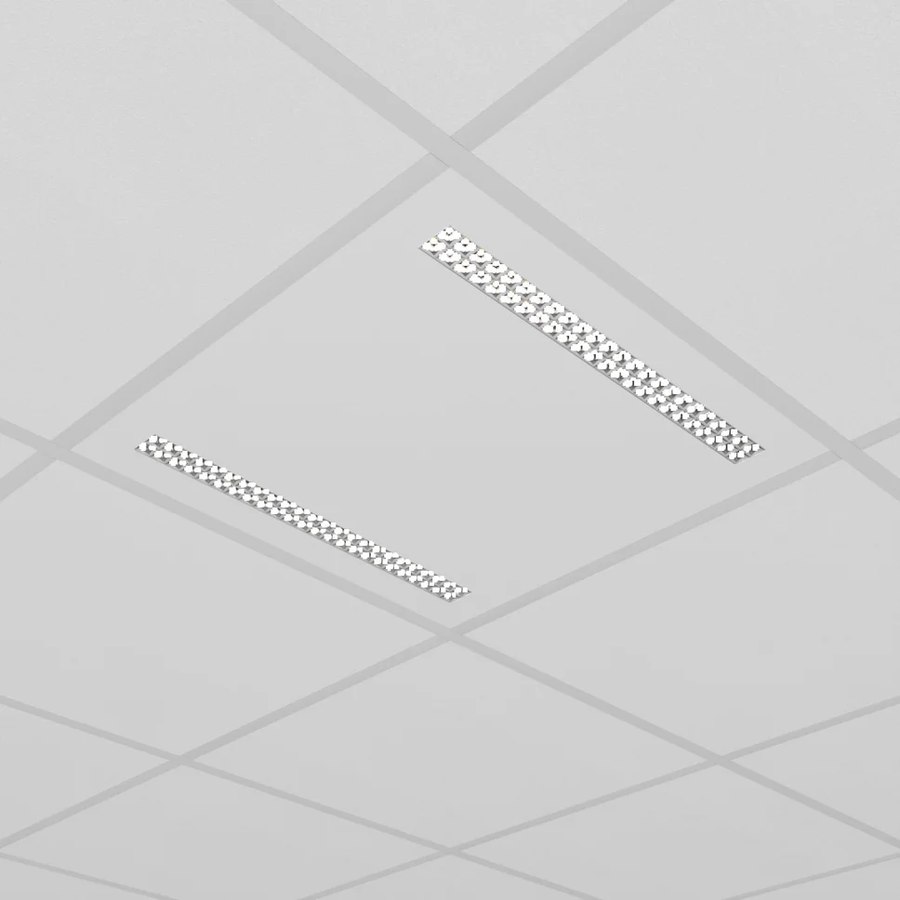

Square or rectangular lay-in luminaire made of sheet steel; optionally for modular ceilings 600 x 600 or 625 x 625 with visible grid system; surface powder coated; optionally two or three linear light insets made of plastic; fitted with single LED light points; good glare reduction due to recessed light point plane; despite this increased efficiency through special lens technology; inserted lenses with wide flood radiation characteristic; or high quality reflector with micro-faceted, aluminum-vaporised surface; or with specially computed wide beam lenses; precise radiation characteristic with symmetrical light distribution; exchangeable light insets; incl. converter, suitable for through-wiring; plug and play connection cables between light insets and converter with plug/socket system; energy-efficient LEDs with very good colour rendering

suitable for grid ceilings

easy mounting

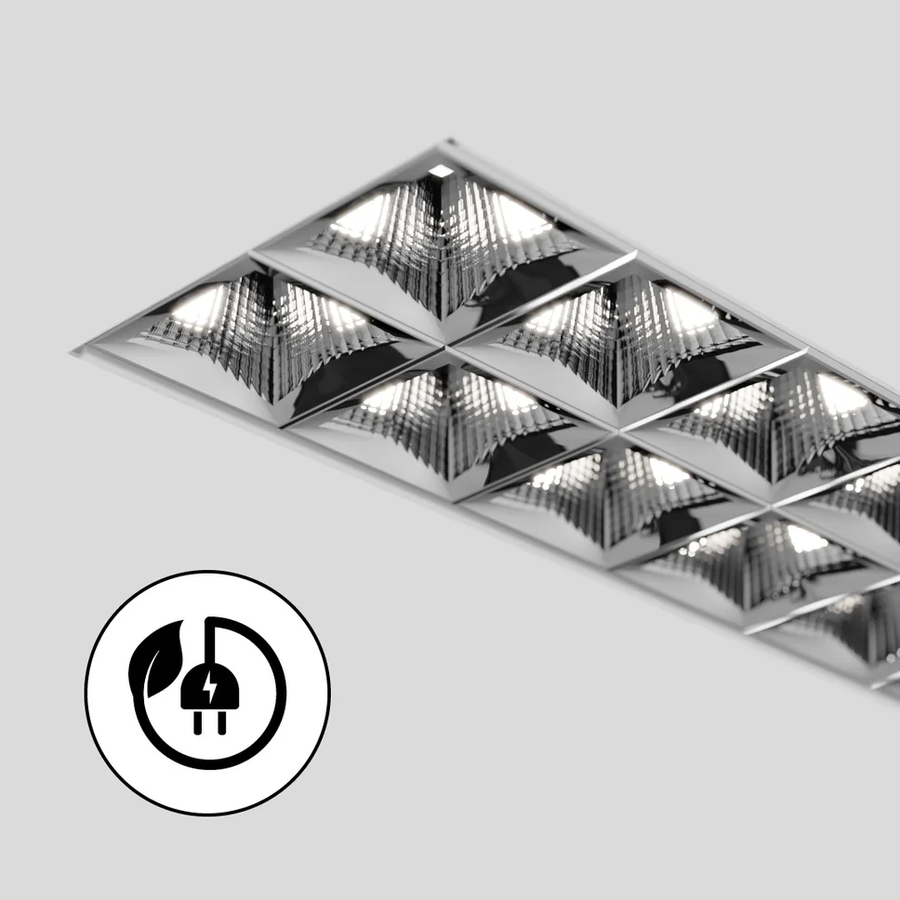

up to 177 lm/W (high efficiency)

DIN EN 12464-1 UGR ≤ 19

Products and codes

Filter

Colour

traffic white

Inset

chrome

traffic white

black

jet black

gold

INTO 600 2 lenses recessed

Status

Article number(s)

Type

Dimming

3000 K, CRI ≥ 90, system 25.9 W, 142 lm/W

DALI-2

4000 K, CRI ≥ 90, system 25.9 W, 142 lm/W

DALI-2

3000 K, CRI ≥ 80, system 25.9 W, 163 lm/W

DALI-2

4000 K, CRI ≥ 80, system 25.9 W, 173 lm/W

DALI-2

INTO 600 2 reflectors recessed

Status

Article number(s)

Type

Dimming

Inset black, 3000 K, CRI ≥ 90, system 20 W, 131 lm/W

DALI-2

Inset black, 4000 K, CRI ≥ 90, system 20 W, 142 lm/W

DALI-2

Inset black, 3000 K, CRI ≥ 80, system 20 W, 152 lm/W

DALI-2

Inset black, 4000 K, CRI ≥ 80, system 20 W, 173 lm/W

DALI-2

Inset black, tunable white, CRI ≥ 90, system 26.7 W, 121 lm/W

DALI-2

INTO 600 2 reflectors recessed

Status

Article number(s)

Type

Dimming

Inset chrome, 3000 K, CRI ≥ 90, system 20 W, 131 lm/W

DALI-2

Inset chrome, 4000 K, CRI ≥ 90, system 20 W, 142 lm/W

DALI-2

Inset chrome, 3000 K, CRI ≥ 80, system 20 W, 152 lm/W

DALI-2

Inset chrome, 4000 K, CRI ≥ 80, system 20 W, 173 lm/W

DALI-2

Inset chrome, tunable white, CRI ≥ 90, system 26.7 W, 121 lm/W

DALI-2

INTO 600 2 spotlines recessed

Status

Article number(s)

Type

Dimming

Inset gold, 3000 K, CRI ≥ 90, system 25.1 W, 135 lm/W

DALI-2

Inset gold, 4000 K, CRI ≥ 90, system 25.1 W, 135 lm/W

DALI-2

Inset gold, 3000 K, CRI ≥ 80, system 25.1 W, 155 lm/W

DALI-2

Inset gold, 4000 K, CRI ≥ 80, system 25.1 W, 165 lm/W

DALI-2

Inset gold, tunable white, CRI ≥ 90, system 26.7 W, 115 lm/W

DALI-2

INTO 600 2 spotlines recessed

Status

Article number(s)

Type

Dimming

Inset jet black, 3000 K, CRI ≥ 90, system 25.1 W, 129 lm/W

DALI-2

Inset jet black, 4000 K, CRI ≥ 90, system 25.1 W, 129 lm/W

DALI-2

Inset jet black, 3000 K, CRI ≥ 80, system 25.1 W, 148 lm/W

DALI-2

Inset jet black, 4000 K, CRI ≥ 80, system 25.1 W, 157 lm/W

DALI-2

Inset jet black, tunable white, CRI ≥ 90, system 26.7 W, 112 lm/W

DALI-2

INTO 600 2 spotlines recessed

Status

Article number(s)

Type

Dimming

Inset traffic white, 3000 K, CRI ≥ 90, system 25.1 W, 136 lm/W

DALI-2

Inset traffic white, 4000 K, CRI ≥ 90, system 25.1 W, 136 lm/W

DALI-2

Inset traffic white, 3000 K, CRI ≥ 80, system 25.1 W, 156 lm/W

DALI-2

Inset traffic white, 4000 K, CRI ≥ 80, system 25.1 W, 166 lm/W

DALI-2

Inset traffic white, tunable white, CRI ≥ 90, system 26.7 W, 116 lm/W

DALI-2

INTO 600 3 lenses recessed

Status

Article number(s)

Type

Dimming

3000 K, CRI ≥ 90, system 38 W, 145 lm/W

DALI-2

4000 K, CRI ≥ 90, system 38 W, 145 lm/W

DALI-2

3000 K, CRI ≥ 80, system 38 W, 166 lm/W

DALI-2

4000 K, CRI ≥ 80, system 38 W, 177 lm/W

DALI-2

INTO 600 3 reflectors recessed

Status

Article number(s)

Type

Dimming

Inset black, 3000 K, CRI ≥ 90, system 29.3 W, 134 lm/W

DALI-2

Inset black, 4000 K, CRI ≥ 90, system 29.3 W, 145 lm/W

DALI-2

Inset black, 3000 K, CRI ≥ 80, system 29.3 W, 156 lm/W

DALI-2

Inset black, 4000 K, CRI ≥ 80, system 29.3 W, 177 lm/W

DALI-2

Inset black, tunable white, CRI ≥ 90, system 39 W, 125 lm/W

DALI-2

INTO 600 3 reflectors recessed

Status

Article number(s)

Type

Dimming

Inset chrome, 3000 K, CRI ≥ 90, system 29.3 W, 134 lm/W

DALI-2

Inset chrome, 4000 K, CRI ≥ 90, system 29.3 W, 145 lm/W

DALI-2

Inset chrome, 3000 K, CRI ≥ 80, system 29.3 W, 156 lm/W

DALI-2

Inset chrome, 4000 K, CRI ≥ 80, system 29.3 W, 177 lm/W

DALI-2

Inset chrome, tunable white, CRI ≥ 90, system 39 W, 125 lm/W

DALI-2

INTO 600 3 spotlines recessed

Status

Article number(s)

Type

Dimming

Inset gold, 3000 K, CRI ≥ 90, system 37 W, 137 lm/W

DALI-2

Inset gold, 4000 K, CRI ≥ 90, system 37 W, 137 lm/W

DALI-2

Inset gold, 3000 K, CRI ≥ 80, system 37 W, 158 lm/W

DALI-2

Inset gold, 4000 K, CRI ≥ 80, system 37 W, 168 lm/W

DALI-2

Inset gold, tunable white, CRI ≥ 90, system 39 W, 118 lm/W

DALI-2

INTO 600 3 spotlines recessed

Status

Article number(s)

Type

Dimming

Inset jet black, 3000 K, CRI ≥ 90, system 37 W, 131 lm/W

DALI-2

Inset jet black, 4000 K, CRI ≥ 90, system 37 W, 131 lm/W

DALI-2

Inset jet black, 3000 K, CRI ≥ 80, system 37 W, 150 lm/W

DALI-2

Inset jet black, 4000 K, CRI ≥ 80, system 37 W, 160 lm/W

DALI-2

Inset jet black, tunable white, CRI ≥ 90, system 39 W, 115 lm/W

DALI-2

INTO 600 3 spotlines recessed

Status

Article number(s)

Type

Dimming

Inset traffic white, 3000 K, CRI ≥ 90, system 37 W, 138 lm/W

DALI-2

Inset traffic white, 4000 K, CRI ≥ 90, system 37 W, 138 lm/W

DALI-2

Inset traffic white, 3000 K, CRI ≥ 80, system 37 W, 159 lm/W

DALI-2

Inset traffic white, 4000 K, CRI ≥ 80, system 37 W, 169 lm/W

DALI-2

Inset traffic white, tunable white, CRI ≥ 90, system 39 W, 119 lm/W

DALI-2

INTO 625 2 lenses recessed

Status

Article number(s)

Type

Dimming

3000 K, CRI ≥ 90, system 25.9 W, 142 lm/W

DALI-2

4000 K, CRI ≥ 90, system 25.9 W, 142 lm/W

DALI-2

3000 K, CRI ≥ 80, system 25.9 W, 163 lm/W

DALI-2

4000 K, CRI ≥ 80, system 25.9 W, 173 lm/W

DALI-2

INTO 625 2 reflectors recessed

Status

Article number(s)

Type

Dimming

Inset black, 3000 K, CRI ≥ 90, system 20 W, 131 lm/W

DALI-2

Inset black, 4000 K, CRI ≥ 90, system 20 W, 142 lm/W

DALI-2

Inset black, 3000 K, CRI ≥ 80, system 20 W, 152 lm/W

DALI-2

Inset black, 4000 K, CRI ≥ 80, system 20 W, 173 lm/W

DALI-2

Inset black, tunable white, CRI ≥ 90, system 26.7 W, 121 lm/W

DALI-2

INTO 625 2 reflectors recessed

Status

Article number(s)

Type

Dimming

Inset chrome, 3000 K, CRI ≥ 90, system 20 W, 131 lm/W

DALI-2

Inset chrome, 4000 K, CRI ≥ 90, system 20 W, 142 lm/W

DALI-2

Inset chrome, 3000 K, CRI ≥ 80, system 20 W, 152 lm/W

DALI-2

Inset chrome, 4000 K, CRI ≥ 80, system 20 W, 173 lm/W

DALI-2

Inset chrome, tunable white, CRI ≥ 90, system 26.7 W, 121 lm/W

DALI-2

INTO 625 2 spotlines recessed

Status

Article number(s)

Type

Dimming

Inset gold, 3000 K, CRI ≥ 90, system 25.1 W, 136 lm/W

DALI-2

Inset gold, 4000 K, CRI ≥ 90, system 25.1 W, 136 lm/W

DALI-2

Inset gold, 3000 K, CRI ≥ 80, system 25.1 W, 156 lm/W

DALI-2

Inset gold, 4000 K, CRI ≥ 80, system 25.1 W, 166 lm/W

DALI-2

Inset gold, tunable white, CRI ≥ 90, system 26.7 W, 116 lm/W

DALI-2

INTO 625 2 spotlines recessed

Status

Article number(s)

Type

Dimming

Inset jet black, 3000 K, CRI ≥ 90, system 25.1 W, 129 lm/W

DALI-2

Inset jet black, 4000 K, CRI ≥ 90, system 25.1 W, 129 lm/W

DALI-2

Inset jet black, 3000 K, CRI ≥ 80, system 25.1 W, 148 lm/W

DALI-2

Inset jet black, 4000 K, CRI ≥ 80, system 25.1 W, 157 lm/W

DALI-2

Inset jet black, tunable white, CRI ≥ 90, system 26.7 W, 112 lm/W

DALI-2

INTO 625 2 spotlines recessed

Status

Article number(s)

Type

Dimming

Inset traffic white, 3000 K, CRI ≥ 90, system 25.1 W, 135 lm/W

DALI-2

Inset traffic white, 4000 K, CRI ≥ 90, system 25.1 W, 135 lm/W

DALI-2

Inset traffic white, 3000 K, CRI ≥ 80, system 25.1 W, 155 lm/W

DALI-2

Inset traffic white, 4000 K, CRI ≥ 80, system 25.1 W, 165 lm/W

DALI-2

Inset traffic white, tunable white, CRI ≥ 90, system 26.7 W, 115 lm/W

DALI-2

INTO 625 3 lenses recessed

Status

Article number(s)

Type

Dimming

3000 K, CRI ≥ 90, system 38 W, 145 lm/W

DALI-2

4000 K, CRI ≥ 90, system 38 W, 145 lm/W

DALI-2

3000 K, CRI ≥ 80, system 38 W, 166 lm/W

DALI-2

4000 K, CRI ≥ 80, system 38 W, 177 lm/W

DALI-2

INTO 625 3 reflectors recessed

Status

Article number(s)

Type

Dimming

Inset black, 3000 K, CRI ≥ 90, system 29.3 W, 134 lm/W

DALI-2

Inset black, 4000 K, CRI ≥ 90, system 29.3 W, 145 lm/W

DALI-2

Inset black, 3000 K, CRI ≥ 80, system 29.3 W, 156 lm/W

DALI-2

Inset black, 4000 K, CRI ≥ 80, system 29.3 W, 177 lm/W

DALI-2

Inset black, tunable white, CRI ≥ 90, system 39 W, 125 lm/W

DALI-2

INTO 625 3 reflectors recessed

Status

Article number(s)

Type

Dimming

Inset chrome, 3000 K, CRI ≥ 90, system 29.3 W, 134 lm/W

DALI-2

Inset chrome, 4000 K, CRI ≥ 90, system 29.3 W, 145 lm/W

DALI-2

Inset chrome, 3000 K, CRI ≥ 80, system 29.3 W, 156 lm/W

DALI-2

Inset chrome, 4000 K, CRI ≥ 80, system 29.3 W, 177 lm/W

DALI-2

Inset chrome, tunable white, CRI ≥ 90, system 39 W, 125 lm/W

DALI-2

INTO 625 3 spotlines recessed

Status

Article number(s)

Type

Dimming

Inset gold, 3000 K, CRI ≥ 90, system 37 W, 138 lm/W

DALI-2

Inset gold, 4000 K, CRI ≥ 90, system 37 W, 138 lm/W

DALI-2

Inset gold, 3000 K, CRI ≥ 80, system 37 W, 159 lm/W

DALI-2

Inset gold, 4000 K, CRI ≥ 80, system 37 W, 169 lm/W

DALI-2

Inset gold, tunable white, CRI ≥ 90, system 39 W, 119 lm/W

DALI-2

INTO 625 3 spotlines recessed

Status

Article number(s)

Type

Dimming

Inset jet black, 3000 K, CRI ≥ 90, system 37 W, 131 lm/W

DALI-2

Inset jet black, 4000 K, CRI ≥ 90, system 37 W, 131 lm/W

DALI-2

Inset jet black, 3000 K, CRI ≥ 80, system 37 W, 150 lm/W

DALI-2

Inset jet black, 4000 K, CRI ≥ 80, system 37 W, 160 lm/W

DALI-2

Inset jet black, tunable white, CRI ≥ 90, system 39 W, 115 lm/W

DALI-2

INTO 625 3 spotlines recessed

Status

Article number(s)

Type

Dimming

Inset traffic white, 3000 K, CRI ≥ 90, system 37 W, 137 lm/W

DALI-2

Inset traffic white, 4000 K, CRI ≥ 90, system 37 W, 137 lm/W

DALI-2

Inset traffic white, 3000 K, CRI ≥ 80, system 37 W, 158 lm/W

DALI-2

Inset traffic white, 4000 K, CRI ≥ 80, system 37 W, 168 lm/W

DALI-2

Inset traffic white, tunable white, CRI ≥ 90, system 39 W, 118 lm/W

DALI-2

INTO 1250 lens recessed

Status

Article number(s)

Type

Dimming

3000 K, CRI ≥ 90, system 49 W, 145 lm/W

DALI-2

4000 K, CRI ≥ 90, system 49 W, 145 lm/W

DALI-2

3000 K, CRI ≥ 80, system 49 W, 166 lm/W

DALI-2

4000 K, CRI ≥ 80, system 49 W, 177 lm/W

DALI-2

INTO 1250 reflector recessed

Status

Article number(s)

Type

Dimming

Inset black, 3000 K, CRI ≥ 90, system 39 W, 145 lm/W

DALI-2

Inset black, 4000 K, CRI ≥ 90, system 39 W, 145 lm/W

DALI-2

Inset black, 3000 K, CRI ≥ 80, system 39 W, 167 lm/W

DALI-2

Inset black, 4000 K, CRI ≥ 80, system 39 W, 177 lm/W

DALI-2

Inset black, tunable white, CRI ≥ 90, system 51 W, 127 lm/W

DALI-2

INTO 1250 reflector recessed

Status

Article number(s)

Type

Dimming

Inset chrome, 3000 K, CRI ≥ 90, system 39 W, 145 lm/W

DALI-2

Inset chrome, 4000 K, CRI ≥ 90, system 39 W, 145 lm/W

DALI-2

Inset chrome, 3000 K, CRI ≥ 80, system 39 W, 167 lm/W

DALI-2

Inset chrome, 4000 K, CRI ≥ 80, system 39 W, 177 lm/W

DALI-2

Inset chrome, tunable white, CRI ≥ 90, system 51 W, 127 lm/W

DALI-2

INTO 1250 spotline recessed

Status

Article number(s)

Type

Dimming

Inset gold, 3000 K, CRI ≥ 90, system 47 W, 137 lm/W

DALI-2

Inset gold, 4000 K, CRI ≥ 90, system 47 W, 137 lm/W

DALI-2

Inset gold, 3000 K, CRI ≥ 80, system 47 W, 158 lm/W

DALI-2

Inset gold, 4000 K, CRI ≥ 80, system 47 W, 168 lm/W

DALI-2

Inset gold, tunable white, CRI ≥ 90, system 51 W, 121 lm/W

DALI-2

INTO 1250 spotline recessed

Status

Article number(s)

Type

Dimming

Inset jet black, 3000 K, CRI ≥ 90, system 47 W, 131 lm/W

DALI-2

Inset jet black, 4000 K, CRI ≥ 90, system 47 W, 131 lm/W

DALI-2

Inset jet black, 3000 K, CRI ≥ 80, system 47 W, 150 lm/W

DALI-2

Inset jet black, 4000 K, CRI ≥ 80, system 47 W, 160 lm/W

DALI-2

Inset jet black, tunable white, CRI ≥ 90, system 51 W, 117 lm/W

DALI-2

INTO 1250 spotline recessed

Status

Article number(s)

Type

Dimming

Inset traffic white, 3000 K, CRI ≥ 90, system 47 W, 139 lm/W

DALI-2

Inset traffic white, 4000 K, CRI ≥ 90, system 47 W, 139 lm/W

DALI-2

Inset traffic white, 3000 K, CRI ≥ 80, system 47 W, 159 lm/W

DALI-2

Inset traffic white, 4000 K, CRI ≥ 80, system 47 W, 169 lm/W

DALI-2

Inset traffic white, tunable white, CRI ≥ 90, system 51 W, 122 lm/W

DALI-2

INTO

recessed

Quickinfo

Colour

Inset

Simple drawing

Light distribution

Product data & specification documents

Description

Products and codes

Colour

Inset

INTO 600 2 lenses recessed

INTO 600 2 lenses recessed

INTO 600 2 reflectors recessed

INTO 600 2 reflectors recessed

INTO 600 2 reflectors recessed

INTO 600 2 reflectors recessed

INTO 600 2 spotlines recessed

INTO 600 2 spotlines recessed

INTO 600 2 spotlines recessed

INTO 600 2 spotlines recessed

INTO 600 2 spotlines recessed

INTO 600 2 spotlines recessed

INTO 600 3 lenses recessed

INTO 600 3 lenses recessed

INTO 600 3 reflectors recessed

INTO 600 3 reflectors recessed

INTO 600 3 reflectors recessed

INTO 600 3 reflectors recessed

INTO 600 3 spotlines recessed

INTO 600 3 spotlines recessed

INTO 600 3 spotlines recessed

INTO 600 3 spotlines recessed

INTO 600 3 spotlines recessed

INTO 600 3 spotlines recessed

INTO 625 2 lenses recessed

INTO 625 2 lenses recessed

INTO 625 2 reflectors recessed

INTO 625 2 reflectors recessed

INTO 625 2 reflectors recessed

INTO 625 2 reflectors recessed

INTO 625 2 spotlines recessed

INTO 625 2 spotlines recessed

INTO 625 2 spotlines recessed

INTO 625 2 spotlines recessed

INTO 625 2 spotlines recessed

INTO 625 2 spotlines recessed

INTO 625 3 lenses recessed

INTO 625 3 lenses recessed

INTO 625 3 reflectors recessed

INTO 625 3 reflectors recessed

INTO 625 3 reflectors recessed

INTO 625 3 reflectors recessed

INTO 625 3 spotlines recessed

INTO 625 3 spotlines recessed

INTO 625 3 spotlines recessed

INTO 625 3 spotlines recessed

INTO 625 3 spotlines recessed

INTO 625 3 spotlines recessed

INTO 1250 lens recessed

INTO 1250 lens recessed

INTO 1250 reflector recessed

INTO 1250 reflector recessed

INTO 1250 reflector recessed

INTO 1250 reflector recessed

INTO 1250 spotline recessed

INTO 1250 spotline recessed

INTO 1250 spotline recessed

INTO 1250 spotline recessed

INTO 1250 spotline recessed

INTO 1250 spotline recessed

Related products
