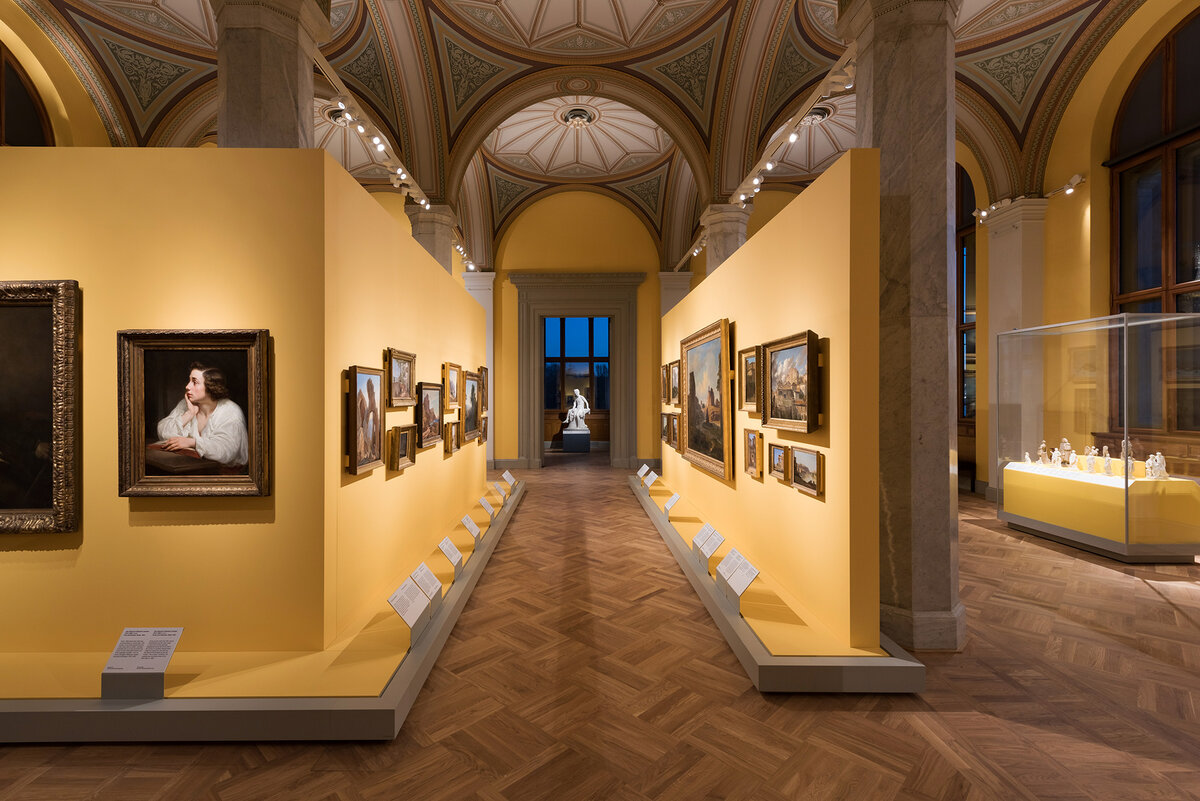

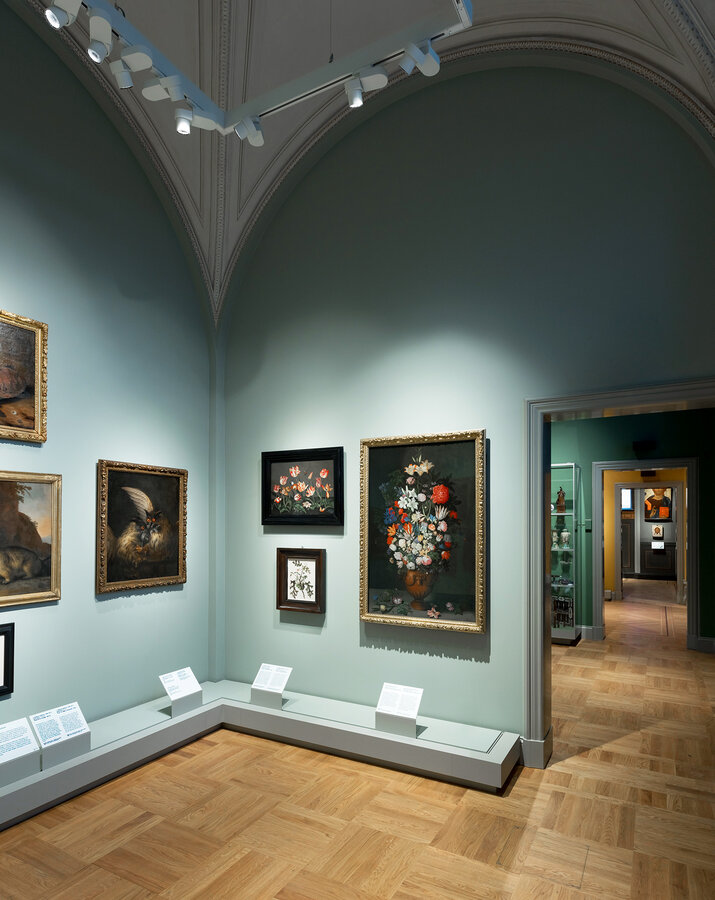

NATIONALMUSEUM
NATIONALMUSEUM
PABLO multilens

PABLO multilens

Quickinfo

3000 K, 4000 K
CRI ≥ 90 / 2 SDCM (initial MacAd
up to 73 lm/W
L85 / 50000 h
DIM POTI
IP20

Colour

    • Products and codes
    Discover family

    Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    Download all
    • 3DS
    • DWG - 3D
    • Revit BIM data

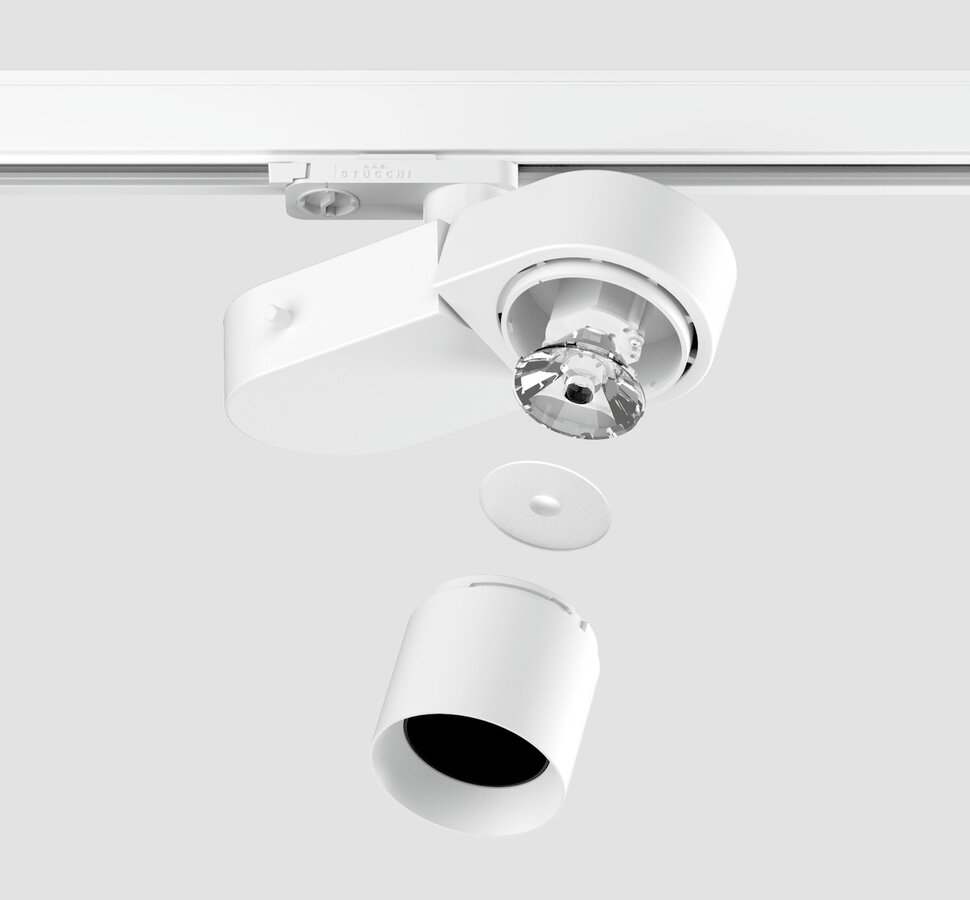

    Description

    Track light made of die-cast aluminium; surface powder coated; 360° rotatable and 310° tiltable; converter installed in aluminium spotlight housing; COB (Chip on Board) technology for maximum efficiency; no multiple shadows; energy-efficient LEDs with very good colour rendering; exchangeable additional lenses; precise radiation characteristics with different beam angles; installed and exchanged without tools; optical attachments as accessories; adapter for toolless insertion or movement on a variety of 3-phase power tracks; adapter fixation optionally without tools by means of knurled screw or set screw (screwdriver required); point outlet, either in surface mounted housing or recessed housing, as an accessory

    compatible with MOVE IT PRO

    DiiA® standards 251, 252, 253

    interchangeable diffusion sheets

    360° rotatable, 310° tiltable

    DIM POTI / rotation lock

    Products and codes

    Filter
    61
    lm/W
    74
    lm/W
    890
    lm
    1090
    lm
    0.6
    0.86
    0.55
    0.78

    Colour

    • PABLO multilens

    PABLO multilens

    PABLO multilens

    Status
    Article number(s)
    Variant
    Type
    Dimming
    40 degrees
    jet black, flood, 3000 K, set screw (tool required), system 14.7 W, 67 lm/W
    DIM POTI
    19 degrees
    jet black, spot, 3000 K, set screw (tool required), system 14.7 W, 69 lm/W
    DIM POTI
    10 degrees
    jet black, super spot, 3000 K, set screw (tool required), system 14.7 W, 69 lm/W
    DIM POTI
    38 degrees
    jet black, flood, 3000 K, set screw (tool required), system 14.7 W, 65 lm/W
    DIM POTI
    30 degrees
    jet black, medium, 3000 K, set screw (tool required), system 14.7 W, 62 lm/W
    DIM POTI
    64 degrees
    jet black, wide flood, 3000 K, set screw (tool required), system 14.7 W, 61 lm/W
    DIM POTI
    59x16 degrees oval
    jet black, oval, 3000 K, set screw (tool required), system 14.7 W, 68 lm/W
    DIM POTI
    64 degrees
    jet black, wide flood, 4000 K, set screw (tool required), system 14.7 W, 65 lm/W
    DIM POTI
    38 degrees
    jet black, flood, 4000 K, set screw (tool required), system 14.7 W, 70 lm/W
    DIM POTI
    40 degrees
    jet black, flood, 4000 K, set screw (tool required), system 14.7 W, 71 lm/W
    DIM POTI
    10 degrees
    jet black, super spot, 4000 K, set screw (tool required), system 14.7 W, 74 lm/W
    DIM POTI
    30 degrees
    jet black, medium, 4000 K, set screw (tool required), system 14.7 W, 67 lm/W
    DIM POTI
    19 degrees
    jet black, spot, 4000 K, set screw (tool required), system 14.7 W, 74 lm/W
    DIM POTI
    59x16 degrees oval
    jet black, oval, 4000 K, set screw (tool required), system 14.7 W, 73 lm/W
    DIM POTI
    30 degrees
    jet black, medium, 3000 K, tool-free fixation, system 14.7 W, 62 lm/W
    DIM POTI
    40 degrees
    jet black, flood, 3000 K, tool-free fixation, system 14.7 W, 67 lm/W
    DIM POTI
    38 degrees
    jet black, flood, 3000 K, tool-free fixation, system 14.7 W, 65 lm/W
    DIM POTI
    10 degrees
    jet black, super spot, 3000 K, tool-free fixation, system 14.7 W, 69 lm/W
    DIM POTI
    19 degrees
    jet black, spot, 3000 K, tool-free fixation, system 14.7 W, 69 lm/W
    DIM POTI
    64 degrees
    jet black, wide flood, 3000 K, tool-free fixation, system 14.7 W, 61 lm/W
    DIM POTI
    59x16 degrees oval
    jet black, oval, 3000 K, tool-free fixation, system 14.7 W, 68 lm/W
    DIM POTI
    40 degrees
    jet black, flood, 4000 K, tool-free fixation, system 14.7 W, 71 lm/W
    DIM POTI
    30 degrees
    jet black, medium, 4000 K, tool-free fixation, system 14.7 W, 67 lm/W
    DIM POTI
    10 degrees
    jet black, super spot, 4000 K, tool-free fixation, system 14.7 W, 74 lm/W
    DIM POTI
    19 degrees
    jet black, spot, 4000 K, tool-free fixation, system 14.7 W, 74 lm/W
    DIM POTI
    38 degrees
    jet black, flood, 4000 K, tool-free fixation, system 14.7 W, 70 lm/W
    DIM POTI
    64 degrees
    jet black, wide flood, 4000 K, tool-free fixation, system 14.7 W, 65 lm/W
    DIM POTI
    59x16 degrees oval
    jet black, oval, 4000 K, tool-free fixation, system 14.7 W, 73 lm/W
    DIM POTI
    PABLO multilens

    PABLO multilens

    PABLO multilens

    Status
    Article number(s)
    Variant
    Type
    Dimming
    10 degrees
    traffic white, super spot, 3000 K, set screw (tool required), system 14.7 W, 69 lm/W
    DIM POTI
    64 degrees
    traffic white, wide flood, 3000 K, set screw (tool required), system 14.7 W, 61 lm/W
    DIM POTI
    40 degrees
    traffic white, flood, 3000 K, set screw (tool required), system 14.7 W, 67 lm/W
    DIM POTI
    30 degrees
    traffic white, medium, 3000 K, set screw (tool required), system 14.7 W, 62 lm/W
    DIM POTI
    19 degrees
    traffic white, spot, 3000 K, set screw (tool required), system 14.7 W, 69 lm/W
    DIM POTI
    38 degrees
    traffic white, flood, 3000 K, set screw (tool required), system 14.7 W, 65 lm/W
    DIM POTI
    59x16 degrees oval
    traffic white, oval, 3000 K, set screw (tool required), system 14.7 W, 68 lm/W
    DIM POTI
    10 degrees
    traffic white, super spot, 4000 K, set screw (tool required), system 14.7 W, 74 lm/W
    DIM POTI
    40 degrees
    traffic white, flood, 4000 K, set screw (tool required), system 14.7 W, 71 lm/W
    DIM POTI
    30 degrees
    traffic white, medium, 4000 K, set screw (tool required), system 14.7 W, 67 lm/W
    DIM POTI
    38 degrees
    traffic white, flood, 4000 K, set screw (tool required), system 14.7 W, 70 lm/W
    DIM POTI
    19 degrees
    traffic white, spot, 4000 K, set screw (tool required), system 14.7 W, 74 lm/W
    DIM POTI
    64 degrees
    traffic white, wide flood, 4000 K, set screw (tool required), system 14.7 W, 65 lm/W
    DIM POTI
    59x16 degrees oval
    traffic white, oval, 4000 K, set screw (tool required), system 14.7 W, 73 lm/W
    DIM POTI
    64 degrees
    traffic white, wide flood, 3000 K, tool-free fixation, system 14.7 W, 61 lm/W
    DIM POTI
    19 degrees
    traffic white, spot, 3000 K, tool-free fixation, system 14.7 W, 69 lm/W
    DIM POTI
    30 degrees
    traffic white, medium, 3000 K, tool-free fixation, system 14.7 W, 62 lm/W
    DIM POTI
    10 degrees
    traffic white, super spot, 3000 K, tool-free fixation, system 14.7 W, 69 lm/W
    DIM POTI
    40 degrees
    traffic white, flood, 3000 K, tool-free fixation, system 14.7 W, 67 lm/W
    DIM POTI
    38 degrees
    traffic white, flood, 3000 K, tool-free fixation, system 14.7 W, 65 lm/W
    DIM POTI
    59x16 degrees oval
    traffic white, oval, 3000 K, tool-free fixation, system 14.7 W, 68 lm/W
    DIM POTI
    19 degrees
    traffic white, spot, 4000 K, tool-free fixation, system 14.7 W, 74 lm/W
    DIM POTI
    30 degrees
    traffic white, medium, 4000 K, tool-free fixation, system 14.7 W, 67 lm/W
    DIM POTI
    10 degrees
    traffic white, super spot, 4000 K, tool-free fixation, system 14.7 W, 74 lm/W
    DIM POTI
    40 degrees
    traffic white, flood, 4000 K, tool-free fixation, system 14.7 W, 71 lm/W
    DIM POTI
    38 degrees
    traffic white, flood, 4000 K, tool-free fixation, system 14.7 W, 70 lm/W
    DIM POTI
    64 degrees
    traffic white, wide flood, 4000 K, tool-free fixation, system 14.7 W, 65 lm/W
    DIM POTI
    59x16 degrees oval
    traffic white, oval, 4000 K, tool-free fixation, system 14.7 W, 73 lm/W
    DIM POTI

    Accessories

    Optical

    article number
    type
    OVAL FILTER
    080-5900020
    60 x 15°

    Optical

    article number
    type
    dimensions
    DIFFUSION SHEET FOR SUPERSPOT
    080-5900030
    for a better homogeneous illumination
    0.02 kg

    Mounting

    article number
    colour
    dimensions
    RECESSED HOUSING / POINT OUTLET
    186-072277
    traffic white
    RAL 9016
    diameter 151 mm
    height 60 mm
    0.25 kg
    RECESSED HOUSING / POINT OUTLET
    186-072278
    jet black
    RAL 9005
    diameter 151 mm
    height 60 mm
    0.34 kg
    SURFACE HOUSING / POINT OUTLET
    186-072287
    traffic white
    RAL 9016
    diameter 120 mm
    height 32 mm
    0.11 kg
    SURFACE HOUSING / POINT OUTLET
    186-072288
    jet black
    RAL 9005
    diameter 120 mm
    height 32 mm
    0.2 kg
