BO 32 / 45 / 55

intrack 1 | 2 | 3 lamps

Quickinfo

2700 K, 3000 K, 3500 K, 4000 K
CRI ≥ 90 / 2 SDCM, 3 SDCM
up to 91 lm/W
L80 / 50000 h, L85 / 50000 h
DALI-2
IP20

Colour

white

black

special colours

Products and codes

Discover family

Simple drawing

Light distribution

Downloads & links

Product data & specification documents

CataloguePage(s)
DWG - 2D

Special Colour Brochure

Download all

Aggregated downloads

IES
LDT
ROLF
ULD
GLDF

3DS
DWG - 3D
Revit BIM data
EPD

Description

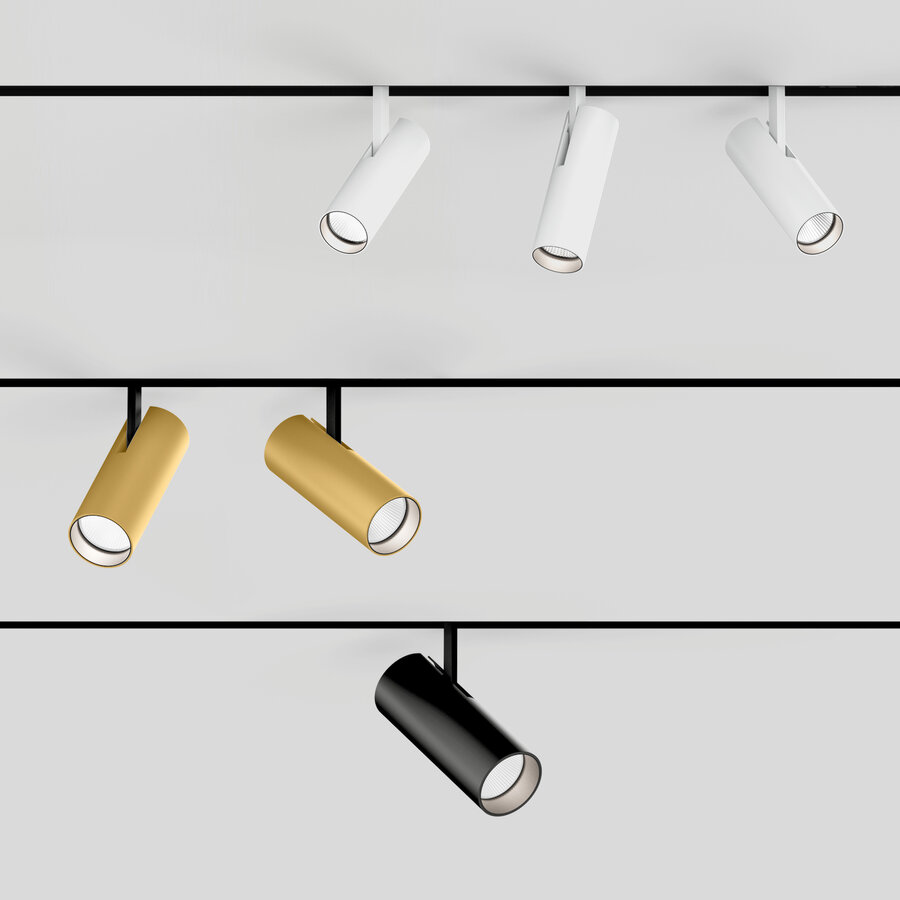

Track light made of die-cast aluminium; powder coated; spotlight head rotates 360° and tilts 90°; choice of single lamp, double lamps or triple lamp; converter in the adapter; with optional high quality lens system with precise radiation characteristic; or high quality, aluminium, vapour deposition coated reflector with faceted design; precise radiation characteristics with different beam angles; good glare reduction due to recessed light point plane; optical attachments as accessories; COB (Chip on Board) technology or high power LEDs - maximum efficiency; no multiple shadows; energy-eff. LEDs - very good colour rendering; adapter for toolless insertion or movement on a variety of 3-phase power tracks; adapter flush with the power track

only one adapter with 2 or 3 lamps

360° rotatable, 90° tiltable

glare control via honeycomb louver

oval lens for oval light illumination

CRI ≥ 95 2 SDCM

Products and codes

Filter

Colour

white

black

special colours

BO 32 intrack 1 lamp

Status

Article number(s)

Type

Dimming

black, 37° flood, 2700 K, 67 lm/W

DALI-2

black, 23° medium, 2700 K, 67 lm/W

DALI-2

black, 18° spot, 2700 K, 65 lm/W

DALI-2

black, 37° flood, 3000 K, 71 lm/W

DALI-2

black, 23° medium, 3000 K, 71 lm/W

DALI-2

black, 18° spot, 3000 K, 69 lm/W

DALI-2

black, 37° flood, 4000 K, 75 lm/W

DALI-2

black, 23° medium, 4000 K, 75 lm/W

DALI-2

black, 18° spot, 4000 K, 73 lm/W

DALI-2

black, 37° flood, 3500 K, 66 lm/W

DALI-2

black, 23° medium, 3500 K, 66 lm/W

DALI-2

black, 18° spot, 3500 K, 64 lm/W

DALI-2

BO 32 intrack 1 lamp

Status

Article number(s)

Type

Dimming

special colours, 37° flood, 2700 K, 67 lm/W

DALI-2

special colours, 23° medium, 2700 K, 67 lm/W

DALI-2

special colours, 18° spot, 2700 K, 65 lm/W

DALI-2

special colours, 37° flood, 3000 K, 71 lm/W

DALI-2

special colours, 23° medium, 3000 K, 71 lm/W

DALI-2

special colours, 18° spot, 3000 K, 69 lm/W

DALI-2

special colours, 37° flood, 4000 K, 75 lm/W

DALI-2

special colours, 23° medium, 4000 K, 75 lm/W

DALI-2

special colours, 18° spot, 4000 K, 73 lm/W

DALI-2

special colours, 37° flood, 3500 K, 66 lm/W

DALI-2

special colours, 23° medium, 3500 K, 66 lm/W

DALI-2

special colours, 18° spot, 3500 K, 64 lm/W

DALI-2

BO 32 intrack 1 lamp

Status

Article number(s)

Type

Dimming

white, 37° flood, 2700 K, 67 lm/W

DALI-2

white, 23° medium, 2700 K, 67 lm/W

DALI-2

white, 18° spot, 2700 K, 65 lm/W

DALI-2

white, 37° flood, 3000 K, 71 lm/W

DALI-2

white, 23° medium, 3000 K, 71 lm/W

DALI-2

white, 18° spot, 3000 K, 69 lm/W

DALI-2

white, 37° flood, 4000 K, 75 lm/W

DALI-2

white, 23° medium, 4000 K, 75 lm/W

DALI-2

white, 18° spot, 4000 K, 73 lm/W

DALI-2

white, 37° flood, 3500 K, 66 lm/W

DALI-2

white, 23° medium, 3500 K, 66 lm/W

DALI-2

white, 18° spot, 3500 K, 64 lm/W

DALI-2

BO 32 intrack 2 lamps

Status

Article number(s)

Type

Dimming

black, 34° flood, 2700 K, 73 lm/W

DALI-2

black, 24° medium, 2700 K, 76 lm/W

DALI-2

black, 18° spot, 2700 K, 73 lm/W

DALI-2

black, 34° flood, 3000 K, 77 lm/W

DALI-2

black, 24° medium, 3000 K, 81 lm/W

DALI-2

black, 18° spot, 3000 K, 78 lm/W

DALI-2

black, 34° flood, 4000 K, 82 lm/W

DALI-2

black, 24° medium, 4000 K, 86 lm/W

DALI-2

black, 18° spot, 4000 K, 83 lm/W

DALI-2

black, 34° flood, 3500 K, 72 lm/W

DALI-2

black, 24° medium, 3500 K, 75 lm/W

DALI-2

black, 18° spot, 3500 K, 72 lm/W

DALI-2

BO 32 intrack 2 lamps

Status

Article number(s)

Type

Dimming

special colours, 34° flood, 2700 K, 73 lm/W

DALI-2

special colours, 24° medium, 2700 K, 76 lm/W

DALI-2

special colours, 18° spot, 2700 K, 73 lm/W

DALI-2

special colours, 34° flood, 3000 K, 77 lm/W

DALI-2

special colours, 24° medium, 3000 K, 81 lm/W

DALI-2

special colours, 18° spot, 3000 K, 78 lm/W

DALI-2

special colours, 34° flood, 4000 K, 82 lm/W

DALI-2

special colours, 24° medium, 4000 K, 86 lm/W

DALI-2

special colours, 18° spot, 4000 K, 83 lm/W

DALI-2

special colours, 34° flood, 3500 K, 72 lm/W

DALI-2

special colours, 24° medium, 3500 K, 75 lm/W

DALI-2

special colours, 18° spot, 3500 K, 72 lm/W

DALI-2

BO 32 intrack 2 lamps

Status

Article number(s)

Type

Dimming

white, 34° flood, 2700 K, 73 lm/W

DALI-2

white, 24° medium, 2700 K, 76 lm/W

DALI-2

white, 18° spot, 2700 K, 73 lm/W

DALI-2

white, 34° flood, 3000 K, 77 lm/W

DALI-2

white, 24° medium, 3000 K, 81 lm/W

DALI-2

white, 18° spot, 3000 K, 78 lm/W

DALI-2

white, 34° flood, 4000 K, 82 lm/W

DALI-2

white, 24° medium, 4000 K, 86 lm/W

DALI-2

white, 18° spot, 4000 K, 83 lm/W

DALI-2

white, 34° flood, 3500 K, 72 lm/W

DALI-2

white, 24° medium, 3500 K, 75 lm/W

DALI-2

white, 18° spot, 3500 K, 72 lm/W

DALI-2

BO 32 intrack 3 lamps

Status

Article number(s)

Type

Dimming

black, 34° flood, 2700 K, 70 lm/W

DALI-2

black, 24° medium, 2700 K, 74 lm/W

DALI-2

black, 18° spot, 2700 K, 71 lm/W

DALI-2

black, 34° flood, 3000 K, 74 lm/W

DALI-2

black, 24° medium, 3000 K, 78 lm/W

DALI-2

black, 18° spot, 3000 K, 75 lm/W

DALI-2

black, 34° flood, 4000 K, 79 lm/W

DALI-2

black, 24° medium, 4000 K, 83 lm/W

DALI-2

black, 18° spot, 4000 K, 79 lm/W

DALI-2

black, 34° flood, 3500 K, 69 lm/W

DALI-2

black, 24° medium, 3500 K, 73 lm/W

DALI-2

black, 18° spot, 3500 K, 70 lm/W

DALI-2

BO 32 intrack 3 lamps

Status

Article number(s)

Type

Dimming

special colours, 34° flood, 2700 K, 70 lm/W

DALI-2

special colours, 24° medium, 2700 K, 74 lm/W

DALI-2

special colours, 18° spot, 2700 K, 71 lm/W

DALI-2

special colours, 34° flood, 3000 K, 74 lm/W

DALI-2

special colours, 24° medium, 3000 K, 78 lm/W

DALI-2

special colours, 18° spot, 3000 K, 75 lm/W

DALI-2

special colours, 34° flood, 4000 K, 79 lm/W

DALI-2

special colours, 24° medium, 4000 K, 83 lm/W

DALI-2

special colours, 18° spot, 4000 K, 79 lm/W

DALI-2

special colours, 34° flood, 3500 K, 69 lm/W

DALI-2

special colours, 24° medium, 3500 K, 73 lm/W

DALI-2

special colours, 18° spot, 3500 K, 70 lm/W

DALI-2

BO 32 intrack 3 lamps

Status

Article number(s)

Type

Dimming

white, 34° flood, 2700 K, 70 lm/W

DALI-2

white, 24° medium, 2700 K, 74 lm/W

DALI-2

white, 18° spot, 2700 K, 71 lm/W

DALI-2

white, 34° flood, 3000 K, 74 lm/W

DALI-2

white, 24° medium, 3000 K, 78 lm/W

DALI-2

white, 18° spot, 3000 K, 75 lm/W

DALI-2

white, 34° flood, 4000 K, 79 lm/W

DALI-2

white, 24° medium, 4000 K, 83 lm/W

DALI-2

white, 18° spot, 4000 K, 79 lm/W

DALI-2

white, 34° flood, 3500 K, 69 lm/W

DALI-2

white, 24° medium, 3500 K, 73 lm/W

DALI-2

white, 18° spot, 3500 K, 70 lm/W

DALI-2

BO 45 intrack 1 lamp

Status

Article number(s)

Type

Dimming

black, 36° flood, 2700 K, 78 lm/W

DALI-2

black, 24° medium, 2700 K, 77 lm/W

DALI-2

black, 12° spot, 2700 K, 71 lm/W

DALI-2

black, 8° super spot, 2700 K, 48 lm/W

DALI-2

black, 36° flood, 3000 K, 83 lm/W

DALI-2

black, 24° medium, 3000 K, 81 lm/W

DALI-2

black, 12° spot, 3000 K, 74 lm/W

DALI-2

black, 8° super spot, 3000 K, 41 lm/W

DALI-2

black, 36° flood, 4000 K, 88 lm/W

DALI-2

black, 24° medium, 4000 K, 86 lm/W

DALI-2

black, 12° spot, 4000 K, 79 lm/W

DALI-2

black, 8° super spot, 4000 K, 52 lm/W

DALI-2

black, 36° flood, 3500 K, 83 lm/W

DALI-2

black, 24° medium, 3500 K, 81 lm/W

DALI-2

black, 12° spot, 3500 K, 69 lm/W

DALI-2

black, 8° super spot, 3500 K, 52 lm/W

DALI-2

BO 45 intrack 1 lamp

Status

Article number(s)

Type

Dimming

special colours, 36° flood, 2700 K, 78 lm/W

DALI-2

special colours, 24° medium, 2700 K, 77 lm/W

DALI-2

special colours, 12° spot, 2700 K, 71 lm/W

DALI-2

special colours, 8° super spot, 2700 K, 48 lm/W

DALI-2

special colours, 36° flood, 3000 K, 83 lm/W

DALI-2

special colours, 24° medium, 3000 K, 81 lm/W

DALI-2

special colours, 12° spot, 3000 K, 74 lm/W

DALI-2

special colours, 8° super spot, 3000 K, 41 lm/W

DALI-2

special colours, 36° flood, 4000 K, 88 lm/W

DALI-2

special colours, 24° medium, 4000 K, 86 lm/W

DALI-2

special colours, 12° spot, 4000 K, 79 lm/W

DALI-2

special colours, 8° super spot, 4000 K, 52 lm/W

DALI-2

special colours, 36° flood, 3500 K, 83 lm/W

DALI-2

special colours, 24° medium, 3500 K, 81 lm/W

DALI-2

special colours, 12° spot, 3500 K, 69 lm/W

DALI-2

special colours, 8° super spot, 3500 K, 52 lm/W

DALI-2

BO 45 intrack 1 lamp

Status

Article number(s)

Type

Dimming

white, 36° flood, 2700 K, 78 lm/W

DALI-2

white, 24° medium, 2700 K, 77 lm/W

DALI-2

white, 12° spot, 2700 K, 71 lm/W

DALI-2

white, 8° super spot, 2700 K, 48 lm/W

DALI-2

white, 36° flood, 3000 K, 83 lm/W

DALI-2

white, 24° medium, 3000 K, 81 lm/W

DALI-2

white, 12° spot, 3000 K, 74 lm/W

DALI-2

white, 8° super spot, 3000 K, 41 lm/W

DALI-2

white, 36° flood, 4000 K, 88 lm/W

DALI-2

white, 24° medium, 4000 K, 86 lm/W

DALI-2

white, 12° spot, 4000 K, 79 lm/W

DALI-2

white, 8° super spot, 4000 K, 52 lm/W

DALI-2

white, 36° flood, 3500 K, 83 lm/W

DALI-2

white, 24° medium, 3500 K, 81 lm/W

DALI-2

white, 12° spot, 3500 K, 69 lm/W

DALI-2

white, 8° super spot, 3500 K, 52 lm/W

DALI-2

BO 45 intrack 2 lamps

Status

Article number(s)

Type

Dimming

black, 36° flood, 2700 K, 78 lm/W

DALI-2

black, 24° medium, 2700 K, 76 lm/W

DALI-2

black, 12° spot, 2700 K, 70 lm/W

DALI-2

black, 8° super spot, 2700 K, 52 lm/W

DALI-2

black, 36° flood, 3000 K, 83 lm/W

DALI-2

black, 24° medium, 3000 K, 81 lm/W

DALI-2

black, 12° spot, 3000 K, 74 lm/W

DALI-2

black, 8° super spot, 3000 K, 44 lm/W

DALI-2

black, 36° flood, 4000 K, 88 lm/W

DALI-2

black, 24° medium, 4000 K, 85 lm/W

DALI-2

black, 12° spot, 4000 K, 79 lm/W

DALI-2

black, 8° super spot, 4000 K, 56 lm/W

DALI-2

black, 36° flood, 3500 K, 83 lm/W

DALI-2

black, 24° medium, 3500 K, 80 lm/W

DALI-2

black, 12° spot, 3500 K, 69 lm/W

DALI-2

black, 8° super spot, 3500 K, 56 lm/W

DALI-2

BO 45 intrack 2 lamps

Status

Article number(s)

Type

Dimming

special colours, 36° flood, 2700 K, 78 lm/W

DALI-2

special colours, 24° medium, 2700 K, 76 lm/W

DALI-2

special colours, 12° spot, 2700 K, 70 lm/W

DALI-2

special colours, 8° super spot, 2700 K, 52 lm/W

DALI-2

special colours, 36° flood, 3000 K, 83 lm/W

DALI-2

special colours, 24° medium, 3000 K, 81 lm/W

DALI-2

special colours, 12° spot, 3000 K, 74 lm/W

DALI-2

special colours, 8° super spot, 3000 K, 44 lm/W

DALI-2

special colours, 36° flood, 4000 K, 88 lm/W

DALI-2

special colours, 24° medium, 4000 K, 85 lm/W

DALI-2

special colours, 12° spot, 4000 K, 79 lm/W

DALI-2

special colours, 8° super spot, 4000 K, 56 lm/W

DALI-2

special colours, 36° flood, 3500 K, 83 lm/W

DALI-2

special colours, 24° medium, 3500 K, 80 lm/W

DALI-2

special colours, 12° spot, 3500 K, 69 lm/W

DALI-2

special colours, 8° super spot, 3500 K, 56 lm/W

DALI-2

BO 45 intrack 2 lamps

Status

Article number(s)

Type

Dimming

white, 36° flood, 2700 K, 78 lm/W

DALI-2

white, 24° medium, 2700 K, 76 lm/W

DALI-2

white, 12° spot, 2700 K, 70 lm/W

DALI-2

white, 8° super spot, 2700 K, 52 lm/W

DALI-2

white, 36° flood, 3000 K, 83 lm/W

DALI-2

white, 24° medium, 3000 K, 81 lm/W

DALI-2

white, 12° spot, 3000 K, 74 lm/W

DALI-2

white, 8° super spot, 3000 K, 44 lm/W

DALI-2

white, 36° flood, 4000 K, 88 lm/W

DALI-2

white, 24° medium, 4000 K, 85 lm/W

DALI-2

white, 12° spot, 4000 K, 79 lm/W

DALI-2

white, 8° super spot, 4000 K, 56 lm/W

DALI-2

white, 36° flood, 3500 K, 83 lm/W

DALI-2

white, 24° medium, 3500 K, 80 lm/W

DALI-2

white, 12° spot, 3500 K, 69 lm/W

DALI-2

white, 8° super spot, 3500 K, 56 lm/W

DALI-2

BO 45 intrack 3 lamps

Status

Article number(s)

Type

Dimming

black, 36° flood, 2700 K, 81 lm/W

DALI-2

black, 24° medium, 2700 K, 79 lm/W

DALI-2

black, 12° spot, 2700 K, 70 lm/W

DALI-2

black, 36° flood, 3000 K, 86 lm/W

DALI-2

black, 24° medium, 3000 K, 84 lm/W

DALI-2

black, 12° spot, 3000 K, 74 lm/W

DALI-2

black, 36° flood, 4000 K, 91 lm/W

DALI-2

black, 24° medium, 4000 K, 89 lm/W

DALI-2

black, 12° spot, 4000 K, 79 lm/W

DALI-2

black, 36° flood, 3500 K, 86 lm/W

DALI-2

black, 24° medium, 3500 K, 83 lm/W

DALI-2

black, 12° spot, 3500 K, 69 lm/W

DALI-2

BO 45 intrack 3 lamps

Status

Article number(s)

Type

Dimming

special colours, 36° flood, 2700 K, 81 lm/W

DALI-2

special colours, 24° medium, 2700 K, 79 lm/W

DALI-2

special colours, 12° spot, 2700 K, 70 lm/W

DALI-2

special colours, 36° flood, 3000 K, 86 lm/W

DALI-2

special colours, 24° medium, 3000 K, 84 lm/W

DALI-2

special colours, 12° spot, 3000 K, 74 lm/W

DALI-2

special colours, 36° flood, 4000 K, 91 lm/W

DALI-2

special colours, 24° medium, 4000 K, 89 lm/W

DALI-2

special colours, 12° spot, 4000 K, 79 lm/W

DALI-2

special colours, 36° flood, 3500 K, 86 lm/W

DALI-2

special colours, 24° medium, 3500 K, 83 lm/W

DALI-2

special colours, 12° spot, 3500 K, 69 lm/W

DALI-2

BO 45 intrack 3 lamps

Status

Article number(s)

Type

Dimming

white, 36° flood, 2700 K, 81 lm/W

DALI-2

white, 24° medium, 2700 K, 79 lm/W

DALI-2

white, 12° spot, 2700 K, 70 lm/W

DALI-2

white, 36° flood, 3000 K, 86 lm/W

DALI-2

white, 24° medium, 3000 K, 84 lm/W

DALI-2

white, 12° spot, 3000 K, 74 lm/W

DALI-2

white, 36° flood, 4000 K, 91 lm/W

DALI-2

white, 24° medium, 4000 K, 89 lm/W

DALI-2

white, 12° spot, 4000 K, 79 lm/W

DALI-2

white, 36° flood, 3500 K, 86 lm/W

DALI-2

white, 24° medium, 3500 K, 83 lm/W

DALI-2

white, 12° spot, 3500 K, 69 lm/W

DALI-2

BO 55 intrack 1 lamp

Status

Article number(s)

Type

Dimming

black, 37° flood, 2700 K, 73 lm/W

DALI-2

black, 31° medium, 2700 K, 72 lm/W

DALI-2

black, 17° spot, 2700 K, 72 lm/W

DALI-2

black, 17° spot, 3000 K, 76 lm/W

DALI-2

black, 37° flood, 4000 K, 82 lm/W

DALI-2

black, 31° medium, 4000 K, 81 lm/W

DALI-2

black, 17° spot, 4000 K, 81 lm/W

DALI-2

black, 37° flood, 3500 K, 77 lm/W

DALI-2

black, 31° medium, 3500 K, 77 lm/W

DALI-2

black, 17° spot, 3500 K, 76 lm/W

DALI-2

Accessories

Optical

article number

colour

dimensions

HONEYCOMB LOUVER

007-1965168

jet black

RAL 9005

diameter 30 mm

height 3 mm

0.03 kg

HONEYCOMB LOUVER

007-1965188

jet black

RAL 9005

diameter 42 mm

height 3 mm

0.01 kg

HONEYCOMB LOUVER

007-1965598

jet black

RAL 9005

diameter 50 mm

height 3 mm

WALLWASHER LENS

007-1965760

diameter 30 mm

height 3 mm

0.08 kg

WALLWASHER LENS

007-1965780

diameter 42 mm

height 3 mm

WALLWASHER LENS

007-1965790

diameter 50 mm

height 3 mm

0.04 kg

OVAL LENS

007-1965860

diameter 30 mm

height 3 mm

0.05 kg

OVAL LENS

007-1965880

diameter 42 mm

height 3 mm

0.03 kg

OVAL LENS

007-1965890

diameter 50 mm

height 3 mm

0.05 kg

SOFT LENS

007-1965960

diameter 30 mm

height 3 mm

0.03 kg

SOFT LENS

007-1965980

diameter 42 mm

height 3 mm

0.04 kg

SOFT LENS

007-1965990

diameter 50 mm

height 3 mm

0.05 kg

BO 32 / 45 / 55

intrack 1 | 2 | 3 lamps

Quickinfo

Colour

Simple drawing

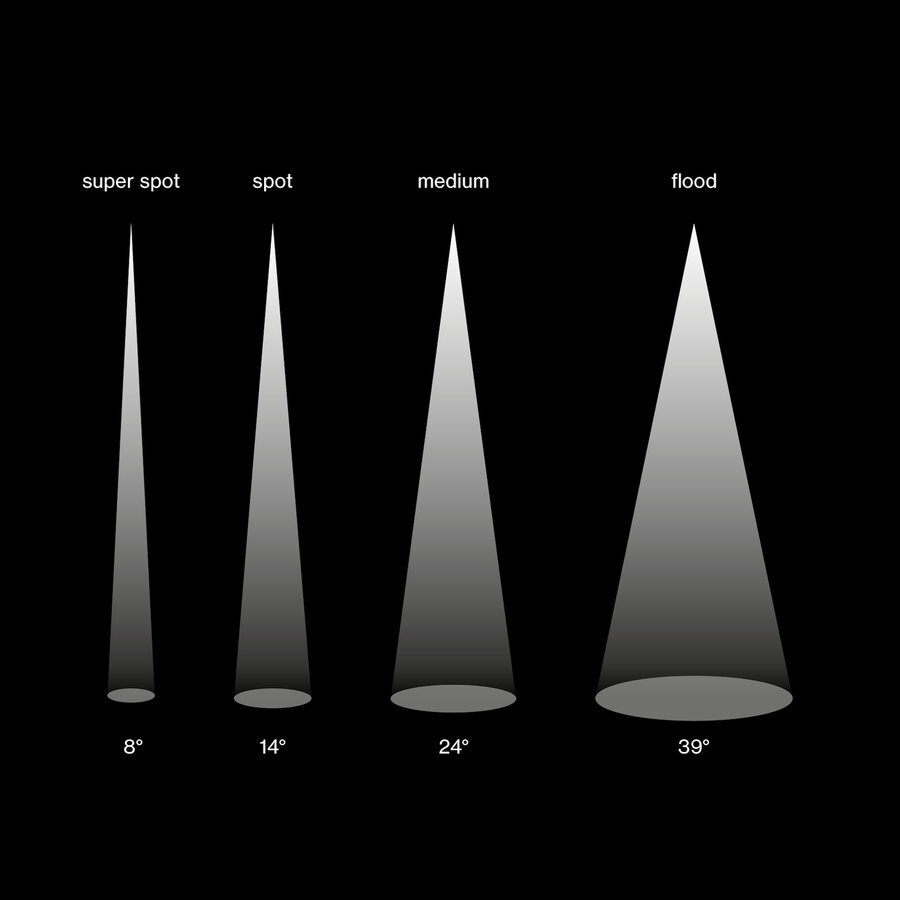

Light distribution

Product data & specification documents

Description

Products and codes

Colour

BO 32 intrack 1 lamp

BO 32 intrack 1 lamp

BO 32 intrack 1 lamp

BO 32 intrack 1 lamp

BO 32 intrack 1 lamp

BO 32 intrack 1 lamp

BO 32 intrack 2 lamps

BO 32 intrack 2 lamps

BO 32 intrack 2 lamps

BO 32 intrack 2 lamps

BO 32 intrack 2 lamps

BO 32 intrack 2 lamps

BO 32 intrack 3 lamps

BO 32 intrack 3 lamps

BO 32 intrack 3 lamps

BO 32 intrack 3 lamps

BO 32 intrack 3 lamps

BO 32 intrack 3 lamps

BO 45 intrack 1 lamp

BO 45 intrack 1 lamp

BO 45 intrack 1 lamp

BO 45 intrack 1 lamp

BO 45 intrack 1 lamp

BO 45 intrack 1 lamp

BO 45 intrack 2 lamps

BO 45 intrack 2 lamps

BO 45 intrack 2 lamps

BO 45 intrack 2 lamps

BO 45 intrack 2 lamps

BO 45 intrack 2 lamps

BO 45 intrack 3 lamps

BO 45 intrack 3 lamps

BO 45 intrack 3 lamps

BO 45 intrack 3 lamps

BO 45 intrack 3 lamps

BO 45 intrack 3 lamps

BO 55 intrack 1 lamp

BO 55 intrack 1 lamp

Accessories

Optical

Related products
