SASSO PRO 80 adjustable offset trim square
SASSO PRO 80 adjustable offset trim square
SASSO PRO 80 adjustable offset trim square
SASSO PRO 80 adjustable offset trim square

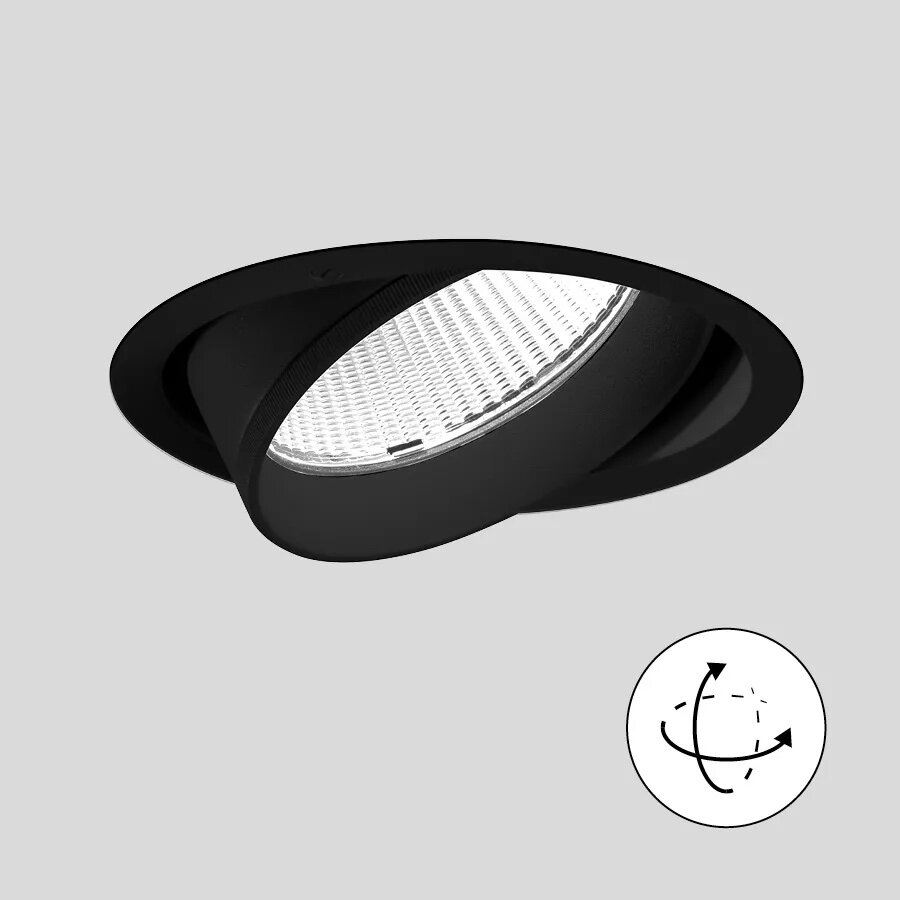

SASSO PRO adjustable
SASSO PRO high quality reflector

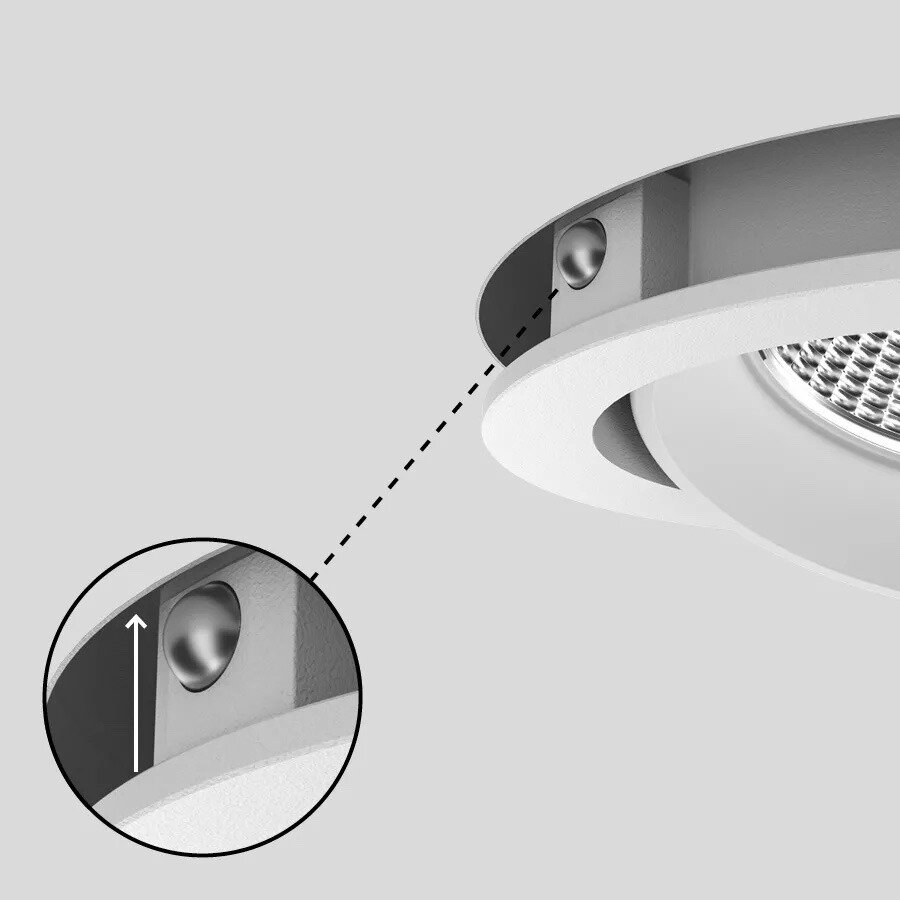

SASSO PRO ball catch system

SASSO PRO 80 adjustable offset square

recessed

Quickinfo

2700 K, 3000 K, 4000 K, colour warm dimming 1800 - 2700 K
CRI ≥ 90, CRI ≥ 95 / 2 SDCM (initial MacAdam), 3 SDCM (initial MacAdam), 4 SDCM (initial MacAdam)
UGR ≤ 10, UGR ≤ 19
up to 103 lm/W
L80 / 50000 h, L85 / 50000 h, L90 / 50000 h, L95 / 50000 h
DALI-2, non DIM
front IP20

Colour

Mounting set

Products and codes
Discover family

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all
  • 3DS
  • DWG - 3D
  • Revit BIM data

Description

Round recessed spotlight in die-cast aluminium; installation without tools in mounting set with ball catch system; surface powder coated; with trim (square); light inset rotatable and tiltable; offset lighting level; optical attachments available as accessories; with optional high-quality lens system with precise radiation characteristic; and high-quality reflector with spherical facet effect design, precise radiation characteristic with two different beam angles; installed and exchanged without tools; COB (Chip on Board) technology or high power LEDs for maximum efficiency; no multiple shadows; efficient LEDs with very good colour rendering

DiiA® standards 251, 252, 253

360° rotatable, 35° tiltable

Colour Warm Dimming 1800 – 2700 K

Products and codes

Filter
54
lm/W
103
lm/W
360
lm
1130
lm
6.5
W
12.2
W
0.49
0.86
0.44
0.78

Colour

Mounting set

SASSO PRO 80 adjustable offset trim square

SASSO PRO 80 adjustable offset trim square

SASSO PRO 80 adjustable offset trim square

Status
Article number(s)
Type
Dimming
traffic white, Mounting set jet black, flood, 2700 K, system 7.5 W, 97 lm/W
non DIM
traffic white, Mounting set jet black, medium, 2700 K, system 7.5 W, 96 lm/W
non DIM
traffic white, Mounting set jet black, super spot, 2700 K, system 7 W, 55 lm/W
non DIM
traffic white, Mounting set jet black, flood, 3000 K, system 7.5 W, 102 lm/W
non DIM
traffic white, Mounting set jet black, medium, 3000 K, system 7.5 W, 101 lm/W
non DIM
traffic white, Mounting set jet black, super spot, 3000 K, system 7 W, 54 lm/W
non DIM
traffic white, Mounting set jet black, flood, 4000 K, system 7.5 W, 103 lm/W
non DIM
traffic white, Mounting set jet black, medium, 4000 K, system 7.5 W, 102 lm/W
non DIM
traffic white, Mounting set jet black, super spot, 4000 K, system 7 W, 58 lm/W
non DIM
traffic white, Mounting set jet black, medium, colour warm dimming, system 6.5 W, 58 lm/W
DALI-2
traffic white, Mounting set jet black, flood, 2700 K, system 12.2 W, 84 lm/W
non DIM
traffic white, Mounting set jet black, medium, 2700 K, system 12.2 W, 83 lm/W
non DIM
traffic white, Mounting set jet black, flood, 2700 K, system 12.2 W, 84 lm/W
DALI-2
traffic white, Mounting set jet black, medium, 2700 K, system 12.2 W, 83 lm/W
DALI-2
traffic white, Mounting set jet black, flood, 3000 K, system 12.2 W, 87 lm/W
non DIM
traffic white, Mounting set jet black, medium, 3000 K, system 12.2 W, 86 lm/W
non DIM
traffic white, Mounting set jet black, flood, 3000 K, system 12.2 W, 87 lm/W
DALI-2
traffic white, Mounting set jet black, medium, 3000 K, system 12.2 W, 86 lm/W
DALI-2
traffic white, Mounting set jet black, flood, 4000 K, system 12.2 W, 93 lm/W
non DIM
traffic white, Mounting set jet black, medium, 4000 K, system 12.2 W, 92 lm/W
non DIM
traffic white, Mounting set jet black, flood, 4000 K, system 12.2 W, 93 lm/W
DALI-2
traffic white, Mounting set jet black, medium, 4000 K, system 12.2 W, 92 lm/W
DALI-2
SASSO PRO 80 adjustable offset trim square

SASSO PRO 80 adjustable offset trim square

SASSO PRO 80 adjustable offset trim square

Status
Article number(s)
Type
Dimming
traffic white, Mounting set traffic white, flood, 2700 K, system 7.5 W, 97 lm/W
non DIM
traffic white, Mounting set traffic white, medium, 2700 K, system 7.5 W, 96 lm/W
non DIM
traffic white, Mounting set traffic white, super spot, 2700 K, system 7 W, 55 lm/W
non DIM
traffic white, Mounting set traffic white, flood, 3000 K, system 7.5 W, 102 lm/W
non DIM
traffic white, Mounting set traffic white, medium, 3000 K, system 7.5 W, 101 lm/W
non DIM
traffic white, Mounting set traffic white, super spot, 3000 K, system 7 W, 54 lm/W
non DIM
traffic white, Mounting set traffic white, flood, 4000 K, system 7.5 W, 103 lm/W
non DIM
traffic white, Mounting set traffic white, medium, 4000 K, system 7.5 W, 102 lm/W
non DIM
traffic white, Mounting set traffic white, super spot, 4000 K, system 7 W, 58 lm/W
non DIM
traffic white, Mounting set traffic white, medium, colour warm dimming, system 6.5 W, 58 lm/W
DALI-2
traffic white, Mounting set traffic white, flood, 2700 K, system 12.2 W, 84 lm/W
non DIM
traffic white, Mounting set traffic white, medium, 2700 K, system 12.2 W, 83 lm/W
non DIM
traffic white, Mounting set traffic white, flood, 2700 K, system 12.2 W, 84 lm/W
DALI-2
traffic white, Mounting set traffic white, medium, 2700 K, system 12.2 W, 83 lm/W
DALI-2
traffic white, Mounting set traffic white, flood, 3000 K, system 12.2 W, 87 lm/W
non DIM
traffic white, Mounting set traffic white, medium, 3000 K, system 12.2 W, 86 lm/W
non DIM
traffic white, Mounting set traffic white, flood, 3000 K, system 12.2 W, 87 lm/W
DALI-2
traffic white, Mounting set traffic white, medium, 3000 K, system 12.2 W, 86 lm/W
DALI-2
traffic white, Mounting set traffic white, flood, 4000 K, system 12.2 W, 93 lm/W
non DIM
traffic white, Mounting set traffic white, medium, 4000 K, system 12.2 W, 92 lm/W
non DIM
traffic white, Mounting set traffic white, flood, 4000 K, system 12.2 W, 93 lm/W
DALI-2
traffic white, Mounting set traffic white, medium, 4000 K, system 12.2 W, 92 lm/W
DALI-2
SASSO PRO 80 adjustable offset trim square

SASSO PRO 80 adjustable offset trim square

SASSO PRO 80 adjustable offset trim square

Status
Article number(s)
Type
Dimming
jet black, Mounting set jet black, flood, 2700 K, system 7.5 W, 92 lm/W
non DIM
jet black, Mounting set jet black, medium, 2700 K, system 7.5 W, 92 lm/W
non DIM
jet black, Mounting set jet black, super spot, 2700 K, system 7 W, 55 lm/W
non DIM
jet black, Mounting set jet black, flood, 3000 K, system 7.5 W, 97 lm/W
non DIM
jet black, Mounting set jet black, medium, 3000 K, system 7.5 W, 96 lm/W
non DIM
jet black, Mounting set jet black, super spot, 3000 K, system 7 W, 54 lm/W
non DIM
jet black, Mounting set jet black, flood, 4000 K, system 7.5 W, 98 lm/W
non DIM
jet black, Mounting set jet black, medium, 4000 K, system 7.5 W, 97 lm/W
non DIM
jet black, Mounting set jet black, super spot, 4000 K, system 7 W, 58 lm/W
non DIM
jet black, Mounting set jet black, medium, colour warm dimming, system 6.5 W, 55 lm/W
DALI-2
jet black, Mounting set jet black, flood, 2700 K, system 12.2 W, 80 lm/W
non DIM
jet black, Mounting set jet black, medium, 2700 K, system 12.2 W, 79 lm/W
non DIM
jet black, Mounting set jet black, flood, 2700 K, system 12.2 W, 80 lm/W
DALI-2
jet black, Mounting set jet black, medium, 2700 K, system 12.2 W, 79 lm/W
DALI-2
jet black, Mounting set jet black, flood, 3000 K, system 12.2 W, 83 lm/W
non DIM
jet black, Mounting set jet black, medium, 3000 K, system 12.2 W, 82 lm/W
non DIM
jet black, Mounting set jet black, flood, 3000 K, system 12.2 W, 83 lm/W
DALI-2
jet black, Mounting set jet black, medium, 3000 K, system 12.2 W, 82 lm/W
DALI-2
jet black, Mounting set jet black, flood, 4000 K, system 12.2 W, 89 lm/W
non DIM
jet black, Mounting set jet black, medium, 4000 K, system 12.2 W, 88 lm/W
non DIM
jet black, Mounting set jet black, flood, 4000 K, system 12.2 W, 89 lm/W
DALI-2
jet black, Mounting set jet black, medium, 4000 K, system 12.2 W, 88 lm/W
DALI-2
SASSO PRO 80 adjustable offset trim square

SASSO PRO 80 adjustable offset trim square

SASSO PRO 80 adjustable offset trim square

Status
Article number(s)
Type
Dimming
jet black, Mounting set traffic white, flood, 2700 K, system 7.5 W, 92 lm/W
non DIM
jet black, Mounting set traffic white, medium, 2700 K, system 7.5 W, 92 lm/W
non DIM
jet black, Mounting set traffic white, super spot, 2700 K, system 7 W, 55 lm/W
non DIM
jet black, Mounting set traffic white, flood, 3000 K, system 7.5 W, 97 lm/W
non DIM
jet black, Mounting set traffic white, medium, 3000 K, system 7.5 W, 96 lm/W
non DIM
jet black, Mounting set traffic white, super spot, 3000 K, system 7 W, 54 lm/W
non DIM
jet black, Mounting set traffic white, flood, 4000 K, system 7.5 W, 98 lm/W
non DIM
jet black, Mounting set traffic white, medium, 4000 K, system 7.5 W, 97 lm/W
non DIM
jet black, Mounting set traffic white, super spot, 4000 K, system 7 W, 58 lm/W
non DIM
jet black, Mounting set traffic white, medium, colour warm dimming, system 6.5 W, 55 lm/W
DALI-2
jet black, Mounting set traffic white, flood, 2700 K, system 12.2 W, 80 lm/W
non DIM
jet black, Mounting set traffic white, medium, 2700 K, system 12.2 W, 79 lm/W
non DIM
jet black, Mounting set traffic white, flood, 2700 K, system 12.2 W, 80 lm/W
DALI-2
jet black, Mounting set traffic white, medium, 2700 K, system 12.2 W, 79 lm/W
DALI-2
jet black, Mounting set traffic white, flood, 3000 K, system 12.2 W, 83 lm/W
non DIM
jet black, Mounting set traffic white, medium, 3000 K, system 12.2 W, 82 lm/W
non DIM
jet black, Mounting set traffic white, flood, 3000 K, system 12.2 W, 83 lm/W
DALI-2
jet black, Mounting set traffic white, medium, 3000 K, system 12.2 W, 82 lm/W
DALI-2
jet black, Mounting set traffic white, flood, 4000 K, system 12.2 W, 89 lm/W
non DIM
jet black, Mounting set traffic white, medium, 4000 K, system 12.2 W, 88 lm/W
non DIM
jet black, Mounting set traffic white, flood, 4000 K, system 12.2 W, 89 lm/W
DALI-2
jet black, Mounting set traffic white, medium, 4000 K, system 12.2 W, 88 lm/W
DALI-2

Accessories

Mounting

article number
type
colour
dimensions
cut out dimensions
ceiling thickness
MOUNTING SET with trim
052-1952317
for intermediate ceilings
traffic white
RAL 9016
length 98 mm
width 98 mm
height 43 mm
0.08 kg
diameter
min. ceiling thickness 5 mm
max. ceiling thickness 25 mm
MOUNTING SET with trim
052-1952318
for intermediate ceilings
jet black
RAL 9005
length 98 mm
width 98 mm
height 43 mm
0.12 kg
diameter
min. ceiling thickness 5 mm
max. ceiling thickness 25 mm

Electrical mounting

article number
type
dimensions
THROUGH WIRING CONNECTION BOX
005-2531110
non DIM cable ø 4 – 12 mm
length 105 mm
width 58 mm
height 30 mm
0.06 kg
THROUGH WIRING CONNECTION BOX
005-2551110
DALI cable ø 4 – 12 mm
length 105 mm
width 58 mm
height 30 mm
0.07 kg

Optical

article number
colour
dimensions
SNOOT
048-2091117
traffic white
RAL 9016
diameter 54 mm
height 25 mm
0.02 kg
SNOOT
048-2091118
jet black
RAL 9005
diameter 54 mm
height 25 mm
0.01 kg
SNOOT WITH HONEYCOMB LOUVER
048-2091217
traffic white
RAL 9016
diameter 54 mm
height 25 mm
0.03 kg
SNOOT WITH HONEYCOMB LOUVER
048-2091218
jet black
RAL 9005
diameter 54 mm
height 25 mm
0.1 kg
HONEYCOMB LOUVER
048-2091317
traffic white
RAL 9016
diameter 54 mm
height 11 mm
0.02 kg
HONEYCOMB LOUVER
048-2091318
jet black
RAL 9005
diameter 54 mm
height 11 mm
0.02 kg
LINEAR PRISMATIC LENS
048-2092317
traffic white
RAL 9016
diameter 54 mm
height 11 mm
0.02 kg
LINEAR PRISMATIC LENS
048-2092318
jet black
RAL 9005
diameter 54 mm
height 11 mm
0.02 kg

Mounting

article number
dimensions
PRIMED CONCRETE MOUNTING HOUSING
052-1914320
length 240 mm
width 400 mm
height 130 mm
1.26 kg

Related products

New

SASSO PRO 60

semi-recessed / offset-recessed
New

SASSO PRO 80

semi-recessed / offset-recessed
New

SASSO PRO 100

semi-recessed / offset-recessed

SASSO PRO 80

adjustable flush round recessed

SASSO PRO 80

adjustable flush square recessed

SASSO PRO 80

adjustable offset round recessed

SASSO PRO 100

adjustable flush round recessed

SASSO PRO 100

adjustable flush square recessed

SASSO PRO 100

adjustable offset round recessed

SASSO PRO 100

adjustable offset square recessed
