SASSO 100 round

semi-recessed

New colour temperature Efficiency upgrade

Quickinfo

2700 K, 3000 K, 3500 K, 4000 K, tunable white 1800 K - 4000 K, tunable white 2700 K - 6500 K
CRI ≥ 90, CRI ≥ 92 / 2 SDCM, 3 SDCM
UGR ≤ 10, UGR ≤ 13, UGR ≤ 16, UGR ≤ 19
up to 127 lm/W
L80 / 50000 h, L85 / 50000 h, L90 / 50000 h
DALI-2, non DIM
front IP20

Colour

traffic white

jet black

Inner colour

gold dust

traffic white

jet black

matt silver

Products and codes

Discover family

Simple drawing

Light distribution

Downloads & links

Product data & specification documents

Datasheet product line

DWG - 2D

Download all

Aggregated downloads

IES
LDT
ROLF

ULD
3DS
DWG - 3D

Description

Cylindrical semi-recessed spotlight made of aluminium; surface light inset lacquered; surface housing powder coated; luminaire housing can be attached to mounting plate without tools by interlock; light inset rotatable and tiltable; symmetric radiation characteristic - precise due to high quality lens system; with different beam angles; COB (Chip on Board) technology for maximum efficiency; no multiple shadows; efficient LEDs with very good colour rendering; external converter for ceiling insertion, for through-wiring suitable

wallwasher and wallwasher floor inset

glare control (UGR ≤ 16)

easy mounting
no visible screws

Colour Warm Dimming 1800 – 3000 K (optional)

CRI ≥ 95 2 SDCM (optional)

Products and codes

Filter

Colour

traffic white

jet black

Inner colour

gold dust

traffic white

jet black

matt silver

SASSO 100 round adjustable semi-recessed

Status

Article number(s)

Type

Dimming

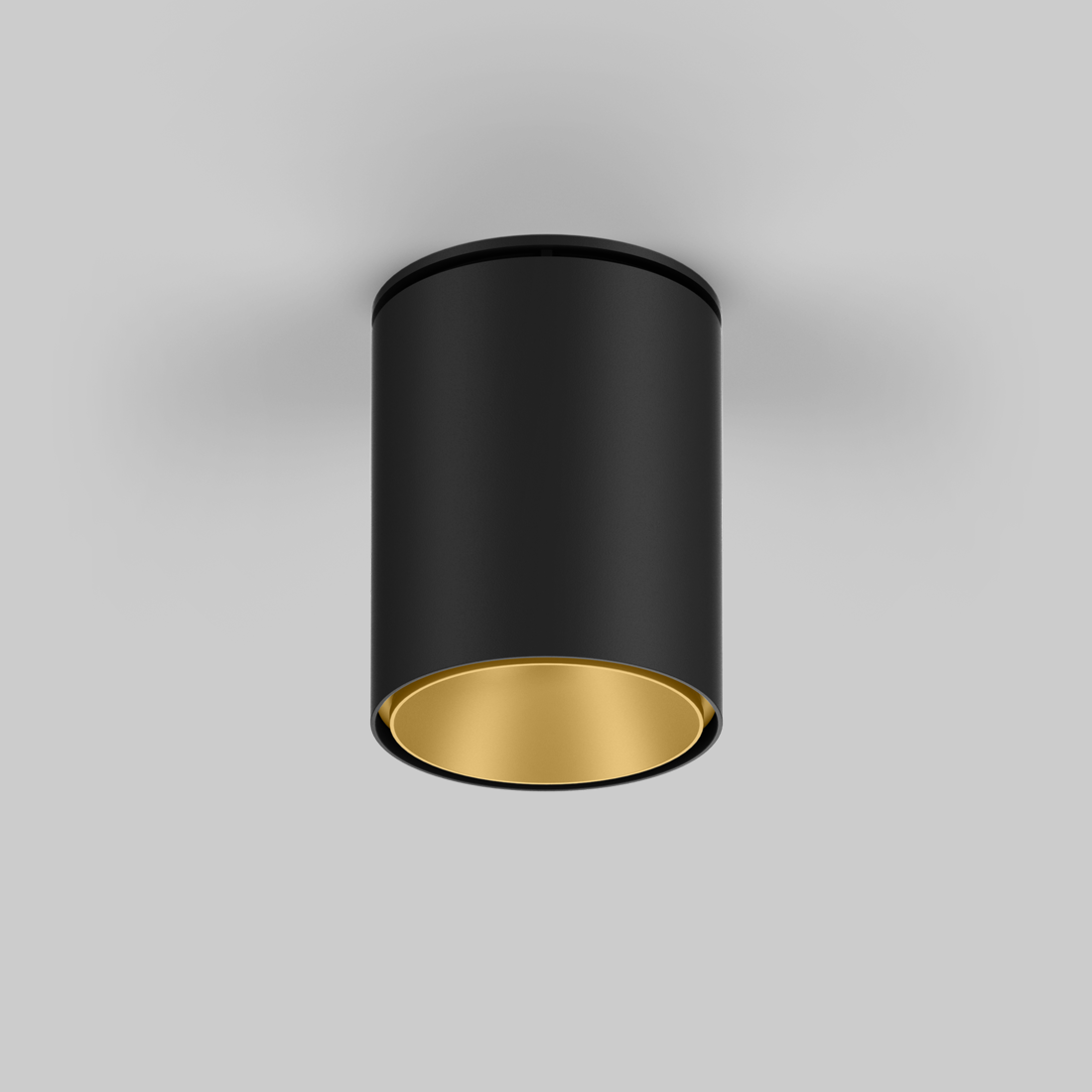

jet black, Inner colour gold dust, 39° flood, 3000 K, fixture 15.2 W, 102 lm/W

non DIM

jet black, Inner colour gold dust, 39° flood, 3000 K, fixture 15.2 W, 102 lm/W

DALI-2

jet black, Inner colour gold dust, 31° medium, 3000 K, fixture 15.2 W, 113 lm/W

non DIM

jet black, Inner colour gold dust, 31° medium, 3000 K, fixture 15.2 W, 113 lm/W

DALI-2

jet black, Inner colour gold dust, 20° spot, 3000 K, fixture 15.2 W, 110 lm/W

non DIM

jet black, Inner colour gold dust, 20° spot, 3000 K, fixture 15.2 W, 110 lm/W

DALI-2

jet black, Inner colour gold dust, 56° wide flood, 3000 K, fixture 15.2 W, 116 lm/W

non DIM

jet black, Inner colour gold dust, 56° wide flood, 3000 K, fixture 15.2 W, 116 lm/W

DALI-2

jet black, Inner colour gold dust, 39° flood, 4000 K, fixture 15.2 W, 107 lm/W

non DIM

jet black, Inner colour gold dust, 39° flood, 4000 K, fixture 15.2 W, 107 lm/W

DALI-2

jet black, Inner colour gold dust, 31° medium, 4000 K, fixture 15.2 W, 119 lm/W

non DIM

jet black, Inner colour gold dust, 31° medium, 4000 K, fixture 15.2 W, 119 lm/W

DALI-2

jet black, Inner colour gold dust, 20° spot, 4000 K, fixture 15.2 W, 115 lm/W

non DIM

jet black, Inner colour gold dust, 20° spot, 4000 K, fixture 15.2 W, 115 lm/W

DALI-2

jet black, Inner colour gold dust, 56° wide flood, 4000 K, fixture 15.2 W, 122 lm/W

non DIM

jet black, Inner colour gold dust, 56° wide flood, 4000 K, fixture 15.2 W, 122 lm/W

DALI-2

jet black, Inner colour gold dust, 39° flood, 3500 K, fixture 15.2 W, 105 lm/W

non DIM

jet black, Inner colour gold dust, 39° flood, 3500 K, fixture 15.2 W, 105 lm/W

DALI-2

jet black, Inner colour gold dust, 31° medium, 3500 K, fixture 15.2 W, 116 lm/W

non DIM

jet black, Inner colour gold dust, 31° medium, 3500 K, fixture 15.2 W, 116 lm/W

DALI-2

jet black, Inner colour gold dust, 20° spot, 3500 K, fixture 15.2 W, 113 lm/W

non DIM

jet black, Inner colour gold dust, 20° spot, 3500 K, fixture 15.2 W, 113 lm/W

DALI-2

jet black, Inner colour gold dust, 56° wide flood, 3500 K, fixture 15.2 W, 119 lm/W

non DIM

jet black, Inner colour gold dust, 56° wide flood, 3500 K, fixture 15.2 W, 119 lm/W

DALI-2

jet black, Inner colour gold dust, 39° flood, 2700 K, fixture 15.2 W, 99 lm/W

non DIM

jet black, Inner colour gold dust, 39° flood, 2700 K, fixture 15.2 W, 99 lm/W

DALI-2

jet black, Inner colour gold dust, 31° medium, 2700 K, fixture 15.2 W, 110 lm/W

non DIM

jet black, Inner colour gold dust, 31° medium, 2700 K, fixture 15.2 W, 110 lm/W

DALI-2

jet black, Inner colour gold dust, 20° spot, 2700 K, fixture 15.2 W, 107 lm/W

non DIM

jet black, Inner colour gold dust, 20° spot, 2700 K, fixture 15.2 W, 107 lm/W

DALI-2

jet black, Inner colour gold dust, 56° wide flood, 2700 K, fixture 15.2 W, 113 lm/W

non DIM

jet black, Inner colour gold dust, 56° wide flood, 2700 K, fixture 15.2 W, 113 lm/W

DALI-2

jet black, Inner colour gold dust, 33° medium, tunable white, 2700 K - 6500 K, 72 lm/W

DALI-2

jet black, Inner colour gold dust, 53° wide flood, tunable white, 2700 K - 6500 K, 75 lm/W

DALI-2

jet black, Inner colour gold dust, 33° medium, tunable white, 1800 K - 4000 K, 70 lm/W

DALI-2

jet black, Inner colour gold dust, 53° wide flood, tunable white, 1800 K - 4000 K, 72 lm/W

DALI-2

SASSO 100 round adjustable semi-recessed

Status

Article number(s)

Type

Dimming

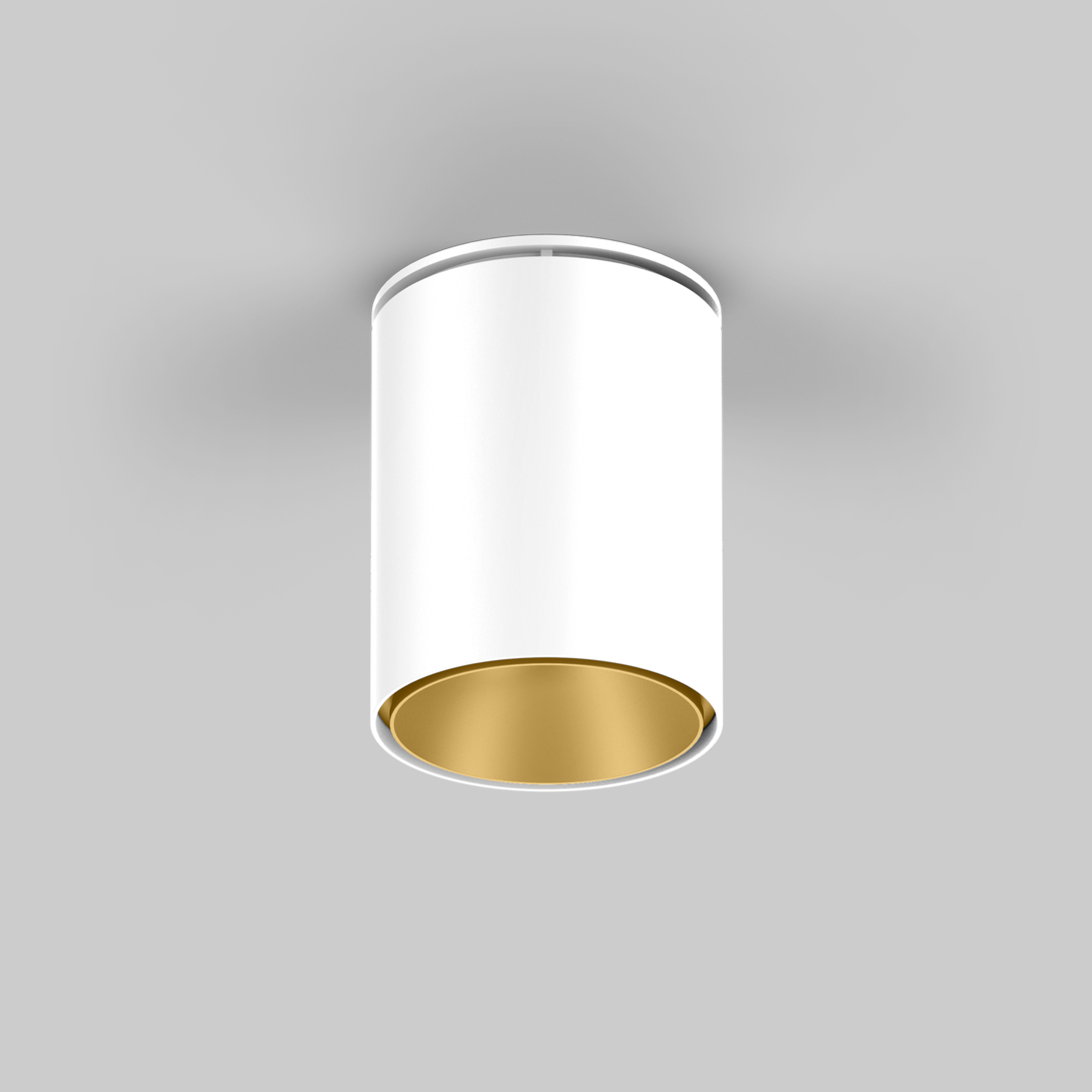

traffic white, Inner colour gold dust, 39° flood, 3000 K, fixture 15.2 W, 102 lm/W

non DIM

traffic white, Inner colour gold dust, 39° flood, 3000 K, fixture 15.2 W, 102 lm/W

DALI-2

traffic white, Inner colour gold dust, 31° medium, 3000 K, fixture 15.2 W, 113 lm/W

non DIM

traffic white, Inner colour gold dust, 31° medium, 3000 K, fixture 15.2 W, 113 lm/W

DALI-2

traffic white, Inner colour gold dust, 20° spot, 3000 K, fixture 15.2 W, 110 lm/W

non DIM

traffic white, Inner colour gold dust, 20° spot, 3000 K, fixture 15.2 W, 110 lm/W

DALI-2

traffic white, Inner colour gold dust, 56° wide flood, 3000 K, fixture 15.2 W, 116 lm/W

non DIM

traffic white, Inner colour gold dust, 56° wide flood, 3000 K, fixture 15.2 W, 116 lm/W

DALI-2

traffic white, Inner colour gold dust, 39° flood, 4000 K, fixture 15.2 W, 107 lm/W

non DIM

traffic white, Inner colour gold dust, 39° flood, 4000 K, fixture 15.2 W, 107 lm/W

DALI-2

traffic white, Inner colour gold dust, 31° medium, 4000 K, fixture 15.2 W, 119 lm/W

non DIM

traffic white, Inner colour gold dust, 31° medium, 4000 K, fixture 15.2 W, 119 lm/W

DALI-2

traffic white, Inner colour gold dust, 20° spot, 4000 K, fixture 15.2 W, 115 lm/W

non DIM

traffic white, Inner colour gold dust, 20° spot, 4000 K, fixture 15.2 W, 115 lm/W

DALI-2

traffic white, Inner colour gold dust, 56° wide flood, 4000 K, fixture 15.2 W, 122 lm/W

non DIM

traffic white, Inner colour gold dust, 56° wide flood, 4000 K, fixture 15.2 W, 122 lm/W

DALI-2

traffic white, Inner colour gold dust, 39° flood, 3500 K, fixture 15.2 W, 105 lm/W

non DIM

traffic white, Inner colour gold dust, 39° flood, 3500 K, fixture 15.2 W, 105 lm/W

DALI-2

traffic white, Inner colour gold dust, 31° medium, 3500 K, fixture 15.2 W, 116 lm/W

non DIM

traffic white, Inner colour gold dust, 31° medium, 3500 K, fixture 15.2 W, 116 lm/W

DALI-2

traffic white, Inner colour gold dust, 20° spot, 3500 K, fixture 15.2 W, 113 lm/W

non DIM

traffic white, Inner colour gold dust, 20° spot, 3500 K, fixture 15.2 W, 113 lm/W

DALI-2

traffic white, Inner colour gold dust, 56° wide flood, 3500 K, fixture 15.2 W, 119 lm/W

non DIM

traffic white, Inner colour gold dust, 56° wide flood, 3500 K, fixture 15.2 W, 119 lm/W

DALI-2

traffic white, Inner colour gold dust, 39° flood, 2700 K, fixture 15.2 W, 99 lm/W

non DIM

traffic white, Inner colour gold dust, 39° flood, 2700 K, fixture 15.2 W, 99 lm/W

DALI-2

traffic white, Inner colour gold dust, 31° medium, 2700 K, fixture 15.2 W, 110 lm/W

non DIM

traffic white, Inner colour gold dust, 31° medium, 2700 K, fixture 15.2 W, 110 lm/W

DALI-2

traffic white, Inner colour gold dust, 20° spot, 2700 K, fixture 15.2 W, 107 lm/W

non DIM

traffic white, Inner colour gold dust, 20° spot, 2700 K, fixture 15.2 W, 107 lm/W

DALI-2

traffic white, Inner colour gold dust, 56° wide flood, 2700 K, fixture 15.2 W, 113 lm/W

non DIM

traffic white, Inner colour gold dust, 56° wide flood, 2700 K, fixture 15.2 W, 113 lm/W

DALI-2

traffic white, Inner colour gold dust, 33° medium, tunable white, 2700 K - 6500 K, 72 lm/W

DALI-2

traffic white, Inner colour gold dust, 53° wide flood, tunable white, 2700 K - 6500 K, 75 lm/W

DALI-2

traffic white, Inner colour gold dust, 33° medium, tunable white, 1800 K - 4000 K, 70 lm/W

DALI-2

traffic white, Inner colour gold dust, 53° wide flood, tunable white, 1800 K - 4000 K, 72 lm/W

DALI-2

SASSO 100 round adjustable semi-recessed

Status

Article number(s)

Type

Dimming

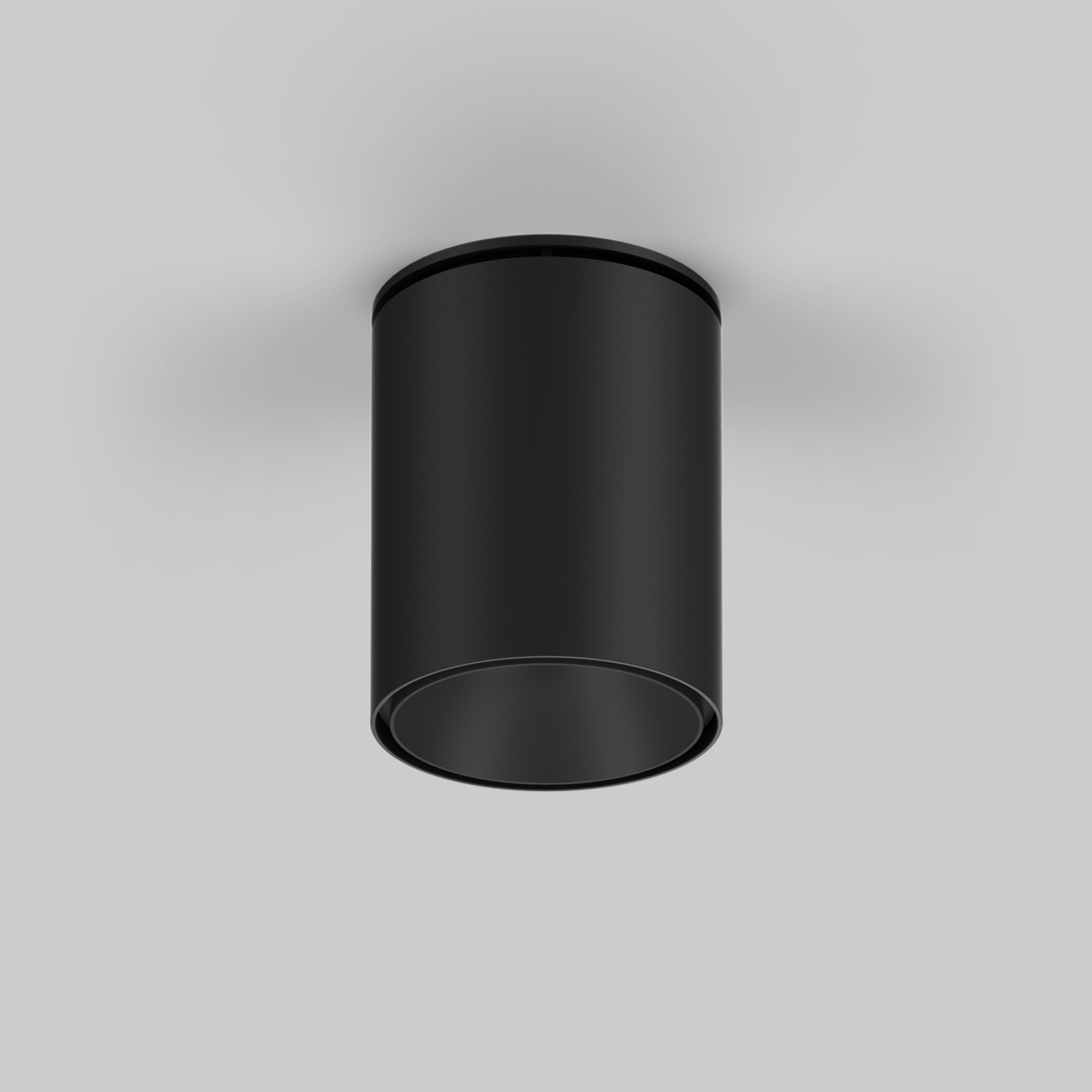

jet black, Inner colour jet black, 39° flood, 3000 K, fixture 15.2 W, 102 lm/W

non DIM

jet black, Inner colour jet black, 39° flood, 3000 K, fixture 15.2 W, 102 lm/W

DALI-2

jet black, Inner colour jet black, 31° medium, 3000 K, fixture 15.2 W, 111 lm/W

non DIM

jet black, Inner colour jet black, 31° medium, 3000 K, fixture 15.2 W, 111 lm/W

DALI-2

jet black, Inner colour jet black, 20° spot, 3000 K, fixture 15.2 W, 109 lm/W

non DIM

jet black, Inner colour jet black, 20° spot, 3000 K, fixture 15.2 W, 109 lm/W

DALI-2

jet black, Inner colour jet black, 56° wide flood, 3000 K, fixture 15.2 W, 115 lm/W

non DIM

jet black, Inner colour jet black, 56° wide flood, 3000 K, fixture 15.2 W, 115 lm/W

DALI-2

jet black, Inner colour jet black, 39° flood, 4000 K, fixture 15.2 W, 107 lm/W

non DIM

jet black, Inner colour jet black, 39° flood, 4000 K, fixture 15.2 W, 107 lm/W

DALI-2

jet black, Inner colour jet black, 31° medium, 4000 K, fixture 15.2 W, 116 lm/W

non DIM

jet black, Inner colour jet black, 31° medium, 4000 K, fixture 15.2 W, 116 lm/W

DALI-2

jet black, Inner colour jet black, 20° spot, 4000 K, fixture 15.2 W, 114 lm/W

non DIM

jet black, Inner colour jet black, 20° spot, 4000 K, fixture 15.2 W, 114 lm/W

DALI-2

jet black, Inner colour jet black, 56° wide flood, 4000 K, fixture 15.2 W, 121 lm/W

non DIM

jet black, Inner colour jet black, 56° wide flood, 4000 K, fixture 15.2 W, 121 lm/W

DALI-2

jet black, Inner colour jet black, 39° flood, 3500 K, fixture 15.2 W, 104 lm/W

non DIM

jet black, Inner colour jet black, 39° flood, 3500 K, fixture 15.2 W, 104 lm/W

DALI-2

jet black, Inner colour jet black, 31° medium, 3500 K, fixture 15.2 W, 114 lm/W

non DIM

jet black, Inner colour jet black, 31° medium, 3500 K, fixture 15.2 W, 114 lm/W

DALI-2

jet black, Inner colour jet black, 20° spot, 3500 K, fixture 15.2 W, 111 lm/W

non DIM

jet black, Inner colour jet black, 20° spot, 3500 K, fixture 15.2 W, 111 lm/W

DALI-2

jet black, Inner colour jet black, 56° wide flood, 3500 K, fixture 15.2 W, 118 lm/W

non DIM

jet black, Inner colour jet black, 56° wide flood, 3500 K, fixture 15.2 W, 118 lm/W

DALI-2

jet black, Inner colour jet black, 39° flood, 2700 K, fixture 15.2 W, 99 lm/W

non DIM

jet black, Inner colour jet black, 39° flood, 2700 K, fixture 15.2 W, 99 lm/W

DALI-2

jet black, Inner colour jet black, 31° medium, 2700 K, fixture 15.2 W, 108 lm/W

non DIM

jet black, Inner colour jet black, 31° medium, 2700 K, fixture 15.2 W, 108 lm/W

DALI-2

jet black, Inner colour jet black, 20° spot, 2700 K, fixture 15.2 W, 106 lm/W

non DIM

jet black, Inner colour jet black, 20° spot, 2700 K, fixture 15.2 W, 106 lm/W

DALI-2

jet black, Inner colour jet black, 56° wide flood, 2700 K, fixture 15.2 W, 112 lm/W

non DIM

jet black, Inner colour jet black, 56° wide flood, 2700 K, fixture 15.2 W, 112 lm/W

DALI-2

jet black, Inner colour jet black, 33° medium, tunable white, 2700 K - 6500 K, 71 lm/W

DALI-2

jet black, Inner colour jet black, 53° wide flood, tunable white, 2700 K - 6500 K, 74 lm/W

DALI-2

jet black, Inner colour jet black, 33° medium, tunable white, 1800 K - 4000 K, 68 lm/W

DALI-2

jet black, Inner colour jet black, 53° wide flood, tunable white, 1800 K - 4000 K, 71 lm/W

DALI-2

SASSO 100 round adjustable semi-recessed

Status

Article number(s)

Type

Dimming

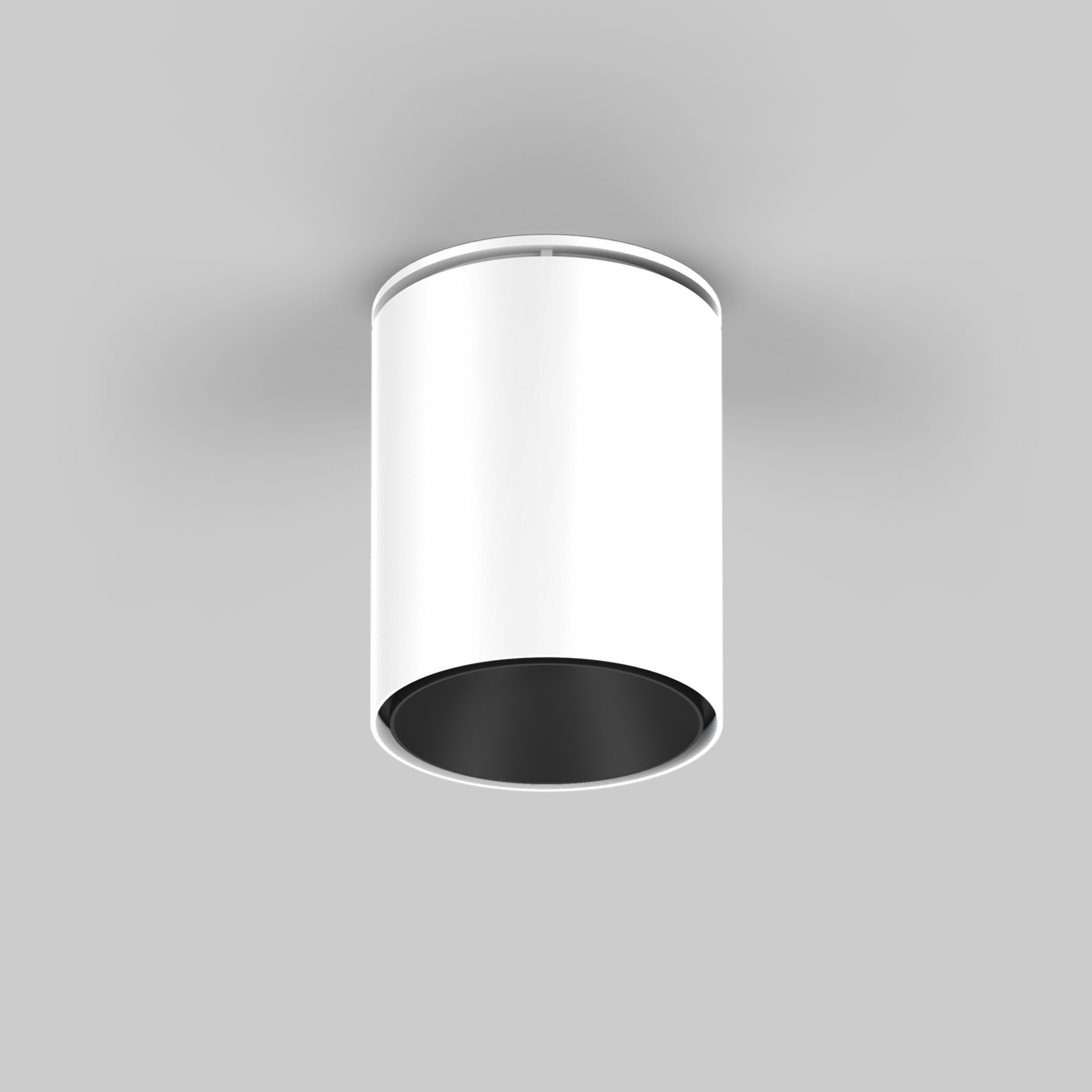

traffic white, Inner colour jet black, 39° flood, 3000 K, fixture 15.2 W, 102 lm/W

non DIM

traffic white, Inner colour jet black, 39° flood, 3000 K, fixture 15.2 W, 102 lm/W

DALI-2

traffic white, Inner colour jet black, 31° medium, 3000 K, fixture 15.2 W, 111 lm/W

non DIM

traffic white, Inner colour jet black, 31° medium, 3000 K, fixture 15.2 W, 111 lm/W

DALI-2

traffic white, Inner colour jet black, 20° spot, 3000 K, fixture 15.2 W, 109 lm/W

non DIM

traffic white, Inner colour jet black, 20° spot, 3000 K, fixture 15.2 W, 109 lm/W

DALI-2

traffic white, Inner colour jet black, 56° wide flood, 3000 K, fixture 15.2 W, 115 lm/W

non DIM

traffic white, Inner colour jet black, 56° wide flood, 3000 K, fixture 15.2 W, 115 lm/W

DALI-2

traffic white, Inner colour jet black, 39° flood, 4000 K, fixture 15.2 W, 107 lm/W

non DIM

traffic white, Inner colour jet black, 39° flood, 4000 K, fixture 15.2 W, 107 lm/W

DALI-2

traffic white, Inner colour jet black, 31° medium, 4000 K, fixture 15.2 W, 116 lm/W

non DIM

traffic white, Inner colour jet black, 31° medium, 4000 K, fixture 15.2 W, 116 lm/W

DALI-2

traffic white, Inner colour jet black, 20° spot, 4000 K, fixture 15.2 W, 114 lm/W

non DIM

traffic white, Inner colour jet black, 20° spot, 4000 K, fixture 15.2 W, 114 lm/W

DALI-2

traffic white, Inner colour jet black, 56° wide flood, 4000 K, fixture 15.2 W, 121 lm/W

non DIM

traffic white, Inner colour jet black, 56° wide flood, 4000 K, fixture 15.2 W, 121 lm/W

DALI-2

traffic white, Inner colour jet black, 39° flood, 3500 K, fixture 15.2 W, 104 lm/W

non DIM

traffic white, Inner colour jet black, 39° flood, 3500 K, fixture 15.2 W, 104 lm/W

DALI-2

traffic white, Inner colour jet black, 31° medium, 3500 K, fixture 15.2 W, 114 lm/W

non DIM

traffic white, Inner colour jet black, 31° medium, 3500 K, fixture 15.2 W, 114 lm/W

DALI-2

traffic white, Inner colour jet black, 20° spot, 3500 K, fixture 15.2 W, 111 lm/W

non DIM

traffic white, Inner colour jet black, 20° spot, 3500 K, fixture 15.2 W, 111 lm/W

DALI-2

traffic white, Inner colour jet black, 56° wide flood, 3500 K, fixture 15.2 W, 118 lm/W

non DIM

traffic white, Inner colour jet black, 56° wide flood, 3500 K, fixture 15.2 W, 118 lm/W

DALI-2

traffic white, Inner colour jet black, 39° flood, 2700 K, fixture 15.2 W, 99 lm/W

non DIM

traffic white, Inner colour jet black, 39° flood, 2700 K, fixture 15.2 W, 99 lm/W

DALI-2

traffic white, Inner colour jet black, 31° medium, 2700 K, fixture 15.2 W, 108 lm/W

non DIM

traffic white, Inner colour jet black, 31° medium, 2700 K, fixture 15.2 W, 108 lm/W

DALI-2

traffic white, Inner colour jet black, 20° spot, 2700 K, fixture 15.2 W, 106 lm/W

non DIM

traffic white, Inner colour jet black, 20° spot, 2700 K, fixture 15.2 W, 106 lm/W

DALI-2

traffic white, Inner colour jet black, 56° wide flood, 2700 K, fixture 15.2 W, 112 lm/W

non DIM

traffic white, Inner colour jet black, 56° wide flood, 2700 K, fixture 15.2 W, 112 lm/W

DALI-2

traffic white, Inner colour jet black, 33° medium, tunable white, 2700 K - 6500 K, 71 lm/W

DALI-2

traffic white, Inner colour jet black, 53° wide flood, tunable white, 2700 K - 6500 K, 74 lm/W

DALI-2

traffic white, Inner colour jet black, 33° medium, tunable white, 1800 K - 4000 K, 68 lm/W

DALI-2

traffic white, Inner colour jet black, 53° wide flood, tunable white, 1800 K - 4000 K, 71 lm/W

DALI-2

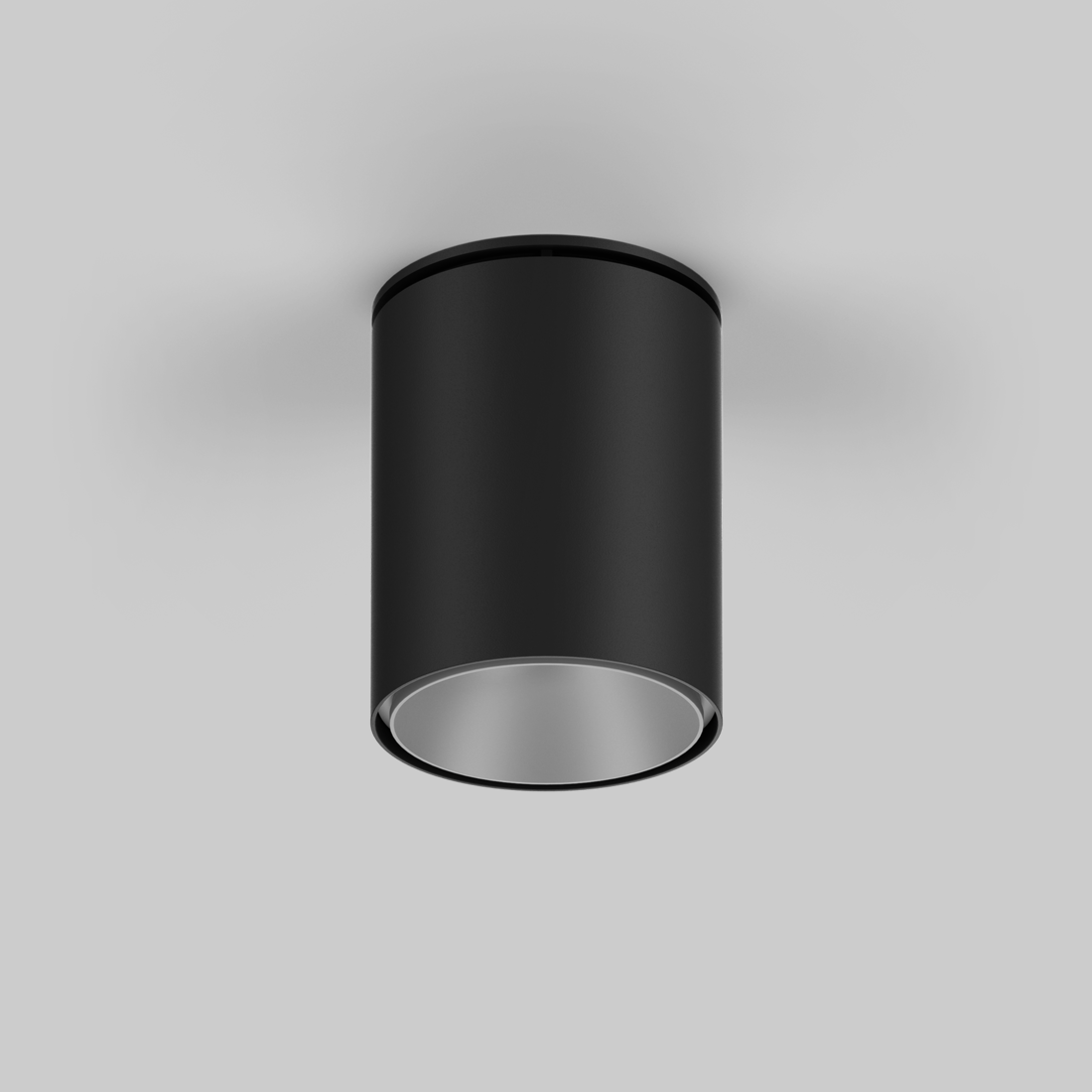

SASSO 100 round adjustable semi-recessed

Status

Article number(s)

Type

Dimming

jet black, Inner colour matt silver, 39° flood, 3000 K, fixture 15.2 W, 107 lm/W

non DIM

jet black, Inner colour matt silver, 39° flood, 3000 K, fixture 15.2 W, 107 lm/W

DALI-2

jet black, Inner colour matt silver, 31° medium, 3000 K, fixture 15.2 W, 118 lm/W

non DIM

jet black, Inner colour matt silver, 31° medium, 3000 K, fixture 15.2 W, 118 lm/W

DALI-2

jet black, Inner colour matt silver, 20° spot, 3000 K, fixture 15.2 W, 115 lm/W

non DIM

jet black, Inner colour matt silver, 20° spot, 3000 K, fixture 15.2 W, 115 lm/W

DALI-2

jet black, Inner colour matt silver, 56° wide flood, 3000 K, fixture 15.2 W, 121 lm/W

non DIM

jet black, Inner colour matt silver, 56° wide flood, 3000 K, fixture 15.2 W, 121 lm/W

DALI-2

jet black, Inner colour matt silver, 39° flood, 4000 K, fixture 15.2 W, 112 lm/W

non DIM

jet black, Inner colour matt silver, 39° flood, 4000 K, fixture 15.2 W, 112 lm/W

DALI-2

jet black, Inner colour matt silver, 31° medium, 4000 K, fixture 15.2 W, 124 lm/W

non DIM

jet black, Inner colour matt silver, 31° medium, 4000 K, fixture 15.2 W, 124 lm/W

DALI-2

jet black, Inner colour matt silver, 20° spot, 4000 K, fixture 15.2 W, 120 lm/W

non DIM

jet black, Inner colour matt silver, 20° spot, 4000 K, fixture 15.2 W, 120 lm/W

DALI-2

jet black, Inner colour matt silver, 56° wide flood, 4000 K, fixture 15.2 W, 127 lm/W

non DIM

jet black, Inner colour matt silver, 56° wide flood, 4000 K, fixture 15.2 W, 127 lm/W

DALI-2

jet black, Inner colour matt silver, 39° flood, 3500 K, fixture 15.2 W, 109 lm/W

non DIM

jet black, Inner colour matt silver, 39° flood, 3500 K, fixture 15.2 W, 109 lm/W

DALI-2

jet black, Inner colour matt silver, 31° medium, 3500 K, fixture 15.2 W, 121 lm/W

non DIM

jet black, Inner colour matt silver, 31° medium, 3500 K, fixture 15.2 W, 121 lm/W

DALI-2

jet black, Inner colour matt silver, 20° spot, 3500 K, fixture 15.2 W, 118 lm/W

non DIM

jet black, Inner colour matt silver, 20° spot, 3500 K, fixture 15.2 W, 118 lm/W

DALI-2

jet black, Inner colour matt silver, 56° wide flood, 3500 K, fixture 15.2 W, 124 lm/W

non DIM

jet black, Inner colour matt silver, 56° wide flood, 3500 K, fixture 15.2 W, 124 lm/W

DALI-2

jet black, Inner colour matt silver, 39° flood, 2700 K, fixture 15.2 W, 104 lm/W

non DIM

jet black, Inner colour matt silver, 39° flood, 2700 K, fixture 15.2 W, 104 lm/W

DALI-2

jet black, Inner colour matt silver, 31° medium, 2700 K, fixture 15.2 W, 115 lm/W

non DIM

jet black, Inner colour matt silver, 31° medium, 2700 K, fixture 15.2 W, 115 lm/W

DALI-2

jet black, Inner colour matt silver, 20° spot, 2700 K, fixture 15.2 W, 112 lm/W

non DIM

jet black, Inner colour matt silver, 20° spot, 2700 K, fixture 15.2 W, 112 lm/W

DALI-2

jet black, Inner colour matt silver, 56° wide flood, 2700 K, fixture 15.2 W, 118 lm/W

non DIM

jet black, Inner colour matt silver, 56° wide flood, 2700 K, fixture 15.2 W, 118 lm/W

DALI-2

jet black, Inner colour matt silver, 33° medium, tunable white, 2700 K - 6500 K, 76 lm/W

DALI-2

jet black, Inner colour matt silver, 53° wide flood, tunable white, 2700 K - 6500 K, 78 lm/W

DALI-2

jet black, Inner colour matt silver, 33° medium, tunable white, 1800 K - 4000 K, 73 lm/W

DALI-2

jet black, Inner colour matt silver, 53° wide flood, tunable white, 1800 K - 4000 K, 75 lm/W

DALI-2

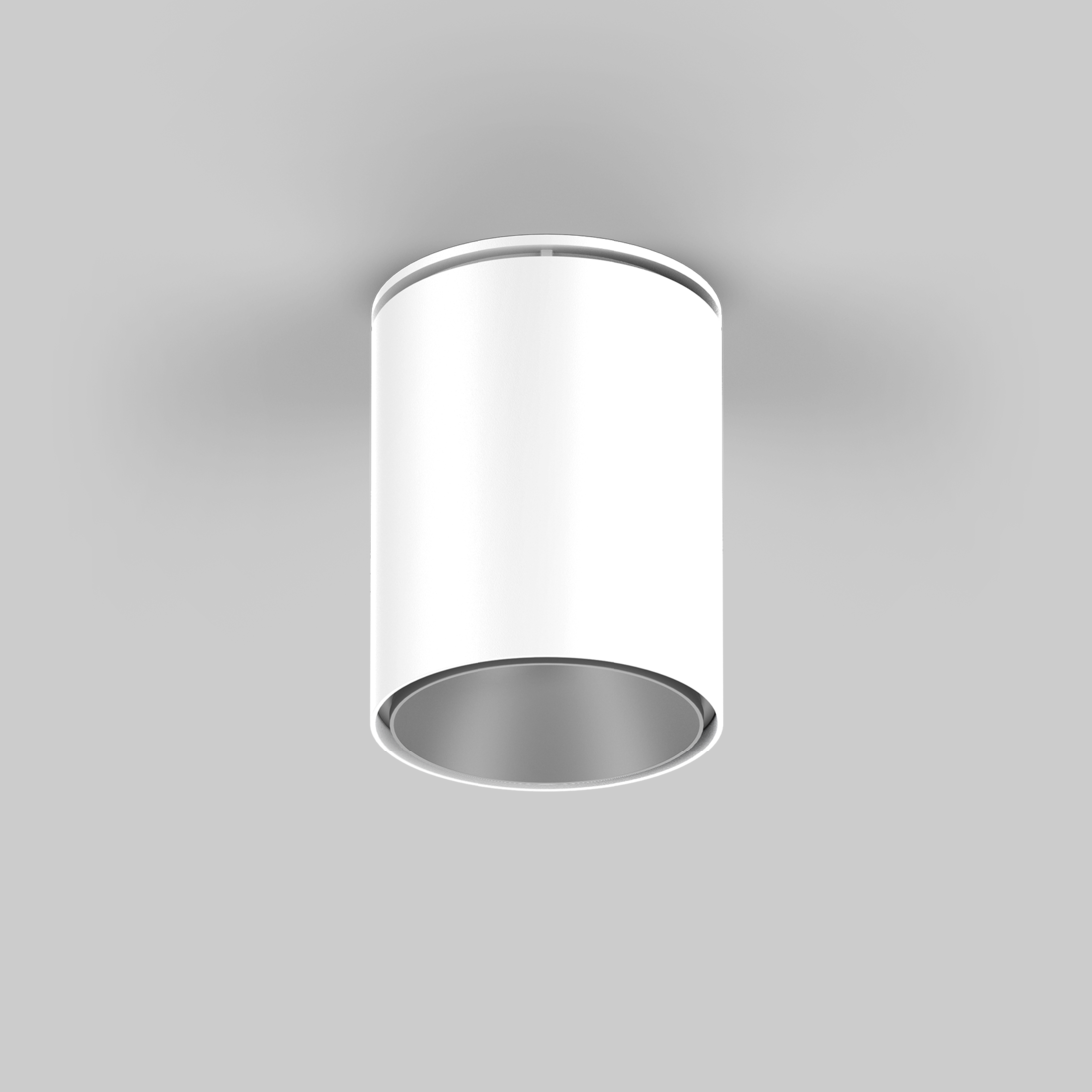

SASSO 100 round adjustable semi-recessed

Status

Article number(s)

Type

Dimming

traffic white, Inner colour matt silver, 39° flood, 3000 K, fixture 15.2 W, 107 lm/W

non DIM

traffic white, Inner colour matt silver, 39° flood, 3000 K, fixture 15.2 W, 107 lm/W

DALI-2

traffic white, Inner colour matt silver, 31° medium, 3000 K, fixture 15.2 W, 118 lm/W

non DIM

traffic white, Inner colour matt silver, 31° medium, 3000 K, fixture 15.2 W, 118 lm/W

DALI-2

traffic white, Inner colour matt silver, 20° spot, 3000 K, fixture 15.2 W, 115 lm/W

non DIM

traffic white, Inner colour matt silver, 20° spot, 3000 K, fixture 15.2 W, 115 lm/W

DALI-2

traffic white, Inner colour matt silver, 56° wide flood, 3000 K, fixture 15.2 W, 121 lm/W

non DIM

traffic white, Inner colour matt silver, 56° wide flood, 3000 K, fixture 15.2 W, 121 lm/W

DALI-2

traffic white, Inner colour matt silver, 39° flood, 4000 K, fixture 15.2 W, 112 lm/W

non DIM

traffic white, Inner colour matt silver, 39° flood, 4000 K, fixture 15.2 W, 112 lm/W

DALI-2

traffic white, Inner colour matt silver, 31° medium, 4000 K, fixture 15.2 W, 124 lm/W

non DIM

traffic white, Inner colour matt silver, 31° medium, 4000 K, fixture 15.2 W, 124 lm/W

DALI-2

traffic white, Inner colour matt silver, 20° spot, 4000 K, fixture 15.2 W, 120 lm/W

non DIM

traffic white, Inner colour matt silver, 20° spot, 4000 K, fixture 15.2 W, 120 lm/W

DALI-2

traffic white, Inner colour matt silver, 56° wide flood, 4000 K, fixture 15.2 W, 127 lm/W

non DIM

traffic white, Inner colour matt silver, 56° wide flood, 4000 K, fixture 15.2 W, 127 lm/W

DALI-2

traffic white, Inner colour matt silver, 39° flood, 3500 K, fixture 15.2 W, 109 lm/W

non DIM

traffic white, Inner colour matt silver, 39° flood, 3500 K, fixture 15.2 W, 109 lm/W

DALI-2

traffic white, Inner colour matt silver, 31° medium, 3500 K, fixture 15.2 W, 121 lm/W

non DIM

traffic white, Inner colour matt silver, 31° medium, 3500 K, fixture 15.2 W, 121 lm/W

DALI-2

traffic white, Inner colour matt silver, 20° spot, 3500 K, fixture 15.2 W, 118 lm/W

non DIM

traffic white, Inner colour matt silver, 20° spot, 3500 K, fixture 15.2 W, 118 lm/W

DALI-2

traffic white, Inner colour matt silver, 56° wide flood, 3500 K, fixture 15.2 W, 124 lm/W

non DIM

traffic white, Inner colour matt silver, 56° wide flood, 3500 K, fixture 15.2 W, 124 lm/W

DALI-2

traffic white, Inner colour matt silver, 39° flood, 2700 K, fixture 15.2 W, 104 lm/W

non DIM

traffic white, Inner colour matt silver, 39° flood, 2700 K, fixture 15.2 W, 104 lm/W

DALI-2

traffic white, Inner colour matt silver, 31° medium, 2700 K, fixture 15.2 W, 115 lm/W

non DIM

traffic white, Inner colour matt silver, 31° medium, 2700 K, fixture 15.2 W, 115 lm/W

DALI-2

traffic white, Inner colour matt silver, 20° spot, 2700 K, fixture 15.2 W, 112 lm/W

non DIM

traffic white, Inner colour matt silver, 20° spot, 2700 K, fixture 15.2 W, 112 lm/W

DALI-2

traffic white, Inner colour matt silver, 56° wide flood, 2700 K, fixture 15.2 W, 118 lm/W

non DIM

traffic white, Inner colour matt silver, 56° wide flood, 2700 K, fixture 15.2 W, 118 lm/W

DALI-2

traffic white, Inner colour matt silver, 33° medium, tunable white, 2700 K - 6500 K, 76 lm/W

DALI-2

traffic white, Inner colour matt silver, 53° wide flood, tunable white, 2700 K - 6500 K, 78 lm/W

DALI-2

traffic white, Inner colour matt silver, 33° medium, tunable white, 1800 K - 4000 K, 73 lm/W

DALI-2

traffic white, Inner colour matt silver, 53° wide flood, tunable white, 1800 K - 4000 K, 75 lm/W

DALI-2

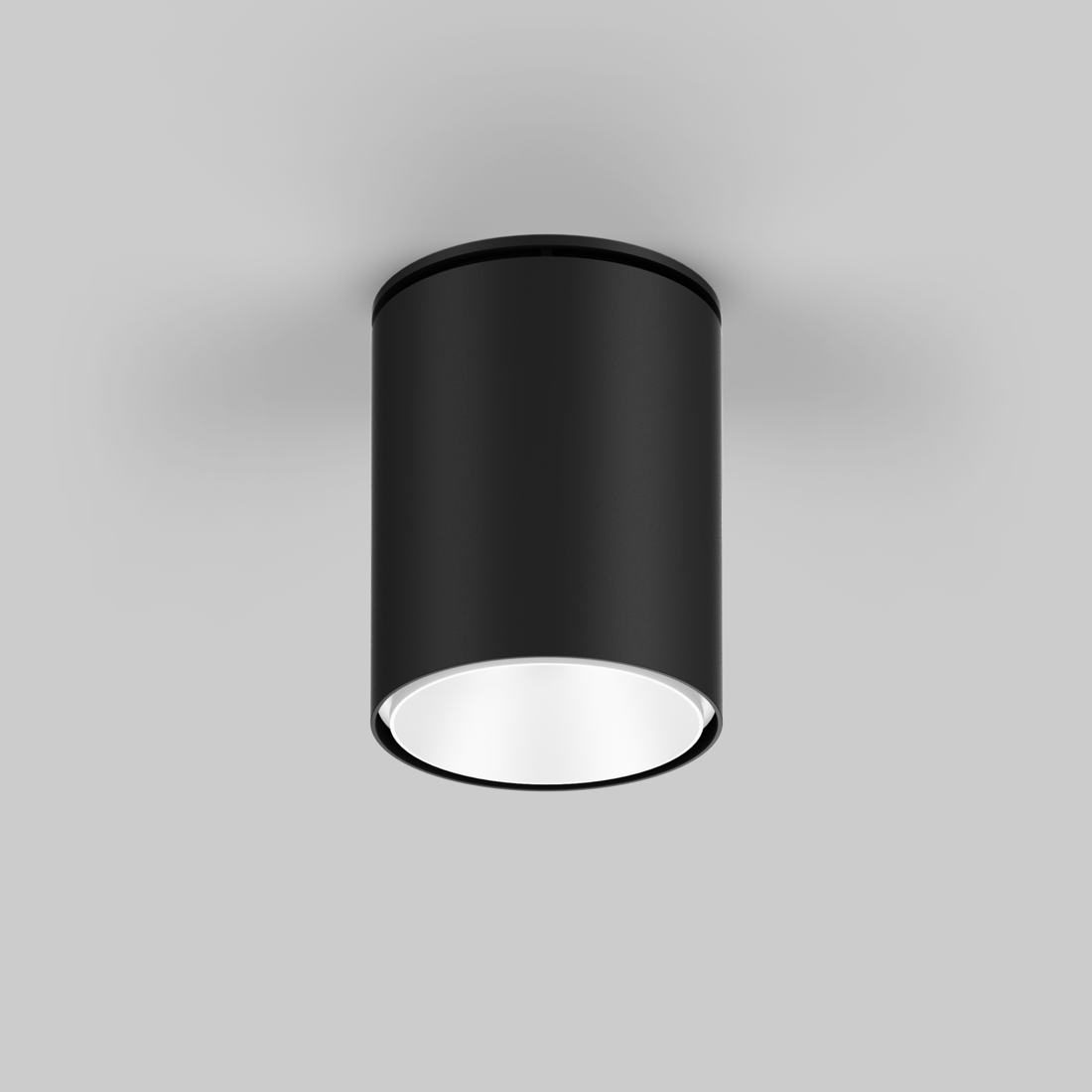

SASSO 100 round adjustable semi-recessed

Status

Article number(s)

Type

Dimming

jet black, Inner colour traffic white, 39° flood, 3000 K, fixture 15.2 W, 113 lm/W

non DIM

jet black, Inner colour traffic white, 39° flood, 3000 K, fixture 15.2 W, 113 lm/W

DALI-2

jet black, Inner colour traffic white, 31° medium, 3000 K, fixture 15.2 W, 118 lm/W

non DIM

jet black, Inner colour traffic white, 31° medium, 3000 K, fixture 15.2 W, 118 lm/W

DALI-2

jet black, Inner colour traffic white, 20° spot, 3000 K, fixture 15.2 W, 118 lm/W

non DIM

jet black, Inner colour traffic white, 20° spot, 3000 K, fixture 15.2 W, 118 lm/W

DALI-2

jet black, Inner colour traffic white, 56° wide flood, 3000 K, fixture 15.2 W, 120 lm/W

non DIM

jet black, Inner colour traffic white, 56° wide flood, 3000 K, fixture 15.2 W, 120 lm/W

DALI-2

jet black, Inner colour traffic white, 39° flood, 4000 K, fixture 15.2 W, 118 lm/W

non DIM

jet black, Inner colour traffic white, 31° medium, 4000 K, fixture 15.2 W, 124 lm/W

non DIM

jet black, Inner colour traffic white, 20° spot, 4000 K, fixture 15.2 W, 123 lm/W

non DIM

jet black, Inner colour traffic white, 20° spot, 4000 K, fixture 15.2 W, 123 lm/W

DALI-2

jet black, Inner colour traffic white, 56° wide flood, 4000 K, fixture 15.2 W, 126 lm/W

non DIM

jet black, Inner colour traffic white, 56° wide flood, 4000 K, fixture 15.2 W, 126 lm/W

DALI-2

jet black, Inner colour traffic white, 39° flood, 3500 K, fixture 15.2 W, 115 lm/W

non DIM

jet black, Inner colour traffic white, 39° flood, 3500 K, fixture 15.2 W, 115 lm/W

DALI-2

jet black, Inner colour traffic white, 31° medium, 3500 K, fixture 15.2 W, 121 lm/W

non DIM

jet black, Inner colour traffic white, 31° medium, 3500 K, fixture 15.2 W, 121 lm/W

DALI-2

jet black, Inner colour traffic white, 20° spot, 3500 K, fixture 15.2 W, 121 lm/W

non DIM

jet black, Inner colour traffic white, 20° spot, 3500 K, fixture 15.2 W, 121 lm/W

DALI-2

jet black, Inner colour traffic white, 56° wide flood, 3500 K, fixture 15.2 W, 123 lm/W

non DIM

jet black, Inner colour traffic white, 56° wide flood, 3500 K, fixture 15.2 W, 123 lm/W

DALI-2

jet black, Inner colour traffic white, 39° flood, 2700 K, fixture 15.2 W, 109 lm/W

non DIM

jet black, Inner colour traffic white, 39° flood, 2700 K, fixture 15.2 W, 109 lm/W

DALI-2

jet black, Inner colour traffic white, 31° medium, 2700 K, fixture 15.2 W, 115 lm/W

non DIM

jet black, Inner colour traffic white, 31° medium, 2700 K, fixture 15.2 W, 115 lm/W

DALI-2

jet black, Inner colour traffic white, 20° spot, 2700 K, fixture 15.2 W, 115 lm/W

non DIM

jet black, Inner colour traffic white, 20° spot, 2700 K, fixture 15.2 W, 115 lm/W

DALI-2

jet black, Inner colour traffic white, 56° wide flood, 2700 K, fixture 15.2 W, 117 lm/W

non DIM

jet black, Inner colour traffic white, 56° wide flood, 2700 K, fixture 15.2 W, 117 lm/W

DALI-2

jet black, Inner colour traffic white, 33° medium, tunable white, 2700 K - 6500 K, 76 lm/W

DALI-2

jet black, Inner colour traffic white, 53° wide flood, tunable white, 2700 K - 6500 K, 76 lm/W

DALI-2

jet black, Inner colour traffic white, 33° medium, tunable white, 1800 K - 4000 K, 73 lm/W

DALI-2

jet black, Inner colour traffic white, 53° wide flood, tunable white, 1800 K - 4000 K, 73 lm/W

DALI-2

Accessories

Converter

article number

power

voltage / frequency

protection class

constant current

control

POWER SUPPLY

002-90766

21 W

min 50 Hz

max 60 Hz

PC2

450 mA

non DIM

POWER SUPPLY

002-90767

28 W

min 50 Hz

max 60 Hz

PC2

450 mA

DALI-2

All
Electrical
Optical

Converter

article number

power

voltage / frequency

protection class

constant current

control

POWER SUPPLY PRE-WIRED with loop through function

002-90747

250 mA

DALI-2

POWER SUPPLY PRE-WIRED with junction box

002-90766A

28 W

max 60 Hz

PC2

450 mA

non DIM

POWER SUPPLY PRE-WIRED with junction box

002-90767A

28 W

min 50 Hz

max 60 Hz

PC2

450 mA

DALI-2

POWER SUPPLY PRE-WIRED with loop through function

002-90770

15 W

min 50 Hz

max 60 Hz

PC2

300 mA

DALI-2

POWER SUPPLY PRE-WIRED with junction box

002-90774A

28 W

max 60 Hz

PC2

700 mA

non DIM

POWER SUPPLY PRE-WIRED with junction box

002-90776A

28 W

min 50 Hz

max 60 Hz

PC2

700 mA

DALI-2

POWER SUPPLY PRE-WIRED with junction box

002-90780A

28 W

max 60 Hz

PC2

650 mA

non DIM

POWER SUPPLY PRE-WIRED with junction box

002-90789A

28 W

min 50 Hz

max 60 Hz

PC2

650 mA

DALI-2

DIN RAIL LED DRIVER

005-6121030

DALI-2 DT6 1 - 2 addresses

DIN RAIL POWER SUPPLY

005-6520210

Electrical mounting

article number

type

dimensions

THROUGH WIRING CONNECTION BOX

005-2551110

DALI cable ø 4 – 12 mm

length 105 mm

width 58 mm

height 30 mm

0.07 kg

Optical

article number

colour

type

dimensions

HONEYCOMB LOUVER

007-1965598

jet black

RAL 9005

for BO 55 | SASSO 100

diameter 50 mm

height 3 mm

SASSO 100 round

semi-recessed

Quickinfo

Colour

Inner colour

Simple drawing

Light distribution

Product data & specification documents

Description

Products and codes

Colour

Inner colour

SASSO 100 round adjustable semi-recessed

SASSO 100 round adjustable semi-recessed

SASSO 100 round adjustable semi-recessed

SASSO 100 round adjustable semi-recessed

SASSO 100 round adjustable semi-recessed

SASSO 100 round adjustable semi-recessed

SASSO 100 round adjustable semi-recessed

SASSO 100 round adjustable semi-recessed

SASSO 100 round adjustable semi-recessed

SASSO 100 round adjustable semi-recessed

SASSO 100 round adjustable semi-recessed

SASSO 100 round adjustable semi-recessed

SASSO 100 round adjustable semi-recessed

SASSO 100 round adjustable semi-recessed

Accessories

Converter

Converter

Electrical mounting

Optical

Related products
