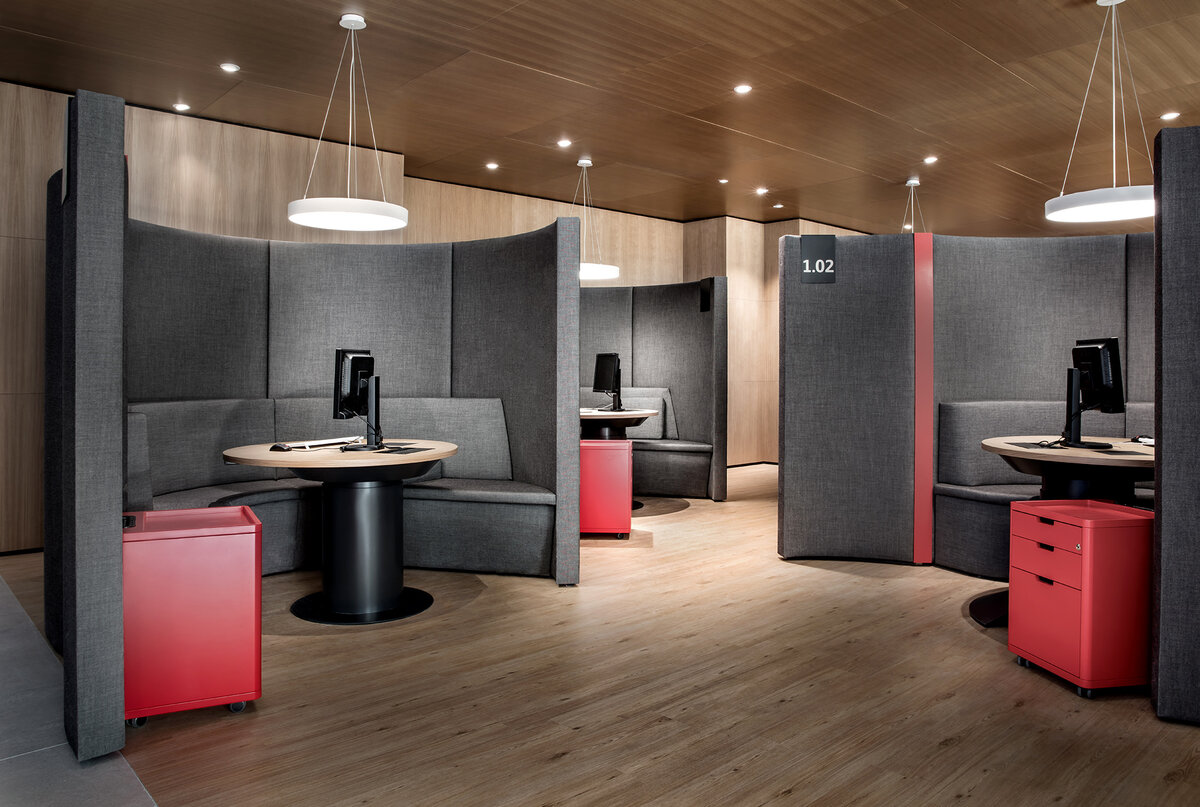

SPARKASSE BERLIN
Kindergarten Schluderns

VELA

suspended

Quickinfo

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM
UGR ≤ 16, 19
up to 21,100 lm/↑ 6,060 lm
up to 152 lm/W
L90 / 50000 h
DALI-2, non DIM
Microprismatic, Opal
IP40

Colour

    • Products and codes
    Discover family

    Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    Download all

    Description

    Round luminaire housing in aluminium, rolled profile, seamlessly welded; surface powder coated; suspended; with integrated tool-less suspension height adjustment; incl. transparent feed or with height adjustable rod suspension (chrome), feed in rod; highly reflective coating of the PCB for improved efficiency; completely homogeneously illuminated, satinised PMMA cover; up to ø600 mm: microprismatic PMMA cover; either with direct or direct / indirect light distribution; indirect component with special PCBs for increased luminous flux and maximum ceiling illumination; energy-efficient LEDs with very good colour rendering; canopy with 2 cable openings and plug-in terminal for through wiring

    DiiA® standards 251, 252, 253

    DIN EN 12464-1 UGR ≤ 19

    direct / indirect illumination

    tunable white 2700 – 6500 K (optional)

    CRI ≥ 98 XPECTRUM (optional)

    Products and codes

    Filter
    2050
    lm
    20600
    lm
    767
    lm
    6060
    lm
    450
    mm
    1200
    mm
    16.7
    W
    185
    W
    114
    lm/W
    152
    lm/W
    0.44
    0.6
    0.49
    0.66

    Colour

    • VELA 450 direct suspended;VELA 450 direct / indirect power suspended;VELA 450 direct / indirect soft suspended

    VELA 450 direct / indirect power suspended Rod 1000 mm

    VELA 450 direct / indirect power suspended Rod 1000 mm

    Article number(s)
    Type
    Dimming
    rod 1000 mm, black, Microprismatic, 3000 K, 21.1 W
    non DIM
    rod 1000 mm, black, Opal, 3000 K, 21.1 W
    non DIM
    rod 1000 mm, black, Microprismatic, 3000 K, 21.1 W
    DALI-2
    rod 1000 mm, black, Opal, 3000 K, 21.1 W
    DALI-2
    rod 1000 mm, black, Microprismatic, 4000 K, 21.1 W
    non DIM
    rod 1000 mm, black, Opal, 4000 K, 21.1 W
    non DIM
    rod 1000 mm, black, Microprismatic, 4000 K, 21.1 W
    DALI-2
    rod 1000 mm, black, Opal, 4000 K, 21.1 W
    DALI-2
    rod 1000 mm, black, Opal, 3000 K, 35 W
    non DIM
    rod 1000 mm, black, Opal, 3000 K, 35 W
    DALI-2
    rod 1000 mm, black, Opal, 4000 K, 35 W
    non DIM
    rod 1000 mm, black, Opal, 4000 K, 35 W
    DALI-2
    VELA 450 direct suspended;VELA 450 direct / indirect power suspended;VELA 450 direct / indirect soft suspended

    VELA 450 direct / indirect power suspended Rod 1000 mm

    VELA 450 direct / indirect power suspended Rod 1000 mm

    Article number(s)
    Type
    Dimming
    rod 1000 mm, grey, Microprismatic, 3000 K, 21.1 W
    non DIM
    rod 1000 mm, grey, Opal, 3000 K, 21.1 W
    non DIM
    rod 1000 mm, grey, Microprismatic, 3000 K, 21.1 W
    DALI-2
    rod 1000 mm, grey, Opal, 3000 K, 21.1 W
    DALI-2
    rod 1000 mm, grey, Microprismatic, 4000 K, 21.1 W
    non DIM
    rod 1000 mm, grey, Opal, 4000 K, 21.1 W
    non DIM
    rod 1000 mm, grey, Microprismatic, 4000 K, 21.1 W
    DALI-2
    rod 1000 mm, grey, Opal, 4000 K, 21.1 W
    DALI-2
    rod 1000 mm, grey, Opal, 3000 K, 35 W
    non DIM
    rod 1000 mm, grey, Opal, 3000 K, 35 W
    DALI-2
    rod 1000 mm, grey, Opal, 4000 K, 35 W
    non DIM
    rod 1000 mm, grey, Opal, 4000 K, 35 W
    DALI-2
    VELA 450 direct suspended;VELA 450 direct / indirect power suspended;VELA 450 direct / indirect soft suspended

    VELA 450 direct / indirect power suspended Rod 1000 mm

    VELA 450 direct / indirect power suspended Rod 1000 mm

    Article number(s)
    Type
    Dimming
    rod 1000 mm, special colours, Microprismatic, 3000 K, 21.1 W
    non DIM
    rod 1000 mm, special colours, Opal, 3000 K, 21.1 W
    non DIM
    rod 1000 mm, special colours, Microprismatic, 3000 K, 21.1 W
    DALI-2
    rod 1000 mm, special colours, Opal, 3000 K, 21.1 W
    DALI-2
    rod 1000 mm, special colours, Microprismatic, 4000 K, 21.1 W
    non DIM
    rod 1000 mm, special colours, Opal, 4000 K, 21.1 W
    non DIM
    rod 1000 mm, special colours, Microprismatic, 4000 K, 21.1 W
    DALI-2
    rod 1000 mm, special colours, Opal, 4000 K, 21.1 W
    DALI-2
    rod 1000 mm, special colours, Opal, 3000 K, 35 W
    non DIM
    rod 1000 mm, special colours, Opal, 3000 K, 35 W
    DALI-2
    rod 1000 mm, special colours, Opal, 4000 K, 35 W
    non DIM
    rod 1000 mm, special colours, Opal, 4000 K, 35 W
    DALI-2
    VELA 450 direct suspended;VELA 450 direct / indirect power suspended;VELA 450 direct / indirect soft suspended

    VELA 450 direct / indirect power suspended Rod 1000 mm

    VELA 450 direct / indirect power suspended Rod 1000 mm

    Article number(s)
    Type
    Dimming
    rod 1000 mm, white, Microprismatic, 3000 K, 21.1 W
    non DIM
    rod 1000 mm, white, Opal, 3000 K, 21.1 W
    non DIM
    rod 1000 mm, white, Microprismatic, 3000 K, 21.1 W
    DALI-2
    rod 1000 mm, white, Opal, 3000 K, 21.1 W
    DALI-2
    rod 1000 mm, white, Microprismatic, 4000 K, 21.1 W
    non DIM
    rod 1000 mm, white, Opal, 4000 K, 21.1 W
    non DIM
    rod 1000 mm, white, Microprismatic, 4000 K, 21.1 W
    DALI-2
    rod 1000 mm, white, Opal, 4000 K, 21.1 W
    DALI-2
    rod 1000 mm, white, Opal, 3000 K, 35 W
    non DIM
    rod 1000 mm, white, Opal, 3000 K, 35 W
    DALI-2
    rod 1000 mm, white, Opal, 4000 K, 35 W
    non DIM
    rod 1000 mm, white, Opal, 4000 K, 35 W
    DALI-2
    VELA 450 direct suspended;VELA 450 direct / indirect power suspended;VELA 450 direct / indirect soft suspended

    VELA 450 direct / indirect power suspended Cable 1500 mm

    VELA 450 direct / indirect power suspended Cable 1500 mm

    Article number(s)
    Type
    Dimming
    cable 1500 mm, black, Microprismatic, 3000 K, 21.1 W
    non DIM
    cable 1500 mm, black, Opal, 3000 K, 21.1 W
    non DIM
    cable 1500 mm, black, Microprismatic, 3000 K, 21.1 W
    DALI-2
    cable 1500 mm, black, Opal, 3000 K, 21.1 W
    DALI-2
    cable 1500 mm, black, Microprismatic, 4000 K, 21.1 W
    non DIM
    cable 1500 mm, black, Opal, 4000 K, 21.1 W
    non DIM
    cable 1500 mm, black, Microprismatic, 4000 K, 21.1 W
    DALI-2
    cable 1500 mm, black, Opal, 4000 K, 21.1 W
    DALI-2
    cable 1500 mm, black, Opal, 3000 K, 35 W
    non DIM
    cable 1500 mm, black, Opal, 3000 K, 35 W
    DALI-2
    cable 1500 mm, black, Opal, 4000 K, 35 W
    non DIM
    cable 1500 mm, black, Opal, 4000 K, 35 W
    DALI-2
    VELA 450 direct suspended;VELA 450 direct / indirect power suspended;VELA 450 direct / indirect soft suspended

    VELA 450 direct / indirect power suspended Cable 1500 mm

    VELA 450 direct / indirect power suspended Cable 1500 mm

    Article number(s)
    Type
    Dimming
    cable 1500 mm, grey, Microprismatic, 3000 K, 21.1 W
    non DIM
    cable 1500 mm, grey, Opal, 3000 K, 21.1 W
    non DIM
    cable 1500 mm, grey, Microprismatic, 3000 K, 21.1 W
    DALI-2
    cable 1500 mm, grey, Opal, 3000 K, 21.1 W
    DALI-2
    cable 1500 mm, grey, Microprismatic, 4000 K, 21.1 W
    non DIM
    cable 1500 mm, grey, Opal, 4000 K, 21.1 W
    non DIM
    cable 1500 mm, grey, Microprismatic, 4000 K, 21.1 W
    DALI-2
    cable 1500 mm, grey, Opal, 4000 K, 21.1 W
    DALI-2
    cable 1500 mm, grey, Opal, 3000 K, 35 W
    non DIM
    cable 1500 mm, grey, Opal, 3000 K, 35 W
    DALI-2
    cable 1500 mm, grey, Opal, 4000 K, 35 W
    non DIM
    cable 1500 mm, grey, Opal, 4000 K, 35 W
    DALI-2
    VELA 450 direct suspended;VELA 450 direct / indirect power suspended;VELA 450 direct / indirect soft suspended

    VELA 450 direct / indirect power suspended Cable 1500 mm

    VELA 450 direct / indirect power suspended Cable 1500 mm

    Article number(s)
    Type
    Dimming
    cable 1500 mm, special colours, Microprismatic, 3000 K, 21.1 W
    non DIM
    cable 1500 mm, special colours, Opal, 3000 K, 21.1 W
    non DIM
    cable 1500 mm, special colours, Microprismatic, 3000 K, 21.1 W
    DALI-2
    cable 1500 mm, special colours, Opal, 3000 K, 21.1 W
    DALI-2
    cable 1500 mm, special colours, Microprismatic, 4000 K, 21.1 W
    non DIM
