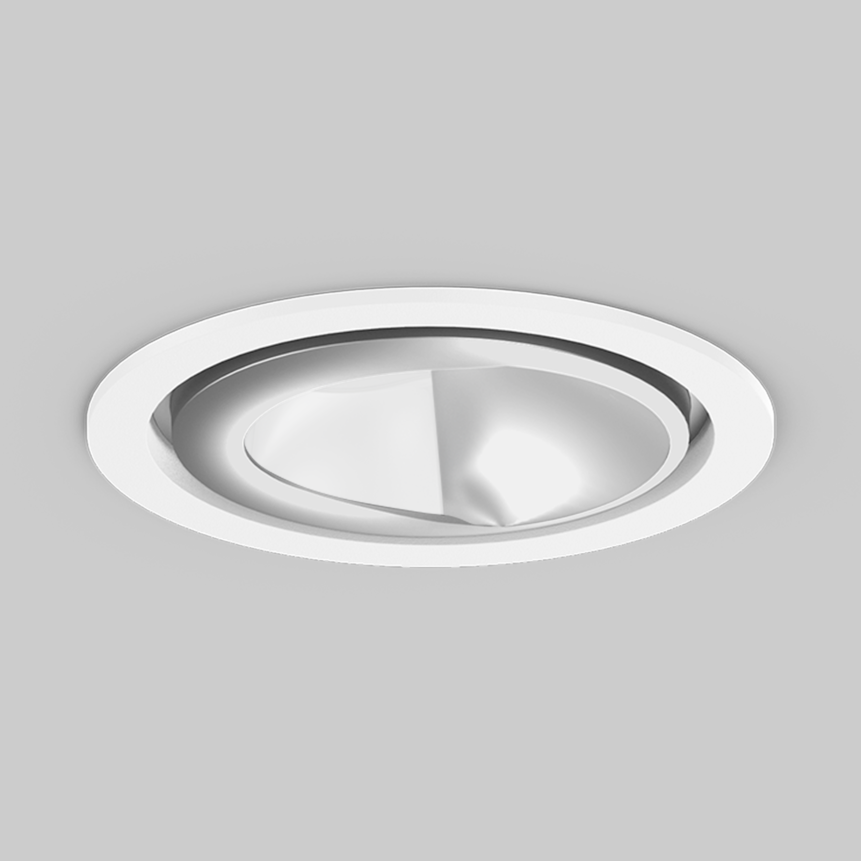

SASSO 100 round wallwasher/floor

trim

048-2740414W 048-2796317 002-90779

discontinued

Quickinfo

2700 K
CRI ≥ 90 / 2
97 lm/W
L80 / 50000 h
DALI-2
IP20

Colour

matt silver

Mounting set

traffic white

Datasheet

Technical data

General

Ceiling
Recessed
rotation 360°
matt silver
Mounting set traffic white
IP20
1870 lm
system 97 lm/W ¹
fixture 114 lm/W ²

LED

2700 K
CRI ≥ 90
L80 / 50000 h
initial MacAdam ≤ 2 SDCM
R_g: 99
R_f: 91
R_{1-15}: 89
MR 0.53
MDER 0.48

Optical

wallwasher floor
$P_{st}^{LM}$ ≤ 1.0 ³
SVM ≤ 0.4 ³

Electrical

DALI-2
220-240 V
system 19.2 W
fixture 16.3 W
36 Vf
500 mA
PC2

Physical

trim
diameter 118 mm
height 96 mm
0.7 kg

Cutout

diameter 108 mm
min. ceiling thickness 2 mm
max. ceiling thickness 25 mm
recessed depth 100 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10

B16

C10

C16

Number of Fixtures

^¹ incl. consideration of optical losses, internal control unit losses & operating device efficiency ^² incl. consideration of optical losses & internal control unit losses ^³ Value of containing product at full load (undimmed)

Specification text

Round recessed spotlight in die-cast aluminium; 1 lamp; surface matt silver; 360° rotatable; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; no multiple shadows; light colour 2700 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; with specially computed, asymmetrical reflector for homogeneous lighting intensity; high quality reflector with micro-faceted, aluminum-vaporised surface; PC2; 220-240 V; incl. DALI-2 converter; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
