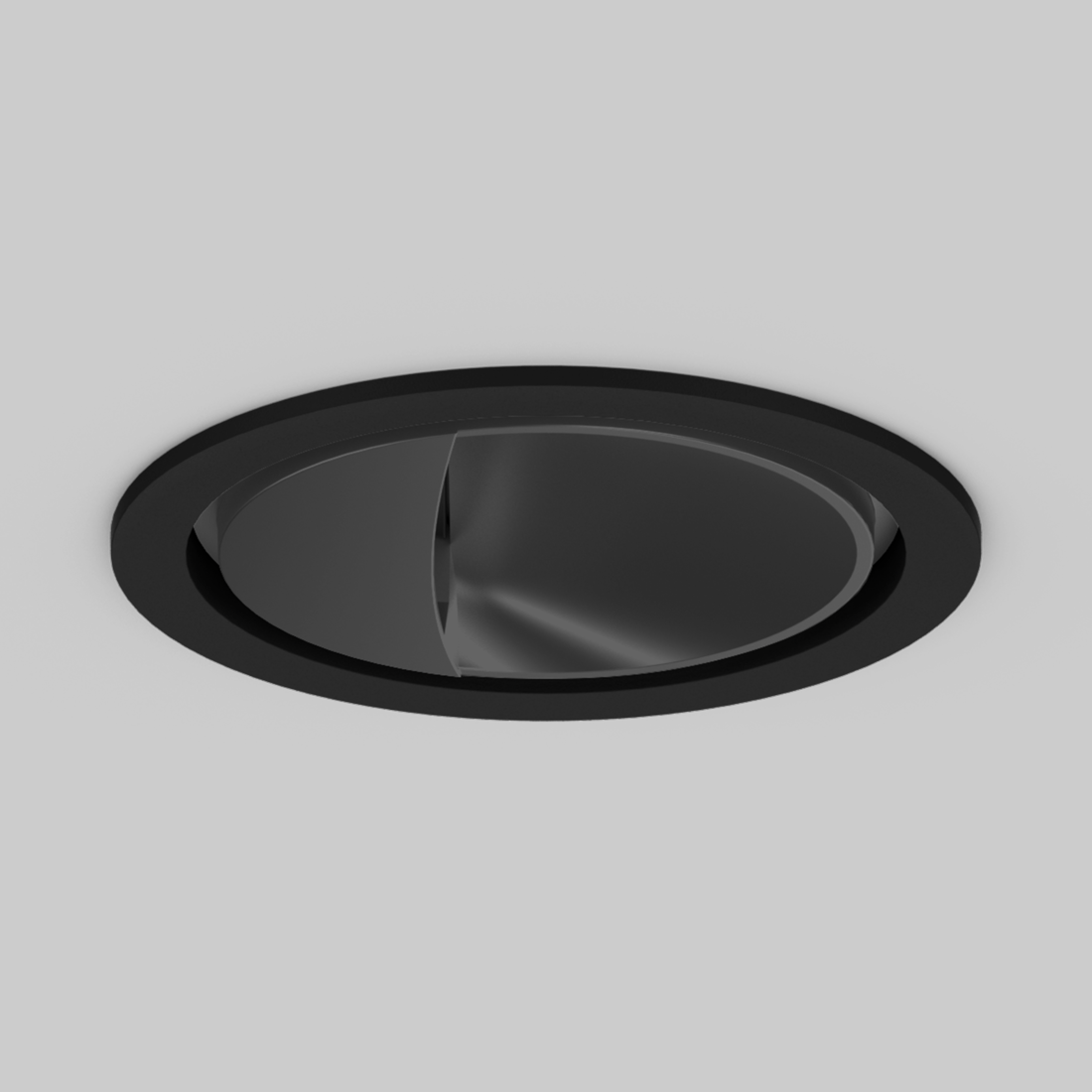

SASSO 100 round wallwasher trim

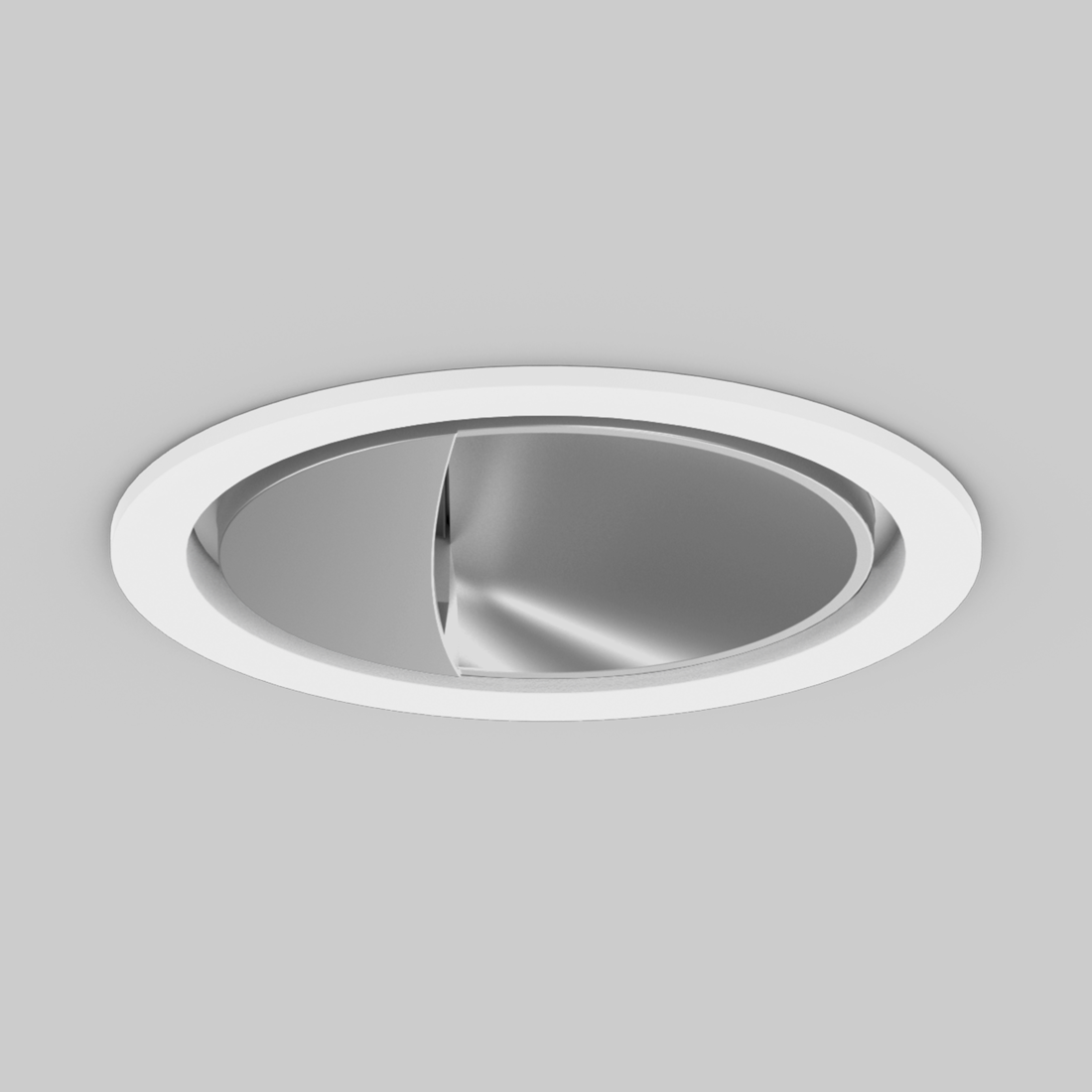

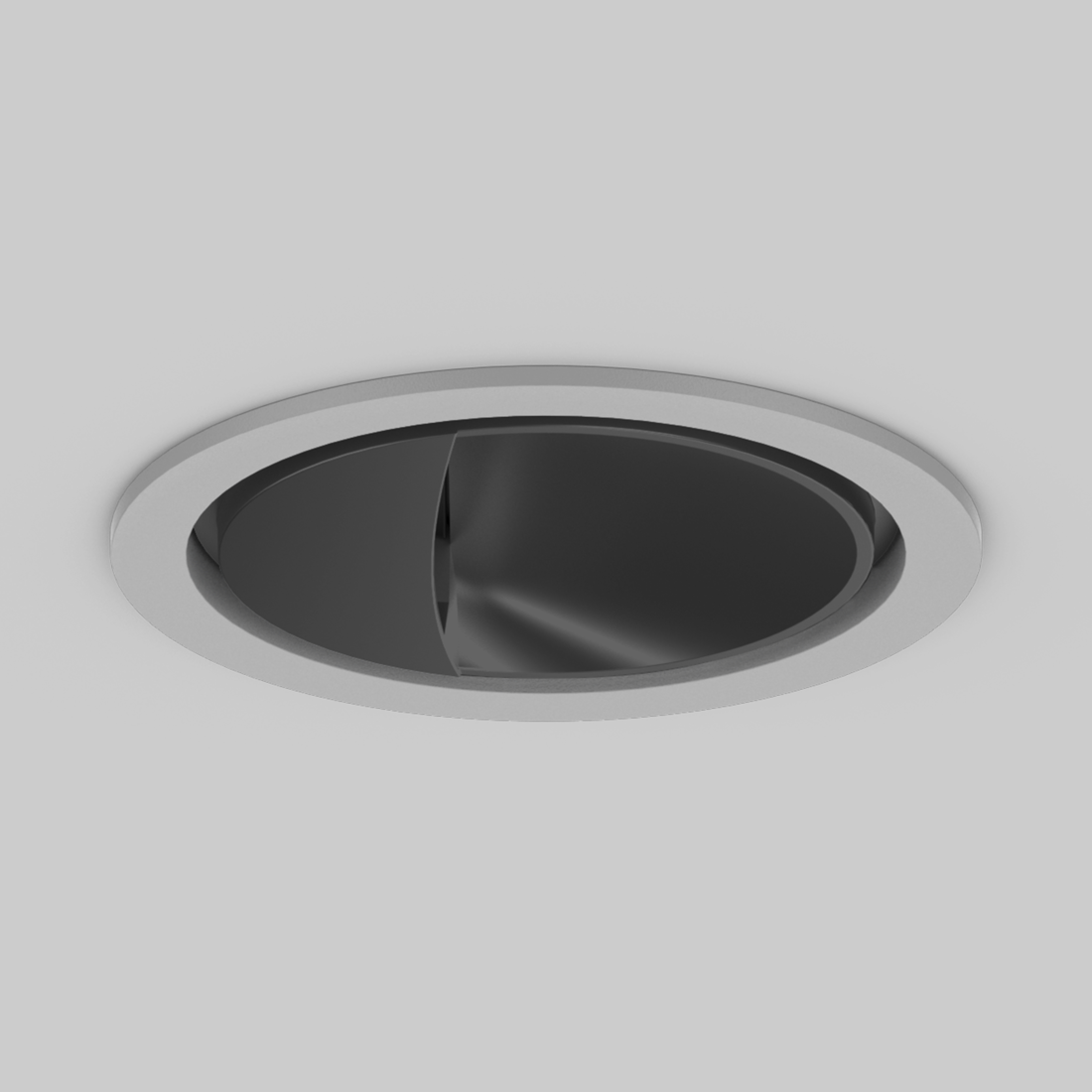

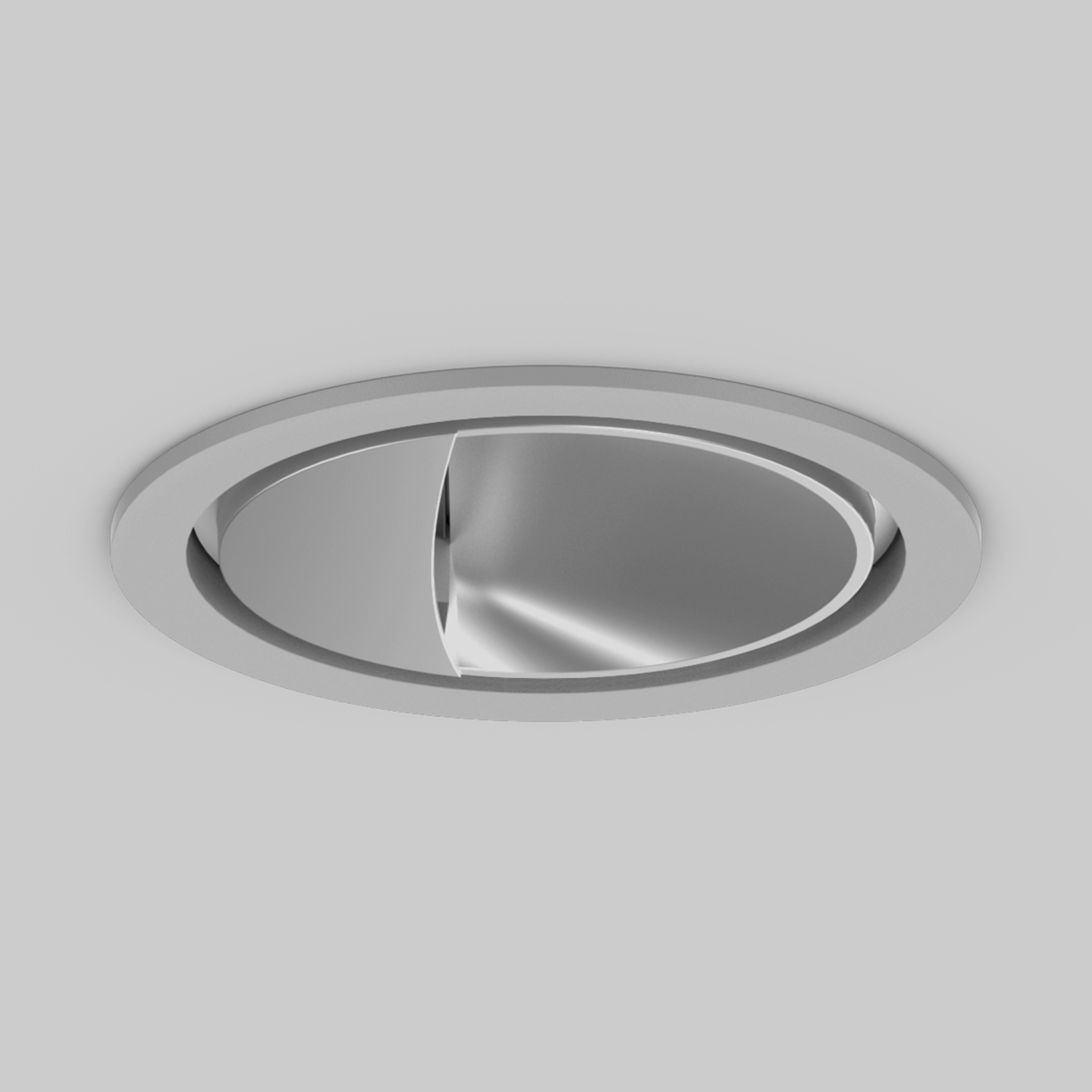

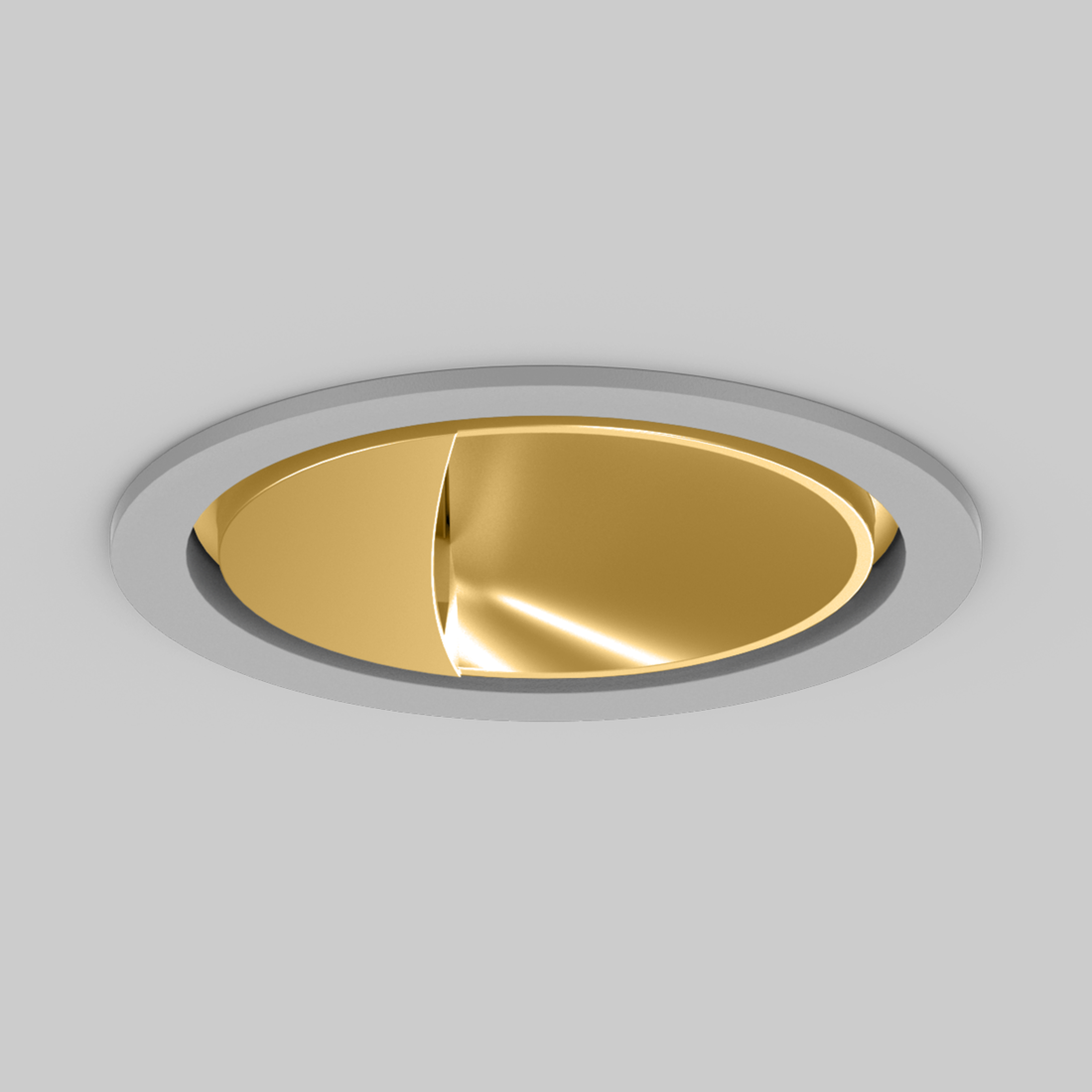

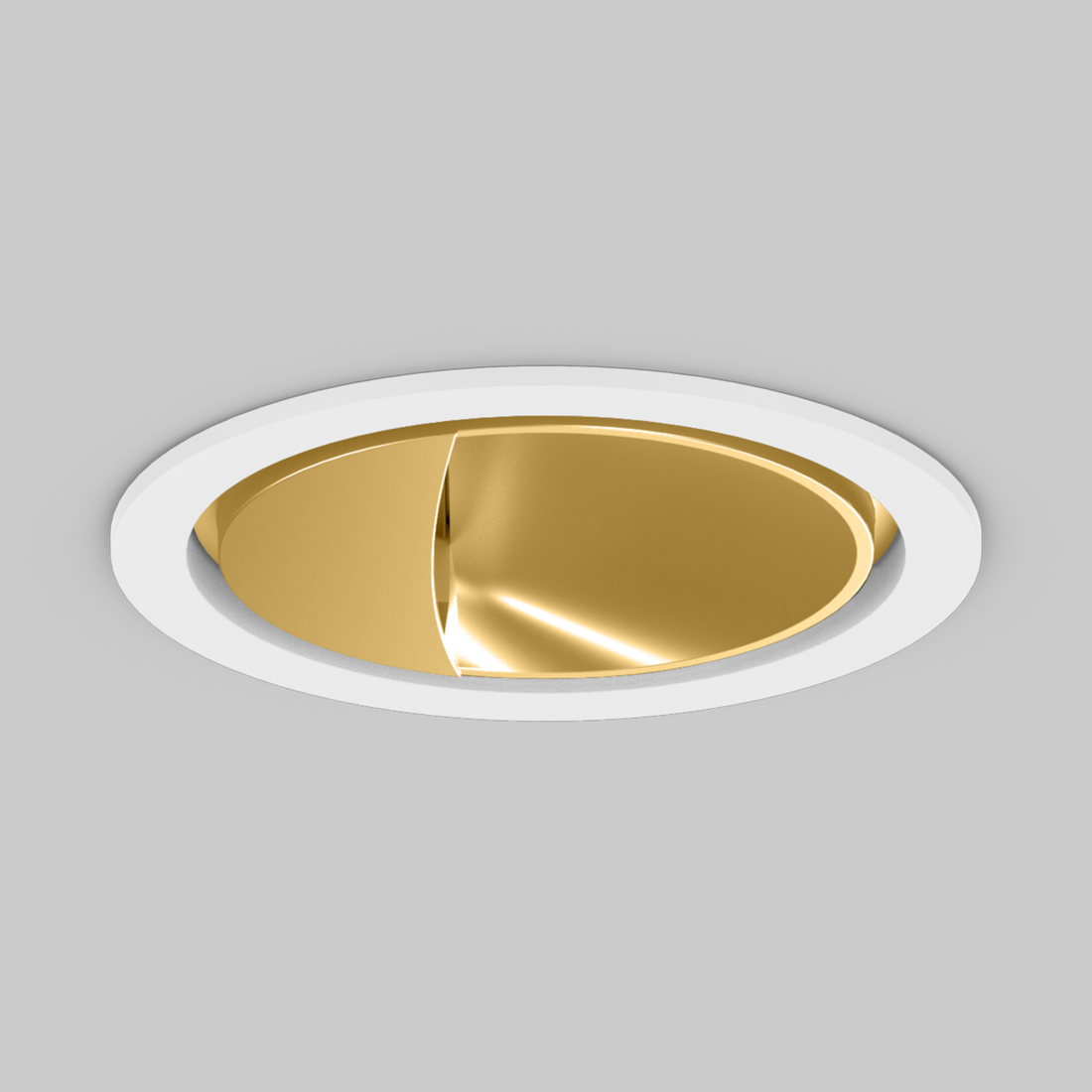

SASSO 100 round wallwasher trim

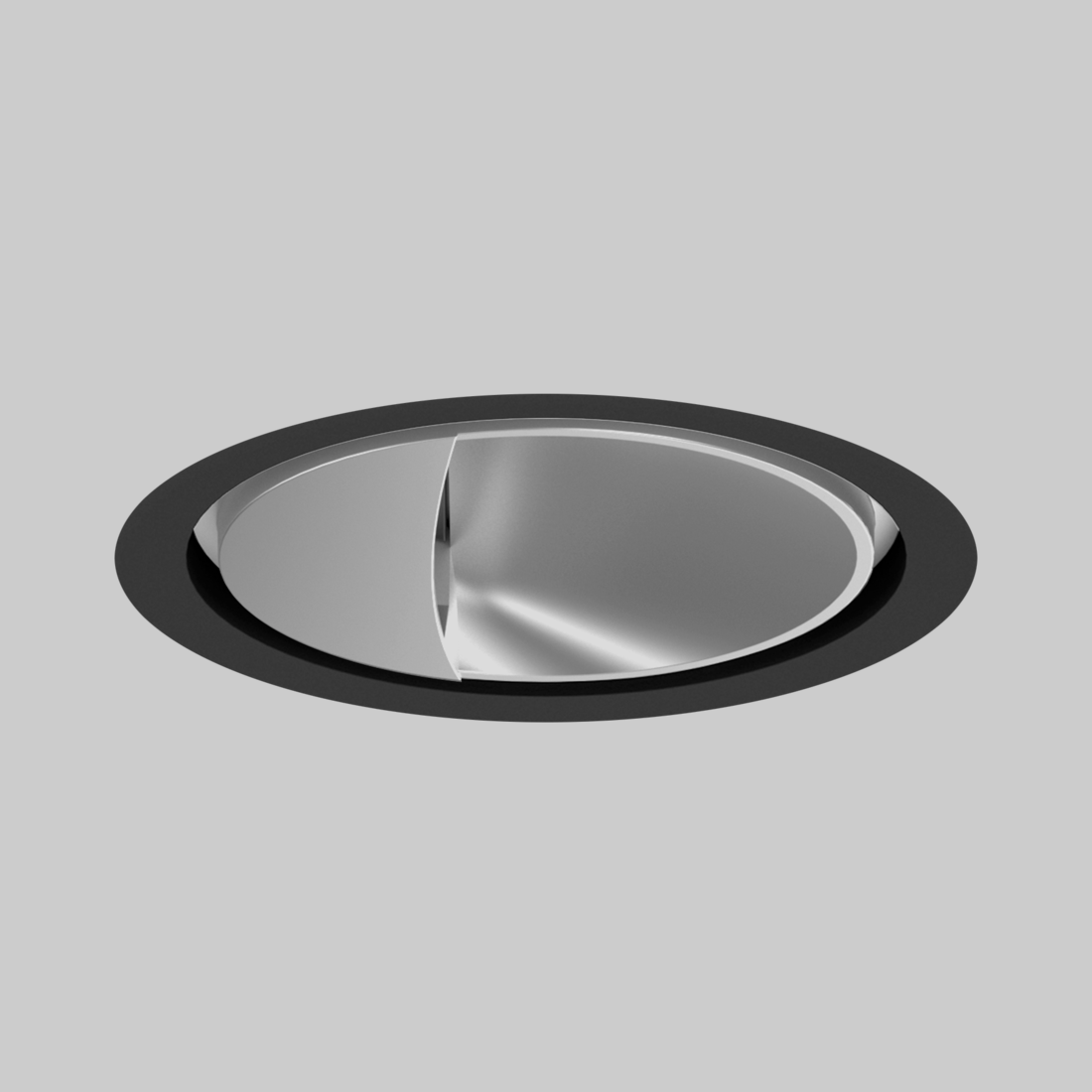

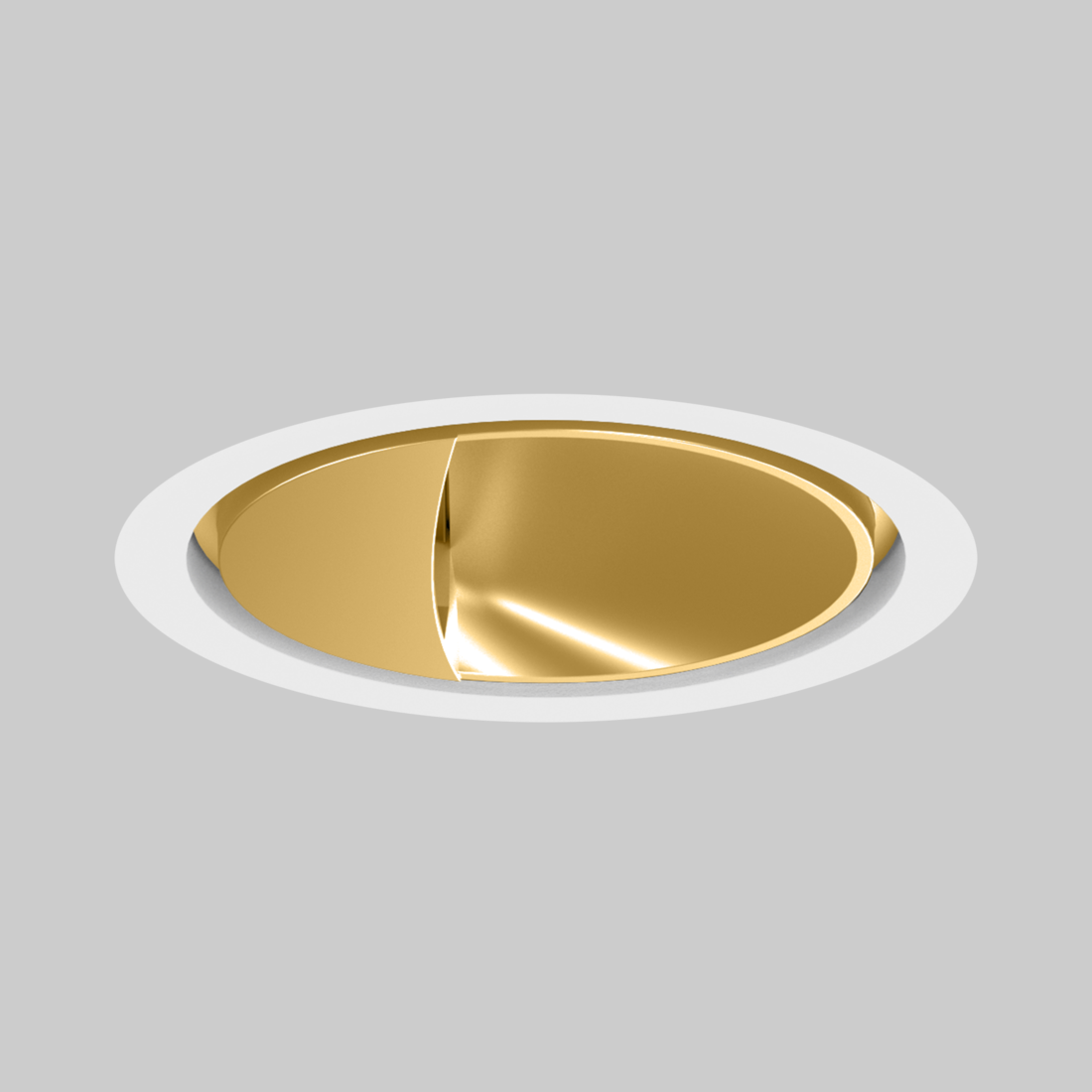

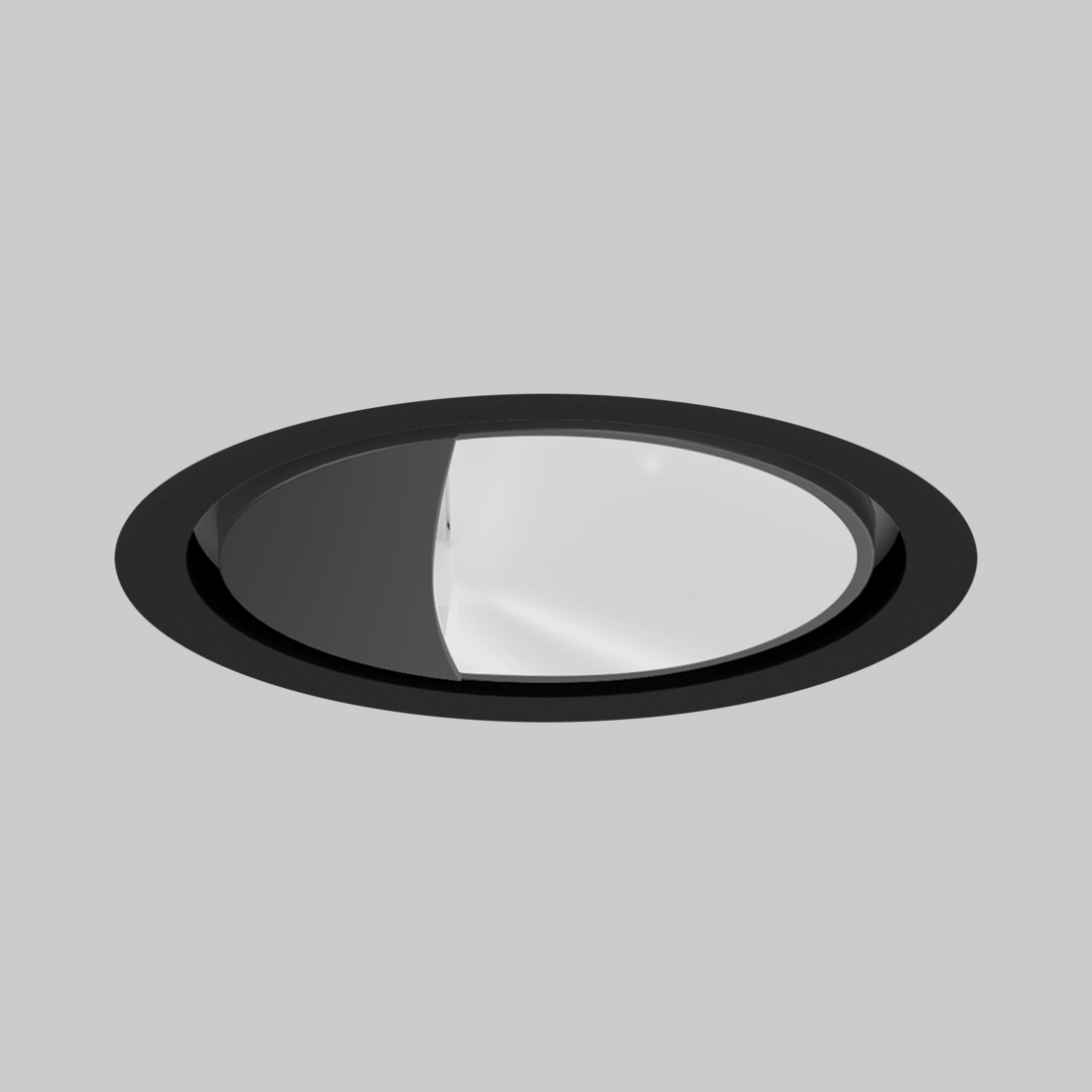

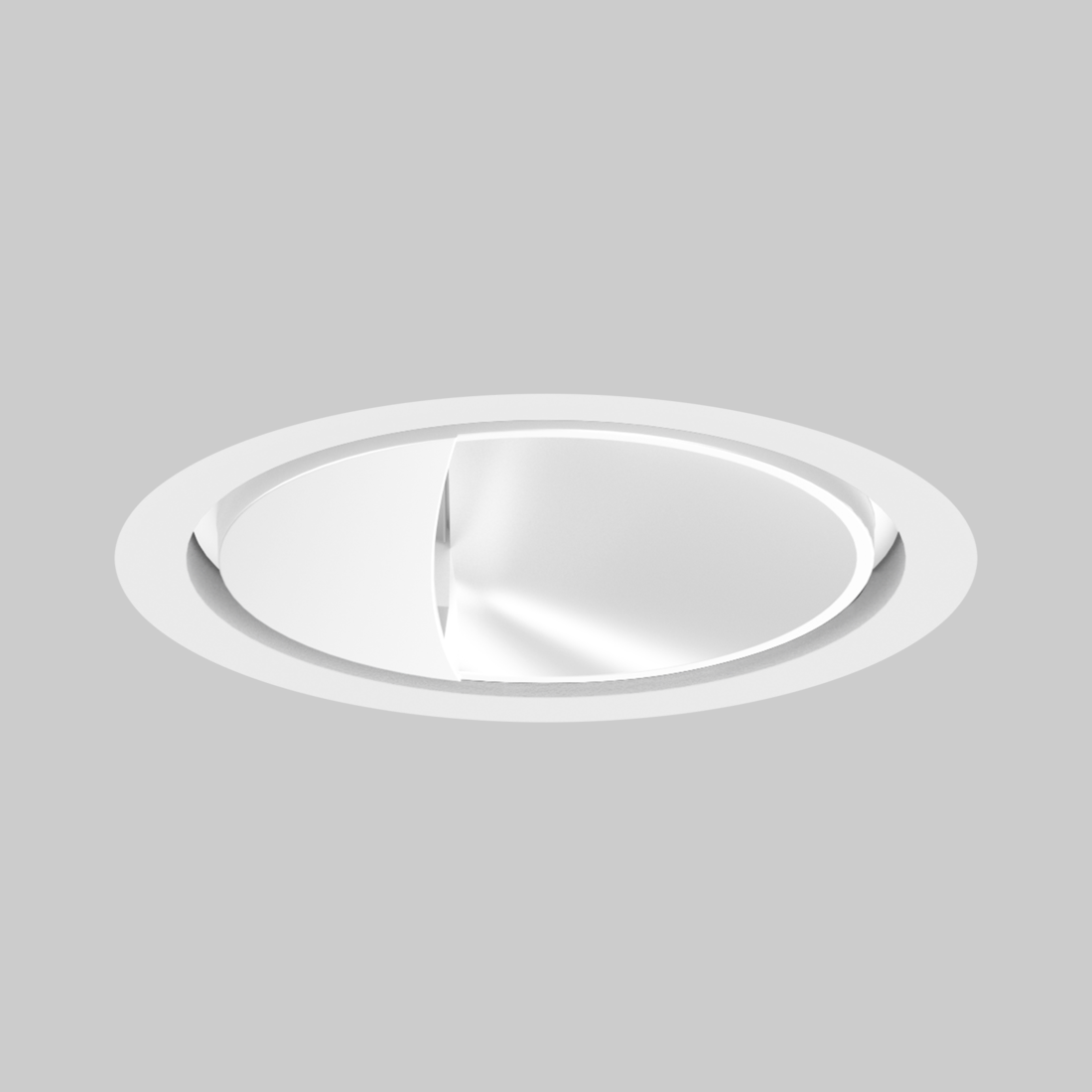

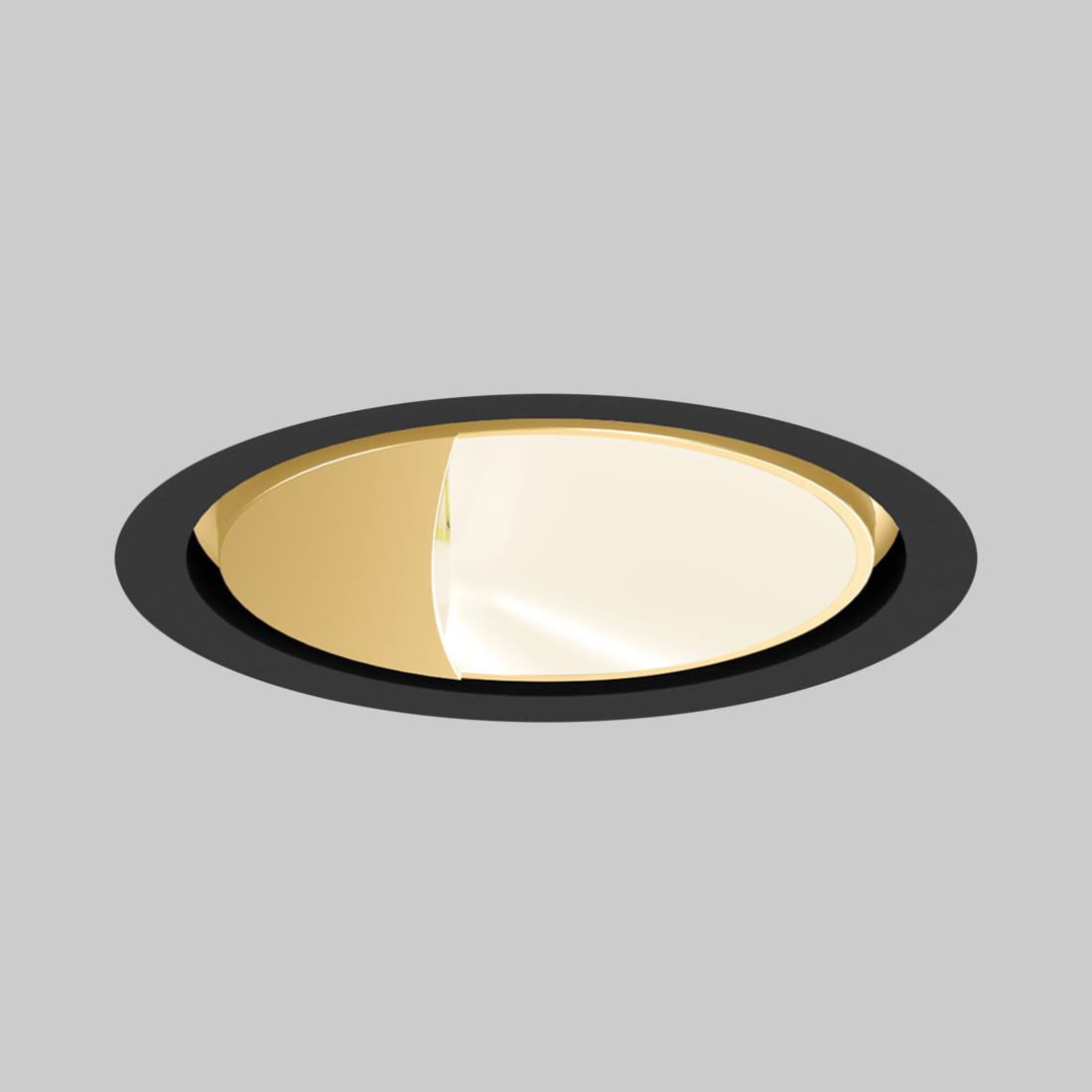

SASSO 100 round wallwasher trim soft acoustic ceiling

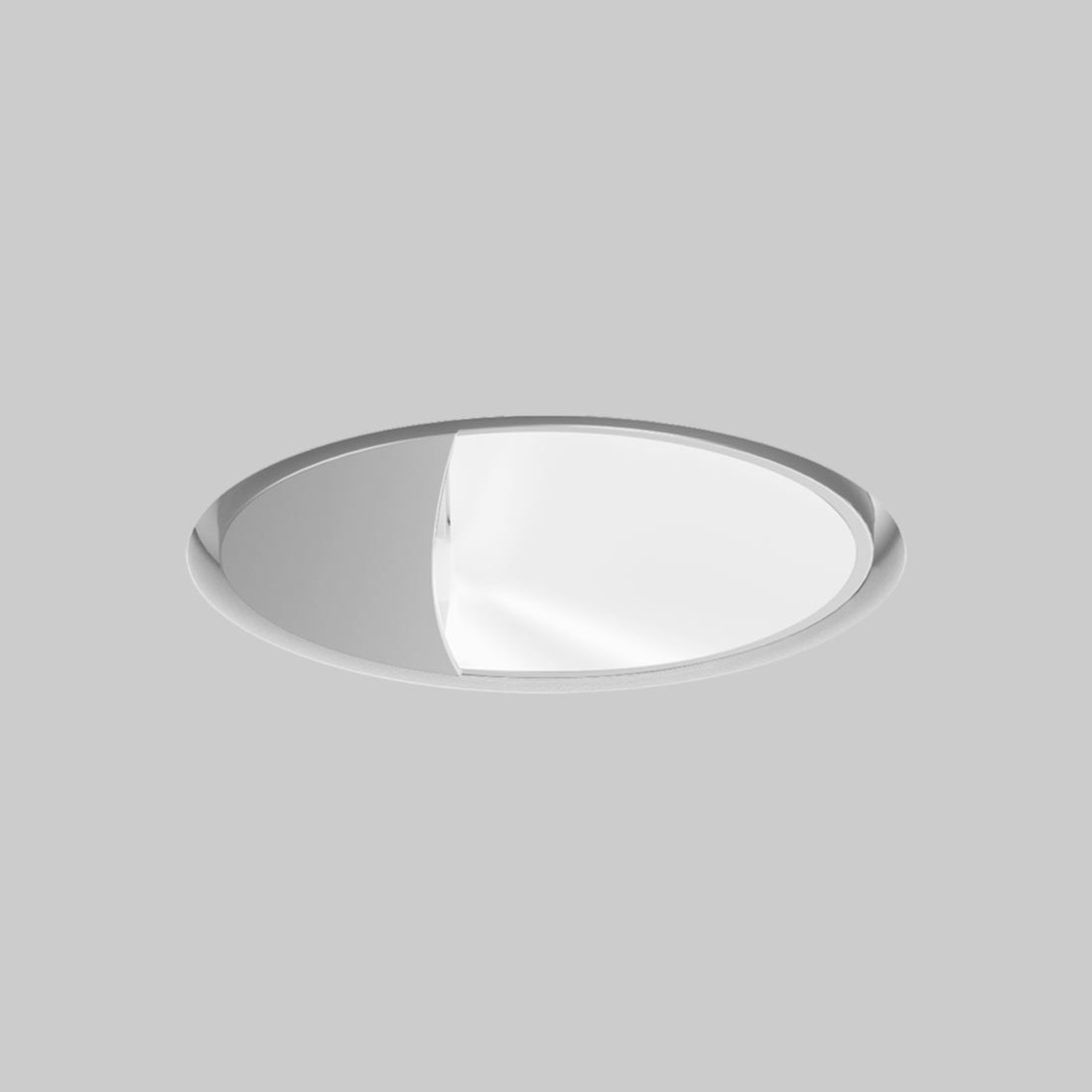

SASSO 100 round wallwasher trimless exposed concrete

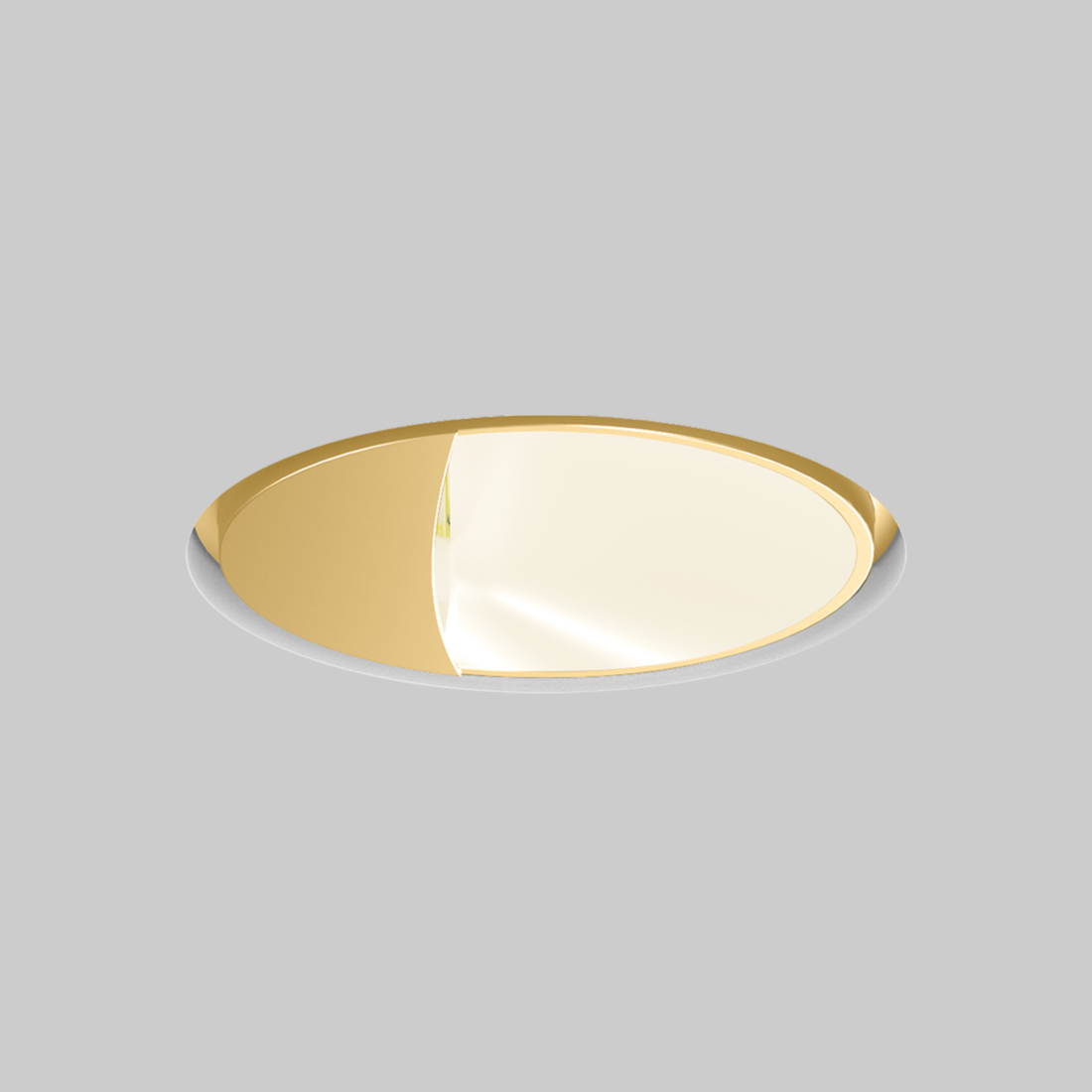

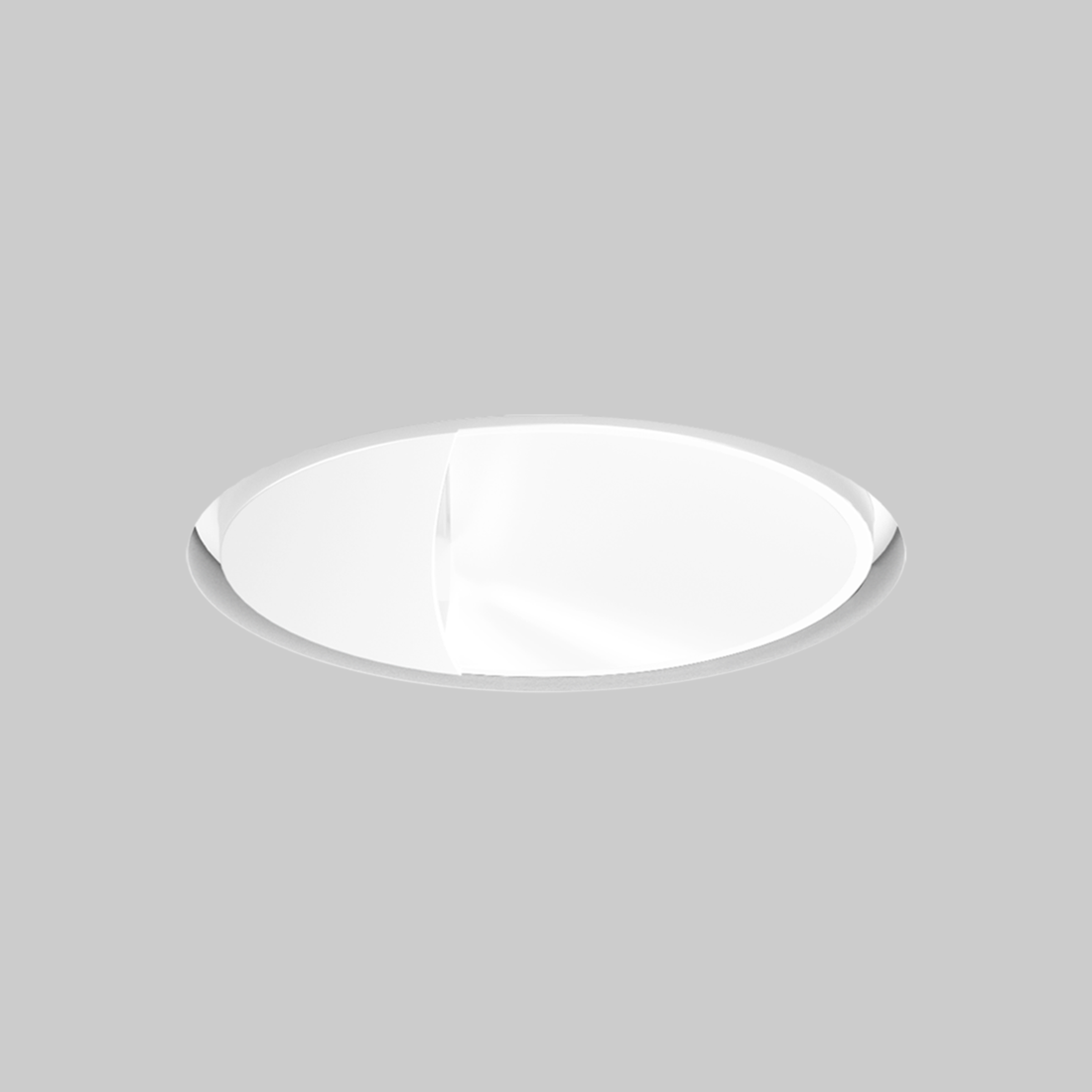

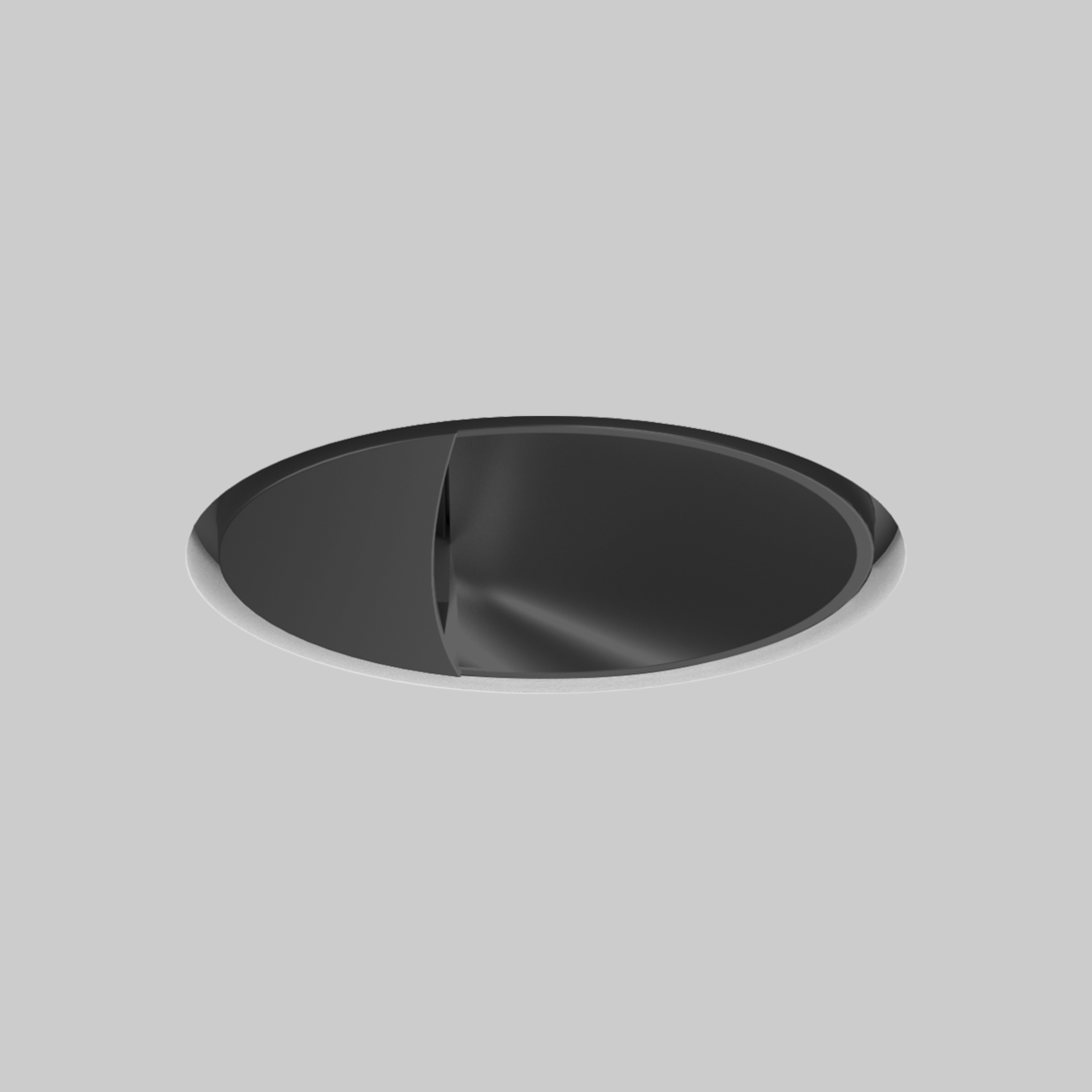

SASSO 100 round wallwasher trimless

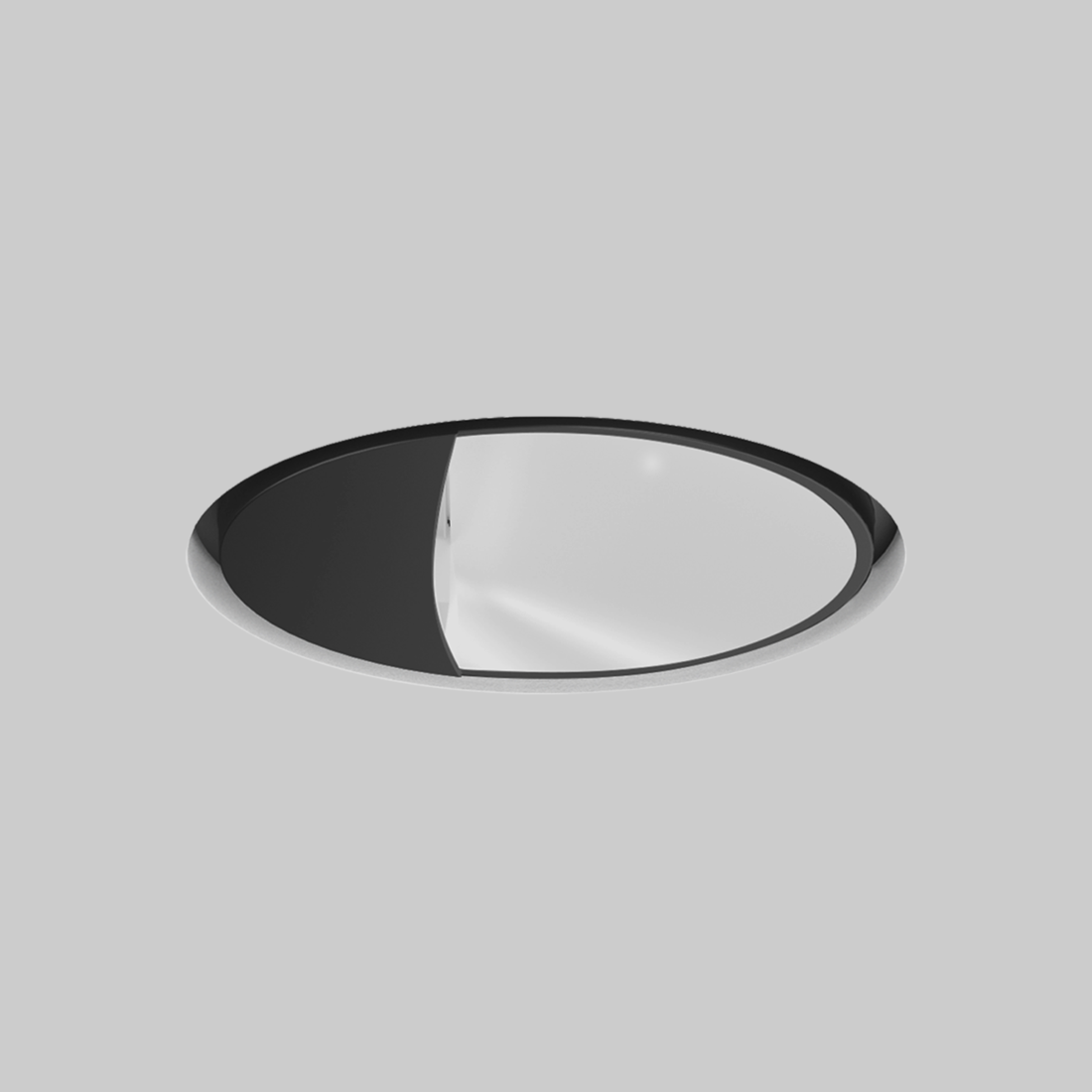

SASSO 100 round wallwasher trimless soft acoustic ceiling
SASSO 100 round wallwasher trim

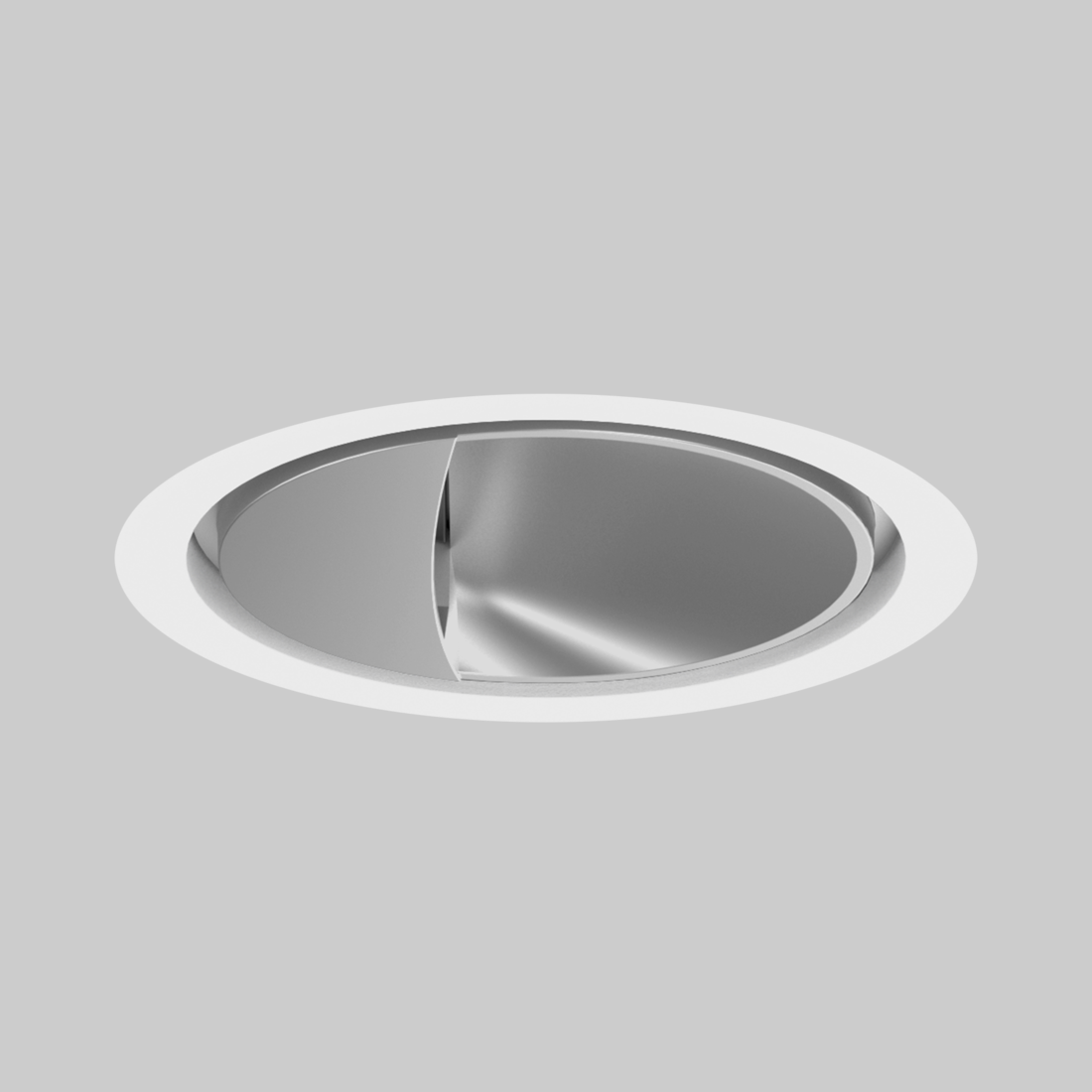

SASSO 100 round wallwasher trim soft acoustic ceiling
SASSO 100 round wallwasher trimless exposed concrete
SASSO 100 round wallwasher trimless
SASSO 100 round wallwasher trimless soft acoustic ceiling
SASSO 100 round wallwasher trim
SASSO 100 round wallwasher trim
SASSO 100 round wallwasher trim

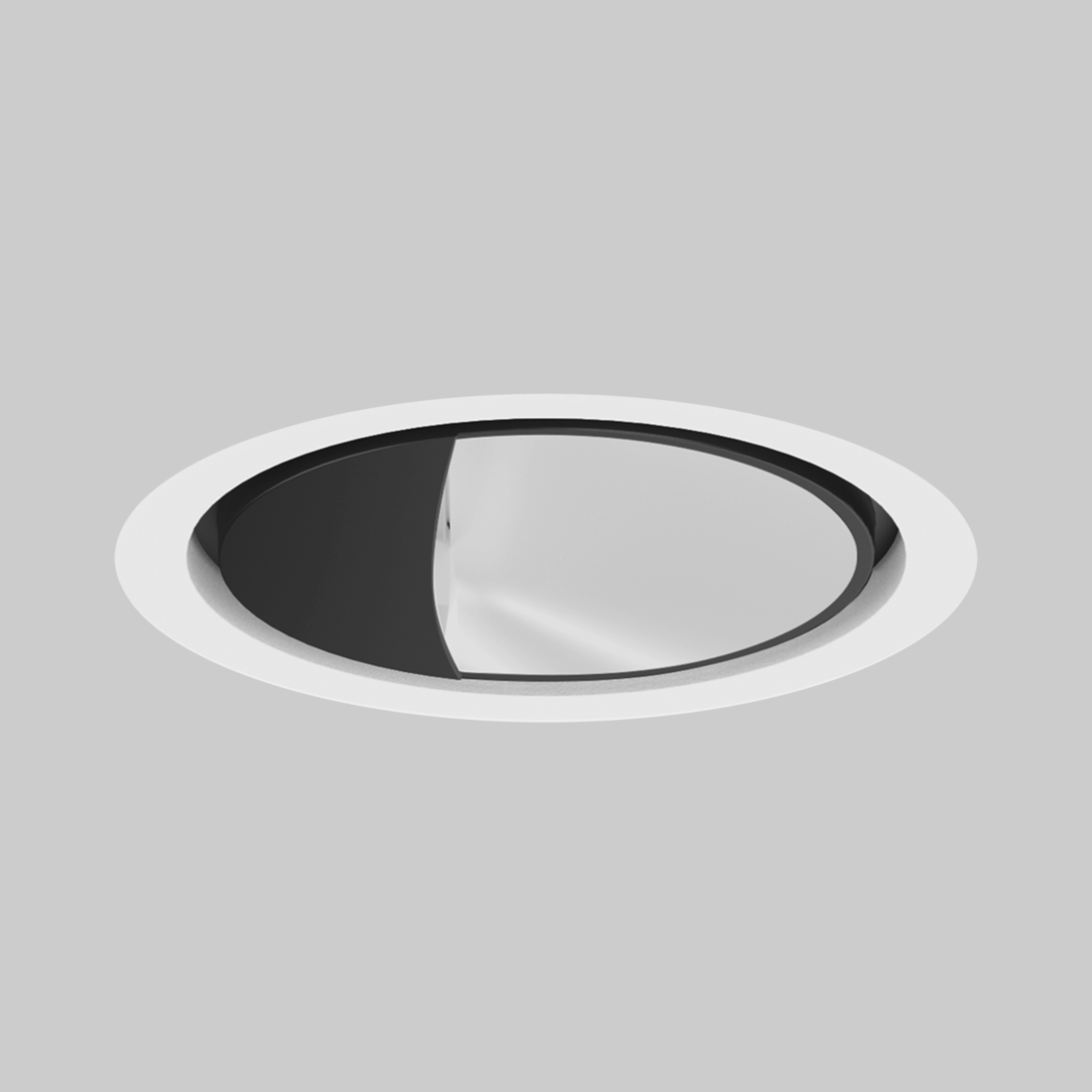

SASSO 100 round wallwasher trim soft acoustic ceiling

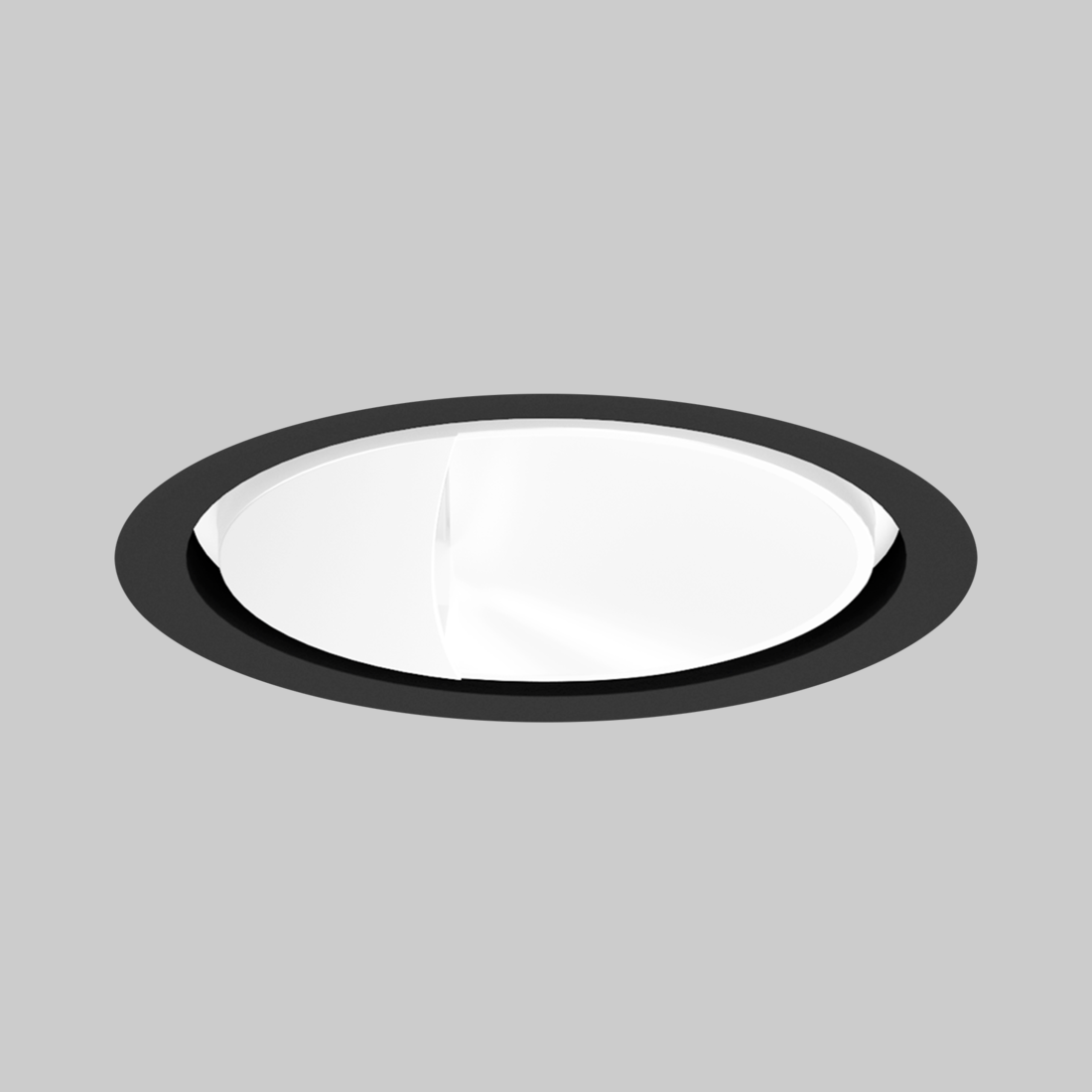

SASSO 100 round wallwasher trim soft acoustic ceiling
SASSO 100 round wallwasher trimless exposed concrete
SASSO 100 round wallwasher trimless
SASSO 100 round wallwasher trimless soft acoustic ceiling
SASSO 100 round wallwasher trim
SASSO 100 round wallwasher trim
SASSO 100 round wallwasher trim
SASSO 100 round wallwasher trim soft acoustic ceiling
SASSO 100 round wallwasher trim soft acoustic ceiling
SASSO 100 round wallwasher trimless exposed concrete
SASSO 100 round wallwasher trimless
SASSO 100 round wallwasher trimless soft acoustic ceiling
SASSO 100 round wallwasher trim
SASSO 100 round wallwasher trim
SASSO 100 round wallwasher trim
SASSO 100 round wallwasher trim soft acoustic ceiling
SASSO 100 round wallwasher trim soft acoustic ceiling
Art Invest Berlin
Mode von Feucht
Mode von Feucht
INSTITUTO DE EMPRESA
Variety
SASSO recessed colours
Ball catch system

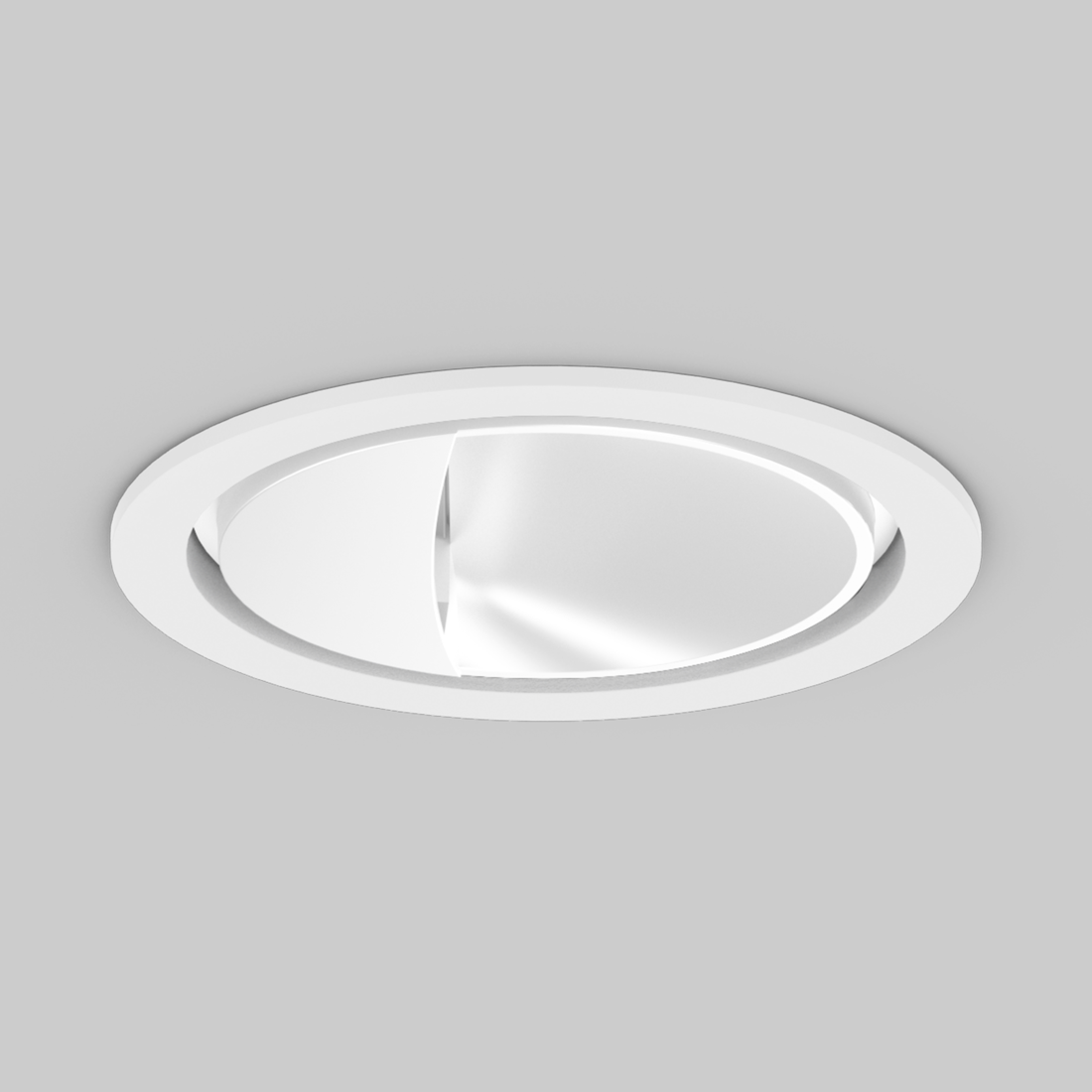

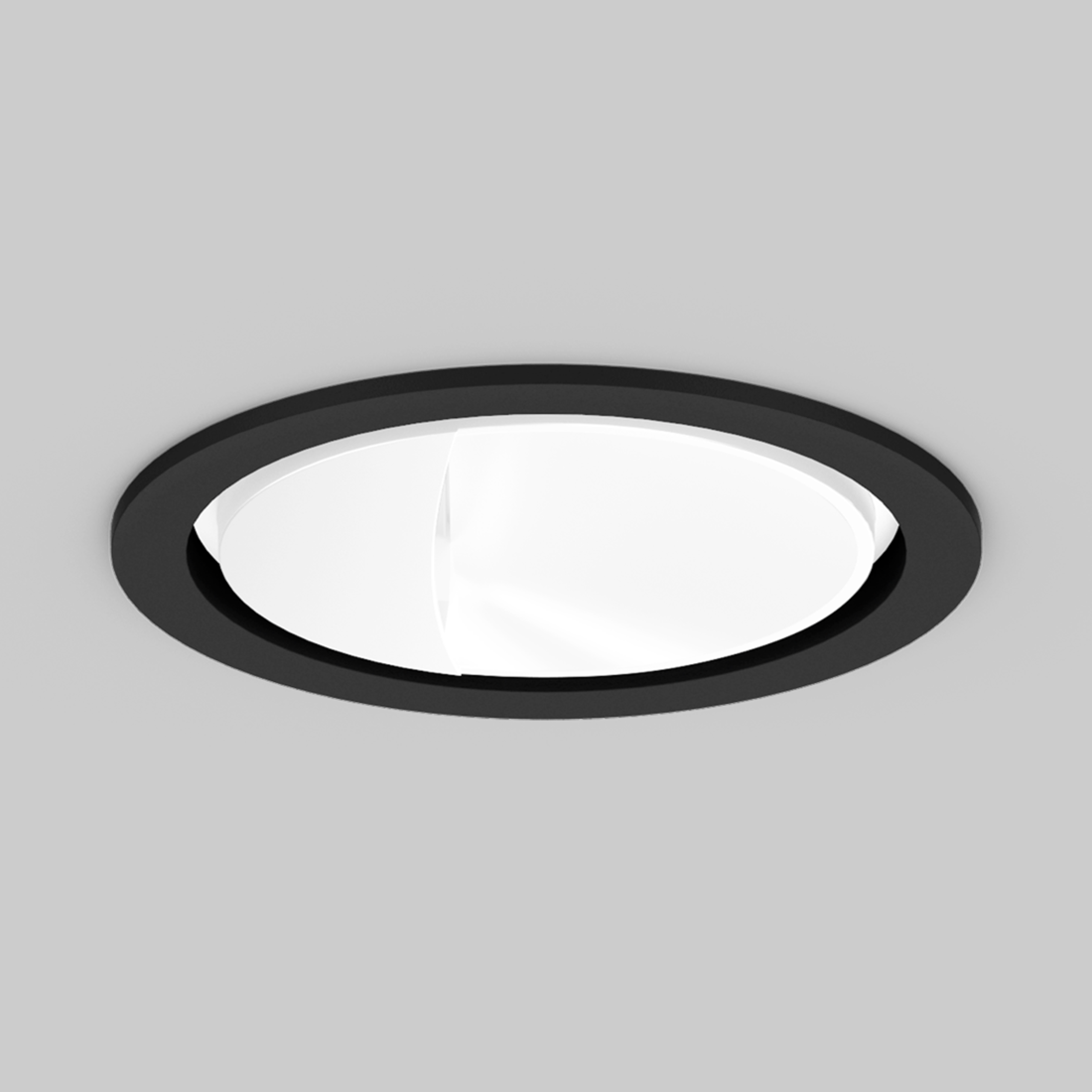

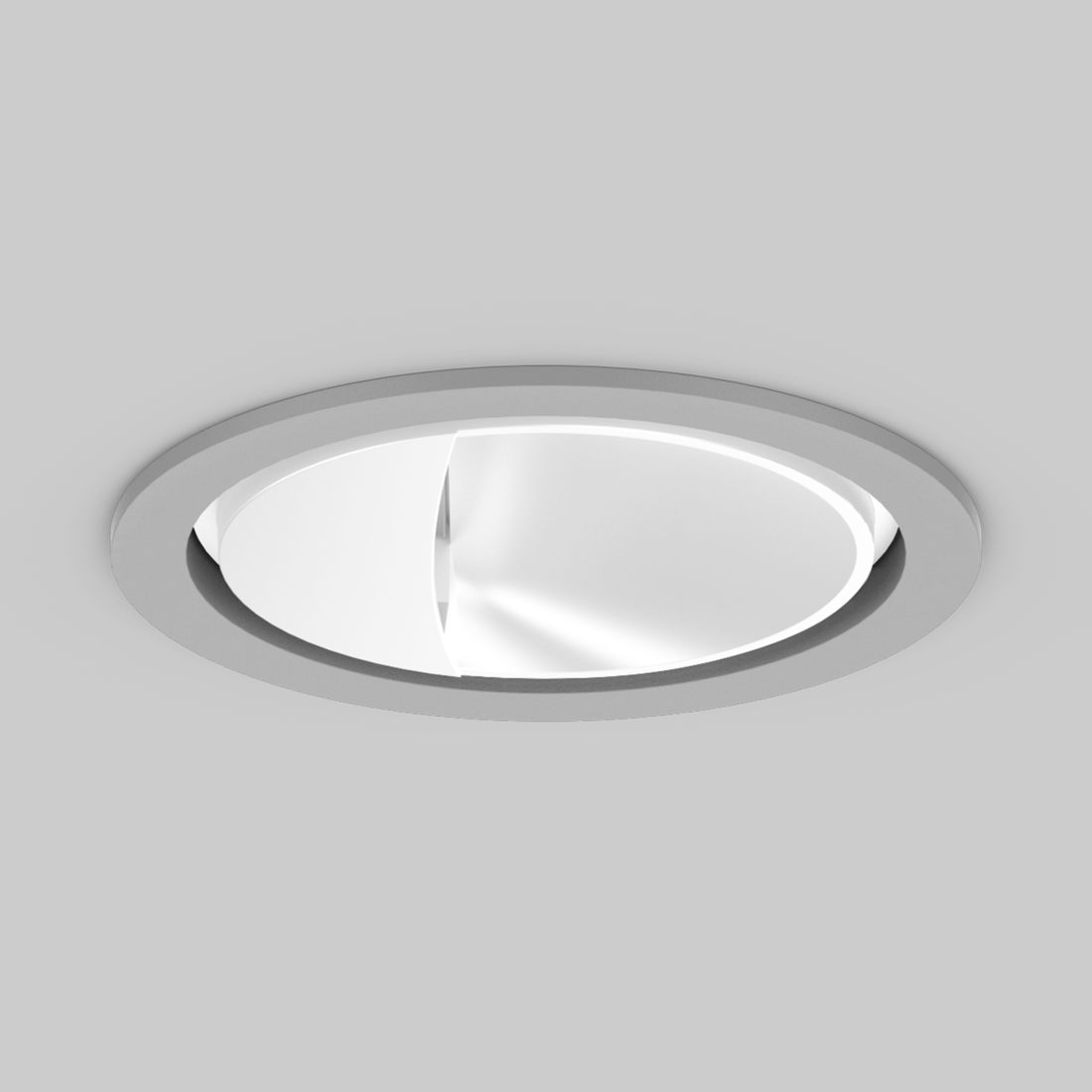

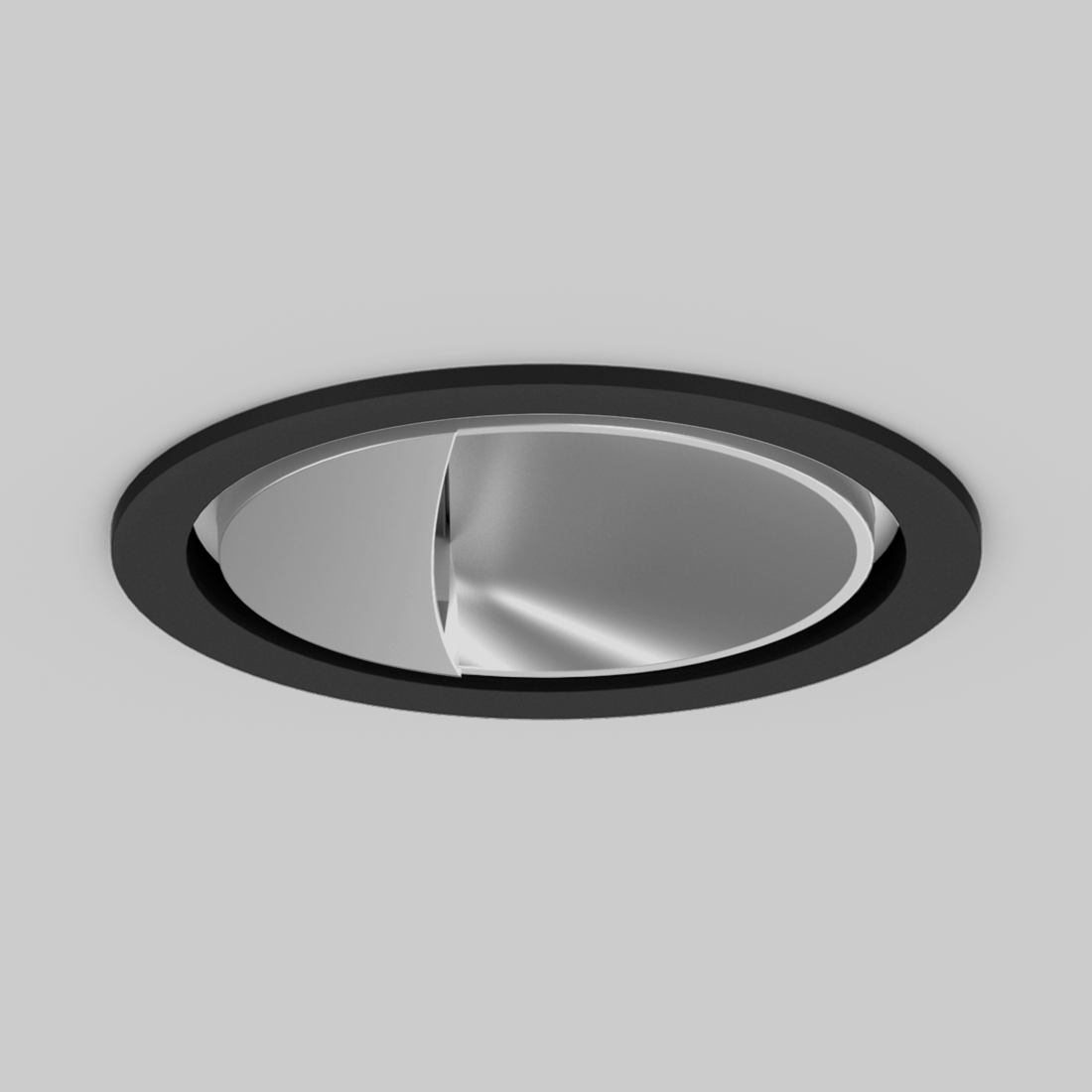

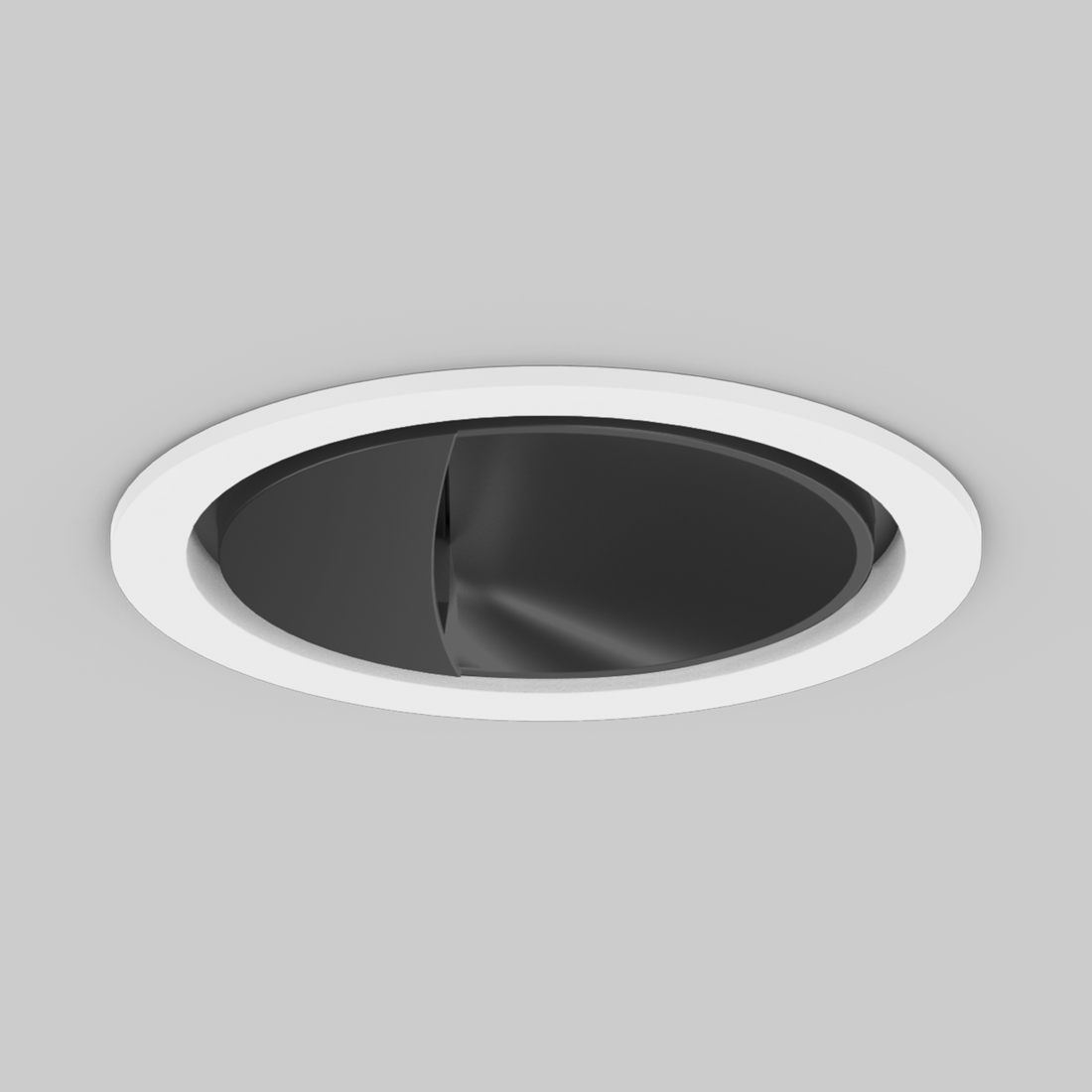

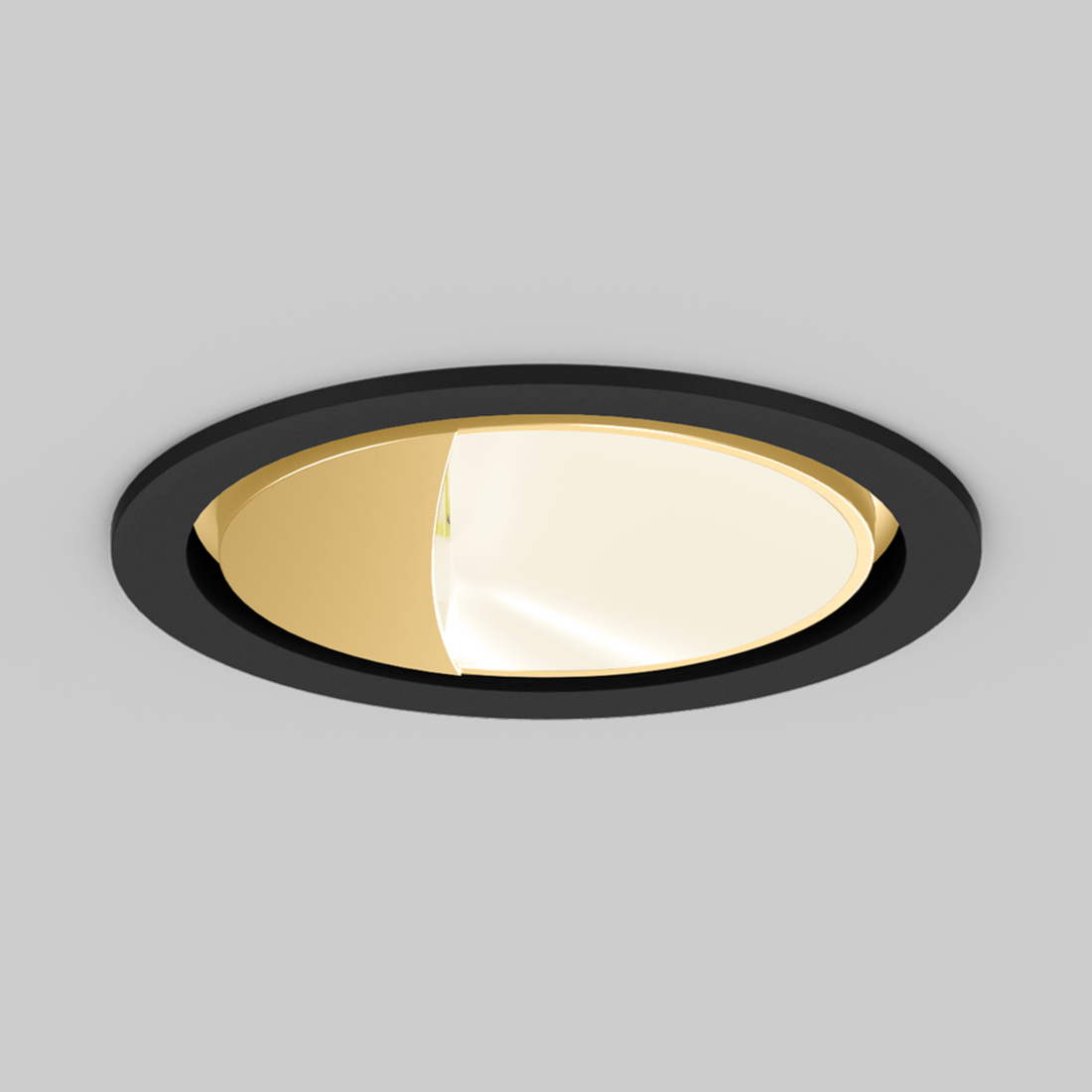

SASSO 100 round wallwasher

recessed 1 lamp

Quickinfo

2700 K, 3000 K, 3500 K, 4000 K, tunable white 2700 - 6000 K
CRI ≥ 90 / 2 SDCM (initial MacAdam), 3 SDCM (initial MacAdam)
up to 107 lm/W
L80 / 50000 h, L85 / 50000 h
DALI-2, non DIM
front IP20

Colour

    • Mounting set

    • Products and codes
    Discover family

    Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    Download all
    • GLDF
    • 3DS
    • DWG - 3D
    • EPD

    Description

    Round recessed spotlight; installation without tools in mounting set (trimless or with trim) with ball catch system; surface lacquered; installation possible in different housings; asymmetric radiation characteristic; with specially computed, asymmetrical reflector for homogeneous lighting intensity; high quality reflector with micro-faceted, aluminum-vaporised surface; no multiple shadows; efficient LEDs with very good colour rendering

    quick mounting in soft acoustic ceilings

    CRI ≥ 95 2 SDCM (optional)

    Products and codes

    Filter
    45
    lm/W
    107
    lm/W
    530
    lm
    2320
    lm
    11.9
    W
    27.8
    W
    15.8
    W
    23.7
    W
    0.51
    0.81
    0.46
    0.74

    Colour

    • Mounting set

    • SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    Status
    Article number(s)
    Type
    Dimming
    traffic white, Mounting set jet black, 3000 K, fixture 15.8 W, 100 lm/W
    non DIM
    traffic white, Mounting set jet black, 3000 K, fixture 15.8 W, 100 lm/W
    DALI-2
    traffic white, Mounting set jet black, 3000 K, fixture 23.7 W, 92 lm/W
    non DIM
    traffic white, Mounting set jet black, 3000 K, fixture 23.7 W, 92 lm/W
    DALI-2
    traffic white, Mounting set jet black, 4000 K, fixture 15.8 W, 100 lm/W
    non DIM
    traffic white, Mounting set jet black, 4000 K, fixture 15.8 W, 100 lm/W
    DALI-2
    traffic white, Mounting set jet black, 4000 K, fixture 23.7 W, 92 lm/W
    non DIM
    traffic white, Mounting set jet black, 4000 K, fixture 23.7 W, 92 lm/W
    DALI-2
    traffic white, Mounting set jet black, 3500 K, fixture 15.8 W, 104 lm/W
    non DIM
    traffic white, Mounting set jet black, 3500 K, fixture 15.8 W, 104 lm/W
    DALI-2
    traffic white, Mounting set jet black, 3500 K, fixture 23.7 W, 96 lm/W
    non DIM
    traffic white, Mounting set jet black, 3500 K, fixture 23.7 W, 96 lm/W
    DALI-2
    traffic white, Mounting set jet black, 2700 K, fixture 15.8 W, 107 lm/W
    non DIM
    traffic white, Mounting set jet black, 2700 K, fixture 15.8 W, 107 lm/W
    DALI-2
    traffic white, Mounting set jet black, 2700 K, fixture 23.7 W, 98 lm/W
    non DIM
    traffic white, Mounting set jet black, 2700 K, fixture 23.7 W, 98 lm/W
    DALI-2
    traffic white, Mounting set jet black, tunable white, 49 lm/W
    DALI-2
    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    Status
    Article number(s)
    Type
    Dimming
    traffic white, Mounting set traffic white, 3000 K, fixture 15.8 W, 100 lm/W
    non DIM
    traffic white, Mounting set traffic white, 3000 K, fixture 15.8 W, 100 lm/W
    DALI-2
    traffic white, Mounting set traffic white, 3000 K, fixture 23.7 W, 92 lm/W
    non DIM
    traffic white, Mounting set traffic white, 3000 K, fixture 23.7 W, 92 lm/W
    DALI-2
    traffic white, Mounting set traffic white, 4000 K, fixture 15.8 W, 100 lm/W
    non DIM
    traffic white, Mounting set traffic white, 4000 K, fixture 15.8 W, 100 lm/W
    DALI-2
    traffic white, Mounting set traffic white, 4000 K, fixture 23.7 W, 92 lm/W
    non DIM
    traffic white, Mounting set traffic white, 4000 K, fixture 23.7 W, 92 lm/W
    DALI-2
    traffic white, Mounting set traffic white, 3500 K, fixture 15.8 W, 104 lm/W
    non DIM
    traffic white, Mounting set traffic white, 3500 K, fixture 15.8 W, 104 lm/W
    DALI-2
    traffic white, Mounting set traffic white, 3500 K, fixture 23.7 W, 96 lm/W
    non DIM
    traffic white, Mounting set traffic white, 3500 K, fixture 23.7 W, 96 lm/W
    DALI-2
    traffic white, Mounting set traffic white, 2700 K, fixture 15.8 W, 107 lm/W
    non DIM
    traffic white, Mounting set traffic white, 2700 K, fixture 15.8 W, 107 lm/W
    DALI-2
    traffic white, Mounting set traffic white, 2700 K, fixture 23.7 W, 98 lm/W
    non DIM
    traffic white, Mounting set traffic white, 2700 K, fixture 23.7 W, 98 lm/W
    DALI-2
    traffic white, Mounting set traffic white, tunable white, 49 lm/W
    DALI-2
    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    Status
    Article number(s)
    Type
    Dimming
    traffic white, Mounting set white aluminium, 3000 K, fixture 15.8 W, 100 lm/W
    non DIM
    traffic white, Mounting set white aluminium, 3000 K, fixture 15.8 W, 100 lm/W
    DALI-2
    traffic white, Mounting set white aluminium, 3000 K, fixture 23.7 W, 92 lm/W
    non DIM
    traffic white, Mounting set white aluminium, 3000 K, fixture 23.7 W, 92 lm/W
    DALI-2
    traffic white, Mounting set white aluminium, 4000 K, fixture 15.8 W, 100 lm/W
    non DIM
    traffic white, Mounting set white aluminium, 4000 K, fixture 15.8 W, 100 lm/W
    DALI-2
    traffic white, Mounting set white aluminium, 4000 K, fixture 23.7 W, 92 lm/W
    non DIM
    traffic white, Mounting set white aluminium, 4000 K, fixture 23.7 W, 92 lm/W
    DALI-2
    traffic white, Mounting set white aluminium, 3500 K, fixture 15.8 W, 104 lm/W
    non DIM
    traffic white, Mounting set white aluminium, 3500 K, fixture 15.8 W, 104 lm/W
    DALI-2
    traffic white, Mounting set white aluminium, 3500 K, fixture 23.7 W, 96 lm/W
    non DIM
    traffic white, Mounting set white aluminium, 3500 K, fixture 23.7 W, 96 lm/W
    DALI-2
    traffic white, Mounting set white aluminium, 2700 K, fixture 15.8 W, 107 lm/W
    non DIM
    traffic white, Mounting set white aluminium, 2700 K, fixture 15.8 W, 107 lm/W
    DALI-2
    traffic white, Mounting set white aluminium, 2700 K, fixture 23.7 W, 98 lm/W
    non DIM
    traffic white, Mounting set white aluminium, 2700 K, fixture 23.7 W, 98 lm/W
    DALI-2
    traffic white, Mounting set white aluminium, tunable white, 49 lm/W
    DALI-2
    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    Status
    Article number(s)
    Type
    Dimming
    jet black, Mounting set jet black, 3000 K, fixture 15.8 W, 92 lm/W
    non DIM
    jet black, Mounting set jet black, 3000 K, fixture 15.8 W, 92 lm/W
    DALI-2
    jet black, Mounting set jet black, 3000 K, fixture 23.7 W, 84 lm/W
    non DIM
    jet black, Mounting set jet black, 3000 K, fixture 23.7 W, 84 lm/W
    DALI-2
    jet black, Mounting set jet black, 4000 K, fixture 15.8 W, 92 lm/W
    non DIM
    jet black, Mounting set jet black, 4000 K, fixture 15.8 W, 92 lm/W
    DALI-2
    jet black, Mounting set jet black, 4000 K, fixture 23.7 W, 84 lm/W
    non DIM
    jet black, Mounting set jet black, 4000 K, fixture 23.7 W, 84 lm/W
    DALI-2
    jet black, Mounting set jet black, 3500 K, fixture 15.8 W, 95 lm/W
    non DIM
    jet black, Mounting set jet black, 3500 K, fixture 15.8 W, 95 lm/W
    DALI-2
    jet black, Mounting set jet black, 3500 K, fixture 23.7 W, 88 lm/W
    non DIM
    jet black, Mounting set jet black, 3500 K, fixture 23.7 W, 88 lm/W
    DALI-2
    jet black, Mounting set jet black, 2700 K, fixture 15.8 W, 97 lm/W
    non DIM
    jet black, Mounting set jet black, 2700 K, fixture 15.8 W, 97 lm/W
    DALI-2
    jet black, Mounting set jet black, 2700 K, fixture 23.7 W, 89 lm/W
    non DIM
    jet black, Mounting set jet black, 2700 K, fixture 23.7 W, 89 lm/W
    DALI-2
    jet black, Mounting set jet black, tunable white, 45 lm/W
    DALI-2
    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    Status
    Article number(s)
    Type
    Dimming
    jet black, Mounting set traffic white, 3000 K, fixture 15.8 W, 92 lm/W
    non DIM
    jet black, Mounting set traffic white, 3000 K, fixture 15.8 W, 92 lm/W
    DALI-2
    jet black, Mounting set traffic white, 3000 K, fixture 23.7 W, 84 lm/W
    non DIM
    jet black, Mounting set traffic white, 3000 K, fixture 23.7 W, 84 lm/W
    DALI-2
    jet black, Mounting set traffic white, 4000 K, fixture 15.8 W, 92 lm/W
    non DIM
    jet black, Mounting set traffic white, 4000 K, fixture 15.8 W, 92 lm/W
    DALI-2
    jet black, Mounting set traffic white, 4000 K, fixture 23.7 W, 84 lm/W
    non DIM
    jet black, Mounting set traffic white, 4000 K, fixture 23.7 W, 84 lm/W
    DALI-2
    jet black, Mounting set traffic white, 3500 K, fixture 15.8 W, 95 lm/W
    non DIM
    jet black, Mounting set traffic white, 3500 K, fixture 15.8 W, 95 lm/W
    DALI-2
    jet black, Mounting set traffic white, 3500 K, fixture 23.7 W, 88 lm/W
    non DIM
    jet black, Mounting set traffic white, 3500 K, fixture 23.7 W, 88 lm/W
    DALI-2
    jet black, Mounting set traffic white, 2700 K, fixture 15.8 W, 97 lm/W
    non DIM
    jet black, Mounting set traffic white, 2700 K, fixture 15.8 W, 97 lm/W
    DALI-2
    jet black, Mounting set traffic white, 2700 K, fixture 23.7 W, 89 lm/W
    non DIM
    jet black, Mounting set traffic white, 2700 K, fixture 23.7 W, 89 lm/W
    DALI-2
    jet black, Mounting set traffic white, tunable white, 45 lm/W
    DALI-2
    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    Status
    Article number(s)
    Type
    Dimming
    jet black, Mounting set white aluminium, 3000 K, fixture 15.8 W, 92 lm/W
    non DIM
    jet black, Mounting set white aluminium, 3000 K, fixture 15.8 W, 92 lm/W
    DALI-2
    jet black, Mounting set white aluminium, 3000 K, fixture 23.7 W, 84 lm/W
    non DIM
    jet black, Mounting set white aluminium, 3000 K, fixture 23.7 W, 84 lm/W
    DALI-2
    jet black, Mounting set white aluminium, 4000 K, fixture 15.8 W, 92 lm/W
    non DIM
    jet black, Mounting set white aluminium, 4000 K, fixture 15.8 W, 92 lm/W
    DALI-2
    jet black, Mounting set white aluminium, 4000 K, fixture 23.7 W, 84 lm/W
    non DIM
    jet black, Mounting set white aluminium, 4000 K, fixture 23.7 W, 84 lm/W
    DALI-2
    jet black, Mounting set white aluminium, 3500 K, fixture 15.8 W, 95 lm/W
    non DIM
    jet black, Mounting set white aluminium, 3500 K, fixture 15.8 W, 95 lm/W
    DALI-2
    jet black, Mounting set white aluminium, 3500 K, fixture 23.7 W, 88 lm/W
    non DIM
    jet black, Mounting set white aluminium, 3500 K, fixture 23.7 W, 88 lm/W
    DALI-2
    jet black, Mounting set white aluminium, 2700 K, fixture 15.8 W, 97 lm/W
    non DIM
    jet black, Mounting set white aluminium, 2700 K, fixture 15.8 W, 97 lm/W
    DALI-2
    jet black, Mounting set white aluminium, 2700 K, fixture 23.7 W, 89 lm/W
    non DIM
    jet black, Mounting set white aluminium, 2700 K, fixture 23.7 W, 89 lm/W
    DALI-2
    jet black, Mounting set white aluminium, tunable white, 45 lm/W
    DALI-2
    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    Status
    Article number(s)
    Type
    Dimming
    matt silver, Mounting set jet black, 3000 K, fixture 15.8 W, 100 lm/W
    non DIM
    matt silver, Mounting set jet black, 3000 K, fixture 15.8 W, 100 lm/W
    DALI-2
    matt silver, Mounting set jet black, 3000 K, fixture 23.7 W, 92 lm/W
    non DIM
    matt silver, Mounting set jet black, 3000 K, fixture 23.7 W, 92 lm/W
    DALI-2
    matt silver, Mounting set jet black, 4000 K, fixture 15.8 W, 100 lm/W
    non DIM
    matt silver, Mounting set jet black, 4000 K, fixture 15.8 W, 100 lm/W
    DALI-2
    matt silver, Mounting set jet black, 4000 K, fixture 23.7 W, 92 lm/W
    non DIM
    matt silver, Mounting set jet black, 4000 K, fixture 23.7 W, 92 lm/W
    DALI-2
    matt silver, Mounting set jet black, 3500 K, fixture 15.8 W, 104 lm/W
    non DIM
    matt silver, Mounting set jet black, 3500 K, fixture 15.8 W, 104 lm/W
    DALI-2
    matt silver, Mounting set jet black, 3500 K, fixture 23.7 W, 96 lm/W
    non DIM
    matt silver, Mounting set jet black, 3500 K, fixture 23.7 W, 96 lm/W
    DALI-2
    matt silver, Mounting set jet black, 2700 K, fixture 15.8 W, 106 lm/W
    non DIM
    matt silver, Mounting set jet black, 2700 K, fixture 15.8 W, 106 lm/W
    DALI-2
    matt silver, Mounting set jet black, 2700 K, fixture 23.7 W, 98 lm/W
    non DIM
    matt silver, Mounting set jet black, 2700 K, fixture 23.7 W, 98 lm/W
    DALI-2
    matt silver, Mounting set jet black, tunable white, 49 lm/W
    DALI-2
    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    Status
    Article number(s)
    Type
    Dimming
    matt silver, Mounting set traffic white, 3000 K, fixture 15.8 W, 100 lm/W
    non DIM
    matt silver, Mounting set traffic white, 3000 K, fixture 15.8 W, 100 lm/W
    DALI-2
    matt silver, Mounting set traffic white, 3000 K, fixture 23.7 W, 92 lm/W
    non DIM
    matt silver, Mounting set traffic white, 3000 K, fixture 23.7 W, 92 lm/W
    DALI-2
    matt silver, Mounting set traffic white, 4000 K, fixture 15.8 W, 100 lm/W
    non DIM
    matt silver, Mounting set traffic white, 4000 K, fixture 15.8 W, 100 lm/W
    DALI-2
    matt silver, Mounting set traffic white, 4000 K, fixture 23.7 W, 92 lm/W
    non DIM
    matt silver, Mounting set traffic white, 4000 K, fixture 23.7 W, 92 lm/W
    DALI-2
    matt silver, Mounting set traffic white, 3500 K, fixture 15.8 W, 104 lm/W
    non DIM
    matt silver, Mounting set traffic white, 3500 K, fixture 15.8 W, 104 lm/W
    DALI-2
    matt silver, Mounting set traffic white, 3500 K, fixture 23.7 W, 96 lm/W
    non DIM
    matt silver, Mounting set traffic white, 3500 K, fixture 23.7 W, 96 lm/W
    DALI-2
    matt silver, Mounting set traffic white, 2700 K, fixture 15.8 W, 106 lm/W
    non DIM
    matt silver, Mounting set traffic white, 2700 K, fixture 15.8 W, 106 lm/W
    DALI-2
    matt silver, Mounting set traffic white, 2700 K, fixture 23.7 W, 98 lm/W
    non DIM
    matt silver, Mounting set traffic white, 2700 K, fixture 23.7 W, 98 lm/W
    DALI-2
    matt silver, Mounting set traffic white, tunable white, 49 lm/W
    DALI-2
    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    Status
    Article number(s)
    Type
    Dimming
    matt silver, Mounting set white aluminium, 3000 K, fixture 15.8 W, 100 lm/W
    non DIM
    matt silver, Mounting set white aluminium, 3000 K, fixture 15.8 W, 100 lm/W
    DALI-2
    matt silver, Mounting set white aluminium, 3000 K, fixture 23.7 W, 92 lm/W
    non DIM
    matt silver, Mounting set white aluminium, 3000 K, fixture 23.7 W, 92 lm/W
    DALI-2
    matt silver, Mounting set white aluminium, 4000 K, fixture 15.8 W, 100 lm/W
    non DIM
    matt silver, Mounting set white aluminium, 4000 K, fixture 15.8 W, 100 lm/W
    DALI-2
    matt silver, Mounting set white aluminium, 4000 K, fixture 23.7 W, 92 lm/W
    non DIM
    matt silver, Mounting set white aluminium, 4000 K, fixture 23.7 W, 92 lm/W
    DALI-2
    matt silver, Mounting set white aluminium, 3500 K, fixture 15.8 W, 104 lm/W
    non DIM
    matt silver, Mounting set white aluminium, 3500 K, fixture 15.8 W, 104 lm/W
    DALI-2
    matt silver, Mounting set white aluminium, 3500 K, fixture 23.7 W, 96 lm/W
    non DIM
    matt silver, Mounting set white aluminium, 3500 K, fixture 23.7 W, 96 lm/W
    DALI-2
    matt silver, Mounting set white aluminium, 2700 K, fixture 15.8 W, 106 lm/W
    non DIM
    matt silver, Mounting set white aluminium, 2700 K, fixture 15.8 W, 106 lm/W
    DALI-2
    matt silver, Mounting set white aluminium, 2700 K, fixture 23.7 W, 98 lm/W
    non DIM
    matt silver, Mounting set white aluminium, 2700 K, fixture 23.7 W, 98 lm/W
    DALI-2
    matt silver, Mounting set white aluminium, tunable white, 49 lm/W
    DALI-2
    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    Status
    Article number(s)
    Type
    Dimming
    gold dust, Mounting set jet black, 3000 K, fixture 15.8 W, 95 lm/W
    non DIM
    gold dust, Mounting set jet black, 3000 K, fixture 15.8 W, 95 lm/W
    DALI-2
    gold dust, Mounting set jet black, 3000 K, fixture 23.7 W, 87 lm/W
    non DIM
    gold dust, Mounting set jet black, 3000 K, fixture 23.7 W, 87 lm/W
    DALI-2
    gold dust, Mounting set jet black, 4000 K, fixture 15.8 W, 95 lm/W
    non DIM
    gold dust, Mounting set jet black, 4000 K, fixture 15.8 W, 95 lm/W
    DALI-2
    gold dust, Mounting set jet black, 4000 K, fixture 23.7 W, 87 lm/W
    non DIM
    gold dust, Mounting set jet black, 4000 K, fixture 23.7 W, 87 lm/W
    DALI-2
    gold dust, Mounting set jet black, 3500 K, fixture 15.8 W, 99 lm/W
    non DIM
    gold dust, Mounting set jet black, 3500 K, fixture 15.8 W, 99 lm/W
    DALI-2
    gold dust, Mounting set jet black, 3500 K, fixture 23.7 W, 91 lm/W
    non DIM
    gold dust, Mounting set jet black, 3500 K, fixture 23.7 W, 91 lm/W
    DALI-2
    gold dust, Mounting set jet black, 2700 K, fixture 15.8 W, 101 lm/W
    non DIM
    gold dust, Mounting set jet black, 2700 K, fixture 15.8 W, 101 lm/W
    DALI-2
    gold dust, Mounting set jet black, 2700 K, fixture 23.7 W, 93 lm/W
    non DIM
    gold dust, Mounting set jet black, 2700 K, fixture 23.7 W, 93 lm/W
    DALI-2
    gold dust, Mounting set jet black, tunable white, 46 lm/W
    DALI-2
    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    Status
    Article number(s)
    Type
    Dimming
    gold dust, Mounting set traffic white, 3000 K, fixture 15.8 W, 95 lm/W
    non DIM
    gold dust, Mounting set traffic white, 3000 K, fixture 15.8 W, 95 lm/W
    DALI-2
    gold dust, Mounting set traffic white, 3000 K, fixture 23.7 W, 87 lm/W
    non DIM
    gold dust, Mounting set traffic white, 3000 K, fixture 23.7 W, 87 lm/W
    DALI-2
    gold dust, Mounting set traffic white, 4000 K, fixture 15.8 W, 95 lm/W
    non DIM
    gold dust, Mounting set traffic white, 4000 K, fixture 15.8 W, 95 lm/W
    DALI-2
    gold dust, Mounting set traffic white, 4000 K, fixture 23.7 W, 87 lm/W
    non DIM
    gold dust, Mounting set traffic white, 4000 K, fixture 23.7 W, 87 lm/W
    DALI-2
    gold dust, Mounting set traffic white, 3500 K, fixture 15.8 W, 99 lm/W
    non DIM
    gold dust, Mounting set traffic white, 3500 K, fixture 15.8 W, 99 lm/W
    DALI-2
    gold dust, Mounting set traffic white, 3500 K, fixture 23.7 W, 91 lm/W
    non DIM
    gold dust, Mounting set traffic white, 3500 K, fixture 23.7 W, 91 lm/W
    DALI-2
    gold dust, Mounting set traffic white, 2700 K, fixture 15.8 W, 101 lm/W
    non DIM
    gold dust, Mounting set traffic white, 2700 K, fixture 15.8 W, 101 lm/W
    DALI-2
    gold dust, Mounting set traffic white, 2700 K, fixture 23.7 W, 93 lm/W
    non DIM
    gold dust, Mounting set traffic white, 2700 K, fixture 23.7 W, 93 lm/W
    DALI-2
    gold dust, Mounting set traffic white, tunable white, 46 lm/W
    DALI-2
    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    SASSO 100 round wallwasher trim

    Status
    Article number(s)
    Type
    Dimming
    gold dust, Mounting set white aluminium, 3000 K, fixture 15.8 W, 95 lm/W
    non DIM
    gold dust, Mounting set white aluminium, 3000 K, fixture 15.8 W, 95 lm/W
    DALI-2
    gold dust, Mounting set white aluminium, 3000 K, fixture 23.7 W, 87 lm/W
    non DIM
    gold dust, Mounting set white aluminium, 3000 K, fixture 23.7 W, 87 lm/W
    DALI-2
    gold dust, Mounting set white aluminium, 4000 K, fixture 15.8 W, 95 lm/W
    non DIM
    gold dust, Mounting set white aluminium, 4000 K, fixture 15.8 W, 95 lm/W
    DALI-2
    gold dust, Mounting set white aluminium, 4000 K, fixture 23.7 W, 87 lm/W
    non DIM
    gold dust, Mounting set white aluminium, 4000 K, fixture 23.7 W, 87 lm/W
    DALI-2
    gold dust, Mounting set white aluminium, 3500 K, fixture 15.8 W, 99 lm/W
    non DIM
    gold dust, Mounting set white aluminium, 3500 K, fixture 15.8 W, 99 lm/W
    DALI-2
    gold dust, Mounting set white aluminium, 3500 K, fixture 23.7 W, 91 lm/W
    non DIM
    gold dust, Mounting set white aluminium, 3500 K, fixture 23.7 W, 91 lm/W
    DALI-2
    gold dust, Mounting set white aluminium, 2700 K, fixture 15.8 W, 101 lm/W
    non DIM
    gold dust, Mounting set white aluminium, 2700 K, fixture 15.8 W, 101 lm/W
    DALI-2
    gold dust, Mounting set white aluminium, 2700 K, fixture 23.7 W, 93 lm/W
    non DIM
    gold dust, Mounting set white aluminium, 2700 K, fixture 23.7 W, 93 lm/W
    DALI-2
    gold dust, Mounting set white aluminium, tunable white, 46 lm/W
    DALI-2
    SASSO 100 round wallwasher trim soft acoustic ceiling

    SASSO 100 round wallwasher trim soft acoustic ceiling

    SASSO 100 round wallwasher trim soft acoustic ceiling

    Status
    Article number(s)
    Type
    Dimming
    traffic white, Mounting set jet black, 3000 K, fixture 15.8 W, 100 lm/W
    non DIM
    traffic white, Mounting set jet black, 3000 K, fixture 15.8 W, 100 lm/W
    DALI-2
    traffic white, Mounting set jet black, 3000 K, fixture 23.7 W, 92 lm/W
    non DIM
    traffic white, Mounting set jet black, 3000 K, fixture 23.7 W, 92 lm/W
    DALI-2
    traffic white, Mounting set jet black, 4000 K, fixture 15.8 W, 100 lm/W
    non DIM
    traffic white, Mounting set jet black, 4000 K, fixture 15.8 W, 100 lm/W
    DALI-2
    traffic white, Mounting set jet black, 4000 K, fixture 23.7 W, 92 lm/W
    non DIM
    traffic white, Mounting set jet black, 4000 K, fixture 23.7 W, 92 lm/W
    DALI-2
    traffic white, Mounting set jet black, 3500 K, fixture 15.8 W, 104 lm/W
    non DIM
    traffic white, Mounting set jet black, 3500 K, fixture 15.8 W, 104 lm/W
    DALI-2
    traffic white, Mounting set jet black, 3500 K, fixture 23.7 W, 96 lm/W
    non DIM
    traffic white, Mounting set jet black, 3500 K, fixture 23.7 W, 96 lm/W
    DALI-2
    traffic white, Mounting set jet black, 2700 K, fixture 15.8 W, 107 lm/W
    non DIM
    traffic white, Mounting set jet black, 2700 K, fixture 15.8 W, 107 lm/W
    DALI-2
    traffic white, Mounting set jet black, 2700 K, fixture 23.7 W, 98 lm/W
    non DIM
    traffic white, Mounting set jet black, 2700 K, fixture 23.7 W, 98 lm/W
    DALI-2
    traffic white, Mounting set jet black, tunable white, 49 lm/W
    DALI-2
    SASSO 100 round wallwasher trim soft acoustic ceiling

    SASSO 100 round wallwasher trim soft acoustic ceiling

    SASSO 100 round wallwasher trim soft acoustic ceiling

    Status
    Article number(s)
    Type
    Dimming
    traffic white, Mounting set traffic white, 3000 K, fixture 15.8 W, 100 lm/W
    non DIM
    traffic white, Mounting set traffic white, 3000 K, fixture 15.8 W, 100 lm/W
    DALI-2
    traffic white, Mounting set traffic white, 3000 K, fixture 23.7 W, 92 lm/W
    non DIM
    traffic white, Mounting set traffic white, 3000 K, fixture 23.7 W, 92 lm/W
    DALI-2
    traffic white, Mounting set traffic white, 4000 K, fixture 15.8 W, 100 lm/W
    non DIM
    traffic white, Mounting set traffic white, 4000 K, fixture 15.8 W, 100 lm/W
    DALI-2
    traffic white, Mounting set traffic white, 4000 K, fixture 23.7 W, 92 lm/W
    non DIM
    traffic white, Mounting set traffic white, 4000 K, fixture 23.7 W, 92 lm/W
    DALI-2
    traffic white, Mounting set traffic white, 3500 K, fixture 15.8 W, 104 lm/W
    non DIM
    traffic white, Mounting set traffic white, 3500 K, fixture 15.8 W, 104 lm/W
    DALI-2
    traffic white, Mounting set traffic white, 3500 K, fixture 23.7 W, 96 lm/W
    non DIM
    traffic white, Mounting set traffic white, 3500 K, fixture 23.7 W, 96 lm/W
    DALI-2
    traffic white, Mounting set traffic white, 2700 K, fixture 15.8 W, 107 lm/W
    non DIM
    traffic white, Mounting set traffic white, 2700 K, fixture 15.8 W, 107 lm/W
    DALI-2
    traffic white, Mounting set traffic white, 2700 K, fixture 23.7 W, 98 lm/W
    non DIM
    traffic white, Mounting set traffic white, 2700 K, fixture 23.7 W, 98 lm/W
    DALI-2
    traffic white, Mounting set traffic white, tunable white, 49 lm/W
    DALI-2
    SASSO 100 round wallwasher trim soft acoustic ceiling

    SASSO 100 round wallwasher trim soft acoustic ceiling

    SASSO 100 round wallwasher trim soft acoustic ceiling

    Status
    Article number(s)
    Type
    Dimming
    jet black, Mounting set jet black, 3000 K, fixture 15.8 W, 92 lm/W
    non DIM
    jet black, Mounting set jet black, 3000 K, fixture 15.8 W, 92 lm/W
    DALI-2
    jet black, Mounting set jet black, 3000 K, fixture 23.7 W, 84 lm/W
    non DIM
    jet black, Mounting set jet black, 3000 K, fixture 23.7 W, 84 lm/W
    DALI-2
    jet black, Mounting set jet black, 4000 K, fixture 15.8 W, 92 lm/W
    DALI-2
    jet black, Mounting set jet black, 4000 K, fixture 23.7 W, 84 lm/W
    DALI-2
    jet black, Mounting set jet black, 3500 K, fixture 15.8 W, 95 lm/W
    DALI-2
    jet black, Mounting set jet black, 3500 K, fixture 23.7 W, 88 lm/W
    DALI-2
    jet black, Mounting set jet black, 2700 K, fixture 15.8 W, 97 lm/W
    non DIM
    jet black, Mounting set jet black, 2700 K, fixture 15.8 W, 97 lm/W
    DALI-2
    jet black, Mounting set jet black, 2700 K, fixture 23.7 W, 89 lm/W
    non DIM
    jet black, Mounting set jet black, 2700 K, fixture 23.7 W, 89 lm/W
    DALI-2

    Accessories

    Converter

    article number
    power
    voltage / frequency
    protection class
    constant current
    control
    POWER SUPPLY
    002-90766
    21 W
    min 50 Hz
    max 60 Hz
    PC2
    450 mA
    non DIM
    POWER SUPPLY
    002-90767
    28 W
    min 50 Hz
    max 60 Hz
    PC2
    450 mA
    DALI-2
    POWER SUPPLY
    002-90780
    31 W
    min 50 Hz
    max 60 Hz
    PC2
    650 mA
    non DIM
    POWER SUPPLY
    002-90789
    28 W
    min 50 Hz
    max 60 Hz
    PC2
    650 mA
    DALI-2

    Mounting

    article number
    type
    colour
    dimensions
    mounting type
    cut out dimensions
    ceiling thickness
    plaster board thickness
    EXPOSED CONCRETE MOUNTING HOUSING
    048-2795210
    white aluminium
    RAL 9006
    length 230 mm
    width 230 mm
    height 162 mm
    2.2 kg
    MOUNTING SET trimless
    048-2796117
    for plasterboard ceilings
    traffic white
    RAL 9016
    diameter 105 mm
    height 29 mm
    0.1 kg
    diameter 106 mm
    12.5/15/25 mm
    MOUNTING SET trimless
    048-2796197
    for soft acoustic ceilings
    traffic white
    RAL 9016
    diameter 114 mm
    height 27 mm
    0.1 kg
    For Rockfon Mono® Acoustic
    diameter 100 mm
    min. ceiling thickness 25 mm
    max. ceiling thickness 40 mm
    MOUNTING SET with trim 1 lamp
    048-2796317
    for intermediate ceilings
    traffic white
    RAL 9016
    diameter 118 mm
    height 40 mm
    0.1 kg
    diameter 108 mm
    min. ceiling thickness 2 mm
    max. ceiling thickness 25 mm
    MOUNTING SET with trim 1 lamp
    048-2796318
    for intermediate ceilings
    jet black
    RAL 9005
    diameter 118 mm
    height 40 mm
    0.06 kg
    diameter 108 mm
    min. ceiling thickness 2 mm
    max. ceiling thickness 25 mm
    MOUNTING SET with trim 1 lamp
    048-279631G
    for intermediate ceilings
    white aluminium
    RAL 9006
    diameter 118 mm
    height 40 mm
    0.06 kg
    diameter 108 mm
    min. ceiling thickness 2 mm
    max. ceiling thickness 25 mm
    MOUNTING SET with trim
    048-2796397
    for soft acoustic ceilings
    traffic white
    RAL 9016
    diameter 114 mm
    height 25 mm
    0.15 kg
    For Rockfon Mono® Acoustic
    diameter 100 mm
    min. ceiling thickness 25 mm
    max. ceiling thickness 40 mm
    MOUNTING SET with trim
    048-2796398
    for soft acoustic ceilings
    jet black
    RAL 9005
    diameter 114 mm
    height 25 mm
    0.1 kg
    For Rockfon Mono® Acoustic
    diameter 100 mm
    min. ceiling thickness 25 mm
    max. ceiling thickness 40 mm

    Converter

    article number
    power
    voltage / frequency
    protection class
    constant voltage
    constant current
    control
    POWER SUPPLY PRE-WIRED with junction box
    002-90766A
    28 W
    max 60 Hz
    PC2
    450 mA
    non DIM
    POWER SUPPLY PRE-WIRED with junction box
    002-90767A
    28 W
    min 50 Hz
    max 60 Hz
    PC2
    450 mA
    DALI-2
    POWER SUPPLY PRE-WIRED with junction box
    002-90774A
    28 W
    max 60 Hz
    PC2
    700 mA
    non DIM
    POWER SUPPLY PRE-WIRED with junction box
    002-90776A
    28 W
    min 50 Hz
    max 60 Hz
    PC2
    700 mA
    DALI-2
    POWER SUPPLY PRE-WIRED with junction box
    002-90780A
    28 W
    max 60 Hz
    PC2
    650 mA
    non DIM
    POWER SUPPLY PRE-WIRED with junction box
    002-90789A
    28 W
    min 50 Hz
    max 60 Hz
    PC2
    650 mA
    DALI-2
    DIN RAIL LED DRIVER
    005-6121030
    DALI-2 DT6 1 - 2 addresses / DT8 1 adress
    DIN RAIL POWER SUPPLY BASIC
    005-6520210
    160 W
    min 50 Hz
    max 60 Hz
    PC2
    48 V

    Electrical mounting

    article number
    type
    dimensions
    THROUGH WIRING CONNECTION BOX
    005-2531110
    non DIM cable ø 4 – 12 mm
    length 105 mm
    width 58 mm
    height 30 mm
    0.06 kg
    THROUGH WIRING CONNECTION BOX
    005-2551110
    DALI cable ø 4 – 12 mm
    length 105 mm
    width 58 mm
    height 30 mm
    0.07 kg

    Mounting

    article number
    dimensions
    PRIMED CONCRETE MOUNTING HOUSING
    048-2695110
    length 614 mm
    width 307 mm
    height 120 mm
    0.17 kg

    Mounting tools

    article number
    type
    colour
    dimensions
    MOUNTING TOOL
    048-2795918
    for soft acoustic ceilings
    traffic black
    RAL 9017
    length 104 mm
    width 104 mm
    height 35 mm
    0.2 kg

    Related products

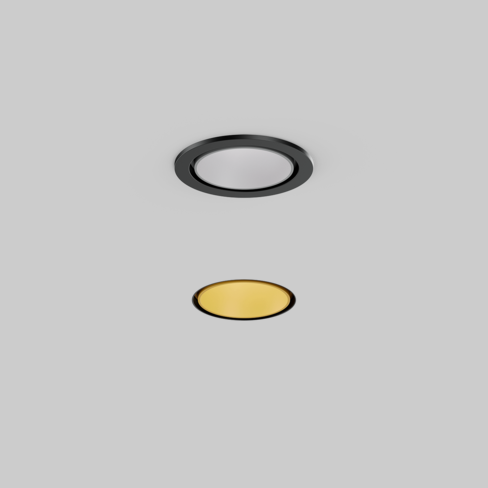

    SASSO 60

    round downlight recessed 1 lamp

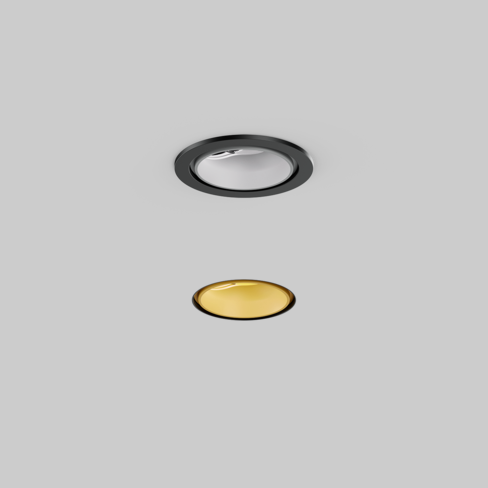

    SASSO 60

    round adjustable recessed 1 lamp

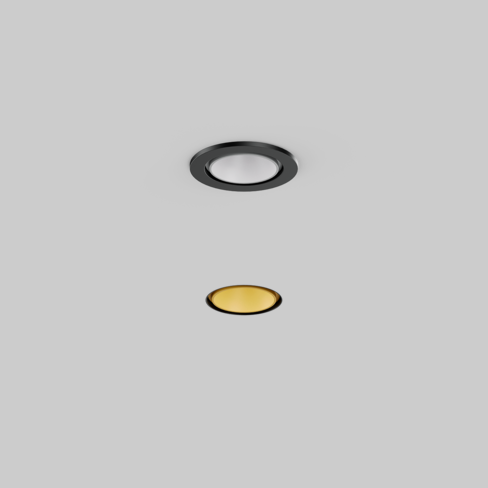

    SASSO 40

    round downlight recessed 1 lamp

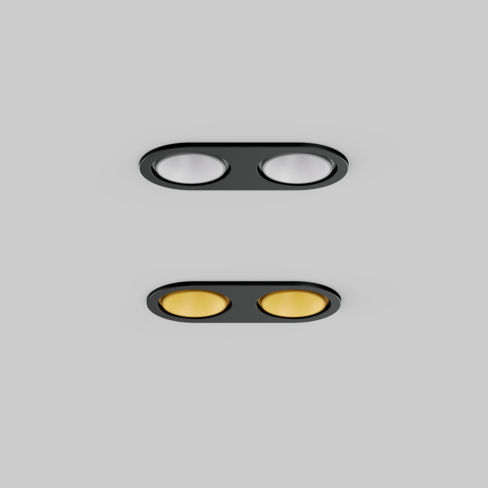

    SASSO 40

    round downlight recessed 2 lamps

    SASSO 40

    round wallwasher/floor recessed 1 lamp

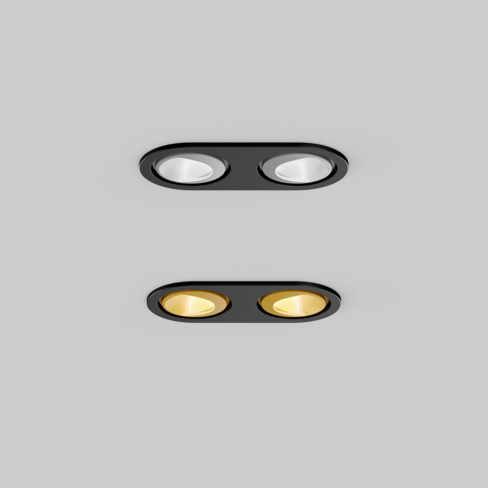

    SASSO 40

    round wallwasher/floor recessed 2 lamps

    SASSO 40

    round wallwasher recessed 1 lamp

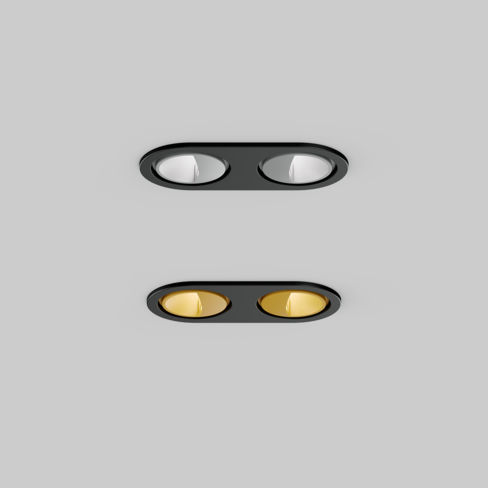

    SASSO 40

    round wallwasher recessed 2 lamps

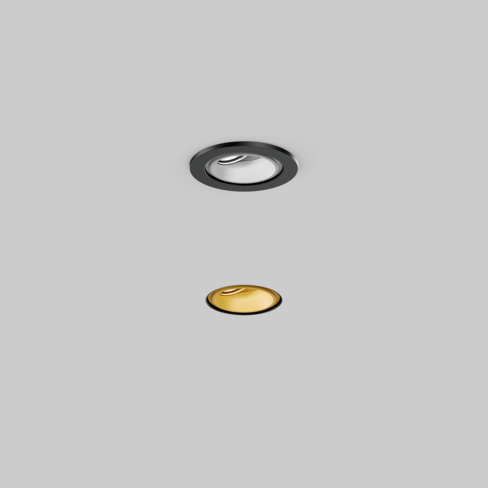

    SASSO 40

    round adjustable recessed 1 lamp

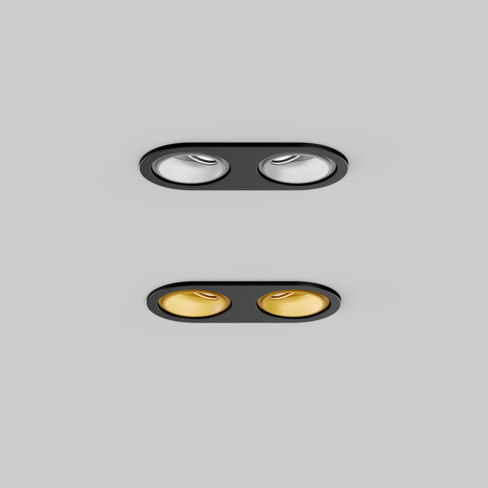

    SASSO 40

    round adjustable recessed 2 lamps
