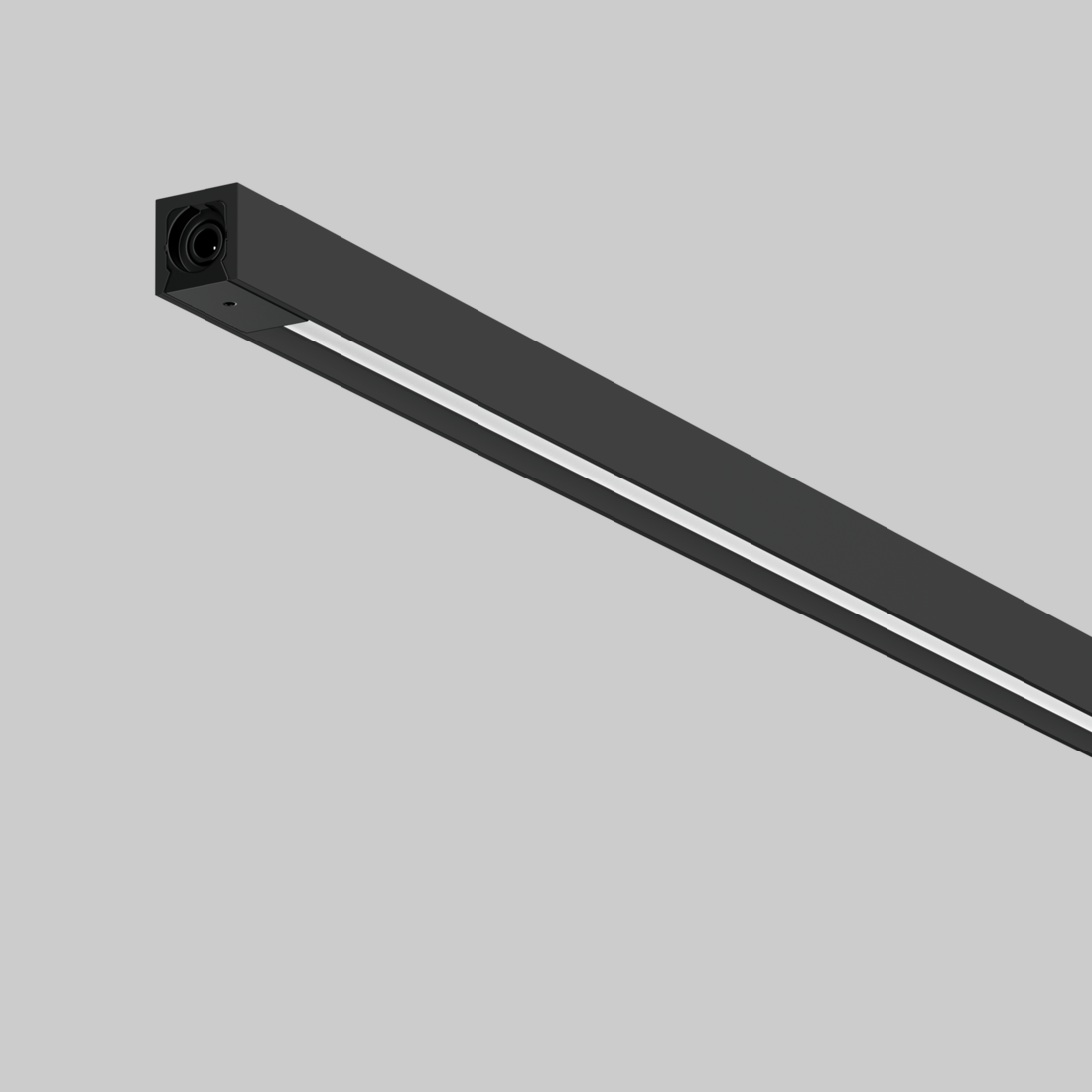

FINA SUPPORT lead

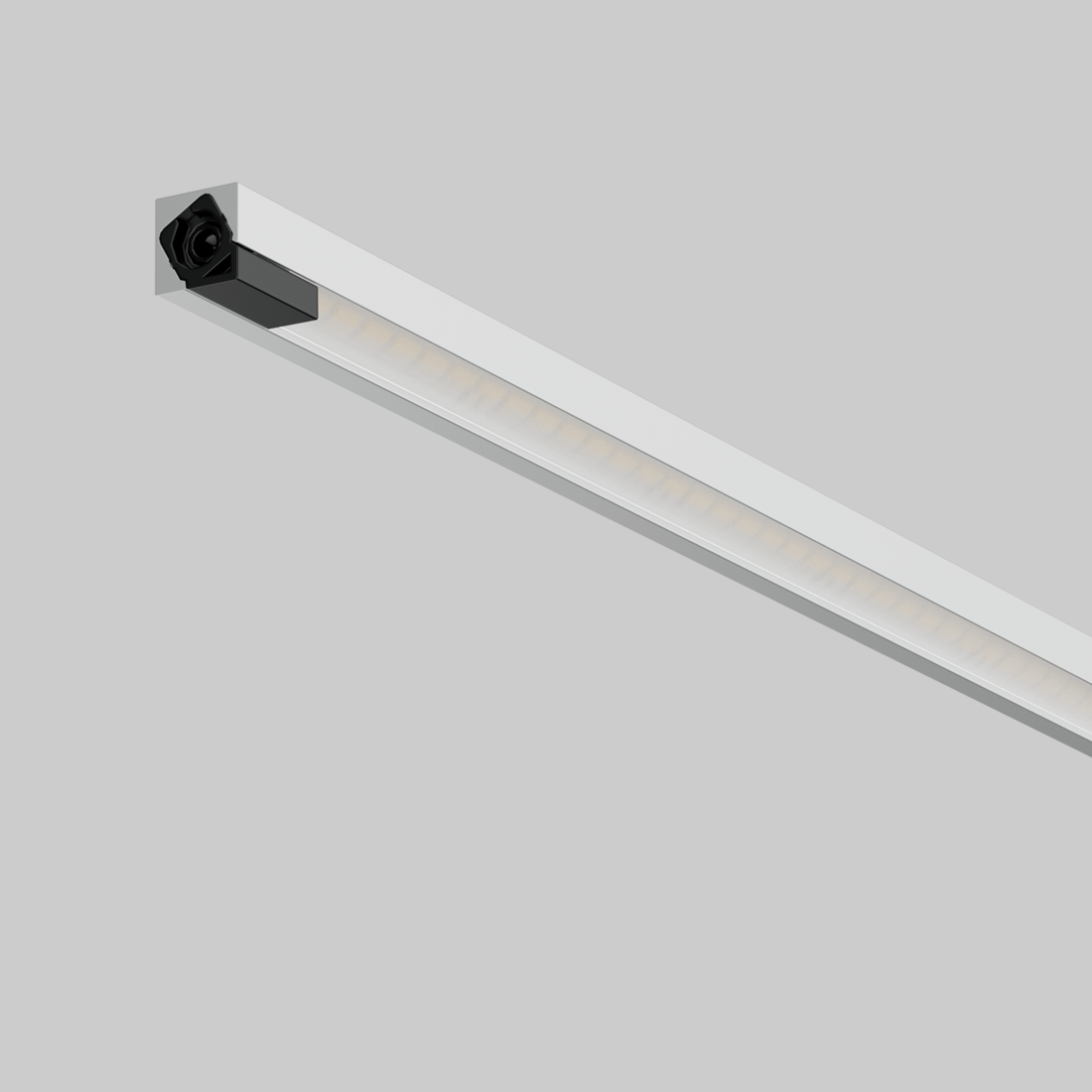

FINA SUPPORT lead 30°

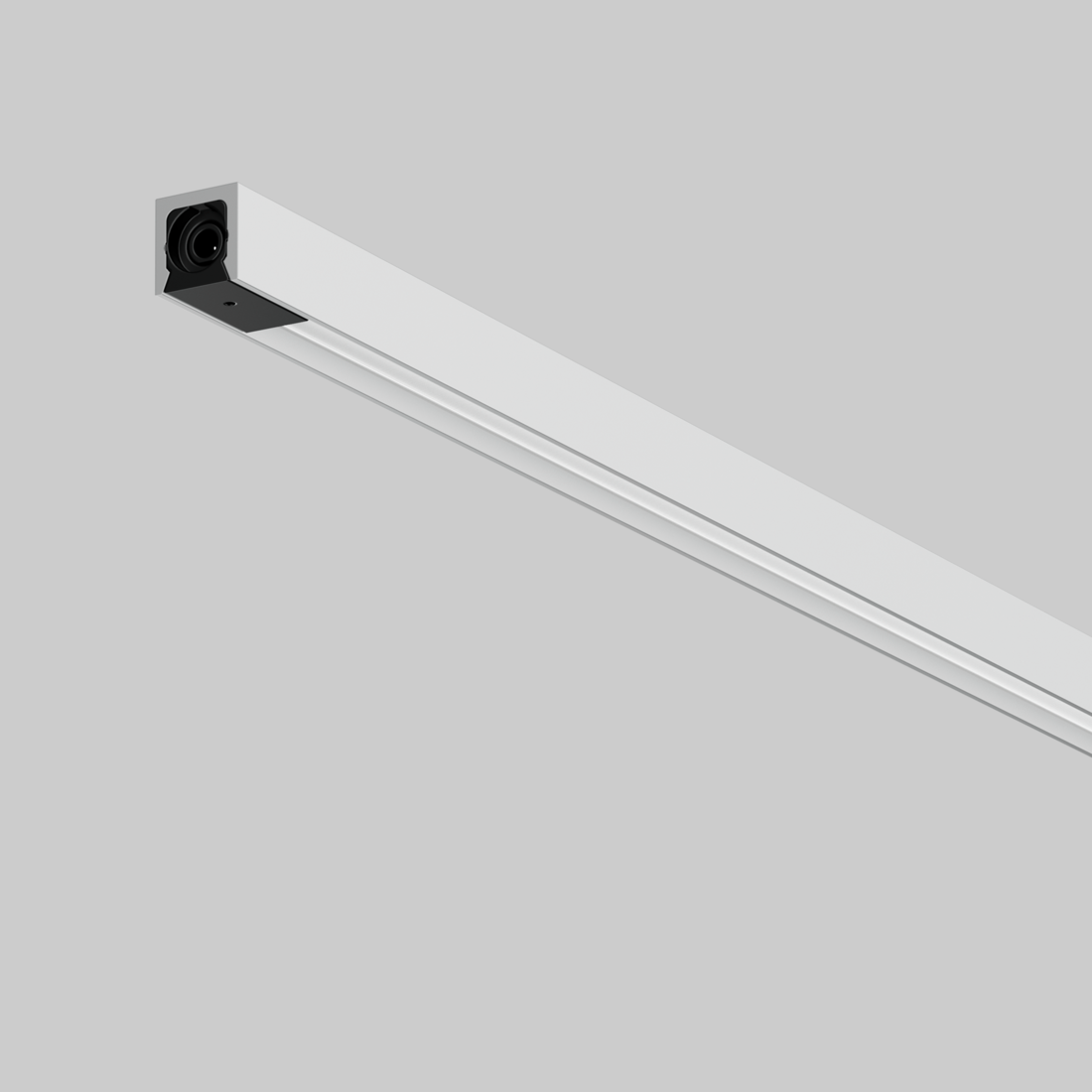

FINA SUPPORT lead

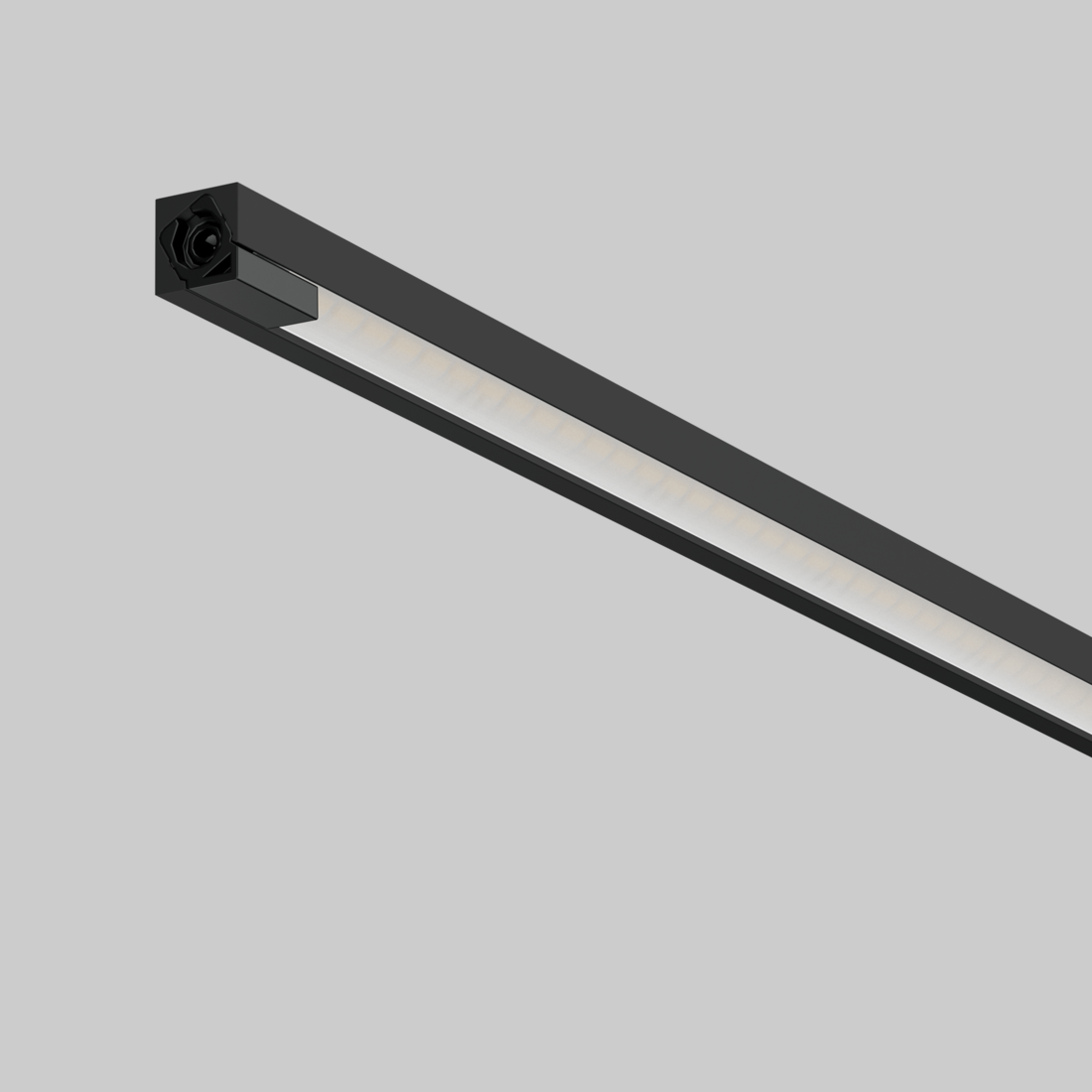

FINA SUPPORT lead 30°

FINA SUPPORT lead

standing system

Quickinfo

3000 K, 3500 K, 4000 K
CRI ≥ 97 / 3 SDCM (initial MacAd
up to 1,480 lm/m
up to 93 lm/W
L85 / 50000 h
excl. driver
IP20

Colour

    • Products and codes
    Discover family

    Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    Download all
    • ROLF
    • ULD

    Description

    Miniature rectangular lamp made of aluminium; angular design; surface lacquered; plug and play electrical connector system for toolless mounting; different mechanical and electrical poles available; for flexible system design; with specially computed foil for asymmetrical light distribution; light inset rotatable; energy-efficient LEDs with very good colour rendering; converter plug and play; converter separately available

    CRI ≥ 95, R9 ≥ 90

    seamless design

    360° tiltable

    light-directing foil

    Products and codes

    Filter
    84
    lm/W
    93
    lm/W
    43
    lm
    1530
    lm
    0.7
    W
    21.8
    W
    0.68
    0.86
    0.61
    0.78

    Colour

    • FINA SUPPORT lead 30°

    FINA SUPPORT lead 30°

    FINA SUPPORT lead 30°

    Status
    Article number(s)
    Type
    Dimming
    tar black, 3000 K, 87 lm/W, length 100 mm
    excl. driver
    tar black, 4000 K, 87 lm/W, length 100 mm
    excl. driver
    tar black, 3500 K, 87 lm/W, length 100 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 200 mm
    excl. driver
    tar black, 4000 K, 92 lm/W, length 200 mm
    excl. driver
    tar black, 3500 K, 92 lm/W, length 200 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 400 mm
    excl. driver
    tar black, 4000 K, 92 lm/W, length 400 mm
    excl. driver
    tar black, 3500 K, 92 lm/W, length 400 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 600 mm
    excl. driver
    tar black, 4000 K, 92 lm/W, length 600 mm
    excl. driver
    tar black, 3500 K, 92 lm/W, length 600 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 800 mm
    excl. driver
    tar black, 4000 K, 92 lm/W, length 800 mm
    excl. driver
    tar black, 3500 K, 92 lm/W, length 800 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 1,000 mm
    excl. driver
    tar black, 4000 K, 92 lm/W, length 1,000 mm
    excl. driver
    tar black, 3500 K, 92 lm/W, length 1,000 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 1,200 mm
    excl. driver
    tar black, 4000 K, 92 lm/W, length 1,200 mm
    excl. driver
    tar black, 3500 K, 92 lm/W, length 1,200 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 65 mm
    excl. driver
    tar black, 4000 K, 92 lm/W, length 65 mm
    excl. driver
    tar black, 3500 K, 92 lm/W, length 65 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 135 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 135 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 135 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 170 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 170 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 170 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 205 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 205 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 205 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 240 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 240 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 240 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 275 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 275 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 275 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 310 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 310 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 310 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 345 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 345 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 345 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 380 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 380 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 380 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 415 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 415 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 415 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 450 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 450 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 450 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 485 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 485 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 485 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 520 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 520 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 520 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 555 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 555 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 555 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 590 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 590 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 590 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 625 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 625 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 625 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 660 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 660 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 660 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 695 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 695 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 695 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 730 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 730 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 730 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 765 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 765 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 765 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 835 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 835 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 835 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 870 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 870 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 870 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 905 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 905 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 905 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 940 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 940 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 940 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 975 mm
    excl. driver
    tar black, 4000 K, 92 lm/W, length 975 mm
    excl. driver
    tar black, 3500 K, 92 lm/W, length 975 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 1,010 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 1,010 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 1,010 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 1,045 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 1,045 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 1,045 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 1,080 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 1,080 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 1,080 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 1,115 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 1,115 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 1,115 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 1,150 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 1,150 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 1,150 mm
    excl. driver
    FINA SUPPORT lead 30°

    FINA SUPPORT lead 30°

    FINA SUPPORT lead 30°

    Status
    Article number(s)
    Type
    Dimming
    white aluminium, 3000 K, 87 lm/W, length 100 mm
    excl. driver
    white aluminium, 4000 K, 87 lm/W, length 100 mm
    excl. driver
    white aluminium, 3500 K, 87 lm/W, length 100 mm
    excl. driver
    white aluminium, 3000 K, 84 lm/W, length 200 mm
    excl. driver
    white aluminium, 4000 K, 92 lm/W, length 200 mm
    excl. driver
    white aluminium, 3500 K, 92 lm/W, length 200 mm
    excl. driver
    white aluminium, 3000 K, 84 lm/W, length 400 mm
    excl. driver
    white aluminium, 4000 K, 92 lm/W, length 400 mm
    excl. driver
    white aluminium, 3500 K, 92 lm/W, length 400 mm
    excl. driver
    white aluminium, 3000 K, 84 lm/W, length 600 mm
    excl. driver
    white aluminium, 4000 K, 92 lm/W, length 600 mm
    excl. driver
    white aluminium, 3500 K, 92 lm/W, length 600 mm
    excl. driver
    white aluminium, 3000 K, 84 lm/W, length 800 mm
    excl. driver
    white aluminium, 4000 K, 92 lm/W, length 800 mm
    excl. driver
    white aluminium, 3500 K, 92 lm/W, length 800 mm
    excl. driver
    white aluminium, 3000 K, 84 lm/W, length 1,000 mm
    excl. driver
    white aluminium, 4000 K, 92 lm/W, length 1,000 mm
    excl. driver
    white aluminium, 3500 K, 92 lm/W, length 1,000 mm
    excl. driver
    white aluminium, 3000 K, 84 lm/W, length 1,200 mm
    excl. driver
    white aluminium, 4000 K, 92 lm/W, length 1,200 mm
    excl. driver
    white aluminium, 3500 K, 92 lm/W, length 1,200 mm
    excl. driver
    white aluminium, 3000 K, 84 lm/W, length 65 mm
    excl. driver
    white aluminium, 4000 K, 92 lm/W, length 65 mm
    excl. driver
    white aluminium, 3500 K, 92 lm/W, length 65 mm
    excl. driver
    white aluminium, 3000 K, 84 lm/W, length 135 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 135 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 135 mm
    excl. driver
    white aluminium, 3000 K, 84 lm/W, length 170 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 170 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 170 mm
    excl. driver
    white aluminium, 3000 K, 84 lm/W, length 205 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 205 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 205 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 240 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 240 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 240 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 275 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 275 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 275 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 310 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 310 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 310 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 345 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 345 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 345 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 380 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 380 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 380 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 415 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 415 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 415 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 450 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 450 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 450 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 485 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 485 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 485 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 520 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 520 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 520 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 555 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 555 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 555 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 590 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 590 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 590 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 625 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 625 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 625 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 660 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 660 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 660 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 695 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 695 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 695 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 730 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 730 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 730 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 765 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 765 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 765 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 835 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 835 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 835 mm
    excl. driver
    white aluminium, 3000 K, 84 lm/W, length 870 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 870 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 870 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 905 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 905 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 905 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 940 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 940 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 940 mm
    excl. driver
    white aluminium, 3000 K, 84 lm/W, length 975 mm
    excl. driver
    white aluminium, 4000 K, 92 lm/W, length 975 mm
    excl. driver
    white aluminium, 3500 K, 92 lm/W, length 975 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 1,010 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 1,010 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 1,010 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 1,045 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 1,045 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 1,045 mm
    excl. driver
    white aluminium, 3000 K, 84 lm/W, length 1,080 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 1,080 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 1,080 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 1,115 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 1,115 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 1,115 mm
    excl. driver
    white aluminium, 3000 K, 85 lm/W, length 1,150 mm
    excl. driver
    white aluminium, 4000 K, 93 lm/W, length 1,150 mm
    excl. driver
    white aluminium, 3500 K, 93 lm/W, length 1,150 mm
    excl. driver
    FINA SUPPORT lead

    FINA SUPPORT lead

    FINA SUPPORT lead

    Status
    Article number(s)
    Type
    Dimming
    tar black, 3000 K, 84 lm/W, length 200 mm
    excl. driver
    tar black, 4000 K, 92 lm/W, length 200 mm
    excl. driver
    tar black, 3500 K, 92 lm/W, length 200 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 400 mm
    excl. driver
    tar black, 4000 K, 92 lm/W, length 400 mm
    excl. driver
    tar black, 3500 K, 92 lm/W, length 400 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 600 mm
    excl. driver
    tar black, 4000 K, 92 lm/W, length 600 mm
    excl. driver
    tar black, 3500 K, 92 lm/W, length 600 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 800 mm
    excl. driver
    tar black, 4000 K, 92 lm/W, length 800 mm
    excl. driver
    tar black, 3500 K, 92 lm/W, length 800 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 1,000 mm
    excl. driver
    tar black, 4000 K, 92 lm/W, length 1,000 mm
    excl. driver
    tar black, 3500 K, 92 lm/W, length 1,000 mm
    excl. driver
    tar black, 3000 K, 84 lm/W, length 1,200 mm
    excl. driver
    tar black, 4000 K, 92 lm/W, length 1,200 mm
    excl. driver
    tar black, 3500 K, 92 lm/W, length 1,200 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 520 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 520 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 555 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 555 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 555 mm
    excl. driver
    tar black, 4000 K, 92 lm/W, length 975 mm
    excl. driver
    tar black, 3500 K, 92 lm/W, length 975 mm
    excl. driver
    tar black, 3000 K, 85 lm/W, length 1,010 mm
    excl. driver
    tar black, 4000 K, 93 lm/W, length 1,010 mm
    excl. driver
    tar black, 3500 K, 93 lm/W, length 1,010 mm
    excl. driver

    Accessories

    Mounting

    article number
    type
    colour
    dimensions
    MOUNTING POLE L
    011-9121116
    mechanical | 180
    white aluminium
    RAL 9006
    length 180 mm
    width 20 mm
    0.2 kg
    MOUNTING POLE L
    011-9121118
    mechanical | 180
    tar black
    RAL 9021
    length 180 mm
    width 20 mm
    0.2 kg
    MOUNTING POLE L
    011-9121136
    feeder / mechanical | 180
    white aluminium
    RAL 9006
    length 180 mm
    width 20 mm
    0.1 kg
    MOUNTING POLE L
    011-9121138
    feeder / mechanical | 180
    tar black
    RAL 9021
    length 180 mm
    width 20 mm
    0.1 kg
    MOUNTING POLE L
    011-9121216
    mechanical | 200
    white aluminium
    RAL 9006
    length 200 mm
    width 20 mm
    0.06 kg
    MOUNTING POLE L
    011-9121218
    mechanical | 200
    tar black
    RAL 9021
    length 200 mm
    width 20 mm
    0.11 kg
    MOUNTING POLE L
    011-9121236
    feeder / mechanical | 200
    white aluminium
    RAL 9006
    length 200 mm
    width 20 mm
    MOUNTING POLE L
    011-9121238
    feeder / mechanical | 200
    tar black
    RAL 9021
    length 200 mm
    width 20 mm
    0.11 kg
    MOUNTING POLE L
    011-9121316
    mechanical | 300
    white aluminium
    RAL 9006
    length 300 mm
    width 20 mm
    0.2 kg
    MOUNTING POLE L
    011-9121318
    mechanical | 300
    tar black
    RAL 9021
    length 300 mm
    width 20 mm
    0.05 kg
    MOUNTING POLE L
    011-9121336
    feeder / mechanical | 300
    white aluminium
    RAL 9006
    length 300 mm
    width 20 mm
    0.01 kg
    MOUNTING POLE L
    011-9121338
    feeder / mechanical | 300
    tar black
    RAL 9021
    length 300 mm
    width 20 mm
    0.06 kg
    MOUNTING POLE Y
    011-9123136
    feeder / mechanical | 180
    white aluminium
    RAL 9006
    length 180 mm
    width 20 mm
    MOUNTING POLE Y
    011-9123138
    feeder / mechanical | 180
    tar black
    RAL 9021
    length 180 mm
    width 20 mm
    MOUNTING POLE Y
    011-9123236
    feeder / mechanical | 200
    white aluminium
    RAL 9006
    length 200 mm
    width 20 mm
    0.1 kg
    MOUNTING POLE Y
    011-9123238
    feeder / mechanical | 200
    tar black
    RAL 9021
    length 200 mm
    width 20 mm
    0.16 kg
    MOUNTING POLE Y
    011-9123336
    feeder / mechanical | 300
    white aluminium
    RAL 9006
    length 300 mm
    width 20 mm
    MOUNTING POLE Y
    011-9123338
    feeder / mechanical | 300
    tar black
    RAL 9021
    length 300 mm
    width 20 mm
    2.1 kg
    MOUNTING POLE L
    011-9124116
    mechanical | 180
    white aluminium
    RAL 9006
    length 180 mm
    width 35 mm
    MOUNTING POLE L
    011-9124118
    mechanical | 180
    tar black
    RAL 9021
    length 180 mm
    width 35 mm
    MOUNTING POLE L
    011-9124136
    feeder / mechanical | 180
    white aluminium
    RAL 9006
    length 180 mm
    width 35 mm
    MOUNTING POLE L
    011-9124138
    feeder / mechanical | 180
    tar black
    RAL 9021
    length 180 mm
    width 35 mm
    MOUNTING POLE L
    011-9124216
    mechanical | 200
    white aluminium
    RAL 9006
    length 200 mm
    width 35 mm
    MOUNTING POLE L
    011-9124218
    mechanical | 200
    tar black
    RAL 9021
    length 200 mm
    width 35 mm
    MOUNTING POLE L
    011-9124236
    feeder / mechanical | 200
    white aluminium
    RAL 9006
    length 200 mm
    width 35 mm
    MOUNTING POLE L
    011-9124238
    feeder / mechanical | 200
    tar black
    RAL 9021
    length 200 mm
    width 35 mm
    MOUNTING POLE L
    011-9124316
    mechanical | 300
    white aluminium
    RAL 9006
    length 300 mm
    width 35 mm
    MOUNTING POLE L
    011-9124318
    mechanical | 300
    tar black
    RAL 9021
    length 300 mm
    width 35 mm
    MOUNTING POLE L
    011-9124336
    feeder / mechanical | 300
    white aluminium
    RAL 9006
    length 300 mm
    width 35 mm
    MOUNTING POLE L
    011-9124338
    feeder / mechanical | 300
    tar black
    RAL 9021
    length 300 mm
    width 35 mm
    MOUNTING POLE L
    011-9125118
    mechanical | 180
    tar black
    RAL 9021
    length 180 mm
    width 50 mm
    MOUNTING POLE L
    011-9125138
    feeder / mechanical | 180
    tar black
    RAL 9021
    length 180 mm
    width 50 mm
    MOUNTING POLE L
    011-9125216
    mechanical | 200
    white aluminium
    RAL 9006
    length 200 mm
    width 50 mm
    MOUNTING POLE L
    011-9125218
    mechanical | 200
    tar black
    RAL 9021
    length 200 mm
    width 50 mm
    MOUNTING POLE L
    011-9125236
    feeder / mechanical | 200
    white aluminium
    RAL 9006
    length 200 mm
    width 50 mm
    MOUNTING POLE L
    011-9125238
    feeder / mechanical | 200
    tar black
    RAL 9021
    length 200 mm
    width 50 mm
    MOUNTING POLE L
    011-9125318
    mechanical | 300
    tar black
    RAL 9021
    length 300 mm
    width 50 mm
    MOUNTING POLE L
    011-9125338
    feeder / mechanical | 300
    tar black
    RAL 9021
    length 300 mm
    width 50 mm
    MOUNTING POLE L
    011-9126116
    mechanical | 180
    white aluminium
    RAL 9006
    length 180 mm
    width 85 mm
    MOUNTING POLE L
    011-9126118
    mechanical | 180
    tar black
    RAL 9021
    length 180 mm
    width 85 mm
    MOUNTING POLE L
    011-9126136
    feeder / mechanical | 180
    white aluminium
    RAL 9006
    length 180 mm
    width 85 mm
    MOUNTING POLE L
    011-9126138
    feeder / mechanical | 180
    tar black
    RAL 9021
    length 180 mm
    width 85 mm
    MOUNTING POLE L
    011-9126216
    mechanical | 200
    white aluminium
    RAL 9006
    length 200 mm
    width 85 mm
    MOUNTING POLE L
    011-9126218
    mechanical | 200
    tar black
    RAL 9021
    length 200 mm
    width 85 mm
    MOUNTING POLE L
    011-9126236
    feeder / mechanical | 200
    white aluminium
    RAL 9006
    length 200 mm
    width 85 mm
    MOUNTING POLE L
    011-9126238
    feeder / mechanical | 200
    tar black
    RAL 9021
    length 200 mm
    width 85 mm
    MOUNTING POLE L
    011-9126316
    mechanical | 300
    white aluminium
    RAL 9006
    length 300 mm
    width 85 mm
    MOUNTING POLE L
    011-9126318
    mechanical | 300
    tar black
    RAL 9021
    length 300 mm
    width 85 mm
    MOUNTING POLE L
    011-9126336
    feeder / mechanical | 300
    white aluminium
    RAL 9006
    length 300 mm
    width 85 mm
    MOUNTING POLE L
    011-9126338
    feeder / mechanical | 300
    tar black
    RAL 9021
    length 300 mm
    width 85 mm
    0.15 kg
    MOUNTING POLE L
    011-9127116
    mechanical | 180
    white aluminium
    RAL 9006
    length 180 mm
    width 95 mm
    MOUNTING POLE L
    011-9127118
    mechanical | 180
    tar black
    RAL 9021
    length 180 mm
    width 95 mm
    MOUNTING POLE L
    011-9127136
    feeder / mechanical | 180
    white aluminium
    RAL 9006
    length 180 mm
    width 95 mm
    MOUNTING POLE L
    011-9127138
    feeder / mechanical | 180
    tar black
    RAL 9021
    length 180 mm
    width 95 mm
    MOUNTING POLE L
    011-9127216
    mechanical | 200
    white aluminium
    RAL 9006
    length 200 mm
    width 95 mm
    MOUNTING POLE L
    011-9127218
    mechanical | 200
    tar black
    RAL 9021
    length 200 mm
    width 95 mm
    MOUNTING POLE L
    011-9127236
    feeder / mechanical | 200
    white aluminium
    RAL 9006
    length 200 mm
    width 95 mm
    MOUNTING POLE L
    011-9127238
    feeder / mechanical | 200
    tar black
    RAL 9021
    length 200 mm
    width 95 mm
    MOUNTING POLE L
    011-9127316
    mechanical | 300
    white aluminium
    RAL 9006
    length 300 mm
    width 95 mm
    MOUNTING POLE L
    011-9127318
    mechanical | 300
    tar black
    RAL 9021
    length 300 mm
    width 95 mm
    MOUNTING POLE L
    011-9127336
    feeder / mechanical | 300
    white aluminium
    RAL 9006
    length 300 mm
    width 95 mm
    MOUNTING POLE L
    011-9127338
    feeder / mechanical | 300
    tar black
    RAL 9021
    length 300 mm
    width 95 mm
    MOUNTING POLE L
    011-9128116
    mechanical | 180
    white aluminium
    RAL 9006
    length 180 mm
    width 100 mm
    MOUNTING POLE L
    011-9128118
    mechanical | 180
    tar black
    RAL 9021
    length 180 mm
    width 100 mm
    MOUNTING POLE L
    011-9128136
    feeder / mechanical | 180
    white aluminium
    RAL 9006
    length 180 mm
    width 100 mm
    MOUNTING POLE L
    011-9128138
    feeder / mechanical | 180
    tar black
    RAL 9021
    length 180 mm
    width 100 mm
    MOUNTING POLE L
    011-9128216
    mechanical | 200
    white aluminium
    RAL 9006
    length 200 mm
    width 100 mm
    MOUNTING POLE L
    011-9128218
    mechanical | 200
    tar black
    RAL 9021
    length 200 mm
    width 100 mm
    MOUNTING POLE L
    011-9128236
    feeder / mechanical | 200
    white aluminium
    RAL 9006
    length 200 mm
    width 100 mm
    MOUNTING POLE L
    011-9128238
    feeder / mechanical | 200
    tar black
    RAL 9021
    length 200 mm
    width 100 mm
    MOUNTING POLE L
    011-9128316
    mechanical | 300
    white aluminium
    RAL 9006
    length 300 mm
    width 100 mm
    MOUNTING POLE L
    011-9128318
    mechanical | 300
    tar black
    RAL 9021
    length 300 mm
    width 100 mm
    MOUNTING POLE L
    011-9128336
    feeder / mechanical | 300
    white aluminium
    RAL 9006
    length 300 mm
    width 100 mm
    MOUNTING POLE L
    011-9128338
    feeder / mechanical | 300
    tar black
    RAL 9021
    length 300 mm
    width 100 mm

    Electrical mounting

    article number
    colour
    type
    dimensions
    MOUNTING POLE T
    011-9122126
    white aluminium
    RAL 9006
    mechanical / electrical | 180
    length 180 mm
    width 31 mm
    0.3 kg
    MOUNTING POLE T
    011-9122128
    tar black
    RAL 9021
    mechanical / electrical | 180
    length 180 mm
    width 31 mm
    MOUNTING POLE T
    011-9122226
    white aluminium
    RAL 9006
    mechanical / electrical | 200
    length 200 mm
    width 31 mm
    0.06 kg
    MOUNTING POLE T
    011-9122228
    tar black
    RAL 9021
    mechanical / electrical | 200
    length 200 mm
    width 31 mm
    0.06 kg
    MOUNTING POLE T
    011-9122326
    white aluminium
    RAL 9006
    mechanical / electrical | 300
    length 300 mm
    width 31 mm
    0.09 kg
    MOUNTING POLE T
    011-9122328
    tar black
    RAL 9021
    mechanical / electrical | 300
    length 300 mm
    width 31 mm
    0.07 kg
    MOUNTING POLE Y
    011-9123126
    white aluminium
    RAL 9006
    mechanical / electrical | 180
    length 180 mm
    width 20 mm
    MOUNTING POLE Y
    011-9123128
    tar black
    RAL 9021
    mechanical / electrical | 180
    length 180 mm
    width 20 mm
    MOUNTING POLE Y
    011-9123226
    white aluminium
    RAL 9006
    mechanical / electrical | 200
    length 200 mm
    width 20 mm
    MOUNTING POLE Y
    011-9123228
    tar black
    RAL 9021
    mechanical / electrical | 200
    length 200 mm
    width 20 mm
    0.09 kg
    MOUNTING POLE Y
    011-9123326
    white aluminium
    RAL 9006
    mechanical / electrical | 300
    length 300 mm
    width 20 mm
    0.07 kg
    MOUNTING POLE Y
    011-9123328
    tar black
    RAL 9021
    mechanical / electrical | 300
    length 300 mm
    width 20 mm
    0.11 kg
    FLEX CONNECTOR 0-83°
    011-9225400
    electrical
    length 33 mm
    width 6 mm

    Converter

    article number
    power
    voltage / frequency
    protection class
    constant current
    control
    POWER SUPPLY 24V EU
    011-9212110
    18 W
    min 50 Hz
    max 60 Hz
    PC2
    350 mA
    non DIM
    POWER SUPPLY 24V EU
    011-9212130
    18 W
    min 50 Hz
    max 60 Hz
    PC2
    350 mA
    DALI-2
    POWER SUPPLY 24V EU
    011-9212210
    35 W
    min 50 Hz
    max 60 Hz
    PC2
    350 mA
    non DIM
    POWER SUPPLY 24V EU
    011-9212230
    35 W
    min 50 Hz
    max 60 Hz
    PC2
    350 mA
    DALI-2
    POWER SUPPLY 24V EU
    011-9212310
    100 W
    min 50 Hz
    max 60 Hz
    PC2
    350 mA
    non DIM
    POWER SUPPLY 24V EU
    011-9212330
    60 W
    min 50 Hz
    max 60 Hz
    PC2
    350 mA
    DALI-2
    POWER SUPPLY 24V UL
    011-9282110
    60 W
    min 50 Hz
    max 60 Hz
    PC2
    350 mA
    non DIM
    POWER SUPPLY 24V UL
    011-9282210
    40 W
    min 50 Hz
    max 60 Hz
    PC2
    350 mA
    non DIM
    POWER SUPPLY 24V UL
    011-9282310
    60 W
    min 50 Hz
    max 60 Hz
    PC2
    350 mA
    non DIM
    POWER SUPPLY 24V UL
    011-9282330
    60 W
    min 50 Hz
    max 60 Hz
    PC2
    350 mA
    DALI-2

    Electrical cable

    article number
    type
    dimensions
    feeder cable length
    EXTENSION CABLE
    011-9222120
    1 × socket / 1 × plug
    0.04 kg
    1,000 mm
    EXTENSION CABLE
    011-9222140
    1 × socket / 1 × plug
    0.07 kg
    2,000 mm
    EXTENSION CABLE
    011-9222180
    1 × socket / 1 × plug
    0.13 kg
    4,000 mm

    Related products

    FINA SUPPORT

    spot line standing system

    FINA SUPPORT

    opal standing system

    FINA SUPPORT

    stadio standing system

    FINA

    stadio system

    FINA

    spot line system

    FINA

    opal system

    FINA

    lead system

    FINA

    stadio system

    FINA SUPPORT

    spot line standing system

    FINA SUPPORT

    opal standing system
