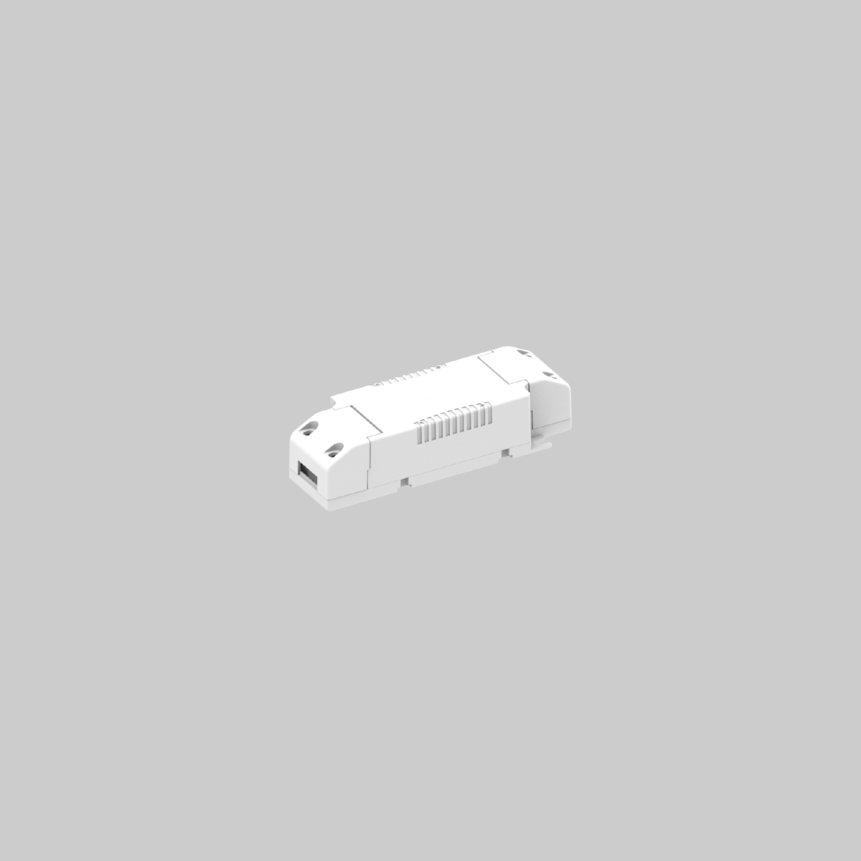

POWER SUPPLY 24V EU
011-9212110
Electrical
- non DIM
- PC2
- 18 W
- non DIM
- min 198 V
- max 264 V
- η 86 %
- Not yet specified! (use PM Converter Output Window)
- min 50 Hz
- max 60 Hz
- constant current 350 mA
Physical
- length 130 mm
- width 43 mm
- height 30 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
B10
B13
B16
B20
C10
C13
C16
C20
Number of Converters
23
30
36
43
38
50
60
71
