LINEA outer corner opal / opal wall system, LINEA outer corner opal / asymmetric wall system
LINEA opal / 1 spot wall system
LINEA inner corner opal / opal wall system, LINEA inner corner opal / asymmetric wall system
LINEA opal / opal wall system, LINEA opal / asymmetric wall system
SNS HEADQUARTERS
Din Sicherheitstechnik

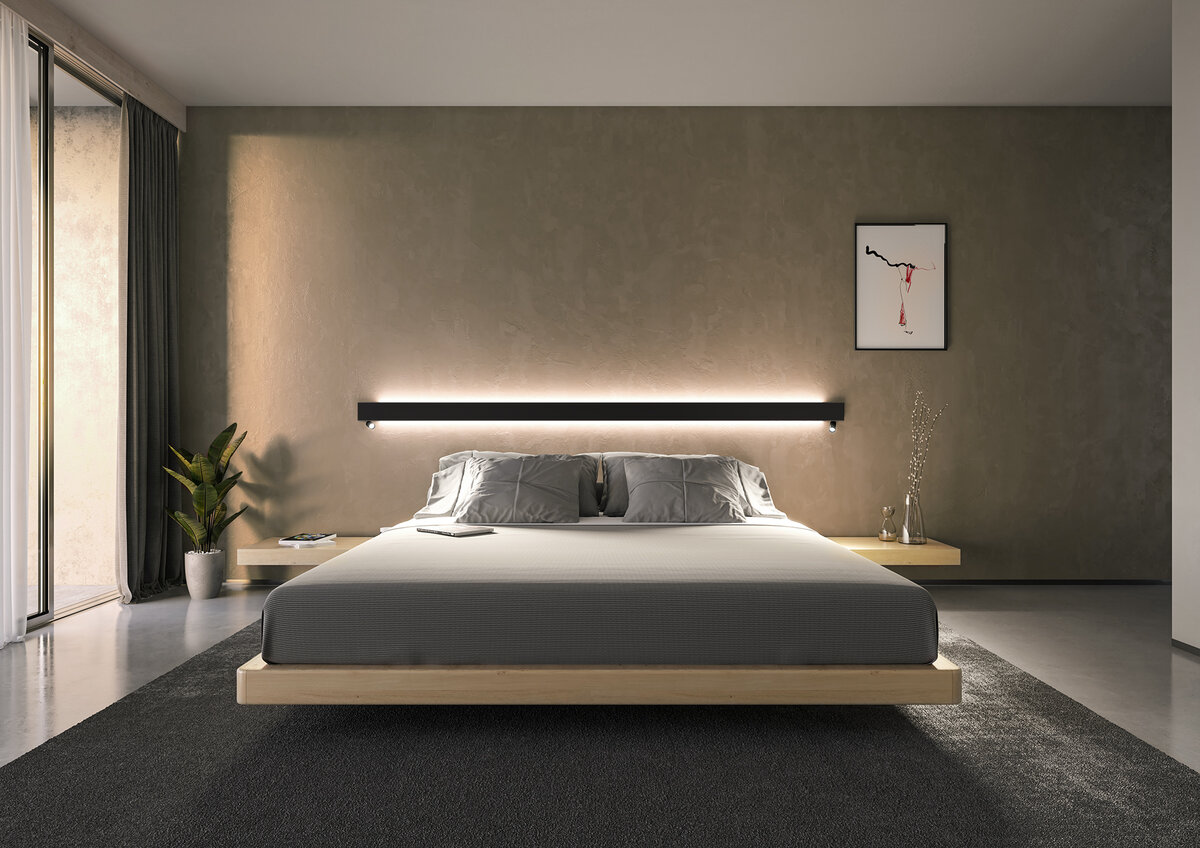

Visualisation Bedroom

LINEA

system

Quickinfo

3000 K, 4000 K, tunable white 2700 - 5000 K
CRI ≥ 90, CRI ≥ 97 / 3 SDCM (initial MacAdam)
up to ↓ 4,020 lm/↑ 4,770 lm
up to 125 lm/W
L85 / 50000 h, L95 / 50000 h
DALI-2, non DIM
Opal, Opal / Asymmetric
IP20 / PC1 / 220-240 V
306 mm, 606 mm, 633 mm, 637 mm, 706 mm, 1,206 mm, 1,306 mm, 2,406 mm, 2,506 mm,

Colour

System components
Single luminaire

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all
  • ROLF
  • ULD

Description

Luminaire housing and front cover from extruded aluminium profile, angular version; no visible screws; designed for continuous lighting systems, 90° angle connectors for flexible system design; surface powder coated; suitable for wall mounting; homogeneous wall or ceiling illumination through uniform direct/indirect light distribution; opal cover for uniform illumination; or with specially computed, asymmetrical lens for homogeneous lighting intensity (installation optionally for floor or ceiling illumination); energy-efficient LEDs with very good colour rendering; optionally JUST 26 spotlight module can be installed

CRI ≥ 98 XPECTRUM (optional)

System components

Click to see components

LINEA opal / opal wall system, LINEA opal / asymmetric wall system

LINEA opal / asymmetric wall system

3000 K, 4000 K, tunable white 2700 - 5000 K
CRI ≥ 90, CRI ≥ 97 / 3 SDCM (initial MacAdam)
up to ↓ 4,020 lm/↑ 4,770 lm
up to 125 lm/W
L85 / 50000 h, L95 / 50000 h
DALI-2, non DIM
Opal, Opal / Asymmetric
IP20 / PC1 / 220-240 V
306 mm, 606 mm, 633 mm, 637 mm, 706 mm, 1,206 mm, 1,306 mm, 2,406 mm, 2,506 mm,
LINEA inner corner opal / opal wall system, LINEA inner corner opal / asymmetric wall system

LINEA inner corner opal / asymmetric wall system

3000 K, 4000 K, tunable white 2700 - 5000 K
CRI ≥ 90, CRI ≥ 97 / 3 SDCM (initial MacAdam)
up to ↓ 4,020 lm/↑ 4,770 lm
up to 125 lm/W
L85 / 50000 h, L95 / 50000 h
DALI-2, non DIM
Opal, Opal / Asymmetric
IP20 / PC1 / 220-240 V
306 mm, 606 mm, 633 mm, 637 mm, 706 mm, 1,206 mm, 1,306 mm, 2,406 mm, 2,506 mm,
LINEA opal / 1 spot wall system

LINEA opal / 1 spot wall system

3000 K, 4000 K, tunable white 2700 - 5000 K
CRI ≥ 90, CRI ≥ 97 / 3 SDCM (initial MacAdam)
up to ↓ 4,020 lm/↑ 4,770 lm
up to 125 lm/W
L85 / 50000 h, L95 / 50000 h
DALI-2, non DIM
Opal, Opal / Asymmetric
IP20 / PC1 / 220-240 V
306 mm, 606 mm, 633 mm, 637 mm, 706 mm, 1,206 mm, 1,306 mm, 2,406 mm, 2,506 mm,
END CAPS

END CAPS

1 pair
LINEAR CONNECTOR

LINEAR CONNECTOR

1 piece, 10 pieces

Products and codes

Filter
96
lm/W
125
lm/W
428
lm
4770
lm
8.9
W
76
W
0.53
0.76
0.48
0.69

Colour

LINEA opal / opal wall system, LINEA opal / asymmetric wall system

LINEA opal / asymmetric wall system

LINEA opal / asymmetric wall system

Status
Article number(s)
Type
Dimming
pure white, asymmetric, 3000 K, system 8.9 W, 105 lm/W, length 306 mm
non DIM
pure white, asymmetric, 3000 K, system 8.9 W, 105 lm/W, length 306 mm
DALI-2
pure white, asymmetric, 4000 K, system 8.9 W, 116 lm/W, length 306 mm
non DIM
pure white, asymmetric, 4000 K, system 8.9 W, 116 lm/W, length 306 mm
DALI-2
pure white, asymmetric, 3000 K, system 17.6 W, 110 lm/W, length 606 mm
non DIM
pure white, asymmetric, 3000 K, system 17.6 W, 110 lm/W, length 606 mm
DALI-2
pure white, asymmetric, 4000 K, system 17.6 W, 121 lm/W, length 606 mm
non DIM
pure white, asymmetric, 4000 K, system 17.6 W, 121 lm/W, length 606 mm
DALI-2
pure white, asymmetric, 3000 K, system 34 W, 113 lm/W, length 1,206 mm
non DIM
pure white, asymmetric, 3000 K, system 34 W, 113 lm/W, length 1,206 mm
DALI-2
pure white, asymmetric, 4000 K, system 34 W, 125 lm/W, length 1,206 mm
non DIM
pure white, asymmetric, 4000 K, system 34 W, 125 lm/W, length 1,206 mm
DALI-2
pure white, asymmetric, tunable white, system 39 W, 113 lm/W, length 1,206 mm
DALI-2
pure white, asymmetric, 3000 K, system 68 W, 113 lm/W, length 2,406 mm
non DIM
pure white, asymmetric, 3000 K, system 68 W, 113 lm/W, length 2,406 mm
DALI-2
pure white, asymmetric, 4000 K, system 68 W, 125 lm/W, length 2,406 mm
non DIM
pure white, asymmetric, 4000 K, system 68 W, 125 lm/W, length 2,406 mm
DALI-2
pure white, asymmetric, tunable white, system 76 W, 116 lm/W, length 2,406 mm
DALI-2
LINEA opal / opal wall system, LINEA opal / asymmetric wall system

LINEA opal / asymmetric wall system

LINEA opal / asymmetric wall system

Status
Article number(s)
Type
Dimming
jet black, asymmetric, 3000 K, system 8.9 W, 105 lm/W, length 306 mm
non DIM
jet black, asymmetric, 3000 K, system 8.9 W, 105 lm/W, length 306 mm
DALI-2
jet black, asymmetric, 4000 K, system 8.9 W, 116 lm/W, length 306 mm
non DIM
jet black, asymmetric, 4000 K, system 8.9 W, 116 lm/W, length 306 mm
DALI-2
jet black, asymmetric, 3000 K, system 17.6 W, 110 lm/W, length 606 mm
non DIM
jet black, asymmetric, 3000 K, system 17.6 W, 110 lm/W, length 606 mm
DALI-2
jet black, asymmetric, 4000 K, system 17.6 W, 121 lm/W, length 606 mm
non DIM
jet black, asymmetric, 4000 K, system 17.6 W, 121 lm/W, length 606 mm
DALI-2
jet black, asymmetric, 3000 K, system 34 W, 113 lm/W, length 1,206 mm
non DIM
jet black, asymmetric, 3000 K, system 34 W, 113 lm/W, length 1,206 mm
DALI-2
jet black, asymmetric, 4000 K, system 34 W, 125 lm/W, length 1,206 mm
non DIM
jet black, asymmetric, 4000 K, system 34 W, 125 lm/W, length 1,206 mm
DALI-2
jet black, asymmetric, tunable white, system 39 W, 113 lm/W, length 1,206 mm
DALI-2
jet black, asymmetric, 3000 K, system 68 W, 113 lm/W, length 2,406 mm
non DIM
jet black, asymmetric, 3000 K, system 68 W, 113 lm/W, length 2,406 mm
DALI-2
jet black, asymmetric, 4000 K, system 68 W, 125 lm/W, length 2,406 mm
non DIM
jet black, asymmetric, 4000 K, system 68 W, 125 lm/W, length 2,406 mm
DALI-2
jet black, asymmetric, tunable white, system 76 W, 116 lm/W, length 2,406 mm
DALI-2
LINEA opal / opal wall system, LINEA opal / asymmetric wall system

LINEA opal / opal wall system

LINEA opal / opal wall system

Status
Article number(s)
Type
Dimming
pure white, opal (lambertsch), 3000 K, system 8.9 W, 96 lm/W, length 306 mm
non DIM
pure white, opal (lambertsch), 3000 K, system 8.9 W, 96 lm/W, length 306 mm
DALI-2
pure white, opal (lambertsch), 4000 K, system 8.9 W, 106 lm/W, length 306 mm
non DIM
pure white, opal (lambertsch), 4000 K, system 8.9 W, 106 lm/W, length 306 mm
DALI-2
pure white, opal (lambertsch), 3000 K, system 17.6 W, 100 lm/W, length 606 mm
non DIM
pure white, opal (lambertsch), 3000 K, system 17.6 W, 100 lm/W, length 606 mm
DALI-2
pure white, opal (lambertsch), 4000 K, system 17.6 W, 110 lm/W, length 606 mm
non DIM
pure white, opal (lambertsch), 4000 K, system 17.6 W, 110 lm/W, length 606 mm
DALI-2
pure white, opal (lambertsch), 3000 K, system 34 W, 104 lm/W, length 1,206 mm
non DIM
pure white, opal (lambertsch), 3000 K, system 34 W, 104 lm/W, length 1,206 mm
DALI-2
pure white, opal (lambertsch), 4000 K, system 34 W, 114 lm/W, length 1,206 mm
non DIM
pure white, opal (lambertsch), 4000 K, system 34 W, 114 lm/W, length 1,206 mm
DALI-2
pure white, opal (lambertsch), tunable white, system 39 W, 103 lm/W, length 1,206 mm
DALI-2
pure white, opal (lambertsch), 3000 K, system 68 W, 104 lm/W, length 2,406 mm
non DIM
pure white, opal (lambertsch), 3000 K, system 68 W, 104 lm/W, length 2,406 mm
DALI-2
pure white, opal (lambertsch), 4000 K, system 68 W, 114 lm/W, length 2,406 mm
non DIM
pure white, opal (lambertsch), 4000 K, system 68 W, 114 lm/W, length 2,406 mm
DALI-2
pure white, opal (lambertsch), tunable white, system 76 W, 106 lm/W, length 2,406 mm
DALI-2
LINEA opal / opal wall system, LINEA opal / asymmetric wall system

LINEA opal / opal wall system

LINEA opal / opal wall system

Status
Article number(s)
Type
Dimming
jet black, opal (lambertsch), 3000 K, system 8.9 W, 96 lm/W, length 306 mm
non DIM
jet black, opal (lambertsch), 3000 K, system 8.9 W, 96 lm/W, length 306 mm
DALI-2
jet black, opal (lambertsch), 4000 K, system 8.9 W, 106 lm/W, length 306 mm
non DIM
jet black, opal (lambertsch), 4000 K, system 8.9 W, 106 lm/W, length 306 mm
DALI-2
jet black, opal (lambertsch), 3000 K, system 17.6 W, 100 lm/W, length 606 mm
non DIM
jet black, opal (lambertsch), 3000 K, system 17.6 W, 100 lm/W, length 606 mm
DALI-2
jet black, opal (lambertsch), 4000 K, system 17.6 W, 110 lm/W, length 606 mm
non DIM
jet black, opal (lambertsch), 4000 K, system 17.6 W, 110 lm/W, length 606 mm
DALI-2
jet black, opal (lambertsch), 3000 K, system 34 W, 104 lm/W, length 1,206 mm
non DIM
jet black, opal (lambertsch), 3000 K, system 34 W, 104 lm/W, length 1,206 mm
DALI-2
jet black, opal (lambertsch), 4000 K, system 34 W, 114 lm/W, length 1,206 mm
non DIM
jet black, opal (lambertsch), 4000 K, system 34 W, 114 lm/W, length 1,206 mm
DALI-2
jet black, opal (lambertsch), tunable white, system 39 W, 103 lm/W, length 1,206 mm
DALI-2
jet black, opal (lambertsch), 3000 K, system 68 W, 104 lm/W, length 2,406 mm
non DIM
jet black, opal (lambertsch), 3000 K, system 68 W, 104 lm/W, length 2,406 mm
DALI-2
jet black, opal (lambertsch), 4000 K, system 68 W, 114 lm/W, length 2,406 mm
non DIM
jet black, opal (lambertsch), 4000 K, system 68 W, 114 lm/W, length 2,406 mm
DALI-2
jet black, opal (lambertsch), tunable white, system 76 W, 106 lm/W, length 2,406 mm
DALI-2

Accessories

Electrical cable

article number
type
control
dimensions
THROUGH WIRE
004-90003
3 × 1.5 mm² | 10 pieces
non DIM
0.14 kg
THROUGH WIRE
004-90005
5 × 1.5 mm² | 10 pieces
DALI-2
0.3 kg

Mounting

article number
type
colour
dimensions
END CAPS
050-2540107
1 pair
pure white
RAL 9010
length 40 mm
width 100 mm
height 12 mm
0.05 kg
END CAPS
050-2540108
1 pair
jet black
RAL 9005
length 40 mm
width 100 mm
height 12 mm
0.15 kg
LINEAR CONNECTOR
050-2551100
1 piece
length 60 mm
width 38 mm
0.02 kg
LINEAR CONNECTOR
050-2551100.10
10 pieces
length 60 mm
width 38 mm
0.03 kg
