JUST 45 MOVE IT 25 / 25 S / 45
050-0131038V
Quickinfo
3000 KCRI ≥ 90 / 3 SDCM (initial MacAd
57 lm/W
L85 / 50000 h
DALI-2
IP20 / PC3 / 48 V
Colour
General
- Ceiling
- Track
- tilt max 90°
- rotation 360°
- jet black
- RAL 9005
- IP20
- 258 lm
- optical inset 57 lm/W 1
LED
- 3000 K
- CRI ≥ 90
- L85 / 50000 h
- ≤ 3 SDCM (initial MacAdam)
- Rg: 98
- Rf: 91
- R{1-15}: 89
- MR 0.6
- MDER 0.55
Optical
- super spot
- beam angle 8°
- ≤ 1.0 2
- SVM ≤ 0.4 2
Electrical
- DALI-2
- 48 V
- fixture 6.0 W
- optical inset 4.5 W
- PC3
- 1 DALI Addr.
Physical
- diameter 45 mm
- height 68 mm
- 0.2 kg

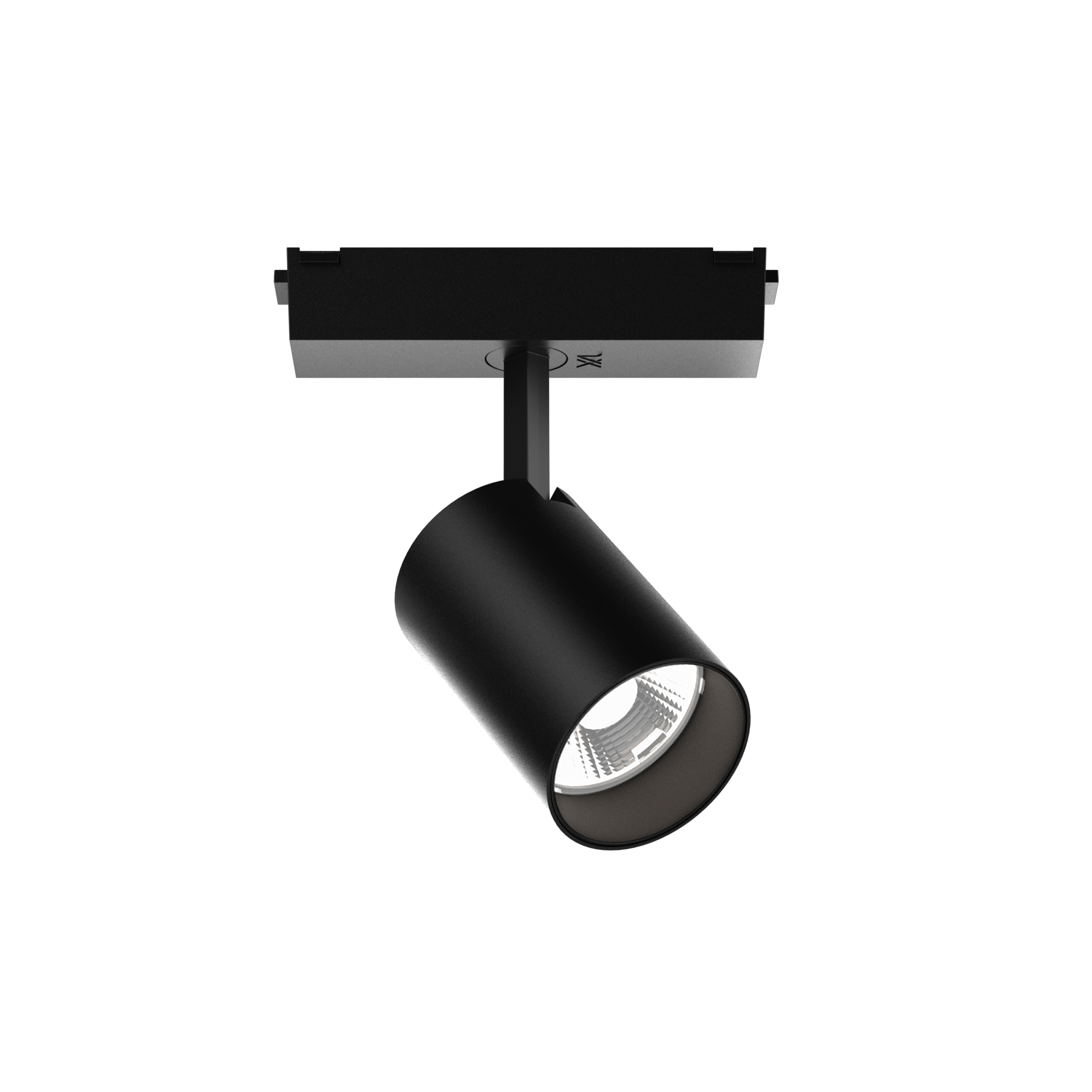

Cylindrical spotlight in aluminium; surface jet black powder coated; 360° rotatable and 90° tiltable; spotlight can be installed and moved without tools by means of magnetic holders+locking; power supplied via MOVE IT system track profile; hot plug protection; passive cooling of the LEDs through improved heat sink geometry; with high power LED for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 85% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; good glare control through recessed light point level; incl. high quality lens system; precise radiation characteristic with 8° beam; degree of protection IP20; PC3; 48 V; DALI single control; flicker-free visual comfort through analogue current control (minimum value 1%); optical attachment available as accessory; accessories are listed separately; light source not replaceable;
