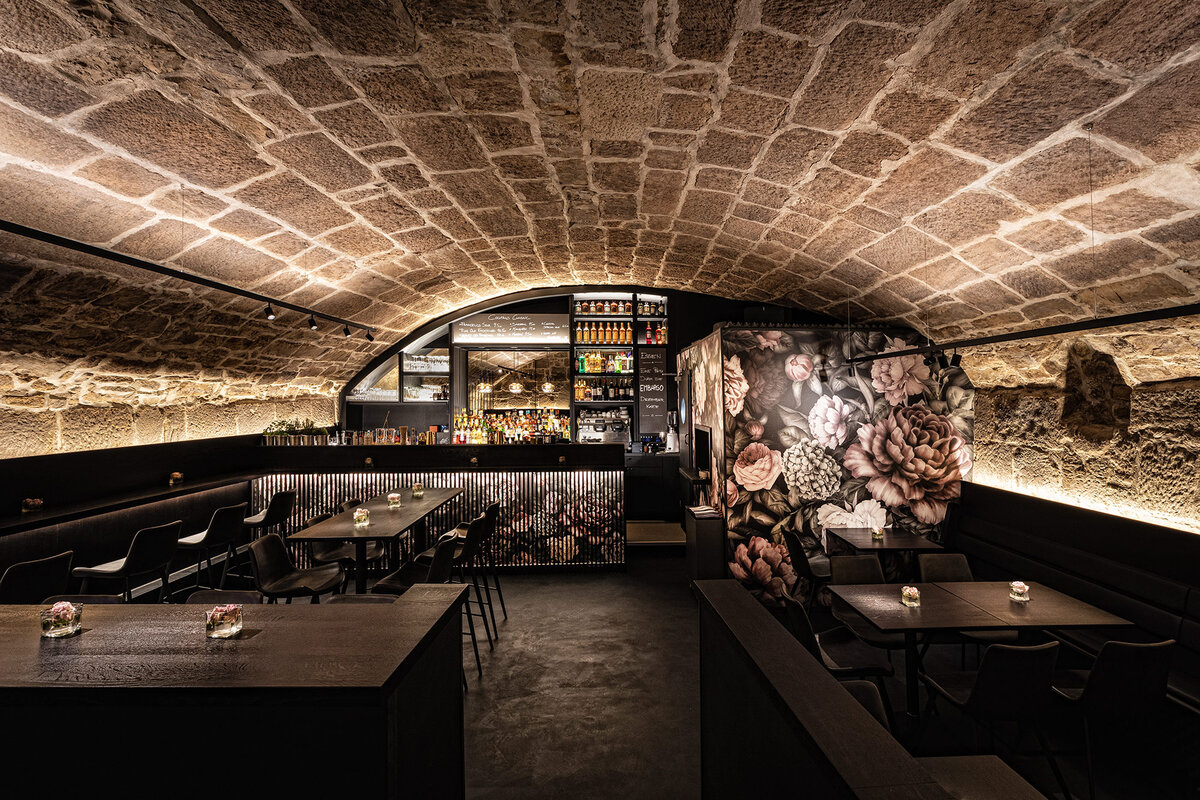

Embargo GmbH
Embargo GmbH

MOVE IT 25 S

suspended indirect system

Quickinfo

3000 K
CRI ≥ 90 / 3 SDCM
up to 139 lm/W
L80 / 50000 h
DALI-2, non DIM
IP20 / PC3 / 48 V

Colour

    • Inner colour

    • Products and codes
    Discover family

    Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    Download all
    • 3DS
    • DWG - 3D
    • Revit BIM data
    • EPD

    Description

    Thin extruded aluminium profile with 31 mm height and 28 mm width groove; for suspended mounting (cable suspension); height adjustment without tools; incl. black feed; designed for continuous lighting systems, 90° angle connectors for flexible system design; with indirect light component for additional accentuation of the ceiling; indirect light component covered with opal lens cover; with integrated power track profile for take off of supply voltage and DALI signal; surface anodised or powder coated; insets can be installed flexibly and without tools by means of magnetic holders+locking

    custom cut on building site or by XAL

    Products and codes

    Filter
    648
    lm
    6000
    lm
    6.2
    W
    51
    W

    Colour

    • Inner colour

    • MOVE IT 25 S track corner indirect

    MOVE IT 25 S track corner indirect

    MOVE IT 25 S track corner indirect

    Status
    Article number(s)
    Type
    Dimming
    gold, fixture 13.1 W, 139 lm/W, length 637 mm
    non DIM
    gold, fixture 13.1 W, 139 lm/W, length 637 mm
    DALI-2
    MOVE IT 25 S track corner indirect

    MOVE IT 25 S track corner indirect

    MOVE IT 25 S track corner indirect

    Status
    Article number(s)
    Type
    Dimming
    special colours, fixture 13.1 W, 139 lm/W, length 637 mm
    non DIM
    special colours, fixture 13.1 W, 139 lm/W, length 637 mm
    DALI-2
    MOVE IT 25 S track corner indirect

    MOVE IT 25 S track corner indirect

    MOVE IT 25 S track corner indirect

    Status
    Article number(s)
    Type
    Dimming
    white, fixture 13.1 W, 139 lm/W, length 637 mm
    non DIM
    white, fixture 13.1 W, 139 lm/W, length 637 mm
    DALI-2
    MOVE IT 25 S track corner indirect

    MOVE IT 25 S track corner indirect

    MOVE IT 25 S track corner indirect

    Status
    Article number(s)
    Type
    Dimming
    black, fixture 13.1 W, 139 lm/W, length 637 mm
    non DIM
    black, fixture 13.1 W, 139 lm/W, length 637 mm
    DALI-2
    MOVE IT 25 S track indirect

    MOVE IT 25 S track indirect

    MOVE IT 25 S track indirect

    Status
    Article number(s)
    Type
    Dimming
    gold, fixture 6.2 W, 139 lm/W, length 620 mm
    non DIM
    gold, fixture 6.2 W, 139 lm/W, length 620 mm
    DALI-2
    gold, fixture 15.3 W, 139 lm/W, length 1,220 mm
    non DIM
    gold, fixture 15.3 W, 139 lm/W, length 1,220 mm
    DALI-2
    gold, fixture 33 W, 139 lm/W, length 2,420 mm
    non DIM
    gold, fixture 33 W, 139 lm/W, length 2,420 mm
    DALI-2
    gold, fixture 51 W, 139 lm/W, length 3,625 mm
    non DIM
    gold, fixture 51 W, 139 lm/W, length 3,625 mm
    DALI-2
    MOVE IT 25 S track indirect

    MOVE IT 25 S track indirect

    MOVE IT 25 S track indirect

    Status
    Article number(s)
    Type
    Dimming
    special colours, fixture 6.2 W, 139 lm/W, length 620 mm
    non DIM
    special colours, fixture 6.2 W, 139 lm/W, length 620 mm
    DALI-2
    special colours, fixture 15.3 W, 139 lm/W, length 1,220 mm
    non DIM
    special colours, fixture 15.3 W, 139 lm/W, length 1,220 mm
    DALI-2
    special colours, fixture 33 W, 139 lm/W, length 2,420 mm
    non DIM
    special colours, fixture 33 W, 139 lm/W, length 2,420 mm
    DALI-2
    special colours, fixture 51 W, 139 lm/W, length 3,625 mm
    non DIM
    special colours, fixture 51 W, 139 lm/W, length 3,625 mm
    DALI-2
    MOVE IT 25 S track indirect

    MOVE IT 25 S track indirect

    MOVE IT 25 S track indirect

    Status
    Article number(s)
    Type
    Dimming
    white, fixture 6.2 W, 139 lm/W, length 620 mm
    non DIM
    white, fixture 6.2 W, 139 lm/W, length 620 mm
    DALI-2
    white, fixture 15.3 W, 139 lm/W, length 1,220 mm
    non DIM
    white, fixture 15.3 W, 139 lm/W, length 1,220 mm
    DALI-2
    white, fixture 33 W, 139 lm/W, length 2,420 mm
    non DIM
    white, fixture 33 W, 139 lm/W, length 2,420 mm
    DALI-2
    white, fixture 51 W, 139 lm/W, length 3,625 mm
    non DIM
    white, fixture 51 W, 139 lm/W, length 3,625 mm
    DALI-2
    MOVE IT 25 S track indirect

    MOVE IT 25 S track indirect

    MOVE IT 25 S track indirect

    Status
    Article number(s)
    Type
    Dimming
    black, fixture 6.2 W, 139 lm/W, length 620 mm
    non DIM
    black, fixture 6.2 W, 139 lm/W, length 620 mm
    DALI-2
    black, fixture 15.3 W, 139 lm/W, length 1,220 mm
    non DIM
    black, fixture 15.3 W, 139 lm/W, length 1,220 mm
    DALI-2
    black, fixture 33 W, 139 lm/W, length 2,420 mm
    non DIM
    black, fixture 33 W, 139 lm/W, length 2,420 mm
    DALI-2
    black, fixture 51 W, 139 lm/W, length 3,625 mm
    non DIM
    black, fixture 51 W, 139 lm/W, length 3,625 mm
    DALI-2

    Accessories

    Converter

    article number
    power
    voltage / frequency
    protection class
    constant voltage
    POWER SUPPLY EXTERNAL
    002-60320
    320 W
    min 47 Hz
    max 63 Hz
    PC11
    48 V
    POWER SUPPLY EXTERNAL
    002-62133
    60 W
    min 47 Hz
    max 63 Hz
    PC21
    48 V
    POWER SUPPLY EXTERNAL
    002-62134
    100 W
    min 50 Hz
    max 60 Hz
    PC21
    48 V
    POWER SUPPLY EXTERNAL
    002-62135
    150 W
    min 50 Hz
    max 60 Hz
    PC21
    48 V
    POWER SUPPLY EXTERNAL
    002-62139
    250 W
    min 50 Hz
    max 60 Hz
    PC21
    48 V
    DIN RAIL POWER SUPPLY PRO
    005-6220110
    240 W
    min 50 Hz
    max 60 Hz
    PC21
    DIN RAIL POWER SUPPLY PRO
    005-6220210
    480 W
    min 50 Hz
    max 60 Hz
    PC21
    DIN RAIL POWER SUPPLY
    005-6520210
    160 W
    min 50 Hz
    max 60 Hz
    PC21
    48 V
    POWER SUPPLY INTRACK
    050-2071038
    100 W
    min 50 Hz
    max 60 Hz
    PC21
    POWER SUPPLY INTRACK
    050-2071138
    150 W
    min 50 Hz
    max 60 Hz
    PC21

    Suspensions

    article number
    colour
    dimensions
    cable length
    CABLE SUSPENSION
    005-2152110
    chrome
    width 46 mm
    0.05 kg
    cable length 1500 mm
    CABLE SUSPENSION
    005-2152118
    black
    width 46 mm
    0.05 kg
    cable length 1500 mm

    Mounting

    article number
    colour
    dimensions
    CANOPY square
    005-2311717
    traffic white
    RAL 9016
    length 90 mm
    width 90 mm
    height 22 mm
    0.1 kg
    CANOPY square
    005-2311718
    jet black
    RAL 9005
    length 90 mm
    width 90 mm
    height 22 mm
    0.1 kg
    MECHANICAL LINEAR CONNECTOR
    050-2011310
    chrome
    length 120 mm
    width 28 mm
    0.12 kg
    MECHANICAL LINEAR CONNECTOR
    050-2011318
    black
    length 120 mm
    width 28 mm
    0.08 kg
    END CAPS
    050-7310008
    jet black
    RAL 9005
    length 31 mm
    width 31 mm
    height 3 mm
    0.02 kg
    END CAPS
    050-731000G
    gold / black
    length 31 mm
    width 31 mm
    height 3 mm
    0.05 kg
    END CAPS
    050-731000P
    white / black
    length 31 mm
    width 31 mm
    height 3 mm
    0.02 kg
    END CAPS
    050-731000X
    special colours
    length 31 mm
    width 31 mm
    height 3 mm
    0.05 kg

    Feeder

    article number
    dimensions
    POWER FEEDER UNIT
    050-2020110
    length 78 mm
    width 28 mm
    height 6 mm
    0.2 kg
    POWER FEEDER UNIT
    050-2020130
    length 78 mm
    width 28 mm
    height 6 mm
    0.07 kg
    POWER FEEDER UNIT
    050-2024130
    length 78 mm
    width 28 mm
    height 6 mm
    0.48 kg

    Electrical components

    article number
    type
    dimensions
    MECHANICAL & ELECTRICAL LINEAR CONNECTOR
    050-2031230
    length 150 mm
    width 28 mm
    0.06 kg
    DALI-2 SELV DEVICE
    050-2061130
    control unit
    length 212 mm
    width 37 mm
    height 26 mm
    0.1 kg
    ESSENTIAL SENSOR
    050-2063178
    brightness & presence
    length 125 mm
    width 28 mm
    height 45 mm
    0.09 kg

    Optical

    article number
    colour
    dimensions
    BLIND COVER
    050-7004008
    jet black
    RAL 9005
    length 1,217 mm
    width 28 mm
    0.11 kg
    BLIND COVER
    050-7008008
    jet black
    RAL 9005
    length 2,417 mm
    width 28 mm
    0.18 kg
    BLIND COVER
    050-7009008
    jet black
    RAL 9005
    length 3,622 mm
    width 28 mm
    0.28 kg
