MOVE IT 25 track corner indirect
MOVE IT 25 track indirect
MOVE IT 25 track corner indirect
MOVE IT 25 track indirect
MOVE IT 25 track corner indirect
MOVE IT 25 track indirect
MOVE IT 25 track corner indirect
MOVE IT 25 track indirect

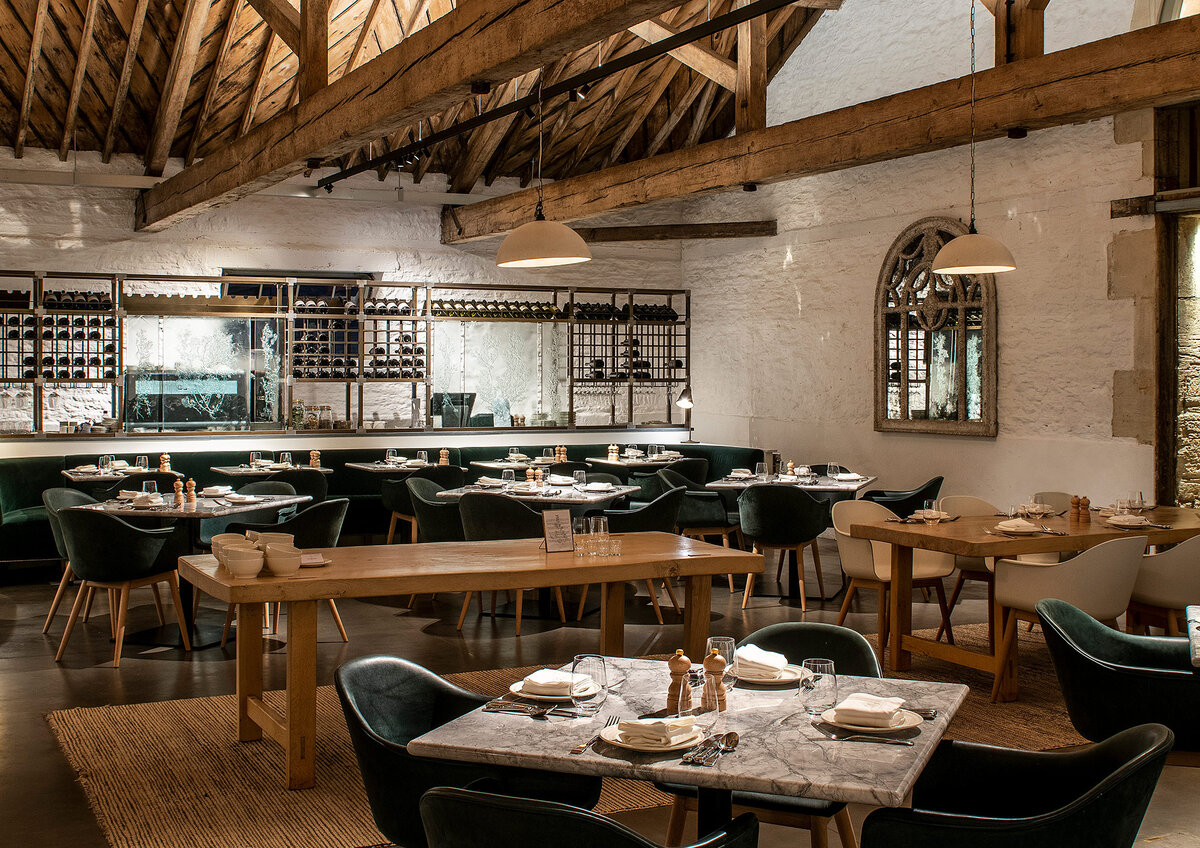

Restaurant Ox Barn
Restaurant Ox Barn

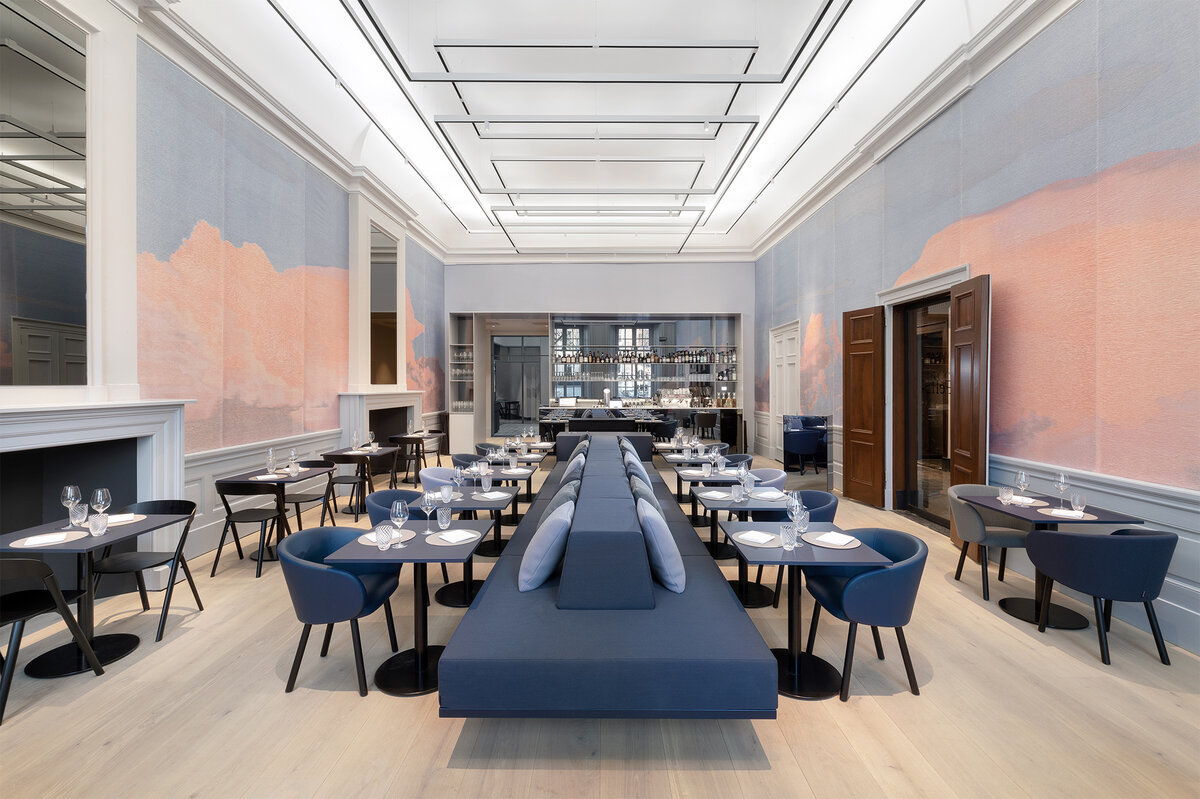

Restaurant Felix
Restaurant Felix
Curve connector
Node connector (up to 6 channels)

MOVE IT 25

suspended indirect system

Quickinfo

3000 K
CRI ≥ 90 / 3 SDCM (initial MacAdam)
up to 139 lm/W
L85 / 50000 h
DALI-2, non DIM
IP20 / PC3 / 48 V
620 mm, 637 mm, 1,220 mm, 2,420 mm, 3,625 mm,

Colour

Inner colour

Products and codes
Discover family

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all
  • 3DS
  • DWG - 3D
  • Revit BIM data
  • EPD

Description

Extruded aluminium profile with 28 mm width groove; for suspended mounting (cable suspension); height adjustment without tools; incl. black feed; designed for continuous lighting systems, 90° angle connectors and node connectors with up to 6 profile connection options for flexible system design; with indirect light component for additional accentuation of the ceiling; indirect light component covered with opal lens cover; with integrated power track profile for take off of supply voltage and DALI signal; surface anodised or powder coated; insets can be installed flexibly and without tools by means of magnetic holders+locking; sound absorbing accessories for installation in the MOVE IT suspended system composed of node connectors and 1220 mm profiles available

custom cut on building site or by XAL

acoustic elements

System components

Click to see components

JUST 32 FOCUS MOVE IT 25

2700 K, 3000 K, 4000 K
CRI ≥ 90 / 2 SDCM (initial MacAdam)
up to 103 lm/W
L90 / 100000 h
DALI-2, non DIM
IP20 / PC3 / 48 V

JUST 45 MOVE IT 25 / 25 S / 45

2700 K, 3000 K, 4000 K, colour warm dimming 1800 - 3000 K, tunable white 1800 - 3000 K, tunable white 2700 - 6500 K
CRI ≥ 90, CRI ≥ 92 / 3 SDCM (initial MacAdam)
up to 127 lm/W
L80 / 50000 h, L85 / 50000 h
DALI-2, non DIM
IP20 / PC3 / 48 V

JUST 55 MOVE IT 25 / 25 S / 45

2700 K, 3000 K, 4000 K
CRI ≥ 90 / 3 SDCM (initial MacAdam)
up to 143 lm/W
L80 / 50000 h
DALI-2
IP20 / PC3 / 48 V

TULA MOVE IT 25 / 25 S / 45

2700 K, 3000 K, tunable white 2200 - 4000 K
CRI ≥ 90 / 2 SDCM (initial MacAdam), 3 SDCM (initial MacAdam)
up to 92 lm/W
L80 / 50000 h, L90 / 100000 h, L95 / 50000 h
DALI-2, non DIM
IP20 / PC3 / 48 V

PAL MOVE IT 25 / 25 S / 45

2700 K, 3000 K
CRI ≥ 90 / 2 SDCM (initial MacAdam)
up to 76 lm/W
L90 / 100000 h
DALI-2, non DIM
IP20 / PC3 / 48 V

CONE MOVE IT 25 / 25 S / 45 Wastberg+

2700 K
CRI ≥ 90 / 3 SDCM (initial MacAdam)
up to 96 lm/W
L90 / 50000 h
DALI-2, non DIM
IP20 / PC3 / 48 V

ARY MOVE IT 25 / 25 S / 45

2700 K, 3000 K, 4000 K, tunable white 2200 - 4000 K
CRI ≥ 90 / 3 SDCM (initial MacAdam)
up to 97 lm/W
L80 / 50000 h, L95 / 50000 h
DALI-2, non DIM
IP20 / PC3 / 48 V

WALLWASHER MOVE IT 25

2700 K, 3000 K
CRI ≥ 90 / 3 SDCM (initial MacAdam)
up to 93 lm/W
L85 / 50000 h
DALI-2
IP20 / PC3 / 48 V
454 mm,

FLEXTRACK MOVE IT 25

DALI-2, non DIM
IP20 / PC3 / 48 V
610 mm, 910 mm, 1,210 mm, 1,510 mm, 1,810 mm,

PIVOT MOVE IT 25 / 45

2700 K, 3000 K, tunable white 2700 - 6500 K
CRI ≥ 90 / 3 SDCM (initial MacAdam)
up to 186 lm/W
L90 / 100000 h
DALI-2, non DIM
IP20 / PC3 / 48 V
610 mm, 910 mm, 1,210 mm, 1,510 mm, 1,810 mm,

SPOTLINE MOVE IT 25

2700 K, 3000 K
CRI ≥ 92 / 3 SDCM (initial MacAdam)
UGR ≤ 16
up to 124 lm/W
L90 / 100000 h
DALI-2, non DIM
IP20 / PC3 / 48 V
155 mm, 305 mm, 605 mm,

OPAL MOVE IT 25

2700 K, 3000 K, tunable white 1800 - 4000 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM (initial MacAdam)
up to 158 lm/W
L85 / 50000 h, L90 / 100000 h
DALI-2, non DIM
Opal
IP20 / PC3 / 48 V
305 mm, 605 mm, 1,205 mm, 2,405 mm,

MOVE IT 25 surface / suspended system

DALI-2, non DIM
IP20 / PC3 / 48 V
620 mm, 637 mm, 666 mm, 1,220 mm, 2,420 mm, 3,625 mm, custom cut
Go to product
FLEX NODE CONNECTOR

MOVE IT SYSTEM NODE CONNECTOR

excl. feeder, excl. feeder | black cable, excl. feeder | chrome cable, incl. feeder, incl. feeder | black cable, incl. feeder | chrome cable
MOVE IT 25 / 45 ACOUSTIC 1200 square inlay

MOVE IT acoustic inlay

PET felt (made of at least 50% post-consumer recycled material)
SAC (sound absorption class) up to A
fire resistance class: B-s1, d0, fire resistance class: B-s2, d0
CANOPY

MOVE IT SYSTEM CANOPY

Products and codes

Filter
648
lm
6000
lm
6.2
W
51
W

Colour

Inner colour

MOVE IT 25 track corner indirect

MOVE IT 25 track corner indirect

MOVE IT 25 track corner indirect

Status
Article number(s)
Type
Dimming
traffic white, 139 lm/W, length 637 mm
non DIM
traffic white, 139 lm/W, length 637 mm
DALI-2
MOVE IT 25 track corner indirect

MOVE IT 25 track corner indirect

MOVE IT 25 track corner indirect

Status
Article number(s)
Type
Dimming
jet black, 139 lm/W, length 637 mm
non DIM
jet black, 139 lm/W, length 637 mm
DALI-2
MOVE IT 25 track corner indirect

MOVE IT 25 track corner indirect

MOVE IT 25 track corner indirect

Status
Article number(s)
Type
Dimming
gold dust, 139 lm/W, length 637 mm
non DIM
gold dust, 139 lm/W, length 637 mm
DALI-2
MOVE IT 25 track corner indirect

MOVE IT 25 track corner indirect

MOVE IT 25 track corner indirect

Status
Article number(s)
Type
Dimming
special colours, 139 lm/W, length 637 mm
non DIM
special colours, 139 lm/W, length 637 mm
DALI-2
MOVE IT 25 track indirect

MOVE IT 25 track indirect

MOVE IT 25 track indirect

Status
Article number(s)
Type
Dimming
traffic white, 139 lm/W, length 620 mm
non DIM
traffic white, 139 lm/W, length 620 mm
DALI-2
traffic white, 139 lm/W, length 1,220 mm
non DIM
traffic white, 139 lm/W, length 1,220 mm
DALI-2
traffic white, 139 lm/W, length 2,420 mm
non DIM
traffic white, 139 lm/W, length 2,420 mm
DALI-2
traffic white, 139 lm/W, length 3,625 mm
non DIM
traffic white, 139 lm/W, length 3,625 mm
DALI-2
MOVE IT 25 track indirect

MOVE IT 25 track indirect

MOVE IT 25 track indirect

Status
Article number(s)
Type
Dimming
jet black, 139 lm/W, length 620 mm
non DIM
jet black, 139 lm/W, length 620 mm
DALI-2
jet black, 139 lm/W, length 1,220 mm
non DIM
jet black, 139 lm/W, length 1,220 mm
DALI-2
jet black, 139 lm/W, length 2,420 mm
non DIM
jet black, 139 lm/W, length 2,420 mm
DALI-2
jet black, 139 lm/W, length 3,625 mm
non DIM
jet black, 139 lm/W, length 3,625 mm
DALI-2
MOVE IT 25 track indirect

MOVE IT 25 track indirect

MOVE IT 25 track indirect

Status
Article number(s)
Type
Dimming
gold dust, 139 lm/W, length 620 mm
non DIM
gold dust, 139 lm/W, length 620 mm
DALI-2
gold dust, 139 lm/W, length 1,220 mm
non DIM
gold dust, 139 lm/W, length 1,220 mm
DALI-2
gold dust, 139 lm/W, length 2,420 mm
non DIM
gold dust, 139 lm/W, length 2,420 mm
DALI-2
gold dust, 139 lm/W, length 3,625 mm
non DIM
gold dust, 139 lm/W, length 3,625 mm
DALI-2
MOVE IT 25 track indirect

MOVE IT 25 track indirect

MOVE IT 25 track indirect

Status
Article number(s)
Type
Dimming
special colours, 139 lm/W, length 620 mm
non DIM
special colours, 139 lm/W, length 620 mm
DALI-2
special colours, 139 lm/W, length 1,220 mm
non DIM
special colours, 139 lm/W, length 1,220 mm
DALI-2
special colours, 139 lm/W, length 2,420 mm
non DIM
special colours, 139 lm/W, length 2,420 mm
DALI-2
special colours, 139 lm/W, length 3,625 mm
non DIM
special colours, 139 lm/W, length 3,625 mm
DALI-2

System products

JUST 32

FOCUS MOVE IT 25

JUST 45

MOVE IT 25 / 25 S / 45

JUST 55

MOVE IT 25 / 25 S / 45

Accessories

Converter

article number
power
voltage / frequency
protection class
constant voltage
control
POWER SUPPLY external
002-62132
320 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY external
002-62133
60 W
min 47 Hz
max 63 Hz
PC2
48 V
POWER SUPPLY external
002-62134
100 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY external
002-62135
150 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY external
002-62138
200 W
min 50 Hz
max 60 Hz
PC2
48 V
DIN RAIL POWER SUPPLY PRO
005-6220110
240 W
min 50 Hz
max 60 Hz
PC2
DIN RAIL POWER SUPPLY PRO
005-6220210
480 W
min 50 Hz
max 60 Hz
PC2
DIN RAIL POWER SUPPLY BASIC
005-6520210
160 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY surface
050-2055117
60 W
min 47 Hz
max 63 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055118
60 W
min 47 Hz
max 63 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055137
60 W
min 47 Hz
max 63 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055138
60 W
min 47 Hz
max 63 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055217
150 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055218
150 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055237
150 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055238
150 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055317
320 W
min 47 Hz
max 63 Hz
PC1
48 V
non DIM
POWER SUPPLY surface
050-2055318
320 W
min 47 Hz
max 63 Hz
PC1
48 V
non DIM
POWER SUPPLY surface
050-2055337
320 W
min 47 Hz
max 63 Hz
PC1
48 V
DALI-2
POWER SUPPLY surface
050-2055338
320 W
min 47 Hz
max 63 Hz
PC1
48 V
DALI-2
POWER SUPPLY surface
050-2055417
100 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055418
100 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055437
100 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055438
100 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055517
250 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055518
250 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055537
250 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055538
250 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY intrack
050-2071038
100 W
min 50 Hz
max 60 Hz
PC2
POWER SUPPLY intrack
050-2071138
150 W
min 50 Hz
max 60 Hz
PC2

Mounting

article number
type
colour
dimensions
CABLE SUSPENSION
005-2152110
chrome
width 46 mm
0.05 kg
CABLE SUSPENSION
005-2152118
black
width 46 mm
0.05 kg
LINEAR CONNECTOR mechanical
050-2011310
suspended
chrome
length 120 mm
width 28 mm
0.09 kg
LINEAR CONNECTOR mechanical
050-2011318
suspended
black
length 120 mm
width 28 mm
0.08 kg
LINEAR CONNECTOR mechanical
050-2011410
surface
length 120 mm
width 28 mm
0.06 kg
END CAPS
050-7300008
1 pair
jet black
RAL 9005
length 60 mm
width 31 mm
height 3 mm
0.3 kg
END CAPS
050-730000G
1 pair
gold dust / jet black
RAL 260-M / RAL 9005
length 60 mm
width 31 mm
height 3 mm
0.04 kg
END CAPS
050-730000P
1 pair
traffic white / jet black
RAL 9016 / RAL 9005
length 60 mm
width 31 mm
height 3 mm
0.04 kg
END CAPS
050-730000X
1 pair
special colours
length 60 mm
width 31 mm
height 3 mm
0.04 kg

Electrical components

article number
type
dimensions
colour
CANOPY square
005-2311717
length 90 mm
width 90 mm
height 22 mm
0.1 kg
traffic white
RAL 9016
CANOPY square
005-2311718
length 90 mm
width 90 mm
height 22 mm
0.1 kg
jet black
RAL 9005
DIN RAIL DALI-2 SELV DEVICE
005-6620030
length 107 mm
width 37 mm
height 58 mm
0.08 kg
DALI-2 SELV DEVICE
050-2061130
control unit
length 212 mm
width 37 mm
height 26 mm
0.1 kg
ESSENTIAL SENSOR
050-2063178
brightness & presence
length 125 mm
width 28 mm
height 45 mm
0.09 kg
WIRELESS TO DALI-2 CONTROL DEVICE
050-2065230
length 111 mm
width 25 mm
height 45 mm
0.07 kg
WIRELESS TO DALI-2 REPEATER
050-2066230
length 111 mm
width 25 mm
height 45 mm
0.11 kg

Feeder

article number
dimensions
feeder cable length
POWER FEEDER UNIT
050-2020110
length 78 mm
width 28 mm
height 6 mm
0.2 kg
500 mm
POWER FEEDER UNIT
050-2020130
length 78 mm
width 28 mm
height 6 mm
0.07 kg
500 mm
MIDDLE FEED
050-2038130
length 120 mm
width 28 mm
height 6 mm
0.24 kg
2,000 mm

Electrical mounting

article number
colour
type
dimensions
NODE CONNECTOR incl. cable suspension
050-2022237
traffic white
RAL 9016
incl. feeder | chrome cable
diameter 64 mm
height 60 mm
0.68 kg
NODE CONNECTOR incl. cable suspension
050-2022238
jet black
RAL 9005
incl. feeder | chrome cable
diameter 64 mm
height 60 mm
0.45 kg
NODE CONNECTOR incl. cable suspension
050-202223X
special colours
incl. feeder | chrome cable
diameter 64 mm
height 60 mm
0.65 kg
NODE CONNECTOR incl. cable suspension
050-2022247
traffic white
RAL 9016
incl. feeder | black cable
diameter 64 mm
height 60 mm
0.61 kg
NODE CONNECTOR incl. cable suspension
050-2022248
jet black
RAL 9005
incl. feeder | black cable
diameter 64 mm
height 60 mm
0.45 kg
NODE CONNECTOR incl. cable suspension
050-202224X
special colours
incl. feeder | black cable
diameter 64 mm
height 60 mm
0.65 kg
LINEAR CONNECTOR mechanical & electrical
050-2031230
length 120 mm
width 27 mm
0.2 kg
NODE CONNECTOR incl. cable suspension
050-2033137
traffic white
RAL 9016
excl. feeder | chrome cable
diameter 64 mm
height 60 mm
0.43 kg
NODE CONNECTOR incl. cable suspension
050-2033138
jet black
RAL 9005
excl. feeder | chrome cable
diameter 64 mm
height 60 mm
0.44 kg
NODE CONNECTOR incl. cable suspension
050-203313X
special colours
excl. feeder | chrome cable
diameter 64 mm
height 60 mm
0.45 kg
NODE CONNECTOR incl. cable suspension
050-2033147
traffic white
RAL 9016
excl. feeder | black cable
diameter 64 mm
height 60 mm
0.45 kg
NODE CONNECTOR incl. cable suspension
050-2033148
jet black
RAL 9005
excl. feeder | black cable
diameter 64 mm
height 60 mm
0.44 kg
NODE CONNECTOR incl. cable suspension
050-203314X
special colours
excl. feeder | black cable
diameter 64 mm
height 60 mm
0.45 kg
NODE END CAP
050-7300108
jet black
RAL 9005
incl. electrical connector
0.09 kg
NODE END CAP
050-730010P
traffic white / jet black
RAL 9016 / RAL 9005
incl. electrical connector
0.09 kg
NODE END CAP
050-730010X
special colours
incl. electrical connector
0.1 kg

Optical

article number
colour
dimensions
BLIND COVER
050-7004008
jet black
RAL 9005
length 1,217 mm
width 28 mm
0.11 kg
BLIND COVER
050-7008008
jet black
RAL 9005
length 2,417 mm
width 28 mm
0.18 kg
BLIND COVER
050-7009008
jet black
RAL 9005
length 3,622 mm
width 28 mm
0.28 kg
