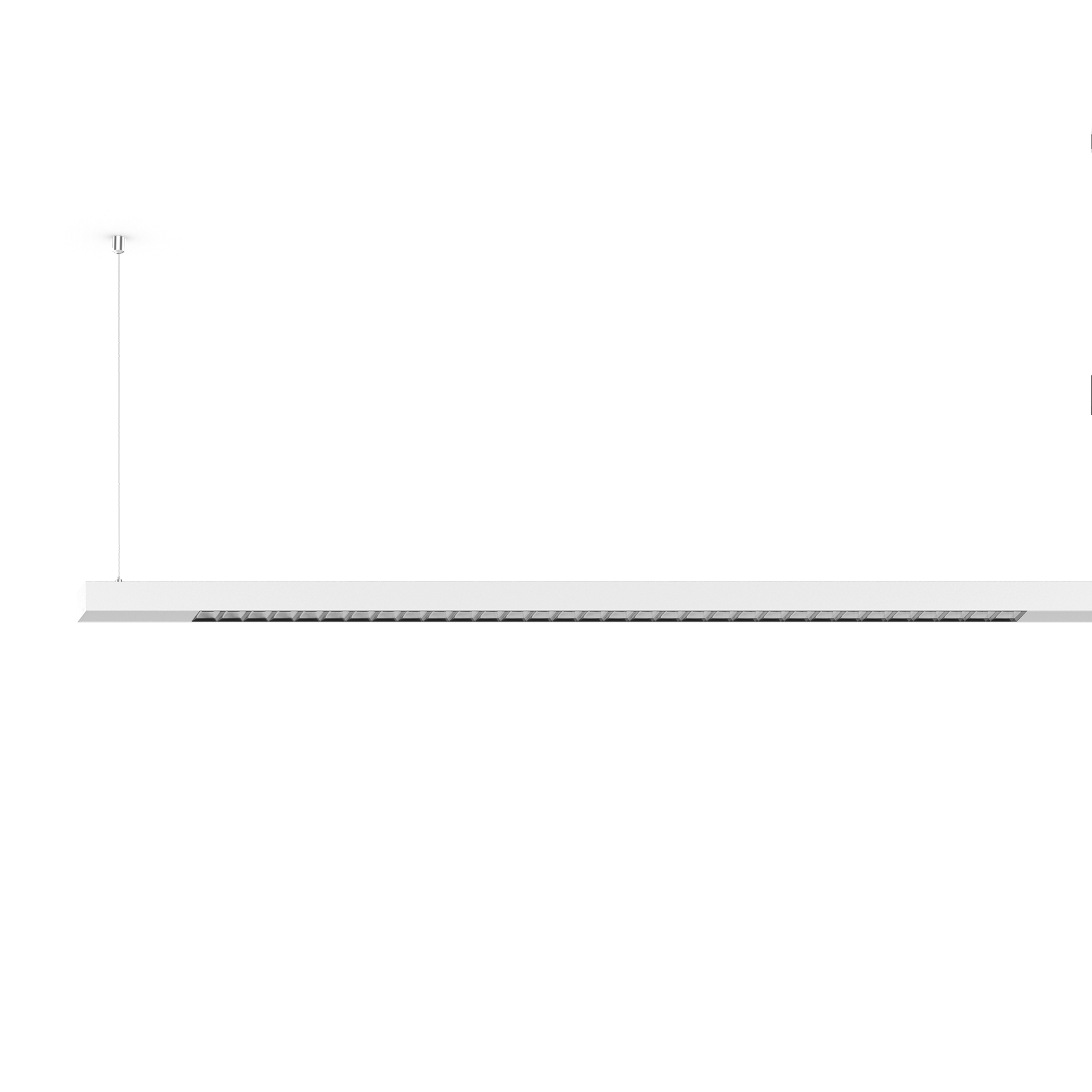

BETO linear direct / indirect TW power suspended system, BETO linear direct / indirect power suspended system

BETO linear direct / indirect power

suspended system

074-6039537B

Quickinfo

3000 K
CRI ≥ 80 / 3 SDCM (initial MacAdam)
UGR ≤ 10 / 65° ≤ 1,500 cd/m²
4,860 lm/↑ 7,330 lm
128 lm/W
L90 / 75000 h
DALI-2
Reflector
IP20 / PC1 / 220-240 V
3,400 mm,

Colour

Colour

Reflector

Reflector

General

  • Ceiling
  • Suspended
  • pure white
  • Reflector dark chrome
  • RAL 9010
  • IP20
  • indirect 7330 lm
  • direct 4860 lm
  • total 12190 lm

LED

  • 3000 K
  • CRI ≥ 80
  • L90 / 75000 h
  • ≤ 3 SDCM (initial MacAdam)
  • MR 0.56
  • MDER 0.51

Optical

  • Reflector
  • symmetric
  • UGR ≤ 10
  • PstLM ≤ 1.01 2 3
  • SVM ≤ 0.41 2 3
  • ≥65° <1500 cd/m²

Electrical

  • DALI-2
  • 220-240 V
  • system 95 W
  • system 128 lm/W 4
  • PC1
  • 3 DALI Addr.

Physical

  • length 3400 mm
  • width 42 mm
  • height 42 mm
  • 5.2 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B13
B16
B20
C10
C13
C16
C20

Number of Fixtures

5
7
9
11
9
12
15
19
1 combined 2 segment 3 Value of containing product at full load (undimmed) 4 incl. consideration of optical losses, internal control unit losses & operating device efficiency

Luminaire housing made of extruded aluminium profile; extremely slim design (only 42 x 42 mm) linear; converter integrated into luminaire housing; no visible screws; angular design; for lighting systems; surface pure white powder coated; for suspended mounting (1500 mm cable suspension as an accessory); with integrated toolless suspension height adjustment on the luminaire; spring clip attachment to the luminaire; extruded profile for improved thermal management; light colour 3000 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 80; min. 90% of luminous flux after 75000 operating hours; energy efficient LEDs with high CRI; high gloss reflector with faceted design; Reflector dark chrome; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 1500 cd/m²; direct/indirect illumination characteristic; indirect light component with integrated PC boards and high quality lens system for maximum, homogeneous ceiling illumination, separately controllable; degree of protection IP20; PC1; 220-240 V; internal wiring in light halogen free; incl. DALI-2 converter; accessories are listed separately; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;

Product data & specification documents

Datasheets

Planning files & lighting data

Certificates

Download all

Accessories

Electrical cable

article number
type
dimensions
THROUGH WIRE
004-90005
5 × 1.5 mm² | 10 pieces
0.3 kg

Mounting

article number
type
colour
dimensions
CABLE SUSPENSION
005-2152110
chrome
width 46 mm
0.05 kg
END CAPS
074-6090017
1 pair
pure white
RAL 9010
length 30 mm
width 42 mm
height 42 mm
0.03 kg
END CAPS
074-6090018
1 pair
jet black
RAL 9005
length 30 mm
width 42 mm
height 42 mm
0.04 kg
LINEAR CONNECTOR incl. cable suspension
074-6091120
mechanical
length 120 mm
width 28 mm
0.1 kg

Electrical components

article number
colour
type
dimensions
feeder cable length
CANOPY square
005-2212417
pure white
RAL 9010
incl. feeder cable 5 × 1.5 mm²
length 90 mm
width 90 mm
height 22 mm
0.29 kg
1,500 mm
CANOPY square
005-2212418
jet black
RAL 9005
incl. feeder cable 5 × 1.5 mm²
length 90 mm
width 90 mm
height 22 mm
0.29 kg
1,500 mm

Electrical mounting

article number
colour
type
dimensions
CORNER CONNECTOR 90°
074-6091217
pure white
RAL 9010
incl. through wire 5 × 1.5 mm²
length 250 mm
width 250 mm
height 42 mm
0.7 kg
CORNER CONNECTOR 90°
074-6091218
jet black
RAL 9005
incl. through wire 5 × 1.5 mm²
length 250 mm
width 250 mm
height 42 mm
1.3 kg

Optical

article number
colour
dimensions
BLIND COVER
074-6099107
pure white
RAL 9010
length 250 mm
width 38 mm
0.04 kg
BLIND COVER
074-6099108
jet black
RAL 9005
length 250 mm
width 38 mm
0.05 kg
BLIND COVER
074-6099117
pure white
RAL 9010
length 500 mm
width 38 mm
0.1 kg
BLIND COVER
074-6099118
jet black
RAL 9005
length 500 mm
width 38 mm
0.08 kg
