SONO 450 IP54 direct surface
SONO 600 IP54 direct surface
Private Villa, Quinta Patino

SONO IP54

surface

Quickinfo

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM
up to 143 lm/W
L90 / 50000 h
DALI-2, non DIM
Opal
front IP54 , IK07

Colour

    • Products and codes
    Discover family

    Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    Download all
    • ROLF
    • ULD

    Description

    Round luminaire housing in die-cast aluminium; surface powder coated; suitable for wall or ceiling mounting; completely homogeneously illuminated, satinised PMMA cover; same luminance for all size versions; energy-efficient LEDs with very good colour rendering; luminaire with 2 cable openings and plug-in terminals for through wiring

    DiiA® standards 251, 252, 253

    easy mounting by click-mechanism

    dust & insect protection (IP 54)

    tunable white 2700 – 6500 K (optional)

    Products and codes

    Filter
    125
    lm/W
    143
    lm/W
    950
    lm
    6170
    lm
    7.6
    W
    43
    W
    0.54
    0.72
    0.49
    0.66

    Colour

    • SONO 260 IP54 direct surface

    SONO 260 IP54 direct surface

    SONO 260 IP54 direct surface

    Status
    Article number(s)
    Type
    Dimming
    3000 K, 7.6 W, 125 lm/W
    non DIM
    3000 K, 7.6 W, 125 lm/W
    DALI-2
    4000 K, 7.6 W, 133 lm/W
    non DIM
    4000 K, 7.6 W, 133 lm/W
    DALI-2

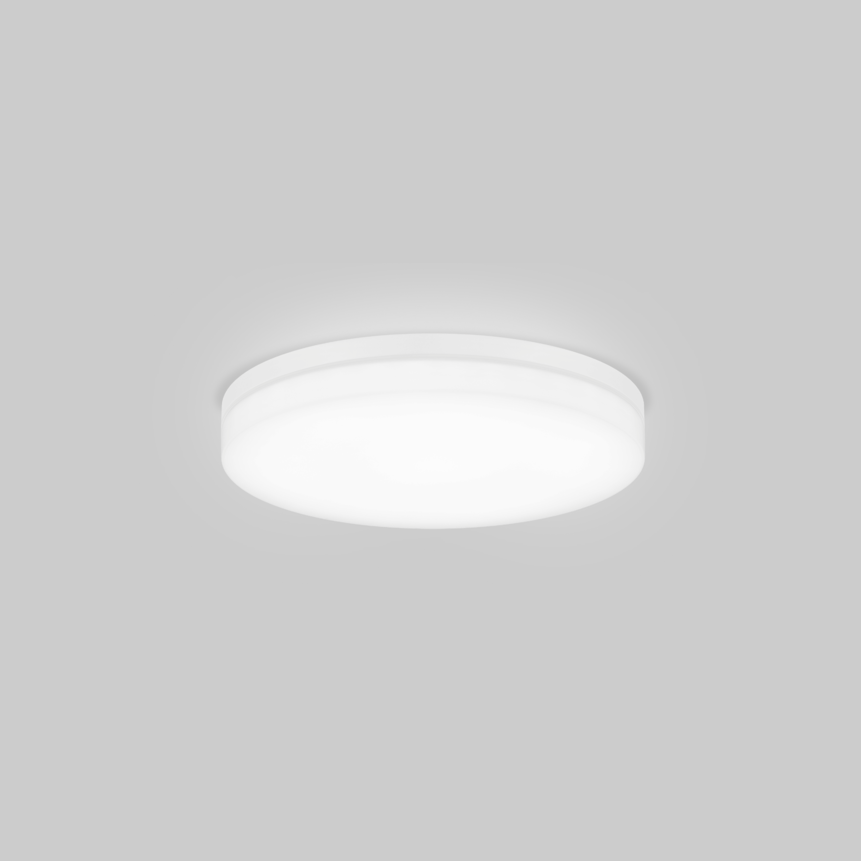

    SONO 350 IP54 direct surface

    SONO 350 IP54 direct surface

    SONO 350 IP54 direct surface

    Status
    Article number(s)
    Type
    Dimming
    3000 K, 15.9 W, 131 lm/W
    non DIM
    3000 K, 15.9 W, 131 lm/W
    DALI-2
    4000 K, 15.9 W, 139 lm/W
    non DIM
    4000 K, 15.9 W, 139 lm/W
    DALI-2

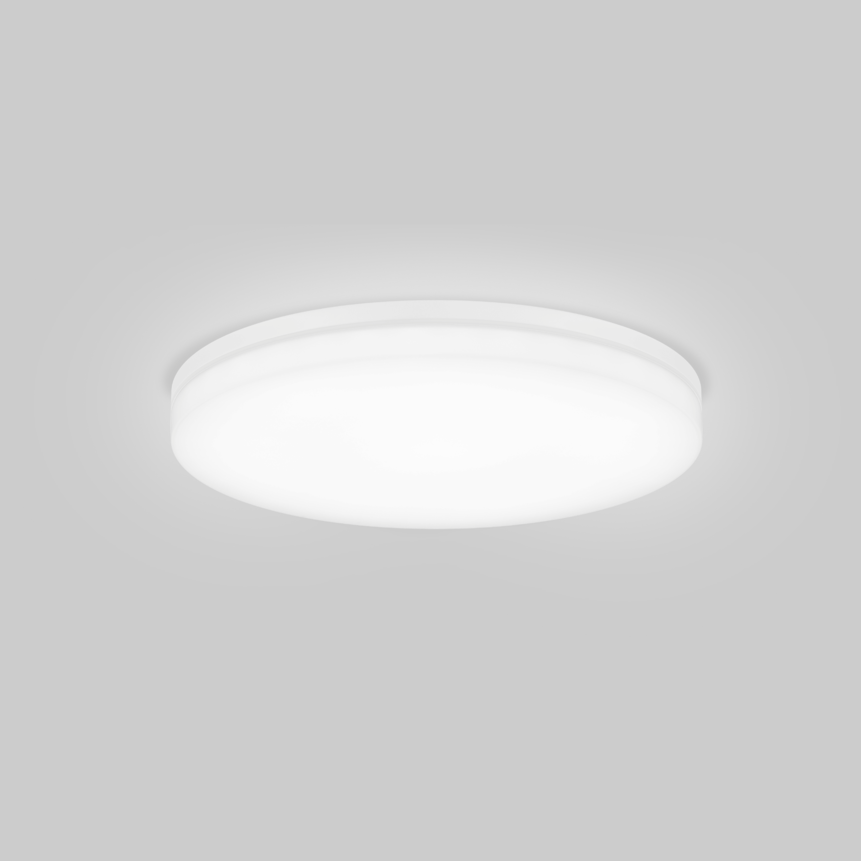

    SONO 450 IP54 direct surface

    SONO 450 IP54 direct surface

    SONO 450 IP54 direct surface

    Status
    Article number(s)
    Type
    Dimming
    3000 K, 23.2 W, 132 lm/W
    non DIM
    3000 K, 23.2 W, 132 lm/W
    DALI-2
    4000 K, 23.2 W, 140 lm/W
    non DIM
    4000 K, 23.2 W, 140 lm/W
    DALI-2
    SONO 600 IP54 direct surface

    SONO 600 IP54 direct surface

    SONO 600 IP54 direct surface

    Status
    Article number(s)
    Type
    Dimming
    3000 K, 43 W, 136 lm/W
    non DIM
    3000 K, 43 W, 136 lm/W
    DALI-2
    4000 K, 43 W, 143 lm/W
    non DIM
    4000 K, 43 W, 143 lm/W
    DALI-2
