BASO 60 IP54

surface system

Quickinfo

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM (initial MacAdam)
up to 2,340 lm/m
up to 130 lm/W
L85 / 50000 h
DALI-2
Opal
IP54

Colour

Channel

Products and codes
Discover family

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all
  • ROLF
  • ULD

Description

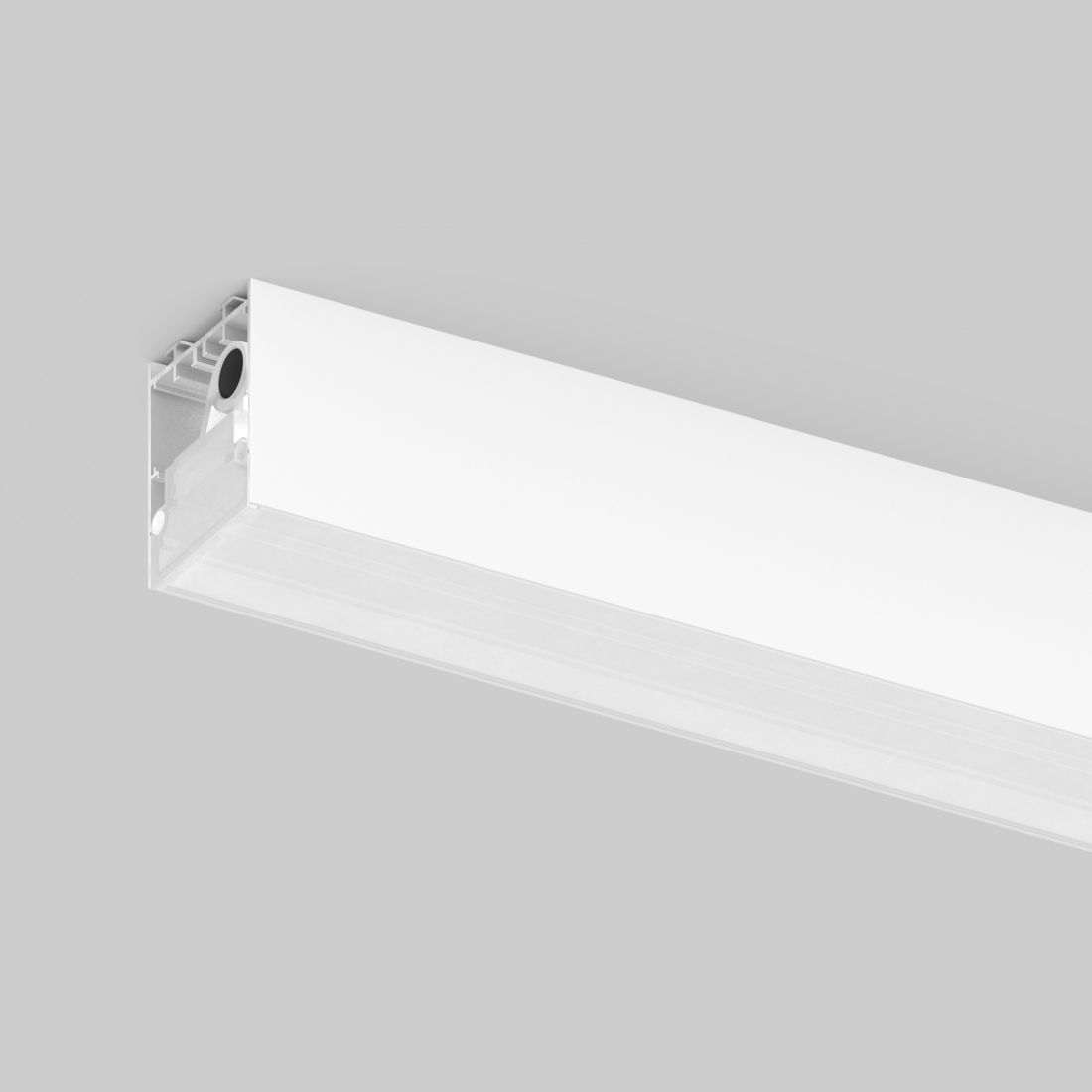

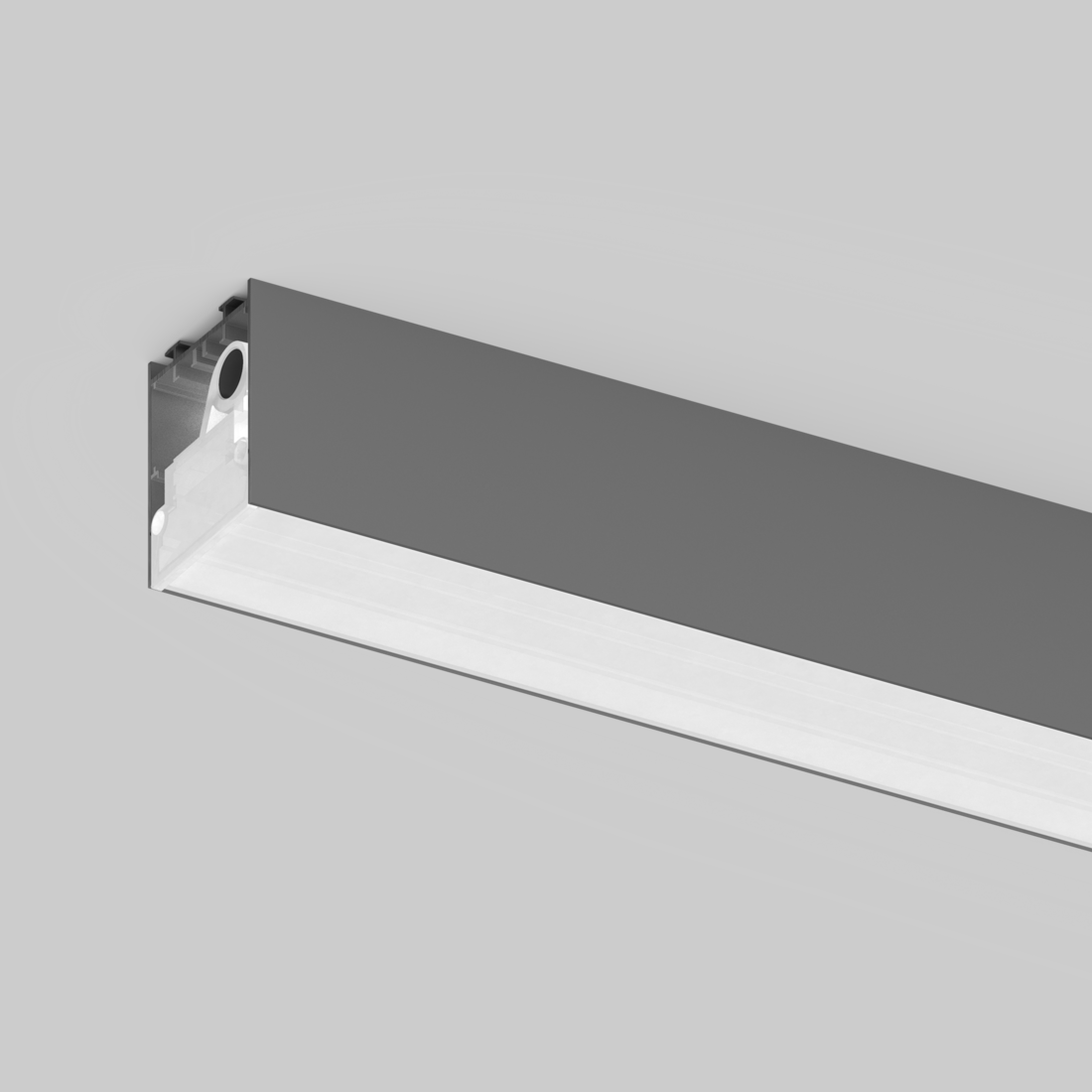

Luminaire housing from extruded aluminium profile, angular design; light-tight end caps in aluminium, no visible screws; designed for continuous lighting systems; surface powder coated; suitable for wall or ceiling mounting; luminaire profile can be pre-mounted; remaining luminaire components mounted without tools; closed light insert made of PMMA, consisting of converter unit and circuit board unit; light inset with screwed-on, thus maintenance-friendly, transparent end cap in PMMA; opal cover for uniform illumination; energy-efficient LEDs with very good colour rendering; IP 67 socket connector system for easy and sealed electrical connection

quick installation

dust & splash water protection (IP 54)

CRI ≥ 98 XPECTRUM (optional)

Products and codes

Filter
122
lm/W
130
lm/W
1320
lm
5600
lm
10.8
W
43
W
0.54
0.72
0.49
0.66

Colour

Channel

BASO 60 IP54 surface system end, BASO 60 IP54 surface system start/run

BASO 60 IP54 surface system end

BASO 60 IP54 surface system end

Status
Article number(s)
Type
Dimming
traffic white, 3000 K, 122 lm/W, length 599 mm
DALI-2
traffic white, 4000 K, 130 lm/W, length 599 mm
DALI-2
traffic white, 3000 K, 123 lm/W, length 1,198 mm
DALI-2
traffic white, 4000 K, 130 lm/W, length 1,198 mm
DALI-2
traffic white, 3000 K, 123 lm/W, length 1,597 mm
DALI-2
traffic white, 4000 K, 130 lm/W, length 1,597 mm
DALI-2
traffic white, 3000 K, 123 lm/W, length 2,396 mm
DALI-2
traffic white, 4000 K, 130 lm/W, length 2,396 mm
DALI-2
BASO 60 IP54 surface system end, BASO 60 IP54 surface system start/run

BASO 60 IP54 surface system end

BASO 60 IP54 surface system end

Status
Article number(s)
Type
Dimming
umbra grey, 3000 K, 122 lm/W, length 599 mm
DALI-2
umbra grey, 4000 K, 130 lm/W, length 599 mm
DALI-2
umbra grey, 3000 K, 123 lm/W, length 1,198 mm
DALI-2
umbra grey, 4000 K, 130 lm/W, length 1,198 mm
DALI-2
umbra grey, 3000 K, 123 lm/W, length 1,597 mm
DALI-2
umbra grey, 4000 K, 130 lm/W, length 1,597 mm
DALI-2
umbra grey, 3000 K, 123 lm/W, length 2,396 mm
DALI-2
umbra grey, 4000 K, 130 lm/W, length 2,396 mm
DALI-2
BASO 60 IP54 surface system end, BASO 60 IP54 surface system start/run

BASO 60 IP54 surface system start/run

BASO 60 IP54 surface system start/run

Status
Article number(s)
Type
Dimming
traffic white, 3000 K, 122 lm/W, length 599 mm
DALI-2
traffic white, 4000 K, 130 lm/W, length 599 mm
DALI-2
traffic white, 3000 K, 123 lm/W, length 1,198 mm
DALI-2
traffic white, 4000 K, 130 lm/W, length 1,198 mm
DALI-2
traffic white, 3000 K, 123 lm/W, length 1,597 mm
DALI-2
traffic white, 4000 K, 130 lm/W, length 1,597 mm
DALI-2
traffic white, 3000 K, 123 lm/W, length 2,396 mm
DALI-2
traffic white, 4000 K, 130 lm/W, length 2,396 mm
DALI-2
BASO 60 IP54 surface system end, BASO 60 IP54 surface system start/run

BASO 60 IP54 surface system start/run

BASO 60 IP54 surface system start/run

Status
Article number(s)
Type
Dimming
umbra grey, 3000 K, 122 lm/W, length 599 mm
DALI-2
umbra grey, 4000 K, 130 lm/W, length 599 mm
DALI-2
umbra grey, 3000 K, 123 lm/W, length 1,198 mm
DALI-2
umbra grey, 4000 K, 130 lm/W, length 1,198 mm
DALI-2
umbra grey, 3000 K, 123 lm/W, length 1,597 mm
DALI-2
umbra grey, 4000 K, 130 lm/W, length 1,597 mm
DALI-2
umbra grey, 3000 K, 123 lm/W, length 2,396 mm
DALI-2
umbra grey, 4000 K, 130 lm/W, length 2,396 mm
DALI-2

Accessories

Mounting

article number
colour
dimensions
INSTALLATION CHANNEL surface
845-4002017
traffic white
RAL 9016
length 600 mm
width 61 mm
height 76 mm
0.8 kg
INSTALLATION CHANNEL surface
845-400201D
umbra grey
RAL 7022
length 600 mm
width 61 mm
height 76 mm
0.8 kg
INSTALLATION CHANNEL surface
845-4004017
traffic white
RAL 9016
length 1,200 mm
width 61 mm
height 76 mm
1.57 kg
INSTALLATION CHANNEL surface
845-400401D
umbra grey
RAL 7022
length 1,200 mm
width 61 mm
height 76 mm
1.6 kg
INSTALLATION CHANNEL surface
845-4005017
traffic white
RAL 9016
length 1,600 mm
width 61 mm
height 76 mm
2.32 kg
INSTALLATION CHANNEL surface
845-400501D
umbra grey
RAL 7022
length 1,600 mm
width 61 mm
height 76 mm
2.1 kg
INSTALLATION CHANNEL surface
845-4008017
traffic white
RAL 9016
length 2,400 mm
width 61 mm
height 76 mm
3.2 kg
INSTALLATION CHANNEL surface
845-400801D
umbra grey
RAL 7022
length 2,400 mm
width 61 mm
height 76 mm
3.2 kg

Mounting

article number
type
colour
dimensions
LINEAR CONNECTOR FOR CONCRETE INSTALLATION
005-41166
1 piece
length 53 mm
width 80 mm
0.12 kg
LINEAR CONNECTOR FOR CONCRETE INSTALLATION
005-41166.10
10 pieces
length 53 mm
width 80 mm
0.71 kg
END CAPS FOR CONCRETE INSTALLATION
005-41246
1 pair
length 76 mm
width 28 mm
height 87 mm
0.09 kg
HOUSING FOR CONCRETE INSTALLATION
005-41446
length 3,000 mm
width 75 mm
height 88 mm
4.5 kg
MOUNTING SET FOR CONCRETE INSTALLATION
034-04002
2 pieces
diameter 116 mm
height 25 mm
0.01 kg
MOUNTING SET FOR CONCRETE INSTALLATION
034-04003
3 pieces
diameter 116 mm
height 25 mm
0.01 kg
CORNER CONNECTOR 90° FOR CONCRETE INSTALLATION
034-04016
length 157 mm
width 157 mm
0.52 kg
LINEAR CONNECTOR
045-4011110
1 piece
length 76 mm
width 57 mm
height 30 mm
0.06 kg
LINEAR CONNECTOR
045-4011110.10
10 pieces
length 76 mm
width 57 mm
height 30 mm
0.7 kg
END CAPS surface
845-4010017
1 pair
traffic white
RAL 9016
length 61 mm
width 76 mm
height 5 mm
0.12 kg
END CAPS surface
845-401001D
1 pair
umbra grey
RAL 7022
length 61 mm
width 76 mm
height 5 mm
0.1 kg

Optical

article number
colour
dimensions
BLIND COVER
006-3306017B
traffic white
RAL 9016
length 600 mm
width 57 mm
0.34 kg
BLIND COVER
006-330601DB
umbra grey
RAL 7022
length 600 mm
width 57 mm
0.34 kg
BLIND COVER
006-3312017B
traffic white
RAL 9016
length 1,200 mm
width 57 mm
0.7 kg
BLIND COVER
006-331201DB
umbra grey
RAL 7022
length 1,200 mm
width 57 mm
0.7 kg
BLIND COVER
006-3316017B
traffic white
RAL 9016
length 1,600 mm
width 57 mm
1 kg
BLIND COVER
006-331601DB
umbra grey
RAL 7022
length 1,600 mm
width 57 mm
1 kg
BLIND COVER
006-3324017B
traffic white
RAL 9016
length 2,400 mm
width 57 mm
1.36 kg
BLIND COVER
006-332401DB
umbra grey
RAL 7022
length 2,400 mm
width 57 mm
1.36 kg
BLIND COVER
006-3330017B
traffic white
RAL 9016
length 3,000 mm
width 57 mm
1.7 kg
BLIND COVER
006-333001DB
umbra grey
RAL 7022
length 3,000 mm
width 57 mm
1.7 kg

Electrical mounting

article number
colour
dimensions
CORNER CONNECTOR 90°
845-4011217
traffic white
RAL 9016
length 604 mm
width 659 mm
height 76 mm
1.65 kg
CORNER CONNECTOR 90°
845-401121D
umbra grey
RAL 7022
length 604 mm
width 659 mm
height 76 mm
1.59 kg

Feeder

article number
type
dimensions
MINI CONNECTOR
845-4013040
4-pole
diameter 23 mm
height 68 mm
0.02 kg

Electrical cable

article number
type
feeder cable length
dimensions
FEEDER CABLE
845-4013240
2× 1.5 + 2× 0.75 mm² | 2m
2,000 mm
0.23 kg
FEEDER CABLE
845-4013440
2× 1.5 + 2× 0.75 mm² | 4m
4,000 mm
0.42 kg
EXTENSION CABLE
845-4014140
2× 1.5 + 2× 0.75 mm² | 1,2m
1,200 mm
0.16 kg
