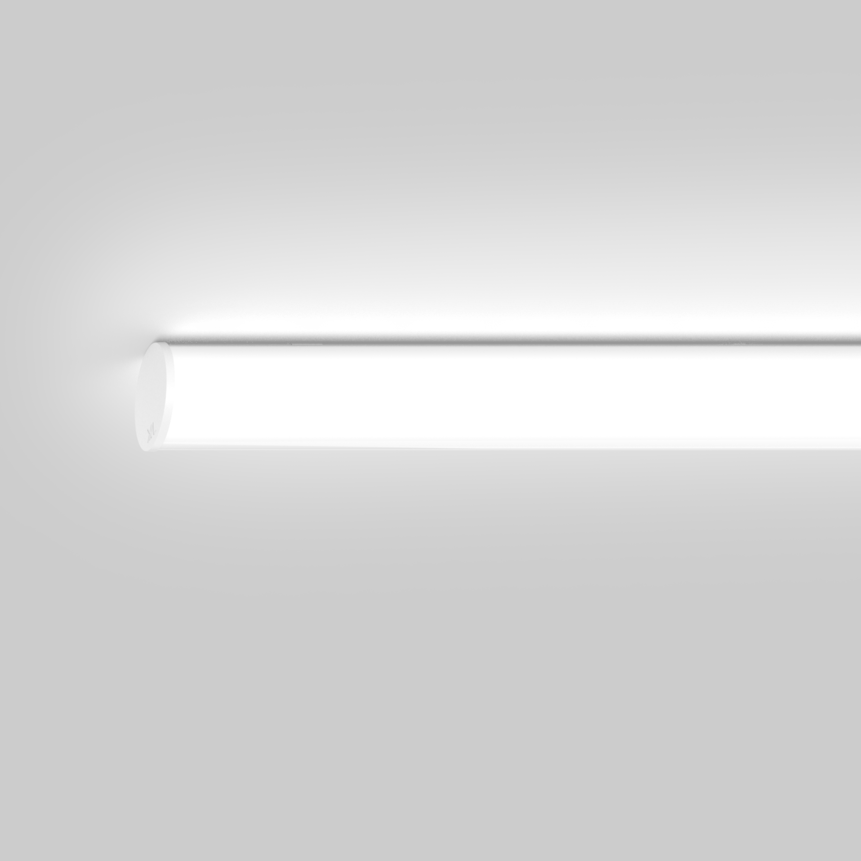

TUBO 100 surface

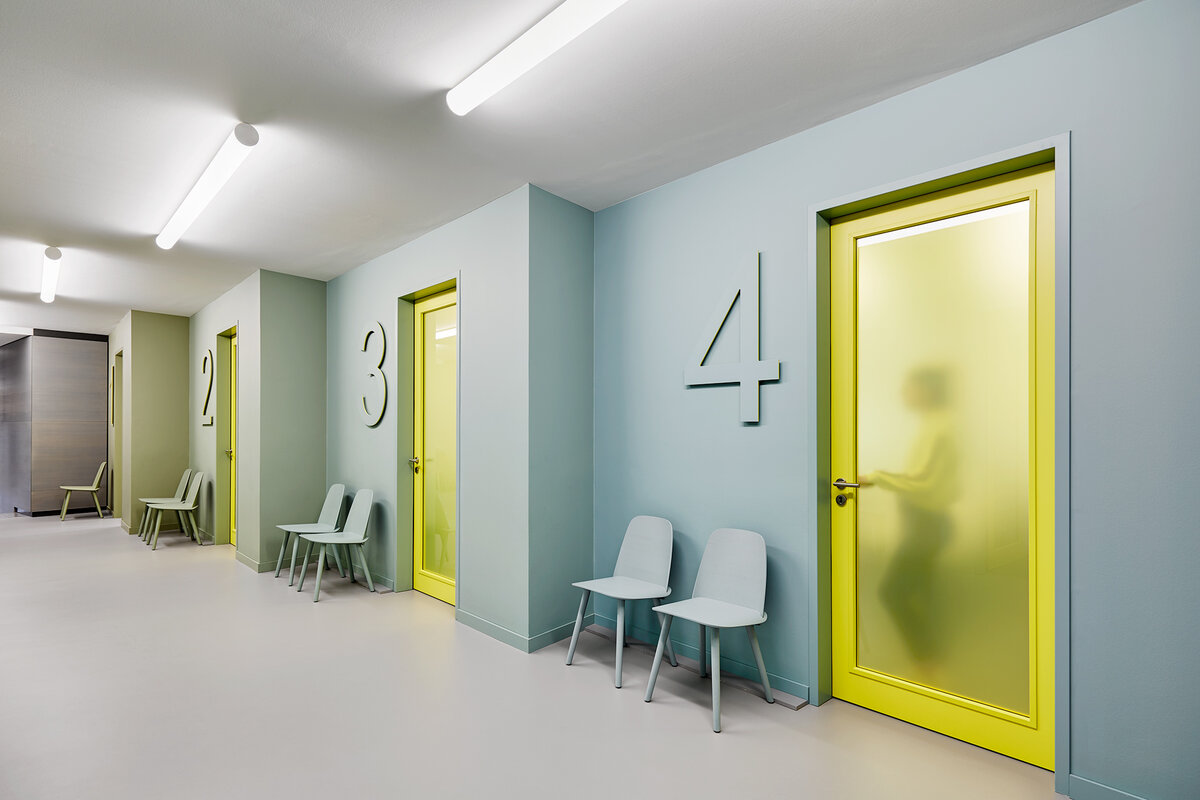

HNOplus
Mounting options

TUBO 100

surface

Phase-out

Quickinfo

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM
up to 138 lm/W
L90 / 50000 h
DALI-2, non DIM
High Performance Opal
IP20

Colour

    • Products and codes
    Discover family

    Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    Download all
    • ROLF
    • ULD

    Description

    Supporting profile in extruded aluminium; end cap in aluminium, no visible screws; surface powder coated; suitable for wall or ceiling mounting; luminaire profile for mounting available in advance; remaining luminaire components mounted without tools; light inset consisting of highly reflective coated extruded profile for improved thermal management; cylindrical cover made of satinised PMMA for homogeneous illumination; with 340° light emission and light ceiling illumination; energy-efficient LEDs with very good colour rendering

    system solution

    uniform illumination

    Products and codes

    Filter
    129
    lm/W
    138
    lm/W
    3580
    lm
    10100
    lm
    877
    mm
    2347
    mm
    27.5
    W
    73
    W
    0.54
    0.72
    0.49
    0.66

    Colour

    • TUBO 100 surface

    TUBO 100 surface

    TUBO 100 surface

    Status
    Article number(s)
    Type
    Dimming
    3000 K, 27.5 W, 130 lm/W, 877 mm
    non DIM
    3000 K, 27.5 W, 130 lm/W, 877 mm
    DALI-2
    4000 K, 27.5 W, 138 lm/W, 877 mm
    non DIM
    4000 K, 27.5 W, 138 lm/W, 877 mm
    DALI-2
    3000 K, 37 W, 129 lm/W, 1,177 mm
    non DIM
    3000 K, 37 W, 129 lm/W, 1,177 mm
    DALI-2
    4000 K, 37 W, 136 lm/W, 1,177 mm
    non DIM
    4000 K, 37 W, 136 lm/W, 1,177 mm
    DALI-2
    3000 K, 46 W, 130 lm/W, 1,477 mm
    non DIM
    3000 K, 46 W, 130 lm/W, 1,477 mm
    DALI-2
    4000 K, 46 W, 137 lm/W, 1,477 mm
    non DIM
    4000 K, 46 W, 137 lm/W, 1,477 mm
    DALI-2
    3000 K, 73 W, 131 lm/W, 2,347 mm
    non DIM
    3000 K, 73 W, 131 lm/W, 2,347 mm
    DALI-2
    4000 K, 73 W, 138 lm/W, 2,347 mm
    non DIM
    4000 K, 73 W, 138 lm/W, 2,347 mm
    DALI-2
