MITA circle 160 trimless, MITA circle 160 trim
MITA circle 160 trim
MITA circle 160 trimless
MITA circle 160 trimless, MITA circle 160 trim
MITA circle 160 trim
MITA circle 160 trimless

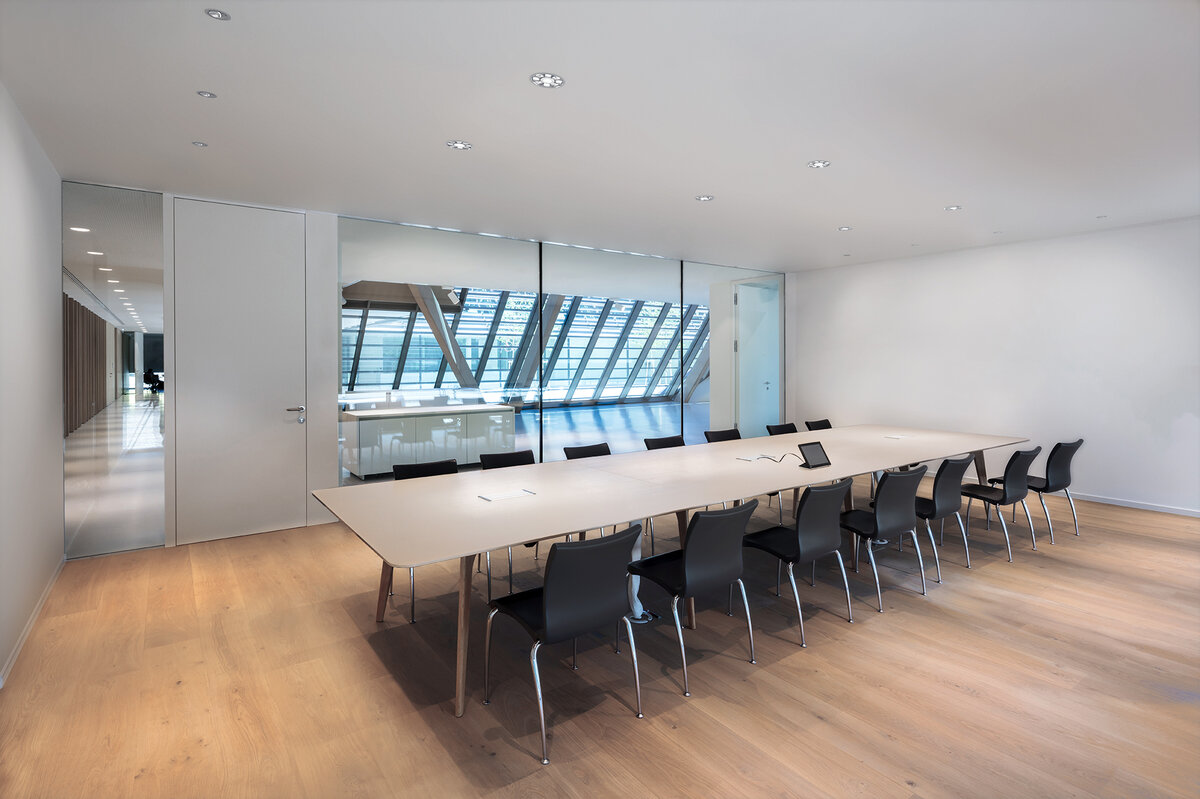

MIBA Forum

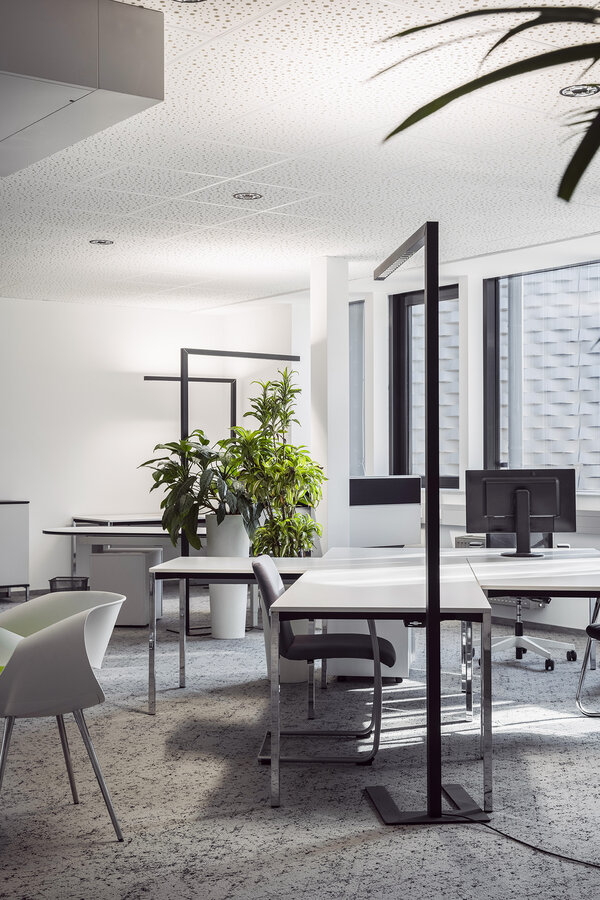

Allplan Graz

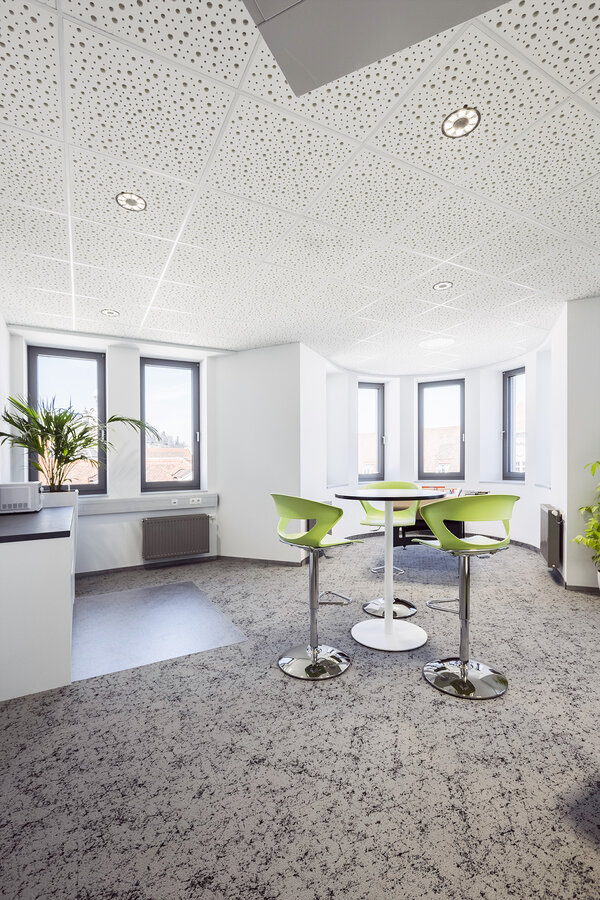

Allplan Graz

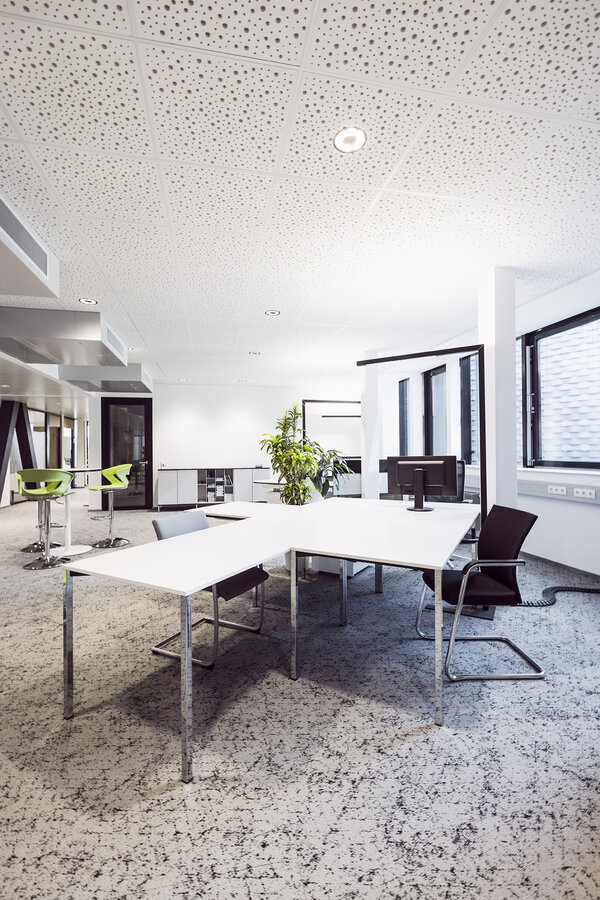

Allplan Graz
Variety
MITO circle 160 sensor

MITA circle 160

recessed

Quickinfo

3000 K, 4000 K, tunable white
CRI ≥ 80, CRI ≥ 90 / 3 SDCM
UGR ≤ 16, UGR ≤ 19
up to 187 lm/W
L90 / 50000 h
DALI-2, DALI-2 DT8, non DIM
Reflector
IP20
System components
Discover family

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all
  • 3DS
  • DWG - 3D
  • Revit BIM data

Description

Ring shaped luminaire housing in die-cast aluminium; extremely slim design; recessed luminaire with trim (suitable for ceiling thickness of 2-25 mm); or for trimless installation in plasterboard ceilings (suitable for ceiling thickness of 12.5/15/20/25 mm); surface powder coated; incl. blind cover made of plastic in the cut-out; optional: SASSO 60 round, SASSO 60 round sensor, SASSO 60 round emergency or SPIO 60 for installation in the cut-out available as an accessory; high gloss reflector with faceted design; energy-efficient LEDs with very good colour rendering

DIN EN 12464-1 UGR ≤ 19

trimless installation in plasterboard

SASSO 60 inset ready

tunable white 2700 – 6500 K

System components

Click to see components

SPIO 60 recessed

2700 K, 3000 K
CRI ≥ 90 / 3 SDCM
UGR ≤ 10
up to 61 lm/W
L85 / 50000 h, L95 / 50000 h
DALI-2, non DIM
front IP20
Go to product

SASSO 60 round sensor / emergency

6500 K
up to 217 lm/W
DALI-2 SENSE sensor
front IP20, IP40, back IP20
Go to product

SASSO 60 round sensor / emergency

6500 K
up to 217 lm/W
DALI-2 SENSE sensor
front IP20, IP40, back IP20
Go to product

SASSO 60 round recessed 1 lamp

2700 K, 3000 K, 3500 K, 4000 K, colour warm dimming
CRI ≥ 90 / 2 SDCM, 3 SDCM
UGR ≤ 13, UGR ≤ 16, UGR ≤ 19
up to 123 lm/W
L80 / 50000 h, L85 / 50000 h, L90 / 50000 h
DALI-2, non DIM
front IP20, IP40, IP44, back IP20
Go to product

SASSO 60 round recessed 1 lamp

2700 K, 3000 K, 3500 K, 4000 K, colour warm dimming
CRI ≥ 90 / 2 SDCM, 3 SDCM
UGR ≤ 13, UGR ≤ 16, UGR ≤ 19
up to 123 lm/W
L80 / 50000 h, L85 / 50000 h, L90 / 50000 h
DALI-2, non DIM
front IP20, IP40, IP44, back IP20
Go to product

Products and codes

Filter
99
lm/W
187
lm/W
598
lm
1190
lm
8.1
W
8.5
W
6.1
W
6.4
W
0.51
0.81
0.46
0.74

Colour

    • Reflector

    • MITA circle 160 trim

    MITA circle 160 trim

    MITA circle 160 trim

    Status
    Article number(s)
    Type
    Dimming
    black, Reflector chrome, 3000 K, CRI ≥ 90, system 8.5 W, 141 lm/W
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ 90, system 8.5 W, 141 lm/W
    non DIM
    black, Reflector chrome, 4000 K, CRI ≥ 90, system 8.5 W, 153 lm/W
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ 90, system 8.5 W, 153 lm/W
    non DIM
    black, Reflector chrome, 3000 K, CRI ≥ 80, system 8.5 W, 164 lm/W
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ 80, system 8.5 W, 164 lm/W
    non DIM
    black, Reflector chrome, 4000 K, CRI ≥ 80, system 8.5 W, 187 lm/W
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ 80, system 8.5 W, 187 lm/W
    non DIM
    black, Reflector chrome, tunable white, CRI ≥ 90, system 8.1 W, 138 lm/W
    DALI-2 DT8
    MITA circle 160 trim

    MITA circle 160 trim

    MITA circle 160 trim

    Status
    Article number(s)
    Type
    Dimming
    white, Reflector chrome, 3000 K, CRI ≥ 90, system 8.5 W, 141 lm/W
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ 90, system 8.5 W, 141 lm/W
    non DIM
    white, Reflector chrome, 4000 K, CRI ≥ 90, system 8.5 W, 153 lm/W
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ 90, system 8.5 W, 153 lm/W
    non DIM
    white, Reflector chrome, 3000 K, CRI ≥ 80, system 8.5 W, 164 lm/W
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ 80, system 8.5 W, 164 lm/W
    non DIM
    white, Reflector chrome, 4000 K, CRI ≥ 80, system 8.5 W, 187 lm/W
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ 80, system 8.5 W, 187 lm/W
    non DIM
    white, Reflector chrome, tunable white, CRI ≥ 90, system 8.1 W, 138 lm/W
    DALI-2 DT8
    MITA circle 160 trimless, MITA circle 160 trim

    MITA circle 160 trim

    MITA circle 160 trim

    Status
    Article number(s)
    Type
    Dimming
    black, Reflector dark chrome, 3000 K, CRI ≥ 90, system 8.5 W, 101 lm/W
    DALI-2
    black, Reflector dark chrome, 3000 K, CRI ≥ 90, system 8.5 W, 101 lm/W
    non DIM
    black, Reflector dark chrome, 4000 K, CRI ≥ 90, system 8.5 W, 109 lm/W
    DALI-2
    black, Reflector dark chrome, 4000 K, CRI ≥ 90, system 8.5 W, 109 lm/W
    non DIM
    black, Reflector dark chrome, 3000 K, CRI ≥ 80, system 8.5 W, 118 lm/W
    DALI-2
    black, Reflector dark chrome, 3000 K, CRI ≥ 80, system 8.5 W, 118 lm/W
    non DIM
    black, Reflector dark chrome, 4000 K, CRI ≥ 80, system 8.5 W, 134 lm/W
    DALI-2
    black, Reflector dark chrome, 4000 K, CRI ≥ 80, system 8.5 W, 134 lm/W
    non DIM
    black, Reflector dark chrome, tunable white, CRI ≥ 90, system 8.1 W, 99 lm/W
    DALI-2 DT8
    MITA circle 160 trimless, MITA circle 160 trim

    MITA circle 160 trim

    MITA circle 160 trim

    Status
    Article number(s)
    Type
    Dimming
    white, Reflector dark chrome, 3000 K, CRI ≥ 90, system 8.5 W, 101 lm/W
    DALI-2
    white, Reflector dark chrome, 3000 K, CRI ≥ 90, system 8.5 W, 101 lm/W
    non DIM
    white, Reflector dark chrome, 4000 K, CRI ≥ 90, system 8.5 W, 109 lm/W
    DALI-2
    white, Reflector dark chrome, 4000 K, CRI ≥ 90, system 8.5 W, 109 lm/W
    non DIM
    white, Reflector dark chrome, 3000 K, CRI ≥ 80, system 8.5 W, 118 lm/W
    DALI-2
    white, Reflector dark chrome, 3000 K, CRI ≥ 80, system 8.5 W, 118 lm/W
    non DIM
    white, Reflector dark chrome, 4000 K, CRI ≥ 80, system 8.5 W, 134 lm/W
    DALI-2
    white, Reflector dark chrome, 4000 K, CRI ≥ 80, system 8.5 W, 134 lm/W
    non DIM
    white, Reflector dark chrome, tunable white, CRI ≥ 90, system 8.1 W, 99 lm/W
    DALI-2 DT8
    MITA circle 160 trimless

    MITA circle 160 trimless

    MITA circle 160 trimless

    Status
    Article number(s)
    Type
    Dimming
    black, Reflector chrome, 3000 K, CRI ≥ 90, system 8.5 W, 141 lm/W
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ 90, system 8.5 W, 141 lm/W
    non DIM
    black, Reflector chrome, 4000 K, CRI ≥ 90, system 8.5 W, 153 lm/W
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ 90, system 8.5 W, 153 lm/W
    non DIM
    black, Reflector chrome, 3000 K, CRI ≥ 80, system 8.5 W, 164 lm/W
    DALI-2
    black, Reflector chrome, 3000 K, CRI ≥ 80, system 8.5 W, 164 lm/W
    non DIM
    black, Reflector chrome, 4000 K, CRI ≥ 80, system 8.5 W, 187 lm/W
    DALI-2
    black, Reflector chrome, 4000 K, CRI ≥ 80, system 8.5 W, 187 lm/W
    non DIM
    black, Reflector chrome, tunable white, CRI ≥ 90, system 8.1 W, 138 lm/W
    DALI-2 DT8
    MITA circle 160 trimless

    MITA circle 160 trimless

    MITA circle 160 trimless

    Status
    Article number(s)
    Type
    Dimming
    white, Reflector chrome, 3000 K, CRI ≥ 90, system 8.5 W, 141 lm/W
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ 90, system 8.5 W, 141 lm/W
    non DIM
    white, Reflector chrome, 4000 K, CRI ≥ 90, system 8.5 W, 153 lm/W
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ 90, system 8.5 W, 153 lm/W
    non DIM
    white, Reflector chrome, 3000 K, CRI ≥ 80, system 8.5 W, 164 lm/W
    DALI-2
    white, Reflector chrome, 3000 K, CRI ≥ 80, system 8.5 W, 164 lm/W
    non DIM
    white, Reflector chrome, 4000 K, CRI ≥ 80, system 8.5 W, 187 lm/W
    DALI-2
    white, Reflector chrome, 4000 K, CRI ≥ 80, system 8.5 W, 187 lm/W
    non DIM
    white, Reflector chrome, tunable white, CRI ≥ 90, system 8.1 W, 138 lm/W
    DALI-2 DT8
    MITA circle 160 trimless, MITA circle 160 trim

    MITA circle 160 trimless

    MITA circle 160 trimless

    Status
    Article number(s)
    Type
    Dimming
    black, Reflector dark chrome, 3000 K, CRI ≥ 90, system 8.5 W, 101 lm/W
    DALI-2
    black, Reflector dark chrome, 3000 K, CRI ≥ 90, system 8.5 W, 101 lm/W
    non DIM
    black, Reflector dark chrome, 4000 K, CRI ≥ 90, system 8.5 W, 109 lm/W
    DALI-2
    black, Reflector dark chrome, 4000 K, CRI ≥ 90, system 8.5 W, 109 lm/W
    non DIM
    black, Reflector dark chrome, 3000 K, CRI ≥ 80, system 8.5 W, 118 lm/W
    DALI-2
    black, Reflector dark chrome, 3000 K, CRI ≥ 80, system 8.5 W, 118 lm/W
    non DIM
    black, Reflector dark chrome, 4000 K, CRI ≥ 80, system 8.5 W, 134 lm/W
    DALI-2
    black, Reflector dark chrome, 4000 K, CRI ≥ 80, system 8.5 W, 134 lm/W
    non DIM
    black, Reflector dark chrome, tunable white, CRI ≥ 90, system 8.1 W, 99 lm/W
    DALI-2 DT8
    MITA circle 160 trimless, MITA circle 160 trim

    MITA circle 160 trimless

    MITA circle 160 trimless

    Status
    Article number(s)
    Type
    Dimming
    white, Reflector dark chrome, 3000 K, CRI ≥ 90, system 8.5 W, 101 lm/W
    DALI-2
    white, Reflector dark chrome, 3000 K, CRI ≥ 90, system 8.5 W, 101 lm/W
    non DIM
    white, Reflector dark chrome, 4000 K, CRI ≥ 90, system 8.5 W, 109 lm/W
    DALI-2
    white, Reflector dark chrome, 4000 K, CRI ≥ 90, system 8.5 W, 109 lm/W
    non DIM
    white, Reflector dark chrome, 3000 K, CRI ≥ 80, system 8.5 W, 118 lm/W
    DALI-2
    white, Reflector dark chrome, 3000 K, CRI ≥ 80, system 8.5 W, 118 lm/W
    non DIM
    white, Reflector dark chrome, 4000 K, CRI ≥ 80, system 8.5 W, 134 lm/W
    DALI-2
    white, Reflector dark chrome, 4000 K, CRI ≥ 80, system 8.5 W, 134 lm/W
    non DIM
    white, Reflector dark chrome, tunable white, CRI ≥ 90, system 8.1 W, 99 lm/W
    DALI-2 DT8

    Accessories

    Converter

    article number
    power
    voltage / frequency
    protection class
    constant current
    POWER SUPPLY
    002-91120
    44 W
    min 50 Hz
    max 60 Hz
    PC21
    constant current 300 mA
    POWER SUPPLY
    002-91121
    45 W
    min 50 Hz
    max 60 Hz
    PC11
    constant current 375 mA
    POWER SUPPLY
    002-91122
    22 W
    min 50 Hz
    max 60 Hz
    PC21
    constant current 300 mA

    Converter

    article number
    power
    voltage / frequency
    protection class
    constant voltage
    control
    DIN RAIL LED DRIVER
    005-6121030
    DALI-2
    DIN RAIL POWER SUPPLY
    005-6520210
    160 W
    min 50 Hz
    max 60 Hz
    PC21
    48 V
