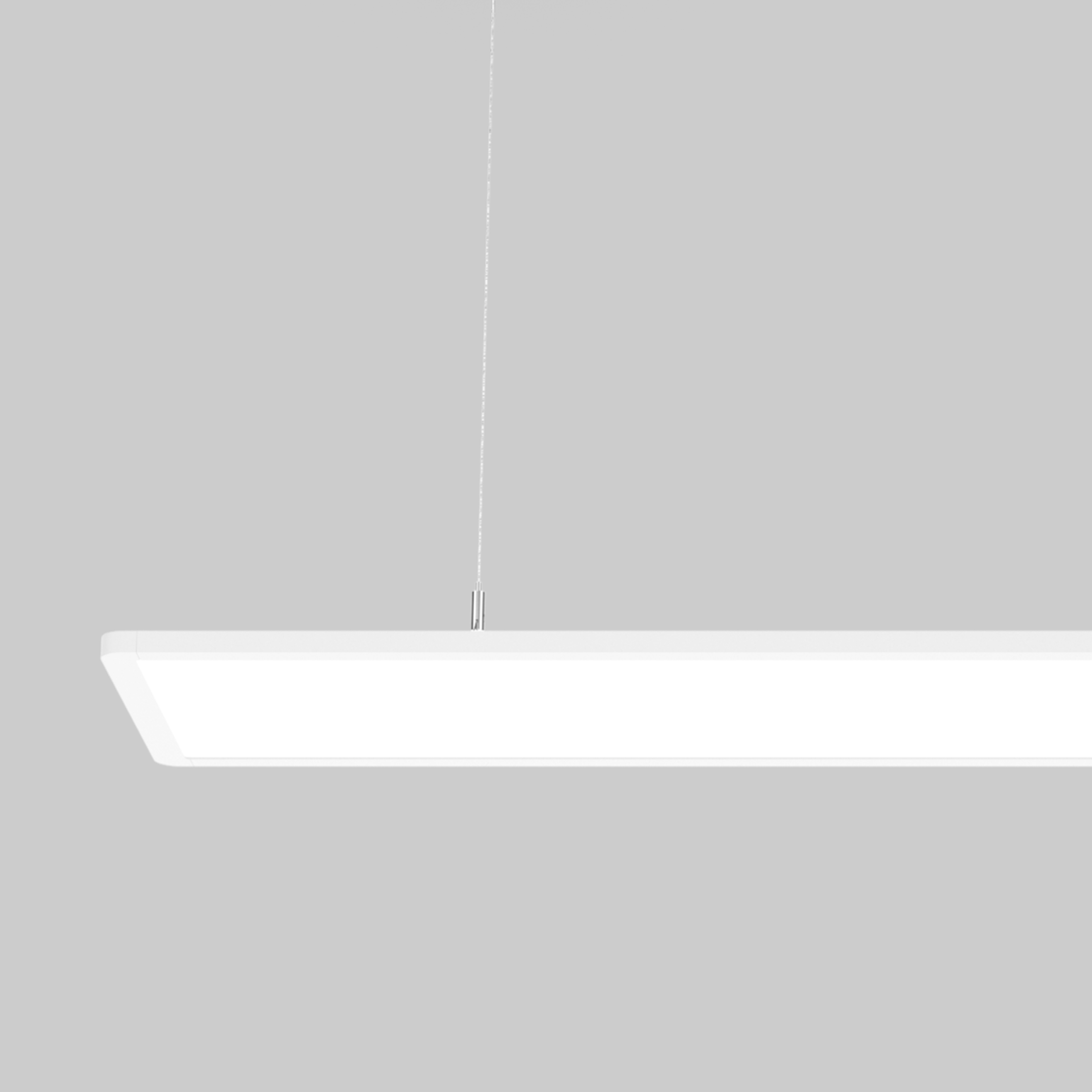

DESO rounded
suspended
074-3244537P
Quickinfo
3000 KCRI ≥ 80 / 3 SDCM
UGR ≤ 16 / 65° ≤ 3,000 cd/m²
2,450 lm / ↑ 2,380 lm
124 lm/W
L90 / 50000 h
DALI-2
Microprismatic
IP20
Colour
General
- Ceiling
- Suspended
- white
- RAL 9010 1
- IP20
- indirect 2380 lm
- direct 2450 lm
- total 4830 lm
LED
- 3000 K
- CRI ≥ 80
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
- MR 0.54
- MDER 0.49
Optical
- Microprismatic
- microprismatic
- UGR ≤ 16
- ≥65° <3000 cd/m²
- ≤ 1.0 2
- SVM ≤ 0.4 2
Electrical
- DALI-2
- 220-240 V
- system 39 W
- system 124 lm/W 3
- PC2
- 1 DALI Addr.
Physical
- cable 1500 mm
- length 1180 mm
- width 295 mm
- height 15 mm
- 4 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Rectangular light fitting with rounded corners in aluminium; flat design; surface white powder coated; suspended luminaire with 1500mm cable suspension; with integrated toolless suspension height adjustment on the luminaire; incl. feed (white); direct/indirect light distribution; side coupled light, directed up and down; light control via a specially made indirect diffuser; microprismatic PMMA cover; homogeneous illumination; same light density for all surface lights with the same components; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; canopy with 2 cable openings and plug-in terminal for through wiring; degree of protection IP20; PC2; 220-240 V; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
