DESO rounded suspended
DESO suspended

DESO

suspended

Quickinfo

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM
UGR ≤ 16, 19
up to 4,400 lm/↑ 3,330 lm
up to 132 lm/W
L80 / 50000 h, L90 / 50000 h
DALI-2
Microprismatic
IP20

Colour

  • Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    • ROLF
    • ULD

    Description

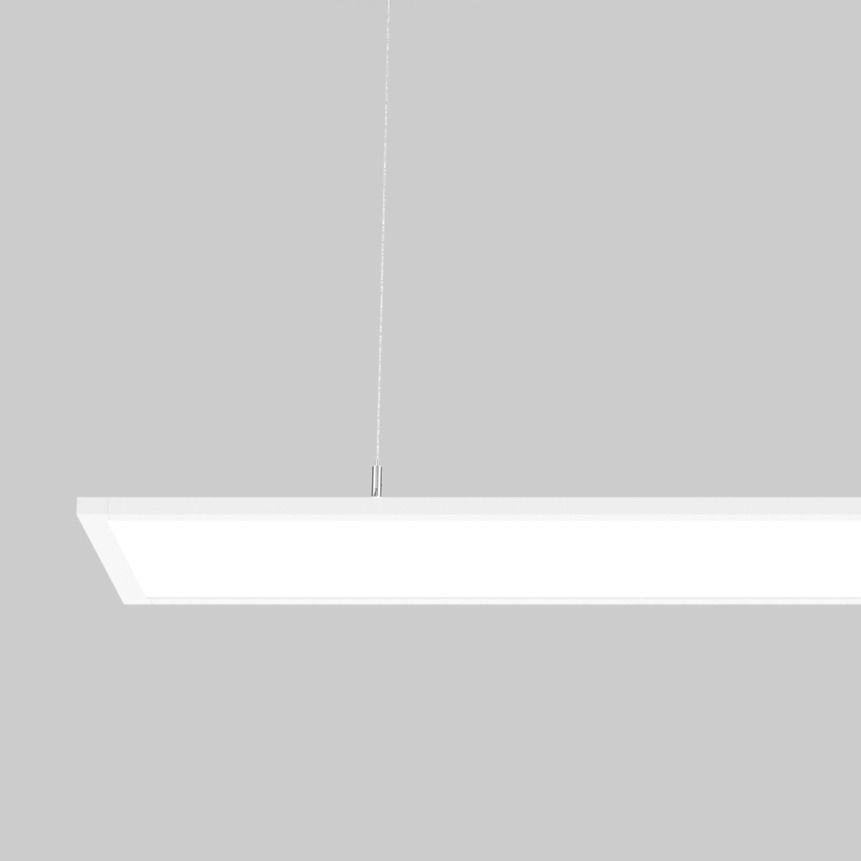

    Rectangular luminaire housing in aluminium; choice of angular design or with rounded edges; ultra low-profile design (only 15 mm); surface powder coated; pendant fitting with cable suspension; with integrated tool-less suspension height adjustment; incl. feed (white); electronic operating unit installed in the canopy; direct/indirect light distribution by LGP body (Light Guiding Prism); side coupled light, directed up and down by laser engraving; direct component: microprismatic PMMA cover; indirect component covered with opal cover; homogeneous illumination; energy-efficient LEDs with very good colour rendering; canopy for through wiring

    detail end caps

    detail rounded end caps

    DIN EN 12464-1 UGR ≤ 19

    direct / indirect illumination

    Dieser Bereich wird neu geladen sobald ein Eingabefeld geändert wird.

    Products and codes

    Filter
    114
    lm/W
    132
    lm/W
    2090
    lm
    3330
    lm
    1180
    mm
    1480
    mm
    39
    W
    64
    W
    0.54
    0.72
    0.49
    0.66

    Colour

  • DESO rounded suspended

    DESO rounded suspended 1180 mm

    DESO rounded suspended 1180 mm

    Status
    Article number(s)
    Type
    Dimming
    3000 K, 124 lm/W, 1,180 mm
    DALI-2
    4000 K, 132 lm/W, 1,180 mm
    DALI-2
    DESO rounded suspended

    DESO rounded suspended 1480 mm

    DESO rounded suspended 1480 mm

    Status
    Article number(s)
    Type
    Dimming
    3000 K, 114 lm/W, 1,480 mm
    DALI-2
    4000 K, 121 lm/W, 1,480 mm
    DALI-2
    DESO suspended

    DESO suspended 1180 mm

    DESO suspended 1180 mm

    Status
    Article number(s)
    Type
    Dimming
    3000 K, 124 lm/W, 1,180 mm
    DALI-2
    4000 K, 132 lm/W, 1,180 mm
    DALI-2
    DESO suspended

    DESO suspended 1480 mm

    DESO suspended 1480 mm

    Status
    Article number(s)
    Type
    Dimming
    3000 K, 114 lm/W, 1,480 mm
    DALI-2
    4000 K, 121 lm/W, 1,480 mm
    DALI-2
