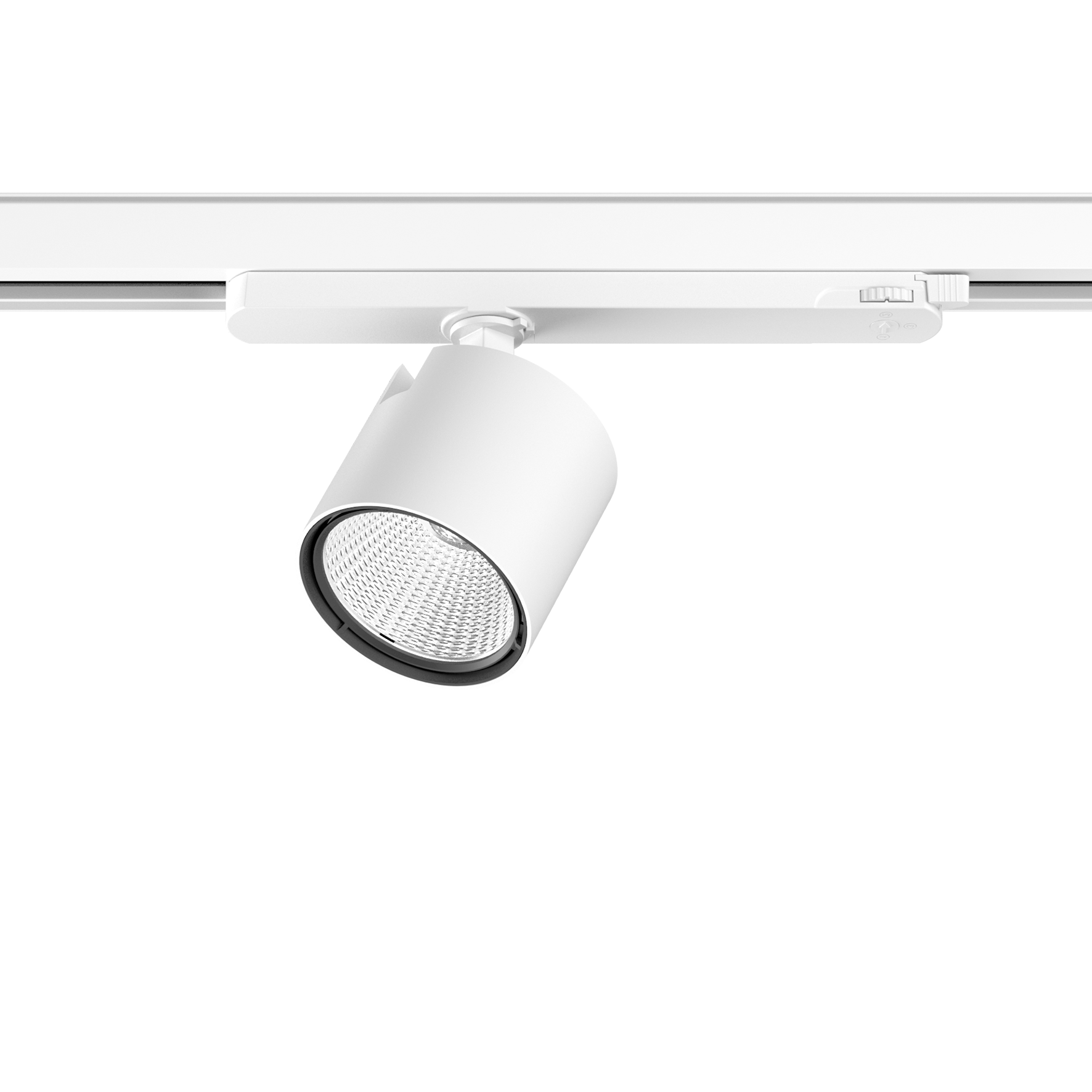

VARO 80 S track

VARO 80 S

track

180-6423017M

Quickinfo

3000 K
CRI ≥ 90 / 2 SDCM
125 lm/W
L80 / 50000 h
non DIM
IP20

Colour

General

  • Ceiling
  • Track
  • tilt max 90°
  • rotation 355°
  • traffic white
  • RAL 9016
  • IP20
  • 3150 lm

LED

  • 3000 K
  • CRI ≥ 90
  • L80 / 50000 h
  • initial MacAdam ≤ 2 SDCM
  • Rg: 98
  • Rf: 91
  • R{1-15}: 93
  • MR 0.54
  • MDER 0.49

Optical

  • medium
  • beam angle 27°
  • PstLM ≤ 1.0 1
  • SVM ≤ 0.4 1

Electrical

  • non DIM
  • 220-240 V
  • system 25.3 W
  • system 125 lm/W 2
  • PC2

Physical

  • diameter 87 mm
  • height 80 mm
  • 0.5 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B13
B16
B20
C13
C16
C20

Number of Fixtures

42
53
66
71
90
110
1 Value of containing product at full load (undimmed) 2 incl. consideration of optical losses, internal control unit losses & operating device efficiency

Track light made of die-cast aluminium; surface traffic white powder coated; 355° rotatable and 90° tiltable; integrated converter in the plastic adapter; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; including high quality aluminium reflector with spherical reflector; high gloss anodised; neutral colour reflection through absolute freedom from interference colour; for brilliant object staging; precise radiation characteristic with 27° beam; installed and exchanged without tools; optical attachments available as accessories; optical attachments can be combined; accessories are listed separately; degree of protection IP20; PC2; 220-240 V; incl. converter, non dimmable; adapter for toolless insertion or movement on a variety of 3-phase power tracks; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;

Product data & specification documents

Datasheets

Planing files & lighting data

Certificates

Download all

Accessories

Optical

article number
dimensions
HONEYCOMB LOUVER
080-6401118
diameter 75 mm
height 9 mm
0.01 kg
LINEAR PRISMATIC LENS
080-6402110P
diameter 75 mm
height 9 mm
0.02 kg
SNOOT short
080-6403118
diameter 66 mm
height 23 mm
0.02 kg
SNOOT medium
080-6403218
diameter 66 mm
height 38 mm
0.03 kg
SNOOT angle
080-6403318
diameter 66 mm
height 38 mm
0.02 kg
