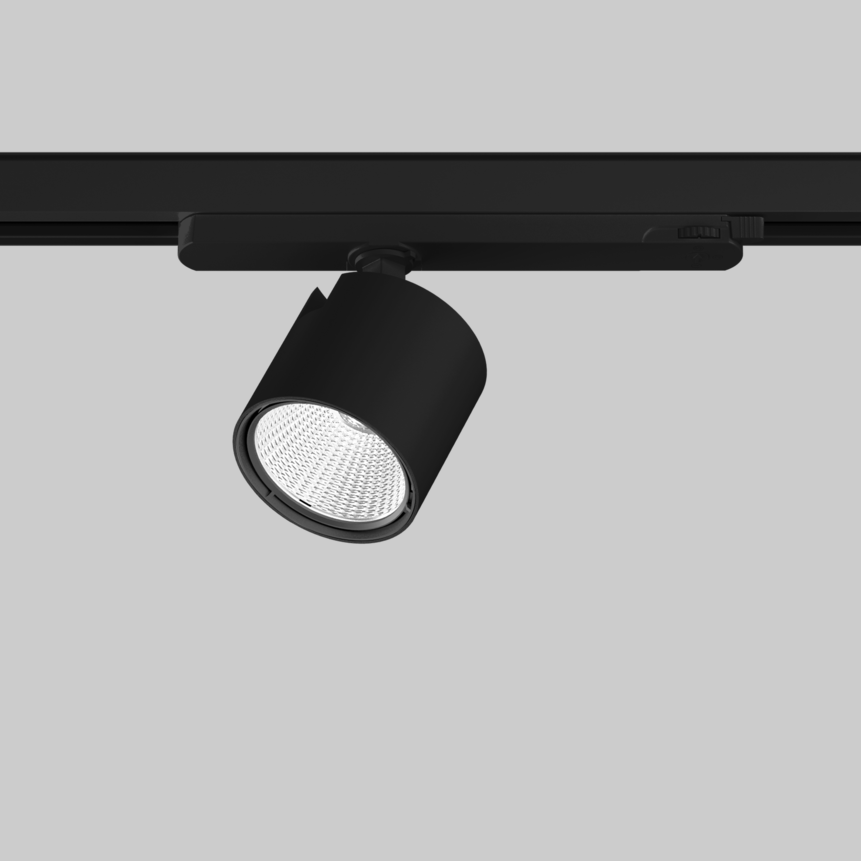

VARO 80 S track

VARO 80 S

track

180-6420038M

discontinued

Quickinfo

90 / 3
L80 / 50000 h
DALI-2

Colour

General

  • Ceiling
  • Track
  • tilt max 90°
  • rotation 355°
  • black
  • RAL9005
  • IP20
  • 2410 lm

LED

  • 3000 K
  • CRI ≥ 90
  • L80 / 50000 h
  • initial MacAdam ≤ 3 SDCM
  • Rg: 98
  • Rf: 91
  • R{1-15}: 89
  • MR 0.62
  • MDER 0.56

Optical

  • medium
  • beam angle 28°
  • PstLM ≤ 1.0 1
  • SVM ≤ 0.4 1

Electrical

  • DALI-2
  • 28.5 W
  • PC2 220-240V
  • 85 lm/W 2
  • 1 DALI Addr.

Physical

  • diameter 87 mm
  • height 80 mm
  • 0.48 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B16
C16

Number of Fixtures

27
44
1 Value of containing product at full load (undimmed) 2 incl. consideration of optical losses, internal control unit losses & operating device efficiency

Track light made of die-cast aluminium; surface black powder coated; 355° rotatable and 90° tiltable; integrated converter in the plastic adapter; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; including high quality aluminium reflector with spherical reflector; high gloss anodised; neutral colour reflection through absolute freedom from interference colour; for brilliant object staging; precise radiation characteristic with 28° beam; installed and exchanged without tools; optical attachments available as accessories; optical attachments can be combined; accessories are listed separately; degree of protection IP20; PC2 220-240V; incl. DALI-2 converter; adapter for toolless insertion or movement on a variety of 3-phase power tracks; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;

Product data & specification documents

Datasheets

Download all

Accessories

Optical

article number
dimensions
HONEYCOMB LOUVER
080-6401118
diameter 75 mm
height 9 mm
0.01 kg
LINEAR PRISMATIC LENS
080-6402110P
diameter 75 mm
height 9 mm
0.02 kg
SNOOT short
080-6403118
diameter 66 mm
height 23 mm
0.02 kg
SNOOT medium
080-6403218
diameter 66 mm
height 38 mm
0.03 kg
SNOOT angle
080-6403318
diameter 66 mm
height 38 mm
0.02 kg
