BO 70 track

BO 70

track

180-7411518S

Quickinfo

3000 K
CRI ≥ 90 / 2 SDCM (initial MacAd
94 lm/W
L80 / 50000 h
non DIM
IP20

Colour

General

  • Ceiling
  • Track
  • tilt max 90°
  • rotation 355°
  • jet black
  • RAL 9005
  • IP20
  • 3210 lm

LED

  • 3000 K
  • CRI ≥ 90
  • L80 / 50000 h
  • ≤ 2 SDCM (initial MacAdam)
  • Rg: 99
  • Rf: 90
  • R{1-15}: 87
  • MR 0.6
  • MDER 0.54

Optical

  • spot
  • beam angle 15°

Electrical

  • non DIM
  • 220-240 V
  • system 34 W
  • system 94 lm/W 1
  • PC2

Physical

  • diameter 70 mm
  • height 160 mm
  • 0.7 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B16
B20
B25
C10
C16
C20
C25

Number of Fixtures

33
53
67
83
40
64
80
100
1 incl. consideration of optical losses, internal control unit losses & operating device efficiency

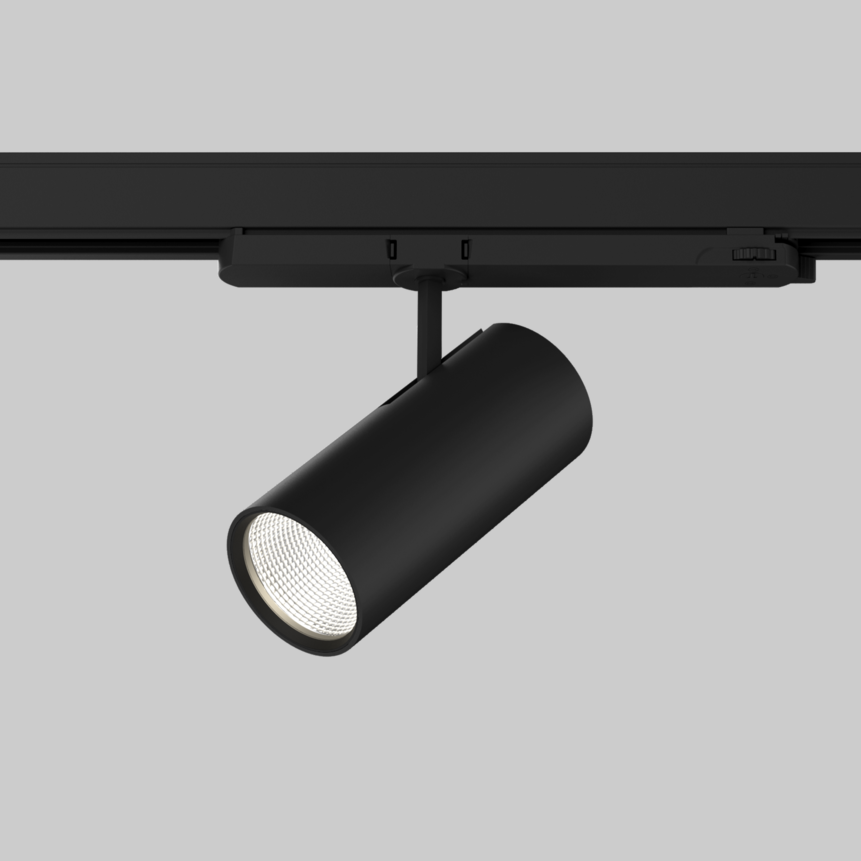

Cylindrical tracked spotlight in die-cast aluminium with 3PH universal adapter; classic style in elegant design for discerning requirements; surface jet black powder coated; 355° rotatable and 90° tiltable; converter integrated in the power track adapter; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; high quality, aluminium, vapour deposition coated reflector with faceted lens design; precise radiation characteristic with 15° beam; good glare control through recessed light point level; optical attachment available as accessory; accessories are listed separately; degree of protection IP20; PC2; 220-240 V; adapter for toolless insertion or movement on a variety of 3-phase power tracks; incl. converter, non dimmable; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;

Product data & specification documents

Datasheets

Planing files & lighting data

Download all

Accessories

Optical

article number
colour
type
dimensions
HONEYCOMB LOUVER
080-5900018
jet black
RAL 9005
for BO 70 | PABLO
diameter 61 mm
height 3 mm
