Variety

UNICO Q9 basic

ceiling

New colour

Quickinfo

2700 K, 3000 K, 3500 K, 4000 K
CRI ≥ 90 / 2 SDCM (initial MacAdam), 3 SDCM (initial MacAdam)
UGR ≤ 10, UGR ≤ 16, UGR ≤ 19
up to 135 lm/W
L80 / 75000 h, L90 / 50000 h
DALI-2, non DIM
IP20

Colour

Reflector

UNICO pro Configurator
Products and codes
Discover family

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all
  • DWG - 3D
  • Revit BIM data
  • EPD

Description

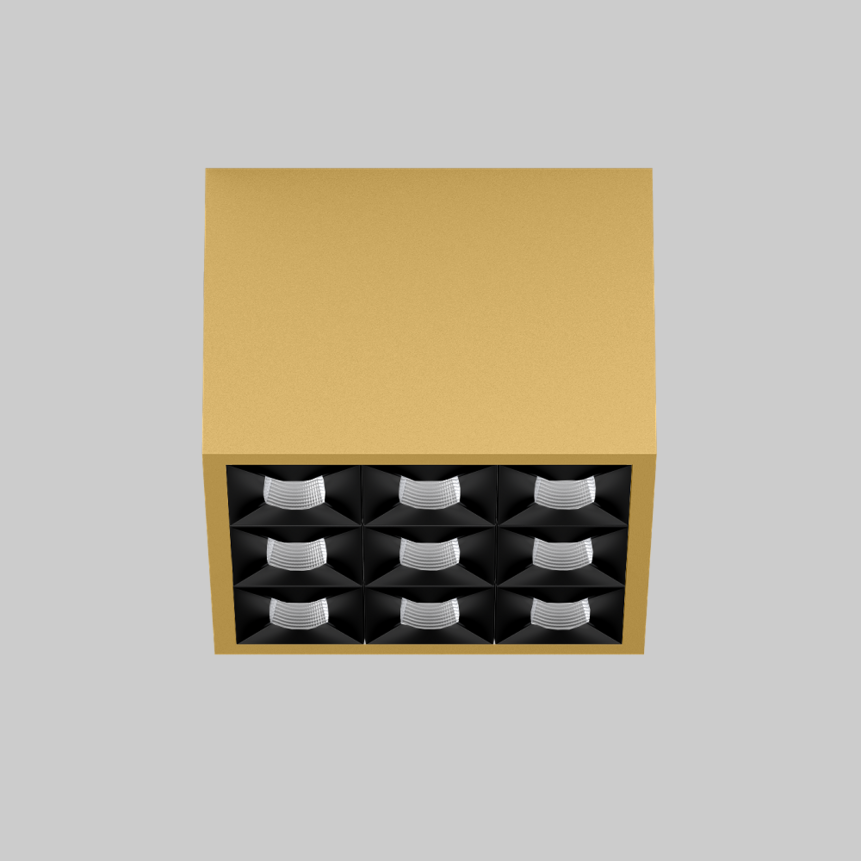

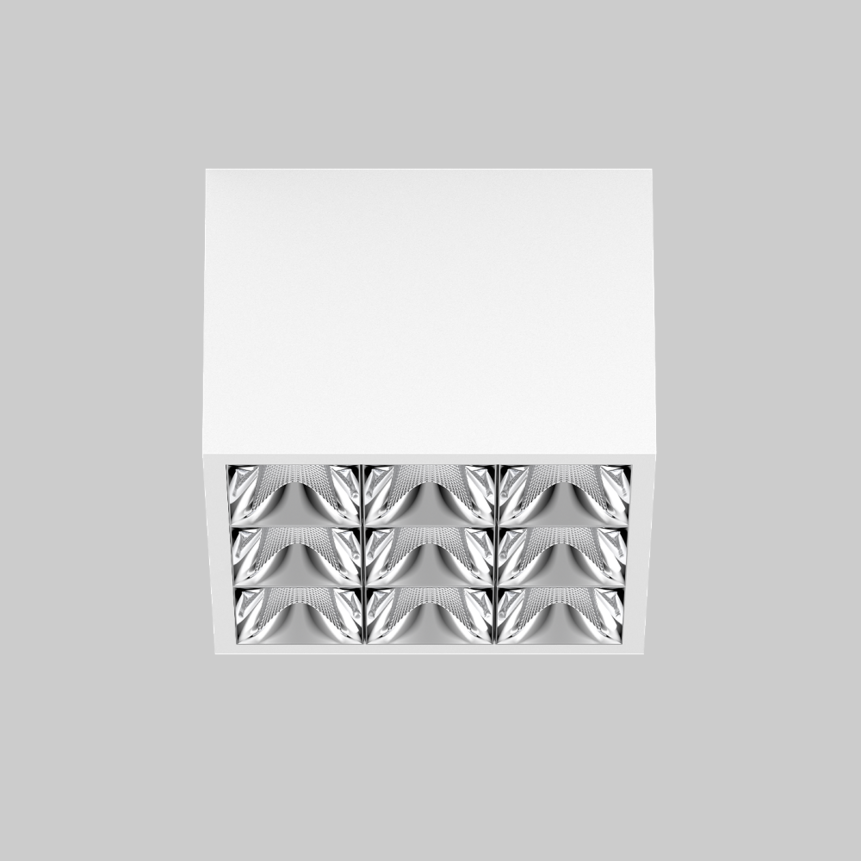

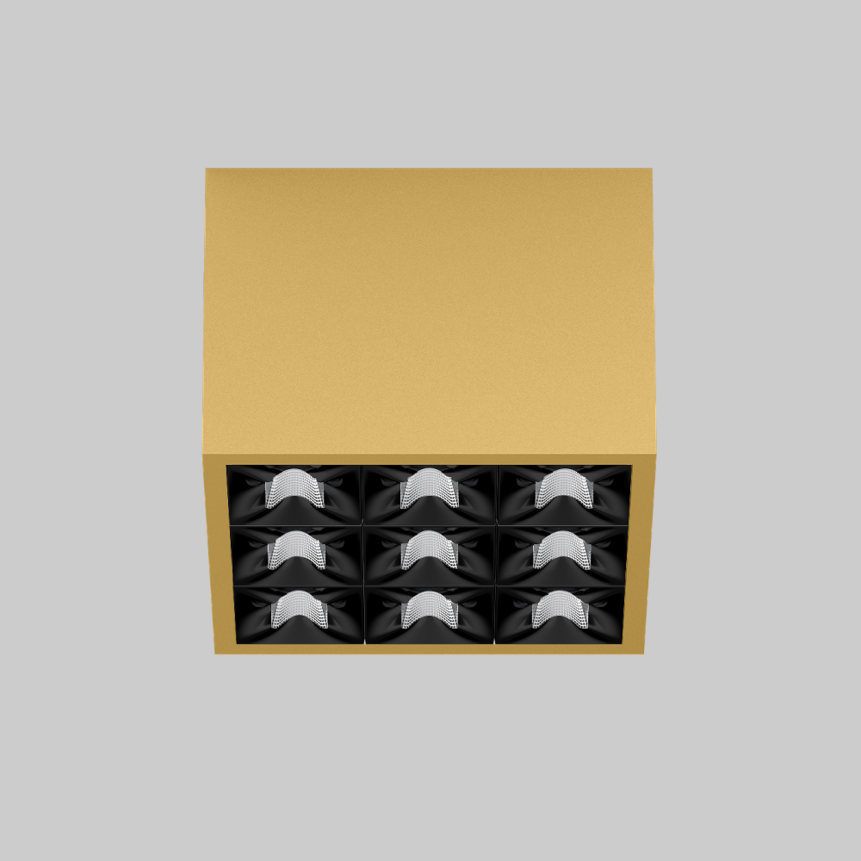

Square surface mounted multi-downlight made of aluminium; equipped with nine individually selectable or pre-specified, customised light elements; luminaire housing can be attached to mounting plate without tools by interlock; converter integrated into luminaire housing; surface powder coated; high-quality reflector with micro-faceted, aluminum-vaporised surface; precise radiation characteristic with different symmetrical light distributions; or with asymmetric light distribution; energy-efficient high power LEDs with very good colour rendering; clank-free

one luminaire multiple scenes

tunable white 2700 – 5000 K (optional)

Products and codes

Filter
60
lm/W
135
lm/W
2050
lm
4000
lm
29.7
W
34
W
0.51
0.81
0.46
0.74

Colour

Reflector

UNICO Q9 basic ceiling

UNICO Q9 basic ceiling

Status
Article number(s)
Type
Dimming
traffic white, Reflector black, wallwasher floor, 2700 K, 86 lm/W
non DIM
traffic white, Reflector black, medium round, 2700 K, 82 lm/W
non DIM
traffic white, Reflector black, flood round, 2700 K, 94 lm/W
non DIM
traffic white, Reflector black, wide flood round, 2700 K, 94 lm/W
non DIM
traffic white, Reflector black, medium square, 2700 K, 81 lm/W
non DIM
traffic white, Reflector black, flood square, 2700 K, 96 lm/W
non DIM
traffic white, Reflector black, wide flood square, 2700 K, 99 lm/W
non DIM
traffic white, Reflector black, wallwasher floor, 2700 K, 86 lm/W
DALI-2
traffic white, Reflector black, medium round, 2700 K, 82 lm/W
DALI-2
traffic white, Reflector black, flood round, 2700 K, 94 lm/W
DALI-2
traffic white, Reflector black, wide flood round, 2700 K, 94 lm/W
DALI-2
traffic white, Reflector black, medium square, 2700 K, 81 lm/W
DALI-2
traffic white, Reflector black, flood square, 2700 K, 96 lm/W
DALI-2
traffic white, Reflector black, wide flood square, 2700 K, 99 lm/W
DALI-2
traffic white, Reflector black, wallwasher floor, 3000 K, 91 lm/W
non DIM
traffic white, Reflector black, medium round, 3000 K, 87 lm/W
non DIM
traffic white, Reflector black, flood round, 3000 K, 101 lm/W
non DIM
traffic white, Reflector black, wide flood round, 3000 K, 99 lm/W
non DIM
traffic white, Reflector black, medium square, 3000 K, 86 lm/W
non DIM
traffic white, Reflector black, flood square, 3000 K, 102 lm/W
non DIM
traffic white, Reflector black, wide flood square, 3000 K, 105 lm/W
non DIM
traffic white, Reflector black, wallwasher floor, 3000 K, 91 lm/W
DALI-2
traffic white, Reflector black, medium round, 3000 K, 87 lm/W
DALI-2
traffic white, Reflector black, flood round, 3000 K, 101 lm/W
DALI-2
traffic white, Reflector black, wide flood round, 3000 K, 99 lm/W
DALI-2
traffic white, Reflector black, medium square, 3000 K, 86 lm/W
DALI-2
traffic white, Reflector black, flood square, 3000 K, 102 lm/W
DALI-2
traffic white, Reflector black, wide flood square, 3000 K, 105 lm/W
DALI-2
traffic white, Reflector black, wallwasher floor, 4000 K, 98 lm/W
non DIM
traffic white, Reflector black, medium round, 4000 K, 94 lm/W
non DIM
traffic white, Reflector black, flood round, 4000 K, 108 lm/W
non DIM
traffic white, Reflector black, wide flood round, 4000 K, 107 lm/W
non DIM
traffic white, Reflector black, medium square, 4000 K, 92 lm/W
non DIM
traffic white, Reflector black, flood square, 4000 K, 110 lm/W
non DIM
traffic white, Reflector black, wide flood square, 4000 K, 113 lm/W
non DIM
traffic white, Reflector black, wallwasher floor, 4000 K, 98 lm/W
DALI-2
traffic white, Reflector black, medium round, 4000 K, 94 lm/W
DALI-2
traffic white, Reflector black, flood round, 4000 K, 108 lm/W
DALI-2
traffic white, Reflector black, wide flood round, 4000 K, 107 lm/W
DALI-2
traffic white, Reflector black, medium square, 4000 K, 92 lm/W
DALI-2
traffic white, Reflector black, flood square, 4000 K, 110 lm/W
DALI-2
traffic white, Reflector black, wide flood square, 4000 K, 113 lm/W
DALI-2

UNICO Q9 basic ceiling

UNICO Q9 basic ceiling

Status
Article number(s)
Type
Dimming
traffic white, Reflector chrome, wallwasher floor, 2700 K, 86 lm/W
non DIM
traffic white, Reflector chrome, wallwasher, 2700 K, 83 lm/W
non DIM
traffic white, Reflector chrome, medium round, 2700 K, 82 lm/W
non DIM
traffic white, Reflector chrome, flood round, 2700 K, 94 lm/W
non DIM
traffic white, Reflector chrome, wide flood round, 2700 K, 94 lm/W
non DIM
traffic white, Reflector chrome, medium square, 2700 K, 81 lm/W
non DIM
traffic white, Reflector chrome, flood square, 2700 K, 96 lm/W
non DIM
traffic white, Reflector chrome, wide flood square, 2700 K, 99 lm/W
non DIM
traffic white, Reflector chrome, spot round, 2700 K, 60 lm/W
non DIM
traffic white, Reflector chrome, narrow medium round, 2700 K, 61 lm/W
non DIM
traffic white, Reflector chrome, wallwasher floor, 2700 K, 86 lm/W
DALI-2
traffic white, Reflector chrome, wallwasher, 2700 K, 83 lm/W
DALI-2
traffic white, Reflector chrome, medium round, 2700 K, 82 lm/W
DALI-2
traffic white, Reflector chrome, flood round, 2700 K, 94 lm/W
DALI-2
traffic white, Reflector chrome, wide flood round, 2700 K, 94 lm/W
DALI-2
traffic white, Reflector chrome, medium square, 2700 K, 81 lm/W
DALI-2
traffic white, Reflector chrome, flood square, 2700 K, 96 lm/W
DALI-2
traffic white, Reflector chrome, wide flood square, 2700 K, 99 lm/W
DALI-2
traffic white, Reflector chrome, spot round, 2700 K, 60 lm/W
DALI-2
traffic white, Reflector chrome, narrow medium round, 2700 K, 61 lm/W
DALI-2
traffic white, Reflector chrome, wallwasher floor, 3000 K, 91 lm/W
non DIM
traffic white, Reflector chrome, wallwasher, 3000 K, 89 lm/W
non DIM
traffic white, Reflector chrome, medium round, 3000 K, 87 lm/W
non DIM
traffic white, Reflector chrome, flood round, 3000 K, 101 lm/W
non DIM
traffic white, Reflector chrome, wide flood round, 3000 K, 99 lm/W
non DIM
traffic white, Reflector chrome, medium square, 3000 K, 86 lm/W
non DIM
traffic white, Reflector chrome, flood square, 3000 K, 102 lm/W
non DIM
traffic white, Reflector chrome, wide flood square, 3000 K, 105 lm/W
non DIM
traffic white, Reflector chrome, spot round, 3000 K, 64 lm/W
non DIM
traffic white, Reflector chrome, narrow medium round, 3000 K, 65 lm/W
non DIM
traffic white, Reflector chrome, wallwasher floor, 3000 K, 91 lm/W
DALI-2
traffic white, Reflector chrome, wallwasher, 3000 K, 89 lm/W
DALI-2
traffic white, Reflector chrome, medium round, 3000 K, 87 lm/W
DALI-2
traffic white, Reflector chrome, flood round, 3000 K, 101 lm/W
DALI-2
traffic white, Reflector chrome, wide flood round, 3000 K, 99 lm/W
DALI-2
traffic white, Reflector chrome, medium square, 3000 K, 86 lm/W
DALI-2
traffic white, Reflector chrome, flood square, 3000 K, 102 lm/W
DALI-2
traffic white, Reflector chrome, wide flood square, 3000 K, 105 lm/W
DALI-2
traffic white, Reflector chrome, spot round, 3000 K, 64 lm/W
DALI-2
traffic white, Reflector chrome, narrow medium round, 3000 K, 65 lm/W
DALI-2
traffic white, Reflector chrome, wallwasher floor, 4000 K, 98 lm/W
non DIM
traffic white, Reflector chrome, wallwasher, 4000 K, 95 lm/W
non DIM
traffic white, Reflector chrome, medium round, 4000 K, 94 lm/W
non DIM
traffic white, Reflector chrome, flood round, 4000 K, 108 lm/W
non DIM
traffic white, Reflector chrome, wide flood round, 4000 K, 107 lm/W
non DIM
traffic white, Reflector chrome, medium square, 4000 K, 92 lm/W
non DIM
traffic white, Reflector chrome, flood square, 4000 K, 110 lm/W
non DIM
traffic white, Reflector chrome, wide flood square, 4000 K, 113 lm/W
non DIM
traffic white, Reflector chrome, spot round, 4000 K, 69 lm/W
non DIM
traffic white, Reflector chrome, narrow medium round, 4000 K, 70 lm/W
non DIM
traffic white, Reflector chrome, wallwasher floor, 4000 K, 98 lm/W
DALI-2
traffic white, Reflector chrome, wallwasher, 4000 K, 95 lm/W
DALI-2
traffic white, Reflector chrome, medium round, 4000 K, 94 lm/W
DALI-2
traffic white, Reflector chrome, flood round, 4000 K, 108 lm/W
DALI-2
traffic white, Reflector chrome, wide flood round, 4000 K, 107 lm/W
DALI-2
traffic white, Reflector chrome, medium square, 4000 K, 92 lm/W
DALI-2
traffic white, Reflector chrome, flood square, 4000 K, 110 lm/W
DALI-2
traffic white, Reflector chrome, wide flood square, 4000 K, 113 lm/W
DALI-2
traffic white, Reflector chrome, spot round, 4000 K, 69 lm/W
DALI-2
traffic white, Reflector chrome, narrow medium round, 4000 K, 70 lm/W
DALI-2

UNICO Q9 basic ceiling

UNICO Q9 basic ceiling

Status
Article number(s)
Type
Dimming
jet black, Reflector black, wallwasher floor, 2700 K, 86 lm/W
non DIM
jet black, Reflector black, medium round, 2700 K, 82 lm/W
non DIM
jet black, Reflector black, flood round, 2700 K, 94 lm/W
non DIM
jet black, Reflector black, wide flood round, 2700 K, 94 lm/W
non DIM
jet black, Reflector black, medium square, 2700 K, 81 lm/W
non DIM
jet black, Reflector black, flood square, 2700 K, 96 lm/W
non DIM
jet black, Reflector black, wide flood square, 2700 K, 99 lm/W
non DIM
jet black, Reflector black, wallwasher floor, 2700 K, 86 lm/W
DALI-2
jet black, Reflector black, medium round, 2700 K, 82 lm/W
DALI-2
jet black, Reflector black, flood round, 2700 K, 94 lm/W
DALI-2
jet black, Reflector black, wide flood round, 2700 K, 94 lm/W
DALI-2
jet black, Reflector black, medium square, 2700 K, 81 lm/W
DALI-2
jet black, Reflector black, flood square, 2700 K, 96 lm/W
DALI-2
jet black, Reflector black, wide flood square, 2700 K, 99 lm/W
DALI-2
jet black, Reflector black, wallwasher floor, 3000 K, 91 lm/W
non DIM
jet black, Reflector black, medium round, 3000 K, 87 lm/W
non DIM
jet black, Reflector black, flood round, 3000 K, 101 lm/W
non DIM
jet black, Reflector black, wide flood round, 3000 K, 99 lm/W
non DIM
jet black, Reflector black, medium square, 3000 K, 86 lm/W
non DIM
jet black, Reflector black, flood square, 3000 K, 102 lm/W
non DIM
jet black, Reflector black, wide flood square, 3000 K, 105 lm/W
non DIM
jet black, Reflector black, wallwasher floor, 3000 K, 91 lm/W
DALI-2
jet black, Reflector black, medium round, 3000 K, 87 lm/W
DALI-2
jet black, Reflector black, flood round, 3000 K, 101 lm/W
DALI-2
jet black, Reflector black, wide flood round, 3000 K, 99 lm/W
DALI-2
jet black, Reflector black, medium square, 3000 K, 86 lm/W
DALI-2
jet black, Reflector black, flood square, 3000 K, 102 lm/W
DALI-2
jet black, Reflector black, wide flood square, 3000 K, 105 lm/W
DALI-2
jet black, Reflector black, wallwasher floor, 4000 K, 98 lm/W
non DIM
jet black, Reflector black, medium round, 4000 K, 94 lm/W
non DIM
jet black, Reflector black, flood round, 4000 K, 108 lm/W
non DIM
jet black, Reflector black, wide flood round, 4000 K, 107 lm/W
non DIM
jet black, Reflector black, medium square, 4000 K, 92 lm/W
non DIM
jet black, Reflector black, flood square, 4000 K, 110 lm/W
non DIM
jet black, Reflector black, wide flood square, 4000 K, 113 lm/W
non DIM
jet black, Reflector black, wallwasher floor, 4000 K, 98 lm/W
DALI-2
jet black, Reflector black, medium round, 4000 K, 94 lm/W
DALI-2
jet black, Reflector black, flood round, 4000 K, 108 lm/W
DALI-2
jet black, Reflector black, wide flood round, 4000 K, 107 lm/W
DALI-2
jet black, Reflector black, medium square, 4000 K, 92 lm/W
DALI-2
jet black, Reflector black, flood square, 4000 K, 110 lm/W
DALI-2
jet black, Reflector black, wide flood square, 4000 K, 113 lm/W
DALI-2

UNICO Q9 basic ceiling

UNICO Q9 basic ceiling

Status
Article number(s)
Type
Dimming

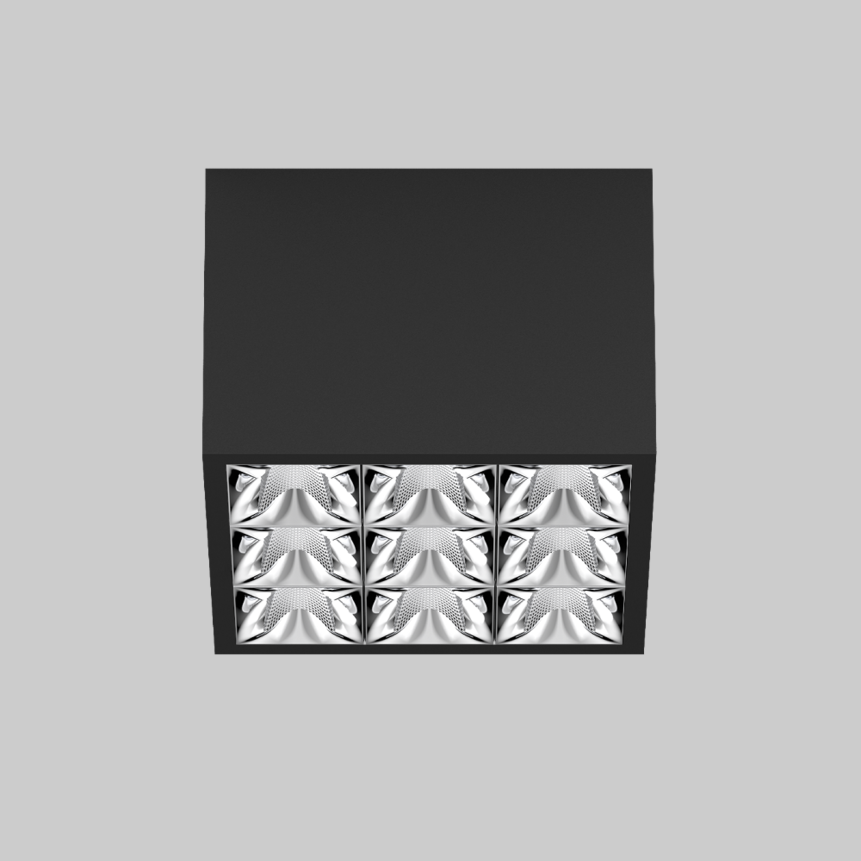

jet black, Reflector chrome, wallwasher floor, 2700 K, 86 lm/W
non DIM
jet black, Reflector chrome, wallwasher, 2700 K, 83 lm/W
non DIM
jet black, Reflector chrome, medium round, 2700 K, 82 lm/W
non DIM
jet black, Reflector chrome, flood round, 2700 K, 94 lm/W
non DIM
jet black, Reflector chrome, wide flood round, 2700 K, 94 lm/W
non DIM
jet black, Reflector chrome, medium square, 2700 K, 81 lm/W
non DIM
jet black, Reflector chrome, flood square, 2700 K, 96 lm/W
non DIM
jet black, Reflector chrome, wide flood square, 2700 K, 99 lm/W
non DIM
jet black, Reflector chrome, spot round, 2700 K, 60 lm/W
non DIM
jet black, Reflector chrome, narrow medium round, 2700 K, 61 lm/W
non DIM
jet black, Reflector chrome, wallwasher floor, 2700 K, 86 lm/W
DALI-2
jet black, Reflector chrome, wallwasher, 2700 K, 83 lm/W
DALI-2
jet black, Reflector chrome, medium round, 2700 K, 82 lm/W
DALI-2
jet black, Reflector chrome, flood round, 2700 K, 94 lm/W
DALI-2
jet black, Reflector chrome, wide flood round, 2700 K, 94 lm/W
DALI-2
jet black, Reflector chrome, medium square, 2700 K, 81 lm/W
DALI-2
jet black, Reflector chrome, flood square, 2700 K, 96 lm/W
DALI-2
jet black, Reflector chrome, wide flood square, 2700 K, 99 lm/W
DALI-2
jet black, Reflector chrome, spot round, 2700 K, 60 lm/W
DALI-2
jet black, Reflector chrome, narrow medium round, 2700 K, 61 lm/W
DALI-2
jet black, Reflector chrome, wallwasher floor, 3000 K, 91 lm/W
non DIM
jet black, Reflector chrome, wallwasher, 3000 K, 89 lm/W
non DIM
jet black, Reflector chrome, medium round, 3000 K, 87 lm/W
non DIM
jet black, Reflector chrome, flood round, 3000 K, 101 lm/W
non DIM
jet black, Reflector chrome, wide flood round, 3000 K, 99 lm/W
non DIM
jet black, Reflector chrome, medium square, 3000 K, 86 lm/W
non DIM
jet black, Reflector chrome, flood square, 3000 K, 102 lm/W
non DIM
jet black, Reflector chrome, wide flood square, 3000 K, 105 lm/W
non DIM
jet black, Reflector chrome, spot round, 3000 K, 64 lm/W
non DIM
jet black, Reflector chrome, narrow medium round, 3000 K, 65 lm/W
non DIM
jet black, Reflector chrome, wallwasher floor, 3000 K, 91 lm/W
DALI-2
jet black, Reflector chrome, wallwasher, 3000 K, 89 lm/W
DALI-2
jet black, Reflector chrome, medium round, 3000 K, 87 lm/W
DALI-2
jet black, Reflector chrome, flood round, 3000 K, 101 lm/W
DALI-2
jet black, Reflector chrome, wide flood round, 3000 K, 99 lm/W
DALI-2
jet black, Reflector chrome, medium square, 3000 K, 86 lm/W
DALI-2
jet black, Reflector chrome, flood square, 3000 K, 102 lm/W
DALI-2
jet black, Reflector chrome, wide flood square, 3000 K, 105 lm/W
DALI-2
jet black, Reflector chrome, spot round, 3000 K, 64 lm/W
DALI-2
jet black, Reflector chrome, narrow medium round, 3000 K, 65 lm/W
DALI-2
jet black, Reflector chrome, wallwasher floor, 4000 K, 98 lm/W
non DIM
jet black, Reflector chrome, wallwasher, 4000 K, 95 lm/W
non DIM
jet black, Reflector chrome, medium round, 4000 K, 94 lm/W
non DIM
jet black, Reflector chrome, flood round, 4000 K, 108 lm/W
non DIM
jet black, Reflector chrome, wide flood round, 4000 K, 107 lm/W
non DIM
jet black, Reflector chrome, medium square, 4000 K, 92 lm/W
non DIM
jet black, Reflector chrome, flood square, 4000 K, 110 lm/W
non DIM
jet black, Reflector chrome, wide flood square, 4000 K, 113 lm/W
non DIM
jet black, Reflector chrome, spot round, 4000 K, 69 lm/W
non DIM
jet black, Reflector chrome, narrow medium round, 4000 K, 70 lm/W
non DIM
jet black, Reflector chrome, wallwasher floor, 4000 K, 98 lm/W
DALI-2
jet black, Reflector chrome, wallwasher, 4000 K, 95 lm/W
DALI-2
jet black, Reflector chrome, medium round, 4000 K, 94 lm/W
DALI-2
jet black, Reflector chrome, flood round, 4000 K, 108 lm/W
DALI-2
jet black, Reflector chrome, wide flood round, 4000 K, 107 lm/W
DALI-2
jet black, Reflector chrome, medium square, 4000 K, 92 lm/W
DALI-2
jet black, Reflector chrome, flood square, 4000 K, 110 lm/W
DALI-2
jet black, Reflector chrome, wide flood square, 4000 K, 113 lm/W
DALI-2
jet black, Reflector chrome, spot round, 4000 K, 69 lm/W
DALI-2
jet black, Reflector chrome, narrow medium round, 4000 K, 70 lm/W
DALI-2

UNICO Q9 basic ceiling

UNICO Q9 basic ceiling

Status
Article number(s)
Type
Dimming
white aluminium, Reflector black, wallwasher floor, 2700 K, 86 lm/W
non DIM
white aluminium, Reflector black, medium round, 2700 K, 82 lm/W
non DIM
white aluminium, Reflector black, flood round, 2700 K, 94 lm/W
non DIM
white aluminium, Reflector black, wide flood round, 2700 K, 94 lm/W
non DIM
white aluminium, Reflector black, medium square, 2700 K, 81 lm/W
non DIM
white aluminium, Reflector black, flood square, 2700 K, 96 lm/W
non DIM
white aluminium, Reflector black, wide flood square, 2700 K, 99 lm/W
non DIM
white aluminium, Reflector black, wallwasher floor, 2700 K, 86 lm/W
DALI-2
white aluminium, Reflector black, medium round, 2700 K, 82 lm/W
DALI-2
white aluminium, Reflector black, flood round, 2700 K, 94 lm/W
DALI-2
white aluminium, Reflector black, wide flood round, 2700 K, 94 lm/W
DALI-2
white aluminium, Reflector black, medium square, 2700 K, 81 lm/W
DALI-2
white aluminium, Reflector black, flood square, 2700 K, 96 lm/W
DALI-2
white aluminium, Reflector black, wide flood square, 2700 K, 99 lm/W
DALI-2
white aluminium, Reflector black, wallwasher floor, 3000 K, 91 lm/W
non DIM
white aluminium, Reflector black, medium round, 3000 K, 87 lm/W
non DIM
white aluminium, Reflector black, flood round, 3000 K, 101 lm/W
non DIM
white aluminium, Reflector black, wide flood round, 3000 K, 99 lm/W
non DIM
white aluminium, Reflector black, medium square, 3000 K, 86 lm/W
non DIM
white aluminium, Reflector black, flood square, 3000 K, 102 lm/W
non DIM
white aluminium, Reflector black, wide flood square, 3000 K, 105 lm/W
non DIM
white aluminium, Reflector black, wallwasher floor, 3000 K, 91 lm/W
DALI-2
white aluminium, Reflector black, medium round, 3000 K, 87 lm/W
DALI-2
white aluminium, Reflector black, flood round, 3000 K, 101 lm/W
DALI-2
white aluminium, Reflector black, wide flood round, 3000 K, 99 lm/W
DALI-2
white aluminium, Reflector black, medium square, 3000 K, 86 lm/W
DALI-2
white aluminium, Reflector black, flood square, 3000 K, 102 lm/W
DALI-2
white aluminium, Reflector black, wide flood square, 3000 K, 105 lm/W
DALI-2
white aluminium, Reflector black, wallwasher floor, 4000 K, 98 lm/W
non DIM
white aluminium, Reflector black, medium round, 4000 K, 94 lm/W
non DIM
white aluminium, Reflector black, flood round, 4000 K, 108 lm/W
non DIM
white aluminium, Reflector black, wide flood round, 4000 K, 107 lm/W
non DIM
white aluminium, Reflector black, medium square, 4000 K, 92 lm/W
non DIM
white aluminium, Reflector black, flood square, 4000 K, 110 lm/W
non DIM
white aluminium, Reflector black, wide flood square, 4000 K, 113 lm/W
non DIM
white aluminium, Reflector black, wallwasher floor, 4000 K, 98 lm/W
DALI-2
white aluminium, Reflector black, medium round, 4000 K, 94 lm/W
DALI-2
white aluminium, Reflector black, flood round, 4000 K, 108 lm/W
DALI-2
white aluminium, Reflector black, wide flood round, 4000 K, 107 lm/W
DALI-2
white aluminium, Reflector black, medium square, 4000 K, 92 lm/W
DALI-2
white aluminium, Reflector black, flood square, 4000 K, 110 lm/W
DALI-2
white aluminium, Reflector black, wide flood square, 4000 K, 113 lm/W
DALI-2

UNICO Q9 basic ceiling

UNICO Q9 basic ceiling

Status
Article number(s)
Type
Dimming
white aluminium, Reflector chrome, spot round, 2700 K, 60 lm/W
non DIM
white aluminium, Reflector chrome, narrow medium round, 2700 K, 61 lm/W
non DIM
white aluminium, Reflector chrome, spot round, 4000 K, 69 lm/W
DALI-2
white aluminium, Reflector chrome, narrow medium round, 4000 K, 70 lm/W
DALI-2

Related products

UNICO

pro recessed
New Version

UNICO L2 / L3

basic recessed
New Version

UNICO L4 / L6

basic recessed
New Version

UNICO Q1 / Q4

basic recessed
New Version

UNICO Q9

basic recessed

UNICO L2 / L3

recessed

UNICO L4 / L6

recessed

UNICO Q1 / Q4

recessed

UNICO Q9

recessed

UNICO Q1

sensor recessed
