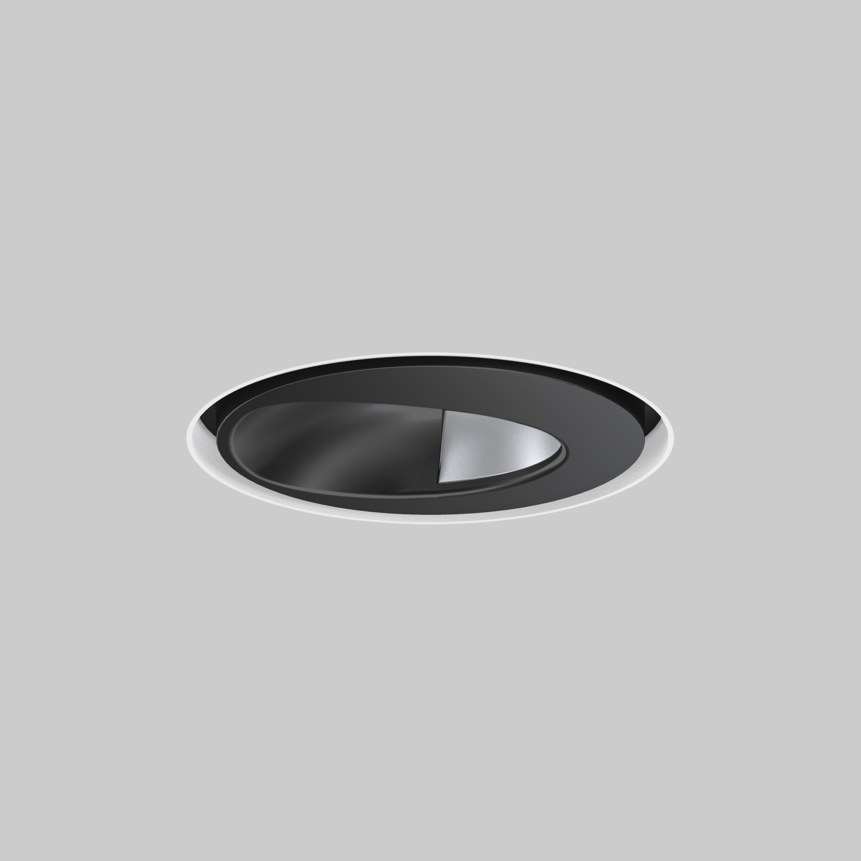

SASSO 60 round wallwasher/floor
trimless exposed concrete
048-2641511W 048-2695210 002-90773
discontinued
Quickinfo
IP20Colour
General
- Ceiling
- Recessed
- 360°
- black
- RAL9005
- IP20
- IP20
- 789 lm
LED
- LED
- 3000 K
- 90
- 97
- 91
- 89
- L80 / 50000 h
- 3 SDCM
- 0.6
- 0.54
Optical
- wallwasher floor
Electrical
- DALI-2
- 11.0 W
- 8.3 W
- 72 lm/W 1
- 1 DALI Addr.
- PC2 220-240V
Physical
- 230 mm
- 230 mm
- 162 mm
Cutout
- 110 mm
1 incl. consideration of optical losses, internal control unit losses & operating device efficiency
Round recessed spotlight; installation without tools in mounting set (trimless or with trim) with ball catch system; surface lacquered; installation possible in different housings; choice of adjustable / fixed symmetric or asymmetric radiation characteristic; variants with symmetric radiation characteristic: precise radiation characteristic due to high quality lens system; variants with asymmetric radiation characteristic: high-quality reflector with micro-faceted, aluminum-vaporised surface; COB (Chip on Board) technology for maximum efficiency (ADJUSTABLE and DOWNLIGHT); no multiple shadows; efficient LEDs with very good colour rendering
Accessories
Mounting
article number
colour
dimensions
EXPOSED CONCRETE MOUNTING HOUSING
048-2695210
white aluminium
RAL 9006
length 230 mm
width 230 mm
height 162 mm
2.19 kg
Converter
article number
control
