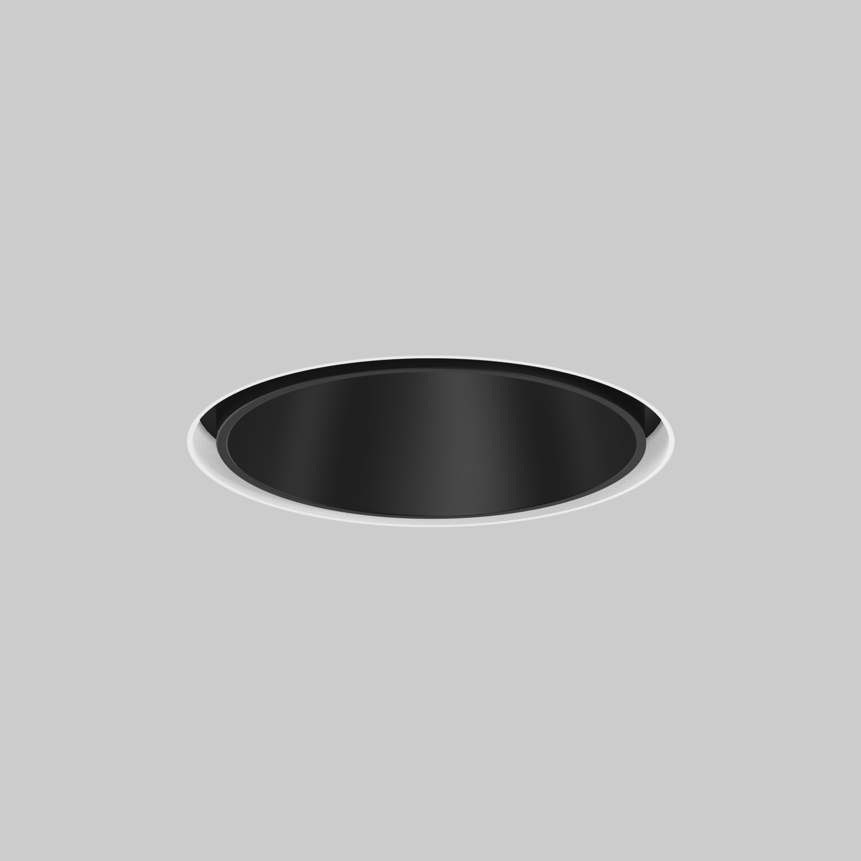

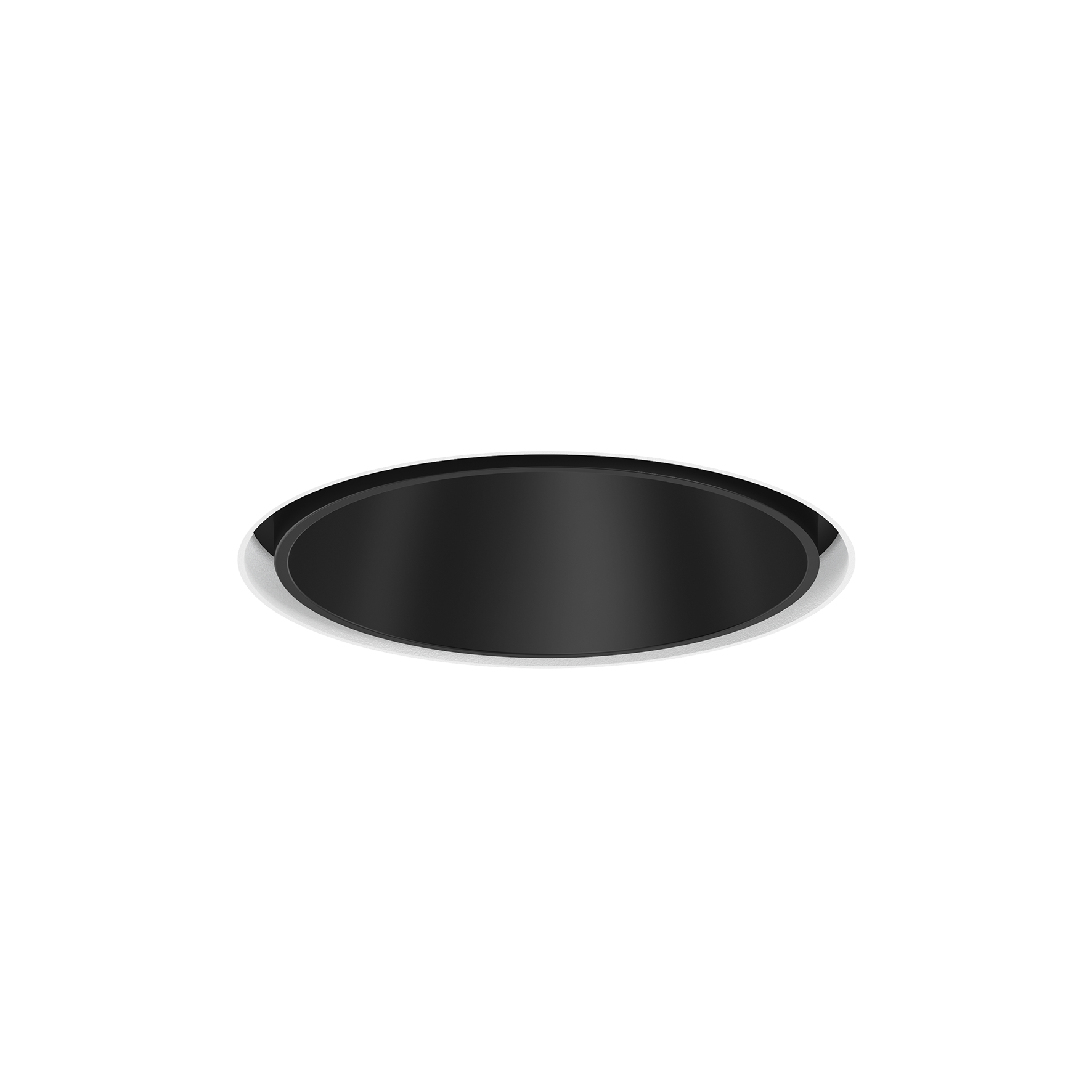

SASSO 60 round downlight trimless | Spotlights & Downlights

Technical data

General

Ceiling
Recessed
rotation 360°
black
Mounting set traffic white
RAL9005
front IP44
back IP20
945 lm

LED

2700 K
CRI ≥ 90
L80 / 50000 h
initial MacAdam ≤ 2 SDCM
R_g: 99
R_f: 91
R_{1-15}: 89
MR 0.53
MDER 0.48

Optical

wide flood
beam angle 55°
≥65° <1500 cd/m²
$P_{st}^{LM}$ ≤ 1.0 ¹
SVM ≤ 0.4 ¹

Electrical

non DIM
12.6 W
inset 10.7 W
36 Vf
300 mA
PC2 220-240V
75 lm/W ²

Physical

trimless
diameter 73 mm
height 48 mm
0.22 kg

Cutout

diameter 73 mm
recessed depth 60 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10

B13

B16

B20

C10

C13

C16

C20

Number of Fixtures

43

55

68

85

72

94

116

145

^¹ Value of containing product at full load (undimmed) ^² incl. consideration of optical losses, internal control unit losses & operating device efficiency

Specification text

Round recessed spotlight in die-cast aluminium; 1 lamp; surface black; installation without tools in mounting set due to patented ball catch system; round installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; incl. high quality lens system; precise radiation characteristic with 55° beam; degree of protection from below IP44 (from above IP20); PC2 220-240V; incl. converter, non dimmable; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
