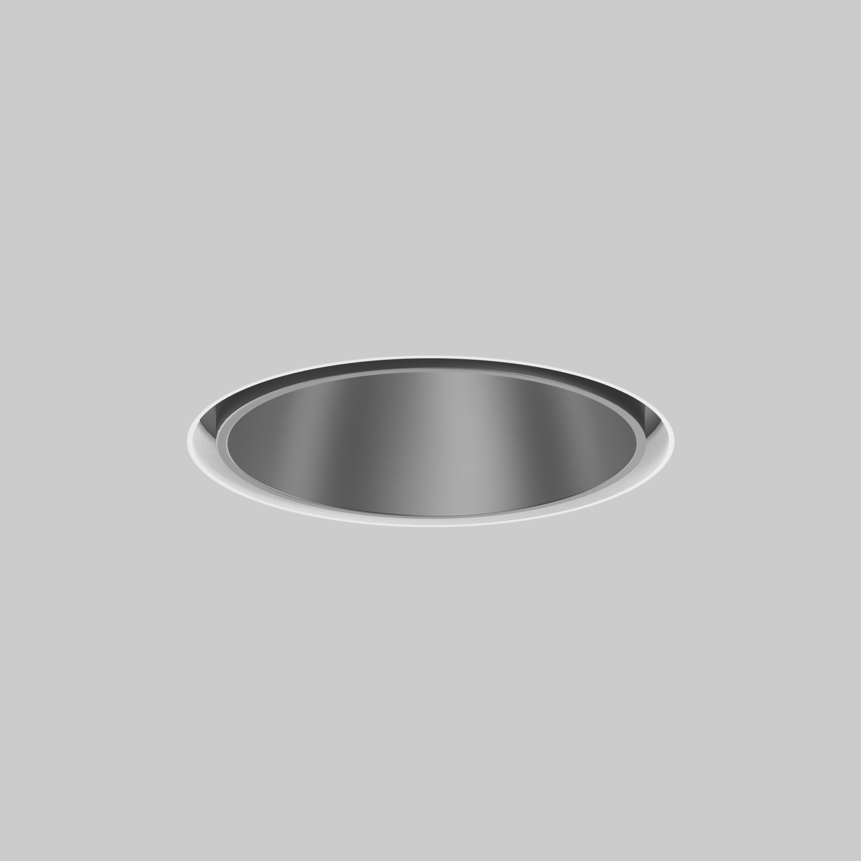

SASSO 60 round downlight

trimless exposed concrete

048-2602914W 048-2695210 002-90746

discontinued

Quickinfo

2700 K
CRI ≥ 90 / 2
/ 65° ≤ 1,500 cd/m²
89 lm/W
L80 / 50000 h
DALI-2
IP44, back IP20

Colour

matt silver

Mounting set

white aluminium

Datasheet

Technical data

General

Ceiling
Recessed
rotation 360°
matt silver
Mounting set white aluminium
front IP44
back IP20
909 lm
system 89 lm/W ¹
fixture 105 lm/W ²

LED

2700 K
CRI ≥ 90
L80 / 50000 h
initial MacAdam ≤ 2 SDCM
R_g: 97
R_f: 91
R_{1-15}: 87
MR 0.52
MDER 0.47

Optical

wide flood
beam angle 55°
≥65° <1500 cd/m²
$P_{st}^{LM}$ ≤ 1.0 ³
SVM ≤ 0.4 ³

Electrical

DALI-2
220-240 V
system 10.2 W
fixture 8.7 W
36 Vf
250 mA
PC2
1 DALI Addr.

Physical

trimless for exposed concrete ceiling
length 230 mm
width 230 mm
height 162 mm
2.41 kg

Cutout

recessed depth 120 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10

B16

C10

C16

Number of Fixtures

^¹ incl. consideration of optical losses, internal control unit losses & operating device efficiency ^² incl. consideration of optical losses & internal control unit losses ^³ Value of containing product at full load (undimmed)

Specification text

Round recessed spotlight in die-cast aluminium; 1 lamp; surface matt silver; installation without tools in mounting set due to patented ball catch system; concrete housings for exposed concrete ceilings; for trimless installation; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; incl. high quality lens system; precise radiation characteristic with 55° beam; degree of protection from below IP44 (from above IP20); PC2; 220-240 V; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
