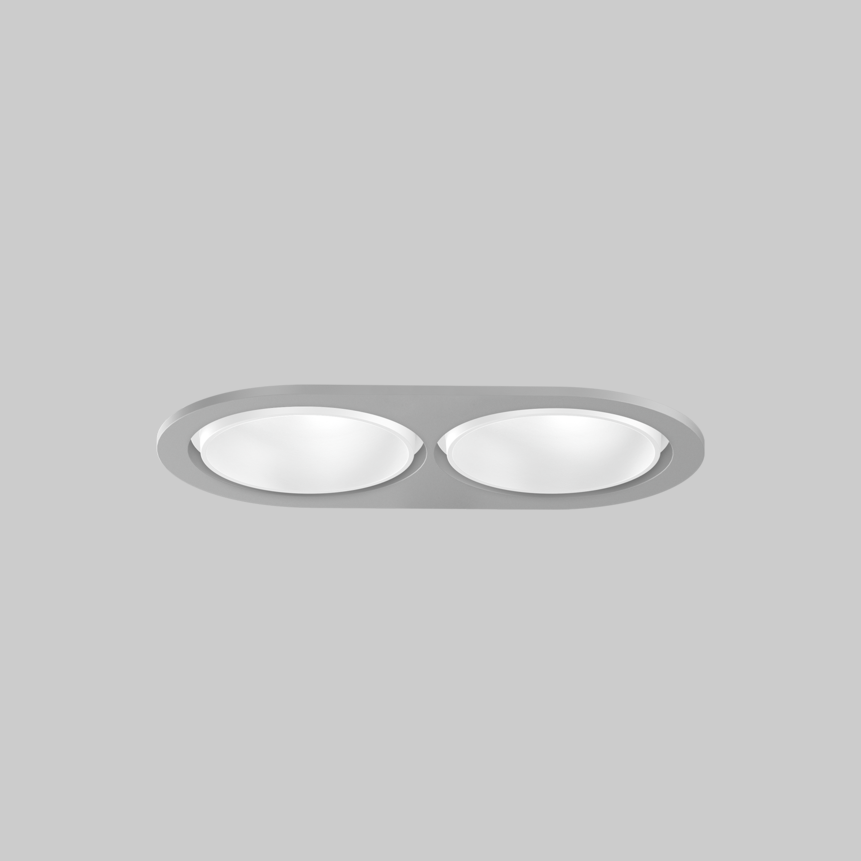

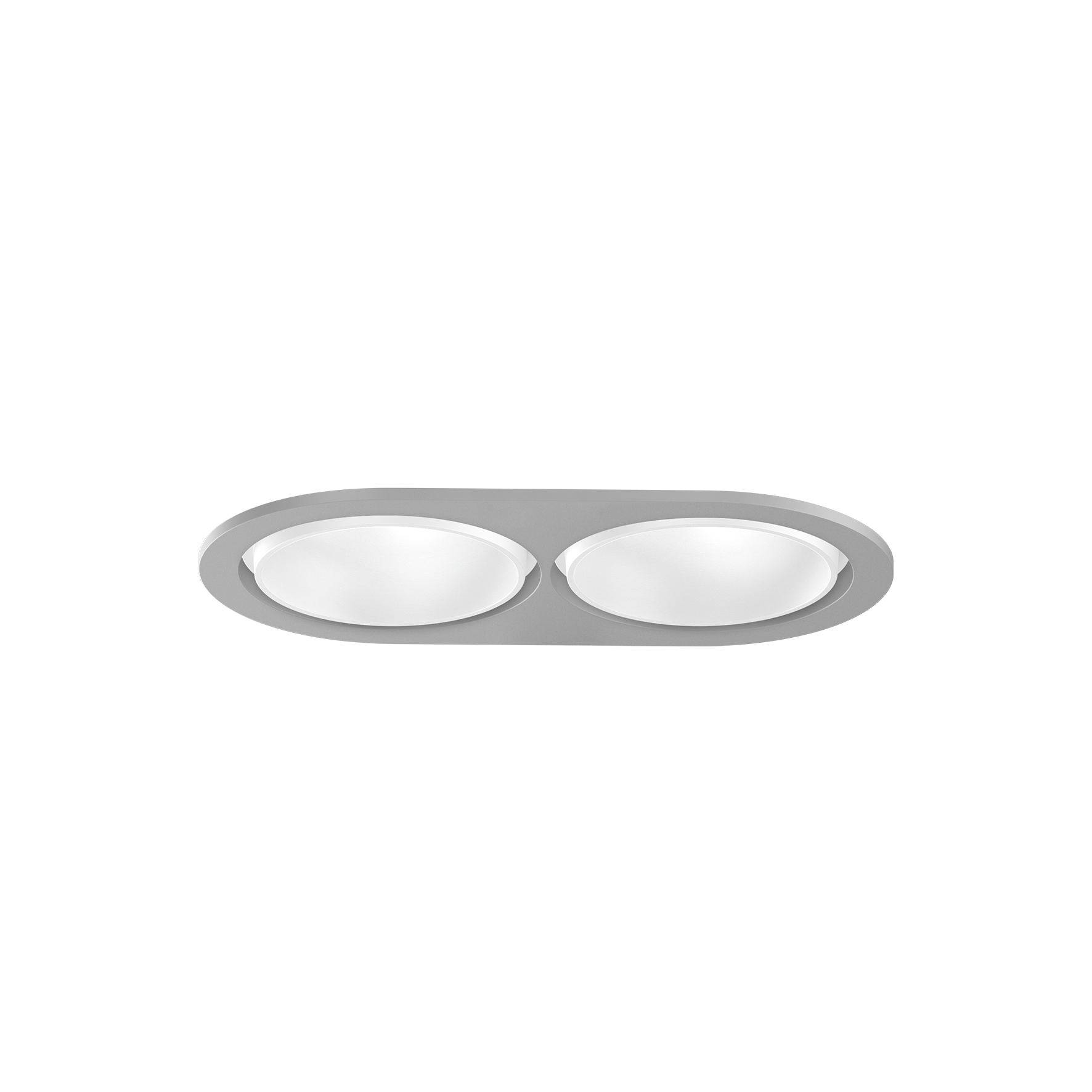

SASSO 60 round adjustable

trim 2 lamps

048-2622517W 048-269831G 002-90771

discontinued

Quickinfo

3000 K
CRI ≥ 90 / 2
/ 65° ≤ 3,000 cd/m²
L80 / 50000 h
non DIM
IP40, back IP20

Colour

white | RAL9016

Mounting set

silver-grey

Datasheet

Technical data

General

Ceiling
Recessed
tilt max 30°
rotation 360°
white
Mounting set silver-grey
RAL9016
front IP40
back IP20
2080 lm

LED

3000 K
CRI ≥ 90
L80 / 50000 h
initial MacAdam ≤ 2 SDCM
R_g: 100
R_f: 91
R_{1-15}: 88
MR 0.59
MDER 0.53

Optical

wide flood
beam angle 54°
≥65° <3000 cd/m²
$P_{st}^{LM}$ ≤ 1.0 ¹
SVM ≤ 0.4 ¹

Electrical

non DIM
25.2 W
inset 10.7 W
36 Vf
300 mA
total insets 21.4 W
PC2 220-240V
83 lm/W ²

Physical

trim
length 147 mm
width 80 mm
height 48 mm
0.28 kg

Cutout

diameter 70 mm
length 136 mm
min. ceiling thickness 2 mm
max. ceiling thickness 25 mm
recessed depth 90 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10

B13

B16

B20

C10

C13

C16

C20

Number of Fixtures

116

145

^¹ Value of containing product at full load (undimmed) ^² incl. consideration of optical losses, internal control unit losses & operating device efficiency

Specification text

Round recessed spotlight in die-cast aluminium; 2 lamps; surface white; 360° rotatable and 30° tiltable; installation without tools in mounting set due to patented ball catch system; oval installation housing; with trim silver-grey; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; incl. high quality lens system; precise radiation characteristic with 54° beam; degree of protection from below IP40 (from above IP20); PC2 220-240V; incl. converter, non dimmable; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
