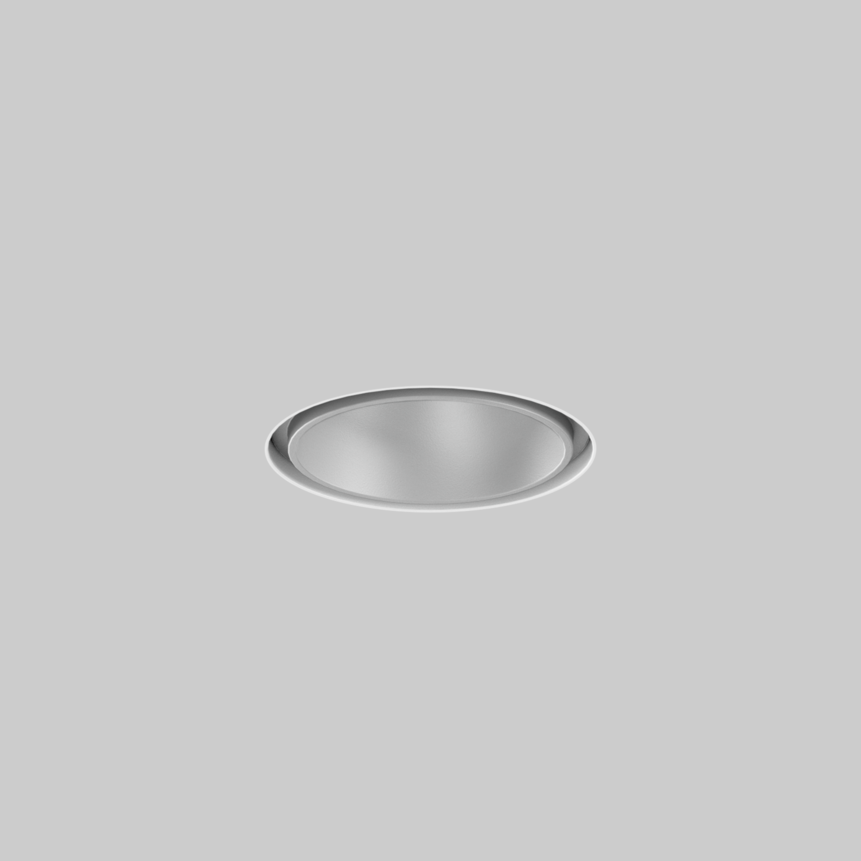

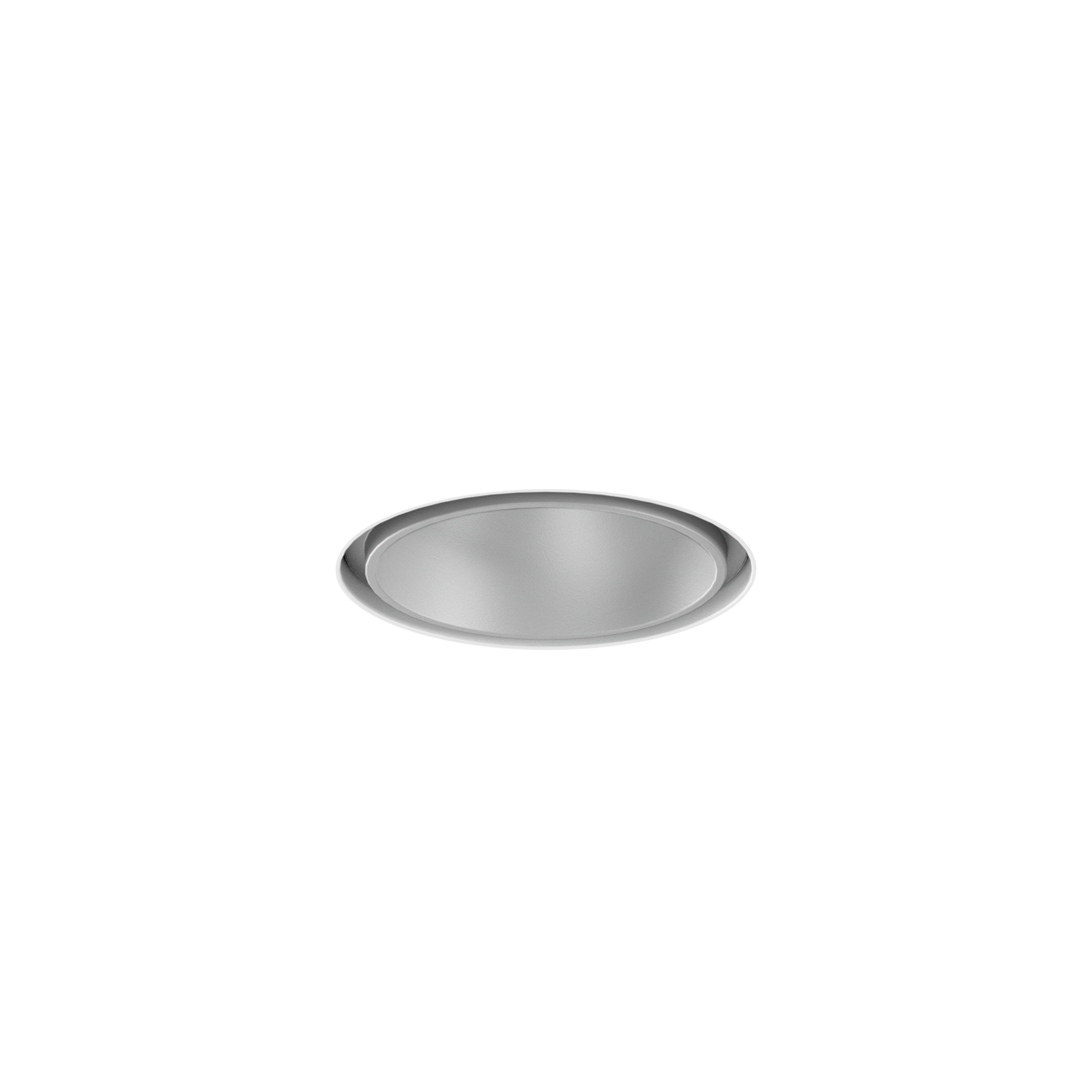

SASSO 40 round downlight trimless | Spotlights & Downlights

Technical data

General

Ceiling
Recessed
rotation 360°
matt silver
Mounting set traffic white
front IP44
back IP20
427 lm

LED

3000 K
CRI ≥ 90
L85 / 50000 h
initial MacAdam ≤ 3 SDCM
R_g: 100
R_f: 89
R_{1-15}: 89
MR 0.56
MDER 0.51

Optical

flood
beam angle 43°
UGR < 19
≥65° <3000 cd/m²
$P_{st}^{LM}$ ≤ 1.0 ¹
SVM ≤ 0.4 ¹

Electrical

non DIM
9.9 W
inset 7.5 W
36 Vf
200 mA
PC2 220-240V
43 lm/W ²
inset 57 lm/W ³

Physical

trimless
diameter 56 mm
height 50 mm
0.61 kg

Cutout

diameter 56 mm
recessed depth 60 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10

B13

B16

B20

C10

C13

C16

C20

Number of Fixtures

57

75

92

115

57

75

92

115

^¹ Value of containing product at full load (undimmed) ^² incl. consideration of optical losses, internal control unit losses & operating device efficiency ^³ incl. consideration of optical losses & internal control unit losses

Specification text

Round recessed spotlight in die-cast aluminium; surface matt silver; installation without tools in mounting set due to patented ball catch system; round installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 85% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; incl. high quality lens system; precise radiation characteristic with 43° beam; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; degree of protection from below IP44 (from above IP20); PC2 220-240V; incl. converter, non dimmable; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
