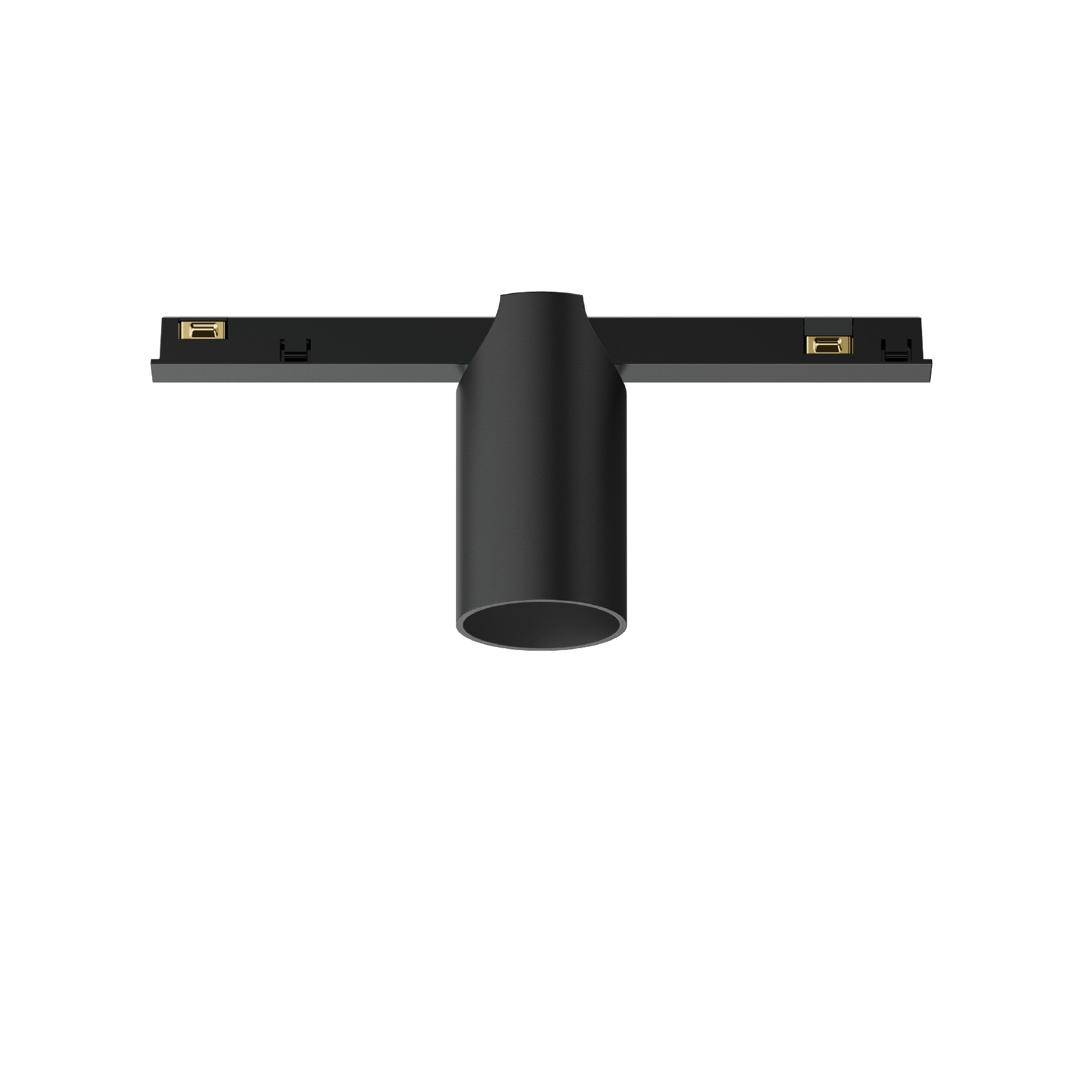

TARO 32 downlight MOVE IT 10 round

Technical data

General

Ceiling / Wall
Track
jet black
RAL 9005
IP20
793 lm

LED

3000 K
CRI ≥ 90
L80 / 50000 h
≤ 2 SDCM (initial MacAdam)
R_g: 99
R_f: 90
R_{1-15}: 87
MR 0.6
MDER 0.54

Optical

spot
beam angle 18°
$P_{st}^{LM}$ ≤ 1.0¹ ² ³ ⁴
SVM ≤ 0.4¹ ² ³ ⁴

Electrical

DALI-2
48 V
fixture 9.6 W
fixture 83 lm/W ⁵
PC3
1 DALI Addr.

Physical

diameter 32 mm
height 60 mm
0.08 kg

^¹ oval lens BO 32 007-1965860 ^² wallwasher lens BO 32 007-1965760 ^³ soft lens BO 32 007-1965960 ^⁴ Value of containing product at full load (undimmed) ^⁵ incl. consideration of optical losses, internal control unit losses & operating device efficiency

Specification text

Cylindrical spotlight in aluminium; surface jet black powder coated; light inset can be installed and moved without tools by means of clip mount; power supplied via MOVE IT system track profile; hot plug protection; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; good glare control through recessed light point level; precise radiation characteristic with 18° beam; no multiple shadows; optical attachment available as accessory; accessories are listed separately; degree of protection IP20; PC3; 48 V; DALI-2 control; flicker-free visual comfort through analogue current control (minimum value 1%); light source replaceable by an authorized professional;
