JUST 32 FOCUS MOVE IT 25 | Profile & system luminaires

Technical data

General

Ceiling / Wall
Track
tilt max 90°
rotation 360°
jet black
RAL 9005
IP20
332¹-411² lm
optical inset 80¹-99² lm/W ³

LED

3000 K
CRI ≥ 90
L80 / 50000 h
≤ 2 SDCM (initial MacAdam)
R_g: 99
R_f: 90
R_{1-15}: 87
MR 0.6
MDER 0.54

Optical

focus
beam angle 17°¹-43°²
$P_{st}^{LM}$ ≤ 1.0² ¹ ⁴
SVM ≤ 0.4² ¹ ⁴

Electrical

DALI-2
48 V
fixture 5.5 W
optical inset 4.2 W
PC3
1 DALI Addr.

Physical

diameter 32 mm
height 73 mm
0.2 kg

^¹ beam angle min ^² beam angle max ^³ incl. consideration of optical losses ^⁴ Value of containing product at full load (undimmed)

Specification text

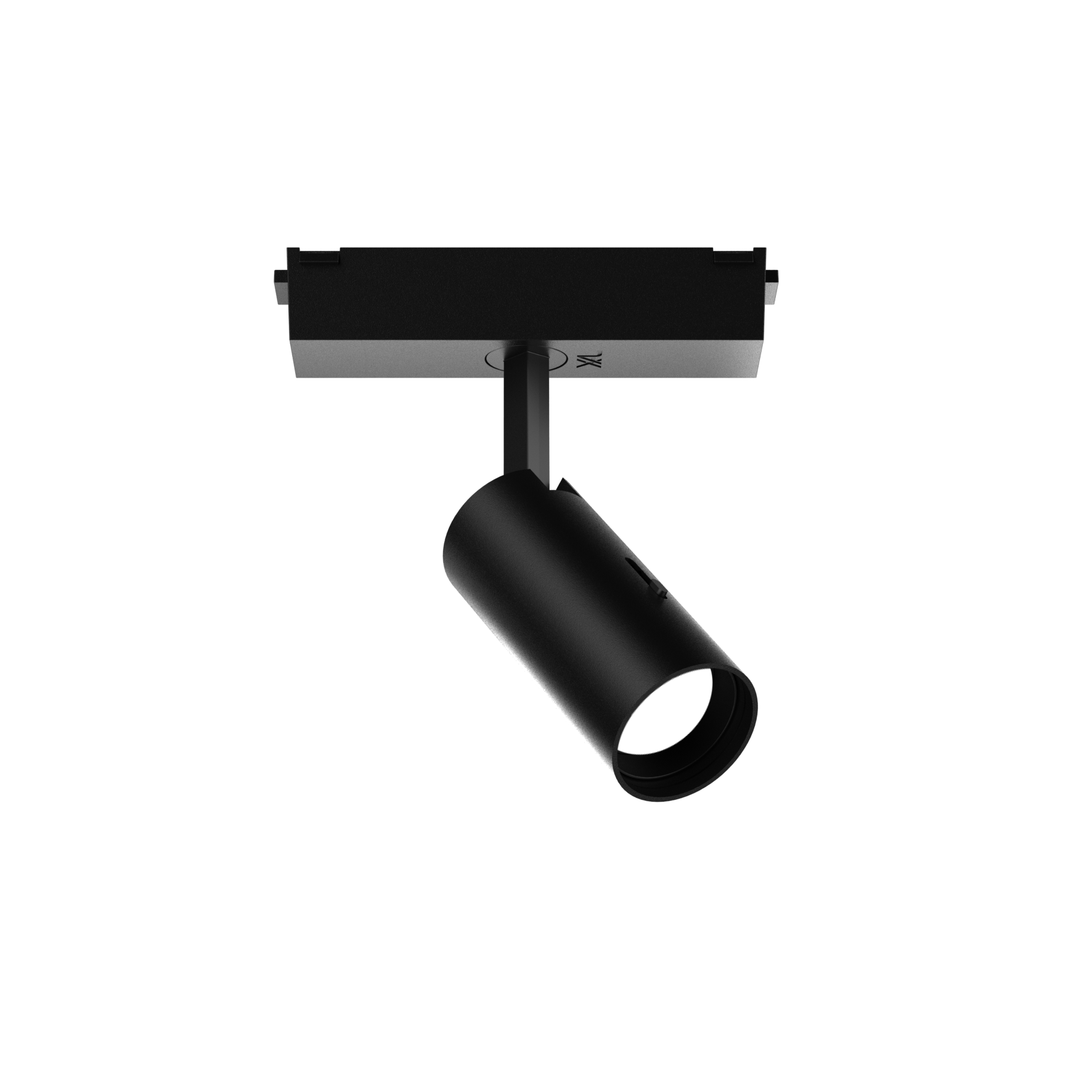

Cylindrical spotlight in aluminium; surface jet black powder coated; 360° rotatable and 90° tiltable; spotlight can be installed and moved without tools by means of magnetic holders+locking; power supplied via MOVE IT system track profile; hot plug protection; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; good glare control through recessed light point level; incl. high quality plano-convex glass lens; precise object focusing through adjustable lens; adjustable beam angle of 17° - 43°; focusing by means of patented slider on the spotlight head; degree of protection IP20; PC3; 48 V; DALI single control; flicker-free visual comfort through analogue current control (minimum value 1%); optical attachment available as accessory; accessories are listed separately; light source not replaceable;
