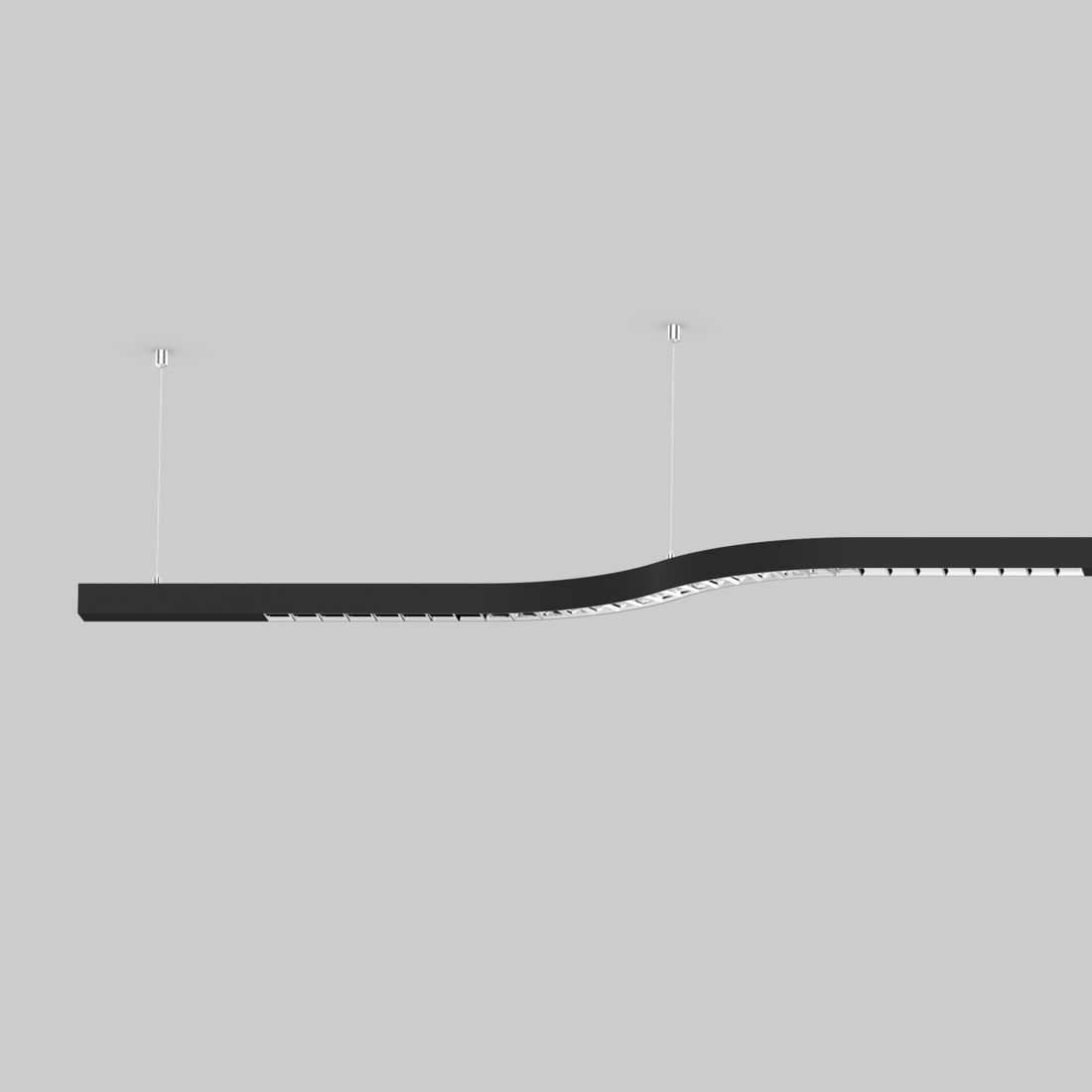

BETO s-line 225 R direct ceiling / suspended system

BETO s-line 225 R direct

ceiling / suspended system

074-7202638R

Quickinfo

4000 K
CRI ≥ 80 / 3 SDCM (initial MacAdam)
UGR ≤ 19 / 65° ≤ 1,500 cd/m²
160 lm/W
L90 / 50000 h
DALI-2
Reflector
IP20 / PC1 / 220-240 V

Colour

Reflector

General

  • Ceiling
  • Surface / Suspended
  • jet black
  • Reflector chrome
  • RAL 9005
  • IP20
  • 3610 lm

LED

  • 4000 K
  • CRI ≥ 80
  • L90 / 50000 h
  • ≤ 3 SDCM (initial MacAdam)
  • MR 0.72
  • MDER 0.65

Optical

  • Reflector
  • symmetric
  • UGR ≤ 19
  • PstLM ≤ 1.0 1
  • SVM ≤ 0.4 1
  • ≥65° <1500 cd/m²

Electrical

  • DALI-2
  • 220-240 V
  • system 22.6 W
  • system 160 lm/W 2
  • PC1
  • 1 DALI Addr.

Physical

  • length 1641 mm
  • width 265 mm
  • height 42 mm
  • centerline radius 400 mm
  • 6.7 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B13
B16
B20
C10
C13
C16
C20

Number of Fixtures

31
40
50
62
52
67
85
104
1 Value of containing product at full load (undimmed) 2 incl. consideration of optical losses, internal control unit losses & operating device efficiency

Luminaire housing made of extruded aluminium profile; extremely slim design (only 42 x 42 mm) S-shaped; converter integrated into luminaire housing; no visible screws; angular design; for lighting systems; surface jet black powder coated; for ceiling surface mounting or suspended mounting (1500 mm cable suspension as an accessory); with integrated toolless suspension height adjustment on the luminaire; spring clip attachment to the luminaire; extruded profile for improved thermal management; light colour 4000 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; high gloss reflector with faceted design; Reflector chrome; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 1500 cd/m²; degree of protection IP20; PC1; 220-240 V; internal wiring in light halogen free; incl. DALI-2 converter; accessories are listed separately; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;

Product data & specification documents

Datasheets

Planning files & lighting data

Download all

Accessories

Electrical cable

article number
type
control
dimensions
THROUGH WIRE
004-90005
5 × 1.5 mm² | 10 pieces
DALI-2
0.3 kg

Mounting

article number
type
dimensions
colour
cable length
CABLE SUSPENSION
005-2152110
width 46 mm
0.05 kg
chrome
CEILING FASTENER
050-2041217
length 67 mm
width 48 mm
height 8 mm
0.02 kg
traffic white
RAL 9016
CEILING FASTENER
050-2041218
length 67 mm
width 48 mm
height 8 mm
0.02 kg
jet black
RAL 9005
END CAPS
074-6090017
length 30 mm
width 42 mm
height 42 mm
0.03 kg
pure white
RAL 9010
END CAPS
074-6090018
length 30 mm
width 42 mm
height 42 mm
0.04 kg
jet black
RAL 9005
LINEAR CONNECTOR ceiling
074-6091110
mechanical
length 150 mm
width 28 mm
0.02 kg

Electrical components

article number
colour
type
dimensions
feeder cable length
CANOPY
005-2212417
pure white
RAL 9010
incl. feeder cable 5 × 1.5 mm²
length 90 mm
width 90 mm
height 22 mm
0.29 kg
1,500 mm
CANOPY
005-2212418
jet black
RAL 9005
incl. feeder cable 5 × 1.5 mm²
length 90 mm
width 90 mm
height 22 mm
0.29 kg
1,500 mm

Optical

article number
colour
dimensions
BLIND COVER
074-6099107
traffic white
RAL 9016
length 250 mm
width 38 mm
0.04 kg
BLIND COVER
074-6099108
jet black
RAL 9005
length 250 mm
width 38 mm
0.05 kg
BLIND COVER
074-6099117
traffic white
RAL 9016
length 500 mm
width 38 mm
0.1 kg
BLIND COVER
074-6099118
jet black
RAL 9005
length 500 mm
width 38 mm
0.08 kg
